DEVELOPMENT PROCESS AND EVALUATION

OF THE ONTOLOGY VISUALIZATION TOOL KNOOCKS

A Case Study

Simone Kriglstein

Faculty of Computer Science, University of Vienna, Vienna, Austria

unter Wallner

Institute of Art and Technology, University of Applied Arts Vienna, Vienna, Austria

Keywords:

Ontology visualization, OWL Lite, Knoocks , Usability evaluation, Comparison study.

Abstract:

Ontologies were becoming popular in various communities and disciplines over the past few years. The

reason for their popularity is that they allow to specify concepts and their interconnections of a domain which

are understandable by computers and by people. However without visualizations, ontologies - especially large

ones - would be hard to comprehend by users. Visualizations are essential because they make ontologies with

their structure more manageable. Furthermore, visualization tools are helpful to analyze the interconnections

between concepts. For an effective usage of such visualization tools, it is necessary that the design is easy

to understand, provides a good overview about the structure and allows fast access to detail information.

Furthermore, it is necessary to consider the domain for which the ontology is developed along with its users

and their needs. This paper presents the development process of Knoocks – a visualization tool for OWL

Lite ontologies – where users were already involved during the process to improve the usability of the tool.

Moreover, the presented case study underlines the importance of repeated usability evaluations during the

development process to identify weak points of the design and missing features which are relevant for the

intended users.

1 INTRODUCTION

Ontologies deﬁne concepts and relations which can

be used as a skeletal foundation to model and to repre-

sent knowledge of a domain (Fensel, 2001; Swartout

et al., 1997). OWL (W3C, 2010) is among the most

popular languages to describe ontologies. The com-

ponents of OWL ontologies are: classes, instances

and properties. Classes present the relevant concepts

and describe the abstract model of the domain. For

every class, instances present individual objects of

this class and properties represent relationships be-

tween instances (object properties) or they relate in-

stances to datatypes (datatype properties). Ontologies

make knowledge more accessible and therefore they

are becoming popular in various communities and

disciplines. The study of (Cardoso, 2007) shows that

the vast majority of the participants use ontologies to

share and to communicate information between peo-

ple or software agents. However, ontologies can con-

tain a large number of classes and instances. The re-

sults of the Cardoso’s survey also show that 44% of

the participants worked with ontologies which typi-

cally contained between 100 and 1000 classes.

To make ontologies more manageable and under-

standable for humans, different ontology visualiza-

tion tools were developed over the past few years

(see e.g., (Katifori et al., 2007; Lanzenberger et al.,

2009)). Visualizations allow users to see and ana-

lyze the structure and dependencies within ontolo-

gies in a transparent way or allow them to detect

new information which they were not aware of be-

fore (Saraiya et al., 2005). Furthermore, graphical

representations of ontologies can also be helpful to

support users in their decisions. For example, they

allow domain experts to control if the concepts and

their dependencies are correctly implemented and to

decide if modiﬁcations will be necessary. For an ef-

187

Kriglstein S. and Wallner G..

DEVELOPMENT PROCESS AND EVALUATION OF THE ONTOLOGY VISUALIZATION TOOL KNOOCKS - A Case Study.

DOI: 10.5220/0003324101870197

In Proceedings of the International Conference on Imaging Theory and Applications and International Conference on Information Visualization Theory

and Applications (IVAPP-2011), pages 187-197

ISBN: 978-989-8425-46-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

fective usage of such tools, it is necessary to consider

requirements which are relevant for ontology visu-

alization (e.g., (Kriglstein, 2009; Noy and McGuin-

ness, 2001)). For example, it is essential that the vi-

sualization allows users to efﬁciently compare sub-

classes and their instances with each other. In addi-

tion to these requirements, it is important to consider

potential users and the concepts of the domain dur-

ing the development process to make sure that the

visualization satisﬁes users’ needs, tasks and expec-

tations. Therefore, strategies of human computer in-

teraction (e.g., usability studies) were becoming more

and more popular for the evaluation of visualizations

over the past few years (Kulyk et al., 2006; North,

2006). The study of (Kriglstein, 2009) has shown that

the participants used many different ontology visual-

ization tools for their work. This may be due to the

wide variety of applications and forms of ontologies

which reﬂects that different users have different needs

and that different domain speciﬁc tasks exist. Further-

more, many of the existing tools focus either primar-

ily on the visualization of relationships and properties

between classes (e.g., OntoViz) or on the hierarchi-

cal structure (e.g., CropCircles) and instances (e.g.,

treemap view of Jambalaya). This restriction on cer-

tain elements of the ontology limits ontology experts

but on the other hand allows domain users to use such

tools for speciﬁcs tasks (as shown in Section 4).

Based on these observations we developed an on-

tology visualization tool – called Knoocks – to inte-

grate the information of classes, instances and prop-

erties in one single tool to allow users to analyze

OWL Lite ontologies more easily. For this purpose,

Knoocks provides an overview, which allows users

to observe relationships on the class level, to ana-

lyze classes with their subclasses and to see the dis-

tribution of instances within the ontology. In addi-

tion to the overview, Knoocks also contains a detail

view, which concentrates on the visualization of in-

stances in connection with their classes and proper-

ties. Many visualization tools also have a technical

interfaces which makes them only understandable for

ontology experts which have a lot of experience with

these tools (e.g., abbreviations for the drawing set-

tings in OntoViz). However, it is essential to ﬁnd out

what different user groups expect from the visualiza-

tion and in which context the visualization approach

can support them. Our intention was to develop an on-

tology visualization which is suitable for both groups:

ontology experts (users who develop and maintain the

ontology) and domain users (users who only want in-

formation about the concepts of their domain).

In this paper we present the development process

of Knoocks and its evaluation with focus on usability

as well as comparison studies with other visualiza-

tion tools. The remainder of this paper is structured

as follows. Section 2 gives a short overview of vi-

sualization approaches for ontologies and Section 3

presents the four iterations of the development pro-

cess of Knoocks. Section 4 presents the evaluation

as well as a discussion of the results. The paper is

concluded in Section 5.

2 RELATED WORK

A number of visualization tools for OWL ontolo-

gies were developed in the past few years. These

tools adapted well-known information visualization

techniques. For example, several of the existing vi-

sualization tools (e.g., TGVizTab (Alani, 2003) and

OntoViz (Sintek, 2010) which are both plug-ins for

Prot

e (Stanford Center for Biomedical Informat-

ics Research, 2010)) present subclass-of relationships

and object properties between concepts as node-link

visualizations. Node-link representations are an in-

tuitive way to make interconnections within the on-

tology transparent. However, if the graph contains a

large number of classes, instances and relationships, it

can happen that the graph becomes overcrowded and

therefore the analysis of the ontology is more difﬁcult.

In contrast to the node-link representation, container

approaches are often used if the focus of the ontology

visualization is on the instances and on the hierarchi-

cal structure. For example, CropCircles (Wang and

Parsia, 2006) visualizes subclasses as circles which

are nested inside the circle of their parent class. Sim-

ilar to the node-link representation, it is not easy for

the user to get a quick overview with a container ap-

proach if the ontology contains a large number of in-

stances or classes. A combination of node-link ap-

proaches and container approaches is another possi-

bility to visualize ontologies. For example, Jambal-

aya (Storey et al., 2010), which is also a plug-in for

Prot

e, provides different views with different visu-

alization techniques. In addition to views which rep-

resent the relationships between the concepts purely

as node-link representation, one view provides the

adapted treemap approach of (Shneiderman, 1992)

which allows users to rapidly jump between classes

or instances. Another view uses a nested graph to

visualize classes and their instances and a node-link

approach to display object properties.

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

188

3 DEVELOPMENT PROCESS

For the development of Knoocks we considered us-

ability and interface design aspects (International Or-

ganization for Standardization, 2006; Nielson, 1994;

Shneiderman, 1998) as well as speciﬁc ontology vi-

sualization requirements. These requirements – as

listed below – are based on a user requirement analy-

sis with ontology experts (Kriglstein, 2009) and liter-

ature studies (e.g., (Noy and McGuinness, 2001)).

Visibility of the Structure. The visualized structure

should support effective management of ontologies.

It should be possible to compare subtrees with each

other and to see the size and depth of each subtree.

The visualization should allow users to quickly scan

all information with minimal cognitive effort.

Visibility of Classes. Because classes describe the

concepts of the ontology, it is essential to get a good

overview of them and to understand the relations be-

tween the concepts. The visualization should unmis-

takably distinguish between different classes.

Visibility of Instances. Based on the fact that in-

stances represent data and therefore are often more

important to the end-user than the underlying con-

cept, the visualization should also consider in-

stances. It should obviously visualize which classes

contain which instances.

Visibility of Relationships. The visualization

should clearly show the deﬁned interconnections

between the classes and their instances. For good

differentiations between the relationships, it is

necessary to represent the different types in a

distinguishable way (e.g., every type has its own

color).

Our main objective in the design of Knoocks was

to improve the accessibility of instances and simulta-

neously allow users to grasp and analyze the struc-

ture and interconnections of OWL Lite ontologies.

We use a combination of a container approach for in-

stances to represent the hierarchical structure and a

node-link approach for object properties. Therefore,

the basic structure of Knoocks is similar to the Ici-

cle Plot concept (Kruskal and Landwehr, 1983) and is

inspired by container approaches to represent the in-

stances within their classes. The major advantage of

the Icicle Plot is that the clustering of objects is easily

noticeable (Kruskal and Landwehr, 1983). The study

of (Barlow and Neville, 2001) shows that the partic-

ipants’ performance with the Icicle Plot was equiva-

lent to the node-link representations. They stated that

the orientation (top-to-bottom or left-to-right) of the

Icicle Plot approach was familiar to them, because a

similar orientation is also used by common node-link

approaches. For the representation of instances, we

were also inspired by intended lists, because the list

representation is familiar to the user and allows quick

scanning of the elements without overlapping. For the

representation of non-hierarchical relationships (ob-

ject properties) we adopted node-link representations.

Although they need more space in general than other

approaches (e.g., treemap), they are a very intuitive

way to show the connections between two nodes. This

allows users to clearly differentiate between hierar-

chical and non-hierarchical relationships. In contrast

to existing ontology visualization approaches like, for

example, Jambalaya or TGVizTab which either focus

on a high-level view of the ontology or on details of

individual nodes, it was important for us to visual-

ize both views simultaneously. Although, Jambalaya

has the possibility to choose between different visu-

alizations only one visualization is visible at a time

and switching between them requires recalculations

which can be cumbersome if the ontology is large.

The development of the latest version of Knoocks

– as of this writing – required four iteration cycles.

The iteration cycles are inﬂuenced by the ﬁndings of

the evaluations that are described in more detail in

Section 4.

3.1 First Iteration Cycle

In the ﬁrst iteration cycle, we concentrated on the

design of the representation of subclass-of relation-

ships and instances (for details see (Kriglstein and

Motschnig-Pitrik, 2008)). A block (see Figure 1) is

the main entity in our approach. Such a block is con-

structed for each class which is directly connected to

OWL:Thing. It is basically a logical container that

groups classes, which are connected by subclass-of

relationships, in a hierarchical left to right manner. In

other words, a class c

placed to the right of another

class c

is a subclass of c

. The instances of a class

are listed within their class and thereby users see the

instances of every class directly without overlapping.

If an instance belongs to multiple classes (multiple in-

heritance) then the instance is listed in each respective

class. The size of a rectangle depends on the size of

its subclasses and the number of contained instances.

3.2 Second Iteration Cycle

After the basic block structure was well-received by

the users (see Section 4) we implemented the two

views – overview and detail view. Depending on

which of the two views is from more interest, the user

can select which one will be displayed in the main

window (cf. C in Figure 1) and which one will be

DEVELOPMENT PROCESS AND EVALUATION OF THE ONTOLOGY VISUALIZATION TOOL KNOOCKS - A

Case Study

189

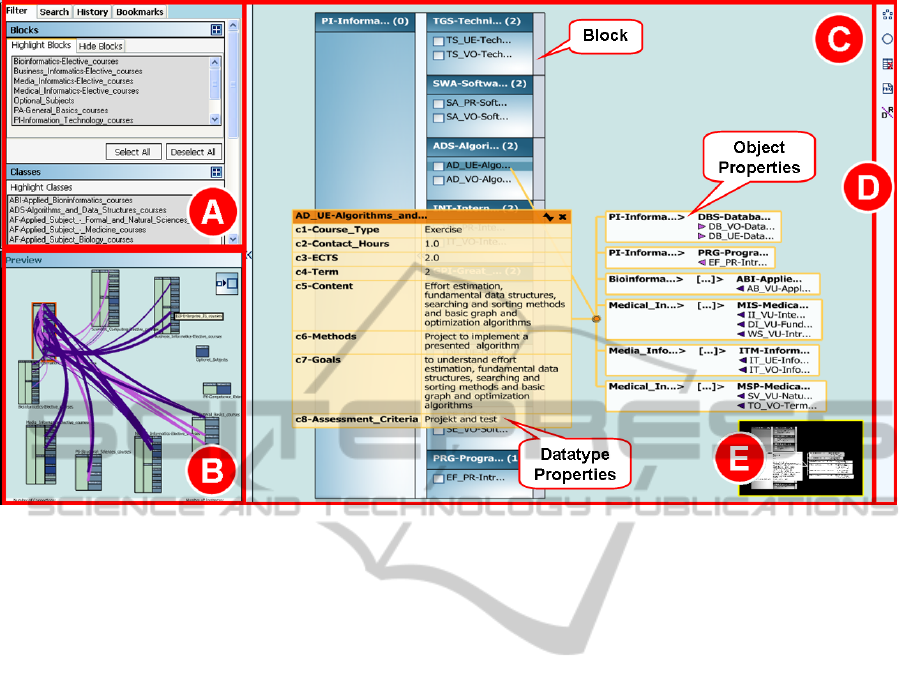

Figure 1: The fourth and current version: (A) toolbox which includes the search/ﬁlter, history and bookmark functions, (B)

preview window, (C) main window, (D) toolbar and (E) thumbnail.

shown in the preview window (B in Figure 1).

The overview (in Figure 1 currently located in the

preview window) shows all blocks arranged in a radial

pattern and is well suited to grasp the overall struc-

ture of the ontology. Colored curves depict the re-

lations (object properties) between instances. These

curves are actually meta-edges, because they bundle

relations according to common classes and property

type (reﬂected by the color of the curve) to avoid clut-

tering the view with a lot of individual curves. The

thickness of the curve corresponds to the number of

contained relations. If the mouse moves over a line,

a relation table with all connected instances appears.

To get a better view, it is possible to select which re-

lationship types are visible and which are not.

After clicking on a block in the overview, its detail

view is presented in the other window and only rela-

tionships, which are relevant for this block, are visi-

ble. The detail view only shows one block at a time

and therefore can be used to closely examine the indi-

vidual instances with their associated properties. The

detail view shows the instances of every class. Click-

ing on an instance opens separate tables for datatype

properties and object properties (which can also be

seen in Figure 1). The object property table allows to

directly jump to a connected instance, which means

that the detail view is automatically focused on the re-

spective instance. The direction of the relationship is

presented as arrow symbol and the color of the sym-

bols reﬂects the type of the relationship. A thumb-

nail (see E in Figure 1) of the block in the lower-right

corner helps to see the structure of the whole block

and allows to navigate quickly within the detail view.

The length of texts is restricted to a certain number

of characters, otherwise the text is truncated with ”...”

and tooltips show the full text. Of course, users can

switch the views between the large and the small win-

dow to enlarge the view, which is of more interest.

Furthermore, the impression of hierarchy – one

of the elementary concerns by users – was improved

by adding arrows between subclasses. These arrows

also allow to expand and collapse the underlying sub-

classes which further improved the understanding of

the left-to-right hierarchy.

3.3 Third Iteration Cycle

Based on the results of the user study of the second

version we included several modiﬁcations. For ex-

ample, double-clicking on a block will now automat-

ically open the detail view of this block in the main

window. Formerly, this was only possible with a spe-

ciﬁc switch button located in the upper-right corner

of the small window. The intensity of the color of a

class in the overview reﬂects the number of contained

instances. Another modiﬁcation is that the relation

table can also be pinned down after the user clicks

on the associated curve in the overview. The color

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

190

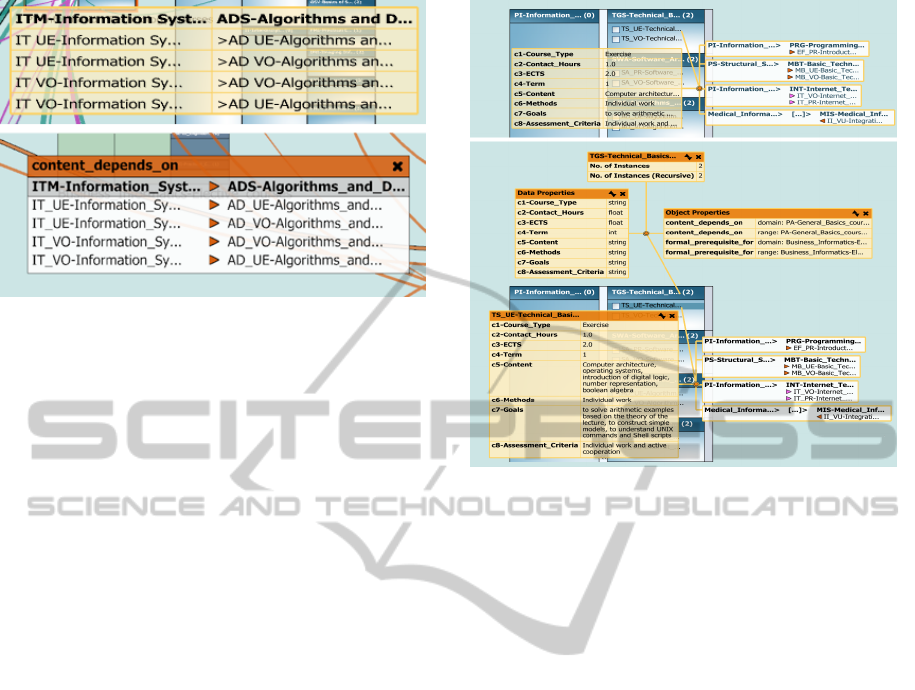

Figure 2: Comparison between the object property table

from the second version (top) and the redesigned table from

the fourth version (below).

of the relation table header and of the arrows corre-

sponds now to the color of the object property (Figure

2 shows the modiﬁcations in detail). Each table was

extended with a close button (one of the major confu-

sions in the second version). Furthermore, blocks in

the overview can also be individually arranged by the

user in case they are not satisﬁed with the automatic

circular alignment.

Additionally, we extended the prototype with his-

tory, bookmarks, search and ﬁlter functions (see A

in Figure 1) as well as a setting window which al-

lows, for example, to set the maximum text length.

The history function records every jump from one in-

stance/class to another instance/class and allows users

to track their progression through the ontology. Fur-

thermore, bookmarks allow users to select instances

that are of interest and to jump back to them at any-

time. Additionally to the object property ﬁlter, user

can also highlight blocks and classes to quickly lo-

cate them or they can be hidden if they are not from

special interest. Furthermore, a new search function

allows users to ﬁnd speciﬁc instances or classes of the

ontology. For a thorough description of the third ver-

sion see also (Kriglstein and Wallner, 2010).

3.4 Fourth Iteration Cycle

In the last iteration cycle, we extended Knoocks with

additional features for better user support which will

be discussed in detail in the following. One of the

main concerns in the evaluation of the third prototype,

in regard to the datatype property table was that the

table does not list the internal datatype (e.g., integer

or string) of a property. This issue has not been ad-

dressed by domain users so far but we agree that this

is an important information for ontology developers

and they can now be accessed via tooltips if the mouse

Figure 3: Comparison between the previous version

(above), where text entries were truncated if they exceeded

a certain length and the current version (below) which now

shows the complete entries. Note also the new header of the

property table which now shows the name of the instance or

class it belongs to and buttons to collapse and to close the

table. To enhance readability the opacity of the tables has

been reduced. The lower image also shows the new class

information tables which were not available in the previous

version.

is placed over the name of the property. The ontol-

ogy developers also complained that it is not possi-

ble to retrieve general information of a class, in par-

ticular information about contained datatype and ob-

ject properties. This information is now accessible by

clicking on the class name itself which did not have an

effect previously. Furthermore, the internal datatypes

for each datatype property are shown. This way it

is now possible to inspect all datatype properties as-

signed to a class, because previously only datatype

properties which really had a value assigned were vis-

ible in the datatype property table of the instance.

In the previous version long texts were truncated

in tables and the complete text was only shown in a

tooltip if the mouse was placed over such an entry.

Whereas our intention was to avoid that a single table

occupies too much space this proved to be inapplica-

ble in same cases, especially if all values of a property

start with a certain substring. Users were therefore

not able to differentiate the values without accessing

the tooltip and therefore had a hard time to remember

which property has which value. The revised version

gives the user the possibility to expand or collapse the

tables to review the complete text or to minimize it

DEVELOPMENT PROCESS AND EVALUATION OF THE ONTOLOGY VISUALIZATION TOOL KNOOCKS - A

Case Study

191

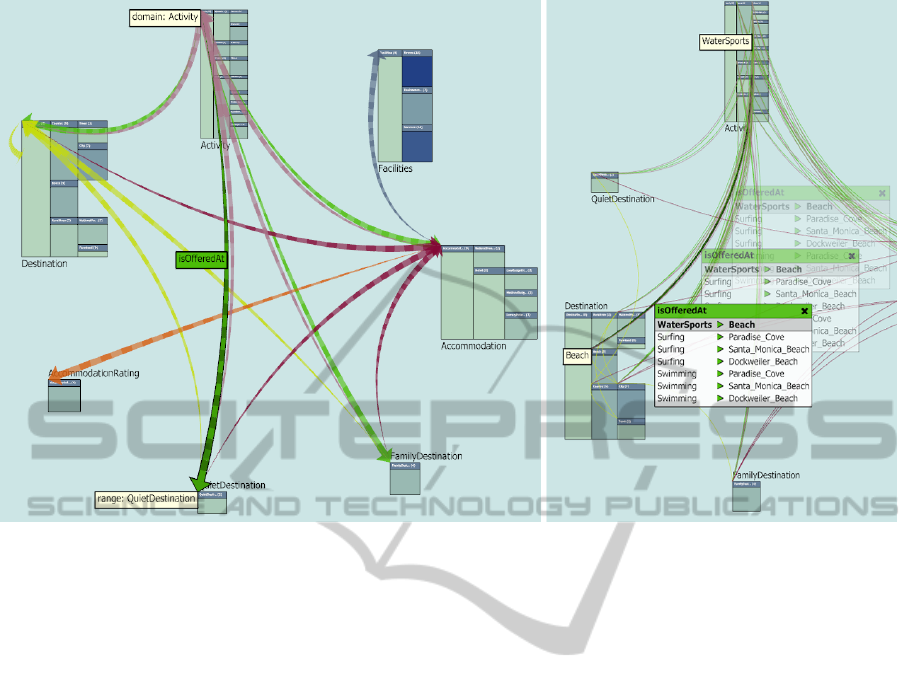

Figure 4: Left: Domain/range relationships are visualized as curved arrows which point from the domain to the range. The

direction is further accentuated by varying the width of the curve from thin (domain) to thick (range). As it is the case with

object properties curves (right image), the color reﬂects the property type. Hovering the mouse over such a curve shows the

name of the property, the domain and the range. Right: Clicking on a curve opens a table which shows all relations between

instances of the two connected classes. As schematically shown these tables can be moved along the curve.

(see Figure 3 for a comparison). As can be seen in

Figure 3, the new table also displays the name of the

instance to which the table belongs and, next to it, a

close button. These changes were introduced because,

if multiple tables were open, users lost track which ta-

bles belonged to which entity.

In regard to the overview some minor changes

have been introduced. Relation tables can now be

moved along a curve which allows users to avoid

overlapping to a certain degree and simultaneously

ensures that the connection between curve and table

does not get broken (see Figure 4, right). These ta-

bles can now also be closed by clicking on the re-

spective curve to provide consistency with the possi-

bilities how tables can be closed in the detail view.

Furthermore, a button to restore the radial layout has

been added to the vertical menu bar. The previous

version had a major drawback, because connections

between classes were only shown if there existed at

least one object property which connected two of their

instances. There was no possibility to view the un-

derlying domain/range constraints of the classes. To

resolve the problem, another level of abstraction was

added to the overview, which shows the domain/range

relations as curved arrows (see Figure 4, left).

Another major distinction to the previous version

is a context sensitive menu which can be opened in

the main window with the right mouse button. This

menu makes it, for example, possible to highlight or

hide blocks or classes directly in the view and there-

fore allows users to perform some tasks more ﬂuently

because they do not have to switch their attention be-

tween the toolbox and the visualization.

Although users were already satisﬁed with the

available search possibilities, they had some sugges-

tions for improving the way the search results are pre-

sented. So far, search results were displayed in a list-

box with classes written in boldface to easily differen-

tiate them from instances. Clicking on a search result

automatically centered the detail view on the respec-

tive entity in question and highlighted it with a yellow

border. However, if the entity was located in a hid-

den block nothing was shown in the detail view which

led to confusion among users. We now indicate enti-

ties located in hidden blocks to remedy the problem.

In addition, entities in highlighted blocks or classes

are colored to signalize that they may be from greater

signiﬁcance to the user. Furthermore, we reﬁned the

navigation of the tool by supporting keyboard short-

cuts for important functions, like search and for the

new screenshot function. Navigation in the detail

view is now also possible by dragging the mouse (and

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

192

with the arrow keys), because we observed that most

users tried at ﬁrst to navigate this way instead with

the thumbnail view in the lower right corner. Finally,

the colors of the object properties are now deﬁnable

by the user, because this way they can accentuate spe-

ciﬁc properties by assigning appropriate colors.

4 EVALUATION

The main motivation to conduct user tests was to ﬁnd

out more about the usability of the developed proto-

type in each iteration cycle to make sure that the de-

velopment goes into the right direction and to com-

pare Knoocks with other visualization tools. The

evaluation of the ﬁrst prototype in the early develop-

ment phase of Knoocks served as an initial test in-

strument to ﬁnd out the advantages and drawbacks

of the representation of the hierarchical structure and

their instances in comparison with other visualiza-

tions techniques. The focus of the user tests of the

later prototypes was to detect usability problems and

to compare Knoocks with other visualization tools.

Furthermore, results of the evaluation were analyzed

to ﬁnd out which functionalities need further im-

provements and to check if users missed important

features.

4.1 Methods

For the evaluation, a combination of the following

methods was used: task scenarios, observations in

combination with thinking aloud, questionnaires and

semi-structured interviews.

To test the efﬁciency of Knoocks and to compare

it with other tools, users had to solve several tasks

which were based on scenarios. The focus of one set

of tasks was the identiﬁcation of speciﬁc instances

and their datatype properties. Another set of tasks

concentrated mainly on the dependencies between in-

stances and between classes. To evaluate the structure

of blocks, we asked them to identify, which blocks

have the most/least classes or which classes contain

the most instances. Although certain core tasks stayed

the same for each prototype (e.g., which instances

has a certain class, ﬁnd a speciﬁc instance) additional

tasks were introduced in each iteration because of the

increasing number of features (e.g., ﬁnd a speciﬁc in-

stance with a certain datatype property). Users had as

much time as they needed to solve the tasks with each

tool. While users solved the tasks, they were observed

and encouraged to think aloud to make their behavior

and decisions more transparent.

In addition to the observation of the subjects and

thinking aloud protocols, they were also asked to state

how helpful the visualization was for executing each

task. For this purpose, we applied a 7-point Likert

scale (Likert, 1932) from ”not helpful” to ”very help-

ful”. Furthermore, subjects were asked to explain

their decisions and to give suggestions for possible

improvements. After the subjects had ﬁnished their

tasks, they rated the design of the graphical represen-

tation (e.g., bad or good color combination) and they

were asked about the strengths and weaknesses of the

visualization.

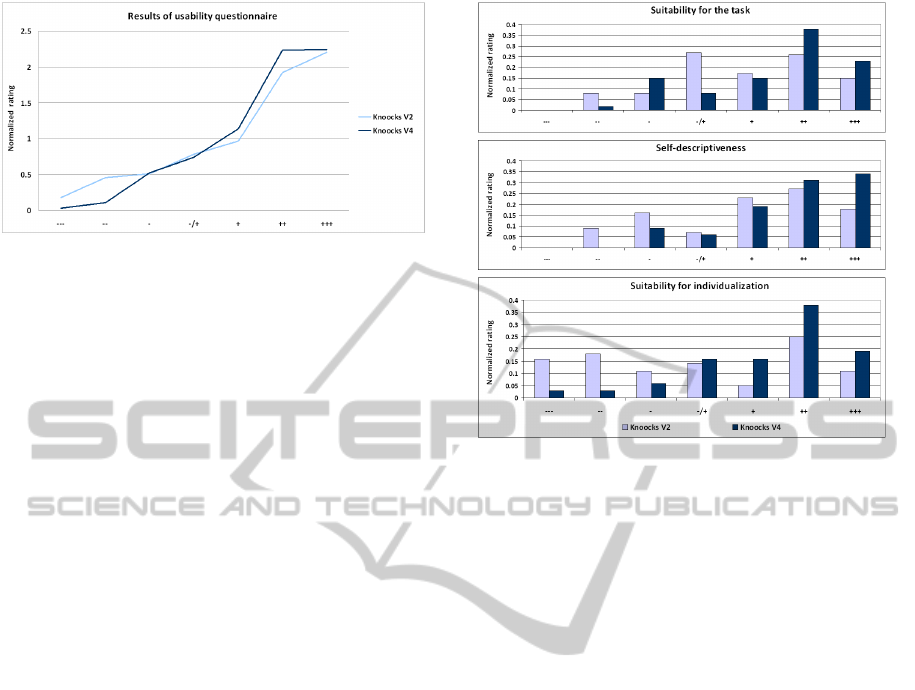

For the evaluation of the second and fourth proto-

type, we additionally adapted the usability question-

naire, as deﬁned by (Pr

umper, 1999). The usabil-

ity questionnaire was originally developed to evaluate

software prototypes in regard to the seven dialog prin-

ciples of ISONORM 9241/110 (International Organi-

zation for Standardization, 2006): suitability for the

tasks, self-descriptiveness, controllability, conformity

with user expectations, error tolerance, suitability for

individualization and suitability for learning. In gen-

eral, the questionnaire includes ﬁve items for each of

the seven principles and has a 7-point bi-polar format

from ”- - -” (very negative) to ”+++” (very positive).

Not all items are relevant or meaningful for the vi-

sualization and therefore we only used items, which

reﬂect the scope of the visualization.

The motivation to compare Knoocks with other

visualization tools was to detect advantages as well

as drawbacks between the tools. Furthermore, it was

interesting to analyze how well the users interacted

with the different visualization approaches. For the

comparison studies, we have chosen the following vi-

sualization approaches: CropCircles, TGVizTab, On-

toViz and the nested graph view of Jambalaya. Crop-

Circles is a container approach, which represents the

subclass-of relationships between classes as nested

circles. Our motivation to compare Knoocks with

CropCircles was the different representation of the hi-

erarchical structure of the classes. In contrast to Crop-

Circles, TGVizTab and OntoViz visualize the struc-

ture of ontologies as node-link representation. Both

approaches represent classes and instances as nodes

and subclass-of relationships and the object properties

as edges. The reason to compare Knoocks with Jam-

balaya was their similarity, because the nested graph

view of Jambalaya presents the hierarchical structure

with its instances as container approach and the object

properties as node-link representation. To make the

results comparable, the subjects solved similar tasks

for each tool. Additionally, the order of tasks and

tools was changed for each testing session to avoid

that a speciﬁc order inﬂuences the results.

Before the participants started with the tasks, they

DEVELOPMENT PROCESS AND EVALUATION OF THE ONTOLOGY VISUALIZATION TOOL KNOOCKS - A

Case Study

193

got a short introduction to the most important func-

tionalities of the tools. After the subjects had ﬁn-

ished their tests, we asked them which visualization

they preferred in regard to their expectations and user

friendliness (speciﬁcally, which tool was most help-

ful, which one was the most understandable tool and

which tool met their expectations best).

4.2 Sample

For the evaluations we used an ontology that deﬁnes

a bachelor of computer science curriculum which in-

cludes 86 classes, 122 instances, 2 object properties

and 8 datatype properties. We used such a kind of on-

tology because we were able to get a large number of

participants in that particular domain. Contrary, it was

very hard to get participants in other domains, espe-

cially experts (e.g., in medicine). Furthermore, it sup-

ported the ongoing efforts at our university to make

the curriculum structure more transparent for students

and lecturers.

Motivated to evaluate the fundamental idea and to

detect misinterpretations or unclear elements of the

visualization, we tested Knoocks with potential users

of the domain and with ontology developers. In each

iteration cycle we used different subjects to make sure

that previous experiences with Knoocks do not inﬂu-

ence the results.

First Iteration Cycle. The ﬁndings of the ﬁrst eval-

uation are based on six students and the testing ses-

sions for each participant took about 40 minutes. For

the comparison study in the ﬁrst iteration cycle, the

participants solved similar tasks with CropCircles

and the nested graph view of Jambalaya.

Second Iteration Cycle. The results of the second

evaluation are based on 22 participants (15 students

and 7 lecturers). The testing sessions for each par-

ticipant took about 90 minutes.

Third Iteration Cycle. Three ontology developers

evaluated the prototype in regard to usability and

functionality. Although this is a rather small num-

ber of participants, we received valuable qualitative

feedback and the testing sessions for each partici-

pant took about 180 minutes. For the comparison

study, we chose TGVizTab and the nested graph

view of Jambalaya.

Fourth Iteration Cycle. The prototype were evalu-

ated by 16 subjects (9 students and 7 lecturers) and

the testing sessions for each participant took about

120 minutes which include also the comparisons

with Jambalaya and OntoViz.

4.3 Results

In general, the ﬁndings of the observation and think-

ing aloud protocols showed that the concepts of

Knoocks and especially the hierarchical layout of

the blocks was clear and immediately understand-

able. Furthermore, they rated the color combination

as good and found the design well-balanced. The fol-

lowing strengths of Knoocks were named most fre-

quently during the user tests:

Clear Overview and Detail View. The layout of

blocks allowed to quickly see the subclasses and

the instances of classes. Furthermore, the switching

between the overview and the detail view, the

circular arrangement of blocks in the overview and

the visibility of both views at the same time were

named as helpful to get a good overview about the

ontology.

Easy to Learn and Understand. The participants

found Knoocks and its functionalities intuitive, easy

to learn and to memorize.

Clear Structure and Relationship Views. The rep-

resentations of object properties in the overview was

clear and gave a fast impression of the relationships

of the ontology. The visualization of properties of

an instance in the detail view gave them a clear

overview about the dependencies between the in-

stances.

Additional Support for Analysis. The different ﬁl-

ter and search possibilities, as introduced in version

three, were mentioned as very helpful, e.g., to ﬁnd

speciﬁc instances or classes or to set the users’ fo-

cus on speciﬁc blocks or object properties. The vi-

sual coding was named as a further strength, e.g.,

the color coding to present the number of instances

or the thickness coding to visualize the number of

connections between classes.

These strengths conform with the expectations

of almost all participants which they have in re-

gard to ontology visualization tools and are also in

accordance with the revealed user expectations in

(Kriglstein, 2009).

The following sections discuss the ﬁndings of the

usability study and comparison study between the

three tools in detail.

4.3.1 Usability Evaluation

Although the results of the user tests showed that the

subjects rated Knoocks in each stage predominantly

positive, the modiﬁcations, which were based on the

detected usability problems, were the reasons for no-

ticeable improvements in Knoocks’ usability in each

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

194

Figure 5: Normalized results of the rating of the seven di-

alog principles from ”- - -” (very negative) to ”+++” (very

positive) for the second and fourth prototype.

stage. The ﬁndings which are listed below are not ex-

haustive but were the most relevant ones for the fur-

ther development process.

First Iteration Cycle. The elementary problem was

that the direction of the hierarchy was ambiguous.

However, the block structure allowed them to get a

quick overview and to locate instances without prob-

lems.

Second Iteration Cycle. During the second evalua-

tion we observed that users tried to double-click on

a block to enlarge it. This maybe the case, because

the icon of the switch-button was not clear enough

for many participants. However, they appreciated

the possibility to choose which view is shown in the

main window. It was intuitive for them, to click on

an instance to retrieve detail information (object and

datatype properties). Though, most of the users had

problems to close the details again, because there

was no explicit close button. Most of them found the

truncated texts annoying, especially if multiple in-

stances began with the same letters as it was the case

in our test ontology. The representation of properties

was well received by the participants, because it al-

lowed them to compare different instances in regard

to their properties. This was further supported by the

possibility to drag and drop these tables. One of the

most missed features was a search function, because

they stated that currently the tool is nice for brows-

ing but is not suitable for ﬁnding a speciﬁc instance.

As further improvement, they stated they would like

to be able to also move/highlight/hide blocks in the

overview.

Third Iteration Cycle. The changes were well re-

ceived by the users. However, ontology experts

complained that information about the internal types

(integer, string, etc.) of datatype properties is miss-

ing. They also missed general information about

a class, like the number of contained instances or

which object properties are supported by this class.

Figure 6: Normalized values of the rating of three dialog

principles for the second and fourth version.

The search results were partly confusing because the

list representation made no difference between hid-

den, highlighted or normal blocks.

Fourth Iteration Cycle. Although the node-link

representation of object properties and that the

thickness of their curves reﬂects the number of

connections was clear, several subjects stated that

the thickness alone is insufﬁcient with increasing

number of represented relationships. Therefore

they would prefer to additionally see the number of

connections as label for each curve. Furthermore,

they found that the color coding of classes to show

the number of instances is a good way to quickly get

an overview of the distribution of instances within

the ontology. The possibility to jump between

instances and their highlighting was noted as very

helpful. However, more than half of the subjects

missed the highlighting of instances or classes in

the detail view, because the time, which showed

the highlighting, was too short or the instance in

question was occluded by open properties. All

participants found the search function very helpful,

especially because it allowed them to ﬁnd instances

or classes which conform to a speciﬁc datatype

property (e.g., to ﬁnd all courses which were held in

the third term).

The improvement of the usability was further un-

derlined by the results of the usability questionnaire,

as can be seen in Figure 5. A closer look at the differ-

ent dialog principles shows that the participants rated

the fourth prototype better than the second, especially

DEVELOPMENT PROCESS AND EVALUATION OF THE ONTOLOGY VISUALIZATION TOOL KNOOCKS - A

Case Study

195

in regard to the following three principles (see also

Figure 6 for details):

Suitability for the Task. Reasons for the better rat-

ing are the new ﬁlter and search function. Moreover,

the handling of the fourth version was rated as eas-

ier, because of the additional support of keyboard

shortcuts, the modiﬁcations of the property repre-

sentations and the context sensitive menu.

Self-descriptiveness. Relevant improvements,

amongst others, are that the complete text in the

datatype property tables is now visible at ﬁrst

glance, that the name of the instance along with a

close button is presented in the property table and

that a double click on a block automatically opens

the detail view in the main window.

Suitability for Individualization. The possibility to

move blocks and relation tables individually, to cus-

tomize colors for object properties and to set the

maximum label length are reasons for the better rat-

ing of the fourth version.

4.3.2 Comparison Study

For the comparison studies different kind of tasks had

to be solved by the participants. This would include

tasks like: ﬁnd a speciﬁc instance, identify dependen-

cies of an instance, ﬁnd out which instances belong

to a certain class or identify to which class a speciﬁc

subclass belongs to. Table 1 summarizes which Tools

have been used for the comparison in which iteration

of the development process.

The comparison studies showed that most subjects

found that Knoocks was easy to learn and provided

a better general overview about the ontology and its

object properties than the other tested tools. For ex-

ample, the hierarchical representation of the classes

as nested circles in CropCircles was for the subjects

hard to understand in the beginning and the perfor-

mance to ﬁnd a speciﬁc class was lower as with Jam-

balaya or Knoocks. Although the participants liked

the design of Jambalaya, it was rather difﬁcult for

them to get a general overview and to ﬁnd speciﬁc

classes or instances in case of the nested graph lay-

out. Reasons were that the labels of the instances

and classes overlapped and the zooming function was

rated as difﬁcult to handle. However, zooming was

necessary to compare different subclasses from differ-

ent levels. Furthermore, the subjects found it harder to

distinguish between hierarchical and non-hierarchical

relationships in TGVizTab, because of missing visual

differentiations. The missing visual differentiations

between non-hierarchical relationships were also the

reason why the subjects had problems to distinguish

Table 1: Tools which have been used for the comparison of

Knoocks at the different stages of development. In iteration

2 no comparison study was carried because the evaluation

concentrated mainly on usability issues.

Iteration CropCircles Jambalaya OntoViz TGVizTab

1 × ×

3 × ×

4 × ×

the different object property types in OntoViz. Fur-

thermore, they found it hard to memorize the abbrevi-

ations for the drawing settings in OntoViz.

In summary, the comparison studies showed that

tools with a rather technical interface (OntoViz and

TGVizTab) had been rated lower than the ones with a

more accessible interface (Jambalaya and Knoocks).

This was also conﬁrmed by the ranking of the tools

in regard to user friendliness and expectations which

yielded the following results the last iteration circle.

79% ranked Knoocks on the ﬁrst place, whereas 18%

ranked Jambalaya on the ﬁrst place. However, 78%

voted Jambalaya on the second place followed by

Knoocks with 11%. OntoViz on the other hand was

ranked on the third place by 95% of all participants.

5 CONCLUSIONS

Visualizations support users to generate knowledge

about the presented data and make the ontology more

understandable and manageable. To make the work

with ontologies more effective, the needs of users

play an essential role for the design of the visualiza-

tion. Usability evaluations of visualizations help to

get feedback what works well and what needs further

improvements. However, only one usability test at

the end of the development process is often not suf-

ﬁcient. The involvement of potential users during the

development process allowed us to integrate feedback

immediately which was very valuable to keep the de-

velopment on the right track.

This paper presented the development process of

the ontology visualization tool called Knoocks and

its evaluation with focus on usability and comparison

studies with other visualization tools. Knoocks allows

users to analyze the structure of classes with their in-

stances and properties in one single tool. The tool is

primarily developed for users who want information

about concepts of their domain as well as for users

who develop and maintain the ontology. The case

study demonstrated that modiﬁcations based on the

results of the user tests for each iteration cycle of the

development process had a positive impact on the us-

ability. This signiﬁcantly simpliﬁed working with the

visualization tool. The comparison between Knoocks

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

196

with CropCircles, OntoViz, Jambalaya and TGVizTab

showed that the handling of OntoViz caused most

problems. Although, participants liked the nested

graph view in Jambalaya, most of them preferred the

layout of Knoocks. Reasons were that Jambalaya

only visualizes one set of subclasses or instances for

a class in more detail and that the visualization eas-

ily overcrowds with an increasing number of object

properties. One participant also explicitly noted that

the handling and functionalities of Jambalaya seemed

more complex than the handling and functionalities of

Knoocks. The results of the comparative study with

these tools emphasize the signiﬁcance of the usability

in regard to the handling and rating of the tools.

One of our next steps is to verify how the re-

quested functionalities or design elements which were

difﬁcult to understand (e.g., to add labels for show-

ing the number of connections between classes in the

overview) in the fourth prototype can be included in

the next version. Knoocks is currently being devel-

oped as a plug-in for Prot

e to combine our visu-

alization approach with the editing functionality of

Prot

REFERENCES

Alani, H. (2003). Tgviztab: An ontology visualization

extension for prot

e. In Knowledge Capture (K-

Cap’03). Workshop on Visualization Information in

Knowledge Engineering.

Barlow, T. and Neville, P. (2001). A comparison of 2-d vi-

sualizations of hierarchies. In Proc. of the IEEE Sym-

posium on Information Visualization 2001, page 131.

IEEE Computer Society.

Cardoso, J. (2007). The semantic web vision: Where are

we? Intelligent Systems, 22(5):84–88.

Fensel, D. (2001). Ontologies: a silver bullet for knowledge

management and electronic commerce. Springer-

Verlag New York, Inc.

International Organization for Standardization (2006). Iso

9241-110:2006 ergonomics of human-system interac-

tion – part 110: Dialogue principles.

Katifori, A., Halatsis, C., Lepouras, G., Vassilakis, C.,

and Giannopoulou, E. (2007). Ontology visualization

methods—a survey. ACM Comput. Surv., 39(4):10.

Kriglstein, S. (2009). User requirements analysis on on-

tology visualization. In International Conference on

Complex, Intelligent and Software Intensive Systems.

2nd International Workshop on Ontology Alignment

and Visualization, pages 694–699. IEEE Computer

Society.

Kriglstein, S. and Motschnig-Pitrik, R. (2008). Knoocks:

New visualization approach for ontologies. In Proc.

of the International Conference on Information Visu-

alization, pages 163–168. IEEE Computer Society.

Kriglstein, S. and Wallner, G. (2010). Knoocks - a visual-

ization approach for owl lite ontologies. In Interna-

tional Conference on Complex, Intelligent and Soft-

ware Intensive Systems. 3rd International Workshop

on Ontology Alignment and Visualization, pages 950–

955. IEEE Computer Society.

Kruskal, J. and Landwehr, J. (1983). Icicle plots: Better dis-

plays for hierarchical clustering. The American Statis-

tician, 37(2):162–168.

Kulyk, O. A., Kosara, R., Urquiza-Fuentes, J., and Wassink,

I. H. C. (2006). Human-centered aspects. In A. Ker-

ren, A. E. and Meyer, J., editors, Human-Centered Vi-

sualization Environments, pages 13–75. Springer.

Lanzenberger, M., Sampson, J., and Rester, M. (2009). Vi-

sualization in ontology tools. In Proc. of the Interna-

tional Conference on Complex, Intelligent and Soft-

ware Intensive Systems. 2nd International Workshop

on Ontology Alignment and Visualization, pages 705–

711. IEEE Computer Society.

Likert, R. (1932). A technique for the measurement of atti-

tudes. Archives of Psychology, 22(140):1–55.

Nielson, J. (1994). Usability Engineering. Morgan Kauf-

mann.

North, C. (2006). Toward measuring visualization insight.

IEEE Comput. Graph. Appl., 26(3):6–9.

Noy, N. F. and McGuinness, D. L. (2001). Ontology devel-

opment 101: A guide to creating your ﬁrst ontology.

Technical report, Stanford Knowledge Systems Labo-

ratory and Stanford Medical Informatics.

umper, J. (1999). ‘ test it: Isonorm 9241/10. In

Proc. of HCI International (the 8th International

Conference on Human-Computer Interaction) on

Human-Computer Interaction: Ergonomics and User

Interfaces-Volume I, pages 1028–1032. L. Erlbaum

Associates Inc.

Saraiya, P., North, C., and Duca, K. (2005). An insight-

based methodology for evaluating bioinformatics vi-

sualizations. IEEE Transactions on Visualization and

Computer Graphics, 11(4):443–456.

Shneiderman, B. (1992). Tree visualization with tree-maps:

2-d space-ﬁlling approach. ACM Trans. Graph.,

11(1):92–99.

Shneiderman, B. (1998). Designing the User Interface. Ad-

dison Wesley, 3 edition.

Sintek, M. (2010). Ontoviz. http://protegewiki.stanford.

edu/index.php/OntoViz, Accessed 16.03.10.

Stanford Center for Biomedical Informatics Research

(2010). Prot

e project. http://protege.stanford.edu,

Accessed 29.01.2010.

Storey, M. A., Callendar, C., Lintern, R., Ernst,

N., and Best, C. (2010). Jambalaya.

http://protegewiki.stanford.edu/index.php/Jambalaya,

Accessed 17.03.10.

Swartout, B., Patil, R., Knight, K., and Russ, T. (1997).

Toward distributed use of large-scale ontologies. In

Proc. of the AAAI97 Spring Symposium Series, Work-

shop on Ontological Engineering, pages 138–148.

AAAI Press.

W3C (2010). Owl web ontology language guide.

http://www.w3.org/TR/owl-guide/.

Wang, T. D. and Parsia, B. (2006). Cropcircles: Topol-

ogy sensitive visualization of owl class hierarchies. In

Proc. of the 5th International Conference on Semantic

Web, pages 695–708.

DEVELOPMENT PROCESS AND EVALUATION OF THE ONTOLOGY VISUALIZATION TOOL KNOOCKS - A

Case Study

197
