EVOLUTIONARY SUPPORT VECTOR MACHINE

FOR PARAMETERS OPTIMIZATION APPLIED

TO MEDICAL DIAGNOSTIC

Ahmed Kharrat, Nacéra Benamrane

University of Sfax, National Engineering School, Computer & Embedded Systems Laboratory (CES)

B.P 1173, Sfax 3038, Tunisia

Department of Computer Science, Faculty of Science, Vision and Medical Imagery Laboratory U.S.T.O.

B.P 1505, EL-Mnaouer, Oran, 31000, Algeria

Mohamed Ben Messaoud, Mohamed Abid

University of Sfax, National Engineering School, Laboratory of Electronics and Information Technologies

Computer & Embedded Systems Laboratory (CES), B.P 1173, Sfax 3038, Tunisia

Keywords: Support vector machine, Classification, Genetic algorithm, Parameters optimisation, Feature selection.

Abstract: The parameter selection is very important for successful modelling of input–output relationship in a

function classification model. In this study, support vector machine (SVM) has been used as a function

classification tool for accurate segregation and genetic algorithm (GA) has been utilised for optimisation of

the parameters of the SVM model. Having as input only five selected features, parameters optimisation for

SVM is applied. The five selected features are mean of contrast, mean of homogeneity, mean of sum

average, mean of sum variance and range of autocorrelation. The performance of the proposed model has

been compared with a statistical approach. Despite the fact that Grid algorithm has fewer processing time, it

does not seem to be efficient. Testing results show that the proposed GA–SVM model outperforms the

statistical approach in terms of accuracy and computational efficiency.

1 INTRODUCTION

Selecting vital features out of the original feature set

constitutes a challenging task. Supervised

classification models are usually used together with

optimization algorithms for feature selection, in

which classification accuracies are used as fitness

evaluation of the selected feature subsets (Kharrat,

2010a), (Kharrat, 2010b). In this work, we develop

an approach to optimize the support vector machine

parameters which combines the merits of support

vector machine (SVM) and genetic algorithm (GA).

Later we compare our proposed method with the

statistical approach to show its superiority in terms

of computational efficiency. Among the statistical

methods, we use the Grid algorithm.

Support vector machine (Boser, 1992) is among

the most popular classifiers used in supervised

learning. Its principle lies in constructing an optimal

separating hyperplane to maximize the margin

between two classes of data. The choice of margin

cost C and kernel parameters have an important

effect on the performance of SVM classifier

(Chapelle, 2003). The optimal parameters that lead

to the minimal generalization error are data-

dependent. Two-dimensional grid is usually used to

tune a pair of parameters such as C and

(Gaussian

function width in RBF kernel) due to its complexity.

Even after parameter tuning, SVM classifier might

deliver poor accuracy in classifying some particular

datasets. Having as input these five selected features,

we build a technique to optimize SVM parameters.

There are many optimization techniques that have

been used. One of the favored choices is Genetic

Algorithm (GA).

Our present work depicts GA as an efficient tool

only to optimize the SVM parameters, without

degrading the SVM classiﬁcation accuracy. The

201

Kharrat A., Benamrane N., Ben Messaoud M. and Abid M..

EVOLUTIONARY SUPPORT VECTOR MACHINE FOR PARAMETERS OPTIMIZATION APPLIED TO MEDICAL DIAGNOSTIC.

DOI: 10.5220/0003326902010204

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2011), pages 201-204

ISBN: 978-989-8425-47-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

proposed method performs parameters optimization

setting in an evolutionary way. In the literature,

some GA-based feature selection methods were

proposed (Raymer, 2000), (Yang and Honavar,

1998), (Salcedo-Sanz, 2002). However, these papers

focused on feature selection and did not deal with

parameters optimization for the SVM classiﬁer.

Frohlich et al. (Frohlich and Chapelle, 2003)

proposed a GA-based feature selection approach that

used the theoretical bounds on the generalization

error for SVMs. In Frohlich’s paper, the SVM

regularization parameter can also be optimized using

GAs.

The remainder of this paper is organized as follows.

Section 2 describes parameters optimization

concepts. Section 3 describes system architecture for

the proposed GA-SVM model. Section 4 presents

the experimental results from using the proposed

method to classify real world dataset and to depict

the results. Section 5 summarizes and draws a

general conclusion.

2 PARAMETERS OPTIMIZATION

APPROACHES

Many kernel functions are used to help the SVM in

obtaining the optimal solution. Among the used

kernel functions are the polynomial, sigmoid and

radial basis kernel function (RBF). Unlike a linear

kernel function, the RBF is generally applied most

frequently, because it can classify multi-dimensional

data. Our work applies an RBF kernel function in

the SVM to obtain optimal solution. Two major RBF

parameters applied in SVM, C and

, must be set

appropriately. Parameter C represents the cost of the

penalty. Parameter

has a much greater influence on

classification outcomes than C, because its value

affects the partitioning outcome in the feature space.

Values for parameters C and

that lead to the

highest classification accuracy rate in this interval

can be found by setting appropriate values for the

upper and lower bounds (the search interval) and the

jumping interval in the search. As well as the two

parameters C and

, other factors, such as the

quality of the feature's dataset, may influence the

classification accuracy rate. For instance, the

correlations between features influence the

classification result.

3 SYSTEM ARCHITECTURE

FOR THE PROPOSED

GA-SVM MODEL

Having the ability to perform better than other

kernels (Kharrat, 2010c), a radial basis function

(RBF) kernel SVM is adopted to establish support

vector classifiers. When using the RBF kernel, there

are two parameters (i.e. C and

) to be tuned.

Improper selection of the two parameters is

demonstrated to cause over-ﬁtting or under-ﬁtting

problems. The proposed GA-based approach is

designed to optimize the parameters pair (C,

) for

the SVM. To implement our proposed approach, this

research uses the RBF kernel function for the SVM

classifier because the RBF kernel function can

analysis higher-dimensional data. In our study,

classification accuracy, the numbers of selected

features are the criteria used to design a fitness

function. Thus, for the individual with high

classification, a small number of features produce a

high fitness value.

The procedure of the proposed GA-SVM method

is shown in “Figure 1”, and the steps are detailed as

follows.

Step1. Encode the parameters and the chromosomes

representing the SVM parameters as a binary string.

Step2. Initialize the population and produce the

initial population of chromosomes arbitrarily.

Step3. Include the five optimal features. Decode the

binary chromosomes into the corresponding

parameters representing the optimal features

(Kharrat, 2010a).

Step4. Find the selected parameters. Decode the

binary chromosomes into the corresponding

parameters representing the optimized pair (C

and

Step5. Train the SVM model. Get the trained SVM

model after implementing the optimized parameters

to the training set. The test sets are guessed on the

basis of the trained SVM model.

Step6. Compute the fitness. For each chromosome,

the training set with corresponding feature subset

among the five, and parameters pair(C,

) are

designed as entries to the SVM classifier to calculate

the k-fold cross-validation accuracy (fitness).

Step7. The termination criteria are that the ﬁtness

value does not increase during the last M generations

or that the maximum generation number reaches N.

If the two criteria are achieved, then the iteration

process stops. Otherwise go to Step8.

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

202

Step8. Perform genetic operations to generate an

offspring population. Genetic operations include:

crossover, mutation, and tournoi reproduction.

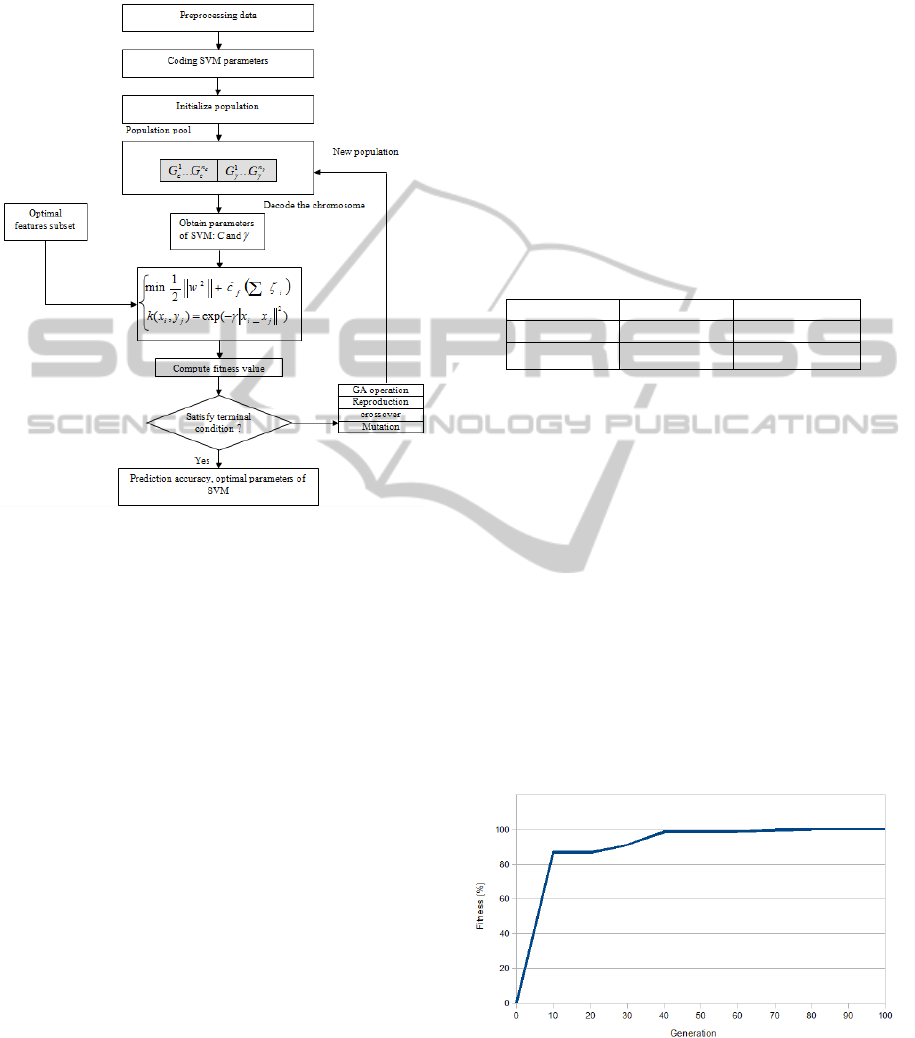

Figure 1: System architecture of the proposed GA-based

parameters optimization for support vector machine.

4 RESULTS

To evaluate the classification accuracy of the

proposed system in different classification tasks, we

tried a real human brain dataset from the Harvard

Medical School website (Keith and Alex, 1999).

These datasets consist in 83 images: 29 images are

normal and 54 belonging to pathological brain.

These normal and pathological benchmark

sagittal, axial, and coronal, images used for

classification are three weighted ones (enhanced T1,

proton density (PD) and T2) of 256×256 sizes and

acquired at several positions of the transaxial planes.

To guarantee valid results for making predictions

regarding new data, the dataset is further randomly

partitioned into training sets and independent test

sets via a k-fold cross validation. The advantages of

cross validation are that all of the test sets were

independent and the reliability of the results could

be improved. The data set is divided into k subsets

for cross validation. This study used k=5, meaning

that all of the data will be divided into 5 parts, each

of which will take turns at being the testing data set.

The other four data parts serve as the training data

set for adjusting the model prediction parameters.

The empirical evaluation was performed on Intel

core 2 duo machine, with 4GO RAM and a

processor speed of 2GHz, run under Windows XP

environment. To search for the best C and γ, the

Grid search algorithm is considered as a common

method. In the Grid algorithm, pairs of (C, γ) are

tried and the one with the best cross-validation

accuracy is chosen. The results from the proposed

method were compared with that from the Grid

algorithm. In all of the experiments we use 5-fold

cross validation to compute the accuracy of each

learned classifier.

Table 1: Range values for

and C in GA and Grid

algorithm.

Parameter GA Grid algorithm

C ]0…2

] ]0…2

]

-20

…0[ ]0…2

]

The detail parameter setting for genetic algorithm is

as the following: population size 30, crossover rate

0.9, mutation rate 0.1, arithmetic crossover, tournoi

wheel selection, and elitism replacement. “Table 1”

states range values for both parameters

and C in

genetic algorithm as well as grid algorithm.

“Figure 3” depicts a typical evolving process of the

GA. This process is characterized by three phases. In

the ﬁrst phase the ﬁtness value increases gradually

from the initialization value (86.9565%) to91.3043%

at the 30 generations. In the second phase the fitness

value rises more slowly: from 98.5491% at the 40

generation to 99.8897% at the 70 generation.

Whereas the third phase is characterized by stability.

When the generation number reaches 80, the

maximum ﬁtness value is obtained and stays the

same (100%) until the 100 generation.

Figure 3: Iteration process of the GA for simultaneous

optimization (Generation/Fitness).

The final sentence of a caption must end with a

period.

EVOLUTIONARY SUPPORT VECTOR MACHINE FOR PARAMETERS OPTIMIZATION APPLIED TO MEDICAL

DIAGNOSTIC

203

Table 2: Genetically optimised SVM parameter for human brain dataset using GA-based approach and Grid algorithm.

Test period

GA-based approach Grid algorithm

Accuracy Training days C

Accuracy Training days

TP1 8 0.725 86.9565 % 10 0.5 0.0625 58.33 % 0.2

TP2 2383 0.0008 98.5682 % 8 7 2 97.19 % 0.8

TP3 19277 0.0087 99.8897 % 11 3 0.9 91.33 % 0.5

TP4 133455 0.2502 100 % 11 9 1.1245 95.33 % 0.6

TP5 131847 0.0009 100 % 11 8 2.019 94.71 % 0.9

The optimised values of SVM parameters for human

brain dataset using GA-based approach and Grid

algorithm corresponding to each TP are given in

“Table 2”. It can be observed that the optimum

values of these parameters vary signiﬁcantly over a

wide range reflecting the superiority of GA to Grid

algorithm. In the GA, pairs of (C, γ) are tried and the

one with the best accuracy is chosen. To obtain the

best optimized pair of (C, γ), the process lasts

between 8 and 11 days, but the best accuracy is

achieved with a longer period. The parameters C

whose values exceed 2000 achieve high accuracy

surpassing 98% to 100%. In the Grid algorithm the

accuracy rate is low despite the short period of

training. Comparison of the obtained results of GA

with those of Grid algorithm demonstrates that GA-

SVM approach has a better classification accuracy

than the Grid algorithm tested.

5 CONCLUSIONS

This study presents an evolutionary computing

optimization approach, capable of searching for the

optimal parameter values for SVM by using a subset

of selected features. Compared with the statistical

approach, the proposed GA-based approach has

higher accuracy with fewer selected features. It

outperforms the statistical approach in terms of

computational efﬁciency. Moreover, the proposed

GA-based approach has proved to be effective in

optimizing parameters for the SVM. Results of this

study are obtained with an RBF kernel function.

However, other kernel parameters can also be

optimized using the same approach. This is of

particular signiﬁcance to medical decision in the

medical diagnostic field.

For future work, we intend to add coefficient of

ponderation for each of the five selected features.

We would also to extend our approach to real-world

problems and other public datasets such as heart

disease and breast cancer.

REFERENCES

Kharrat A., Gasmi K., Ben Messaoud M., Benamrane N.,

Abid M., 2010a. Automated Classification of

Magnetic Resonance Brain Images Using Wavelet

Genetic Algorithm and Support Vector Machine. Proc.

9th IEEE Int. Conf. on Cognitive Informatics

(ICCI’10), doi: 10.1109/COGINF.2010.5599712. 369-

-374.

Kharrat A., Ben Messaoud M., Benamrane N., Abid M.,

2010b. Genetic Algorithm for Feature Selection of

MR Brain Images Using Wavelet Co-occurrence.

Proc. IEEE Int. Conf. on Signal and Information

Processing (ICSIP 2010), 1--5.

Boser B. E., Guyon I. M., Vapnik V. N., 1992. A training

algorithm for optimal margin classifiers. Proceedings

of the 5th Annual ACM Workshop on Computational

Learning Theory, 144--152.

Kharrat A., Gasmi K., Ben Messaoud M., Benamrane N.,

Abid M., 2010c. A Hybrid approach for automatic

classification of brain MRI using genetic algorithm

and support vector machine. Leonardo Journal of

Sciences (LJS), 9, 71--82.

Raymer, M. L., Punch, W. F., Goodman, E. D., Kuhn, L.

A., Jain, A. K., 2000. Dimensionality reduction using

genetic algorithms. IEEE Transactions on

Evolutionary Computation, 4, 164--171.

Yang, J., Honavar, V., 1998. Feature subset selection

using a genetic algorithm. IEEE Intelligent Systems,

13, 44--49.

Salcedo-Sanz, S., Prado-Cumplido, M., Pérez-Cruz, F.,

Bousono-Calzon, C., 2002. Feature selection via

genetic optimization. Proceedings of the ICANN

international conference on artiﬁcial neural networks,

547--552.

Frohlich, H., Chapelle, O., 2003. Feature selection for

support vector machines by means of genetic

algorithms. Proceedings of the 15th IEEE

international conference on tools with artiﬁcial

intelligence, Sacramento, 142--148.

Keith, A. J., Alex, J. B., 1999. The whole brain atlas.

Harvard Medical School, Boston. Available from:

http://med.harvard.edu/AANLIB/.

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

204
