Evaluation of Semantic Graph based on Model Checking

Mahdi Gueffaz, Sylvain Rampacek and Christophe Nicolle

LE2I, UMR CNRS 5158, University of Bourgogne, BP 47870, 21078 Dijon cedex, France

Keywords: Semantic graph, Model-checking, Temporal logic.

Abstract: Semantic interoperability problems have found their solutions using languages and techniques from the

Semantic Web. The proliferation of ontologies and meta-information has improved the understanding of

information and the relevance of search engine responses. However, the construction of semantic graphs is a

source of numerous errors of interpretation or modelling and scalability remains a major problem. The

processing of large semantic graphs is a limit to the use of semantics in current information systems. The

work presented in this paper is part of a new research at the border of two areas: the semantic web and the

model checking. This line of research concerns the adaptation of model checking techniques to semantic

graphs. In this paper, we present a first method of converting RDF graphs into NμSMV and PROMELA

languages.

1 INTRODUCTION

W3C

aims to standardize the representation and the

exchange of information on the WEB. This objective

should help make the information understandable for

both automated processes and users. The

homogenization of computer exchanges took place

due to the introduction of the XML (Bray and al,

2006) standard. This standard has enabled the

program to manipulate information through

languages with hierarchical structure mark-up

defined by grammars derived from the XML

standard. However, this effort has not helped

improve the user’s understanding of information.

Thus, new standards have been developed to enable

the semantic representation of information in the

form of XML-derived languages. This base is called

Semantic Web standards and it is usually

represented as a stack of languages ranging from

automatic processes oriented languages to languages

representing more abstract concepts of formal

semantics (Berners-Lee, 2001). These languages are

used to represent the semantics associated with

information, whatever its form and structure. To

allow the construction of semantic graph, many tools

have been developed like Annotea (Kahan and al,

2001) which is a project of the W3C that specifies

World Wide Web Consortium.

the infrastructure for the annotation of Web

documents. The main format used in the annotation

is RDF and the types of documents can be annotated

are HTML documents or XML based. However,

none provides the functionality to verify the

consistency of semantics, and reduce errors

annotations.

This paper proposes a new way to check these

semantic graphs by model-checking in order to

reduce errors in annotation and make the data more

relevant. Model checking is an automatic

verification technique, it has been applied to many

cases in industry, for example (Katoen, 2002), in the

Netherlands, model-checking has revealed several

serious flaws in the design of control system of a

barrier protection against flooding which protects

the main port of Rotterdam against floods.

Model checking is a powerful tool for system

verification because it can reveal errors that were not

discovered by other formal methods such as testing

or simulation. Model checking uses temporal logic

to describe the properties checking the system

model.

395

Gueffaz M., Rampacek S. and Nicolle C..

SCALESEM - Evaluation of Semantic Graph based on Model Checking.

DOI: 10.5220/0003334703950398

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 395-398

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 MODEL-CHECKING

AND TEMPORAL LOGIC

OVERVIEW

Formal methods (Katoen, 2002) offer great potential

for an early inclusion of verification in the design

process, providing technical audit more efficiently

and reduce the verification time. Formal methods are

highly recommended techniques for the

development of software. Two types of formal

verification methods can be distinguished: methods

based on the proof of the theorem and the methods

based on models.

The model checker examines all relevant system

states in order to check whether they satisfy the

desired property. The model checker gives a counter

example that indicates how the model can violate the

property. With a help of a simulator, the user can

locate the error and adapt the model or the property

to prevent the violation of property (Fig. 1).

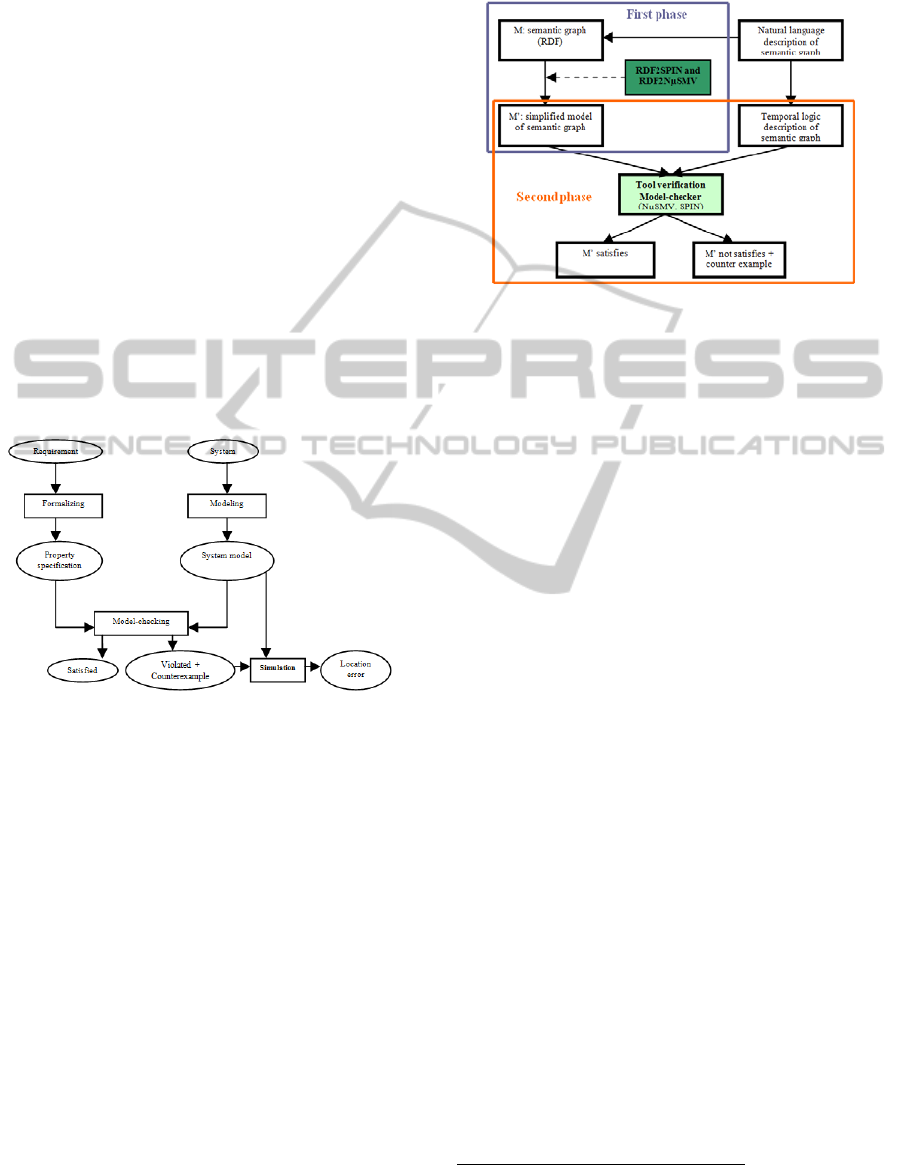

Figure 1: Model Checking Approach.

The concepts of temporal logic used for the first

time by Pnueli (Pnueli, 1977) in the specification of

formal properties are fairly easy to use. The

operators are very close in terms of natural language.

The formalization in temporal logic is simple

enough although this apparent simplicity therefore

requires significant expertise. Temporal logic allows

representing and reasoning about certain properties

of the system, so it is well-suited for the systems

verification.

3 THE SCALESEM APPROACH

We use SPIN (Ben-Ari, 2008) and NµSMV (Cimatti

and al, 2000) as model checkers to check the model

of semantic graphs. SPIN is a software tool for

verifying system models. The system is described in

a language model called PROMELA. NµSMV is the

amelioration of SMV model checker, working on the

same simple principles as SMV.

Figure 2: The Scalesem Architecture.

In Fig. 2, we present the architecture of our

approach. In this architecture, from a natural

language description, we can get the semantic graph

(RDF

) and its description in temporal logic, as

shown in the example found in the section VII. We

divide this architecture in two phases. The first

phase concerns the transformation of the semantic

graph into a model using our tools RDF2SPIN and

RDF2NμSMV. There are three steps in this

transformation. The first step is to explore the entire

RDF graph to obtain the triplets table. The second

step is to determine a root for the graph, and the last

step is to write the model that represents the

semantic graph in the PROMELA or NµSMV

languages. The second phase concerns the

verification of properties expressed in temporal logic

on the model using the model-checker SPIN or

NµSMV.

3.1 Introducing RDF

RDF is a language developed by the W3C to bring a

semantic layer to the Web (Becket and McBride,

2004). It allows the connection of Web resources

using directed labelled edges. The structure of RDF

documents is a complex labelled directed graph. An

RDF document is a set of triples <subject, predicate,

object>. These RDF graphs are not necessarily

connected, meaning they may have no root vertex

from which all the other vertices are reachable.

3.2 Exploring RDF Graph

We achieve this by appropriate explorations of the

RDF graphs, as explained below. Let us consider

Resource Description Framework

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

396

that an RDF graph is represented as a couple (V, E),

where V is the set of vertices and

VxVE 

is the set

of edges. For a vertex x, we note



EyxVyxE  ),()(

the set of its successor

vertices. We use depth-first search algorithm,

illustrated below to explore graph, knowing that the

breadth-first algorithm also works in this context.

Algorithm: procedure Dfs (x):

begin

visited(x) := true;

// vertex x becomes visited

p(x) := 0; // start exploring its successors

stack := push(x, nil);

while stack ≠ nil do

y :=

top(stack);

if p(y) < |E (y)| then

// y has some unexplored successors

z := E (y)

)( yp

;

p(y) := p(y)+1;

// take the next successor of y



visited (z) then

visited(z) :=

true; // visit it

p(z) := 0;//start exploring its successors

stack := push(z, stack)

endif

else //all successors of y were explored

stack :=

pop(stack)

endif

end

3.3 Determining a Root Vertex

If the RDF graph has no vertex root, we must create

a root for the graph.

Algorithm: procedure RootElection():

// precondition:  x  V.visited(x) = false

Begin // first phase

root_list := nil;

forall x  V do



visited(x) then

Dfs(x);

root_list :=

cons(x, root_list)

endif

endfor;

//second phase

if |root_list|= 1 then

root :=

head(root_list)

// the single partial root is the global root

else

forall x  V do visited(x):=

false;

endfor;

forall x  root_list do

// reexplore partial roots in reverse order



visited(x) then Dfs(x)

else

root_list := root_list \ {x}

// partial root is not a real one

endif

endfor;

if |root_list| = 1 then

root :=

head(root_list)

// a single partial root is the global root

else

root :=

new_node();

// new root predecessor of the partial roots

E(root) := root_list

endif

The first phase explores the graph until it is fully

explored, and inserts in root_list all vertices that

have no predecessor. If root_list contains a single

vertex, so overall it is the global root of the graph

since all the other vertex are accessible from it and it

is useless to the second phase has passed. Otherwise,

any vertex contained in root_list could also be a root

of the graph: the role of the second phase is to

determine which of the partial root the root of the

global graph is.

The second phase performs a new wave of

exploration of the roots contained in partial root_list

in reverse order in which they were inserted in the

list. If a root in root_list is to be visited by a partial

root, it is removed from the list because it is not a

partial root. At the end of this phase, all partial roots

of the graph are present in root_list. Indeed, each

vertex is unreachable from the partial roots which

were explored during the second phase. A new root

is created (see Fig. 3), having as successor all the

partial roots of root_list, which ensures that all

vertices of the graph are accessible from the new

root. Therefore, such a summit is inaccessible from

other nodes of the graph.

3.4 Generating the Model

The third step is divided into three sub-steps. The

first and the second one consist in generating two

tables (triplets table and resources and values table).

The last one consists in producing the model writing

in PROMELA language for SPIN and in NµSMV

language for NµSMV.

4 EXAMPLE AND BENCHMARK

To illustrate our approach, we take the natural

language description as follows:

Ninety-three is a novel by Victor Hugo published in

1874, whose theme is the French Revolution. Victor

Hugo was born in February 26, 1802 in Besançon.

From the description above, we can easily extract

SCALESEM - Evaluation of Semantic Graph based on Model Checking

397

simple propositions, see Table 1. Table 2 presents

the RDF triples derived from the Table 1.

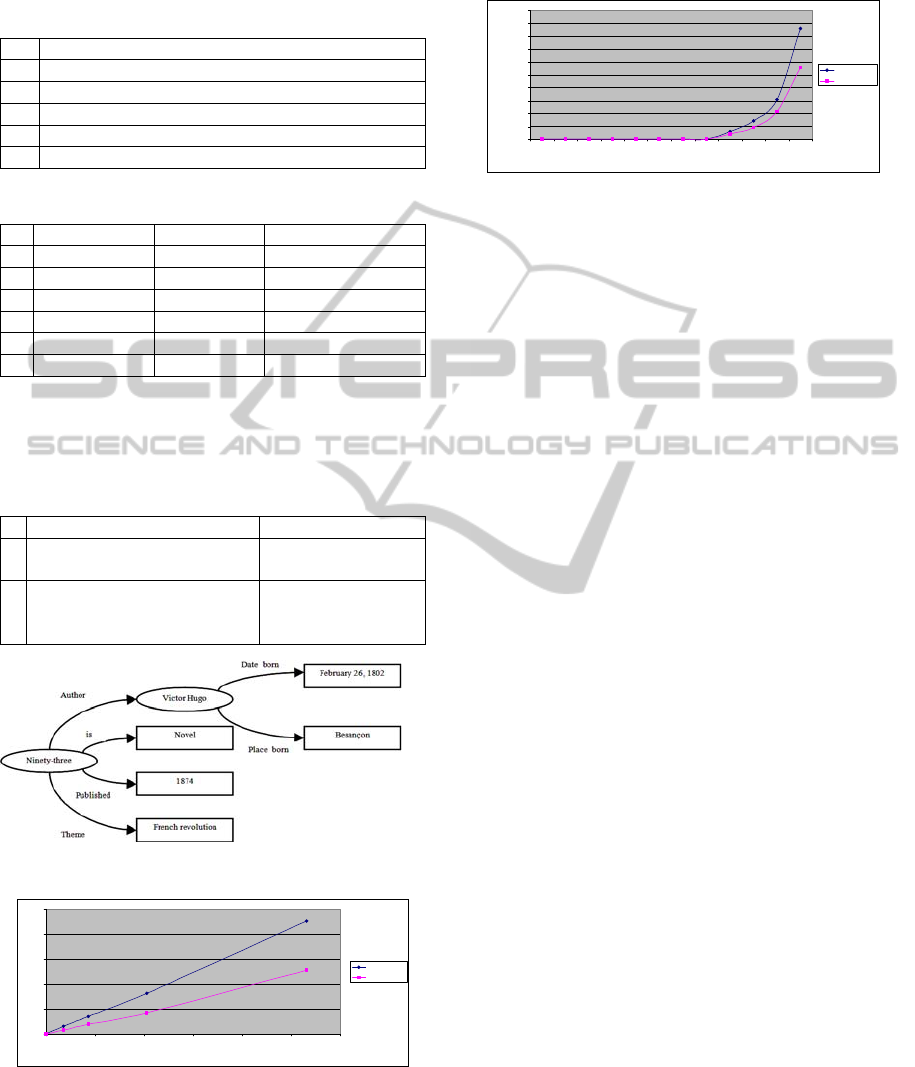

Table 1: Short list of simple propositions.

1 “Ninety-three is a novel”

2 “Ninety-three its author is Victor Hugo”

3 “Ninety-three has been published in 1874”

4 “Ninety-three’s theme is the French revolution”

5 “Victor Hugo was born in February 26, 1802”

6 “Victor Hugo was born in Besançon”

Table 2: Corresponding RDF Triples.

Subject Predicate Object

1 Ninety-three is Novel

2 Ninety-three author Victor Hugo

3 Ninety-three Published 1874

4 Ninety-three theme French revolution

5 Victor Hugo Date_born February 26, 1802

6 Victor Hugo Place_born Besançon

From the previous description in natural

language, we can express it in temporal logic as

shown in Table 3.

Table 3: Example of Temporal Logic representation.

Temporal logic Explanation

1 Always (Ninety-three  next

novel)

We check that ninety

three is a novel

2 Always (Ninety-three  next

Victor Hugo)

We check that ninety

three is written by

Victor Hugo

Figure 3: RDF Graph.

0 102030405060

Graph size (Megabyte)

Time (Second)

RDF2NuSMV

RDF2SPIN

Figure 4: Time conversion of semantic graphs.

Now, we will be able to transform the RDF graph in

Fig. 3 with our tools "RDF2SPIN" and

RDF2NμSMV" into a model in order to check each

formula of temporal logic described in Table 3 and

see if each formula is verified or not in the model.

100

0,0004 0,0004 0,0006 0,0009 0,0009 0,001 0,0017 0,0065 3,6 8,6 20,6 53,1

Size of the RDF graph (Megabyte)

Size of the RDF graph converted

(Megabyte)

RDF2NuSMV

RDF2SPIN

Figure 5: Size of the models.

5 CONCLUSIONS

This paper presents a new technique for the semantic

graphs verification by using a model-checker.

Knowing that the model-checker does not

understand the semantic graphs, we developed two

tools RDF2SPIN and RDF2NµSMV to convert them

into PROMELA and NµSMV languages in order to

be verified with the temporal logics.

In future work, we would like to convert the

SPARQL query language for RDF graphs into

queries using the operator of the temporal logic, to

have a better verification of RDF graphs

representing the building industry.

REFERENCES

Becket, D., McBride, B., 2004. RDF/ XML Syntax

Specification (Revised). W3C recommandation.

http://www.w3.org/TR/2004/REC-rdf-syntax-gramma

r-20040210/.

Ben-Ari, M., 2008. Principles of the SPIN Model Checker.

Springer. ISBN: 978-1-84628-769-5.

Berners-Lee, t., Hendler, J., and Lassila, O., 2001. The

Semantic Web. Scientific American. pp. 34–43.

Bray, T., Paoli, J., Sperberg-McQueen., C., M., Maler, E.,

Yergeau, F., Cowan, J., 2006. Extensible Markup

Language (XML) 1.1 (second edition) W3C

recommendation, http://www.w3.org/TR/2006/REC-

xml11-20060816/.

Cimatti, A., Clarke, E., Giunchiglia, F., Roveri, M., 2000.

NuSMV: a new symbolic model checker.

Kahan, J., Koivunen, M., Prud'Hommeaux, E., Swick, R.,

R, 2001. Annotea: An Open RDF Infrastructure for

Shared Web Annotations, in Proc. of the WWW 10th

International Conference, Hong Kong. http://www10.

org/cdrom/papers/488/index.html

Katoen, J. P., 2002. The principal of Model Checking.

University of Twente.

Pnueli, A., 1977. The temporal logic of programs. In proc.

18th IEEE Symp. Foundations of Computer Science

(FOCS’77), Providence, RI, USA. pages 46-57.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

398
