MULTITASK LEARNING APPLIED TO SPATIAL FILTERING IN

MOTOR IMAGERY BCI

A Preliminary Ofﬂine Study

Dieter Devlaminck, Bart Wyns

Electrical Energy, Systems and Automation, Ghent University, Technologiepark 913, 9052 Zwijnaarde - Gent, Belgium

Georges Otte

P.C. Dr. Guislain, Fr. Ferrerlaan 88A, 9000 Gent, Belgium

Patrick Santens

Department of Neurology, Ghent University Hospital, De Pintelaan 185, 9000 Gent, Belgium

Keywords:

Multi-subject learning, Common Spatial Patterns (CSP), Brain-Computer Interfaces (BCI).

Abstract:

Motor imagery based brain-computer interfaces (BCI) commonly use the common spatial pattern ﬁlter (CSP)

as preprocessing step before feature extraction and classiﬁction. The CSP method is a supervised algorithm

and therefore needs subject speciﬁc training data for calibration, which is very time consuming to collect.

Instead of letting all that data and effort go to waste, the data of other subjects could be used to further

improve results for new subjects. This problem setting is often encountered in multitask learning, from which

we will borrow some ideas and apply it to the preprocessing phase.

This paper outlines the details of the multitask CSP algorithm and shows some results on data from the third

BCI competition. In some of the subjects a clear improvement can be seen by using information of other

subjects, while in some subjects the algorithm determines that a speciﬁc model is the best. We also compare

the use of a global ﬁlter, which is constructed only with data of other subjects, with the case where we ommit

any form of spatial ﬁltering. Here, the global ﬁlter seems to boost performance in four of the ﬁve subjects.

1 INTRODUCTION

The development of BCI systems is an active research

domain that has the goal to help people, suffering

from severe disabilities, to restore the communica-

tion with their environment through an alternative in-

terface. Such BCI systems can be divided in sev-

eral categories based on the signal features they use.

Some of these features like the P300 (Farwell and

Donchin, 1988) and steady-state visual evoked po-

tentials (SSVEP) (Kelly et al., 2005) are elicited nat-

urally by external stimuli while others like the sen-

sorimotor rhythms (SMR) can be independently gen-

erated by the subject. In case of SMR this can be

achieved by performing the task of imagining differ-

ent movements, such as left and right hand movement,

or foot and tongue movement. The cortical areas in-

volved in motor function (and also motor imagery)

show a strong 8-12 Hz (or even 18-26 Hz) activity

when the person is not performing any motor (im-

agery) task. However, when the person is engaged in

a motor task the neural networks in the correspond-

ing cortical areas are activated. This blocks the idle

synchronized ﬁring of the neurons and thus causes

a measurable attenuation in those frequency bands.

This decrease in power is also called event-related

desynchronization (ERD) (Pfurtscheller and Lopes da

Silva, 1999), the opposite is termed event-related syn-

chronization (ERS). The location (electrode) of this

feature depends on the type of motor task. For exam-

ple, if a person moves his left arm, the brain region

contralateral to the movement (around electrode C4)

will display this ERD feature, while the neurons in

the ipsilateral cortical motor area continue to ﬁre syn-

chronously.

Because of the low spatial resolution of elec-

troenchephalography (EEG), a commonly used

method to improve this resolution is the common

378

Devlaminck D., Wyns B., Otte G. and Santens P..

MULTITASK LEARNING APPLIED TO SPATIAL FILTERING IN MOTOR IMAGERY BCI - A Preliminary Ofﬂine Study.

DOI: 10.5220/0003335403780382

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2011), pages 378-382

ISBN: 978-989-8425-35-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

spatial pattern (CSP) algorithm introduced by Koles

(Koles, 1991) to detect abnormal EEG activity.

Later, it was used for discrimination of imagined

hand movement tasks (M

uller-Gerking et al., 1999;

Ramoser et al., 2000). Since then a lot of groups im-

proved the basic CSP algorithm by extending it with

temporal ﬁltering (Dornhege et al., 2006), making

it more robust for nonstationarities (Blankertz et al.,

2008) or reducing calibration time by transferring

knowledge learned during previous sessions (Kraule-

dat et al., ). After almost a decade this method still

proves it superiority judging from the results of the

fourth BCI competition

. Still, this BCI setup is less

accurate than the P300-based BCI and initially needs

a longer training time. Some people are even unable

to achieve proper control.

One way to further improve a subject speciﬁc CSP

ﬁlter is to use the data recorded from other subjects,

additionally to the subject’s own data. To this end

we will use some ideas of multitask learning, an ac-

tive topic in machine learning (Evgeniou et al., 2005;

Kato et al., 2008). In (Alamgir et al., 2010), the au-

thors employed this concept to realize a classiﬁer that

was able to learn from multiple subjects, leading to an

algorithm that performed well on new subjects even

without training. The classiﬁer could then be adapted

when new data came available, reaching even higher

classiﬁcation accuracies with very few training sam-

ples. However, they did not apply any form of spatial

ﬁltering, using only features obtained from the EEG

signal after ﬁltering it in distinct pass-bands. We ap-

ply a similar idea in the preprocessing phase to con-

struct spatial ﬁlters that make a trade-off between a

global and subject speciﬁc ﬁlters.

In Section 2 we give the details of the multitask

CSP algorithm. The results are then compared with

the basic CSP algorithm in Section 3 on data of the

third BCI competition. We highlight the strenghts and

the weaknesses of the method in Section 4.

2 MULTITASK CSP

The goal of the basic CSP method is to learn a set of

spatial ﬁlters for one subject that maximizes the signal

variance for trials of one class while at the same time

minimizes the signal variance for trials of the other

classes. For the two class case, this can be formulated

as follows

max

(1)

(2)

On http://www.bbci.de/competition/iv/ you can ﬁnd the

data sets and results of the 4th BCI competition.

Algorithm 1: Rprop+.

= 1.2 , η

−

= 0.5 , η

max

= 50 , η

min

= 10

−30

initialize w as explaind in Section 2

repeat

t ← t + 1

Compute gradient ∇R(w) =

(t)

R(w)

δw

for all i = 1 to d(S +1) do

(t)

R(w)

δw

(t−1)

R(w)

δw

> 0 then

← min(η

, η

max

)

← w

+ η

sign(

(t)

R(w)

δw

)

else if

(t)

R(w)

δw

(t−1)

R(w)

δw

< 0 then

← w

− η

sign(

(t−1)

R(w)

δw

)

← max(η

−

, η

min

)

(t)

R(w)

δw

← 0

else

← w

+ η

sign(

(t)

R(w)

δw

)

end if

end for

until convergence

where Σ

(1)

and Σ

(2)

correspond to the covariance ma-

trices of the trials corresponding to the ﬁrst and re-

spectively the second class.

We now want to use data of other subjects to im-

prove the ﬁlters for speciﬁc subjects. To accomplish

this, we ﬁrst need a spatial ﬁlter w

for each subject,

which we decompose into the sum of a global and

subject speciﬁc ﬁlter,

= w

+ v

where w

∈ R

represents the global spatial ﬁlter

which is learned across all data (including those of

other subjects) and v

∈ R

represents the subject spe-

ciﬁc ﬁlter. The number of channels is represented by

d. A single optimization framework is proposed in

which we learn both types of ﬁlters. This can be for-

mulated as

max

∑

s=1

(1)

(2)

||w

+ λ||v

The parameter λ makes a trade-off between global

or speciﬁc ﬁlters. For a high value of λ >> 1 the

vector v

is forced to zero and a global ﬁlter is con-

structed. When λ is very low (close to zero) the vec-

tor w

is forced to zero and subject speciﬁc ﬁlters are

computed. The number of subjects is denoted by S.

This can be rewritten to a simpler form as,

max

R(w) = max

∑

s=1

(w) = max

∑

s=1

(1)

(2)

(λ)w

MULTITASK LEARNING APPLIED TO SPATIAL FILTERING IN MOTOR IMAGERY BCI - A Preliminary Offline

Study

379

Table 1: Accuracy obtained by cross-validation for different parameter values λ.

subject \ λ 10

−6

−4

−2

1 10

aa 0.607 0.597 0.624 0.616 0.633 0.614 0.605

al 0.979 0.979 0.885 0.676 0.821 0.979 0.979

av 0.645 0.635 0.513 0.538 0.620 0.645 0.657

aw 0.681 0.710 0.643 0.618 0.647 0.666 0.683

ay 0.939 0.939 0.857 0.685 0.756 0.823 0.802

with



. . . v



(2)

(λ) =

(2)

+ λD

(i)

= E

(i)

and







d×d

(s−1)d×d

d×d

(S−s)d×d









d×d

Sd×d





d×d

d×Sd







sd×d

d×d

(S−s)d×d







d×sd

d×d

d×(S−s)d



We ﬁnd the maximum through gradient search. To

avoid ﬁnding the optimal step length in each iteration

and speeding up convergence we employ the RProp+

algorithm, proposed in (Riedmiller and Braun, 1993)

for supervised learning in feedforward artiﬁcial neu-

ral networks. The gradient can be computed as

∇R(w) =

∑

s=1

(1)

w − r

(w)(

(2)

+ λD

(

(2)

+ λD

The RProp+ method is summarized in Algorithm 1

and uses the weight-backtracking approach. An intu-

itive way to intialize the component vector w

in w

is to take the average of the covariance matrices of

all subjects and compute the best ﬁlter with the ba-

sic CSP algorithm. Initializing the other component

vectors v

in w is even easier, just run the basic CSP

algorithm on the covariance matrices of each subject

separately and select the best ﬁlter as starting point.

3 EXPERIMENTS

We use data of the third BCI competition

, more pre-

cisely data set IVa. The set contains data recorded

On http://www.bbci.de/competition/iii/ you can ﬁnd

the data sets and results of the 3e BCI competition.

from 118 electrodes where the subjects performed

two tasks: right hand motor imagery and foot im-

agery. Five subjects are included in the set and each

subject recorded 280 trials. From each of these sub-

jects, we use 100 trials for training and 180 for test-

ing. To limit the number of parameters that needs to

be computed by the RProp+ algorithm, the number of

channels is reduced to 22. The ones selected are Fp1,

Fpz, Fp2, F7, F3, Fz, F4, F8, T7, C3, Cz, C4, T8, P7,

P3, Pz, P4, P8, POz, O1, Oz and O2. All remaining

signals are band-pass ﬁltered between 8 and 30 Hz.

The trade-off parameter λ is determined through

cross-validation, which is the reason we still need

a sufﬁcient amount of data to accurately select the

paramter value. For each subject only two spatial ﬁl-

ters are computed: one for each class. The reason

for the limit of one ﬁlter per class is the bad con-

vergence of the algorithm after one iteration of pro-

jection deﬂation (a technique also use in principal

component analysis to compute subsequent princi-

pal components). Table 1 shows the cross-validation

accuracy for each subject and different parameters

λ ∈ {10

−6

, 10

−4

, 10

−2

, 1, 10

, 10

}. Clearly, for

some subjects a global ﬁlter is preferred (subject av),

while for others a more intermediate ﬁlter is chosen

(subject aa) or even a subject speciﬁc ﬁlter (subjects

aw and ay). For subject al it does not matter which

model parameter to choose as both global and speciﬁc

ﬁlters perform equally well.

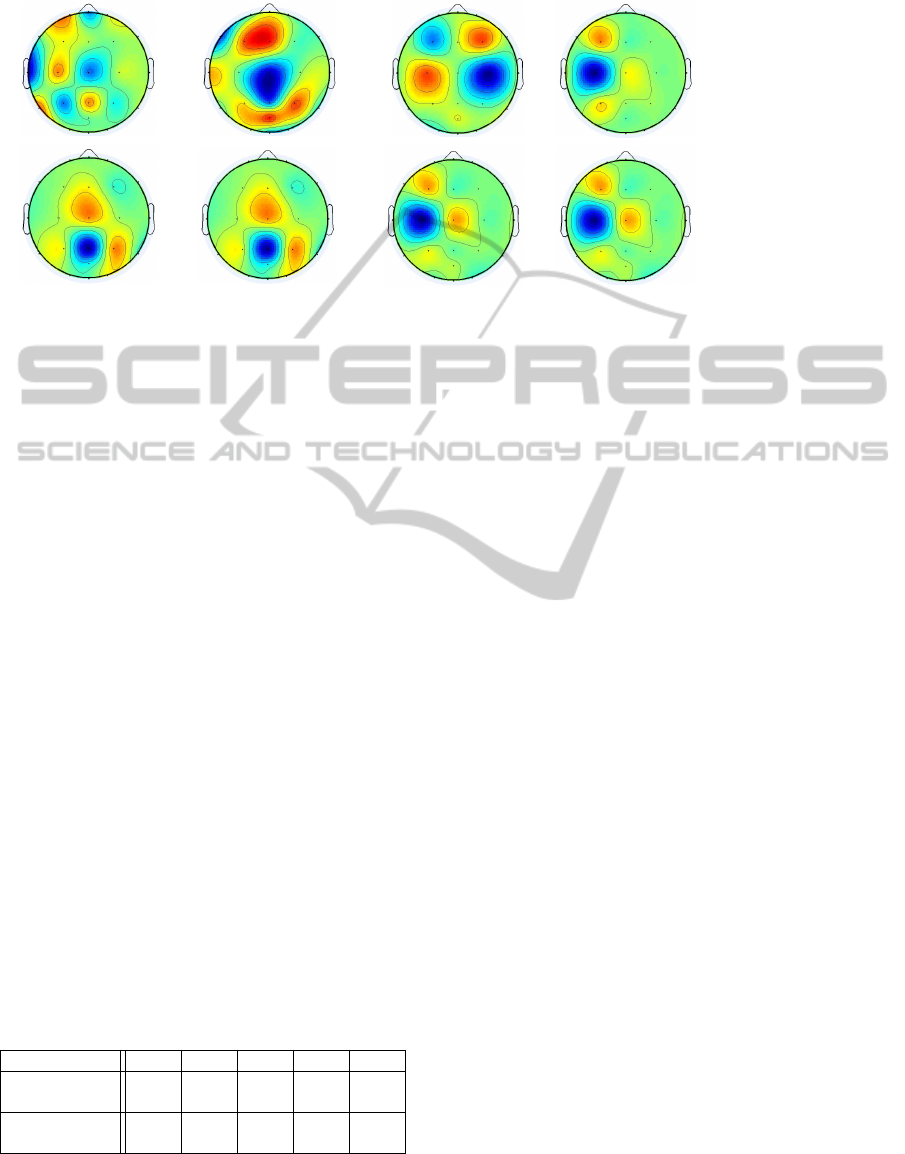

Figure 2 shows the spatial ﬁlters for two subjects

av and ay, computed both with the basic CSP variant

and with the multitask variant. As subject ay prefers a

subject speciﬁc model, one can see that the multitask

CSP variant (msCSP) converges to the same ﬁlter as

the basic CSP variant (bCSP) for very low values of

λ. However, for subject av the difference between the

two ﬁlter variants can not be unnoticed. The global

ﬁlters in the second and fourth column show a more

physiological plausible solution, which is also sup-

ported by a higher accuracy on the test set as one can

see in Table 3. In general, the multitask variant seems

to improve the overall accuracy for each subject, ex-

cept for subject aa, in which case a small decrease in

performance is observed. The improvement in sub-

jects such as av and aw, that initially do not perform

well, can be due to the inﬂuence of subjects who do

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

380

Class 1 Class 2

bCSP msCSP bCSP msCSP

Subject av

Subject ay

Table 2: The ﬁrst row displays spatial ﬁlters for subject av and the second row for subject ay. The ﬁrst and second column

represent spatial ﬁlters for class one, the ﬁrst one being a subject speciﬁc ﬁlter computed by the basic CSP algorithm (bCSP),

while the second column displays the ﬁlter computed with the multitask CSP variant (msCSP). For subject av λ = 10

(corresponding to a global model) and for subject ay λ=10

−6

(corresponding to a speciﬁc model). The third and fourth

column then show the spatial ﬁlters for the second class.

perform well, such as al and ay. This idea is con-

ﬁrmed by looking at the msCSP ﬁlter of subject av

for class two in Figure 2, which strongly resembles

the subject speciﬁc ﬁlter of ay.

We also compare the application of a single global

ﬁlter (for each class) with no spatial ﬁltering. Here,

the global ﬁlter is computed based on data of all

subjects, except the data of the subject being tested

(λ = 10

). In this case, the training data is only used

to build the classiﬁer. When no spatial ﬁltering is ap-

plied, we select the four channels C3, Cz, C4 and POz

to compute the variance.

Although the global ﬁlter completely fails for sub-

ject aw, we see a clear improvement in all other sub-

jects. This suggests it maybe possible to construct a

global classiﬁer in conjunction with this global ﬁlter

to make predictions for new subjects without train-

ing. Predictions can then be further improved while

new data comes available. Furthermore, it can poten-

tially overcome the intial frustration of failure during

earlier trials.

Table 3: Accuracy obtained on the test sets for each subject,

comparing the basic CSP method with its multitask variant.

Furthermore, two other methods are compared: the applica-

tion of a single global model versus no spatial ﬁltering.

method \ subject aa al av aw ay

basic CSP 68.33 95.56 56.67 63.89 90.00

multitask CSP 64.44 95.56 67.78 73.89 90.00

no CSP 61.11 85.56 54.44 71.10 86.11

global CSP 66.67 93.33 66.11 53.89 90.56

4 CONCLUSIONS

We presented a multitask variant of the CSP algorithm

that uses data recorded from multiple subjects to im-

prove the results of a speciﬁc subject. The algorithm

has two shortcomings. Firstly, the number of spa-

tial ﬁlters that can be extracted is limited to one, but

could potentially be overcome by using joint approx-

imate diagonalization. Secondly, because the trade-

off parameter is determined through cross-validation,

the algorithm still needs sufﬁcent training data to se-

lect the parameter reliably. However, with enough

data to determine the trade-off parameter, we can see

a clear improvement in all subjects except for one,

where there’s only a limited decrease in performance.

On top of that, we also employed the method for

learning a single global ﬁlter based on data of all sub-

jects except one, testing it on the remaining subject.

In this case we can also see a clear improvement com-

pared to the case where no spatial ﬁltering is applied.

This suggests that the method could be used to im-

prove results when no training data is available. This

is off course under the assumption that the classiﬁer

is also built from other subjects.

REFERENCES

Alamgir, M., Grosse-Wentrup, M., and Altun, Y. (2010).

Multitask learning for brain-computer interfaces. In

Proceedings of the Thirteenth International Confer-

ence on Artiﬁcial Intelligence and Statistics, vol-

ume 13, pages 17–24, Sardinia, Italy.

MULTITASK LEARNING APPLIED TO SPATIAL FILTERING IN MOTOR IMAGERY BCI - A Preliminary Offline

Study

381

Blankertz, B., Kawanabe, M., Tomioka, R., Hohlefeld, F.,

Nikulin, V., and M

uller, K. (2008). Invariant common

spatial patterns: Alleviating nonstationarities in brain-

computer interfacing. In Advances in Neural Informa-

tion Processing Systems, volume 20, pages 113–120,

Vancouver, Canada.

Dornhege, G., Blankertz, B., Krauledat, M., Losch, F., Cu-

rio, G., and M

uller, K. (2006). Optimizing spatio-

temporal ﬁlters for improving Brain-Computer Inter-

facing. In Advances in Neural Information Process-

ing Systems, volume 18, pages 315–322, Vancouver,

Canada.

Evgeniou, T., Micchelli, C., and Pontil, M. (2005). Learn-

ing multiple tasks with kernel methods. Journal of

Machine Learning Research, 6:615–637.

Farwell, L. and Donchin, E. (1988). Talking off the top of

your head: toward a mental prosthesis utilizing event-

related brain potentials. Electroencephalography and

Clinical Neurophysiology, 70(6):510–523.

Kato, T., Kashima, H., Sugiyama, M., and Asai, K. (2008).

Multi-task learning via conic programming. In Ad-

vances in Neural Information Processing Systems 20,

volume 20, pages 737–744, Vancouver, Canada.

Kelly, S., Lalor, E., Reilly, R., and Foxe, J. (2005). Visual

spatial attention tracking using high-density SSVEP

data for independent brain-computer communication.

IEEE Transactions on Neural Systems and Rehabili-

tation Engineering, 13(2):172–178.

Koles, Z. (1991). The quantitative extraction and topo-

graphic mapping of the abnormal components in the

clinical EEG. Electroencephalography and Clinical

Neurophysiology, 79(6):440–447.

Krauledat, M., Schroder, M., Blankertz, B., and M

uller, K.

Reducing Calibration Time For Brain-Computer Inter-

faces: A Clustering Approach. In Advances in Neural

Information Processing Systems, Vancouver, Canada.

uller-Gerking, J., Pfurtscheller, G., and Flyvbjerg, H.

(1999). Designing optimal spatial ﬁlters for single-

trial eeg classiﬁcation in a movement task. Clinical

Neurophysiology, 110(5):787–798.

Pfurtscheller, G. and Lopes da Silva, F. (1999). Event-

related EEG/MEG synchronization and desynchro-

nization: basic principles. Clinical Neurophysiology,

110:1842–1857.

Ramoser, H., Muller-Gerking, J., and Pfurtscheller, G.

(2000). Optimal spatial ﬁltering of single trial EEG

during imagined hand movement. IEEE Transactions

on Rehabilitation Engineering, 8(4):441–446.

Riedmiller, M. and Braun, H. (1993). A direct adap-

tive method for faster backpropagation learning: the

RProp algorithm. In IEEE International Conference

on Neural Networks, pages 586–591, San Fransisco.

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

382
