IDENTIFYING CONTEXT SOURCES TOWARDS

CONTEXT-AWARE ADAPTED WEB SERVICES

Georgia M. Kapitsaki

Department of Computer Science, University of Cyprus, 75 Kallipoleos Street, P.O. Box 20537, CY-1678, Nicosia, Cyprus

Keywords: Context, Context-awareness, Web services.

Abstract: Context-awareness refers to the ability of services and applications to proactively adapt their behavior to the

characteristics of the execution environment, such as weather conditions, location, etc., namely context.

Web services as the most popular implementation of service-oriented applications are usually exploited in

this field. During the development process of such services an interesting challenge lies in identifying

reusable context properties or services that constitute potential context sources for the adaptation to context.

In this paper a solution for this context source matchmaking is proposed. The identification is performed by

matching the WSDL specifications participating either as business services or as context sources. The

procedure is demonstrated through an evaluation exploiting descriptions from online service registries.

1 INTRODUCTION

Context in service computing is used to describe

different kind of information depicting specific

conditions, such as weather temperature, location

information, end-user preferences, current activity,

etc. The most widely mentioned definition of

context has been provided by Dey and Abowd

(2000), whereas context-awareness refers to the

ability of services to proactively adapt their behavior

to contextual information. Additionally, in the latest

years there is an increasing trend towards the

provision of personalized and context-aware services

to end-users both for web and mobile environments.

Web Services (WSs) – being the most popular

implementation of service-oriented applications –

are usually exploited in such environments resulting

to context-aware web services. This way web

services can also act as reusable components for the

creation of composite innovative applications

consisting of individual web services. Web services

can be exploited both as business components

offering specific functionality to the composite

application (e.g. hotel room reservation, stock

options information retrieval) referred to as Business

Web Services (BWSs), but also as context sources

related to the retrieval of context information,

referred to as Context Web Services (CWSs).

The process of combining these services at

implementation level is an important issue that needs

to be addressed by application developers. In this

paper a process for the identification of potential

context sources exposed as web services towards the

development of context-aware adapted web services

is proposed. In contrast to existing matchmaking

works that concentrate on service selection, where a

service request is matched against offered services,

the current procedure revolves around context-

awareness. The goal is to assist developers in

identifying reusable matching services that are

supported either by the provider intranet or by

external service providers. The identification is

based on the matchmaking of the corresponding

service descriptions (BWSs and CWSs).

The rest of the paper is structured as follows:

Section 2 discusses briefly the scientific background

and related work, whereas Section 3 presents the

principles of the matchmaking process. The process

is. evaluated in Section 4 through various service

descriptions. Finally, Section 6 concludes the paper.

2 RELATED WORK

In the framework of service discovery approaches

towards service matching can be divided into end-

user service discovery, which refers to runtime

discovery prior to service execution, and developer

service discovery, which aims at assisting

developers in identifying potential service

135

M. Kapitsaki G..

IDENTIFYING CONTEXT SOURCES TOWARDS CONTEXT-AWARE ADAPTED WEB SERVICES .

DOI: 10.5220/0003336301350140

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 135-140

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

components. In the context of the current paper the

focus is given on developer service discovery and

more precisely on Web Service Description

Language (WSDL) (W3C, 2001) based discovery

that gives space for more flexible discovery

approaches instead of catalogue browsing through

Universal Description, Discovery and Integration

(UDDI, 2004) registries, which can prove

insufficient.

A significant approach towards service discovery

for web services is provided by Wang and Stroulia

(2003). It comprises of different stages resulting to

the structural matching between WSDL

specifications. The web service interface data types,

messages, operations and web services are compared

sequentially with different algorithms and the final

results are ordered based on the overall computed

matching score. A signature matching for WS search

based on a full text analysis performed on WSDL

files can be found in the work of Gannod and Bhatia

(2004), whereas an event-driven rule-based context-

aware system is presented by Yang, Zhang, and

Chen (2008). The system is accompanied by a

context-aware service oriented architecture that

matches service requesters’ attributes with the ones

issued by the service providers. Works on WSDL

comparisons can also be found in more recent

approaches (Liu et al., 2010; Plebani and Pernici,

2009).

Context-awareness in WSs can be managed in

different ways. Although the solutions are mainly

more generic (pervasive computing applications,

etc.), lately a variety of dedicated approaches

focusing on the provision of context-aware web

services have been proposed. In many cases the

presented techniques rely on the interception of

Simple Object Access Protocol (SOAP) (W3C,

2007) messages for injecting context dependent

behavior (Keidl and Kemper, 2004; Prezerakos,

Tselikas and Cortese, 2007). For more information

on related work regarding context-awareness the

reader can refer to the survey on context-aware

service engineering presented by Kapitsaki,

Prezerakos, Tselikas and Venieris (2009).

Having as motivation the above works this paper

focuses on the development of an identification

process for context-aware web services. For this

matching base a different approach needs to be

applied; the discovery techniques mentioned include

matching between service descriptions and given

keywords or between uniform service descriptions

without capturing specific constraints (like context-

awareness). Combinations of comparisons useful in

revealing similarity concepts that are missing from

the current literature are provided in the framework

of this work. The presentation of the paper focuses

on the applicability of the proposed scheme on real

Web service descriptions. The main novelty of the

proposed procedure lies in the use of matchmaking

principles in the field of context-aware web services

for context source discovery purposes.

3 MATCHING PRINCIPLES

3.1 Context Adaptation Cases

In previous work the research approach towards a

context adaptation mechanism for web services

through message interception has been presented

(Kapitsaki, Kateros and Venieris, 2008). Following

the rationale behind this aforementioned procedure

three context adaptation cases for web services are

assumed:

 Parameter Injection: this case refers to the

possibility of having operations with input

parameters that depend on context information. The

respective request message parameters can be

replaced with the actual context values. Examples

include parameters expressing the name of a city or

country, the end-user age, the outdoor temperature,

etc.

 Operation Selection: when one service

aggregates a number of methods offering the same

functionality in different ways or using different

parameters an operation selection adaptation may

need to be performed. The operation to be invoked is

selected based on context information (e.g. a

payment service may select the method that

corresponds to the payment choice stored in a user

profile).

 Response Manipulation: it refers to the

manipulation or the modification of service

responses based on context and is often related with

filtering or sorting operations (e.g. filter outdoor

activities in bad weather conditions).

Combinations of the above are also possible. In the

framework of an application consisting of web

services different adaptation cases can also be met

(e.g. service selection based on contextual

parameters). However, the adaptation focuses on the

above cases which are meaningful when the

adaptation to context is assumed at the web service

level. This choice guarantees also the preservation of

the integrity of the exchanged messages between the

service client and the web service.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

136

3.2 Service Identification

The proposed context source matchmaking lies in

the matching between web service descriptions and

more specifically in the comparison of the elements

contained in the WSDL descriptions of the business

web services and the context web services. The

similarity of the descriptors is calculated through

appropriate scores that express the semantic distance

of the different elements assigning higher values to

concepts with closer proximity. The matching is

performed for the first two context adaptation cases

mentioned previously and is detailed in the next

sections. The third case of response manipulation is

neglected, since it is not possible to conduct an

appropriate matching on this level – which permits

many degrees of freedom – based on the information

available in the web service specifications.

3.2.1 Case 1: Parameter Injection

For similarity related with parameter injection the

input parameters of the BWS methods should match

the return parameters of the CWS methods. The

compliance needs to be maintained for both names

and types of the participating parameters. At a

second level the BWS input parameters need to be

matched against the name of the CWS operation,

which may also express the operation functionality

or the meaning of the values returned (e.g. an

operation named

getCityInformation(...) will

probably return information like the city name and

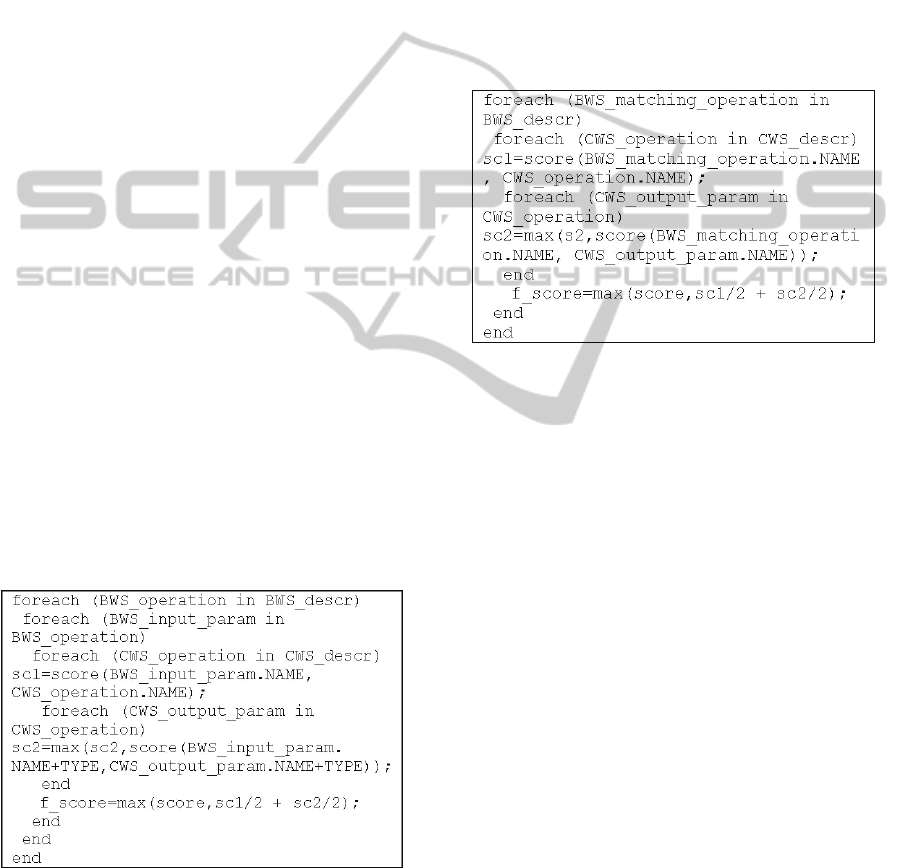

postal code). The skeleton of the algorithm executed

is shown below.

f_score maintains the maximum

value of the scores calculated for each operation.

3.2.2 Case 2: Operation Selection

In operation selection the name of the BWS

operation is matched against both the CWS

operation and the return parameter names. However,

this comparison is meaningful for BWSs that

aggregate two or more services implementing the

same functionality in different ways (e.g., that would

lead in choosing

getWinterActivities(...)

over

getSummerActivities(..) operation in a

tourist service, when retrieving activities in winter

time). In order to check this similarity a test for the

detection of similar business service methods in

terms of method names and types returned is

conducted first. The matching is then performed on

the compatible operations of the business service (if

any). The algorithm for this adaptation case is

depicted below keeping the maximum score

obtained in variable

f_score.

Based on the above cases the names of the pairs

parameter–parameter and parameter–operation are

compared, whereas parameters pairs are additionally

compared for type similarity. Concerning type

comparison a number of type groups for primitive

(e.g. string, int, etc.) and complex data types (e.g.

list, array, etc.) have been introduced. Nevertheless,

the WSDL files may also contain special complex

data types defined in the XML schema section that

are exploited in the rest of the interface descriptor

(e.g. types Wind or Movie). When performing the

comparison, these types are broken down to their

atomic elements, which participate in the type

matching, unless the data type names and the

corresponding namespaces coincide. If a specific

structure for the input or return operation types is

lacking, the keywords “Any” or “AnyType” are

usually present in the WSDL specification.

The second type of comparison is related to the

names of specific keywords, which acquires a higher

weight in the overall score computation, since two

semantically similar names are more important than

the corresponding similar types. Non-meaningful

words that do not add any semantic value to the

service or operation meaning or that are irrelevant to

context information properties (e.g. get, add, and,

show, information) are neglected from the matching

procedure. These non meaningful words are also

indicated as stop words or words ”too frequent to be

IDENTIFYING CONTEXT SOURCES TOWARDS CONTEXT-AWARE ADAPTED WEB SERVICES

137

meaningful” (Falleri, Azmeh, Huchard and

Tibermacine, 2010). A list of the 25 most common

stop words in information retrieval is mentioned by

Manning, Raghavan and Schütze (2008). A

comparison based on the WordNet lexical database

(WordNet) has been chosen for this step. Semantic

lexical databases are an interesting field inspired

from the general field of linguistics. WordNet is

built around links expressing semantic associations

among the contained concepts. Through WordNet

different scores are assigned depending on the

keyword sense proximity: original keyword,

keyword synonyms, keyword hypernyms or

keyword meronyms (4 for original keywords, 3, for

direct synonyms and 1 for hypernym or meronym

associations).

The matching through WordNet is first

performed on the original names retrieved from the

service operation and parameter names. If no match

is found at this level, the procedure is repeated for

all possible keyword substrings retrieved through a

tokenization procedure. The tokenization is

performed based either on capital letters (as noticed

in the majority of words in WSDL descriptions) or

on underscores (used in WordNet) identified in the

respective names. Through the tokenization the

keywords are broken down not only to the last level

substrings, but also to the substrings containing

more than one meaningful words. These substrings

participate earlier in the matchmaking process.

Indeed, it is preferable to have a composite substring

match rather than a plain substring match, as it

indicates closer similarity of the original input

keywords. Therefore, the computed score is higher

when the composite substrings from the two service

descriptions match. For example, if the keywords

GetAirportInformationByCountry and

CountryName are to be matched, the matching will

first be performed on the whole words, at a later

stage on InformationByCountry and CountryName

and even later on Country and Country.

4 EVALUATION PROCESS

An evaluation demonstrating the applicability of the

proposed scheme on real web service descriptions

has been conducted. For this purpose a number of

descriptions obtained from online service registries

have been exploited along with web services

implemented in the framework of the current work.

The BWSs for two adaptation categories are shown

in Table 1: 1) adaptation based on the location of the

requester, and 2) adaptation based on the point of

time the request is made. Table 2 is dedicated to the

presentation of the context web services depicting

the category of context information provided: 1)

Weather, 2) Location and 3) Time. The source of

each service description is also shown in the tables.

Table 1: Business service examples.

Adaptation

Category

Business Service

Location Airport Information (WebServiceX )

Driving (XMethods )

Movie Information (XMethods)

Proximity (XMethods)

Time Foreign Exchange Rate (XMethods)

Midnight Trader Financial News

(XMethods)

Historic Option data (XMethods)

Table 2: Context service examples.

Category Context Service

Weather CDYNE Weather (XMethods)

Global Weather Service (XMethods)

Global Weather (WebServiceX)

Location IP2Geo (XMethods)

IP2Location (XMethods)

IPligenceGeoIPLocation (XMethods)

Time DateTime (own implementation)

During the evaluation all available services have

been matched in two ways: 1) through the described

matchmaker that exploits the WordNet lexical

database and 2) by performing plain syntactic

matching on the description elements based on the

introduced matchmaking cases. On keyword level

the syntactic matcher performs a plain match on the

keywords under examination instead of using

WordNet (that can identify synonyms, meronyms,

hypernyms and hyponyms). In order to provide a

proof of concept for the results two widely adopted

metrics are introduced from the information retrieval

field: precision and recall. “Precision is the

proportion of retrieved documents that are relevant,

and recall is the proportion of relevant documents

that are retrieved” (Voorhees, 1998). The metrics

are defined as:

Relevant answers

Total answers

ecision



(1)

Relevant answers

Relevant documents

call



(2)

Relevant answers refer to the compatible context

service descriptions returned through the matching

procedure, total answers is the whole service set

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

138

returned (both compatible and incompatible

descriptions) and relevant documents refers to the

actual set of compatible context services. Values

closest to one are indicators of more efficient

information retrieval techniques. The results of the

metric values for each BWS along with the names of

the CWSs retrieved are summarized in Tables 3 and

4 for the semantic WordNet and the syntactic

matching respectively. The services that appear in

bold italics are the ones that actually match and are

correctly returned through the procedure.

Table 3: Precision and Recall values for the WordNet

matcher.

Request BWS and CWSs

Returned Precision Recall

Airport Information

(CDYNEWeather, IP2Geo,

IP2Location,

IPligenceGeoIPLocation,

GlobalWeatherService,

GlobalWeather)

0,5 1

driving

(GlobalWeatherService,

IPligenceGeoIPLocation)

0,5 0,5

Foreign Exchange Rate

(DateTime,

IPligenceGeoIPLocation,

GlobalWeatherService,

CDYNEWeather)

0,25 1

Historic option data

(DateTime, CDYNEWeather

IPligenceGeoIPLocation,

GlobalWeatherService)

0,25 1

Midnight Trader

FinancialNews

(CDYNEWeather,

GlobalWeatherService,

DateTime)

0,333 1

Movie Information

(CDYNEWeather, IP2Geo,

IP2Location,

IPligenceGeoIPLocation,

GlobalWeatherService)

0,6 1

Proximity (CDYNEWeather,

GlobalWeatherService,

GlobalWeather,

IP2Location,

IPligenceGeoIPLocation)

0,4 0,667

Generally, the values obtained for the precision

and recall metrics indicate that the proposed scheme

can prove useful for software engineers towards the

automatic identification of reusable context sources.

The recall calculation using the WordNet matcher

appears to have a slightly better performance than

the plain syntactic matching. This is mainly

observed, since the semantic similarities captured

between the different keywords by the WordNet

matcher include all context adaptation cases for the

specific web service. Nevertheless, this is not the

case with the precision values, where the syntactic

matching has a better performance in some cases.

This appears mainly because of the presence of

keywords in the WSDL descriptions not directly

related to the main service functionality. These

keywords are, however, captured by the WordNet

matcher, because of the semantic similarities they

possess. This can be noticed for example when some

weather services are returned together with the

location adaptation case, since they provide weather

forecasts for specific cities or countries, which have

close meaning to location.

Table 4: Precision and Recall values for the syntactic

matcher.

Request BWS and CWSs

Returned Precision Recall

Airport Information

(CDYNEWeather, IP2Geo,

IP2Location,

IPligenceGeoIPLocation,

GlobalWeatherService)

0,6 1

driving (GlobalWeatherService,

IPligenceGeoIPLocation)

0,5 0,5

Foreign Exchange Rate

(DateTime,

IPligenceGeoIPLocation,

GlobalWeatherService,

CDYNEWeather)

0,25 1

Historic option data (DateTime,

CDYNEWeather

IPligenceGeoIPLocation)

0,333 1

Midnight Trader FinancialNews

(GlobalWeatherService)

0 0

Movie Information

(CDYNEWeather, IP2Geo,

IP2Location

IPligenceGeoIPLocation,

GlobalWeatherService)

0,6 1

Proximity

(GlobalWeatherService)

0 0

A general disadvantage identified in WordNet is

that it is not possible to determine whether a given

keyword is a verb or an adverb or another part of

speech driving this way to wrong results (e.g. this

problem appears with the keyword “point”, which

may refer to a point in time or a point in space). This

drawback has also been identified for earlier

versions of WordNet in earlier works (Mandala,

Takenobu and Hozumi, 1998).The analysis of the

given operation and parameter names as phrases that

IDENTIFYING CONTEXT SOURCES TOWARDS CONTEXT-AWARE ADAPTED WEB SERVICES

139

consist of nouns and verbs in the right order as

specified by linguistics studies may improve the

performance of the procedure.

5 CONCLUSIONS

In this paper the initial work towards a solution for

the identification of potential context sources

serving the development of context-aware web

services has been proposed. The results are quite

interesting and illustrate the value of the proposed

procedure that alleviates the developer’s work by

allowing the reuse of available and already tested

software components. The procedure can parse,

analyze, normalize and compare service descriptions

successfully for the majority of cases.

Future directions of the current procedure

include the extension of the validation and

evaluation during the whole development lifecycle,

i.e. business services should be matched against

appropriate context information at different

abstraction levels, which is meaningful especially in

the framework of engineering techniques applied

with success in the latest years, such as Model-

Driven Engineering (MDE) (Schmidt, 2006).

Ongoing work includes also the introduction of non-

functional properties extracted from the service

documentation (e.g. communications protocol

restrictions, etc.) towards the implementation of a

service repository that captures the various service

description aspects. This way more accurate results

can be achieved in the matching procedure.

REFERENCES

Dey, K., Abowd, G. D. (2000) ‘Towards a Better

Understanding of Context and Context-Awareness’. In

CHI’00, Workshop on The What, Who, Where, When,

and How of Context-Awareness, as part of the 2000

Conference on Human Factors in Computing Systems.

ACM Press.

Falleri, J.-R., Azmeh, Z., Huchard, M. and Tibermacine,

C. (2010) ‘Automatic Tag Identification in Web

Service Descriptions’. In WEBIST'10, International

Conference on Web Information Systems and

Technology.

Gannod, G. C. and Bhatia, S. (2004) ‘Facilitating

Automated Search for Web Services’. In Proceedings

of the IEEE International Conference on Web

Services. IEEE Computer Society Press, pp. 761-764.

Kapitsaki, G. M., Kateros D. A. and Venieris, I. S. (2008)

‘Architecture for Provision of Context-aware Web

Applications based on Web Services’. In PIMRC

2008, IEEE Personal, Indoor and Mobile Radio

Communications. IEEE Computer Society Press, pp.

1-5.

Kapitsaki, G. M., Prezerakos, G. N., Tselikas N. D. and

Venieris, I. S. (2009) ‘Context-aware Service

Engineering: A Survey’. Journal of Systems and

Software, vol. 82, no. 8, pp. 1285–1297.

Keidl, M., and Kemper, A. (2004) ‘Towards Context-

Aware Adaptable Web Services’. In WWW´04, 13th

international World Wide Web conference. ACM

Press, pp. 55-65.

Liu, F., Shi, Y., Yu, J., Wang, T. and Wu, J. (2010)

‘Measuring Similarity of Web Services Based on

WSDL’. In 2010 IEEE International Conference on

Web Services, pp. 155-162.

Mandala R., Takenobu T. and Hozumi T. (1998) ‘The Use

of WordNet in Information Retrieval’. In

COLING/ACL Workshop on Usage of WordNet in

Natural Language Processing Systems, pp. 31-37.

Manning, C. D., Raghavan, P. and Schütze, H. (2008).

‘Introduction to Information Retrieval’, Cambridge

University Press.

Plebani, P. and Pernici, B. (2009) ‘URBE: Web Service

Retrieval Based on Similarity Evaluation’. IEEE

Transactions on Knowledge and Data Engineering, 21

(11), p. 1629-1642.

Prezerakos, G. N., Tselikas, N. and Cortese, G. (2007)

‘Model-driven Composition of Context-aware Web

Services Using ContextUML and Aspects’. In

ICWS’07, IEEE International Conference on Web

Services, IEEE Computer Society Press, pp. 320-329.

Schmidt, D. C. (2006) ‘Model-Driven Engineering’. IEEE

Computing, vol. 39, no. 2, Cover Feature, pp. 25-31.

UDDI Specification, 3.0.2, (2004), http://uddi.org/pubs/

uddi-v3.0.2-20041019.htm.

Voorhees, E. M. (1998) ‘Using WordNet for text retrieval.

In WordNet, An Electronic Lexical Database’, The

MIT Press, pp. 285-303.

Wang, Y. and Stroulia, E. (2003) ‘Flexible interface

matching for Web-service discovery’. In WISE 2003,

4th International Conference on Web Information

Systems Engineering. IEEE Computer Society Press,

pp. 147-156.

WordNet. http://wordnet.princeton.edu/.

W3C. (2007) ‘Simple Object Access Protocol (SOAP),

1.2’, http://www.w3.org/TR/2007/REC-soap12-part0-

20070427/.

W3C. (2001) ‘Web Services Description Language

(WSDL), 1.1’, http://www.w3.org/TR/wsdl.

Yang, S., Zhang, J. and Chen, I. (2008) ‘A JESS-enabled

context elicitation system for providing context-aware

Web services’. Expert Systems and Applications, vol.

34, issue 4, pp. 2254-2266.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

140
