LazyDOM

Transparent Partial DOM Loading and Unloading

for Memory Restricted Environments

Daniel Peintner, Richard Kuntschke, J¨org Heuer

Siemens AG, Corporate Technology, Information & Communication, 81730 Munich, Germany

Harald Kosch

University of Passau, Chair of Distributed Information Systems, 94032 Passau, Germany

Keywords:

XML, DOM, EXI, LazyDOM.

Abstract:

Processing XML documents using the Document Object Model (DOM) usually requires loading the entire

document into an in-memory DOM prior to processing. Since the in-memory size of a DOM generally is a

multiple of the original XML document size, the resulting DOM often consumes a lot of memory and might

not even ﬁt into the available memory on memory restricted devices. The LazyDOM approach presented in

this paper divides a DOM into XML fragments and loads or unloads these fragments transparently on demand

during processing. Thus, the LazyDOM only loads the parts of a DOM that are actually currently needed by an

application and unloads them if they are no longer required and memory needs to be freed for other processing

tasks. Besides enabling DOM-based processing of large XML documents on memory restricted devices, this

approach is able to reduce the amount of memory required for DOM processing at any given time and can also

increase the performance of DOM loading if only parts of a DOM are actually needed by an application.

1 INTRODUCTION

Many XML tools and XML-based applications di-

rectly or indirectly rely on the Document Object

Model (DOM) (Hors and H´egaret, 2004). This

includes, for example, the XML Path Language

(XPath) (Clark and DeRose, 1999) for specifying and

evaluating path expressions on XML document in-

stances, XQuery and XSLT processors, XML Schema

validators, XForms, and applications built on top of

these tools. Many XML-based processors today work

on an in-memory representation of the entire XML

document instance, usually represented as a DOM.

The in-memory representation of a document can be-

come very large—even larger than the size of the

corresponding textual XML ﬁle in the ﬁle system

(about 400% of the ﬁle size according to (Marian and

Sim´eon, 2003)). When the ﬁle contains a represen-

tation of the XML data in the W3C’s Efﬁcient XML

Interchange (EXI) (Schneider and Kamiya, 2009) for-

mat, the discrepancy between ﬁle size and in-memory

size of the DOM is even larger. Especially when

dealing with larger XML document instances, the po-

tentially excessive memory consumption constitutes a

problem and may render traditional DOM processing

infeasible on embeddedand other resource limited de-

vices such as cell phones and digital cameras.

Nevertheless, the ﬂexibility and extensibility of

XML makes using XML and XPath desirable even on

such limited devices. Consider, for example, the use

of SVG (Ferraiolo et al., 2003) for creating animated

user interfaces on digital cameras. Enabling such use

cases requires a means for loading an XML instance

into a DOM and evaluating XPath expressions in the

face of restricted memory boundaries. In this paper,

we present an approach for dynamically loading and

unloading DOM elements using EXI features (Sec-

tion 3.1).

Since EXI and our solution are seamlessly inte-

grated into the XML stack, our approach can be com-

bined with any existing DOM-based XML technol-

ogy without any additional modiﬁcations. For ex-

ample, compared to previous solutions (Marian and

Sim´eon, 2003), we do not need to analyze the XPath

expression prior to loading the DOM. Instead, we can

use the same DOM for several queries, dynamically

adapting the loaded parts of the DOM not only be-

tween the evaluation of subsequent expressions but

also on-the-ﬂy during the evaluation of a single ex-

pression. The paper introduces the general concept

Peintner D., Kuntschke R., Heuer J. and Kosch H..

LazyDOM - Transparent Partial DOM Loading and Unloading for Memory Restricted Environments.

DOI: 10.5220/0003338100980105

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 98-105

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

of a lazy DOM (Section 2) combined with an index-

ing mechanism for referencing DOM elements to be

loaded into memory and a simple but effective strat-

egy for identifying DOM elements to be unloaded

when memory becomes scarce (Section 3). Fur-

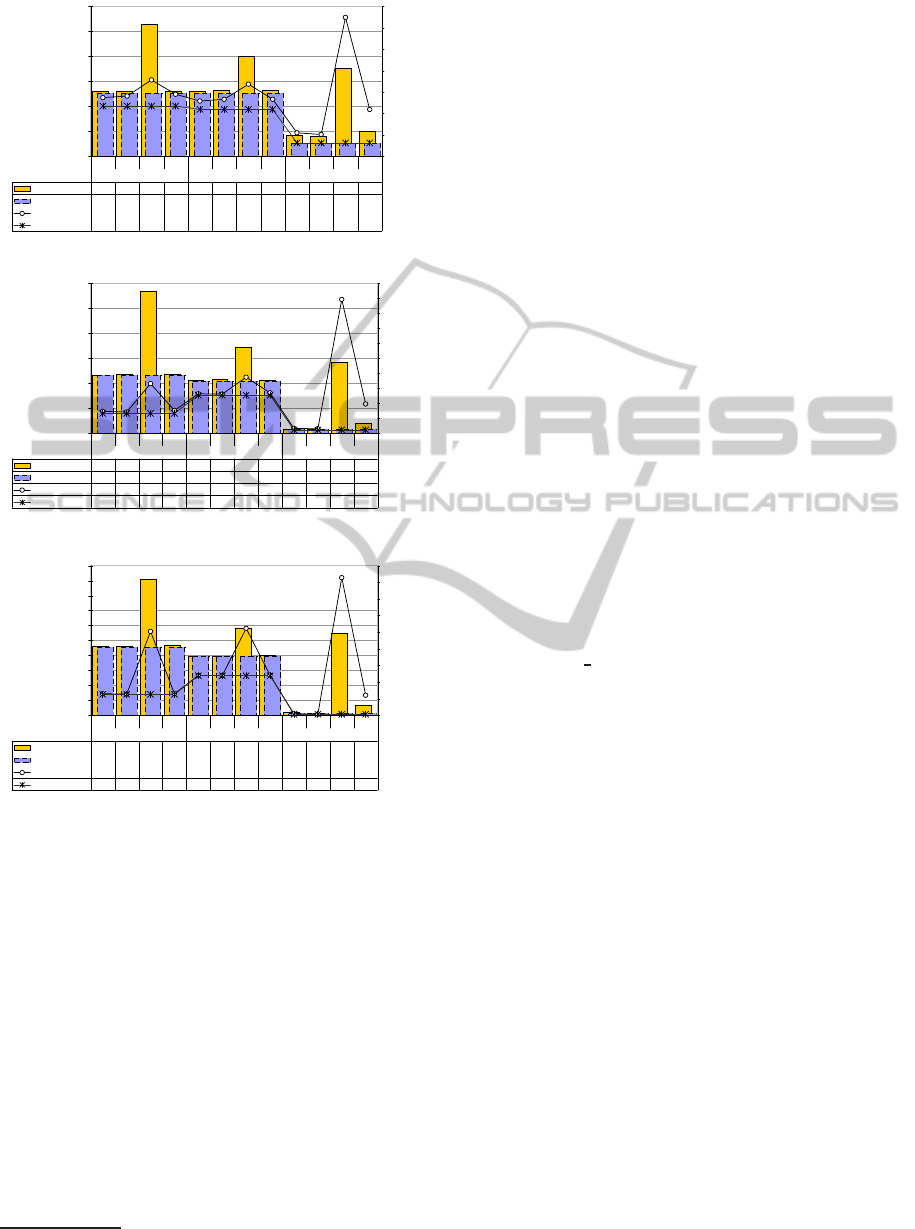

ther, we present evaluation results comparing our ap-

proach to other DOM and XPath evaluation solutions

in terms of memory consumption and query execution

speed (Section 4), give guidelines how the solution

can be tailored to given demands (Section 5), intro-

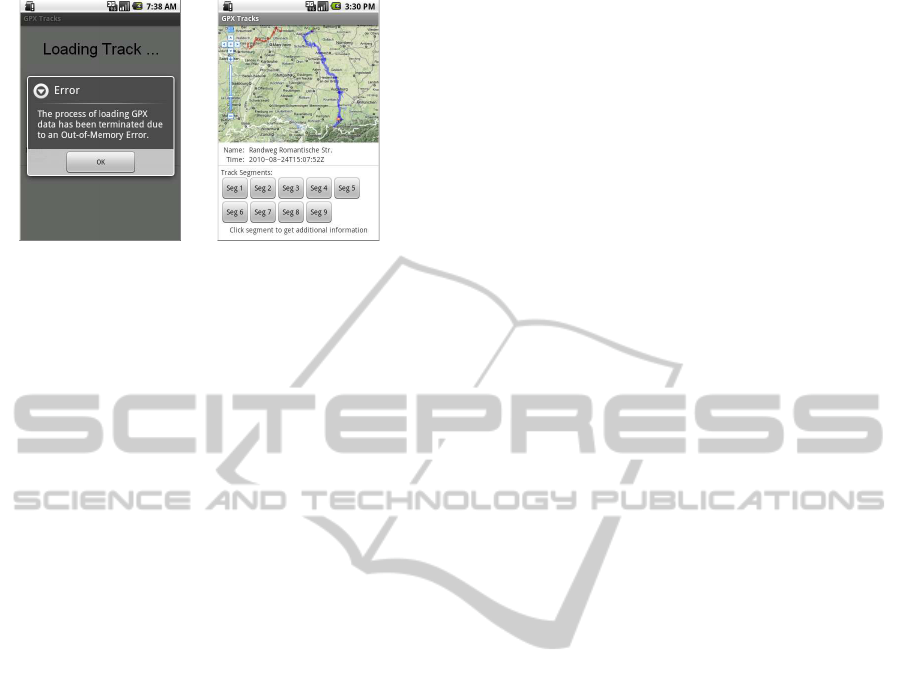

duce a real word application (Section 6) and discuss

related work (Section 7).

2 LAZY DOCUMENT OBJECT

MODEL

The introduction shortly alluded to the idea behind

our memory sensitive model and highlights its sim-

plicity but also its effectiveness in the sense of reduc-

ing memory consumption and increasing processing

speed. In the following, we describe the general con-

cept and the requirements of our approach, while the

technical realization is subsequently discussed in Sec-

tion 3.

2.1 LazyDOM Concept

Lazy evaluation is a well-known technique in the area

of programming languages. Delaying a computation

until its result is required can increase performance by

avoiding unnecessary calculations. A similar concept

can be adopted to operate on an in-memory model of

an XML document. The Document Object Model

(DOM) is a W3C speciﬁcation and can be seen as

an in-memory representation of an XML information

set (Cowan and Tobin, 2004), providing at any time

the full information of the actual XML instance to

navigate through or operate on.

An XML instance is generally transformed en-

tirely into a DOM while multiple interactions, such as

look-up operations, may tackle only certain elements

of the XML tree. The possibility of working with such

independent XML fragments paves the way for efﬁ-

cient processing and saving runtime memory. Hence,

at a given time, only a fragment of the document is

required. In the following, we use the term LazyDOM

for referring to a DOM that partially loads XML ele-

ments and unloads elements that are not needed any-

more.

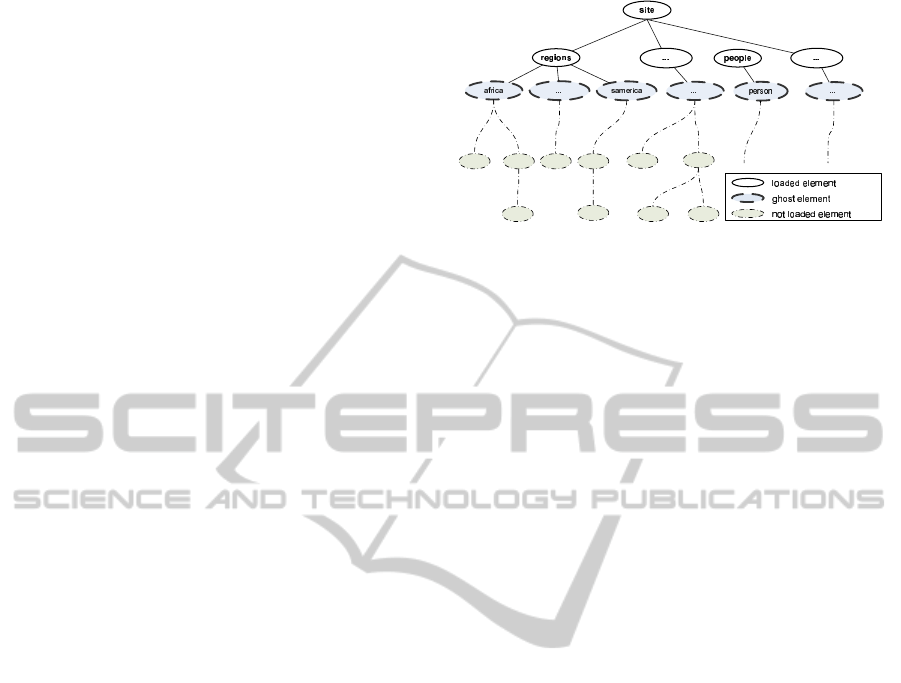

Figure 1 depicts a fragmentation example of an

XML document that represents an arbitrarily subdi-

vided document. The root element site and its chil-

dren build the basic structure. The third XML level

consists of ghost elements. Loaded elements are

present in memory while ghost elements indicate that

there is no subtree available in memory, unless it has

Figure 1: Lazy Document Object Model containing loaded

and not loaded elements.

been loaded on demand. Children of ghost elements,

labeled as not loaded element, are parsed and built

only if required and can be unloaded later if neces-

sary. This fragmentation can be done in a nested fash-

ion, meaning that a not loaded element may contain

further ghost elements.

2.2 LazyDOM Requirements

From the practical point of view, the LazyDOM solu-

tion has to face certain requirements to fulﬁll the de-

scribed concept. A ghost element needs to be parsed

independently from the rest of the document. To do

so, the basic document needs to allow partial loading

while also allowing random access on an element ba-

sis.

In XML terms this means that an XML instance is

only partially loaded into a DOM and that currently

unnecessary elements are skipped. Those skipped

portions of a document (ghost elements) need to be

accessible and indexable without any dependencies

concerning previous data (e.g., XML namespace dec-

larations).

The stated requirements could possibly be fulﬁlled

using plain XML, but only with a fair amount of work

and complexity. Hence we choose the upcoming EXI

format, that is identical with XML on the basis of the

Information Set (Cowan and Tobin, 2004) and already

offers some of the required capabilities.

3 TECHNICAL REALIZATION

This section describes the technical realization of the

required features for the LazyDOM. First, we intro-

duce the EXI format and highlight format features we

base our work on. Second, we describe the indexing

mechanism that enables an efﬁcient look-up of ghost

elements.

LazyDOM - Transparent Partial DOM Loading and Unloading for Memory Restricted Environments

3.1 Efﬁcient XML Interchange (EXI)

The EXI format (Schneider and Kamiya, 2009) is a

very compact representation of the XML Information

Set (Cowan and Tobin, 2004) that is intended to si-

multaneously optimize performance and the utiliza-

tion of computational resources. The W3C published

the candidate recommendation in late 2009 and is ex-

pected to produce the ﬁnal recommendation by the

beginning of 2011.

The EXI format uses a relatively simple grammar-

drivenapproach that achievesvery efﬁcient encodings

(EXI streams) for a broad range of use-cases. Due

to a straightforward encoding algorithm and a small

set of data types, EXI processors can be implemented

on devices with limited capacity. Besides other rele-

vant properties such as encodings with and even with-

out schema information, as well as schema deviations

or partial schemas, the EXI format offers a variety

of additional useful features. In this paper, we focus

mainly on an aspect called selfContained element.

In EXI terms, a selfContained element is a por-

tion of an XML document that may be read indepen-

dently from the rest of the EXI document, meaning

that it offers random access on XML element level.

The EXI speciﬁcation itself does not restrain the use

of selfContained elements to a certain mechanism.

An application is free to make use of this capability

in a convenient way. The LazyDOM proposal uses

this feature to realize the concept of a ghost element.

Hence, both terms, ghost elements and selfContained

elements, are used as synonyms throughout the paper.

3.2 Indexing Mechanism

Subsequently, we introduce a simple, yet powerful in-

dexing mechanism. Based on the previously intro-

duced requirements (Section 2.2) a LazyDOM index-

ing solution needs to provide three information items.

First of all, a selfContained element needs to be

uniquely identiﬁable. The mechanism we are propos-

ing is inspired by XPath (Clark and DeRose, 1999),

a language for selecting nodes in XML documents.

Let’s assume the following XPath expression, com-

posed of three XPath nodes:

/site[1]/people[1]/person[2]

This expression uniquely identiﬁes the second

person

node of the ﬁrst

people

node of the ﬁrst

site

node. Second, the byte offset of a given selfContained

element is needed to randomly access the element.

Third, the length of each selfContained element needs

to be known to support skipping of such elements.

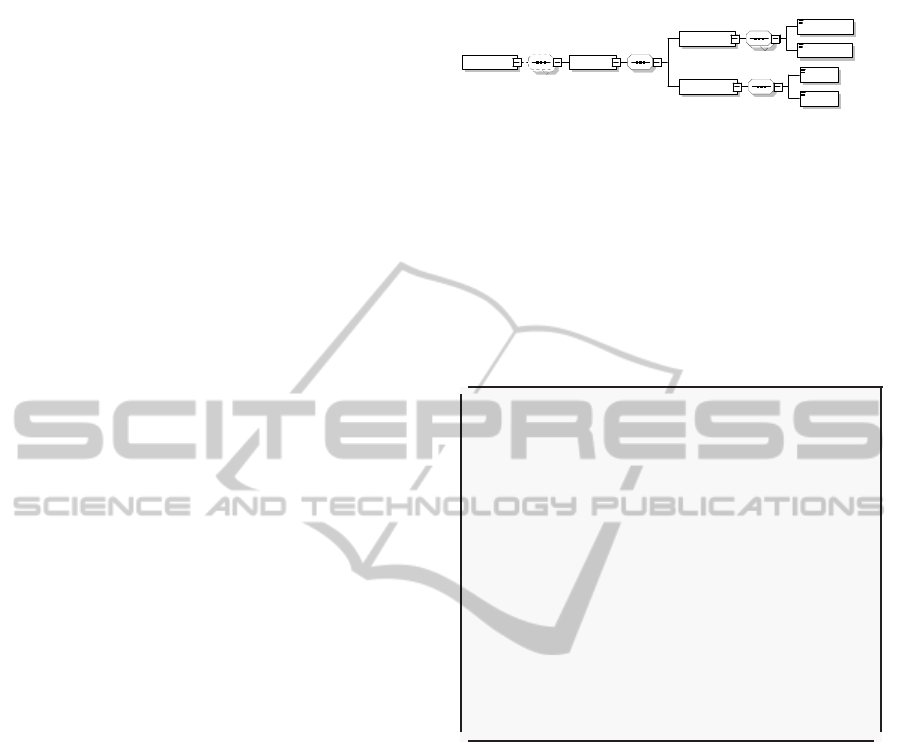

Figure 2 depicts the outcome of the indexing

format expressed in XML Schema notation. Multiple

indices are glued together to a set of indices, depicted

scIndices

∞

scIndex

xPathExpr

∞

nodeName

nodeIndex

scElement

offset

length

Figure 2: XML Schema for index structure.

A selfContained element index (

scIndex

)

is composed of an XPath expression

(

xPathExpr

) and a selfContained element infor-

mation set (

scElement

). An XPath expression in

turn has one to many

nodeName

and

nodeIndex

tuples while the selfContained element portion

comprises the byte

offset

for random access and the

selfContained element

length

in bytes.

Listing 1: Index Example Document.



<?xml vers ion=

"1.0"

encoding =

"UTF-8"

</ xPathExpr>

< o f f s e t>233</ o f f s e t>

</ scElement>

</ scIndex>

<!−− more scInd ex eleme nts −−>

</ scIn di ce s>

 

The index example in Listing 1 maps exemplar-

ily the previously used XPath expression to the byte

offset (233) in an EXI document. This means that

one needs to skip 233 bytes from the start of the EXI

stream before reaching the relevant selfContained el-

ement

person

while the length of the selfContained

element is 81 bytes.

The use of XML technologies (e.g., XML

Schema) to describe the index has the advantage of

being able to use the EXI format to efﬁciently store

the index in an easy consumable way without intro-

ducing new requirements or technologies. EXI uses

local-names to keep the overhead at a minimum. In-

stead of coding the element name as a character se-

quence over and over again, EXI uses compact iden-

tiﬁers that are already part of EXI string tables. Mea-

surements presented in Section 4 take a closer look at

the effectiveness of the presented index structure and

present numbers for real world data.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

100

3.3 LazyDOM Applicability

As stated in the introduction, our goal is to offer

the same functionality as any other Document Ob-

ject Model realization, with the beneﬁt of having

just the relevant parts of an XML tree in memory.

Hence we propose the LazyDOM solution that uses

the described indexing mechanism and initially forms

a skeletal structure, meaning that the root element and

the entire substructure up to any indexed element is

resolved and loaded into memory (see Figure 1).

An XPath engine or any application using a DOM

does not see any difference to a conventional DOM

implementation. A DOM node or element has to pro-

vide capabilities for navigating the tree. Each node

has a link to the parent, the previous and the next sib-

ling, as well as a complete list of child-nodes. The

LazyDOM solution provides exactly the functionality

required by the W3C DOM speciﬁcation without any

restrictions.

4 MEASUREMENTS

& EVALUATION

In this section, we provide test results showing that

the memory sensitive approach presented in this pa-

per works well for real test data. For compari-

son with other projects, such as Projecting XML

Documents (Marian and Sim´eon, 2003), as well as

for traceability, we use test-data generated with the

XMark Benchmark Project

. In addition, we use

Java’s Management Extensions (JMX)

, a Java tech-

nology that supplies tools for managing and monitor-

ing Java applications, e.g., in terms of memory con-

sumption.

4.1 Test Data

XMark provides a data generator that we used to pro-

duce XML documents with sizes varying from 1 to

116 MB (e.g. the document xmark-f-0-10.xml was

produced using the XMark factor 0.10, see Table 1).

Our comparison is split into two steps. First of all,

we produce EXI encoded streams, which constitute

counterparts to the XMark generated textual XML

documents. Second, we test those generated XML /

EXI documents applying several XPath queries.

Table 1 shows the different documents

and their sizes on disk. EXI stands for

the EXI encoded document with selfCon-

tained elements. We decided to introduce

selfContained elements for all elements appear-

ing on the third XML tree level. The last column

http://www.xml-benchmark.org/

http://java.sun.com/products/JavaManagement/

Idx shows the overhead of the index structure by

mentioning the size of the index and quoting the

number of indices (#).

Table 1: Document sizes in kB.

TestCase XML EXI Idx

(#)

xmark-f-0-01.xml 1155 812 7

(498)

xmark-f-0-10.xml

11597 8076 72

(4931)

xmark-f-1-00.xml

115775 79133 731

(49256)

It should further be noted that the size of the in-

dex structure compared to the documents itself is less

than 1%. This seems like a reasonable overhead in

the sense of storage and parsing. Please note also

that EXI documents are usually about ten or more

times smaller than semantically equivalent XML doc-

uments (see EXI Evaluation Note (Bournez, 2009)).

Due to the fact that the XMark generator produces in-

stances with string datatypes only and the XML struc-

ture is minimal compared to the actual content data,

the EXI format can not properly show its expected

beneﬁt. Nevertheless, this paper is not about showing

EXI’s compression efﬁciency. Instead we focus on

a small subset of EXI format features that facilitate

building the LazyDOM solution.

4.2 Query Set

To show the effectiveness of the LazyDOM approach,

we introduce three XPath queries. These serve as a

basis for the subsequently presented measurements

regarding memory consumption and processing time.

Query Q1. /site/people/person[2]/name

describes a very precise request looking for a per-

son’s name with a position index.

Query Q2. /site/regions/∗

returns a node list of regions such as

asia

and

europe

Query Q3a. //closed

auction[date =

′

04/16/2000

′

]

tackles essentially the entire document. The

request is stated in such a generic way that an

XPath engine is required to traverse the entire

XML tree and ﬁlter

closed auction

’s with a

certain date.

Query Q3b. /site/auctions/closed

auction[date =

′

04/16/2000

′

]

is semantically equivalent to Query Q3a accord-

ing to the XMark schema. The improvement

is though that the request uses absolute paths to

identify the node. We will get back to the sig-

niﬁcant difference between Q3a and Q3b further

below.

LazyDOM - Transparent Partial DOM Loading and Unloading for Memory Restricted Environments

101

Memory [MB]

200

400

600

800

1000

1200

1400

Time [msec]

Memory [Query]

5,2 5,2 10,6 5,2 5,2 5,3 8,0 5,3 1,7 1,6 7,0 2,0

Memory [DOM]

5,0 5,0 5,0 5,0 5,0 5,0 5,0 5,0 1,0 1,0 1,0 1,0

Time [Query]

548 562 713 579 516 532 673 532 219 203 1297 437

Time [DOM]

469 469 469 469 438 438 438 438 125 125 125 125

Q1 Q2 Q3a Q3b Q1 Q2 Q3a Q3b Q1 Q2 Q3a Q3b

XML EXI LazyDOM

(a) xmark-f-0-01.xml (ca. 1 MB of XML).

100

120

Memory [MB]

1000

2000

3000

4000

5000

6000

7000

8000

9000

10000

Time [msec]

Memory [Query]

46,5 47,3 113,1 47,2 42,1 42,9 68,5 42,1 3,3 3,2 56,9 8,0

Memory [DOM]

45,8 45,8 45,8 45,8 41,2 41,2 41,2 41,2 2,5 2,5 2,5 2,5

Time [Query]

1437 1405 3297 1500 2613 2597 3723 2674 312 281 8907 1937

Time [DOM]

1312 1312 1312 1312 2519 2519 2519 2519 203 203 203 203

Q1 Q2 Q3a Q3b Q1 Q2 Q3a Q3b Q1 Q2 Q3a Q3b

XML EXI LazyDOM

(b) xmark-f-0-10.xml (ca. 12 MB of XML).

100

200

300

400

500

600

700

800

900

1000

Memory [MB]

10000

20000

30000

40000

50000

60000

70000

80000

90000

Time [msec]

Memory [Query]

459,0 459,1 907,0 468,0 393,0 392,0 581,0 398,0 18,2 17,4 545,0 69,0

Memory [DOM]

457,0 457,0 457,0 457,0 391,0 391,0 391,0 391,0 16,9 16,9 16,9 16,9

Time [Query]

13075 12773 50465 13094 24045 23952 52313 24170 953 828 82704 12125

Time [DOM]

12672 12672 12672 12672 23858 23858 23858 23858 750 750 750 750

Q1 Q2 Q3a Q3b Q1 Q2 Q3a Q3b Q1 Q2 Q3a Q3b

XML EXI LazyDOM

Figure 3: Memory consumption and query execution times.

4.3 Performance Measurements

Our testbed is composed of a notebook running Win-

dows XP with 1.66 Ghz and 2 Gigabytes of RAM.

We used the latest Java Virtual Machine 1.6 (with de-

fault options). From the many possible XPath en-

gines, we selected the widely used and well estab-

lished Jaxen

engine.

Figure 3 shows a digest of our memory con-

sumption measurements and the according process-

ing times. The bar diagram presents the peak size in

MB of the Java heap during execution (e.g., the JVM

option

-Xmx128m

sets the maximum heap size to 128

MB) while the line diagram respectively shows query

loading/execution times in milliseconds.

http://jaxen.codehaus.org/

The set of queries (Q1, Q2, Q3a and Q3b) groups

the three candidates, XML, EXI, and LazyDOM.

XML designates parsing and loading the DOM from a

textual XML document. EXI in turn parses and loads

an EXI document. The LazyDOM, in contrary, parses

an EXI document but only loads required portions of

the document into the DOM.

To demonstrate the difference between initially

loading the XML information set to a DOM and the

additional overhead for processing queries we split

both measurements. Figure 3 shows memory con-

sumption (Memory) and processing times (Time) for

both, DOM loading only (DOM) and DOM loading

together with subsequent query execution (Query).

Three XMark generated XML test documents (a), (b),

and (c) varying in size from 1 MB to 116 MB demon-

strate the applicability of the LazyDOM in diverse

memory magnitudes.

4.3.1 Memory Consumption

Figure 3 illustrates that the memory consumption and

processing times for DOM loading is similar for XML

and EXI. The reason for the slight difference in mem-

ory size is due to the fact that the EXI format prunes

insigniﬁcant whitespaces.

Our proposed LazyDOM solution shows a huge

memory beneﬁt especially for queries Q1, Q2 and

Q3b, where only a portion of the entire document is of

interest. If we deal with inefﬁcient XPath queries (e.g.

Q3a // closed

auction [date=’04/16/2000’] ) the en-

tire tree has to be visited. We implemented an ap-

proach that unloads selfContained elements that are

no longer required if memory becomes scarce. We

keep track of a list of least recently used selfCon-

tained elements and remove the least recently used

selfContained element each time an additional ele-

ment is to be loaded and the number of loaded ele-

ments has reached a conﬁgurable number N (e.g., in

our test cases N = 10). Nevertheless, the gain com-

pared to conventional engines is not as outstanding as

expected (see query Q3a in Figure 3). The reason is

the implemented caching strategy of many XPath en-

gines. The less an XPath engine makes use of caches,

the more memory can be freed by Java’s garbage col-

lector.

4.3.2 Execution Time

Loading the information set into a DOM shows ad-

vantages for the LazyDOM given that only a small

amount of data needs to be parsed. In the second mea-

surement step, query processing takes effect. The ad-

ditional querying process does not indicate any note-

worthy execution time difference between the test

candidates XML and EXI. This matches our expecta-

tions given that there is no difference between a DOM

created from an XML or an EXI document.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

102

In terms of processing efﬁciency, the LazyDOM

shows improved runtime performance for XPath ex-

pressions requiring the loading or unloading of no or

only few selfContained elements. When many load or

unload operations take place, e.g., because of heavily

restricted memory availability, processing efﬁciency

suffers. However, evaluating the query will still suc-

ceed instead of failing with an out-of-memory error.

The measurements show that the developed solu-

tion represents a well-behaved DOM strategy, load-

ing sub-elements of a document only when the actual

need occurs. In any case, the overhead is kept at a

minimum. Furthermore, both the granularity of in-

dexed selfContained elements in EXI as well as the

number N of buffered selfContained elements are tun-

able. Hence, we offer a transparent mechanism to

reduce the overall memory consumption for devices

with limited resources as well as for powerful servers.

5 DESIGN GUIDELINES

The LazyDOM offers a tunable means to potentially

reduce the memory consumption and at the same time

improve the performance of DOM-based XML pro-

cessing. As with many optimization techniques, the

amount of improvement that can be achieved depends

on the actual use case. The conﬁguration of the Lazy-

DOM and the components interacting with it should

be carefully tailored to the demands of the actual ap-

plication. In this section, we describe some design

guidelines that illustrate how the LazyDOM could

and should be used in practice to achieve best results.

5.1 LazyDOM: Where and When

It should be pointed out that there are use cases where

the LazyDOM might not be the best choice. In an en-

vironment that is always able to load the entire DOM

into memory and that always accesses all or at least

most of the data in the DOM, dynamically loading the

DOM has little or no beneﬁt in terms of memory con-

sumption but can incur a performance penalty. Con-

sider Query Q3a in Figure 3 as an example. Since the

query uses the XPath descendant-or-self axis, all of

the DOM is traversed during query evaluation. Thus,

the savings in memory consumption when using the

LazyDOM is limited compared to a traditional DOM.

But the processing time is increased due to the over-

head of indexing and dynamic loading.

However, if only parts of the DOM are actually

needed, dynamically loading only these parts will not

only save memory but will also lead to faster DOM

loading since much less data needs to be loaded over-

all. This can be seen, for example, from the perfor-

mance results for Query Q3b in Figure 3. The query

avoids using the XPath descendant-or-self axis and

directly queries only parts of the DOM. Thus, mem-

ory consumption and processing time are heavily de-

creased.

Furthermore, in an environment that is not able

to always load the entire DOM into memory due to

memory restrictions, LazyDOM is enabling the use of

DOM-based XML processing in the ﬁrst place. If, in

this case, only parts of the DOM are actually required

by an application, the reduced memory consumption

is again combined with improved processing perfor-

mance as described above. If all or most of the data in

the DOM is referenced by an application, processing

performance can be worse than when loading the en-

tire DOM into memory up front since repeated load-

ing and unloading of selfContained elements will oc-

cur. Still, since loading the entire DOM into memory

is not possible in memory restricted environments,

LazyDOM enables the use of DOM-based XML pro-

cessing at the cost of potentially increased processing

times.

5.2 Granularity of selfContained

Elements

A major means of conﬁguring the LazyDOM is

the choice of granularity of selfContained ele-

ments. Identifying more and smaller selfContained

elements—e. g., at lower levels of the XML tree—

allows more ﬁne grained control over memory con-

sumption since smaller parts of the DOM can be

loaded and unloaded. On the other hand, this ap-

proach increases indexing overhead and reduces EXI

compactness.

Choosing less and larger selfContained

elements—e. g., at higher levels of the XML

tree—leads to less ﬁne grained control over memory

consumption but reduces indexing overhead and

improves EXI compactness.

6 REAL WORLD APPLICATION

Many memory-restricted device classes such as nav-

igation systems or cell phones run applications that

require an in memory model of the data set. A promi-

nent data format is GPX. GPX, or GPS eXchange for-

mat is as a common GPS data format for software

applications that can be used to describe waypoints,

tracks, and routes in XML. We use an Android

ap-

plication that loads GPX instances, shows the track

on the display and adds additional user relevant infor-

mation along the track.

The application demands loading the GPX data

into an in-memory model to be able to execute queries

Android is an operating system for mobile devices such

as cellular phones, http://www.android.com/

LazyDOM - Transparent Partial DOM Loading and Unloading for Memory Restricted Environments

103

(a) Without LazyDOM

- Out-of-Memory Error.

(b) With LazyDOM -

Successfully loaded.

Figure 4: GPX Tracks - Demonstration Tool.

on the data set. Internal tests, run on a widely used

cellular phone, highlighted possible memory restric-

tions. For example, the HTC Hero phone, running

Android 2.1 with 288 MB of RAM, ran into an out-

of-memory error when trying to load larger tracks into

a DOM (see Figure 4(a)). Listing 2 shows a snippet

of an example GPX track (with 1.7 MB of GPX data)

causing such a problem. We have retrieved the GPX

data from GPSies.com, a virtual community (e.g., for

sharing bike tracks or trekking routes).

Listing 2: GPX Track Example.

<?xml version =” 1.0 ” encoding =”UTF−8” ?>

<gpx xmlns=” h tt p : / /www. t op ogr af i x . com /

GPX/ 1 /1 ”>

<name>Randweg Romantische S tr< /name

<li nk hr ef =” h t t p : / /www. g ps ie s . com /

map . do? f i l e I d =ewyawkysxmfjwlpp”

< / metadata>

<trk>

+ <trkseg> [5469 l i n e s ]

+ <trkseg> [4705 l i n e s ]

+ <trkseg> [7933 l i n e s ]

+ <trkseg> [9225 l i n e s ]

+ <trkseg> [5505 l i n e s ]

+ <trkseg> [7429 l i n e s ]

+ <trkseg> [6065 l i n e s ]

+ <trkseg> [5245 l i n e s ]

+ <trkseg> [2305 l i n e s ]

< / trk>

< / gpx>

We replaced the default Android document builder

with the LazyDOM solution presented in this paper

and created selfContained elements for each track

segment

trkseq

. Hence, each track segment is

loaded sequentially and we managed to load the same

information set without running into memory prob-

lems (see Figure 4(b)).

This real world application shows the easy appli-

cability of the LazyDOM in a memory-restricted en-

vironment where an in memory representation of an

XML document is needed and available memory is

scarce.

7 RELATED WORK

(Busatto et al., 2005) presented a technique that repre-

sents the tree structure of an XML document in an ef-

ﬁcient way by exploiting the high regularity of XML

documents. Repetitions of tree patterns are detected

and removed. The used technique is a generaliza-

tion of the approach of sharing common subtrees. If

a subtree has occurred before it is represented by a

pointer to its previous occurrence. This approach is

orthogonal to the LazyDOM. Combining both solu-

tions, the LazyDOM and the efﬁcient representation

of the XML tree structure, reduces overall memory

consumption even further.

The approach of (Kim et al., 2007) relates to our

technique in the sense that large XML documents are

partitioned into smaller XML trees. When retrieval

operations take place, in contrast, a unify operation is

required to unify split child nodes.

The way DOM-based applications, such as XPath,

XQuery, or XSLT processors, interact with the DOM

can have signiﬁcant impacts on the improvements

that are achievable by combining these applications

with the LazyDOM. One example to be mentioned

here is the concept of schema-aware XPath processors

(e.g., (Paparizos et al., 2007)). Considering Query

Q3a in Section 4.2, a non-schema-aware XPath pro-

cessor has to traverse all of the DOM to answer the

query. Thus, the entire DOM needs to be loaded (and

potentially unloaded) during the process. Query Q3b

uses schema knowledge to eliminate the descendant-

or-self axis in the XPath expression of Query Q3a to

obtain the same result without having to traverse all

of the DOM.

Many efforts have been made to reduce the mem-

ory requirements of XQuery and XPath processors.

An approach for reducing the memory requirements

has been implemented in the Galax XQuery proces-

sor (Marian and Sim´eon, 2003). This approach is

based on an a priori analysis of the query to be eval-

uated. Only the parts of the document needed to

correctly and completely process the query are sub-

sequently loaded into an in-memory DOM. Depend-

ing on the query, this might require signiﬁcantly less

memory than loading the entire document. How-

ever, the analysis process needs to be repeated and

the identiﬁed necessary parts of the XML document

need to be reloaded for each new query. In contrast,

the LazyDOM can use the same DOM for evaluating

each XPath expression referencing the corresponding

XML document. Also, when dealing with queries

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

104

that need most of or even the entire document dur-

ing processing, e.g., queries using the descendant-or-

self axis on the document root, the a priori analysis

of the query yields little or no beneﬁt since all nec-

essary parts of the document need to be loaded into

memory as a whole. Our solution allows to dynam-

ically load and unload DOM subtrees during XPath

evaluation. Hence, even if the parts of the document

necessary for evaluating a certain XPath expression

do not ﬁt into memory as a whole, we are still able to

correctly process the document within the available

memory boundaries.

Streaming Transformations for XML

(STX) (Cimprich et al., 2007) allow the trans-

formation of large, theoretically inﬁnite XML

documents or XML data streams with bounded

memory requirements. STX processes the XML data

in a streaming fashion. The limitation of memory

consumption during the processing of XPath expres-

sions results from a limitation of the allowed XPath

expressions to a subset of XPath that is suitable for

streaming evaluation. Thus, the evaluation does not

require the buffering of a possibly inﬁnitely large

internal state. Compared to STX, our approach is

aimed at supporting the full functionality of any

DOM-based application.

Other optimization approaches in the context of

XPath processing focus on processing performance

instead of memory consumption. A special problem

in this context is the quick and efﬁcient evaluation

of a large set of XPath expressions on a sequence

of XML documents as needed in XML-based pub-

lish&subscribe systems.

8 CONCLUSIONS & OUTLOOK

In this paper, we introduced the LazyDOM as an ap-

proach to limit the memory requirements of DOM-

based XML processing and to potentially increase the

performance of DOM loading. The LazyDOM uses

the concept of selfContained elements deﬁned in the

Efﬁcient XML Interchange (EXI) format to divide

a DOM into fragments and to load or unload these

fragments on demand during DOM processing. The

approach is transparent to DOM-based applications,

i. e., no changes need to be made to applications to

support the LazyDOM instead of a traditional DOM.

Any DOM-based application such as XPath proces-

sors, XQuery processors, XSLT processors, XML

Schema parsers and validators, etc. can be used with

the LazyDOM. An indexing mechanism allows to ef-

ﬁciently jump to the parts of the EXI encoded XML

document that need to be loaded.

Our measurement results show that the LazyDOM

is able to drastically reduce memory consumption

during DOM-based XML processing. The amount

of memory needed for processing and the processing

performance depend highly on the use case and the

conﬁguration of the LazyDOM and the DOM-based

applications. We have outlined generic design guide-

lines that promise to yield good results when followed

in practice.

Topics for future work include investigating var-

ious cache replacement strategies and their applica-

bility for partial DOM unloading, further investiga-

tions concerning suitable LazyDOM conﬁgurations

for speciﬁc use cases especially with respect to the

identiﬁcation of suitable selfContained elements in

the DOM, and exploiting schema knowledge.

REFERENCES

Bournez, C. (2009). Efﬁcient XML Interchange

Evaluation. http://www.w3.org/TR/2009/WD-exi-

evaluation-20090407/. W3C Working Draft.

Busatto, G., Lohrey, M., and Maneth, S. (2005). Efﬁ-

cient memory representation of xml documents. In

Database Programming Languages, 10th Interna-

tional Symposium, Trondheim, Norway, pages 199–

216. Springer.

Cimprich, P., Becker, O., Nentwich, C., Jirouˇsek, H.,

Batsis, M., Brown, P., and Kay, M. (2007).

Streaming Transformations for XML (STX) Version

1.0. http://stx.sourceforge.net/documents/spec-stx-

20070427.html. Working Draft.

Clark, J. and DeRose, S. (1999). XML Path Language

(XPath) Version 1.0. http://www.w3.org/TR/xpath.

W3C Recommendation.

Cowan, J. and Tobin, R. (2004). XML Information Set (Sec-

ond Edition). http://www.w3.org/TR/xml-infoset/.

W3C Recommendation.

Ferraiolo, J., Jun, F., and Jackson, D. (2003). Scal-

able Vector Graphics (SVG) 1.1 Speciﬁca-

tion. http://www.w3.org/TR/2003/REC-SVG11-

20030114/. W3C Recommendation.

Hors, A. L. and H´egaret, P. L. (2004). Document

Object Model (DOM) Level 3 Core Speciﬁcation.

http://www.w3.org/TR/DOM-Level-3-Core/. W3C

Recommendation.

Kim, S. M., Yoo, S. I., Hong, E., Kim, T. G., and Kim,

I. K. (2007). A document object modeling method to

retrieve data from a very large xml document. In King,

P. R. and Simske, S. J., editors, ACM Symposium on

Document Engineering, pages 59–68. ACM.

Marian, A. and Sim´eon, J. (2003). Projecting xml doc-

uments. In Proceedings of the 29th International

Conference on Very Large Data Bases (VLDB), pages

213–224, Berlin, Germany.

Paparizos, S., Patel, J. M., and Jagadish, H. V. (2007).

Sigopt: Using schema to optimize xml query process-

ing. In ICDE, pages 1456–1460. IEEE.

Schneider, J. and Kamiya, T. (2009). Efﬁ-

cient XML Interchange (EXI) Format 1.0.

http://www.w3.org/TR/2009/CR-exi-20091208/.

W3C Candidate Recommendation 08 December

2009.

LazyDOM - Transparent Partial DOM Loading and Unloading for Memory Restricted Environments

105
