EXTENDING THE USE OF VIRTUAL WORLDS

AS AN EDUCATIONAL PLATFORM

Network Island: An Advanced Learning Environment for Teaching Internet

Routing Algorithms

John McCaffery, Alan Miller and Colin Allison

School of Computer Science, University of St Andrews, North Haugh, St Andrews, Scotland, U.K.

Keywords:

Virtual world, OpenSim, MRM, Education, Interactive, Graph theory, Multi user virtual environment, MUVE.

Abstract:

Virtual worlds provide a rich platform for supporting exploratory education. Their ability to bring together

multimedia, programmability, interactivity and enhanced presence in a distributed 3D virtual environment

makes them an excellent basis for interactive learning. This paper outlines work done in the virtual world

OpenSim to create a learning environment for teaching the core algorithms which underpin Internet routing.

This work demonstrates the power of virtual worlds to serve as a platform for developing 3D learning scenar-

ios. To achieve this it was necessary to move beyond the limitations of the traditional virtual world scripting

paradigm. This meant developing a system that allowed the power of high level software development to be

added to the framework of a virtual world. Using OpenSim’s Mini Region Modules, an API has been devel-

oped which allows for code written externally and compiled to software libraries to be imported into OpenSim

via a scripting mechanism while the server is live. This mechanism has been used to develop a graph theory

based visualisation tool that is fully situated within a virtual world. This visualiser is then used to demonstrate

interactive simulations of Link State and Distance Vector routing algorithms. The mechanisms developed

serve to highlight just how powerful virtual worlds can be as a development platform and how this power can

be harnessed for education.

1 INTRODUCTION

Virtual worlds provide an intuitive 3D environment

where users are represented by avatars (OpenSim,

2010; LindenLabs, 2010b; Worlds, nd; Smith et al.,

2003). This presence is engaging. Users are able to,

and like, interacting with each other. This in turn pro-

vides natural support for group work and collabora-

tion. The environment is programmable. It is able to

support a rich set of interactions, which allows it to

be used in a variety of different ways. It is a multime-

dia platform; video, sound, pictures animations can

all be supported (Weber et al., 2007). Thus a rich set

of educational resources can be brought together and

accessed through a 3D virtual world browser. The re-

sources can be navigated by avatars moving around a

3D space, much as a group of students might explore

an art gallery or a museum that they had exclusive ac-

cess to. Content within 3D worlds like Second Life

(SL) is created by residents. This extends beyond the

ability to design and build things (Weber et al., 2007),

for example to shape terrain, construct buildings and

design clothes. Through the Linden Scripting Lan-

guage (LSL) (LindenLabs, 2010a; Heaton, 2007) and

other mechanisms users are able to program their

world making it a truly interactive experience. This

programmability has been used to ask students to cre-

ate machines which demonstrate Dijkstra’s Shunting

Algorithms (Perera et al., 2009) or control the move-

ment of a virtual turtle using simple commands en-

tered into the chat box (Clavering and Nicols, 2007).

The novelty of this project is the scope of the sys-

tem it builds. Using the multimedia and programming

features of virtual worlds for education has produced

interesting and valuable work before (Chodos et al.,

2010; Bellotti et al., 2008; Ritzema and Harris, 2008;

Gollub, 2007; Livingstone, 2007). These projects are

often interactive however the scripted content of the

learning environment is generally fairly simple. One

of the reasons for this is the scripting environment in

which programmers must work. The scripting mech-

anism developed for Second Life, LSL, was devel-

279

McCaffery J., Miller A. and Allison C..

EXTENDING THE USE OF VIRTUAL WORLDS AS AN EDUCATIONAL PLATFORM - Network Island: An Advanced Learning Environment for Teaching

Internet Routing Algorithms.

DOI: 10.5220/0003342402790284

In Proceedings of the 3rd International Conference on Computer Supported Education (CSEDU-2011), pages 279-284

ISBN: 978-989-8425-49-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

oped for a speciﬁc environment. This environment is

one where all servers are to be run by one commer-

cal company. This means limiting user power to write

scripts which could potentially damage other user’s

experience is a necessity. The result is a strong script-

ing language with very deﬁned limits. LSL must be

compiled in world from a text editor provided by the

system client. Scripts are attached to speciﬁc objects

in world and only have the power to affect the ob-

ject they are attached to, not the larger scene graph.

Any cross object communication must be done via

the chat mechanism. Scripts are also given arbitrary

constraints such as placing time restrictions on how

often scripts can change an object’s position or spawn

new objects. These restrictions artiﬁcially limit what

can be achieved in developing applications for virtual

worlds.

The contribution of this work is to demonstrate

how, within an open source context, the limitations of

virtual world scripting can be overcome. It does this

by building an educational system of greater scope

than has previously been attempted. The new design

pattern allows systems to be built in an efﬁcient and

maintainable manner. This project shows a method-

ology whereby code can be developed in an efﬁ-

cient manner, making full use of standard IDE tools

and good abstraction techniques. This code can then

plug into a virtual world and become part of a learn-

ing environment. The fact that this code was devel-

oped externally, using an IDE means that the scope of

projects developedusing this technique can be greatly

increased compared to what can feasibly be attempted

working only with in world scripting mechanisms.

This project essentially creates a ’best of both worlds’

situation. That is to say the developer gets all the ben-

eﬁts of in world scripting in a virtual world combined

with all the beneﬁts of working in a full IDE. The de-

veloper can write their code in an IDE, compile it and

then restart it in world without having to restart the

server itself.

The system which was developed is a graph the-

ory visualisation tool which has been used to create

an interactive sandbox for use in teaching internet

routing. The two algorithms which the system visu-

alises are the version of Dijkstra’s Shortest Path algo-

rithm (Nvrat, 2004) used in Open Shortest Path First

(OSPF) (Peyer et al., 2009; Kurose and Ross, 2009;

Cormen et al., 2001) routing and a generic Distance

Vector routing algorithm (Kurose and Ross, 2009).

These two algorithms are appropriate because they

are two of the most widely used routing algorithms on

the Internet today. They are also appropriate because

they both function very differently. That it is possible

to develop a system which is general enough to visu-

alise both algorithms shows that a well abstracted and

fully de-coupled system can be developed and then

plugged in to a virtual world.

This paper starts by outlining the system that was

developed. It then goes into more detail on how the

algorithms are visualised. There is then an analysis

of problems faced when developing within a virtual

world and the options available. Lastly the architec-

ture used to develope the system is discussed.

2 CONTROLLING SIMULATIONS

Network Island is based around a tool which allows

students to explore the behaviour of a routing algo-

rithm. This tool is designed to add a new perspective

to learning about routing, supplementing diagrams in

textbooks or printed lecture notes. In the real world

it is not possible to physically place down routers and

link them up and then watch packets ﬂow between

them and algorithms run across them. In a virtual

world it is possible and that is what this project brings

to life. Users can create a topology, start sending a

stream of packets across the network then alter the

topology and see, in realtime, how the ﬂow of packets

alters in response to the changes. By making the sys-

tem interactive and responsive and utilising the cen-

tral metaphor of virtual worlds, that of the avatar,

users are given a hands on experience of what is, in

the real world, a completely abstract concept.

When the user logs in to the system what they see

is a control panel and any network topology that is al-

ready in place. The topology consists of nodes linked

together by links. The user is then able to use the con-

trol panel to highlight how the algorithms work from

the point of view of any node they wish. This allows

them to observe the steps the algorithm takes as it cal-

culates routing paths across the network. The user

is also able to send packets across the network and

observe how changes made by the routing algorithm

affect the route the packets take.

As well as running the algorithms on the topol-

ogy that already exists the user is also able to alter

the topology. They are free to add nodes, create or

remove links and change the weights of the links that

exist. The design of the interface is intended to be as

simple as possible so the user can get instant feedback

on how changes they have made to the network topol-

ogy affect the routing. The goal is that users are free

to watch how the algorithms work, develop hypothe-

sis about how changing the topology will change the

algorithms then make those changes and see if their

hypothesis is correct.

CSEDU 2011 - 3rd International Conference on Computer Supported Education

280

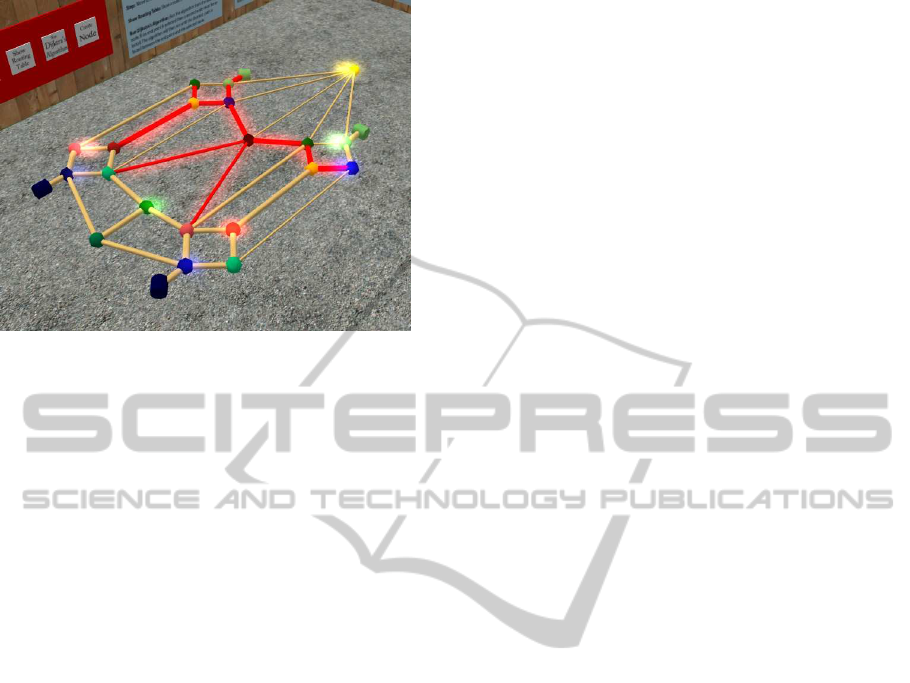

Figure 1: Dijkstra’s Algorithm midway through calculating

shortest paths from the black node.

3 THE ALGORITHMS

The two algorithms that the system visualises are Di-

jkstra’s Shortest Path First algorithm (Moy, 1998) as

it is used in Open Shortest Path First routing and

the Distance Vector routing algorithm (Malkin, 1998).

The system highlights how the algorithms are work-

ing with respect to a user speciﬁed node. Because

both algorithms are very different what constitutes

highlighting how the algorithm is working is also

markedly different.

3.1 Dijkstra’s Shortest Path First

Algorithm as used in OSPF

Dijkstra’s Shortest Path First Algorithm forms one

half of the OSPF protocol. In OSPF each node

maintains an internal graph representing the topol-

ogy of the network. This internal graph is built up

from information contained in packets which every

node ﬂoods through the system. These packets detail

their sender’s links and their weights. These internal

graphs are used to run Dijkstra’s Shortest Path Algo-

rithm which calculates the fastest paths from the node

which is running the algorithm to every other node in

the system that it knows about. These paths are then

used to get the link along which the node should route

packets for any given target node.

When Dijkstra’s Algorithm is running in a node

(known as the root node) at any given time the algo-

rithm has a node which it has selected as the ’current’

node. It then probes the links out from the current

node. The path chosen between a current node and the

previous current node is guaranteed to be the shortest

back towards the root node. Probing a link involves

checking the weight of the link and the state of the

node at the other end of the link. If the node at the

other end has not yet been probed it is added to a list

known as the ’tentative list’.

The algorithm is visualised by highlighting the

current node, highlighting the link to the neighbour

of the current node which is currently being probed,

highlighting the nodes in the tentative list and high-

lighting the shortest paths so far calculated. High-

lighting is done either by setting the colour of a link

or by making a node glow. Figure 1 shows Dijkstra’s

Algorithm running. When the algorithm is triggered

to run it cycles through the steps with the root node

being the node the user selected to highlight the algo-

rithm from.

The ﬂooding mechanism which forms the other

half of the OSPF protocol is also visualised, albeit in

a simpliﬁed manner. Whenever a change is made to

the network topology (i.e. a link is added or removed)

the two affected nodes (the nodes at either end of the

link) send out ﬂood packets along all of their links.

These packets are visualised for the user and continue

to be ﬂooded until all nodes have received at least one

ﬂood packet. They serve to visually highlight the fact

that the ﬂooding mechanism is a crucial part of the

OSPF algorithm.

3.2 Distance Vector Routing

The distance vector algorithm differs from the fully

OSPF Shortest Path algorithm as it is a distributed al-

gorithm. Each packet that is received forms part of

the algorithm itself, rather than simply providing the

information on which the algorithm will run. How the

algorithm works is that whenever the network topol-

ogy changes the nodes involved in the change send

out packets to all their neighbors. These packets con-

tain distance vectors which map the distances to all

the nodes the sender knows how to route to. When

these packets are received the sender’s distance vec-

tor is analysed against the recipient’s distance vector

and if necessary the recipient changes their distance

vector. If the recipient makes a change it then sends

out its modiﬁed distance vector to all its neighbours

and the process continues until all nodes have assimi-

lated the new information.

To visualise the algorithm the packets containing

the distance vectors are animated. Users can make

changes to the topology and watch as the changes pro-

pogate out through the network. A highlight mech-

anism is used to facilitate understanding of how the

receipt of distance vector packets alter the way that

routing occurs. When the user chooses to highlight

the algorithm what happens is the shortest path from

EXTENDING THE USE OF VIRTUAL WORLDS AS AN EDUCATIONAL PLATFORM - Network Island: An

Advanced Learning Environment for Teaching Internet Routing Algorithms

281

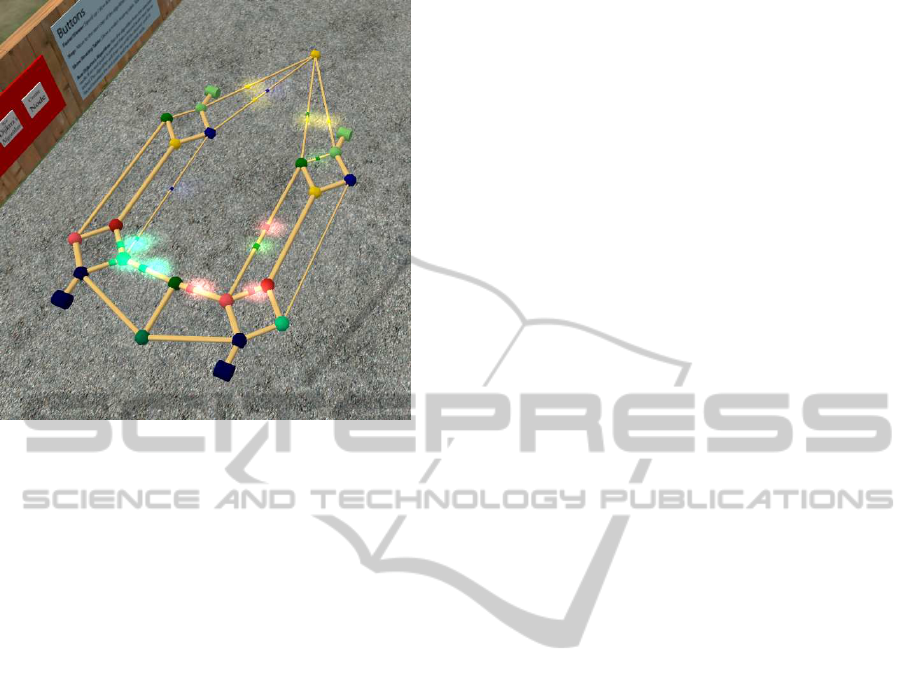

Figure 2: Distance Vector update packets moving across a

topology after the removal of a central node.

the selected node to every other node is highlighted.

This means that the user can then go and change

the topology, watch the packets signalling the change

in topology radiate out and see how the arrival of

these packets goes on to affect the highlighted shortest

paths. Figure 2 shows update packets that are starting

to propagate through the system after the removal of

a central node in the topology.

4 PROGRAMMING VIRTUAL

WORLDS

One of the reasons virtual worlds are so interesting

from an education point of view is their programma-

bility. Not only can users change the shape of the

world around them and add new geometry and struc-

tures into the world they can also attach code to the

objects in-world. The fact that scripting behaviour

of objects in-world is an integral concept to virtual

worlds is what this project harnesses to create an en-

hanced learning environment. By approaching learn-

ing about Internet routing algorithms from a virtual

world perspective rather than an animation or pure

simulation perspective the fundamental concept of

users having direct control over their environment is

harnessed to give users control over the simulation.

The major challenge was the level of programma-

bility that speciﬁc virtual worlds provide for users

and administrators. Enabling untrusted users to write

and execute code in a distributed environment may be

problematic. As soon as all users are given the power

to execute their own code within the larger framework

of the distributed application they are given the ability

to break the application.

When deciding how to face this challenge devel-

opers of virtual worlds are left with a choice. On

the one hand they can give the user the power to

create complex and involved systems within the en-

vironment they have created. This makes for great

possibilities but also leaves the system vulnerable to

exploitation. Alternatively the developers can limit

users to develop within very controlled parameters

which limit what the user can do but also limit their

power to harm other user’s experience.

SL, as it is available to the public, is an exam-

ple of the latter design decision. If you connect to

SL you are connecting to a server hosted by Linden

Labs. This server is conﬁgured to put hard limits on

the amount of damage you can do to the system as a

whole. If you wish to develop within SL you must

use LSL and accept its boundaries. These boundaries

then constrain the complexity of the systems you can

design.

OpenSim has a different service model for pro-

viding virtual worlds. It is a highly conﬁgurable open

source virtual worlds platform which allows multiple

instances to be connected together to create a virtual

world that scales. Administrators are free to create

their own server, conﬁgure it how ever they wish and

have users connect to it. As such, where with SL all

servers are run by Linden Labs and have the same se-

curity settings, in OpenSim it is up to individual ad-

mins to conﬁgure their server. This means any Open-

Sim server can be placed at any point on the contin-

uum between tightly controlled to limit malicious be-

haviour or very free to give users, or a single group

of users, great power over the environment. Because

OpenSim puts the runningof the serverin the hands of

the administrator it becomes the admin’s choice how

the server is conﬁgured for security. If the adminis-

trator wants to create a server where all users have ac-

cess to highly powerful scripting tools such as MRM

they can. Alternatively they can nominate a few users

as developers and give them access to the more pow-

erful tools while limiting general user’s ability to al-

ter the system. OpenSim supports LSL which is built

into SL but it also supports other programming mech-

anisms. Being open source the code can be modiﬁed

any way the administrator wishes. This could be di-

rectly, changing the source code that exists already,

or it could be by adding in features in a modular man-

ner. OpenSim provides four modes for programming

content.

1. Sandbox Scripting. LSL is an example of this,

users write LSL scripts with very deﬁned con-

CSEDU 2011 - 3rd International Conference on Computer Supported Education

282

straints in-world. On one level this is powerful, in

that it allows in-world objects to be programmed

to react to events in a rich and varied way. How-

ever the creation of complex systems is difﬁcult

and time consuming. Access to system resources

is controlled making the creation of moderately

time sensitive applications impractical. Linden

Scripting language was originally developed by

Linden Labs to be the scripting language used in

SL. It has since been implemented in OpenSim.

2. Internal API Scripting. An example of this are

MRMS and the alternative scripting mechanism

they provide. Where LSL is a custom designed

scripting language developed to be written in-

world and to manipulate the object the script is

placed in MRMs are a C# API. Code is written in

C# using an API which gives access to the world’s

scenegraph. This code can be written in-world in

the same way as LSL, using a text editor built into

the client. This means at one level it can be used as

a straight substitute for LSL. The only difference

being that MRMs allow code to manipulate any

object in the scene, not just the object the script is

running in. As well as allowing code to be writ-

ten in-world in the same way as LSL MRMs also

allows external libraries to be loaded in and refer-

enced by its in-world scripts.

3. External API Development. This is a system

whereby a small piece of code, plugged directly

into OpenSim then links to an external library

which runs as an MRM. This project uses a cus-

tom designed system for this functionality

. The

programmer writes minimal code in-world, all

they do is specify a conﬁguration ﬁle. This in turn

triggers an external library which goes on to load

up a series of libraries deﬁned in the conﬁgura-

tion ﬁle. This system allowing code to be written

in an IDE, compiled in an IDE then run in-world

without a restart of the server.

4. Region Modules. a more heavy weight approach

to system development. The programmer has

open access to OpenSim internals and writes a

module which is plugged directly into OpenSim.

The problem here is that the absence of a struc-

There is a freely available, open source, plugin for

OpenSim which does this called MRM loader available.

However at the time of writing it is in the early stages of

development and has two major drawbacks. 1. It does not

allow any arguments to be passed in to the loaded module,

2. A ﬂaw in the design of the system means that the current

version does not allow listeners to be added to the world.

This means that no user interaction can happen in a system

developed using MRM loader. This is why a proprietary

solution was developed.

tured API means that changes in OpenSim are

likely to cause Region Module to break. Also

writing region modules means that in order for

the module to be recompiled the server must

be restarted. Region modules are more suited

to changing the way OpenSim itself works and

adding major features than for scripting the be-

haviour of in-world objects.

The relationship between the above programming

modes is shown in Figure 3 which is based on a dia-

gram from (Deem, 2009).

LSL

Based

System

Develop-

ment

Internals

Internal

API

Scripting

External

API

Scripting

in World

"Real"

Programming

Structured

API

Sandbox

Scripting

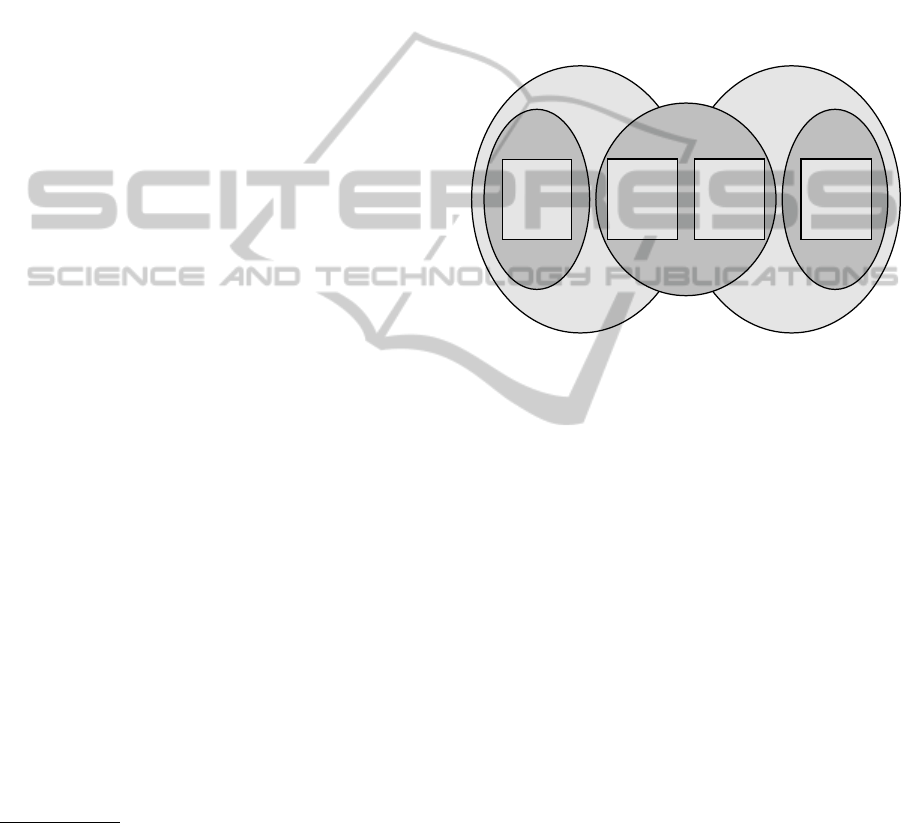

Figure 3: Different methods of programming content in

OpenSim.

5 ARCHITECTURE

The architecture of the system is designed to fully ex-

ploit the ability to reference externally compiled li-

braries from in-world scripts. There is a library, the

scripts library, which can be dropped into the main

OpenSim directory and referenced by any script. Ini-

tialising an instance of an object with the location

of a conﬁg ﬁle hands over control from the in-world

script to the externally compiled library. The instan-

tiated class can then dynamically instantiate a boot-

strap class from a library whose location is speci-

ﬁed from the conﬁguration ﬁle. By changing what

conﬁguration ﬁle the class is initialised with differ-

ent systems or conﬁgurations can be loaded. The

bootstrap class must adhere to an interface deﬁned in

the scripts library but the ﬁles can be compiled and

placed anywhere in the ﬁle system. These ﬁles can

be re-compiled while the system is running in-world

and the in-world system can then be restarted and the

newly compiled code loaded. This mechanism means

that a developer can use an external IDE to develop

a system. The developer is able to make changes to

the system, re-compile and then type a command in-

world to restart the system and see the changes appear.

EXTENDING THE USE OF VIRTUAL WORLDS AS AN EDUCATIONAL PLATFORM - Network Island: An

Advanced Learning Environment for Teaching Internet Routing Algorithms

283

This is a powerful system as the developer is able to

utilise all the power of multiple libraries, high level

programming and IDE development tools and at the

same time behave in-world as if they were just writ-

ing and re-loading a script, never having to restart the

server.

6 CONCLUSIONS

Network island is an example of the scope of project

that can now be developed within a virtual world plat-

form. It is a full, dynamic, adaptive, interactive, dis-

tributed system that gives users a tool to help them

understand an abstract concept. It demonstrates that

not only can something like this be developed but it

can be developed at a level of abstraction which al-

lows educators to go in and write plug ins for the sys-

tem to alter it depending on what they need to teach.

This project shows the scope which is available when

developing in a virtual world and leverages relatively

young technology to look at a new direction which

can be taken with these environments. By develop-

ing the system as essentially a plugin which can then

support further plug ins it shows how a system can be

put together which works within virtual world’s tra-

dition of easy development and simple scripting but

has considerably more power behind it than has pre-

viously been available.

REFERENCES

Bellotti, F., Berta, R., De Gloria, A., and Zappi, V. (2008).

Exploring gaming mechanisms to enhance knowledge

acquisition in virtual worlds. In DIMEA ’08: Pro-

ceedings of the 3rd international conference on Digi-

tal Interactive Media in Entertainment and Arts, pages

77–84, New York, NY, USA. ACM.

Chodos, D., Stroulia, E., Boechler, P., King, S., Kuras, P.,

Carbonaro, M., and de Jong, E. (2010). Healthcare ed-

ucation with virtual-world simulations. In SEHC ’10:

Proceedings of the 2010 ICSE Workshop on Software

Engineering in Health Care.

Clavering, R. S. and Nicols, A. R. (2007). Lessons learned

implementing an educational system in second life. In

BCS-HCI ’07: Proceedings of the 21st British HCI

Group Annual Conference on People and Computers,

pages 19–22, Swinton, UK, UK. British Computer So-

ciety.

Cormen, T. H., Leiserson, C. E., Rivest, R. L., and Stein, C.

(2001). Introduction to Algorithms. The MIT Press,

2nd revised edition edition.

Deem, M. (2009). Maimed leech. http://maimedleech.com/.

Gollub, R. (2007). Second life and education. Crossroads,

14(1):1–8.

Heaton, J. (2007). Introduction to Linden Scripting Lan-

guage for Second Life. Heaton Research, Inc.

Kurose, J. F. and Ross, K. W. (2009). Computer Network-

ing: A Top-Down Approach. Addison-Wesley Pub-

lishing Company, USA, 5th edition.

LindenLabs (2010a). The lsl portal. http://wiki.secondlife.

com/wiki/LSL Portal.

LindenLabs (2010b). Second life. http://www.secondlife.

com.

Livingstone, D. (2007). Second life education workshop at

the second life community convention, san francisco,

august 20, 2006. eLearn, 2007(3):4.

Malkin, G. (1998). RIP Version 2. RFC 2453 (Standard).

Updated by RFC 4822.

Moy, J. (1998). OSPF Version 2. RFC 2328 (Standard).

Updated by RFC 5709.

Nvrat, P. (2004). Review of ”algorithm design: founda-

tions, analysis and internet examples” by michael t.

goodrich and roberto tamassia. john wiley & sons, inc.

2001. SIGACT News, 35(2):14–16.

OpenSim (2010). Opensimulator. http://opensimulator.org.

Perera, I., Allison, C., Nicoll, J. R., and Sturgeon, T. (2009).

Towards successful 3d virtual learning - a case study

on teaching human computer interaction. In Internet

Technology and Secured Transactions, 2009. ICITST

2009. International Conference for Internet Technol-

ogy and Secured Transactions, pages 1–6.

Peyer, S., Rautenbach, D., and Vygen, J. (2009). A gen-

eralization of dijkstra’s shortest path algorithm with

applications to vlsi routing. J. Discrete Algorithms,

7(4):377–390.

Ritzema, T. and Harris, B. (2008). The use of second

life for distance education. J. Comput. Small Coll.,

23(6):110–116.

Smith, D. A., Kay, A., Raab, A., and Reed, D. P. (2003).

Croquet - a collaboration system architecture. c5,

00:2.

Weber, A., Rufer-Bach, K., and Platel, R. (2007). Creating

Your World: The Ofﬁcial Guide to Advanced Content

Creation for Second Life. Wiley, Indianapolis, IN.

Worlds, A. (n.d.). Active worlds. http://www.activeworlds.

com/.

CSEDU 2011 - 3rd International Conference on Computer Supported Education

284
