An Ontology-based Interactive System to Compose Applications

Christian Brel, Anne-Marie Dery-Pinna, Catherine Faron-Zucker

Philippe Renevier-Gonin and Michel Riveill

I3S Lab, Université Nice-Sophia Antipolis / CNRS, 930 route des Colles, BP 145, 06903 Sophia Antipolis Cedex, France

Keywords: UI Composition, Application composition, UI semantic description.

Abstract: In this paper, we present an ontology-based approach and a semantic web system to compose applications

while preserving their ergonomic properties. Our composition process relies on the manipulation of User

Interfaces (UI) and is intended to assist by a knowledge based system which exploits semantic annotations

of applications on their users' aims, UIs and functionalities through semantic queries and inference rules.

1 INTRODUCTION

User-Centred Software Engineering aims at

producing useful and usable applications. To catch

users' needs and to integrate them inside the

software development, there are different steps to

follow: analyzing requirements, designing User

Interfaces (UI), specifying software architecture,

performing software tests, testing with final users,

etc. This is a long and costly process.

At the same time, there are more and more

specialized applications, such as web services or

Smartphone applications. Sometimes, users swap

from one application to another. In such cases, they

memorize and type again data or use copy-past in

order to exchange information between applications.

To avoid mistakes during "application swapping",

composing applications seems to be a solution.

What is at stake here is to compose existing UI

and functionalities by preserving results of user-

centred methodologies. Composing functionalities is

quite a well-known process, but composing at the

same time the UI is still an on-going work.

We propose a composition process based on the

selection, extraction and positioning of existing

application's UI as elementary composition actions

to impact underlying users' aims and links to the

functionalities (business part). The choice of UI as

primary artefacts manipulated by the composition

process is justified by the fact that UI are the visual

part of an application. They can be directly

manipulated with an immediate visual feedback. We

aim at enabling the developers to reuse existing UI

for creating new applications while preserving final

user requirements.

We propose a composition process driven by the

developer that enables to avoid redundancies by

selecting preferred UI parts, to preserve the initial

layouts of these UI parts and to associate them with

some new layout knowledge to constraint their

composition. The process is based on two iterative

steps: the selection of UI parts and the organization

of their layouts.

In this paper we focus on the management of

selection of the different parts of UI from existing

applications and on the management of the layouts

chosen by the developer. Our solution relies on

ontologies we built to provide a usable description

of an application, i.e. the abstraction of usual layouts

used in programming languages graphical libraries,

the description of tasks being able to perform by

users and the description of the different links

between UI, functionalities and tasks. We use these

ontologies, inference rules and constraints in our UI

composition process to assist the developer.

The paper is structured into 5 sections. In section

2, we summarize related works. In section 3, we

describe our three ontologies and links between

them. Before the conclusion, in section 4, we present

how we use these ontologies to represent the

interests of three ontologies, to define inference

rules to converge to a pivot representation of relative

layouts, and finally to define constraints to control

positioning chosen by the developer.

322

Brel C., Dery-Pinna A., Faron-Zucker C., Renevier-Gonin P. and Riveill M..

ONTOCOMPO - An Ontology-based Interactive System to Compose Applications.

DOI: 10.5220/0003342803220327

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 322-327

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

As we aim at composing applications by

manipulating their UI, we have to decompose UI,

i.e. describe UI in order to deal with sub-parts of

former UI. The description of an UI both involves

(1) the description of its structure, i.e. the listing of

the different components used in the interface and

the inclusion relationship, like UIML (Abrams,

1999), ALIAS (Occello, 2010), UsiXML (Limbourg,

2004) or MARIA (Paternò, 2009)

(2) the spatial positioning of these components. By

analysing the different layouts used in the UI

toolkits, we identified three ways to position the

components in an interface: the AbsoluteLayout

with X and Y coordinates, the TableLayout to place

a component in a grid and the RelativeLayout to

express the positioning of two UI components

relatively to each other.

There are currently three main approaches to

application composition depending on the

composition entry point: (i) the functional (i.e.

business) part, (ii) the users' goals (i.e. tasks to be

performed by users) and (iii) the UI. Each entry

point addresses a specific problem of composition:

presentation and layout considerations at the UI

level, behavior of the application at the functional

level (F in Table 1), user needs at the task level (T in

Table 1). We group and classify the works related to

UI composition in Table 1. We notice a lack in

underlying composition processes. Either the

original design of application UI with man-crafted

properties such as ergonomic or usability is lost, or

both functional and UI parts are no longer connected

together in the resulting application, or there is no

UI reuse. In the context of fast development

processes, reusing UI without keeping ergonomic

and usability criteria is useless. Loosing links

between the UI and the functional parts engenders

human interventions to connect the two parts which

is error prone and fastidious for large applications.

So in order to obtain a functional application at the

end of the composition, we need to keep links

between the different levels to guide the developer

during the selection and positioning steps.

In next sections, we introduce how we represent

an application and how we use this representation to

help the developer in her selection of UI pieces and

to help in their positioning in the new UI.

Table 1: Classification of composition approaches.

Category

I T

only considering UI

composition

Developing adaptable user

interfaces (Grundy, 2002)

Amusing (Pinna-Déry,

2003),

ComposiXML (Lepreux,

2007)

C3W (Fujima, 2004)

only considering

tasks composition

Task Models Merging

(Lewandowski, 2007)

deriving Tasks in

functional

composition and

later in UI

composition

Servface (Paternò, 2009)

Compose (Gabillon, 2008)

Scenarios (Elkoutbi, 1999)

X X

both functionalities

and UI composition

SOAUI (Tsai, 2008),

ALIAS (Occello,2010),

Transparent Interface

(Ginzburg, 2007)

X X

3 APPLICATION

REPRESENTATION

To represent an application, we propose a model

relying on three ontologies: UIOnto, LayOnto and

TaskOnto. UIOnto gathers the concepts necessary to

represent knowledge about UI structures, i.e. their

components and hierarchical organization. LayOnto

gathers those necessary to represent knowledge

about the layout of UI components. The third

ontology TaskOnto gathers the concepts necessary

to represent the task tree describing the available

actions in the application and the unfolding between

the different tasks.

3.1 UI Representation

Our modeling of UIOnto relies upon the MARIA

model. UIOnto is represented in the OWL Lite

standard (W3C Working Group, 2004) and

comprises 26 classes and 4 properties. Figure 1

presents its main classes and properties. Under

OnlyOutput, there are classes like Text, List, Link,

etc. Under Interaction, there are classes like Edit

(and then TextEdit, NumericalEdit, etc.), Selection,

etc.

Our aim is to help designers building their new

applications keeping constraints of existing

applications. What is interesting in layout is the

meaning of spatial proximity: two close UI elements

may be perceived and analysed together as explained

in the ICS model (Barnard, 1991). So keeping such

proximity may preserve ergonomics. We let the

ONTOCOMPO - An Ontology-based Interactive System to Compose Applications

323

developer decide whether to keep such proximity.

As a result, we chose to express the meaning of UI

elements spatial proximity by RelativeLayout, a

universal way to express all traditional layouts by

highlighting their proximity properties.

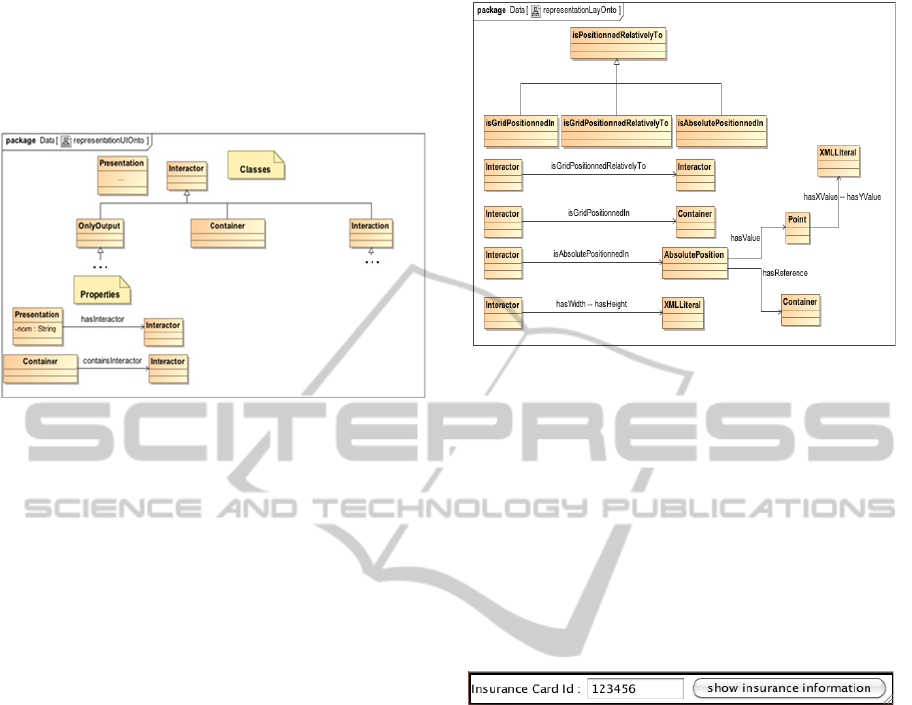

Figure 1: UIOnto.

3.1.1 An Abstract Layout Description

for Composition

This is what has guided our modelling of LayOnto.

LayOnto is represented in the OWL Lite standard

and comprises 2 classes and 42 properties. Figure 2

presents its main classes and properties. The main

property of LayOnto is isPositionnedRelativelyTo

that represents a relation between two Interactors

and describes the position of one of them relatively

to the other. Its three subproperties of correspond to

the three layouts discussed above:

 isGridPositionnedIn corresponds to TableLayout,

specialized into subproperties representing the

different possible positioning (and combinaison) by

considering a 3x3 grid inside the first interactor,

 isAbsolutePositionnedIn corresponds to

AbsoluteLayout with a Point Properties with X and

Y Values,

 isGridPositionnedRelativelyTo corresponds to

RelativeLayout, specialized into subproperties

representing the different possible relative

positioning (and combinaison) by considering a 3x3

grid centered around the first interactor.

3.1.2 From Final UI to Semantic

Representation of UI

UIOnto and LayOnto enable to represent the layout

of interfaces at an abstract level shared by all the

usual layouts in graphical libraries. For instance, all

the layout managers described in the Java API (Sun,

2008) can be represented.

Figure 2: LayOnto.

Let us consider a part of an UI. Its simplified Java

code is as follows:

1. JPanel insurSearch = new JPanel();

2. insurSearch.setLayout(new

BoxLayout(insurSearch, BoxLayout.X_AXIS));

3. insurSearch.add(new JLabel("Insurance Card

Id:"));

4. JTextField insurSearchInput =

new JTextField("123456", 20);

5. insuraSearchInput.setMaximumSize(

insurSearchInput.getPreferredSize());

6. insurSearch.add(insurSearchInput);

7. JButton insurSearchSubmitButton =new

JButton("show insurance information");

8. insurSearch.add( insurSearchSubmitButton );

9. insurSearch.add( Box.createHorizontalGlue() );

Figure 3: Java code of a form.

In this Java code, variable

insurSearch

represents the container of the whole form. A

BoxLayout is set to this container. With this layout,

elements are put in a row (line 2). Components

added in the container (lines 3-6-8-9) are then

aligned in the form. From this Java code, a semantic

annotation of the UI can be constructed with UIOnto

in RDF model (W3C Working Group, 2004) as

follows:

<#insurSearch> a :Container.

<#insurSearchLabel> a :Text.

<#insurSearchInput> a :TextEdit.

<#insurSearchSubmitButton> a :Activator.

<#insurSearchGlue> a :Glue.

<#insurSearch> <#containsInteractor>

<#insurSearchLabel>, <#insurSearchInput>,

<#insurSearchSubmitButton>, <#insurSearchGlue>.

It expresses that Container insurSearch contains four

interactors: a Text corresponding to the JLabel in the

Java code, a TextEdit corresponding to the

JTextField, an Activator corresponding to the

JButton and a Glue corresponding to the

createHorizontalGlue in the Java code. This RDF

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

324

description can be further enriched with knowledge

about layouts with LayOnto concepts:

<#insurSearchInput> <#isOnTheRightOf>

<#insurSearchLabel>.

<#insurSearchSubmitButton> <#isOnTheRightOf>

<#insurSearchInput>.

<#insurSearchGlue> <#isOnTheRightOf>

<#insurSearchSubmitButton>.

The association of a BoxLayout with X_AXIS

(respectively Y_AXIS) attribute to container

insurSearch is represented by instances of a

subproperty of GridPositionnedRelativelyTo

corresponding to BoxLayout in the Java code -

isOnTheRightOf (respectively isBelowOf) - with

insurSearch as their subject and interactors

contained in it as their values. In a similar vein, we

can associate each position of the Java BorderLayout

with a position of our TableLayout: "West" with

isInLeft, "North" with isInAllTop, "East" with

isInRight, "South" with isInAllBottom and "Center"

with isInCentre. With the high degree of abstraction

of UIOnto and LayOnto, similar translations hold for

almost all Java Layout Managers but also for layouts

of other interface description languages like XAML.

3.2 Linking UI, Tasks and

Functionalities

Our modelling of TaskOnto relies on the

ConcurTaskTree (CTT) (Mori, 2002) model.

TaskOnto is represented in the OWL Lite standard

and comprises 5 classes and 3 properties. In a

nutshell, the main class of TaskOnto is Task that

represents an action possible to perform in the

application. There are 4 types of Task, appearing as

4 subclasses of class Task.

 InteractionTask describing an action performed

through the UI,

 SystemTask representing an action performed by

the functional part,

 UserTask representing an action performed by the

final user (without inputs for the application) and

 AbstractTask that represents a task composed of

subtasks (of all type – InteractionTask, SystemTask

or UserTask).

The properties hasSubtask and hasParentTask

enable to describe the tree by dividing the different

tasks into an unfolding of tasks. To construct this

tree, property hasTemporalOperator applies to a

task and enable to describe how a subtask is

executed, sequentially or competitively, etc…

To obtain a functional application resulting of an

application composition, we relate UIOnto and

LayOnto to TaskOnto by associating to any task: (i)

the functionalities used to perform the corresponding

system actions and (ii) the UI parts used to interact

with the application during the task.

We define two RDF properties

linkedWithUIEntity and linkedWithFunctionality

which apply to a task and relate it to a UI entity in

UIOnto and to functionality. By relating the three

ontologies UIOnto, LayOnto and TaskOnto, we can

entirely describe any application. In next section, we

explain how we use all annotations to build the

application’s UI resulting of the composition.

4 INTERESTS OF UIONTO,

LAYONTO, TASKONTO FOR UI

COMPOSITION

Once the RDF representations of applications are

extracted by analysing selected parts of existing UI,

these representations need to be unified for their

manipulation by our algorithm for computer-

supported composition.

4.1 Deduction of Relative Layouts

To complete our models UIOnto and LayOnto we

have built a base of 14 inference rules enabling to

deduce relative layout of UI components from any

layout description. 4 rules state that from two

positions in the RelativeLayout, we may obtain a

third one, e.g. if an interactor S1 is above a S2 and

S1 is on the left of S2, then we can deduce that S1 is

above left of S2. We formalize it in the SPARQL

(W3C Working Group, 2008) language:

CONSTRUCT { ?s isAboveLeftOf ?s2 }

WHERE {

?s1 isCenteredAboveOf ?s2.

?s1 isOnTheLeftOf ?s2

}

In a similar vein, 4 rules enable to deduce relative

positions from absolute positions and 6 rules enable

to deduce relative positions from grid positions.

With these rules we can deduce relative positions of

any component in the new composed UI. These

results are necessary because we use the

RelativeLayout to represent the constraints of the

developer expressed during the composition process

(positioning of selected parts of former UI).

The developer is helped by these rules in

maintaining the consistency of the new UI. For

example, it will enable the developer to extend her

selection of UI parts to fix the position of a larger

and more appropriate or coherent group of already-

ONTOCOMPO - An Ontology-based Interactive System to Compose Applications

325

placed UI parts. It will also enable the developer to

perform specific selections like "all interactors in the

left of…". Rules are useful for the detection of

conflicts, like when the developer positions two

different UI parts at the same place, as two

Activators sequentially placed on the left of the

same Interactor. Where must be placed the second

Activator? On the left of the first one? Between the

first Activator and the Interactor? etc.

4.2 Consistency of UI Composition

During the composition process, when the developer

places selected parts of existing UI, she is helped in

these actions to guaranty the consistency of the new

interface. This help is done thanks to 3 categories of

semantic queries built upon our ontologies. These

categories of queries are dedicated to complete the

selection of the developer.

4.2.1 Help from Layout

The first category of queries uses layout information

to help the developer to complete her selection. For

example, the query below retrieves all components

in the container of the selected component.

SELECT ?o WHERE {

?container containsInteractor ?selectedComponent.

?container containsInteractor ?o

}

With this first category, we are able to ask the

developer if she wants to select the container and its

components, only the selected component, selected

component and some other components in the same

container etc. With such interaction, we can help her

to select difficult parts to point out (like a Container

"hidden" by its contained Interactors).

4.2.2 Help from Tasks

This second category of queries uses task

information to help the developer to complete her

selection. There are two steps of queries. The first

retrieves the tasks attached to the selected

component with the query below:

SELECT ?t WHERE { ?t linkedToUIElement

?selectedComponent }

After getting the attached tasks, the second step

retrieves the parent task of the retrieved tasks and

from that parent task all the UI elements attached to

its subtasks. Here, the idea of this help is to consider

a semantic proximity of the UI elements when they

perform a global common task. The query bellow

retrieves all UI elements achieving a common task:

SELECT ?uielement WHERE {

?retrieveTask hasParentTask ?parentTask .

?parentTask hasSubtask ?subtask .

?subtask linkedToUIElement ?uielement

}

Initially, this query retrieves the parent task of the

retrieved task (obtained by the first step). Then, it

reaches the different subtasks of the parent task and

finally UI element attached to these subtasks. All UI

elements may be submitted to the developer for

validation in order to be added to the selection.

4.2.3 Help from Functionalities

This third category of queries uses functionalities

information to help the developer to complete her

selection. These queries retrieve pieces of UI

manipulating the same functionalities. So, this

enables to avoid forgetting some UI part potentially

doing the same type of task or at least performing a

task using the same functionality. We need to

retrieve the tasks associated to a selected UI

component, then to the parent task of these retrieved

tasks. Among these subtasks, we can search a task

linked with functionalities:

SELECT ?funct WHERE {

?retrievedtask linkedToUIElement

?selectedComponent .

?retrievedtask hasParentTask ?parentTask .

?parentTask hasSubtask ?subtask .

?subtask linkedToFunctionality ?funct

}

If such functionalities exist, then we can execute the

second step of our help i.e. obtain the different tasks

linked with the retrieved functionalities and reach

the UI elements attached to their parent task:

SELECT ?uielement WHERE {

?retrievedtask linkedToFunctionality ?funct .

?retrievedtask hasParentTask ?parentTask .

?parentTask hasSubtask ?subtask .

?subtask linkedToUIElement ?uielement

}

With these three categories of queries, we are able to

help the developer during the selection of the

different UI parts she wants to reuse in the new UI.

5 CONCLUSIONS

With the semantic representation of applications, we

propose in this article to automate the composition

of applications. The developer is the initiator of the

composition of a new interface by selecting the

components she wants to keep. The developer

controls consistency of the composition along the

selection (she is helped thanks to layout description,

task description and functionalities description) but

also after this selection, during the composition by

expressing constraints about the layout of the new

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

326

interface. In our approach, the composition is semi-

automatic because a feedback is done to the

developer by requiring precisions about selections

and about the constraints on the new interface.

In this work, there is an enrichment of the

semantic descriptions by associating knowledge

about functional features to current knowledge about

the layout of interface components. The functional

descriptions allow us to do the fusion of some

interactors. It allows providing feedback to the

developer about how to lead the UI composition.

ACKNOWLEDGEMENTS

Our work is funded by the DGE M-Pub 08 2 93 702

project.

REFERENCES

Abrams M., Phanouriou C., Batongbacal A., Williams S.,

Shuster J. 1999 UIML: An appliance-independent

XML user interface language. In proceedings of the 8

World Wide Web Conference (WWW), pages 617-630,

Elseiver.

Barnard P. J., 1991. Teasdale J. D. Interacting cognitive

subsystems: A systemic approach to cognitive-

affective interaction and change. Cognition &

Emotion, 5, 1, 1-39.

Elkoutbi M., Khriss I., Keller R. K., 1999. Generating

User Interface Prototypes from Scenarios, In RE'99,

Fourth IEEE International Symposium on

Requirements Engineering, pages 150-158, Limerick,

Ireland.

Fujima J., Lunzer A., Hornbæk K., Tanaka Y., 2004. Clip,

Connect, Clone: Combining Application Elements to

Build Custom Interfaces for Information Access, In

Proceedings of UIST 2004, pages 175-184, Santa Fe,

NM.

Gabillon Y., Calvary G., Fiorino H., 2008. Composing

interactive systems by planning. In UbiMob’08, pages

37–40, Saint Malo, France.

Ginzburg J., Rossi G., Urbieta M., Distante D., 2007.

Transparent interface composition in Web

Applications, In proceedings of Web Engineering,

Volume 4607, pages 152-166, Heidelberg, LNCS ,

Springer.

Grundy J. C., Hosking J. G., 2002. Developing Adaptable

User Interfaces for Component-based Systems. In

Interacting with Computers, Volume 14, 2, pages 175-

194., Elsevier Science Publishers.

Lepreux S., Hariri A., Rouillard J., Tabary D., Tarby J.-C.,

and Kolski C., 2007. Towards multimodal user

interfaces composition based on usixml and mbd

principles. Lecture Notes in Computer Science,

4552(134):134–143.

Lewandowski A., Lepreux S., Bourguin G., 2007. Tasks

models merging for high-level component

composition. Human-Computer Interaction, Part I,

HCII 2007, Lecture Notes in Computer Science

(LNCS), 4550:1129–1138.

Limbourg Q., Vanderdonckt J., Michotte B., Bouillon L.,

Florins M., and Trevisan D., 2004. Usixml: A user

interface description language for context-sensitive

user interfaces. AVI’2004 Workshop ”Developing

User Interfaces with XML: Advances on User

Interface Description Languages” UIXML’04, pages

55–62.

Mori G., Paternò F., Santoro C., 2002. Ctte: Support for

developing and analyzing task models for interactive

system design. IEEE Transactions on Software

Engineering, pages 797–813.

Occello A., Joffroy C., Pinna-Déry A.-M., Renevier P. and

Riveill M., 2010. Experiments in Model Driven

Composition of User Interfaces. In 10th IFIP

International Conference on Distributed Applications

and Interoperable Systems (DAIS'10), volume LNCS

6115, pages 98-111, Amsterdam, Netherlands.

Springer-Verlag.

Paternò F., Santoro C., and Spano L. D., 2009. Maria: A

universal, declarative, multiple abstraction level

language for service-oriented applications in

ubiquitous environments. In Computer-Human

Interaction (TOCHI), volume 16.

Pinna-Déry A.-M., Fierstone J., 2003. Component model

and programming: a first step to manage Human

Computer Interaction Adaptation.

In Mobile HCI’03,

volume LNCS 2795, pages 456–460, Udine, Italy. L.

Chittaro (Ed.), Springer Verlag.

Tsai W.-T., Huang Q., Elston J., Chen Y., 2008. Service-

oriented user interface modeling and composition. In

ICEBE ’08, pages 21–28, Washington, DC, USA,

IEEE Computer Society.

W3C Working Group. OWL Web Ontology Language

http://www.w3.org/TR/owl-features/, 2004.

W3C Working Group. Resource Description

Framework(RDF). http://www.w3.org/RDF/, 2004.

W3C Working Group. SPARQL Query Language for

RDF. http://www.w3.org/TR/rdf-sparql-query/, 2008.

ONTOCOMPO - An Ontology-based Interactive System to Compose Applications

327
