COMPREHENSION SUPPORT OF SQL STATEMENT USING

DOUBLE-TREE STRUCTURE

Takehiko Murakawa and Masaru Nakagawa

Faculty of Systems Engineering, Wakayama University, Wakayama, Japan

Keywords:

Program understanding, Code review, SQL, Graphical expression, Syntactic analysis.

Abstract:

SQL is a practical programming language used mainly in the query to relational database. However there

have been rarely met support tools for database programmers’ understanding with relation to SQL statements.

We have proposed a framework where a clamshell diagram which looks like a symmetrical, double tree is

drawn given an SQL statement. In this paper, we report an automatic conversion system of SQL statements

into clamshell diagrams. The system parses the given statement and arranges the conﬁguration which differs

slightly from the well-known syntax tree. Moreover we actually generated some dozens of diagrams for SQL

statements using the system to make sure that it can readily draw diagrams.

1 INTRODUCTION

SQL is a practical programming language used

mainly in the query to relational database. Most de-

partments on information science or computer en-

gineering let the students learn basic concepts of

database and acquaint themselves with the queries us-

ing SQL statements. In the authors’ afﬁliation, the

students train in SQL after mastering C and Java.

Some of them have a resistance to SQL since, say,

the syntax is unprecedented.

Bending our eyes on the software development

business, we have rarely met support tools for

database programmers’ understanding with relation

to SQL statements, although we can ﬁnd such tools

for source codes written in general-purpose procedu-

ral languages. The approaches to the comprehension

support of procedural languages are (Desmond et al.,

2006; Chen, 2010; Zest, ) and others. Davis (Davis,

2008) attempted to assist the understanding of source

ﬁles by allocating them on a window.

There exist support tools in fact which analyze

any SQL statement to visualize it. For example,

SQLProb (Liu et al., 2009) parses given SQL state-

ments and forms the trees to detect the change of con-

ﬁguration which indicates an SQL injection attack.

Another case is Visual Explain (VisualExplain, 2006)

which generates the access plan as a tree. Both appli-

cations, however, would be poor at the code inspec-

tion support by a single person or multiple persons.

Apart from the tools, a case study is found in (Chan

et al., 2005) which made quantitative evaluations of

accuracy of the codes that novice SQL programmers

wrote.

We have proposed a framework for program un-

derstanding using a graphic record that we call a

clamshell diagram (Murakawa and Nakagawa, 2010).

Roughly summarized, a clamshell diagram is a sym-

metrical, double tree for representing two hierarchical

structure and a problem-solution relationship. After

formalizing it and drawing ﬁgures (Murakawa et al.,

2008), we have focused on SQL. Those diagrams

were, however, made by hands. Such way of draw-

ing is inefﬁcient and has a disadvantage for the code

reviewer to examine analogous codes.

In this paper we report an automatic conversion

system of SQL statements into clamshell diagrams.

It parses the given statement and conﬁgures the left-

hand tree which differs slightly from the well-known

syntax tree. And then, it creates the structure of the

right-hand tree where the labels of SQL fragments

may be changed into words which are more natural

with regards to English expression. The system is the

improved version of the one (Murakawa et al., 2010).

2 PRELIMINARIES

2.1 SQL

SQL is a programming language for the query to

318

Murakawa T. and Nakagawa M..

COMPREHENSION SUPPORT OF SQL STATEMENT USING DOUBLE-TREE STRUCTURE.

DOI: 10.5220/0003346103180323

In Proceedings of the 3rd International Conference on Computer Supported Education (CSEDU-2011), pages 318-323

ISBN: 978-989-8425-49-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

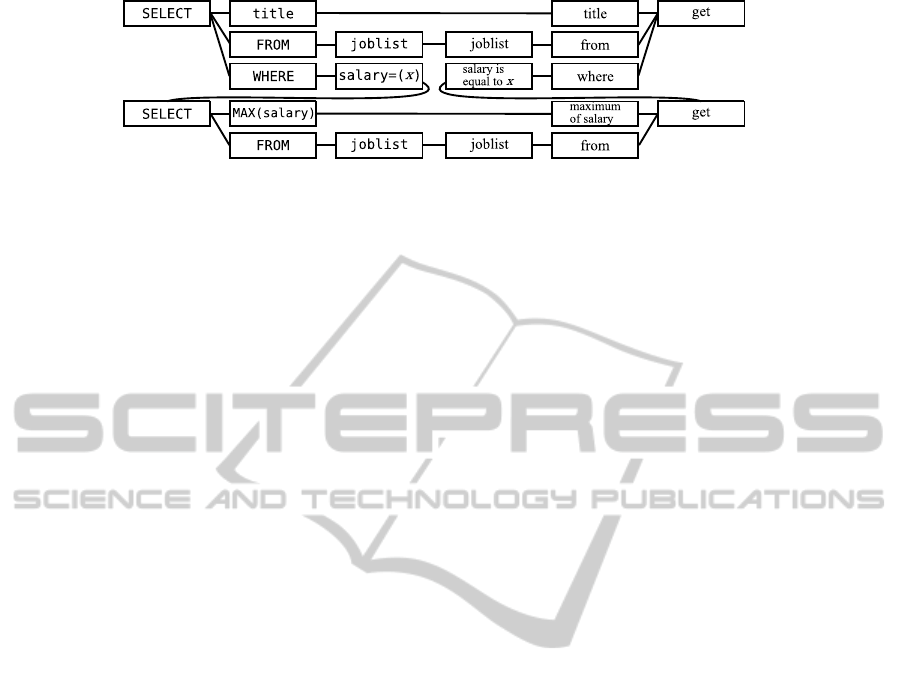

Figure 1: Example of clamshell diagram for an SQL statement (old way of drawing).

database. Although a typical executable unit of SQL

is smaller than that of C or popular ones, an SQL

statement could be unboundedly lengthened by using

a nested query or a subquery. Moreover, as far as the

processing performance is concerned, a single, com-

plicated SQL statement is prefer to divided, simpliﬁed

ones.

Students of the authors’ department study SQL

after mastering C and learning Java. When we put

a question of writing down a SQL statement for a

bit long query in a natural language to the students,

the accuracy rate is terribly low. One of the goals in

the database classes is that the students learn to write

down the right queries by themselves. For this pur-

pose, the objective of our study is throwing a bridge

over queries or intentions and SQL statements.

2.2 Clamshell Diagram

A standard clamshell diagram has two tree structures

whose roots are located in the both ends of the dia-

gram and the leaves of the trees are connected one-

to-one in the center. While a tree presents a mere ex-

pansion, a clamshell diagram with double tree visual-

izes both the divergence and convergence. Moreover

we can have a careful look at the completed diagram

by several methods, such as changing the viewpoint

into one of the adjacent nodes or into the opposite

node, or skimming through a path from the left edge

to the right. The combination of these ways of view-

ing helps us understand the object.

If you are interested in the formal deﬁnition of

clamshell diagrams, see (Murakawa and Nakagawa,

2010). Note that we have only to keep a single tree for

a clamshell diagram in a computer, where each node

holds the information of the corresponding nodes of

both-hand trees.

The basic idea of drawing is to supply the hierar-

chical code fragments of a given SQL statement in

the left side of the diagram and to put the meaning

written in a natural language in the right. Figure 1

is an example of clamshell diagram for an SQL

statement including a subquery. There exist two

nodes which read

SELECT

on the extreme left of

this ﬁgure, but we can easily see that the lower one

is the child node of “

salary=(x)

”. The symbol

is a parameter which substitutes for the sequence

for the subtree. When we traverse the left-hand

tree in preorder, it reads “

SELECT title FROM

joblist WHERE salary=(SELECT MAX(salary)

FROM joblist)

”. From the right-hand tree, we can

similarly obtain the sequence, “get title from joblist

where salary is equal to ‘maximum of salary from

joblist’ ”, where the word “get” which occurs except

at the root of the right-hand tree is omitted. The

query is to retrieve the titles of the maximum salary,

under the assumption that there exists a table named

joblist

which consists of two columns by the name

title

and

salary

There exist problems in drawing clamshell dia-

grams by hand. Firstly, it is tedious and error-prone.

Then, it is not easy to understand expressions which

may be too long and complicated. Lastly, it is not

straightforward to identify the column names, espe-

cially in the statement where a table name appears

twice or more. To overcome these difﬁculties, we de-

veloped the software for converting SQL statements

into clamshell diagrams.

3 AUTOMATIC CONVERSION OF

SQL STATEMENT INTO

CLAMSHELL DIAGRAM

3.1 Overview

The overview of generating the clamshell diagram for

a given SQL statement is shown in Fig. 2.

We would like to enumerate the features of the

program we have developed. Firstly, it takes an SQL

statement as input to make the clamshell diagram.

It thereby automates the time-consuming job. Then,

each token of the given SQL statement is associated

with a node of the left-hand tree of the clamshell di-

agram, apart from what is introduced for readability.

This property hopes that we can understand the roles

of the tokens in the connection of others more eas-

ily. Lastly, if a single column name is speciﬁed in

the given SQL statement, then it is augmented with

COMPREHENSION SUPPORT OF SQL STATEMENT USING DOUBLE-TREE STRUCTURE

319

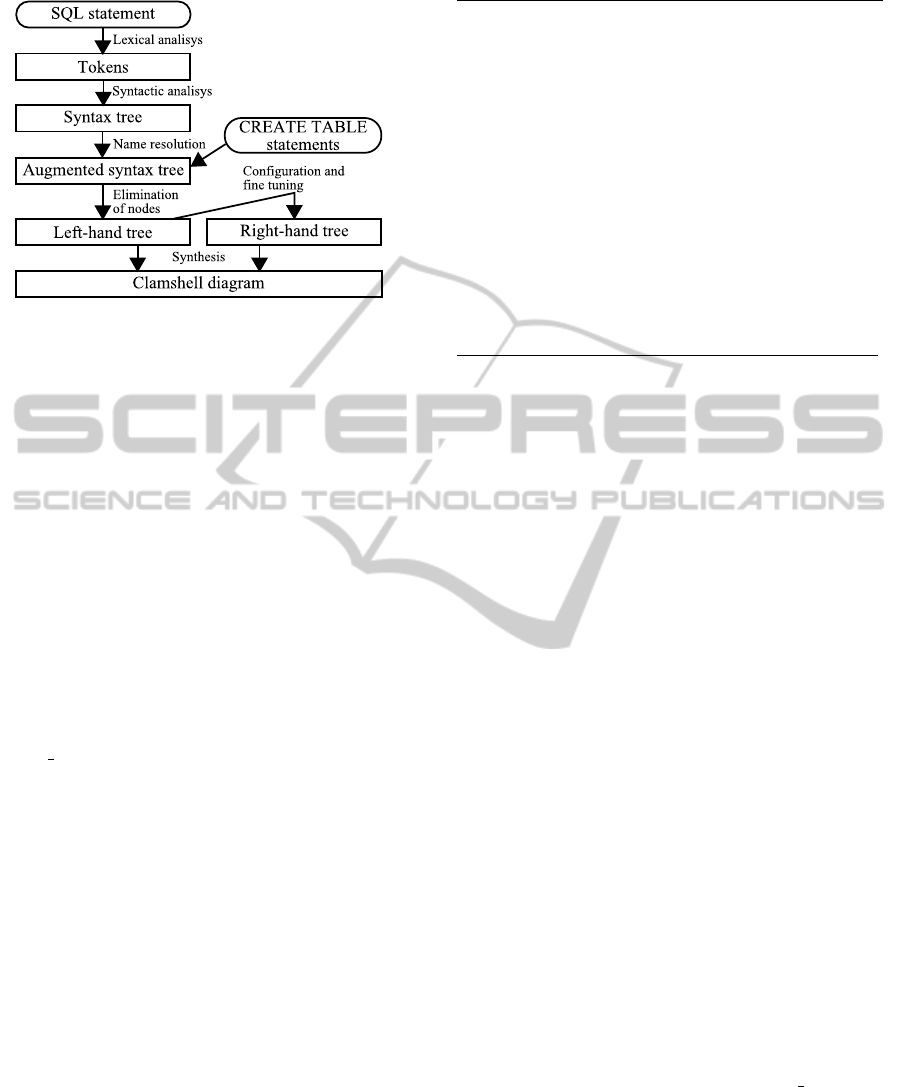

Figure 2: Overview of generating clamshell diagram using

the system.

the appropriate table name and the dot symbol before

the column name. Such an enhancement helps one to

understand the origin of the column name.

The system was implemented using Ruby.

Whereas employing free, well-established library and

software, we wrote several Ruby script ﬁles for the

various processes.

3.2 Parsing

Lexical and syntactic analyses are done

with the aid of the Ruby’s library Racc

(http://i.loveruby.net/en/projects/racc/). Figure 3

is a part of the Ruby script ﬁle for the syntax

analyzer. The word without any lower case letters

means a special token of SQL, and the one beginning

with “

” indicates a reserved word by removing the

preﬁx. The lines between

prechigh

and

preclow

deﬁne the operator precedence together with the

associativity. After the line of “

rule

”, the word

without any upper case letters denotes a non-terminal

symbol whose syntax is deﬁned in the ﬁle. The

vertical bar is used for the disjunction. Inside a

pair of braces, the action is described in Ruby. The

last line except “

...

” in Fig. 3 suggests that

expr

is deﬁned in a recursive way. We introduced 53

non-terminal symbols while deﬁning 186 syntactic

rules (counting the disjunctive rules separately), by

referring to the speciﬁcation of SQL (ISO9075, ) and

subsidiarily the graphical syntactic rule about SQLite

(http://www.sqlite.org/syntaxdiagrams.html).

Racc converts the syntax deﬁnition ﬁle into a

Ruby script which takes a grammatical SQL state-

ment as input to produce an Array object in Ruby

which corresponds to the syntax tree.

class Sqlp

prechigh

right UMINUS

left PERIOD2

left PERIOD3

left ASTERISK SLASH PERCENT

left PLUS MINUS DOUBLE_VERTICAL_BAR

...

preclow

options no_result_var

rule

sql_stmt: sql_stmt1 sql_stmt2 {...}

sql_stmt1: {[]}

| K_EXPLAIN {...}

| K_EXPLAIN K_QUERY K_PLAN {...}

sql_stmt2: select_stmt {...}

expr: literal_value {...}

| column_name {...}

| expr ASTERISK expr {...}

...

Figure 3: A part of syntax deﬁnition for Racc.

3.3 Name Resolution of Columns

When reading a complicated SQL statement, we of-

ten have difﬁculty with identifying the table for a sin-

gle identiﬁer which should be a column name. Tak-

ing the SQL statement in Section 2.2 for example,

joblist

and

salary

respectively appear twice, and

we learn that each column

salary

is wired in the ta-

ble

joblist

in chronological order.

We attempted to add words to the given SQL state-

ment. Just after parsing, if the table name without

modiﬁer occurs more than twice, then

modiﬁer is

attached. In addition, for the (sub)expression which

is merely the column name, the table name and a dot

are inserted just before it. For this purpose the pro-

gram takes

CREATE TABLE

statements involved with

the given SQL statement as an auxiliary input.

The SQL statement in Section 2.2 can be con-

verted into “

SELECT j1.title FROM joblist AS

j1 WHERE j1.salary=(SELECT MAX(j2.salary)

FROM joblist AS j2)

”. Our system is designed so

that the rules can be applicable in the SQL statements

with inline views as well.

3.4 Making the Left-hand Tree

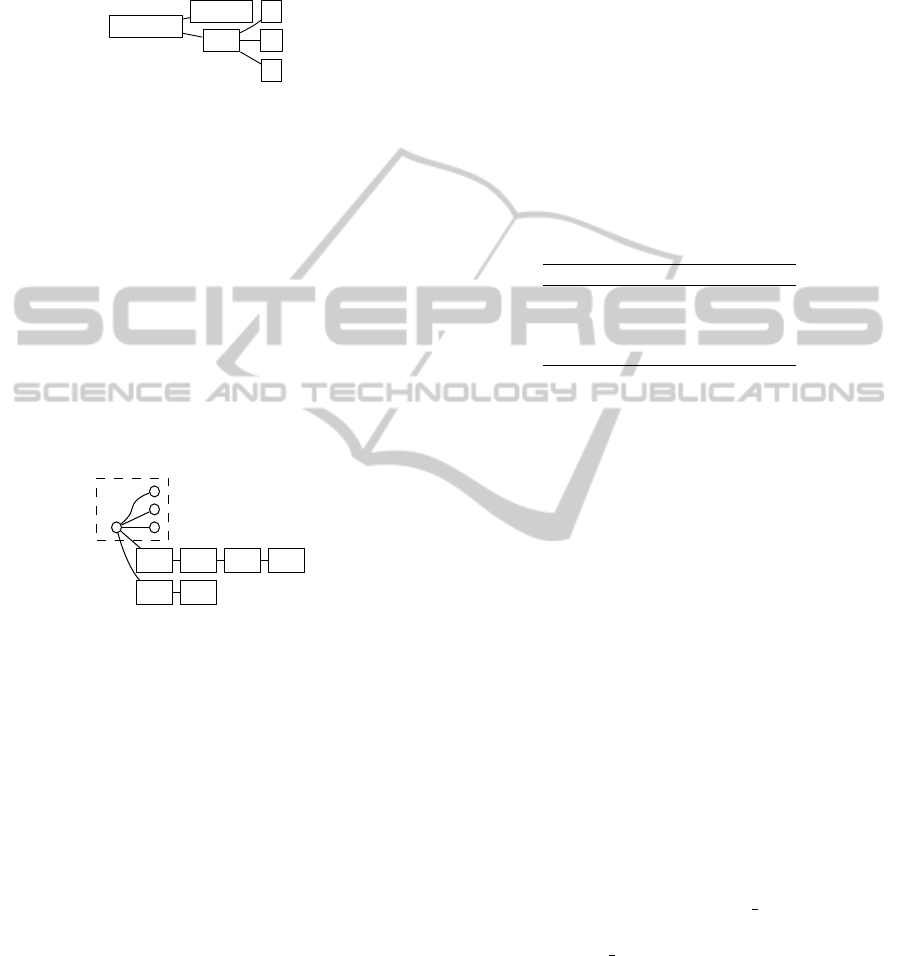

When the statement “

SELECT 3+4

” passes through

the parser, we can obtain the syntax tree (a bit op-

timized) shown in Fig. 4, where

select core

and

expr

denote non-terminal symbols. If this tree were

adopted as the left-hand tree of the clamshell dia-

gram, then the inner nodes associated with the non-

terminal symbols would give no information in the

right-hand tree. In general, we would also like to give

care to locating the opening and closing parentheses

on the chart. These difﬁcultiesmade us remove the in-

CSEDU 2011 - 3rd International Conference on Computer Supported Education

320

ner nodes associated with non-terminal symbols thor-

oughly, with the property preserved that the diagram

should produce the original SQL statement by travers-

ing the left-half tree in preorder.

select_core

SELECT

expr

Figure 4: Syntax tree of

SELECT 3+4

First, we need to pay attention to the binary oper-

ator which frequently occurs in the expression, since

it is not compatible with preorder conﬁguration. For

this problem, we attempt to reconﬁgure the involved

nodes so as to make them ﬁt in with preorder. The

principle leads to the tree shown in Fig. 5 for the ex-

pression x+ 1 ∗ 1 − 1 where x is an expression. You

can hide the operator together with its right operand

both from the expression and from the tree. Note that

if the expression is y + 1 and y is a single value, then

it corresponds to the chain which ties in “y”, “+ ” and

“1” in sequence. This way of reconﬁguration can be

applied as well in listing two items or more with the

comma injected.

1 * 1

Figure 5: Conﬁguration of the expression x+ 1∗ 1− 1.

We would like to propose the marriage of a pair of

parentheses, by appending the conversion rules; if the

parentheses are attached to the function call, then the

label of the root in the subtree about the call consists

of the function name and the parentheses; otherwise,

the pair of parentheses change themselves into a sin-

gle node with “( )” on it, and this node is the root

of the subtree. When the node of a pair of parenthe-

ses has more than one child nodes as the result of re-

duction, only the ﬁrst child node should be put in the

parentheses whereas the rest follows the subexpres-

sion.

Finally we are presenting the way of eliminating

inner nodes in the case other than described above.

When we have a subtree whose root is associated with

a non-terminal symbol, the ﬁrst-born node among the

child nodes of the subtree should promote to the root.

This manipulation keeps the word order through the

preorder scanning.

3.5 Making the Right-hand Tree

and Whole Diagram

After constructing the left-half tree, we will obtain the

right-half tree in a straightforward way. The conﬁg-

uration is just the same as that of left-half tree, and

some labels are altered. Table 1 shows the mapping

rule for simple tokens. Moreover, all the keywords

of SQL are decapitalized, and the function name fol-

lowed by the parentheses is converted into the func-

tion name plus “of”. On the other hand, we leave

the parentheses other than seen in function calls un-

touched for readability.

Table 1: Mapping rule of labels for the right-hand tree.

SQL’s Token Substitute word

SELECT

get

records

and

’s

Note: The token

which appears as the binary operator is not sub-

ject to the rule.

We employ Graphviz (http://www.graphviz.org/)

for drawing clamshell diagrams. Graphviz basically

takes a text ﬁle of the graph conﬁguration as input,

and produces an image ﬁle. You can choose the ﬁle

format of the output image among vector formats such

as SVG (Scalable Vector Graphics) and EPS (En-

capsulated PostScript) or pixel formats such as PNG

(Portable Network Graphics) and JPEG (Joint Pho-

tographic Experts Group). When our program writ-

ten in Ruby invokes

dot

command that Graphviz fur-

nishes, we ﬁnally have an image ﬁle of the clamshell

diagram.

4 RESULTS

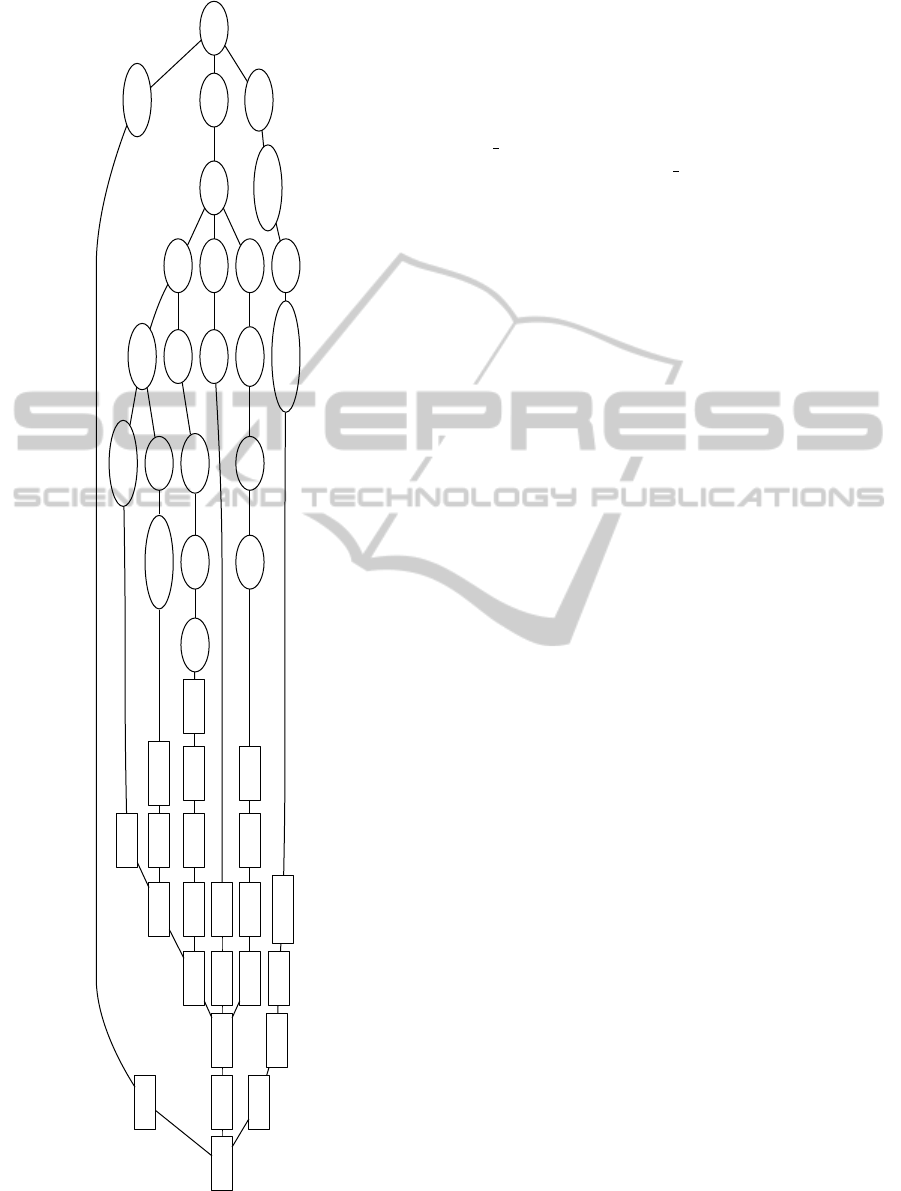

A clamshell diagram which is drawn through the

above processes is shown in Fig. 6. The origi-

nal SQL statement is “

SELECT j2.title FROM

(SELECT MAX(j1.salary) AS max salary FROM

joblist AS j1) AS j, joblist AS j2 WHERE

j2.salary=j.max salary

”, and intended to cal-

culate the job’s titles of the maximum salary in the

joblist table using the inline view. The ﬁgure presents

the inner clamshell diagram whose both edges are

the nodes which read “

SELECT

” and “get” in the

left-hand and right-hand trees respectively. If a mere

tree were displayed, we would be bewildered when

reaching a leaf node. Clamshell diagram supplies the

right-hand path to convergence, which enables us to

COMPREHENSION SUPPORT OF SQL STATEMENT USING DOUBLE-TREE STRUCTURE

321

SELECT

j2.title

FROM

WHERE

j2’s title

( )

SELECT

MAX ( )

FROM

j1.salary

j1’s salary

max_salary

joblist AS j1

joblist AS j2

j2.salary

j.max_salary

j’s max_salary

getfrom( )

get

max of

from

joblistas

andjoblistas

where

j2’s salary

Figure 6: Example of clamshell diagram for an SQL state-

ment.

understand the pieces of the original query through

left-to-right stream.

When traversing the right-hand tree of this

diagram in consideration for the parentheses’ in-

terpretation and the elimination of “get” inside, we

obtain “get j2’s title from (max of j1’s salary as

max salary from joblist as j1) as j and joblist as j2

where j2’s salary = j’s max salary.”

Dozens of simple queries brought the valid

clamshell diagrams. Moreover we applied to the

SQL statement for calculating the median (Celko,

2005, p.515) that consists of 132 tokens, to obtain the

clamshell diagram with 228 nodes where the length

of the path between the both ends is up to 36.

5 DISCUSSION

We have presented the prospect for the solution

through automatic converter while enumerating the

problems in drawing clamshell diagrams for SQL

statements by hand. We are looking back on them,

since we currently have the practical examples of

produced clamshell diagram as well as the conver-

sion system. The developed software, taking an SQL

statement as input, has several Ruby scripts work to-

gether to make the clamshell diagram immediately.

Although there are some exceptions for readability,

the resulting diagram holds more nodes than the one

by hand, which makes each tokens in the statement

much clearer. Furthermore, by assigning each column

name in the statement to a node where the appropriate

table name is qualiﬁed, the targets of information ref-

erence conﬁdently identiﬁed on the diagram. There-

fore we consider that the framework of conversion of

SQL statements into clamshell diagrams contributes

to the SQL comprehension support.

With the utilization of the visualization tool de-

scribed until now in mind, we would like to explain

an idea for making use of the system in the classes of

database. There is a teacher or a student who writes

an SQL statement using a computer, for retrieving

some records from the tables where the schema was

deﬁned and the records were stored previously. He

or she punches in the query to send the characters or

words to the server discretely. When a statement is

correct in grammar, the server generates the clamshell

diagram and returns it to the client. Referring to the

clamshell diagram together with the query, the teacher

gives commentary on noteworthy tokens. Moreover,

they can ﬁnd the tables in the diagram which are omit-

ted from a simple SQL statement. If the system can

judge whether the statement is correct or not in a mo-

ment, and if the time for drawing, transmitting and

CSEDU 2011 - 3rd International Conference on Computer Supported Education

322

rendering the clamshell diagram is negligibly small,

then the learners can enjoy the results dynamically

changed on the screen. It is not so hard to build up

the application which works with a single PC.

Taking the actual use of clamshell diagrams into

consideration, we have to recognize that there exists a

room to improve the way of visualization. For exam-

ple, we could change the shapes of nodes, apply col-

ors according as the meanings of labels, and fold and

expand the subtrees. In addition, the system becomes

more attractive if a user, looking at the generated di-

agram, can touch a node and change it on site. We

expect SVG to be the best image format, since SVG

is an XML (Extensible Markup Language) image for-

mat which Graphviz supports and the components of

the image are controllable through DOM (Document

Object Model), using JavaScript.

6 CONCLUSIONS

In this paper we have reported the automatic conver-

sion system of SQL statements into clamshell dia-

grams. Resulting diagrams enable us to understand

the pieces of the original queries thanks to the double

tree structure and the left-to-right stream.

Future works include conducting evaluation ex-

periments for readability of clamshell diagrams in

comparison with other ways of showing SQL state-

ments. Supporting other languages than English in

the right-hand tree is also under consideration.

REFERENCES

Celko, J. (2005). Joe Celko’s SQL for Smarties: Advanced

SQL Programming, Third Edition. Morgan Kauf-

mann.

Chan, H., Teo, H., and Zeng, X. (2005). An evaluation of

novice end-user computing performance: Data model-

ing, query writing, and comprehension. Journal of the

American Society for Information Science and Tech-

nology, 56(8):843–853.

Chen, X. (2010). Extraction and visualization of traceabil-

ity relationships between documents and source code.

In IEEE/ACM international conference on Automated

software engineering, pages 505–509.

Davis, S. (2008). Automatic juxtaposition of source ﬁles.

Master’s thesis, University of British Columbia.

Desmond, M., Storey, M.-A., and Exton, C. (2006). Fluid

source code views for just in-time comprehension. In

Workshop on Software Engineering Properties of Lan-

guages and Aspect Technologies.

ISO9075. Information technology—database languages—

SQL—part 1: Framework (SQL/framework).

ISO/IEC 9075-1:1999.

Liu, A., Yuan, Y., Wijesekera, D., and Stavrou, A. (2009).

SQLProb: a proxy-based architecture towards pre-

venting SQL injection attacks. In Proceedings of the

2009 ACM symposium on Applied Computing, pages

2054–2061.

Murakawa, T., Kawasaki, T., Mizuochi, H., and Nakagawa,

M. (2008). Formulation of clamshell diagram and its

application to source code reading. In Proceedings of

the 8th Joint Conference on Knowledge-Based Soft-

ware Engineering (JCKBSE 2008), pages 474–483.

Murakawa, T. and Nakagawa, M. (2010). Graphical ex-

pression of SQL statements using clamshell diagram.

IEICE TRANSACTIONS on Information and Systems,

E93-D(4):713–720.

Murakawa, T., Tsujimoto, A., Matsuo, K., and Nakagawa,

M. (2010). Automatic conversion of SQL statement

into clamshell diagram. In Proceedings of the 9th

Joint Conference on Knowledge-Based Software En-

gineering (JCKBSE’10), pages 100–101.

VisualExplain (2006). DB2 9.1 Visual Explain tutorial.

IBM.

Zest. Zest: The eclipse visualization toolkit. http://

www.eclipse.org/gef/zest/.

COMPREHENSION SUPPORT OF SQL STATEMENT USING DOUBLE-TREE STRUCTURE

323
