COFOCUS

Compact and Expanded Restful Services for Mobile Environments

Li Li and Wu Chou

Avaya Labs Research, 233 Mount Airy Road, Basking Ridge, New Jersey 07920, U.S.A.

Keywords: REST web service, Mobile device, Compact HTTP, XMPP, SMS, Android, Security.

Abstract: In this paper, we present an approach to enable collaborative endpoint network for mobile phones. In

particular, we expose functions on mobile phones as REST web services that make mobile phones as web

service providers for rapid integration with communication and collaboration applications. Because mobile

phones have distinct features and constraints, this paper describes a lightweight and efficient protocol,

Compact HTTP, which consists of a small subset of HTTP 1.1 to reduce the footprint of REST services. We

expand bindings of HTTP to multiple messaging protocols, including SMS and XMPP, and make the REST

services invariant to network and protocol changes. These expanded bindings enforce asynchrony into

REST, a desired property for many communication and collaboration services. Furthermore, HTTP over

XMPP described in our approach introduces the concept of hyperlink presence in collaboration, and it is

used to mitigate the broken link issue which is critical in mobile environments. To provide end-to-end

message security, a symmetric key based security scheme is described for service authentication and

authorization. A prototype system based on the proposed approach is developed that allows both local

operators and remote directors to control and monitor the camera, camcorder, location, telephony, motion,

power, etc. on Android phones in a secure manner. Experimental results indicate that the proposed approach

is feasible, lightweight, and has satisfactory performance.

1 INTRODUCTION

As mobile phones become more and more advanced,

they are replacing other devices, such as PDA and

notebook computers, as the next generation personal

digital assistant. Compared to other computing

devices, the mobile phones offer a unique

combination of telephony functions (making and

receiving phone calls), sensory functions (sound,

camera, camcorder, location, acceleration,

temperature, etc.), and communication networks

(3G, WiFi, Bluetooth, Wimax, etc.). More and more

applications are designed for mobile phones to take

advantage of these capabilities, as evidenced by the

popularity of iPhone and Android applications in

their App Stores.

The focus of this paper is on a web service

approach to enable collaborative endpoint network

for mobile phones and to expose functions on

mobile phones as REST web services, such that

applications running remotely can monitor and

control them in near real-time manner. Collaborative

endpoint network is an emerging area with critical

applications in intelligent home network, etc. There

are many motivating use cases to extend the

collaborative endpoint network to mobile phones.

For example, we can use a mobile phone as a

surveillance device to monitor a room or a car.

Mobile phones can also be used in healthcare to

monitor and remind patients of their treatments, as

well as find and locate medical professionals to treat

them. A travel application is to use mobile phones as

the virtual tour guide and push relevant multimedia

content to a visitor as he moves around a tourism

site. Mobile phones are also an ideal device to keep

track of traffic flows when the speed of many drivers

can be obtained and aggregated automatically. All

these applications require the ability to monitor and

control one or more functions on the phone in near

real-time, as these functions, such as location, may

change frequently and in-time responses are needed.

An efficient approach to support these

applications is to expose the fundamental functions

on the phones as REST web services and make

mobile phones as web service endpoints, so that

services on mobile phones can be invoked and

composed in different ways by different

Li L. and Chou W..

COFOCUS - Compact and Expanded Restful Services for Mobile Environments.

DOI: 10.5220/0003346200510060

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 51-60

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

applications. This approach eliminates the need for

each application to duplicate the same function.

Making a phone into a web service endpoint enables

the applications to interact with the phones in

heterogeneous mobile environments, as web service

is independent of transport protocols and

programming languages. REST web service is easy

to extend as it supports dynamic discovery through

links. For example, to add a second camera on the

phone into the services, we just need to implement a

new camera resource and link it to the main

resource.

There are two types of web services as we know

it: SOAP based (SOAP 2007) and REST based

(Fielding 2000). Many approaches have chosen

REST based web services for mobile devices

because of its simplicity and close relationship with

the architecture of Web. We chooses REST in our

approach for the same reason. However, we found

that HTTP 1.1 protocol as used in current REST web

services needs both compaction and expansion in

mobile phone environments. First, we need to

compact HTTP 1.1 messages as they can be complex

and large while some features are never used in

mobile phones. Second, we need to expand HTTP to

multiple transport protocol bindings besides TCP/IP

to support REST services in heterogenous mobile

environments. To address these issues, we propose

and define a “Compact HTTP” protocol, consisting

of a small set of HTTP 1.1 while keeping only the

essential elements of HTTP 1.1 to enable

collaborative endpoint network of mobile phones.

Moreover, we describe how Compact HTTP can

be bound to multiple messaging protocols, in

particular to XMPP (XMPP 2004) and SMS (Short

Message Service). These protocol bindings

introduces asynchrony into REST to support event-

driven REST web services on mobile phones.

Furthermore, HTTP over XMPP in our approach

introduces hyperlink presence into REST to mitigate

the broken link issue which is critical for mobile

phones. A security protocol is also devised to permit

flexible and quick setup of security contexts between

services and clients. Based on this protocol, we

develop a lightweight REST web services

framework on an Android phone. Within this

framework, we implement a few dozen resources,

including sound, camera, camcorder, location,

power, motion, scheduler, and telephony manager as

secured REST web services. Our collaborative

endpoint network framework also supports web

storages, including Google Sites, YouTube, etc., to

upload recorded media for instant sharing and

collaboration.

The rest of this paper is organized as follows.

Section 2 surveys some related work in developing

REST web services for mobile devices. Section 3

describes the Compact HTTP protocol. Section 4

describes the binding of this protocol to multiple

transport protocols. Section 5 presents a security

protocol to address related security issues. Section 6

describes the implementation and experiments of a

prototype systems running on a live wirless carrier

network (T-Mobile). And we conclude and sumarize

this paper in Section 7.

2 RELATED WORK

Because of its relative simplicity, compared to

SOAP based web services, REST web service

paradigm is gaining popularity in mobile device

communities.

The principles and architectures of REST web

services are extensively discussed in (Fielding 2000)

and (Richardson 2007), which are followed by this

paper whenever applicable.

WAP (WAP 2001) is a suite of protocols to

connect wireless mobile phones to the Web. The

typical WAP architecture consists of Content Server,

WAP Gateway and mobile devices. When requested

by the Content Server, the WAP Gateway uses a

protocol WSP (WSP 2001), which is a binary

version of HTTP, to transfer encoded WML content

(WML 2001) to the devices. However, modern

smart phones rarely support WAP as they can

interpret HTML directly.

Constrained REST Environments (Core) (Core

2010) is a recent IETF activity to restrict HTTP to

host resources on low-end devices, such as 8-bit

microcontrollers with up to 12 KB of memory. It

proposes a binding of HTTP to UDP that deals with

asynchronous messages. However, this approach is

not suitable for mobile environments, as the phones

do not have a reachable IP address, a major issue

that has to be addressed properly.

MacFaddin et al. (MacFaddin 2008) proposed a

REST web service framework for mobile commerce

spaces.

Liu and Conelly (Liu 2008) proposed to combine

REST web service with semantic web technology to

support services on mobile computing units.

Lozano et al (Lozano 2008) promoted the use of

REST web services to expose IMS capabilities to

Web 2.0 applications. In particular, it proposes the

use of AtomPub protocol to publish the IMS

resources.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

Antila et al (Antila 2009) discussed the hosting

of REST web services on mobile devices to support

person-to-person communication and collaborations

over Wifi and 3G networks.

Aijaz et al (Aijaz 2009) presented a REST web

service provisioning system and compared it against

the SOAP counterpart. The experiments showed that

REST messages have much lower overhead than

SOAP messages.

Pruter et al. (Pruter 2009) described an approach

to adapt resource-oriented service framework to

automatically control robots for industrial

automation tasks. It uses a special mechanism called

MIRROR to handle events. Performances of their

framework are evaluated under three physical

networks: wireless LAN, Bluetooth and ZigBee. The

results showed that the REST framework has lower

overhead than SOAP based DPWS.

AlShahwan et al (AlShahwan 2010) compared

the performances of the same SOAP and REST

services implemented on mobile devices. They

conclude that REST is more suitable to mobile

devices as it requires less processing time and

memory.

Stirbu (Stirbu 2010) presented a REST

architecture to render web interfaces on mobile

devices in which REST protocol is used to

synchronize states between applications.

However, none of the abovementioned prior

work has studied how to compact HTTP for mobile

devices and how to expand HTTP to connect phones

with each other to enable a collaborative endpoint

network in mobile phone environment and to link

functions on the phones with enterprise applications.

3 COMPACT HTTP

HTTP 1.1 has a set of very powerful features that

can be too expensive to implement and support on

resource-constrained mobile devices. Even though it

is possible to run a HTTP 1.1 server on Android

mobile phones, many of its features may never be

utilized. Therefore, we elect to develop a lightweight

compact protocol, compact HTTP, for mobile

phones. It consists of a subset of HTTP 1.1 protocol,

but is still capable to enable the endpoint network

and collaborative applications of mobile phones.

Protocol compaction in our approach is only a

process not the final goal – as mobile phones

become more powerful, less compaction will be

needed. For this reason, we choose to represent

HTTP message in plain text, instead of binary, as

this compact subset of HTTP 1.1 may grow to sup-

port further extensions.

3.1 Message Templates

To reach a compacted subset, we start from an

empty feature set and add features to it as necessary

until the desired services are covered. In our case,

this exercise leads to the following Compact HTTP

request and response templates that follow HTTP

1.1 closely:

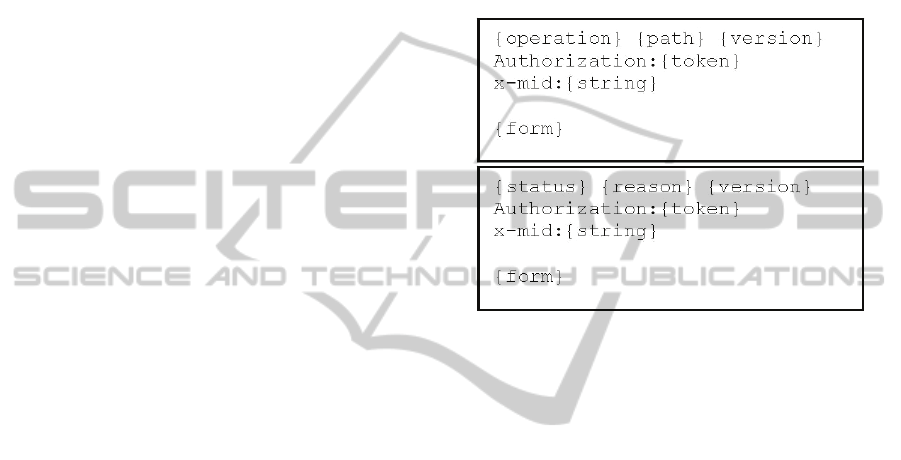

Figure 1: Message Templates for Compact HTTP request

(above) and response (below).

All the variables, including {operation},

{path}, {version}, {status},

{reason}, are as defined in HTTP 1.1. For

Compact HTTP, the version is HTTP/1.1c.

{form} is defined by HTML 4 (HTML 1999),

whose media type is application/x-www-

form-urlencoded. The differences with HTTP

1.1 are described below.

Authorization contains the access token for

the message. In HTTP 1.1, this is a request header.

We extend it to responses because they may be sent

in a different connection. Therefore, the client needs

to authorize a response before taking any action (for

example, update user interface).

x-mid is a new header to HTTP 1.1 for clients

to correlate asynchronous responses and events to

requests. Its value is set in a request and echoed in

the responses.

The templates omit some headers considered

important for REST services, such as the ETag

response header. The reason is that our resources

tend to have small representations (measured by the

size of its form) that can be updated and transmitted

without checking the versions. We also omit content

negotiation headers in favour of using URI. Using

URI to identify media type is an approach

recommended by Richardson (Richardson 2007).

COFOCUS - Compact and Expanded Restful Services for Mobile Environments

3.2 Message Exchange Patterns

Typical HTTP messages follow the request-response

pattern. Services following this pattern are atomic as

the service is complete once the response is sent.

However, many services on the mobile phones are

multi-step instead of atomic. For example, to control

the camera to take a picture involves the following

steps: 1) adjust focus; 2) take shot; 3) upload picture

to a web site. Modeling this type of services as

atomic would not be a scalable approach because: 1)

it makes the service stateful, which violates the

REST statelessness principle; and 2) it makes a

client less responsive to service state changes and it

is much more expensive to recover from faults.

A solution in our approach is to model the multi-

step services as one request followed by multiple

responses, in which intermediate responses indicate

service progression while the final one indicates

service completion. To separate them, the status for

the intermediate responses should be 202

Accepted or 206 Partial Content, while

the final response should be 200 OK or 201

Created. Status 206 is used only with GET in

HTTP 1.1, and here we extend it to any request to

convey the current service state as partial content.

All asynchronous responses are correlated to its

request by x-mid for both atomic and multi-step

services.

Another important type of message exchange

pattern is event subscription and notifications. For

example, a client can subscribe to a phone’s location

tracking service to receive notifications about

location changes of the phone. In this pattern, a

subscription (sent by a client as PUT) is followed by

unknown number of notifications (sent by the

service as POST). It is needed for a client to tell

which notifications are from which subscriptions, so

that it can adjust the subscriptions, e.g. cancel, etc.

To support this feature, the x-mid of notifications

would echo the x-mid of the subscription request.

3.3 Design Patterns

The Compact HTTP does not specify how to design

the resources to support these message exchange

patterns. For these, we suggest to follow the REST

service design patterns (Li 2010), including session,

event subscription, multi-resource and multi-state,

that are common in real-time communication

services.

4 COMPACT HTTP BINDINGS

In conventional REST web services, there is a basic

and implicit assumption that a HTTP server has a

public IP address. However, this is not possible in

mobile environment, as a mobile phone is typically

behind its provider’s NAT gateway and its private IP

address is not reachable from outside. The enterprise

applications that control and monitor phones are also

behind corporate firewalls. This creates an issue for

many real-time applications where two-way

messaging is required. On the other hand, many 3G

mobile phones can join different communication

networks over different protocols such that they are

reachable without IP addresses. Instead of IP

address, a phone can be addressed by a phone

number (SMS), an email address (SMTP) or JID

(XMPP).

Therefore, to support REST services in these

heterogeneous environments, it is necessary to

decouple HTTP from TCP/IP. In addition to TCP/IP,

it is both convenient and advantages to treat these

messaging protocols as “transport” for HTTP. This

approach makes the REST services invariant to the

protocol changes as the mobile phone connects to

different networks. This allows us to keep the same

services while optimizing their performance over

available networks and protocols. For example, we

may choose to transmit time sensitive messages over

TCP/IP or XMPP, and noncritical ones over SMS or

SMTP. Furthermore, HTTP over XMPP can bring

presence information into REST architecture. In

particular, we can assign presence to hyperlinks to

address the issue of broken links in the Web.

The idea of separating protocol messages and

transport is not new. It is actually one of the tenets

of web service paradigm that web services should be

agnostic to transport protocols. SOAP based web

services community has embraced this approach by

defining SOAP bindings to HTTP (WSDL 2001), to

XMPP (SOAP/XMPP 2005), and to JMS

(SOAP/JMS 2009). However, HTTP has bindings

only to TCP/IP and UDP, as far as we know.

The following subsections describe the

components as well as process of HTTP bindings

with other message transport protocols. In particular,

we focus on the binding of HTTP with XMPP in our

approach.

4.1 URI Scheme

In REST services, any resource must have a URI

that identifies where the resource is and how to

contact it. Because we want to bind HTTP to

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

different transport protocols, we adopt a two-level

URI scheme according to (RFC 3986), where the

first level URI identifies the HTTP information and

the second level URI identifies the transport

information:

uri_1 = http://{uri_2}/...

{uri_2} = URI

For example, to address a resource x with HTTP

over SMS to a phone number, we can use:

http://sms:5555/x

Or alternatively, through a SMTP gateway as:

http://smtp:5555@example.com/x

To address the same resource with HTTP over

XMPP, we would use:

http://xmpp:joe@example.com/x

If the phone has an IP address, the URI for the

resource would simply be:

http://123.4.5.6/x

To communicate with a resource with uri_1, a

client first establishes a communication channel

according to uri_2 and then transmits HTTP

messages over the channel. This process is

elaborated in the next section using XMPP as an

example.

4.2 XMPP

XMPP architecture consists of XMPP servers and

clients. To exchange messages, clients have to

establish a TCP/IP connection to the same or

federated XMPP servers. There are many open

XMPP servers, including Google Talk, that give

people free accounts with federated identities. For

instance, you can use a valid GMail account to login

to the Google Talk server.

To connect to a XMPP server, A XMPP client

typically needs to know the following information:

1) XMPP host and port (talk.google.com:5222); and

2) XMPP Service (gmail.com). This information is

not included in URI scheme because a XMPP client

always connects to one XMPP server in a

collaboration session. Therefore, the information can

be saved in a configuration file associated with a

user. Once the user logs into the XMPP server, the

established connection is used to transmit all HTTP

messages.

Because chat is in the base protocols of XMPP

and most XMPP clients support this feature, we

choose to transmit Compact HTTP messages as chat

over XMPP. The template for HTTP request and

response over XMPP is:

<message

from='{from_jid}' to='{to_jid}'>

<body>

{Compact HTTP message}

</body>

</message>

4.3 Hyperlink Presence

In the Web, there is an annoying issue of broken

hyperlinks as the resource that embeds the links is

not aware of the linked resource. When the hosted

linked resources on the web server shuts down or the

resource is moved or deleted, the link becomes

broken. The problem is that it is difficult for the

client to know when the link will be restored unless

it polls the server constantly, which creates

unnecessary network traffic.

Our approach of HTTP over XMPP offers a

solution to this problem by using the presence

services provided by the XMPP layer. If a XMPP

client listens for presence updates from a JID

address, it can assign presence to a hyperlink

containing that address in near real-time. For

example, to assign presence to a hyperlink:

http://xmpp:someone@gmail.com/x, the

client just needs to monitor the presence of

someone@gmail.com. By knowing the link

presence, the client can avoid fetching or polling the

broken links all together. The presence also gives the

REST services the ability to change their presence,

for example in case of temporary maintenance,

while keeping the clients informed in a timely

fashion.

4.4 SMS

SMS is a very common feature in most mobile

phones. There are several ways to send and receive

SMS messages depending on the networks. In the

cellular networks that provide SMS, two phones can

exchange SMS directly. Outside the cellular

networks, a client could use a SMS gateway that

exposes particular protocols, such as SMTP to send

and IMAP to retrieve SMS messages. This approach

is available from T-Mobile who assigns each G1

phone an email address that ties with its number:

{number}@tmobile.net.

To bind to SMS, the Compact HTTP messages

are contained in the UD (User Data) segment of

SMS PDU (SMS 2010). To bind to SMTP, the

HTTP message is contained in the Email body.

COFOCUS - Compact and Expanded Restful Services for Mobile Environments

5 SECURITY

Security is a critical issue in hosting web services on

mobile phones because the services open access to

resources on the phone that may be misused by

malicious clients. It is typical to deploy layered

security mechanisms from protocol up to

applications such that a breach at lower level can be

defended by the layer above. In our case, security

mechanisms at Compact HTTP, transport protocols,

services and applications are employed. The

following sections will discuss these mechanisms in

more detail.

5.1 Secure Messages

Because in mobile environments, a HTTP message

may travel through different networks in different

protocols, it is necessary to employ end-to-end

message level security. Here we outline a

symmetric key based security protocol to set up the

security contexts between two parties.

The design goal is to allow the user who operates

the phone to quickly grant and reject clients and

service requests. For this reason, we chose

symmetric key because our applications are aimed at

a group of trusted users that can exchange secret

keys easily. In some cases, the phone and the client

are managed by the same user.

For convenience, the user that configures the

phone is referred to as “operator” and the user that

configures the application is referred as “director.”

The protocol consists of the following steps:

1. The operator and director agree upon a secret

passphrase P and enter it into the phone and the

client respectively.

2. The director creates an access token T1 and tells

it to the operator.

3. The operator enters client’s URI A and T1 into

the phone and creates an access token T2. The

token is sent by a “join” message encrypted by P to

URI A as follows:

4. The client decrypts the message with P, store T2

and sends an encrypted response message that

indicates acceptance.

5. The phone receives and decrypts the response

and activates the security context, which contains

(A, P, T1, T2).

6. Any subsequent message from the client to the

phone will contain T2 and be encrypted with P. The

phone will decrypt any message from A with P and

checks it against T2. Any response message to A

will contain T1 and be encrypted with P.

7. The operator deactivates the security context by

sending a “Delete” message to the client. The

corresponding security context becomes invalid on

the phone and client:

Figure 2 illustrates the phone interface for the

operator to carry out steps 3-5 and step 7.

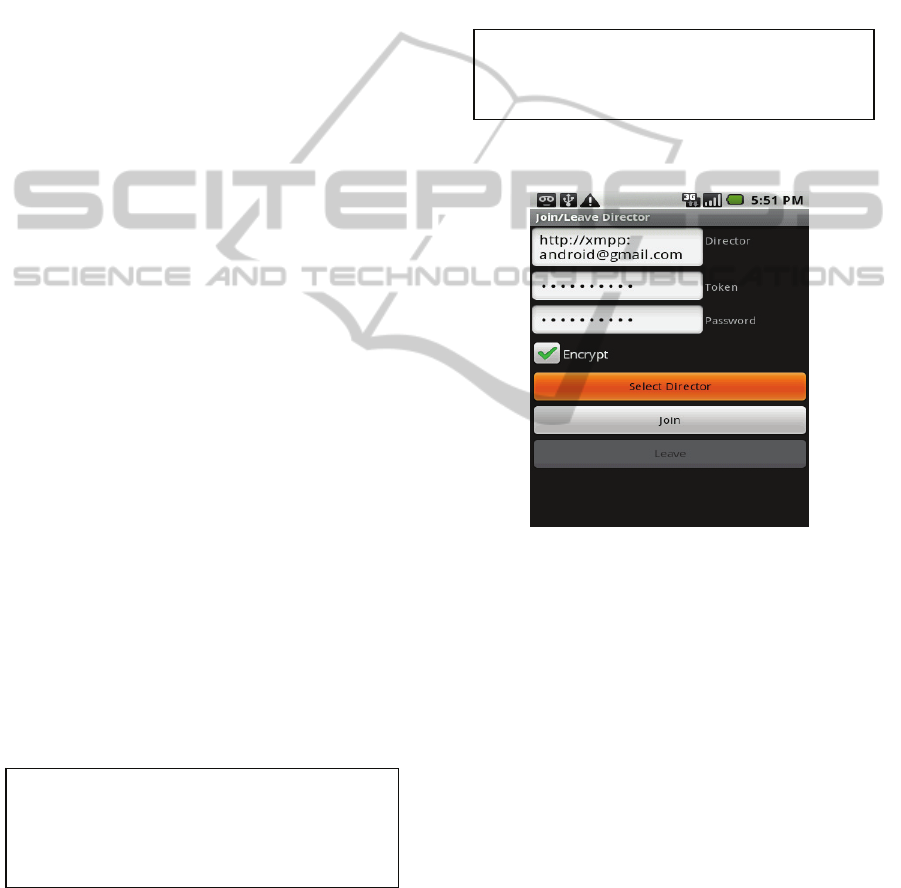

Figure 2: Screenshot of Join/Leave Director Activity.

5.2 Secure Services and Data

Because a mobile phone that hosts REST services is

also used for other purposes, the operator can start

and stop services, login and out of transport services,

as ways to control access to the services.

In our system, we further limit message

exchange patterns for security reasons:

 The respond messages are always sent back to

the requester on the same transport protocol, who

has been authenticated and authorized.

 There is only one subscription for each resource

and the event listener must be the same as the

subscriber, who has been authenticated and

authorized.

Our system also secures the access to sensitive data

collected by the services, such as captured images

and videos. Instead of returning the content to the

PUT operators/{phone} HTTP/1.1c

Authorization: T1

x-mid: {number}

token=T2

DELETE operators/{phone} HTTP/1.1c

Authorization: T1

x-mid: {number}

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

authenticated client directly, the system stores it

locally or stores it in a web storage site and provides

a link to the client, who can retrieve it with another

set of credentials.

6 PROTOTYPE SYSTEM

Based on the proposed protocols, we developed a

prototype system that hosts a set of REST resources

on T-Mobile G1 phones running Android 1.6 in T-

Mobile cellular network. The intended relations

between various client applications and the phones

are illustrated in Figure 3 where REST services are

accessible to clients of different kinds over the

heterogeneous networks.

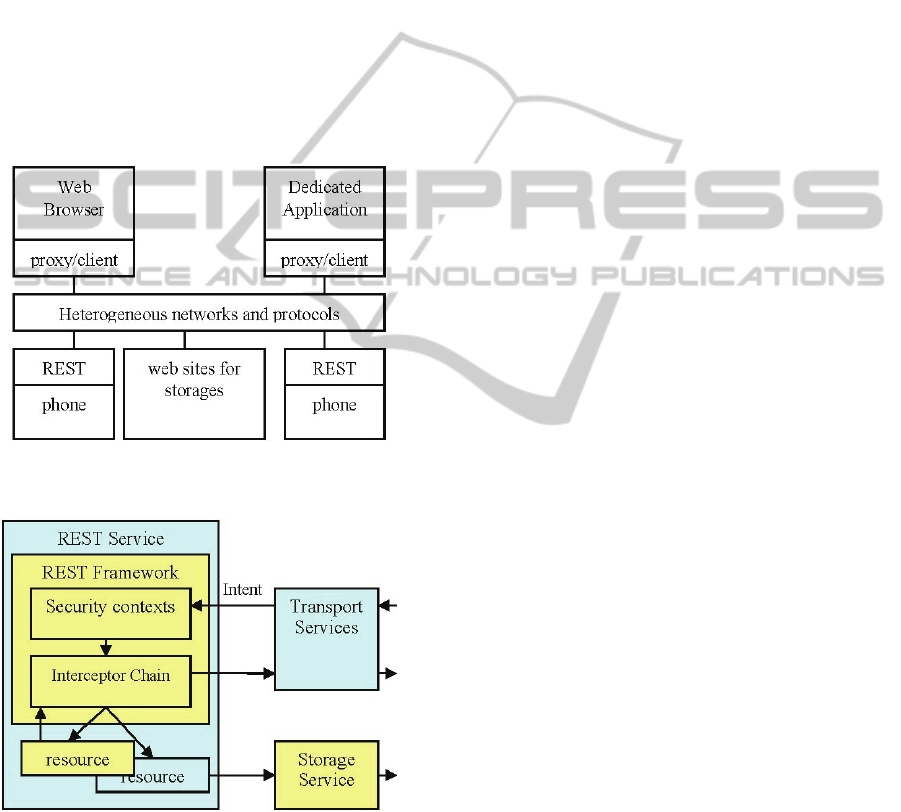

Figure 3: High level relations between client applications

and REST services on the phones.

Figure 4: High level architecture of REST service

framework on Android phone.

The high-level REST server architecture on an

Android phone is illustrated in Figure 4, where the

components in blue colour depend on the Android

SDK whereas the components in yellow colour

depend only on Java SDK. The core REST

framework, including the security package, does not

import any Android packages and can be run in any

Java runtime.

There are three types of Android services in the

framework: transport services, REST services and

storage service.

The transport services are responsible to listen

and send messages over a transport protocol, such as

SMS or XMPP. For XMPP transport, we used a

XMPP client library compiled by Srinivas (Srinivas

2008) for Android. For SMS, we used Android

SmsManager. If an incoming message is intended

for the REST Service, it is forwarded to the REST

Service as an Intent on Android platform.

The REST Service is an Android Service that

contains the REST framework. Upon start, the REST

Service registers an Intent Listener. Upon receiving

a message encapsulated in the Intent, the Intent

Listener looks up the security context for the

message and invokes the interceptor chain in the

REST framework to process the message.

The REST framework contains an incoming

interceptor chain, a pivot, and an outgoing

interceptor chain. The incoming chain consists of

three interceptors to 1) decrypt; 2) deserializes; and

3) authorize the message. If any of these interceptors

fails, the message is discarded and an error message

is returned. If the message is a request, the pivot will

invoke the corresponding resource; if the message is

a response, the pivot forwards it to the Android

Notification Service. The outgoing chain consists of

four interceptors to 1) endorse; 2) serialize; 3)

encrypt; and 4) deliver the responses. The chains can

also be invoked by a resource to control another

resource. For example, a scheduler resource controls

the camera by going through the same incoming

chain for security reasons.

For message encryption and token generation,

we used Java Crypto packages (javax.crypto

and java.security) with password based

encryption algorithm PBEWithMD5AndDES. The

encrypted messages are encoded as Base64 strings

for transmission.

The REST resources in our approach can use

web storages provided by Google to upload captured

audio (Google Docs), image (Picasa) and video

(YouTube) contents, so that they can be instantly

shared for collaboration. The storage service is an

abstraction of local and web storages with three

methods: login(account), logout(), and

save(uri, content). It uses a set of HTTP

clients to upload multimedia contents to the

designated server and publish the services to a web

proxy (e.g. Google Sites). The phone interface to

manage web storage is illustrated in Figure 5.

COFOCUS - Compact and Expanded Restful Services for Mobile Environments

6.1 Implemented Resources

This section lists the major resources developed so

far within our collaborative endpoint network

framework. Each resource is described by one table

that defines its path, service, operations and response

patterns, where “a” stands for atomic or “m” stands

for multi-step (Table 1).

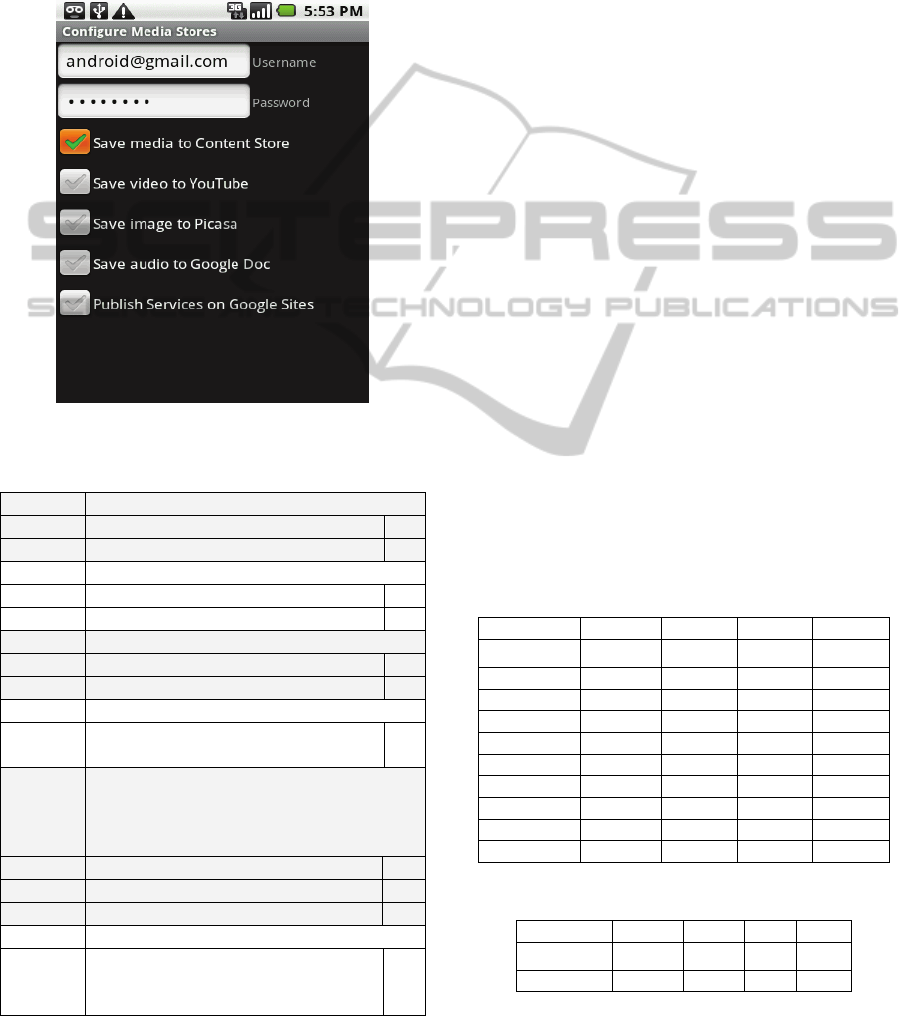

Figure 5: Screenshot of Web storage Activity.

Table 1: Implemented resources.

path /sound/control

GET Retrieve current state. a

PUT Record or playback sound. m

path /camera/control

GET Retrieve current state. a

PUT Take or display a picture. m

path

/camcorder/control

GET Retrieve current state. a

PUT Record or playback video. m

path /location, /power

GET Get current geo location or battery

power status.

path /{source}/monitor, where {source} is one

of gyroscope, light, location, magnet,

motion, orientation, pressure, proximity,

temperature, phone, and power.

GET Get current subscription a

PUT Subscribe for events from {source}. a

DELETE Unsubscribe events. a

path /schedule

POST Schedule a task in future. For

example, start and stop camcorder at

given time.

6.2 Implemented Clients

Two types of clients were implemented: the Android

phone (both client and service) and a dedicated Java

desktop client. The Android phone client can control

and monitor other Android phones running REST

services using HTTP over SMS or XMPP. The Java

client, based on open source Smack 3.1.0 XMPP

library (Smack API 3.1.0), controls and monitors

REST services using HTTP over XMPP only.

6.3 Experimental Results

Our main concern is the performance of our REST

based collaborative endpoint network framework.

On the server side, we measured the total processing

time (from entering the incoming chain to leaving

the outgoing chain) as well as the processing time of

individual interceptors. On the client side, we

measured the round-trip latency (which includes the

network latency and XMPP library processing time).

To obtain the time, we used the XMPP java client on

a desktop computer (Dual Core CPU 3.00 GHz with

2GB RAM) connected to the Internet to send 52

HTTP messages over XMPP to each REST service

on a T-Mobile HTC G1 phone (Firmware 1.6, Build

DMD64) registered in T-Mobile cellular network.

The measurements on the phone were collected

using Android TimeLogger utility and on our Java

desktop client using Java System.nanoTime

function. The performances are summarized in Table

2 and the message sizes are listed in Table 3.

Table 2: Total client time, total server time and individual

interceptor times (ms).

Process mean std min max

Client

1400.6 821.7 554.3 3858.3

Server 209.53 86.08 135 590

Encrypt 66.05 25.5 47 153

Decrypt 39.12 19.49 2 84

Deserialize 23.98 25.1 2 196

Serialize 7.4 7.3 4 41

Authorize 1.77 0.53 1 3

Endorse 2.4 3.03 1 24

Pivot 40.33 58.98 4 254

Deliver 28.42 3.8 20 47

Table 3: Message Sizes (byte).

Type mean std min max

Encrypted 113.36 28.6 88 192

Decrypted 77.93 21.54 56 138

The bar graph in Figure 6 illustrates the mean times

spent in the interceptors. The graph shows that, on

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

average, encryption, decryption and pivot are the top

three time consuming components. They take 69%

of total server time. Notice that the pivot time is the

mean time spent by the resources to execute HTTP

methods, which is outside the control of the

framework. Table 3 shows that the small messages

are sufficient to support a variety of basic services.

Interceptor Time

decrypt encrypt deserialize serialize authorize endorse pivot deliver

tim e (ms)

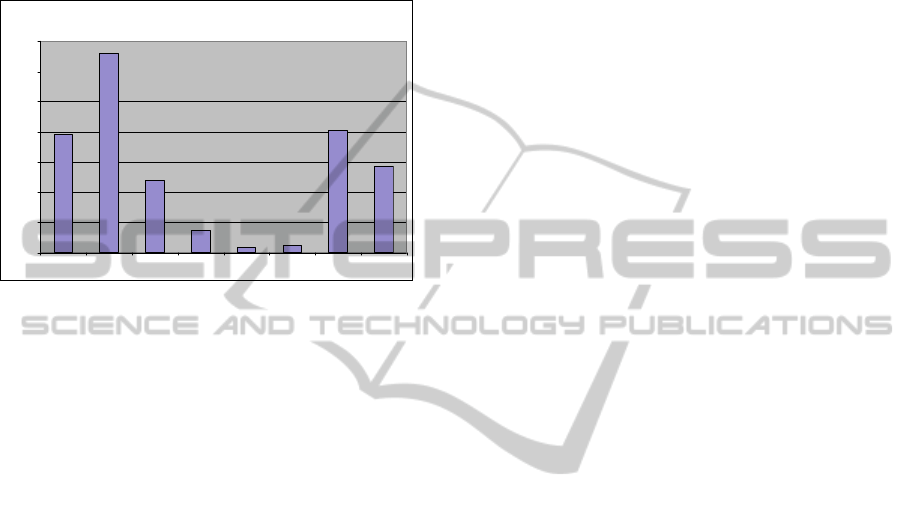

Figure 6: Comparisons of mean interceptor times.

7 CONCLUSIONS

The contributions of this paper are summarized as

follows:

 We proposed and developed a lightweight

protocol, Compact HTTP, consisting of a small

subset of HTTP 1.1, to address message exchange

patterns to enable collaborative endpoint network of

mobile phones and related applications.

 We developed a REST based framework in the

Compact HTTP protocol to handle multi-step

interactions, including event subscription and

notification.

 We described how to bind HTTP to XMPP and

SMS for collaborative mobile phone endpoint

network.

 We introduced the concept of hyperlink presence

in our approach of HTTP over XMPP.

 We proposed an approach and implemented a

solution based on the hyperlink presence in

collaborative mobile phone endpoint network to

address the broken link problem.

 We described a symmetric key based security

protocol in collaborative mobile phone endpoint

network to provide end-to-end message level

security for service authentication and authorization;

 We developed a prototype system that allows

enterprise clients to control and monitor over a

dozen of REST resources on a T-Mobile G1 phone.

Experimental studies were performed and our results

demonstrated the proposed approaches and

architecture are feasible, efficient, and extensible.

The future work will be focused on lightweight

hypertext representations and application

development based on the REST services.

REFERENCES

AlShahwan, F., Moessner, K., 2010. Providing SOAP

Web Services and REST Web Services from Mobile

Hosts, Internet and Web Applications and Services

(ICIW), 2010 Fifth International Conference on, vol.,

no., pp.174-179, 9-15 May 2010.

Antila, V., Mantyjarvi, J., 2009. Distributed REST Web

Services for Mobile Person-to-Person Collaboration,

Next Generation Mobile Applications, Services and

Technologies, 2009. NGMAST '09. Third International

Conference on, vol., no., pp.119-124, 15-18 Sept.

2009.

McFaddin, S., Coffman, D., Han, J. H., Jang, H. K., Kim,

J. H., Lee, J. K., Lee, M. C., Moon, Y. S.;

Narayanaswami, C., Paik, Y. S., Park, J. W., Soroker,

D., 2008. Modelling and Managing Mobile Commerce

Spaces Using REST Data Services, Mobile Data

Management, 2008. MDM '08. 9th International

Conference on, vol., no., pp.81-89, 27-30 April 2008.

Aijaz, F., Ali, S. Z., Chaudhary, M. A., Walke, B.; 2009.

Enabling High Performance Mobile Web Services

Provisioning, Vehicular Technology Conference Fall

(VTC 2009-Fall), 2009 IEEE 70th, vol., no., pp.1-6,

20-23 Sept. 2009.

Pruter, S.; Golatowski, F.; Timmermann, D.; 2009.

Adaptation of resource-oriented service technologies

for industrial informatics, Industrial Electronics, 2009.

IECON '09. 35th Annual Conference of IEEE, vol.,

no., pp.2399-2404, 3-5 Nov. 2009.

Yong Liu, Connelly, K., 2008. Realizing an Open

Ubiquitous Environment in a REST Way, Web

Services, 2008. ICWS '08. IEEE International

Conference on, vol., no., pp.96-103, 23-26 Sept. 2008.

Lozano, D., Galindo, L. A., Garcia, L., 2008. WIMS 2.0:

Converging IMS and Web 2.0. Designing REST APIs

for the Exposure of Session-Based IMS Capabilities,

Next Generation Mobile Applications, Services and

Technologies, 2008. NGMAST '08. The Second

International Conference on, vol., no., pp.18-24, 16-

19 Sept. 2008.

Vlad Stirbu 2010. A REST architecture for adaptive and

multi-device application sharing, Proceedings of the

First International Workshop on REST Design, pp. 62-

66, 2010.

Core 2010. Constrained REST Environments (core),

https://datatracker.ietf.org/wg/core/.

SOAP 2007. SOAP Version 1.2 Part 1: Messaging

Framework (Second Edition), W3C Recommendation

27 April 2007.

COFOCUS - Compact and Expanded Restful Services for Mobile Environments

Fielding, Roy, 2000. Architectural Styles and the Design

of Network-based Software Architectures, Ph.D.

Dissertation, 2000, http://www.ics.uci.edu/~fielding/

pubs/dissertation/top.htm.

XMPP 2004. Extensible Messaging and Presence

Protocol (XMPP): Core,

http://tools.ietf.org/html/rfc3920.

HTML 1999. HTML 4.01 Specification, W3C

Recommendation 24 December 1999,

http://www.w3.org/TR/REC-html40/.

Richardson, L.; Ruby, S.; 2007. REST Web Services,

O’Reilly, 2007.

Li Li; Wu Chou; 2010. Design Patterns for REST

Communication Web Services, ICWS 2010, pages

512-519, Miami, 5-10 July 2010.

WSDL 2001. Web Services Description Language

(WSDL) 1.1, W3C Note 15 March 2001,

http://www.w3.org/TR/wsdl.

SOAP/XMPP 2005. XEP-0072: SOAP Over XMPP,

http://xmpp.org/extensions/xep-0072.html.

SOAP/JMS 2009. SOAP over Java Message Service 1.0,

W3C Candidate Recommendation 4 June 2009,

http://www.w3.org/TR/soapjms/

Srinivas, Davanum. 2008. http://davanum.wordpress.com/

2008/12/29/updated-xmpp-client-for-android/.

Smack 3.1.0 API. http://www.igniterealtime.org/

projects/smack/.

SMS 2010. 3GPP TS 23.040 Technical realization of the

Short Message Service (SMS) (Release 9).

http://www.3gpp.org/ftp/Specs/archive/23_series/23.0

40/23040-930.zip.

RFC 3986. Uniform Resource Identifier (URI): Generic

Syntax, http://tools.ietf.org/html/rfc3986, January

2005.

WAP 2001. Wireless Application Protocol,

http://www.openmobilealliance.org/Technical/wapind

ex.aspx.

WML 2001. Wireless Markup Language, Version 2.0,

http://www.openmobilealliance.org/tech/affiliates/wap

/wap-238-wml-20010911-a.pdf, 11 September 2001.

WSP 2001. Wireless Session Protocol,

http://www.openmobilealliance.org/tech/affiliates/wap

/wap-230-wsp-20010705-a.pdf, 5 July 2001.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies
