A PROGRESSIVE DATA WAREHOUSE OF INSTITUTIONAL

RESEARCH WITH WEB API AND MASHUP VISUALIZATION

Masao Mori, Toshie Tanaka

Institutional Reserach Ofﬁce, Kyushu University, Fukuoka, Japan

Sachio Hirokawa

Research Institute for Information Technology, Kyushu University, Fukuoka, Japan

Keywords:

University evaluation, Accreditation, Institutional research, Data warehouse, Mashup.

Abstract:

We propose a progressive data warehouse which provides functions of operating statistics and their visualiza-

tion for institutional research. The proposed data warehouse has a mashup programming environment with

GUI and the users can share their programs. By sharing programs of data analysis, persons in charge of

self-assessment seize an opportunity not only to create reports efﬁciently, but also to be able to improve their

activities.

1 INTRODUCTION

For the last decade, it has become very important

to establish PDCA cycles (an iterative process in

business improvement, acronym of ’Plan-Do-Check-

Action’) in private enterprises as well as universities

and research institutions. There are a number of rea-

sons why this action has occurred, butthe needs to im-

plement quality assurance systems and to fulﬁll gov-

ernment grant requirements have provided the ratio-

nale for the improvement cycle of universities and re-

search institutions. Quality assurance is realization of

the ’Check’ and the ’Action’ processes of PDCA cy-

cle. The ’Check’ phase is mostly conducted as self-

assessment.

In the ’Check’ phase of PDCA cycle, we cre-

ate self-assessment reports and collect their evidence.

Evidence consists of text data (committee materials

and documents, namely qualitative) and numerical

data (statistics of students and faculties, namely quan-

titative).

All Japaneses universities are obliged to be eval-

uated by certiﬁed organization, called Institutional

Certiﬁed Evaluation and Accreditation (ICEA, for

short). In addition, all Japaneses national universi-

ties must be evaluated for the purpose of informa-

tion disclosure to government and nation, called Na-

tional University Corporation Evaluation (NUCE, for

short). They are called university evaluationswhich is

undergone every six years. Universities must prepare

self-assessment reports and their evidence. Figure 1

shows examples of classiﬁcation for evidence which

are necessary in the university evaluations. Figure 2 is

total number of graphs and tables which we actually

offered in the university evaluations.

Text Data Numerical Data

Individuals

awards

features

papers,

grants

Organizations

materials,

regulation,

publication

statistics of

education

and students

Figure 1: Examples classiﬁcation of institutional informa-

tion used in the university evaluations which were con-

ducted in Kyushu University.

text data numerical data

ICEA 145 50

Education(NUCE) 58 47

Research(NUCE) 12 12

total 215 109

Figure 2: Number of items and statistics in university eval-

uations which were conducted in Kyushu University.

How to store and manage text data efﬁciently is

important, but in this paper we focus on management

of numerical data. In Kyushu University, as there

are 16 research faculties, 17 graduate schools, 11 un-

dergraduate schools and 7 research institutions with

323

Mori M., Tanaka T. and Hirokawa S..

A PROGRESSIVE DATA WAREHOUSE OF INSTITUTIONAL RESEARCH WITH WEB API AND MASHUP VISUALIZATION.

DOI: 10.5220/0003346303230329

In Proceedings of the 3rd International Conference on Computer Supported Education (CSEDU-2011), pages 323-329

ISBN: 978-989-8425-50-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

the hospital, numbers of statistics of numerical data

amounts to over 1500. Since the authors has been

working on supporting the self-assessment reports of

Kyushu University, we recognize that the problem of

large numbers of statistics is crucial. Those statistics

in the context of university evaluations are acquired

by sorting and cross-tabulating tables of numerical

data. Persons in charge of assessment in each school

have to study such skills as cross-tabulating and SQL

language. Though these persons are not full-time as-

sessment staff, they must learn those skills in addtion

to jobs of self-assessment.

The purpose of self-assessment is not creating re-

ports, but reﬂecting activities of the university. To do

so, it is useful to visualize statistics of numerical data

in time series. Fundamental visualizations of numeri-

cal data are line or bar graphs, their combination, pie

chart, radar chart and so on. It is difﬁcult to choose

generally which type of visualization is suitable for

each statistic.

In order to manage statistics and their visualiza-

tion, we propose a data warehouse with sharing skills

on statistics and visualization using mashup technol-

ogy. Data warehouse has become popular in insti-

tutional research. In our approach, mashup tech-

nology is introduced in data warehouse. By facil-

ity of mashup technology, persons in charge of self-

assessment can become familiar with statistics and

analyse from data warehouse.

The rest of paper consists as follows. In section

2, we will introduce related work and argue an issue

of data warehouse that enterprise data warehouse is

not suitable for institutional research. In section 3,

we propose a system sharing programs for statistics

and their visualization. In section 4, we conclude our

approach.

2 RELATED WORK

Enterprise data warehouse has two styles, Inmon’s

style (Inmon, 1999) and Kimball’s style (Kimball and

Ross, 2002). While Inmon’s style is a collection of

data tables in 3rd normal form, called data warehouse

and user interface of analysing tools, called data mart,

data warehouse of Kimball’s style forms a dimen-

sional data model from which data mart extracts nec-

essary data.

Considering problems mentioned in the introduc-

tion, common issue of both style data warehouse is

that users are not supposed to develop analysing tools

and visualizing skills. Staff in institutional research

should be analysts as well as they are respected to

develop data analysing programs. A feature of our

approach is that every user can contribute to devel-

opment of data warehouse tools without expertise on

programming.

Interaction between users and data warehouse

would be useful. Ferr´andez and Peral (2010) pro-

posed such interaction that data warehouse offers

question to users. Our approach focus on interaction

between users in order to share their tools and skills.

Mashup is a new concept to combined web ser-

vices and web databases with existing technologies

such as XML and HTTP communications. Swashup

DSL(Maximilien et al., 2007) and WMSL(Sabbouh

et al., 2007) are domain speciﬁc language (DSL) for

mashup, which do not assume programming skills

like JavaScript, CGI and so on. Integrated user in-

terfaces of mashup are proposed, for instance, Ya-

hoo! Pipes, Mashup Feeds (Tatemura et al., 2007)

and Damia (Altinel et al., 2007).

From viewpoint of simple and easy mashup pro-

gramming and visualizing mashup data, we proposed

and implemented a mashup programming environ-

ment (Mori et al., 2006) with GUI (Mori et al., 2007)

which combines web databases. In our study Web

databases are supposed to have Web API which of-

fers structured data with HTTP requests. The system

has four features. Firstly, every source of structured

data, including search engines and local CSV ﬁles

is deﬁned an abstract I/O machine in the system, we

call them resource component. Secondly we general-

ize UNIX-like pipeline and ﬁlters on the system. In

the architecture of our system, UNIX-like ﬁlter oper-

ations like sorting and creating histogram are imple-

mented. Graph generation programs are also imple-

mented as kinds of ﬁlter operation as well. Thirdly,

the system provides a GUI programming environment

which helps users to create mashup programs intu-

itively and easily. Finally the system is served as a

multiuser content management system in which users

share mashup programs.

3 THE PROPOSED SYSTEM

Our proposing system consists of three parts.

Overview is shown in ﬁgure 6.

The ﬁrst part is a data warehouse for institutional

research with Web API. The mashup programming

environment can include the data warehouse as a re-

source component. The second part is a GUI mashup

programming environment for visualization and its

execution environment. The GUI mashup program-

ming environment serves fundamental data opera-

User can upload CSV ﬁles as resource components

CSEDU 2011 - 3rd International Conference on Computer Supported Education

324

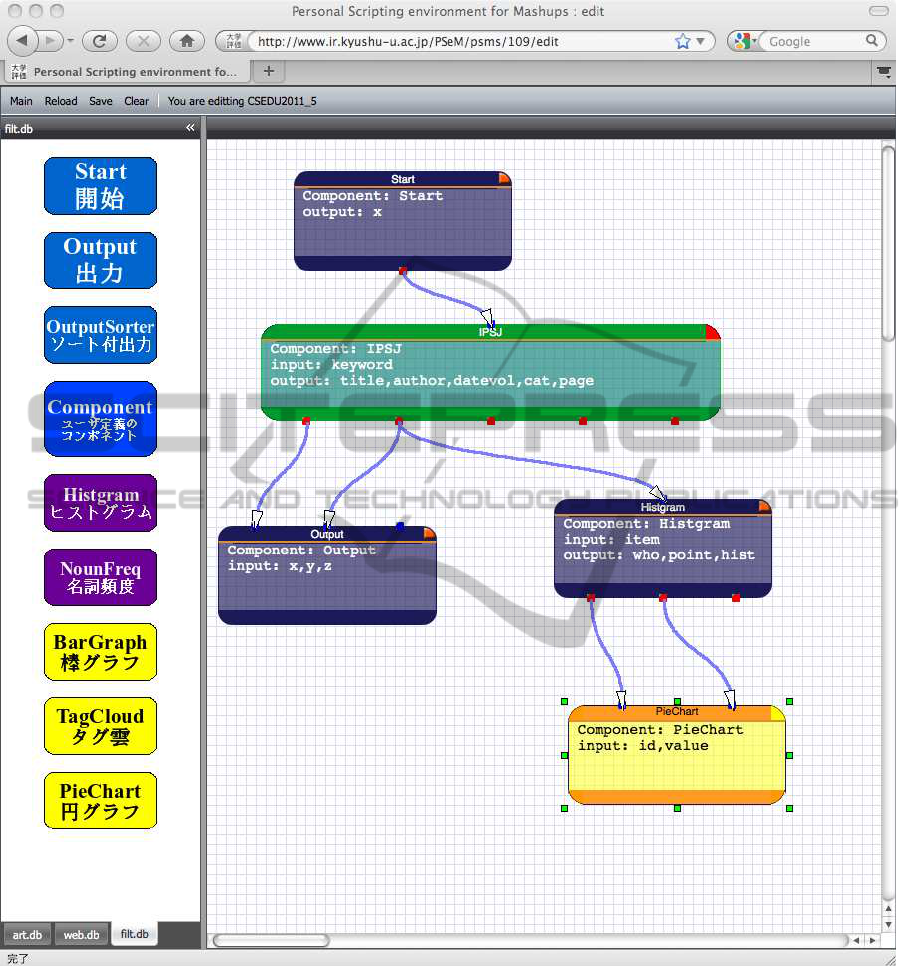

Figure 3: GUI editor of mashup.

tions, for instance, sorting and counting words. More-

over Fundamental visualizations can implemented in

the environment. The third part is a contents man-

agement system to share mashup programs of visual-

ization with other users. By sharing programs, user

can copy and revise those programs more easily than

create programs from scratch.

Figure3 shows a mashup program example,

named

CSEDU2011-5.cgi

, which processes a article

databases (Web database of articles published by In-

formation Processing Society of Japan, IPSJ for short)

with a histogram ﬁlter (counting authors’ name) and

one graphic (pie chart). A green rectangle is a re-

source component (an article database of IPSJ) in

which red dots on upper side and down side rep-

resent input (search words) and output (search re-

sult) respectively. While the left blue rectangle at

the bottom is a browser, the right blue rectangle is

a histogram ﬁlter which counts appearance of authors

from search result. The yellow rectangle shows a pie

A PROGRESSIVE DATA WAREHOUSE OF INSTITUTIONAL RESEARCH WITH WEB API AND MASHUP

VISUALIZATION

325

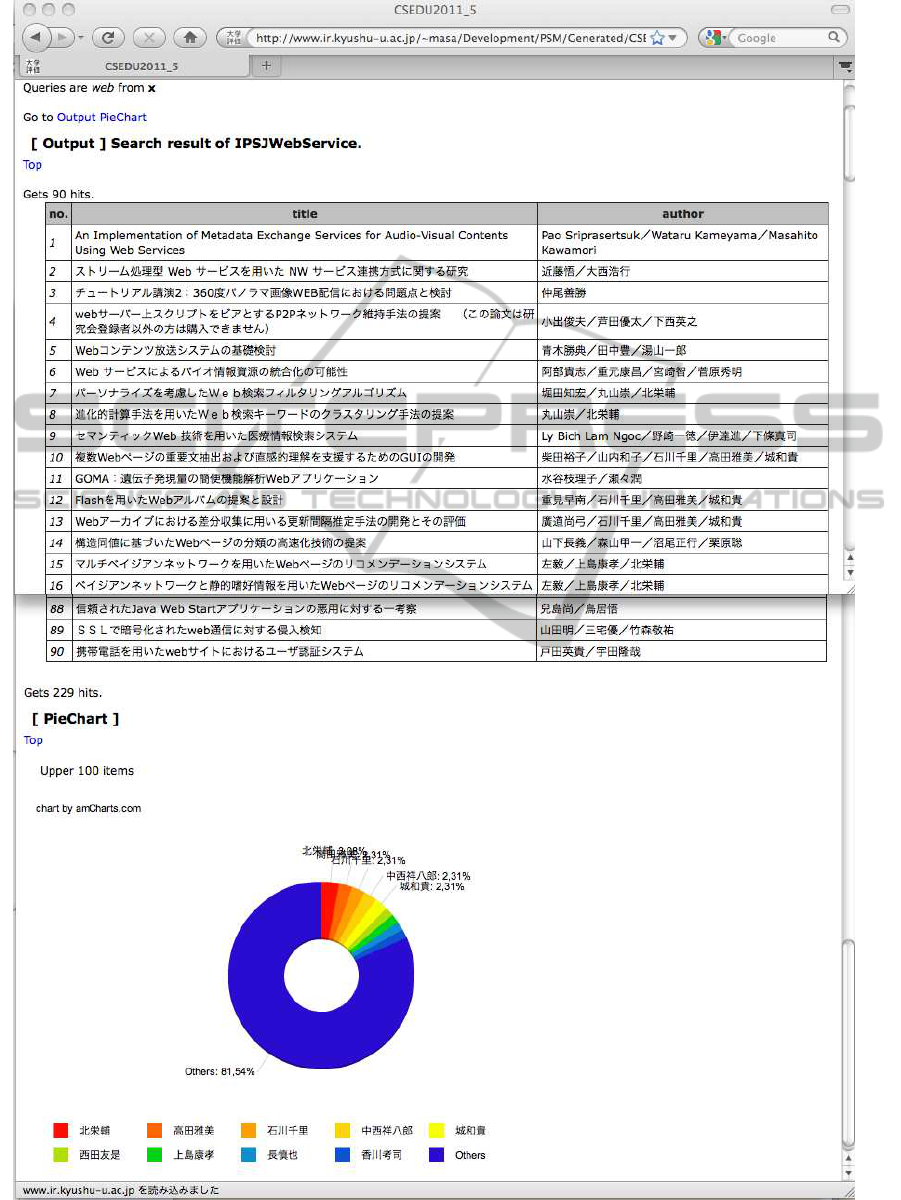

Figure 4: Executing visualization of mashup.

CSEDU 2011 - 3rd International Conference on Computer Supported Education

326

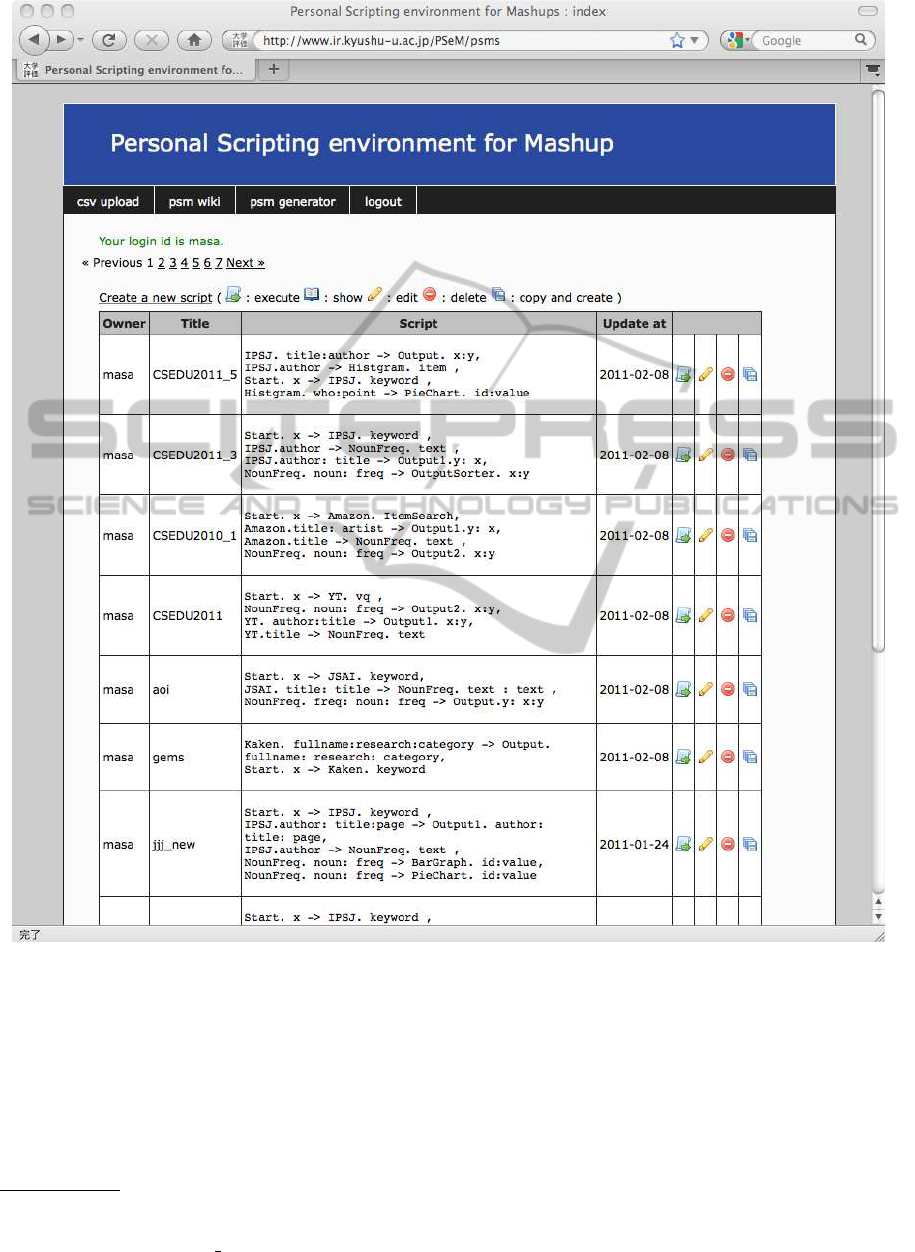

Figure 5: Sharing mashup.

chart visualizing results of the histogram ﬁlter. Ar-

rows between rectangles represent correspondence of

attributes of structured data. Figure4 shows an ex-

ecution of

CSEDU2011-5.cgi

. Given search word

’web’, the program returns search result of IPSJ with

a pie chart which represents proportion of numbers

of authors in the search result. Figure5 is the con-

tent management system of the mashup programming

This program can be executed if one access the

URL http://www.ir.kyushu-u.ac.jp/∼masa/Development/

PSM/Generated/CSEDU2011 5.cgi.

environment in which users share mashup programs.

Implementation is progressing and will be completed

in April 2011.

4 CONCLUSIONS

The proposed system has two contribution. Firstly,

simple and easy programming environment with GUI

increase programming users. This means that web ap-

plication programmers as well as data analysts cre-

A PROGRESSIVE DATA WAREHOUSE OF INSTITUTIONAL RESEARCH WITH WEB API AND MASHUP

VISUALIZATION

327

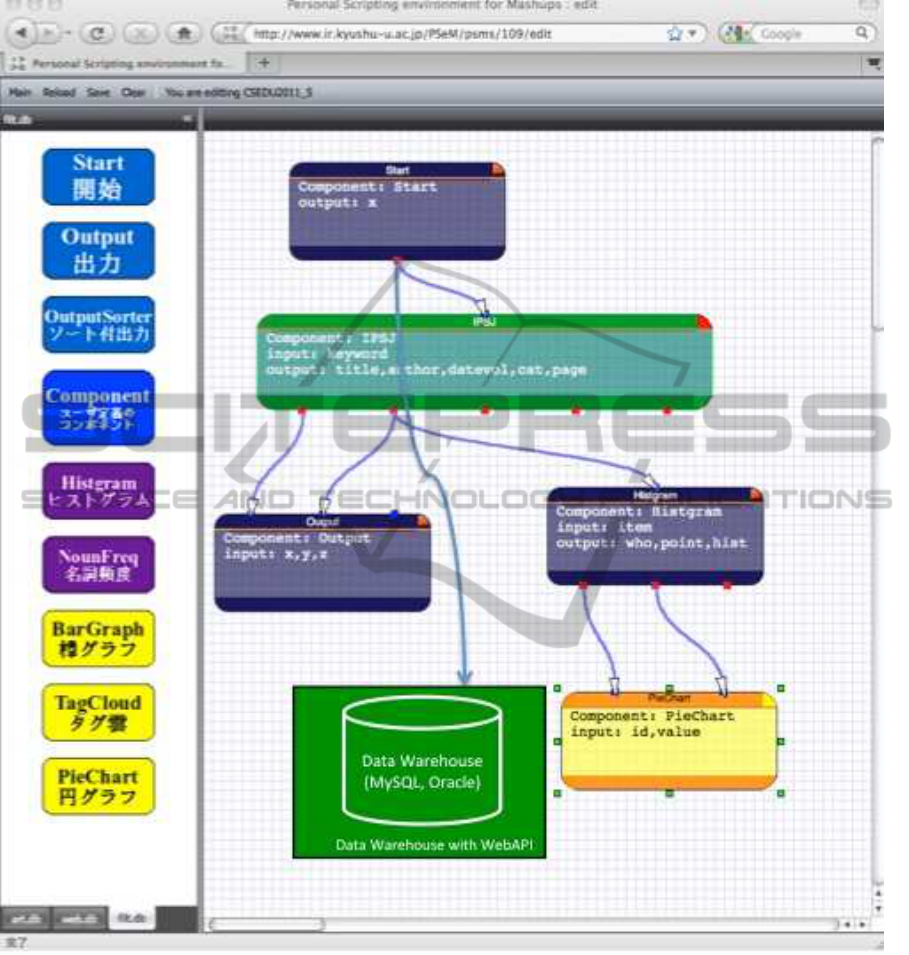

Figure 6: Overview of the proposing system.

ate mashup programs. Secondly, by sharing programs

in the proposed system, one can curbs the develop-

ment cost of application programs for data analysis.

One of the problems of data analysis in institutional

information is diversity rather than quantity. Users

can create a new analysing program by reusing and

composing shared programs. The proposed mashup

programming methods enables us to combine internal

institutional information as well as external informa-

tion.

In this paper we propose a progressive data ware-

house which cooperates with a GUI environment of

mashup visualization. The next step of our approach

is to classify shared programs of statistics and their

visualization.

ACKNOWLEDGEMENTS

This work was supported by KAKENHI(22530921).

CSEDU 2011 - 3rd International Conference on Computer Supported Education

328

REFERENCES

Altinel, M., Brown, P., Cline, S., Kartha, R., Louie, E.,

Markl, V., Mau, L., Ng, Y.-H., Simmen, D., and

Singh, A. (2007). Damia: a data mashup fabric for

intranet applications. In Proceedings of th 33rd inter-

national conference on Very Large Databases, pages

1370–1373. VLDB Endowment.

Ferr´andez, A. and Peral, J. (2010). The beneﬁts of the inter-

action between data warehouses and question answer-

ing. In Proceedings of the 2010 EDBT/ICDT Work-

shops, volume 426 of ACM International Conference

Proceeding Series.

Inmon, W. (1999). Data Warehouse Performance. Wiley.

Kimball, R. and Ross, M. (2002). The Data Webhouse

Toolkit : 2nd edition. Wiley.

Maximilien, E. M., Ranabahu, A., and Tai, S. (2007).

Swashup: Situational web applications mashups. In

22nd International Conference on Object-Oriented

Programming Systems, Languages, and Applications,

OOPSLA 2007 - Companion, pages 797–798.

Mori, M., Nakatoh, T., and Hirokawa, S. (2006). Functional

composition of web databases. In Proceedings of In-

ternational Conference Asian Digital Libraries 2006,

Lecture Note in Computer Science 4312, pages 439–

448. Springer Verlag.

Mori, M., Nakatoh, T., and Hirokawa, S. (2007). Links

and cycles of web databases. In The 4th Italian Work-

shop on Semantic Web Applications and Perspectives,

pages 21–30. Dip. di Informatica, Universit´a degli

Studi di Bari.

Sabbouh, M., Higginson, J., Semy, S., and Gagne, D.

(2007). Web mashup scripting language. In Proceed-

ings of the 16th international conference on World

Wide Web 2007, pages 1305 – 1306. ACM Press.

Tatemura, J., Sawires, A., Po, O., Chen, S., Candan, K. S.,

Agrawal, D., and Goveas, M. (2007). Mashup feeds:

Continuous queries over web services. In Proceedings

of the 2007 ACM SIGMOD international conference

on Management of data, pages 1128 – 1130. ACM

Press.

A PROGRESSIVE DATA WAREHOUSE OF INSTITUTIONAL RESEARCH WITH WEB API AND MASHUP

VISUALIZATION

329
