SEARCH ENGINE RESULT PAGE WITH VISUAL CONTEXT

AND ALREADY RENDERED SNIPPETS

Kazutaka Maruyama

Information Technology Center, The University of Tokyo, 2-11-16, Yayoi, Bunkyo, Tokyo, Japan

Masato Igeta, Minoru Terada

Dept. of Information and Commun. Eng., The Univ. of Electro-Communications, 1-5-1, Chofugaoka, Chofu, Tokyo, Japan

Keywords:

Search engine result page, Snippets, User interface.

Abstract:

Search engine result pages, aka SERP, provide page titles, URLs, and text based snippets of the searched

pages. These help users to decide to click or not each searched page. Text based snippets, however, are

different from the real page rendered by web browsers, after a user clicks one of the searched pages, the user

may see an unexpected one. Even if the page is the expected one, the user cannot ﬁnd immediately where the

information they want to know is described in the page.

In this paper, we propose visual patch, which is provided as a graphical snippet in SERP and is rendered by

web browsers already. Visual patch is a visual context based snippet, not a thumbnail of the whole web page

in a smaller size, and is trimmed around the occurrence of the query keyword in the same size as the original

page rendered by web browsers. Users can see the layouts around the keyword and read the concrete text just

before clicking the searched pages. Thus visual patch in SERP shows not web pages which may include the

information users want to know, but the information they want to know or not.

1 INTRODUCTION

We use web daily to retrieve, check up on, and ex-

change the information. Search engine result pages,

aka SERP, include (1) titles, (2) URLs, and (3) text

based snippets (Fig. 1). Users judge whether each

searched page includes the information they want to

know by the three kinds of the information about each

result. Snippets provide the abstract of the page or

a part of the sentence around the keyword and help

users to decide whether the page includes the infor-

mation they want to know. It is known that snippets

are important and useful for users to choose a URL to

be clicked(Takaku et al., 2009).

Text based snippets are different from the real

pages rendered by web browsers, therefore, a page

may not include the expected information even if a

user clicks the result. For example:

• Snippets do not provide the context of the sen-

tence around the keyword.

• The keyword is included not in the body but in the

advertisement.

• HTML/CSS decorations takes no effect to snip-

pets.

Context in this paper means not only the ﬂow of

sentences but also the typesetting such as

font sizes, or the color of the text designated by

HTML/CSS. Usual search engines display text based

snippets at a restricted area in their SERP.

In other hands, a page has multiple occurrences of

the keyword and each occurrence may be related to a

different topic. Text based snippets essentially have

their limitations of the ability of providing the appro-

priate information to the search engine users. In ad-

dition, users essentially want to know not web pages

which may have the information they want to know,

but the information itself. Putting a whole page into a

short text of snippet does not ﬁll this gap.

In this paper, we propose visual context based

snippets, visual patch. Visual patch shows the frag-

ment of the web page around the keyword rendered

by web browsers. This enables us to provide the con-

crete information in a web page instead of the whole

web page. A pilot user experiment is also included.

The rest of this paper organized as follows: section 2

340

Maruyama K., Igeta M. and Terada M..

SEARCH ENGINE RESULT PAGE WITH VISUAL CONTEXT AND ALREADY RENDERED SNIPPETS.

DOI: 10.5220/0003348203400345

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 340-345

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

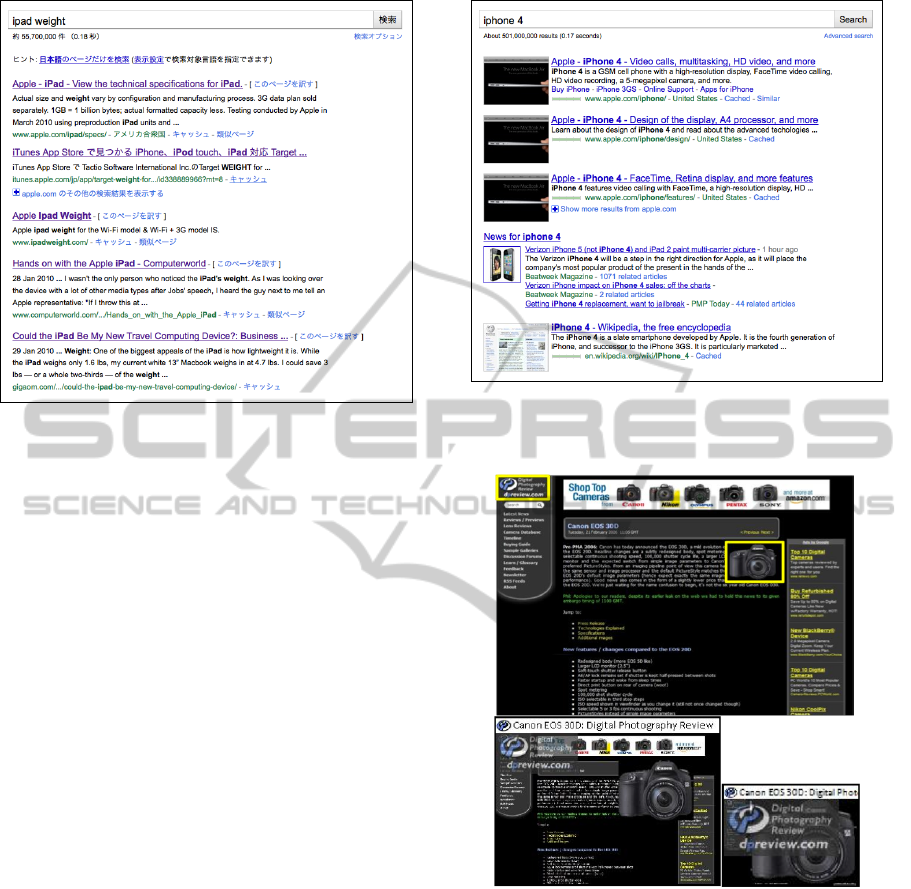

Figure 1: Search engine result page with text based snip-

pets.

compares our proposal with some related works, sec-

tion 3 describes the details of visual patch and its use

case, section 4 shows how to produce SERP with vi-

sual patch, section 5 evaluates our proposal qualita-

tively through user experiments, section 6 discusses

some issues of visual patch, then section 7 describes

the conclusions.

2 RELATED WORK

There are several works which provide the rendered

web pages. SearchPreview(Ackroyd, 2010), a Firefox

add-on, provides thumbnails of the whole web pages

of each result in SERP. The thumbnail is the top of the

site, for example, the top page of www.example.com

for www.example.com/a/b.html (ﬁg. 2). Each thumb-

nail is cached in the server of SearchPreview and the

add-on combines the images with the usual SERP.

Thumbnails of whole web pages are useful to know

the kind of the site or to decide whether it is already

known or not. The images, however, shrink and the

users cannot read the contents of the web pages. Most

of the top page of the web sites do not represent each

page of the site.

Teevan et al.(Teevan et al., 2009) propose the

method of providing a combined snippet of the char-

acteristic words or images of the page (ﬁg. 3). For tab

browsers, Liu et al.(Liu and Tajima, 2010) provides

the thumbnails of the whole web pages and the char-

acteristic images of the pages in the same size as the

original in order to help users to remember the con-

tents of the tabs (ﬁg. 4). Woodruff et al.(Woodruff

Figure 2: Giving “iPhone 4” to Google with SearchPreview

provides the thumbnails including a new MacBook Air.

Figure 3: Visual Snippets(Teevan et al., 2009) provides the

image at bottom right from the one at top half.

et al., 2001; Suh et al., 2002) propose the method of

providing the overlays of the keywords in addition to

the thumbnails of the whole web pages. These pro-

posals are effective for users to choose a search re-

sult from the viewpoint of the category of the key-

words or to be reminded of the already known web

pages. However it is not suitable to ﬁnd out the infor-

mation never seen or to understand the context of the

text. Our proposal, visual patch, enables users to read

the description of the body and know the typesetting

around the keyword.

SEARCH ENGINE RESULT PAGE WITH VISUAL CONTEXT AND ALREADY RENDERED SNIPPETS

341

Figure 4: WildThumb(Liu and Tajima, 2010) provides a

few images in their original size included in the pages. The

thumbnails are located at both sides of the browser.

3 VISUAL PATCH

In this section, we describe our prior work and then

show the improved SERP produced by our pilot sys-

tem.

3.1 Search within a Page

We already proposed the system which provides the

visual search result within a page(Igeta et al., 2009).

Fig. 5 shows the search result of a certain web page

of Wikipedia, which describes a certain university in

Japan. The search keyword within the page is the

name of a certain institution of the university. The

name appears in (1) the table of contents, (2) the list

of the institutions of the university, and (3) the index

of the section described about the institution and the

three small windows show each occurrence. If a user

want to know the description of the institution, the

person can choose the third one to be lead there. If an-

other want to know other institutions of the university,

the second window helps the person. In this paper, we

call these windows visual patches (VP).

Figure 5: Visual Patch in a certain page(Igeta et al., 2009).

These would be distinguished from each other in

terms of document object model of HTML. But both

the ﬁrst and the second are a part of the list items and

the difference between them is almost meaningless.

To introduce a heuristics that a numbered list item

with anchor tag may be an index is effective only to

the limited situation. In other hands, displaying the

search result as the rendered image in the same size

with the decoration designated by HTML/CSS in that

page helps us to judge whether it is the information

we want to know or not.

3.2 SERP with Visual Patch

Listing the occurrences of a keyword within a web

page is also useful when we are searching web pages

by search engines. VP enables search engines to

provide the appropriate information about the given

query in SERP rather than the list of the web pages.

Fig. 6 shows an example of SERP with VP pro-

duced by our pilot system. The current implementa-

tion requires two queries to produce a SERP: (1) the

query for searching web pages and (2) the query for

searching itself within the pages. We call the former

“search engine query” and the latter “VP query”. Us-

ing “obama approval rating” as search engine query

and “average” as VP query causes the result shown in

ﬁg. 6

In the case of this example, the left and center VPs

in the row (1) and the left one in (2) are the informa-

tion a user want to know. The right in (1) and the

left in (2) shows the list of the index, so these are the

unexpected one for the user. We can also see that the

right in (2) and the left in (3) do not show the Obama’s

general approval rating directly.

The color of the frame of each VP is assigned by

the web page in which the VP is included. The left

and center in (1) come from the different web pages,

but have the same contents; the one has the copy of the

other. We can ﬁnd that these contents are in Wikipedia

in terms of the design of the page. Please note that

the snippets of SERP are replaced with VPs and VP

shows not the summary of the web page but the infor-

mation in the web page itself.

4 IMPLEMENTATION

The pilot system producing the SERP with VP shown

in ﬁg. 6 is composed of three components (ﬁg. 7).

• Client side component which interacts with users.

The caption of “(1)” to “(3)” in the ﬁgure are added by

us for the explanation.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

342

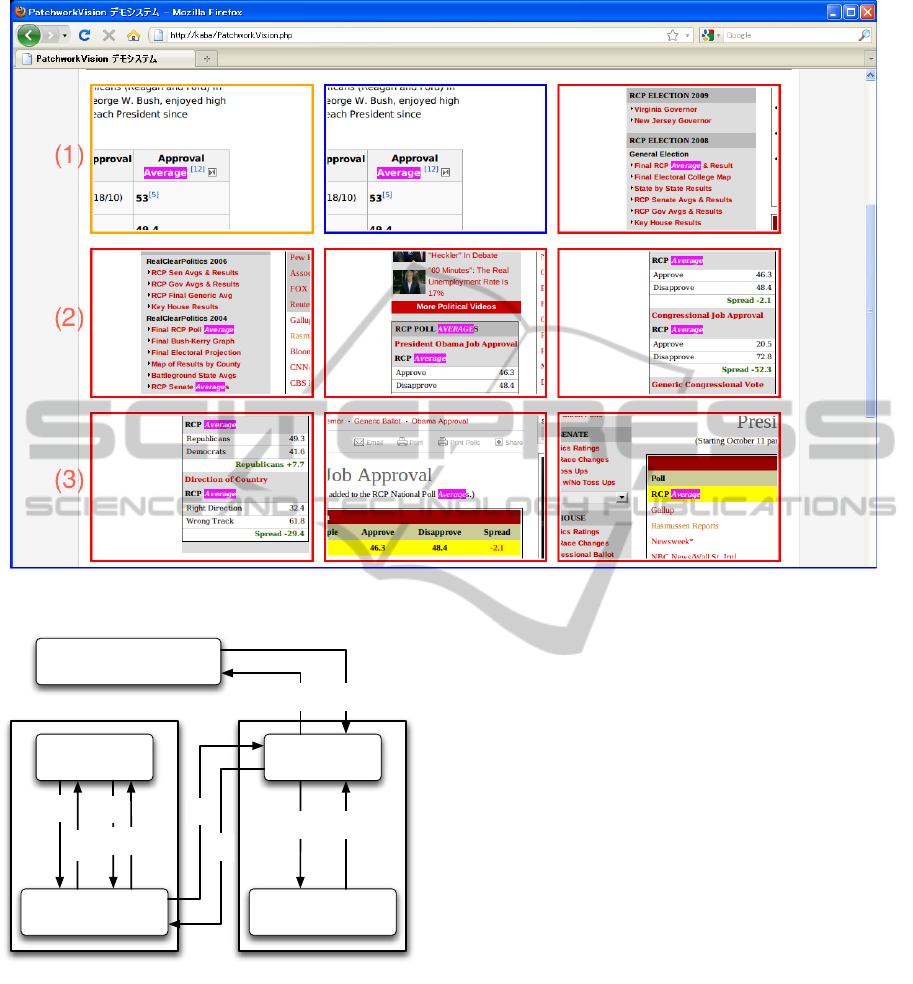

Figure 6: SERP with visual patch. Search engine query is “obama approval rating” and VP query is “average”.

Client side Server side

User

Firefox + Add-on

(1)

Apache + PHP

Firefox + Add-on

(2)

(7)

(5)

(6)

Yahoo! Web Search API

(3) (4)

(9)

(10)

Figure 7: Overview of the pilot system.

• Server side one which produces VPs by rendering

web pages and provides SERP.

• Yahoo! search API which returns the list of URLs

as the result of search engine query.

Both the client and server side components in-

clude Firefox web browser with our add-on. The

server side add-on automatically produces VPs, and

the client side one automatically opens and scrolls the

web page when a user clicks a VP. Ten steps in the

ﬁgure are as follows:

1. A user inputs both search engine query and VP

query to the web form of our system.

2. Firefox sends the queries to the CGI programs

written in PHP on the server.

3. The CGI program sends the search engine query

to Yahoo! search API.

4. Yahoo! returns the list of URLs as the result of

the search back to the server.

5. The CGI program invokes Firefox to open each

URL in the list and tells VP query to the server

side add-on.

6. Firefox and the add-on on the server render the

web pages, highlight the keywords of VP query in

each page, capture all the occurrences of the key-

word to produce VPs, and then sends VPs back to

the CGI.

7. The CGI returns a web page of SERP including

VPs back to the client side Firefox.

8. Firefox shows the SERP with VPs as the result of

the submit of the queries in step 2.

9. The user clicks a certain VP.

SEARCH ENGINE RESULT PAGE WITH VISUAL CONTEXT AND ALREADY RENDERED SNIPPETS

343

10. Firefox opens and renders the web page including

the VP and the add-on automatically scrolls the

page to the occurrence point of the keyword of

VP query.

The pilot system limits the number of web pages

rendered to the top ten URLs of the result from Ya-

hoo! in step 5, in order to reduce the response time

from the input by the user to the output of the result.

The server side Firefox renders the ten pages to pro-

duce VPs from them. The current server has Intel

Core i7 2.8GHz and 4GB memory and the response

time is at least several seconds, at most ninety sec-

onds. The server side component uses the full func-

tion web browser with GUI to render web pages and

is on a single machine. Just a rendering engine could

be used for producing VPs instead of web browser.

Using multiple machines to parallelize the production

of VPs and caching the rendered pages are required to

improve the response time.

5 USER EXPERIMENTS

We evaluated our pilot system by user qualitative ex-

periments through three tasks for nine students. In the

ﬁrst task, we designate the goal of the task, search en-

gine query, and VP query. In the second, we do only

the goal, such as “to search the article about the in-

stitute of the university”. In the third, we do nothing

and the students decide their goal by themselves. We

received the following comments:

• It is good to see the contents of web pages in vi-

sual context.

• The response time is too long.

• Effective if the information I want to know is rel-

atively clear.

• The choice of VP queries is difﬁcult.

• It is easier to search the already known pages.

• Good size of VPs.

• The inappropriate queries produced the bad re-

sults.

These comments show that the system is useful

when the information to be searched is relatively con-

crete, or when the page to be searched is already

known in terms of its design. The inappropriate

queries produce worse result, because the number of

VPs depends on the number of the occurrences of the

VP query rather than the number of the pages returned

from Yahoo! search API.

6 DISCUSSION

6.1 Visualization vs. Space

VPs provide richer information than text based snip-

pets in compensation for the loss of space in the users’

display. In the desktop environment, it is popular to

use a large display such as over 24 inches or to use

multiple displays simultaneously, and VPs obviously

have an advantage over text based snippets.

In the mobile environment, a display of mobile de-

vices is usually not enough and a few VPs may oc-

cupy its area. Text based snippets also show only two

or three results and require users to scroll the display

in order to show more results. At that point, VPs and

text based snippets are even. When the user transfers

SERP via 3G network instead of Wi-Fi, text based

snippets may be preferable.

6.2 Contents of VP

There are positive comments to the contents of VPs.

Especially, some works described in section 2 empha-

sise only the keywords and reduce the size of the con-

tents of the web pages. As a result, we cannot read

the sentences around the keywords. Our proposal has

an advantage over them.

The range and size of VPs should be still dis-

cussed. In the current system, the keyword of VP

query is placed at the center of the VP and both the

number of pixels and the aspect ratio are determined

by experience. Actually, how to trim the web page

around the keyword would depend on the layouts of

the page. For example like blogs, the left and right

columns include the links to other dates or the pro-

ﬁle of its author, and the center one hold the body of

the blog and the comments from others. When the

keyword is placed at the left edge of the center col-

umn, the keyword should be placed at the left in the

VP rather than just the center of the VP. This prob-

lem could be resolved by identifying the layout of the

keyword in terms of DOM of HTML.

6.3 Conﬁdence of VP

The ﬁfth point of the comments of the user experi-

ments designates not only the effectiveness of VPs but

also the need to deal with the unknown web pages.

When the users search web pages without any expec-

tations of result, they use the titles or URLs as clues

to choose web pages in SERP. For example, if a user

ﬁnds out the speciﬁcations of a certain commercial

product, the person relies on the maker’s web site.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

344

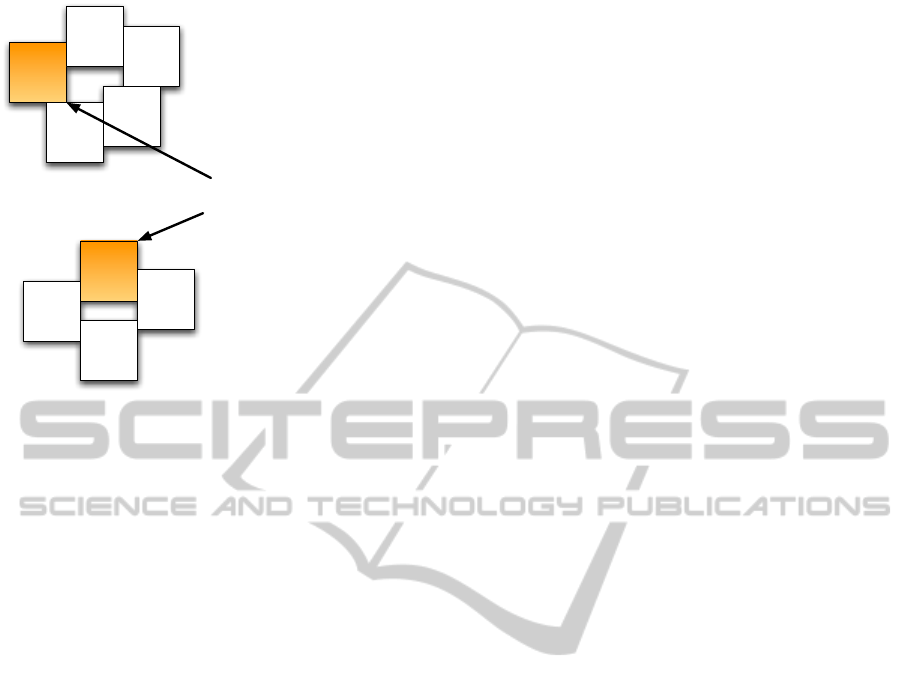

Cluster 1

- keywords in ordinal statements.

- color histogram is not ﬂat.

VPs in the same web page may be

categorized in the different clusters.

Cluster 2

- keywords in tables.

- color histogram is ﬂat.

Figure 8: VPs could be categorized in some groups.

The combination of VPs and the thumbnails of the

whole web pages may be required.

6.4 Clustering VPs

Although the current system produces few VPs, when

the system in future produces much more, we must

discuss how to provide many VPs to users in SERP.

Clustering VPs may help this problem. Fig. 8 shows

an example of separating VPs in two groups. For ex-

ample, group 1 includes VPs of which the keywords

are in the usual sentences and group 2 includes VPs of

which the keywords are in the tables. In another ex-

ample, VPs are categorized based on their color his-

togram. This grouping could represent the visual im-

pression of the design of the page.

The ﬁgure shows one more important thing. It is

acceptable that two different VPs in the same web

page are categorized in the different groups. As the

information users want to know is not a web page but

just the information itself included in the web page,

the information on web should be provided to users

by VPs instead of web pages.

7 CONCLUSIONS

The usual SERP provides only the links to the web

pages which include the query. It just shows the web

pages which may include the information the user

want to know. As SERP with VP provides the con-

crete and readable information included web pages,

the user can choose the appropriate result in SERP.

We continue to consider some issues discussed in sec-

tion 6 and improve the response time of the system.

REFERENCES

Ackroyd, E. (2010). SearchPreview :: Add-ons

for ﬁrefox. Retrieved February 7, 2011, from

https://addons.mozilla.org/ja/ﬁrefox/addon/189/.

Igeta, M., Terada, M., and Maruyama, K. (2009).

Scoutview:scrolling support interface for web page.

In IPSJ SIG Technical Report, volume 2009-HCI-

133. Retrieved from http://www.bookpark.ne.jp/ipsj/

(In Japanese).

Liu, S. and Tajima, K. (2010). WildThumb: A Web

Browser Supporting Efﬁcient Task Management on

Wide Displays. In Proceedings of the 14th Inter-

national Conference on Intelligent User Interfaces

(IUI2010), pages 159–168.

Suh, B., Woodruff, A., Rosenholtz, R., and Glass, A.

(2002). Popout Prism: Adding perceptual Principles

to Overview+Detail Document Interfaces. In Proceed-

ings of the SIGCHI Conference on Human Factors in

Computer Systems (CHI2002), pages 251–258.

Takaku, M., Egusa, Y., Saito, H., Miwa, M., and Kando,

N. (2009). Analysis of User Eye Movements dur-

ing Viewing of Search Engine Results Pages in Web

Information Seeking Tasks. Japan Society of Infor-

mation and Knowledge Journal, 19(2):224–235. (In

Japanese).

Teevan, J., Cutrell, E., Fisher, D., Drucker, S. M., Ramos,

G., Andre, P., and Hu, C. (2009). Visual Snippets:

Summarizing Web Pages for Search and Revisitation.

In Proceedings of the 27th International Conference

on Human Factors in Computer Systems (CHI2009),

pages 2023–2032.

Woodruff, A., Faulring, A., Rosenholtz, R., Morrison, J.,

and Pirolli, P. (2001). Using Thumbnails to Search

the Web. In Proceedings of the SIGCHI Conference

on Human Factors in Computer Systems (CHI2001),

pages 198–205.

SEARCH ENGINE RESULT PAGE WITH VISUAL CONTEXT AND ALREADY RENDERED SNIPPETS

345
