A DISTRIBUTED SELF-HEALING ARCHITECTURE

SUPPORTING WS-BASED APPLICATIONS

Francisco Moo-Mena, Fernando Curi-Quintal, Juan Garcilazo-Ortiz

Luis Basto-D

ıaz and Roberto Koh-Dzul

Universidad Aut

onoma de Yucat

an - Facultad de Matem

aticas, Perif

erico Norte km 33.3, Merida, Mexico

Keywords:

Self-healing, Web service, Digital library.

Abstract:

A Self-healing infrastructure allows to observe the behavior of a system, determining its health status, and

applying measures to restore the correct state of the application. In recent years our work has focused on the

design and implementation of Self-healing architectures, which support applications based on Web Services

(WS). This paper presents an improved Self-healing architecture, which proposes a distributed control in

its components. The results obtained by applying this new Self-healing architecture to a distributed Digital

Library application show a trend towards a better availability of resources.

1 INTRODUCTION

The Web Service (WS) technology has made possible

to develop complex distributed systems.

Distributed systems require mechanisms to pre-

vent loss of component functionality and QoS degra-

dation. Fault-tolerance techniques provide a mecha-

nism to recover from speciﬁc failure situations, where

a fault can make the system unavailable suddenly for

indeterminate periods, minimizing the outages. How-

ever, systems in a high demand environment also need

to predict problems and take actions to prevent the

failure and its impact on the application or, to recover

without any apparent overall disruption.

In 2001, IBM presented an initiative called “Auto-

nomic Computing”, adopting principles of biological

systems (Kephart and M.Chess, 2003). The initiative

presents four perspectives: Self-conﬁguring, Self-

healing, Self-optimizing and Self-protecting (Halima

et al., 2006).

This work is focused on improving a distributed

WS-based Self-healing architecture to support a Dig-

ital Library application, with contents organized and

distributed by knowledge area, by applying Self-

healing techniques and a better distribution of com-

ponents.

Interceptors are used for Monitoring, QoS analy-

sis for Diagnosis, and redundancy of components for

Recovery (Ghosh et al., 2007). This work is based

on previous work which deﬁned the Self-healing ar-

chitecture, the statistical model and the ontological

model applied for the diagnosis (Moo-Mena et al.,

2008) (Moo-Mena et al., 2009).

The rest of the paper is organized as follows: sec-

tion 2 describes our distributed Self-healing architec-

ture; section 3 shows experimental results; and sec-

tion 4 discusses conclusions and future work.

2 SELF-HEALING

ARCHITECTURE

In a previous work, a ﬁrst Self-healing architecture

was developed. One limitation of this architecture is

its centralized approach that only considers a simple

interaction scenario. It considers one WS component

making requests to other WS component, the param-

eters collected during the interaction are analyzed by

a “Self-healing Core”, which is a critical central point

because their failure could compromise the operation

of the system.

Restrictions in the previous architecture are ana-

lyzed and a better schema is proposed to get a dis-

tributed Self-healing architecture based on coopera-

tive WS.

2.1 Self-healing Components

Distribution

The WS distributed operation is structured as nodes

that create interaction channels to transfer requests

157

Moo-Mena F., Curi-Quintal F., Garcilazo-Ortiz J., Basto-Díaz L. and Koh-Dzul R..

A DISTRIBUTED SELF-HEALING ARCHITECTURE SUPPORTING WS-BASED APPLICATIONS.

DOI: 10.5220/0003349801570160

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 157-160

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

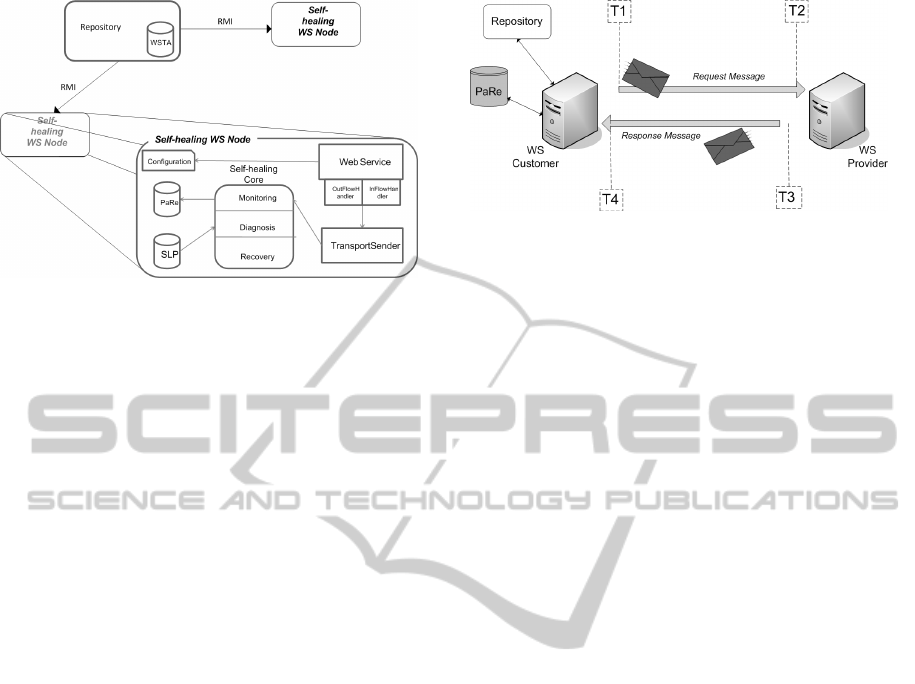

Figure 1: Distributed Self-healing Architecture.

and replies. Two roles are deﬁned for WS, the

consumer (WS requester) and the provider (WS

provider).

The most important goal is to have an efﬁcient

communication between elements. The Self-healing

principles implemented in this architecture ensure

successful operations.

Self-healing components has been deﬁned in the

architecture, where the Self-healing functionality was

implemented. These components are bonded to each

WS and start its operation when the WS consumer

invokes a function of WS provider.

The WS consumer is responsible for monitoring

and evaluating the performance of their providers,

and if it detects degradations it must choose another

provider.

The architecture components are (See Figure 1):

• Repository Module, this component registers all

WS in the WSTA (Web Service Table Access),

which represents the composition of the architec-

ture at any given time.

• WS component, this is a WS with deﬁned func-

tionality. Within the Digital Library application,

each WS component is responsible for managing

content of a knowledge area.

In the improved architecture, each WS component has

a Self-healing Core composed by: Monitoring Mod-

ule, Diagnosis Module and Recovery Module.

These modules are described below in the order

they appear during a transaction between a consumer

and its provider.

2.2 Repository Module

This component is responsible for maintaining the in-

formation of all active WS in the architecture in a ta-

ble called WSTA (Web Service Table Access).

When a WS joins to the architecture, the ﬁrst ac-

tion that it performs is to register his information in

Figure 2: Web Services Interaction Scenario.

the WSTA and calculate a time delay between it and

the Repository Module. To calculate the difference of

time, we apply an algorithm based on Cristian’s work

(Cristian, 1989)

When a WS needs to work with another, it starts

a transaction, asks to the repository for a provider

which has a particular keyword; the Repository search

in the WSTA and returns the address of an active WS

provider to interact.

If there are only inactive providers, the Reposi-

tory selects and actives one. Now the WS consumer

can contact the provider to make the requests that are

required.

2.3 Monitoring Process

The monitoring stage involves interception of mes-

sages between the consumer and the provider. The

messages are intercepted from the WS consumer us-

ing Handlers, which is a tool provided by Apache

Axis2 WS engine.

Each time that a message is sent or received in a

WS, the Monitoring Module records timestamps and

calculates the QoS time parameters, which are used

for the diagnosis phase. The set of timestamps are

four:

• T1: When a WS consumer sends a Request Mes-

sage.

• T2: When the WS provider receives the Request

Message.

• T3: When the WS provider sends a Response

Message.

• T4: When the WS consumer receives the Re-

sponse Message.

When the transaction commits, the timestamps are

used to calculate the QoS time parameters:

• QoS1: T3 - T2: Computation time

• QoS2: T2 - T1: Requesting time.

• QoS3: T4 - T3: Responding time.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

158

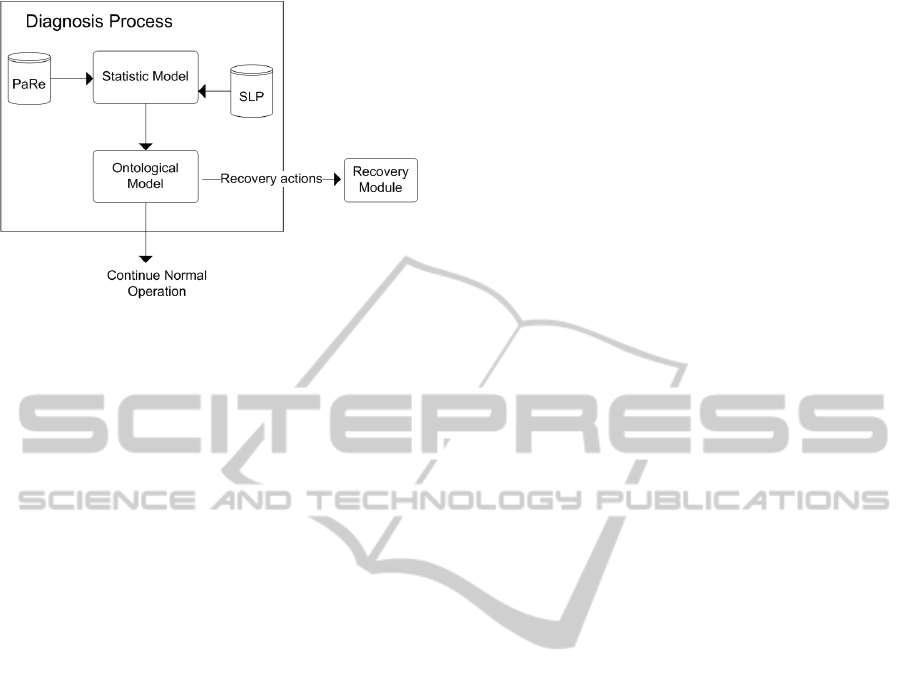

Figure 3: Diagnosis Process.

• QoS4: (T4 - T1) - QoS1: Communication time.

The value of the parameters are stored in the PaRe

(Parameter Repository) database for further analysis.

An interaction scenario is showed in Figure 2.

If the provider does not receive a response mes-

sage after sending a request, the Monitoring Mod-

ule determines an unsuccessful transaction and indi-

cates that its provider is not available, therefore a re-

placement for the provider is required and the former

provider is set ofﬂine as recovery strategy.

After a certain number of transactions, the Diag-

nosis Module is executed.

2.4 Diagnosis Process

The diagnosis is based on the analysis of QoS param-

eters using a statistical (Moo-Mena et al., 2009) and

ontological model. The statistical model is based on

the box-plot method, which is a technique used to an-

alyze a data set (Mendenhall et al., 1998). The results

of the statistical module are the inputs for the onto-

logical method. The ontological model establishes a

knowledge base that represents the current QoS level

of communication with a WS provider.

For the QoS parameters analysis, the most recent

set of values for each QoS parameter is taken from

PaRe. The statistical model calculates how many

recorded values are outliers, according to the Right

Outer Fence (ROF) measures established by each WS

provider in the Service Level Parameter (SLP) table.

When the diagnosis process is executing for the

ﬁrst time, the SLP table contains reference measures

(ROF) for all providers.

The results of the statistical model are passed to

the ontological model at runtime to determine if any

recovery action is required (See Figure 3).

The ontological model deﬁnes an ontology where

relations are established between the main QoS prop-

erties (W3C, 2009) and the health of a component.

In this work, Integrity and Availability characteristics

are deﬁned and related to the State of performance

entity to determine the Degradation level.

The reference measures were deﬁned, applying

the box-plot method, with a sample set of parame-

ters obtained during the execution of the architecture

at an early stage. After testing, Normal Performance

(OK) was less than 5% of outliers, with a Moderated

Degradation the results are between 5% and 10%, and

a higher percentage indicates a Severe Degradation.

The application of rules over the knowledge base

allows to infer the performance level of a provider,

comparing the current QoS measures against refer-

ence measures.

For example, the rule that diagnoses a Severe

Degradation checks that the percentage of outliers

values for QoS parameters are greater than the limit

values deﬁned to activate a substitution action. In

this case, the ontological model determines a Severe

Degradation.

If the percent of outlier values is between 3% and

5%, means that the time intervals of interaction are

increasing. Then, the ROF will be redeﬁned using a

recent data set for a each QoS parameter. The new

values are stored in the SLP table for further use. Af-

ter the adaptation, the diagnosis process is executed

again to improve the diagosis result.

If the result is Moderate degradation, the Diagno-

sis Module requests to the Recovery Module a dupli-

cation of its WS provider to improve the performance

level.

If the result is Severe degradation, the Diagnosis

Process requests to the Recovery Module a substitu-

tion of its WS provider to interact with another WS

provider.

2.5 Recovery Strategies

The diagnosis techniques applied in the Self-healing

architecture are based on redundancy. Each WS

provider should have a duplicate which offers the

same functions. The WS are stateless.

Recovery actions are applied at the diagnosis

module’s request and include duplicating or replacing

the current WS provider.

Duplicating a WS provider has the consequence

that the consumer requests are divided between more

than one provider, randomly selecting a provider for

each transaction.

The replacement, however, is oriented to the re-

quests that are sent to a new provider, which has not

been diagnosed as corrupted.

The changes applied by the recovery module are

A DISTRIBUTED SELF-HEALING ARCHITECTURE SUPPORTING WS-BASED APPLICATIONS

159

in the WSTA, changing the information correspond-

ing to the current WS provider. Then, the changes

made in WSTA table are visible to all WS in the ar-

chitecture.

3 RESULTS

The implementation of a testing application that ap-

plies the principles of Self-healing perspective fo-

cuses on creating a distributed Digital Library.

In the Digital Library application each component

has WS Self-healing components to evaluate the in-

teraction with other WS components. The Repository

records the components of the Digital Library under

the name of the area to which they belong as “key-

word” to the WSTA table.

The result of integrating the architecture for this

type of application was helpful. The fact of having

a mechanism to ensure suppliers always they are re-

quired for each knowledge areas, guarantees that the

requests have a greater probability to be attended. For

demonstration purposes a test was performed with a

high number of requests.

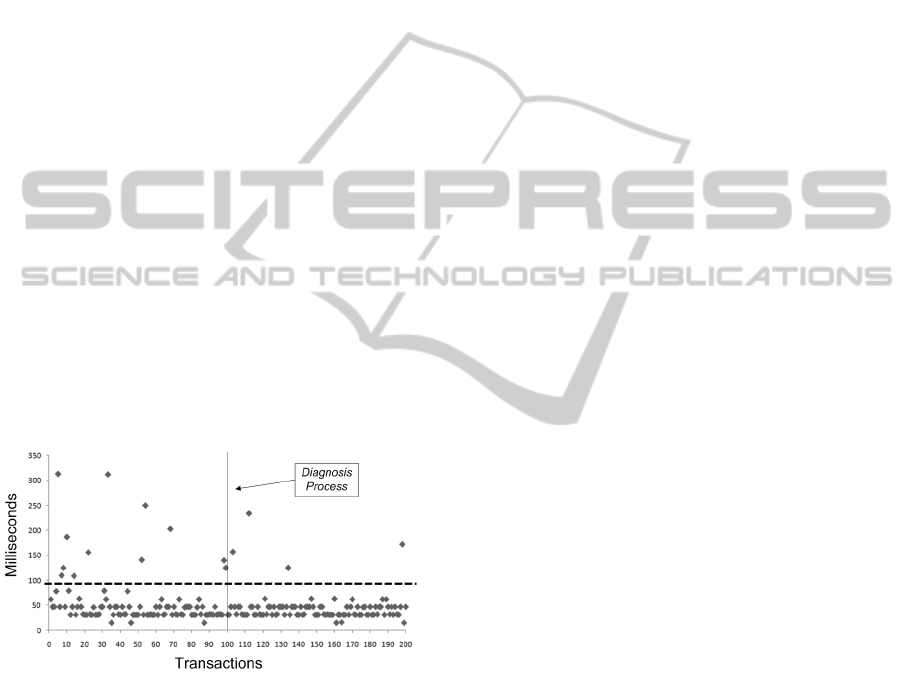

Figure 4 shows a graph of QoS values, in which

the number of outliers values is reduced, as a result of

both, the diagnosis process and the recovery action of

duplicating a WS provider.

Figure 4: Graph of QoS values.

4 CONCLUSIONS

This distributed architecture opens the possibility to

create new structures of interaction between WS com-

ponents, where the main goal is to ensure the avail-

ability of the services.

The components distribution reduces the critical

points of failure and takes advantage of the dynamic

operation of each component.

Diagnosis module’s adaptation strategies allow the

architecture to work under variable conditions, deter-

mining a good performance.

The ontological model along with the rules en-

gine added to the diagnosis module have the ability

to make inferences of current performance and de-

termine the recovery actions considering the current

state representation in a knowledge base.

ACKNOWLEDGEMENTS

This project was developed under ﬁnancial support

from PROMEP and UADY.

REFERENCES

Cristian, F. (1989). A probabilistic approach to distributed

clock synchronization. In 9th International Confer-

ence on Distributed Computing Systems, pages 146–

158.

Ghosh, D., Sharman, R., Rao, H., and Upadhyaya, S.

(2007). Self-healing systems - survey and synthesis.

Decision Support Systems, pages 2164–2185.

Halima, R., K.Drira, and M.Jmaiel (2006). A comparative

study of self-healing architectures in distributed sys-

tems. Technical Report 06568, LAAS.

Kephart, J. O. and M.Chess, D. (2003). The vision of auto-

nomic computing. Computer Magazine, IEEE, pages

41–50.

Mendenhall, W., Beaver, R. J., and Beaver, R. M.

(1998). Introduction to probability and statistics.

Brooks/Cole, USA.

Moo-Mena, F., Garcilazo-Ortiz, J., Basto-Diaz, L., Curi-

Quintal, F., and Alonzo-Canul, F. (2008). Deﬁning

a selfhealing qos based infrastructure for web ser-

vices applications. In IEEE 11th International Con-

ference on Computational Science and Engineering

(CSE 2008), Sao Paulo, Brazil.

Moo-Mena, F., Garcilazo-Ortiz, J., Basto-Diaz, L., Curi-

Quintal, F., and Alonzo-Canul, F. (2009). A diagno-

sis module based on statistic and qos techniques for

self-healing architectures supporting ws based appli-

cations. In IEEE International Conference on Cyber-

Enabled Distributed Computing and Knowledge Dis-

covery (CyberC 2009), Zhangjiajie, China.

W3C (2009). Qos for web services: Requirements

and possible approaches. http://www.w3c.or.kr/kr-

ofﬁce/TR/2003/ws-qos/.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

160
