Framework Managing the Automated Construction and

Runtime Adaptation of Service Mashups

Anna Hristoskova, Bruno Volckaert and Filip De Turck

Department of Information Technology, Ghent University - IBBT

Gaston Crommenlaan 8 bus 201, B-9050 Ghent, Belgium

Abstract. With an increased deployment of new software services, reusing ex-

isting ones as building blocks to create new service mashups offers ﬂexibility to

the developer and accelerates the design process. In this way businesses are able

to create value at reduced development time and cost.

In order to allow for the automation of this emerging engineering methodology

the paper presents a framework for the construction of new applications without

the intervention of the ICT department. This framework offers the needed support

through the use of planning algorithms automatically combining semantically

enriched services into new mashups. The developed algorithms are optimized

with runtime adaptation to changing user-context taking fully into account the

provided quality of service parameters of the available building blocks.

The enrichment of the available business services with semantics, reasoning, and

at-runtime composition are evaluated by means of a framework providing a man-

agement interface for an e-shop application.

1 Introduction

Instead of building self-contained silos, businesses break down their applications in

independent components offering a scoped functionality using open coding and com-

munication standards. The creation of catalogues of reusable components means agile

construction of new applications and faster adaptation to the changing business environ-

ment. These service mashups combine functionality and content from existing sources,

creating greater value than the sum of the individual participating components. Cur-

rently, Web services are the most adopted technologies for constructing mashups. De-

signed to support interoperable machine-to-machine interaction over a network, they

are capable of being accessed via standard protocols such as SOAP over HTTP.

Service-OrientedArchitectures [1] offerthe advantage of building component-based

systems using Web services. In a dynamic environment where the desired functional-

ity cannot always be predicted, all kinds of custom made compositions can be built

from scratch meeting the users’ requests without the need for continuous interaction be-

tween users and developers. A computer-aided automatic approach is possible through

the adoption of ontologies and the Semantic Web [2] for the enrichment of services

Hristoskova A., Volckaert B. and De Turck F..

Framework Managing the Automated Construction and Runtime Adaptation of Service Mashups.

DOI: 10.5220/0003350300310043

In Proceedings of the International Workshop on Semantic Interoperability (IWSI-2011), pages 31-43

ISBN: 978-989-8425-43-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

with machine-processable semantics. Speciﬁcations such as OWL-S [3] provide a se-

mantic description for Web services deﬁning inputs, outputs, preconditions and effects

(IOPEs), and nonfunctional properties. Thanks to these descriptions a computer system

would be able to automatically combine services together executing a more sophisti-

cated task provided for the implementation of reasoning and matching algorithms.

The proposed framework in this paper offers an environment for the automatic con-

struction and execution of service mashups departing from available functionality found

on the Web and within enterprises. It disposes of a user interface for the management

of semantically annotated services and the deﬁnition of users’ requests (e.g. application

manager, end-user). Planning algorithms are designed for the construction of service

mashups solving these requests using the available resources. Novelty is the framework

enhancement with at-runtime adaptability anticipating changes (e.g. availability of new

services, resource and service failures) and resolving decision points in the composition

through the use of control constructs and user-deﬁned business logic rules.

The remainder of the paper presents in Section 2 the architecture of the mashup cre-

ation and execution framework whose components are detailed in Section 3. Following

is an evaluation of an e-shop management application in Section 4. Section 5 gives a

discussion of the current research in this ﬁeld. Finally, the main conclusions are stressed

in Section 6 and new possibilities for enhancing the framework are explored.

2 Framework Architecture and Process Flow

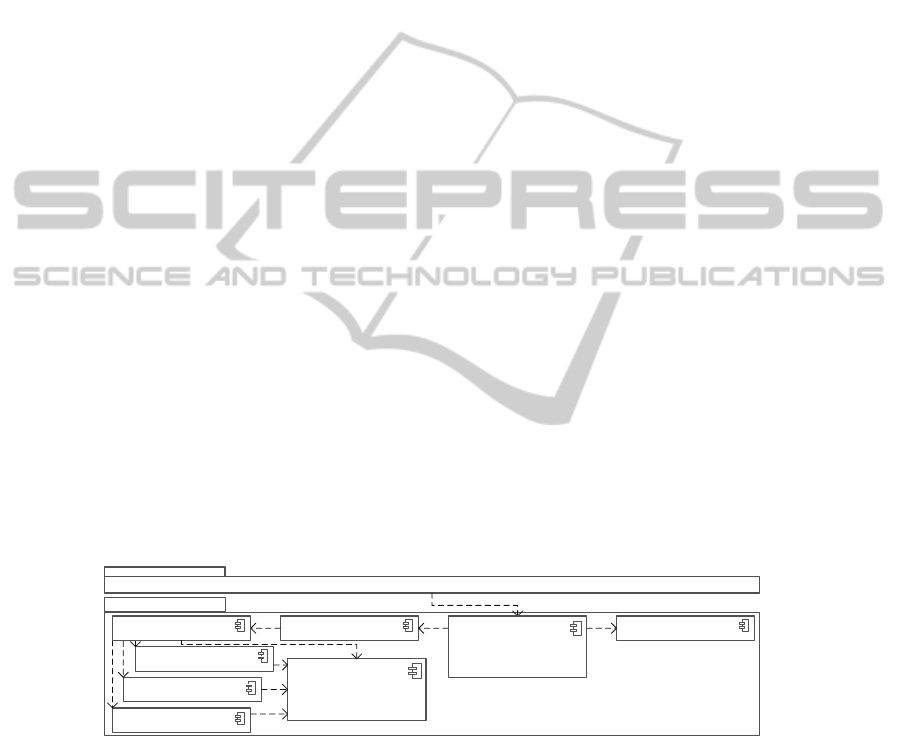

Figure 1 presents the mashup creation and execution architecture detailed in [4]. The

Conﬁguration Frontend provides the application manager with a user interface for the

deﬁnition of requests (goals and business logic rules) and the management of the avail-

able services and their quality attributes. All requests are handled by the Coordinator

which is based on a Microkernel pattern. It manages the service repository, the gener-

ation of goals from users’ requests, the necessary conﬁgurations before processing of

the requests, and the communication of the mashup creation and execution state back

to the Frontend.

&RQILJXUDWLRQ)URQWHQG

%DFNHQG

([HFXWLRQ(QYLURQPHQW

:RUNIORZ5HDVRQHU

5HTXHVW6FKHGXOHU

([HFXWLRQ(QJLQH

6HUYLFH0DSSHU

6HUYLFH0DQDJHU5HTXHVW3RUWDO

&RRUGLQDWRU

Fig.1. Main building blocks of the mashup creation and execution framework.

The mashup composition and execution process is presented in Figure 2. Starting

from a semantic deﬁnition of a user-deﬁned goal, a

service mashup

is constructed from

the available services by the Workﬂow Reasoner. The inner planning algorithms and

semantic matching techniques of this module will be further detailed in Section 3. Next

the Service Mapper converts the constructed mashup into an executable process by

:RUNIORZ

5HDVRQHU

 FRPSRVLWLRQRI

VHPDQWLFW\SHV

6HPDQWLF

JRDO

0DVKXS

H[HFXWLRQ

6HUYLFH0DSSHU

 PDSSLQJWR

FRQFUHWHVHUYLFH

LQVWDQFHV

([HFXWLRQ

(QJLQH

 H[HFXWLRQRI

VHUYLFHLQVWDQFHV

([HFXWLRQ

(QYLURQPHQW

 VWRUDJHRI

PDVKXSVWDWH

%XVLQHVV

/RJLF

5XOHV

5HTXHVW3RUWDO

 PDQDJHPHQWRI

DVLQJOHUHTXHVW

Fig.2. Mashup creation, execution and runtime adaptation process for a user’s request.

selecting the speciﬁc

service instances

for each building block of the mashup [5] sat-

isfying the predeﬁned quality of service constraints and requirements (execution time,

cost) and deﬁning the necessary bindings between them. The process is executed by

the Execution Engine handling the invocation workﬂow of the service instances by

forwarding the results to the right components. The Execution Environment acts as a

storage for users’ requests, business logic rules (desired service instances), inputs, re-

sults, execution state of the service mashup. The Reasoner and Mapper utilize this data

(e.g. intermediary results) to optimize the reasoning and mapping process of the service

mashup at design and runtime. The reasoning process is divided into two steps. First

through backward chaining a generic composition of services is constructed specif-

ically resolving user-deﬁned goals. A forward chaining procedure further tunes this

composition utilizing the stored data in the Environment.

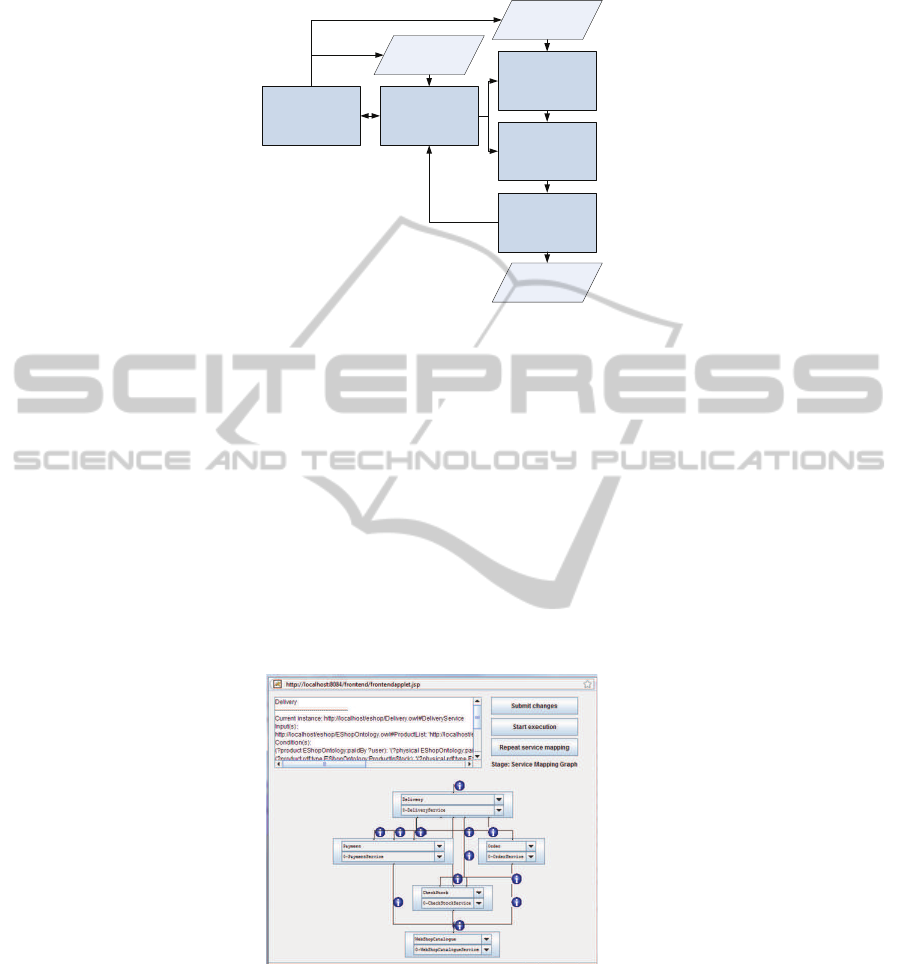

Fig.3. Conﬁguration Frontend, showing a composite mashup graph.

A Request Portal provides a management interface keeping track of the whole pro-

cess for a single user’s request. It visualizes the service mashup, the utilized resources

for execution, and returns intermediary results via the Frontend. The user interacts with

the system through the interface in Figure 3 where he can tune the constructed mashup

and change the selected resources to his speciﬁc preferences.

3 Details of the Reasoning and Composition Process

This section focuses on the novel contributions of the framework starting with a discus-

sion on the semantic grouping of equivalent service instances. Following is an overview

of the matching possibilities between these building blocks during the composition

process. Furthermore, the actual composition process is detailed together with the at-

runtime reconﬁguration and adaptation methods.

3.1 Semantic Description of Service Instances

A distinction is made between two types of building blocks used by the presented frame-

work:

concrete service instances

and

abstract semantic types

Concrete services instances

are the actual services executed on speciﬁc resources.

Each

service instance

is provided with several QoS (Quality of Service) parameters de-

scribing its properties. Examples include the average execution time, economic cost,

and availability. These QoS parameters are deﬁned beforehand or their values are dy-

namically adjusted based on previous invocations. Thus, for example, the average ex-

ecution time is updated after the invocation of the service. The QoS of a speciﬁc ser-

vice instance consists of a QoS Type, QoS Value, and QoS Comparator. A QoS Type

can amongst others be the economic cost for executing a service, the execution time.

Each QoS Type has a QoS Value and a speciﬁc QoS Comparator for comparing the

actual QoS Values. This offers an application manager with the possibility to extend the

framework with new QoS parameters and deﬁne customary comparison techniques.

In the presented framework, these

service instances

are enriched with semantic an-

notations using OWL-S. As several semantically equivalent

service instances

(equiv-

alent IOPEs) exist, their semantic interfaces are grouped into a single

semantic type

thus reducing the search space of available instances. For example, multiple payment

services (bank transfer, Visa, PayPal) are grouped into one semantic payment type.

The OWLS-MX Matchmaker [6] provides a partial solution to this problem by com-

paring service inputs and outputs and assigning a score based on the semantic distance

between these concepts. As a truly equivalent match between these service interfaces

cannot be expected, the services are grouped in a hierarchical fashion. Although exhaus-

tive enough, the OWLS-MX solution lacks the ability to compare service preconditions

and effects. Therefore, we extended this approach in order that during the composition

of the service mashup the Workﬂow Reasoner is able to search for a speciﬁc group

of services producing required outputs and more importantly effects (detailed in Sec-

tion 3.3). Afterwards the Service Mapper will select a corresponding

service instance

offering required QoS.

3.2 Semantic Match between Semantic Types

Semantic types

are compared and linked by the Workﬂow Reasoner in case of matching

input-output and/or precondition-effectrelations. Depending on the quality of the match

between their interfaces, control constructs are required for the construction and more

importantly execution of more complex service mashups. This section gives special

attention to the use of ’IfThenElse’ and ’ForEach’ control constructs of OWL-S.

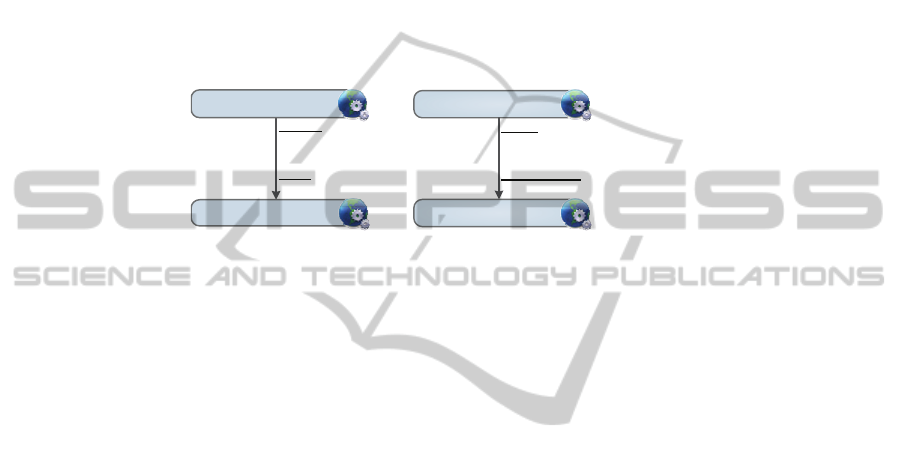

Parametric Match. As OWL-S is used for describing Web services, the service inputs

and outputs are expressed by OWL concepts. We deﬁne an input-output match between

services when an input and an output represent similar semantic concepts and as a result

the output of one of the services is used as input for the other. As demonstrated in Figure

4(a), the output ’Body Temperature’ is interpreted as a kind of ’Temperature’, matching

the measuring service to the service determining the patient’s fever.

,QSXW

7HPSHUDWXUH

2XWSXW

%RG\7HPSHUDWXUH

)HYHU

0HDVXUH7HPSHUDWXUH

(a) Input-Output match

3URGXFW'HOLYHU\

3URGXFW3D\PHQW

3UHFRQGLWLRQ

3URGXFWSDLGE\&XVWRPHU

(IIHFW

3URGXFWSDLGE\&XVWRPHU

(b) Precondition-Effect match

Fig.4. Semantic match between two service interfaces.

We deﬁne different qualities of semantic matches between service inputs and out-

puts, some of which require additional control constructs:

– Exact. The service output exactly matches the semantic concept of the service in-

put.

S:WebShopCatalogue(O:Product) -> S:Delivery(I:Product)

– Subsume. The output concept inherits from the input. This is a valid but lower

quality match.

S:WebShopCatalogue(O:PhysicalProduct) -> S:Delivery(I:Product)

– Relaxed. The service input is more speciﬁc than the output concept in which case

this is not a valid match. It is nevertheless incorporated in the composition process

as a generic output can turn out to be a more speciﬁc individual after service execu-

tion. For instance, a shopping basket may consist of digital and/or physical products

in which case some products need to be downloaded and others delivered. This is

resolved through the use of a repository describing product individuals and their

inheritance graph. In this case, the Workﬂow Reasoner adds an ’IfThenElse’ con-

struct between the matching services with an ’If’-condition on the speciﬁc product

type output.

S:WebShopCatalogue(O:Product) -> S:Delivery(I:PhysicalProduct)

– List. The service output is a list of concepts matching the single input concept. For

example, a shopping basket used as input for a service checking the stock status

of each individual product. Here, a ’ForEach’ construct is added iterating over the

list of products. The speciﬁc match for each concept from the list can be all of the

above (exact, subsume, relaxed).

S:WebShopCatalogue(O:ProductList) -> S:Delivery(I:PhysicalProduct)

Condition Match. For the deﬁnition of the service preconditions and effects we use

SWRL (Semantic Web Rule Language) [7] expressions and built-ins (SWRLB) such

as comparisons. An SWRL expression consists of a property and one or more ar-

guments (semantic OWL concepts). Examples include an OWLClass with one argu-

ment

, an ObjectProperty with two arguments

, a DataProperty with one argu-

ment and an RDF type

, a SWRLB primitive with one or more arguments

. We deﬁne a

precondition-effect match when the result of the execution of a service corresponds to a

condition required for the execution of another service. The effect in Figure 4(b) of the

product payment service realizes the payment condition for the delivery of the product

to the customer.

Similar to the input-output match, different qualities of semantic matches between

service preconditions and effects are deﬁned together with the necessary control con-

structs:

– Exact. The service effect exactly matches the SWRL expression representing the

service precondition. A matching SWRL expression consists of an

equivalent

prop-

erty and

exactly

matching semantic concepts (arguments of the property).

S:CheckStock(E:Product InStock) -> S:Delivery(P:Product InStock)

– Subsume. The effect property still matches the precondition property and between

the semantic concepts a

subsume

match is deﬁned. For an ObjectProperty only the

ﬁrst argument can be a subtype, however if the property is deﬁned as an inverse

property, the second is also a subtype as OWL concepts inherit the properties of the

super class.

S:CheckStock(E:PhysicalProduct InStock) -> S:Delivery(P:Product InStock)

– Relaxed. This is similar to the

subsume

match, however one still needs to check if

the concepts can be subclassed after execution as is the case in the

relaxed

input-

output match.

S:CheckStock(E:Product InStock) -> S:Delivery(P:PhysicalProduct InStock)

– Conditional. It should be noted that a service effect can be conditional; meaning

that depending on the service output a different effect is possible. For example a

service checking the stock of a product can have as effect that the product is in stock

the stock status is true or not in stock

false in which case an ordering service

is added to the composition before the actual delivery of the product. In this case

an ’IfThenElse’ construct is added with the conditional output on the effect as ’If’

statement. The following is an example of the conditional effect of the CheckStock

service where the product is considered in stock if the stock status is true:

<process:hasResult>

<process:inCondition>

<expr:SWRL-Condition rdf:ID="ProductInStockCondition">

swrlb:equal(eshop:stockStatus,rdf:boolean(true))

</expr:SWRL-Condition>

</process:inCondition>

<process:hasEffect>

<expr:SWRL-Expression rdf:ID="ProductInStockEffect">

InStock(Product)

paidFor(Customer, Product)

hasName(Customer, String)

equal(StockStatus,true)

eshop:ProductInStock(eshop:PhysicalProduct)

</expr:SWRL-Expression>

</process:hasEffect>

</process:hasResult>

The matching strategies are used by the planning algorithms of the Workﬂow Rea-

soner during the construction of the service mashup where services are selected provid-

ing outputs and/or effects matching the required (service) inputs and/or preconditions.

3.3 Workﬂow Reasoner based on HTN Planning

A Hierarchical Task Network (HTN) plan [8], [9] is a partially ordered graph of service

nodes. Each service deﬁnes a certain state (i.e. the outputs and effects of the service

execution) and the description of the overall state is distributed in the graph. Services

of unordered nodes (in parallel paths) are executed simultaneously, through the use of

the ’Split+Join’ construct of OWL-S.

The Workﬂow Reasoner in this paper adopts the HTN planning methods by incor-

porating the semantic grouping and matching strategies (including the use of control

constructs) mentioned above. It is enhanced with runtime mashup adaptation using col-

lected data in the Execution Environment (Section 3.4).

Planning proceeds as follows: the user’s request goes through an

expansion

phase

followed by the actual

construction

through semantic matching of services. The user-

deﬁned requests, consisting of initial and goal state (RQ=IS+GS), are transformed into

provided inputs and valid preconditions (IS=I+P) and required outputs and effects

(GS=O+E) resulting in an abstract semantic service description (i.e. IOPEs). During

the

expansion phase

, this

abstract service

is split up in the outputs and effects (O+E)

that need to be resolved and the inputs and preconditions (I+P) that can be utilized for

this purpose. On one hand, an available

semantic service (mashup)

can be matched to

the required interface immediately ending the composition stage. On the other hand,

if no complete solution already exists, the

construction phase

generates a plan of ser-

vices using backward chaining strategy transforming the goal state into the initial state

(GS->IS). The selected matching services are queued and resolved in a breadth-ﬁrst

fashion. The inputs and preconditions of the service on top of the queue are linked to

matching service outputs and effects (O+E->I+P) as described in Section 3.2. If neces-

sary control constructs are added depending on the quality of the match. It is important

to note that in case no matching services are found, an exhaustive composition is pre-

sented and the incomplete inputs/preconditions are marked. These are provided by the

application manager and/or new services are deployed ﬁlling in the missing gaps.

3.4 Runtime Adaptation

An important aspect of the presented framework is the runtime behavior anticipating

changes (e.g. availability of new services, resource and service failures) and adapting

each request to user-speciﬁc business logic rules. Figure 5 presents a feedback principle

where services are executed using inputs and conditions from the Execution Environ-

ment and new service effects and outputs are produced and added to this Environment.

This results in a dynamic system where new knowledge is inferred at runtime.

([HFXWLRQ(QYLURQPHQW

%XVLQHVVORJLF

UXOHV

6WDWHIDFWV

'DWDIDFWV

&RQGLWLRQV

,QSXWV

2XWSXWV

(IIHFWV

6HUYLFH

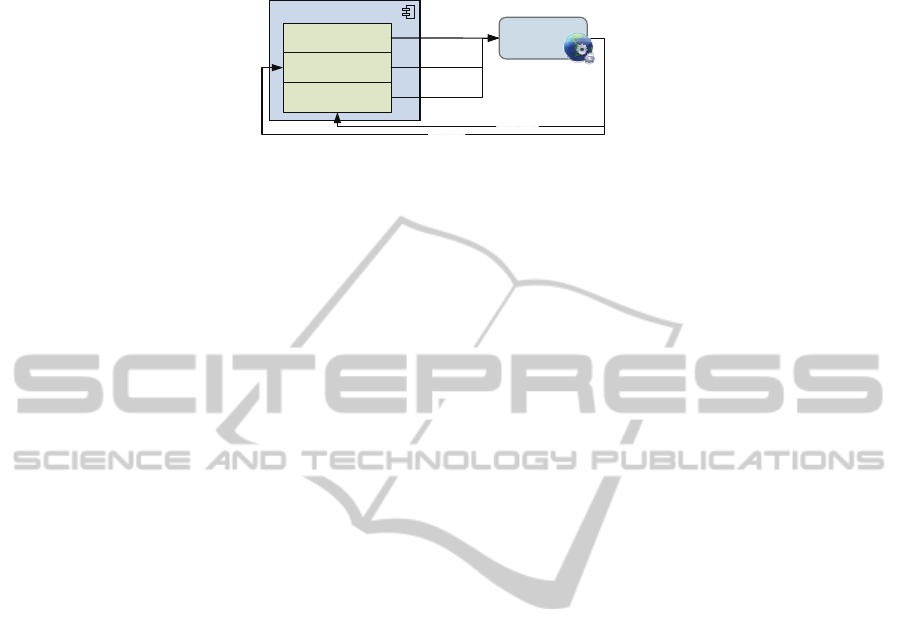

Fig.5. Inference through matching of service preconditions and inputs and returning service ef-

fects and outputs.

Business Logic Rules. These rules, added ofﬂine or at runtime to the Execution Envi-

ronment, are used by the Workﬂow Reasoner and Service Mapper to adapt the generic

mashup from Section 3.3 to the users’ needs at design and runtime. For example, there

are several possibilities for product delivery services which we deﬁne as a decision

point in the execution: a simple ’Delivery’ service, ’DeliveryWithPaymentOnDelivery’

service, ’DeliveryToProxy’ service. At this point, the user has to select one of the pos-

sibilities. A business logic rule could be stating that the default service is the ’Delivery-

WithPaymentOnDelivery’.

Iterative Pruning. Several mashup creation and execution iterations can be performed

before the ﬁnal execution, in case the constructed mashup graph is too complex (e.g.

having too many branches, conditional paths, decision points). Our framework executes

parts of the mashup, while trying to preserve the current state, by evaluating only the

stateless services. The Execution Engine stores any intermediary results in the Execu-

tion Environment which are used to prune the mashup graph by resolving the decision

points or conditional paths. The Workﬂow Reasoner collects the needed data in order to

reconﬁgure the service mashup and remove parts of the branching. For example, if the

stock of the selected product is checked beforehand, one can decide whether a product

ordering service is needed or it can be removed from the constructed mashup.

Failure Recovery. The current state is stored in a similar fashion in the Execution En-

vironment during the mashup execution. If a service fails, it is used by the Workﬂow

Reasoner and Service Mapper to track the failed services and the current state of the

system. During recovery the Service Mapper will select an alternative service instance

equivalent to the failed one (same semantic group) and proceed with execution. If no

alternative instance exists, the Workﬂow Reasoner will construct an alternative service

composition replacing the failed point keeping in mind the current state of the exe-

cuted mashup. In case that also fails the user will be notiﬁed of the speciﬁc component

problem.

4 E-Shop Workﬂow Design

The presented framework is evaluated by means of a management interface for the

automatic construction and runtime adaptation of e-shop applications. An e-shop ontol-

ogy is created deﬁning the concepts used for the annotation of the e-shop services in

OWL-S.

4.1 Design of an E-Shop Application

A sale consists of a customer buying one or more products. This means that:

Trigger. A potential customer browses to the product catalogue of the e-shop.

Initial State. The e-shop and customer info is known. This includes account informa-

tion necessary to make payments to the e-shop.

Goal Description. The composition is successfully executed, when the following ef-

fects are reached:

1. The customer ordered the product(s).

2. The customer paid for the product(s).

3. The product(s) was(were) delivered to the customer.

– Digital products, such as music and software, are downloaded.

– Physical products are transported to the customer’s delivery address or to

a proxy point of the customer’s choice.

4.2 Construction of the E-Shop Workﬂow

For each required input and condition of an e-shop service, the Workﬂow Reasoner

matches a corresponding service output and effect constructing an e-shop workﬂow. It

keeps track of the conditional paths so that during the construction of the executable

process the Service Mapper will add, if required, control constructs. Figure 6 presents

the workﬂow of the different e-shop services from selection to payment and delivery of

the products. The effect of the selection is implied by the output of the ’WebShopCat-

alogue’, which represents a list of selected products. If the customer fails to select one

or more products, the execution of the composition is prematurely ended, otherwise a

’ForEach’ construct iterates over each product. A decision (’IfThenElse’ construct) is

made whether the product is in stock or should be ordered followed by ’Payment’ and

’Delivery’. A

Delivery method

is added having as result one or more payment and de-

livery options (’Choice’ construct) through which, according to the conﬁgurable rules,

the purchase is made. This result is not known at composition time but can be deﬁned

through business logic rules by the user, being a customer or an e-shop manager. If the

result is a speciﬁc delivery method deﬁned by the e-shop manager,the purchase is made

in that way. If it is more than one, the customer chooses amongst all the possibilities

and the execution path depends on his decision. The result of this interactive choice is

not always known at composition time: the customer makes a choice after being pre-

sented with the different execution paths. Consequently, the e-shop workﬂow exposes

a decision point where the correct branch is chosen at runtime and followed during

execution.

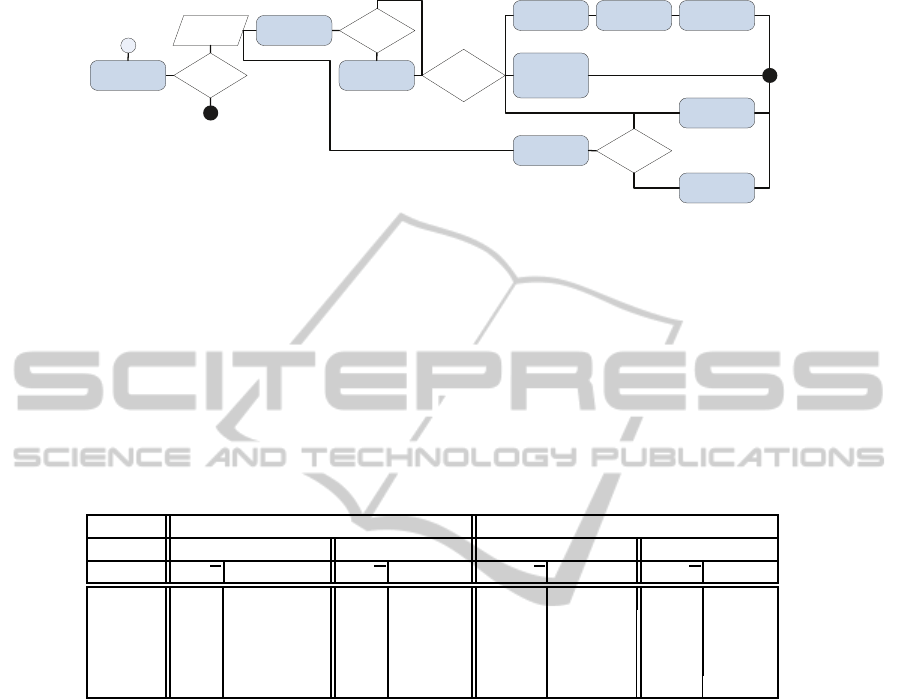

Service Grouping and Composition Performance. For testing purposes, the e-shop

mashup in Figure 6 was designed, consisting of 6 levels, breadth of maximum 3 ser-

vices, and 10 different available service nodes multiplied by 5 semantically equivalent

services per node. The composition time of the Workﬂow Reasoner was evaluated for

growing number of equivalent services with or without service grouping. The results

are presented in Table 1 including the time needed to load (and group) the services in

'HOLYHU\

3D\PHQW

2Q'HOLYHU\

:HE6KRS

&DWDORJXH

2UGHU

'HOLYHU\7R

3UR[\

3D\PHQW

'RZQORDG

'HOLYHU\

3LFN8S

)RU(DFK

SURGXFW

3UR[\

3D\PHQW

&KRLFH

GHOLYHU\

PHWKRG

(1'

3DLGDQG

'HOLYHUHG

(1'

1RWKLQJERXJKW

&KHFN

6WRFN

,)QR

SURGXFWV

7KHQ

(OVH

7KHQ

(OVH

,) SURGXFW

LQVWRFN

7KHQ

,)GLJLWDO

SURGXFW

(OVH

67$57

8VHUEURZVHV

WRZHEVKRS

Fig.6. Constructed e-shop workﬂow with the use of control constructs.

the repository. During the loading of the ﬁrst service description, several other ontolo-

gies need to be loaded like the OWL-S Proﬁle, Process, and Grounding ontologies, the

speciﬁc use case E-Shop ontology, the SWRL rules ontologies. Once this is done, the

only lost time is during the semantic matching of the service interfaces in order to group

the equivalent services. Therefore while the difference between service loading with or

without grouping grows up to a second, the composition time without grouping grows

exponentially as all available services are considered for the workﬂow construction.

With grouping only the groups of equivalent services are considered.

Table 1. Comparison of the e-shop composition time with or without service grouping.

Service loading (ms) Composition time (ms)

Without Grouping With Grouping Without Grouping With Grouping

# Services x σ x σ x σ x σ

1 739 15 818 36 9064 49 8921 283

2 1122 89 1470 80 25238 514 9152 185

3 1452 49 2253 61 49563 624 9341 128

4 1875 118 3077 74 94362 1432 9656 249

5 2127 57 3928 31 151691 3271 10269 105

4.3 Runtime Adaptation of the E-Shop Workﬂow.

This section details the runtime behaviour of the framework as described in Section 3.4

for the e-shop workﬂow.

Business Logic Rules. In order to execute the e-shop workﬂow, the e-shop manager

needs to deﬁne business logic rules expressing which ’Payment’ and ’Delivery’ method

should be chosen or the customer should choose from the offered possibilities. On one

hand the design time conﬁguration by the e-shop manager deﬁnes the workﬂow perma-

nently. On the other hand the choice made by the customer during invocation requires

at-runtime adaptation. Once this choice is made, the reasoning process automatically

conﬁgures the workﬂow through the removal of the decision point and the selection

of only one ’Payment’ and ’Delivery’ path. For example if one deﬁnes ’Payment fol-

lowed by Delivery’ all the other options such as ’Payment on Delivery’ and ’Delivery

to Proxy’ are discarded from the workﬂow.

Iterative Pruning. The e-shop workﬂow is further pruned through the execution of

the effectless services. Depending on their output, further decisions are made, reducing

the execution paths. For example, by executing the ’WebShopCatalogue’ service, the

Workﬂow Reasoner decides whether there are any selected products and if they are dig-

ital or physical. Then, the ’CheckStock’ service veriﬁes whether the physical products

if any are in stock. This way the ’Download’ or ’Delivery’ and/or ’Order’ services are

automatically removed.

Failure Recovery. During the e-shop execution state information is recorded in case of

a resource or service failure. For instance simultaneously to the execution of the prod-

uct ’Payment’, the ’Order’ service fails. The Service Mapper will select an

equivalent

ordering

service instance

replacing the failed one. Afterwards the Execution Engine

will avoid a repeated ’Payment’ execution. On the other hand, if no equivalent ordering

service instance is found, the Workﬂow Reasoner will reconﬁgure the original mashup

constructing an alternative solution for the product ordering, treating the ’Payment’ re-

quirements as already met and thus as part of the initial state.

5 Related Work

Today a number of popular workﬂow standards and implementations [10], such as

BPMN, BPEL4WS, XLANG, WSFL, still exhibit several shortcomings: no automatic

or dynamic deployment support, limited reliability guarantees.

In [11] a predeﬁned OWL-S workﬂow is ﬁrst translated in SHOP2 syntax and then

HTN planning is executed. SHOP2 does not support an output concept and OWL-S’s

’Split’ and ’Split+Join’ control constructs so the system does not handle concurrency.

OWLS-Xplan [12] constructs a service sequence, as opposed to a mashup graph, us-

ing an ontological deﬁnition of the initial and the requested goal state. However, be-

fore planning, the OWL-S 1.1 service descriptions are ﬁrst converted to corresponding

PDDL 2.1 (Planning Domain Deﬁnition Language) descriptions which could raise per-

formance issues. The PDDL planner is in turn a linear STRIPS planner extended with

HTN planning.

Several research projects some of which within the European Union Sixth and Sev-

enth Framework Programme aim at creating platforms supporting the creation, man-

agement and execution of service mashups. Reservoir [13] combines virtualization and

grid computing creating distributed service-oriented infrastructures. Platforms like IN-

FRAWEBS [14] and Amigo [15] propose approaches, in which the process of ﬁnd-

ing appropriate services is guided by algorithms for decomposition of user goals into

sub-goals and discovering the existing services able to satisfy these sub-goals without

further planning. MashWeb [16] and SOA4All [17] focus on the creation of data ﬂows

controlling the output-input ﬂows and workﬂows controlling the execution sequence of

the services.

The presented framework in this article constructs service mashups starting from

initial and goal state through matching of service effects to required preconditions.Plan-

ning is immediately performed in OWL-S, adopting the richness of the OWL-S control

constructs such as ’Split+Join’, ’IfThenElse’, ’ForEach’, ’Choice’. The framework is

designed in a way that different Workﬂow Reasoners, QoS-aware Service Mappers and

Execution Engines are easily plugged in just by extending the respective interfaces. Late

binding is used to select the services offering the desired QoS for execution. Several

(partial) iterations of mashup conﬁguration and execution are possible as intermediary

results are used as feedback to further tune the service mashup at design and runtime.

The use of business logic rules deﬁned by the user enables further tuning and personal-

ization of his requests.

6 Conclusions and Future Work

This paper focuses on the design of a framework for the automated management of

new applications through dynamic composition and execution of the building blocks

of service mashups. Based on semantic descriptions of Web services, reasoning algo-

rithms are developed for automatically composing new service mashups realizing de-

ﬁned goals. These algorithms deﬁne a planning system using control constructs based

on the quality of the match between the semantic services. QoS constraints and re-

quirements are satisﬁed through late binding to speciﬁc service instances. The system

responds dynamically at runtime to changing context such as new business logic, new

services, failure or overload of network elements or services. An e-shop case is im-

plemented evaluating the proposed framework and illustrating the workﬂow execution

optimizations.

In the future the planning and execution framework will be extended with a dis-

tributed deployment component which will execute the different service instances mak-

ing optimal use of the available resources. Furthermore, techniques will be studied to

take into account trends in user and resource behavior, in order to optimally design

context-aware service mashups.

Acknowledgements

This work is partly funded by WTEPlus, an IBBT GBO project on the deﬁnition of an

open architecture that allows the creation, sharing and composition of service mashups,

seamlessly combining functionality found on the Web, the enterprise or within the

’walled garden’ of the telecom operator.

References

1. Papazoglou, M. P., Traverso, P., Dustdar, S., Leymann, F.: Service-Oriented Computing:

State of the Art and Research Challenges, IEEE Computer Society, vol. 40(11), pp. 38–45,

(2007).

2. Berners-Lee, L. , Hendler, J. , Lassila, O. : The Semantic Web: A New Form Of Web Content

That Is Meaningful To Computers Will Unleash A Revolution Of New Possibilities, Journal

of the Scientiﬁc American, vol. 284(5), pp. 34–43, (2001).

3. OWL-S, http://www.w3.org/Submission/OWL-S/ [Online].

4. Hristoskova, A., Volckaert, B., De Turck, F., Dhoedt, B.: Design of a Framework for Au-

tomated Service Mashup Creation and Execution Based on Semantic Reasoning, 2010 The

Fifth International Conference on Internet and Web Applications and Services (ICIW 2010),

pp. 149–154.

5. Avellino, G., Boniface, M., Cantalupo, B., Ferris, J., Matskanis, N., Mitchell, B., Surridge,

M.: A Dynamic Orchestration Model for Future Internet Applications, ServiceWave 2008,

LNCS, vol. 5377, pp. 266–274, Springer, Heidelberg (2008).

6. Klusch, M., Fries, B., Sycara, K.: Automated Semantic Web Service Discovery with OWLS-

MX, In Proceedings of 5th International Conference on Autonomous Agents and Multi-

Agent Systems, AAMAS 2006.

7. SWRL, http://www.w3.org/Submission/SWRL/ [Online].

8. Nau, D., Au, T., Ilghami, O., Kuter, U.,. Murdock, J, Wu, D., Yaman, F.: SHOP2: An HTN

planning system, Journal of artiﬁcial intelligence research, vol. 20(1), pp. 379–404, (2003).

9. Hristoskova, A., Volckaert, B., De Turck, F.: Dynamic Composition of Semantically An-

notated Web Services through QoS-Aware HTN Planning Algorithms, Proceedings of the

Fourth International Conference on Internet and Web Applications and Services (ICIW

2009), pp. 377–382.

10. Van der Aalst, W. M. P., Dumas, M., ter Hofstede, A. H. M.: Web service composition lan-

guages: Old wine in new bottles, Proceeding of the 29th EUROMICRO Conference: New

Waves in System Architecture, pp. 298–305, (2003).

11. Sirin, E., Parsia, B., Wu, D., Hendler, J., Nau, D.: HTN planning for web service composition

using SHOP2, Journal of Web Semantics, vol. 1(4), pp. 377–396, (2004).

12. Klusch, M., Gerber, A., Schmidt, M.: Semantic Web Service Composition Planning with

OWLS-Xplan, Proceedings of the First International AAAI Fall Symposium on Agents and

the Semantic Web, (2005).

13. Rochwerger, B., Breitgand, D., Levy, E., Galis, A., Nagin, K., Llorente, I., Montero, R.,

Wolfsthal, Y., Elmroth, E., Caceres, J., others: The RESERVOIR Model And Architecture

for Open Federated Cloud Computing, IBM Systems Journal, vol. 53(4), (2009).

14. Agre, G., Marinova, Z.: An INFRAWEBS Approach to Dynamic Composition of Semantic

Web Services, Cybernetics and Information Technologies, vol. 7(1), pp. 45–61, (2007).

15. Valle, M., Ramparany, F., Vercouter, L.: Dynamic service composition in ambient intelli-

gence environments: a multi-agent approach, Proceeding of the First European Young Re-

searcher Workshop on Service-Oriented Computing, (2005).

16. Pfeffer, H.: A Underlay System for Enhancing Dynamicity within Web Mashups, Interna-

tional Journal On Advances in Software, vol. 2(1), pp. 63-75, (2009).

17. Lecue, F., Delteil, A., Leger, A.: Towards a Semantic State Transition System for Automated

Generation of Data Flow in Web Service Composition, In International Journal of Semantic

Computing (IJSC), vol. 3(4), pp. 499–526, (2009).
