ENHANCING XML-CACHE EFFICIENCY

BY XML COMPRESSION

Stefan Böttcher, Lars Fernhomberg and Rita Hartel

Univeristy of Paderborn, Computer Science, Fürstenallee 11, 33102 Paderborn, Germany

Keywords: XML databases, Caching, Compression.

Abstract: Whenever a client with limited resources frequently has to retrieve large parts of a huge XML document

that is stored on a remote web server, data exchange from the server to the client in combination with re-

stricted bandwidth may become a serious bottleneck. We present an approach that combines the advantages

of caching with the advantages of query-capable and updatable XML compression. We provide a perfor-

mance evaluation that demonstrates that the combination of the two techniques – caching and compression –

yields a benefit in terms of less data volume to be transferred as well as in terms of a reduced answer time

for the user. The performance evaluation demonstrates that combining both technique yields an even strong-

er benefit than each technique alone.

1 INTRODUCTION

1.1 Motivation

In the last years, more and more standards for data

exchange have evolved that are based on the flexible

hierarchical data format XML. Examples for such

data formats are SEPA (Single European Payment

Area) for the financial sector or OTA (OpenTravel

Alliance) for the flight sector.

Whereas previously, the clients that participated

in internet-based applications got stronger resources,

now a reverse development can be observed. More

and more small mobile devices (like e.g. PDAs and

smartphones) that come with restricted internal re-

sources and restricted connection bandwidth partici-

pate in web applications.

Therefore, we consider scenarios, in which client

applications need to access huge XML documents

that are provided on remote web servers, and where

the data transfer volume or the data transfer time

from the server to the client is a bottleneck.

To overcome this bottleneck, there exist two dif-

ferent technologies: caching previously downloaded

data on the one hand and compressing transferred

data on the other hand.

A seamless integration of both techniques on the

client side is a challenging task as compression

combines similar structured data whereas caching

isolates data in the cache.

Our approach combines both techniques as fol-

lows: we compress the data on the web server and

process and transfer them in the compressed format

to the client. On the client side, the data is then

cached in compressed format, such that it can be

used for answering not only identical but also simi-

lar queries without access to the web server.

1.2 Contributions

This paper proposes an approach for integrating

caching and compression in order to reduce data

transfer volume and time and that combines the

following properties:

- It compresses the structure and the constant data

of the XML document on server side.

- It transfers the data in a compressed way to the

client and thereby saves transfer volume and transfer

time.

- It transfers to the client only that part of the data

that is needed to answer the user query and that is

not yet stored within the compressed cached client

data.

- The compression technique used for compressing

the data can be exchanged. Our approach contains a

generic caching framework for compressed data that

generalizes the tasks that are common to all com-

pression techniques to be used, such that only a

simple interface has to be implemented by each

Böttcher S., Fernhomberg L. and Hartel R..

ENHANCING XML-CACHE EFFICIENCY BY XML COMPRESSION .

DOI: 10.5220/0003354300800087

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 80-87

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

concrete compression technique before it can be

used.

- We provide a technique for integrating com-

pressed fragments on the client side into a single

compressed fragment without total decompression of

the cached fragments.

We have implemented our system with two different

compression techniques and comparatively evalu-

ated our system with querying uncompressed data

that is not kept in the cache, querying uncompressed,

cached data, and querying compressed data that is

not kept in the cache. Our results show that the com-

bination of caching and compression outperforms all

the other techniques in terms of transfer volume and

in terms of total query evaluation time considering

data rates of up to that of UMTS.

1.3 Problem Description

The problem investigated in this paper is how to

improve caching of answers to XPath queries in

client-server web information systems in the follow-

ing aspects: first, the overall data exchange volume

between the web information source and the client

shall be reduced, and second, the time needed by the

client to get the results of a query from a remote

server shall be reduced.

We follow the principle of compensation queries

(Mandhani & Suciu, 2005), i.e., we calculate com-

pensation queries from a given new query and old

queries, the results of which are already contained in

the cache. A compensation query of a query Q is a

query Q’ that, applied to the view V of the database

that is represented by the cache, calculates the same

query results as Q applied to the data on the server.

However, beyond the approach of (Mandhani &

Suciu, 2005), we consider a much broader subset of

XPath including the search or navigation along all

the XML forward axes. Thereby, our approach to

caching supports a significantly wider field of web

applications.

In the current approach, we do not consider, how

to handle updates of server data of which a copy is

stored in the client cache, but we expect that our

current concept does not prevent outdated caches to

be managed.

1.4 Paper Organization

This paper is organized as follows: In Section 2, we

explain the key ideas of the general solution, includ-

ing the compression techniques implemented in our

caching framework and the mechanisms used for

performing query evaluation on the compressed

XML representations. Section 3 describes our per-

formance evaluation and the evaluation results.

Section 4 describes related work, and Section 5

contains a summary and the conclusions.

2 THE CONCEPT

2.1 The Basic Idea

Our framework for caching compressed XML data

consists of a server and a client. The main idea of

our caching approach is that the server only sends

that data that is needed by the client to answer the

query and that is not already contained in the client’s

cache. The data is transferred to the client and stored

on the client in a compressed format. A second re-

quirement is that the server is stateless, i.e., that it

does not store the current state of the client’s caches,

as this would lead to a too large storage overhead on

the server side.

In order to transfer only new data that has not yet

been cached, the server has to find out whether or

not a query requires to access data not already stored

in the client’s cache. Therefore, the server contains

the compressed XML document and a query cache,

where itself stores results to previously answered

queries. When the server receives a query from any

client, it assigns an ID to the query (either a new

one, or it looks up the ID of the query if it was ans-

wered for another client before) and sends the ID of

the query together with the answers to the client. As

the server is stateless, i.e., it does not maintain any

state information on its clients, the client sends in

addition to the query to be answered a list of query

IDs that describe the queries already stored in its

cache. With the help of the query IDs and the global

server query cache, the server then can reconstruct

the content of the client’s cache. Finally, the server

computes the result R of the client’s query and trans-

fers the difference between the result R and the

client’s cache’s content, i.e., only these nodes of the

result that were not already contained in the cache,

to the client. In addition, the server stores the client’s

query, the ID assigned to the query and the result R

in its query cache.

When the client receives the answer to its query,

it integrates the compressed XML fragments into its

cache. It then can be sure, that applying its query to

its cache will yield the same result as applying this

query to the server document.

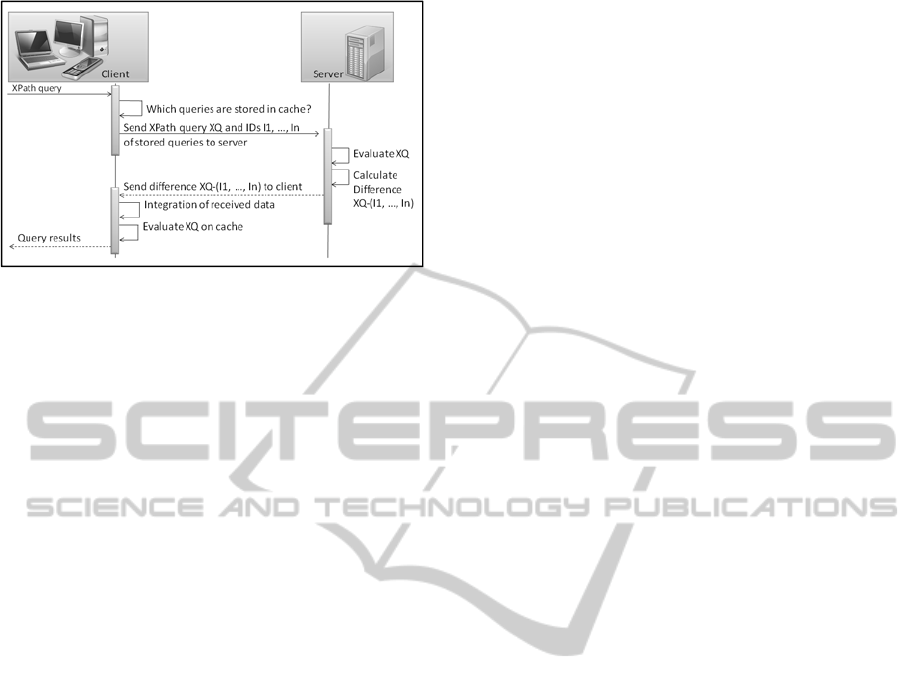

Figure 1 shows the application flow of the ap-

proach presented in this paper.

ENHANCING XML-CACHE EFFICIENCY BY XML COMPRESSION

Figure 1: Application flow of our caching approach.

In order to integrate the transferred data, we use

the updateable XML numbering scheme ORDPATH

(O'Neil, O'Neil, Pal, Cseri, Schaller, & Westbury,

2004) that allows for two nodes specified by their

ORDPATH ID to determine, in which XML axis

relation they are to each other, e.g., whether node A

is a following-sibling or a descendant of node B.

Depending on the concrete requirements, other XML

numbering schemes like DLN (Böhme & Rahm,

2004), or DDE (Xu, Ling, Wu, & Bao, 2009) could

be chosen.

2.2 XML Compression

Our caching approach is designed in such a way that

it can work with different XML compression tech-

niques. The requirements to these techniques are that

query evaluation and updates are possible on the

compressed data directly, i.e., without a prior de-

compression.

Tasks that are common for all compressed repre-

sentations of the XML document are isolated into a

generic part. Therefore, the compression techniques

being used for managing the client’s cache do only

have to implement a simple interface covering func-

tions like basic navigation via first-child, next-

sibling, and parent, as well as basic update functio-

nalities in order to integrate the new results into the

cache. Furthermore, the compression technique

being used at the server-side additionally has to

support computing the difference of two compressed

node lists (with node unique node IDs).

Currently, we have implemented two different

compression techniques within our caching frame-

work: Succinct compression and DAG compression.

2.2.1 Succinct XML Compression

Succinct XML compression is an XML compressor

that separates the XML constants from the XML

element names and the attribute names and from the

nesting of start tags and end tags, i.e. the compressed

document structure of an XML document consists of

the following parts:

1. A bit stream representing the tree structure of the

element nesting in the XML tree, without storing

any label information. In the bit stream, each start-

tag is represented by a ‘1’-bit and each end-tag is

represented by a ‘0’-bit.

2. Inverted element lists, containing a mapping of

element and attribute names to ‘1’-bit positions

within the bit stream.

3. Constant lists containing the text values and

attribute values

Succinct compression can handle unbounded input

streams and huge files and it allows query evaluation

and updates directly on the compressed data.

A variant of succinct compression has been pre-

sented in (Böttcher, Hartel, & Heinzemann,

Compressing XML Data Streams with DAG+BSBC,

2008).

2.2.2 DAG-based XML Compression

A variant of DAG-based XML compression has

been presented in (Buneman, Grohe, & Koch, 2003).

The constant data – i.e., text nodes and attribute

values – are separated from the XML structure – i.e.,

element and attribute nodes – and compressed sepa-

rately. Constant data is grouped according to their

parent element name and each group of constant

data is compressed via gzip.

DAG-based XML compression follows the con-

cept of sharing repeated sub-trees in the XML struc-

ture. Whenever a sub-tree occurs more than once

within the document tree structure, all but the first

occurrence are removed from the document tree and

are replaced by a pointer to the first occurrence.

The minimal DAG of an XML document tree

structure can be calculated by a single pre-order pass

through the document tree (e.g., by reading a linear

SAX stream) with the help of a hash table, where all

first occurrences of a sub-tree are stored.

As the DAG is stored in form of DAG nodes,

where each node contains an address, the node label

and pointers to its first-child and its next-sibling, the

DAG compression allows for a very efficient basic

navigation (similar to a DOM representation). In

contrast, it does not reach as strong compression

ratios as e.g. Succinct compression.

Besides query evaluation directly on the com-

pressed data, DAG-based XML compression allows

compressing unbounded and huge XML files as well

as updating the compressed data directly.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

2.3 Query Evaluation

The client and the server use an XPath evaluator

based on a reduced instruction set that has to be

provided by each compression technique. In order to

simplify the presentation, we assume a simplified

data model of an XML tree, where all nodes – no

matter whether they are element, attribute or text

nodes – are valid answers to the basic axes fc and ns:

- fc: Returns the first-child of the current context

node ccn

- ns: Returns the next-sibling of the current con-

text node ccn

- label: Returns the label of the current context

node ccn if ccn is an element, the attribute name if

ccn represents an attribute, the text value if ccn

represents a text node, or an attribute value, if ccn

represents an attribute value.

- parent: Returns the parent of the current context

node ccn.

- node type: Returns the node type (i.e., either

element, attribute or text node) of the current context

node

We then use a technique like e.g. the one presented

in (Böttcher & Steinmetz, Evaluating XPath Queries

on XML Data Streams, 2007) to evaluate XPath path

queries on the compressed XML representation

providing the reduced instruction set. Based on such

a generic XPath evaluation technique, our approach

allows to evaluate XPath queries containing the axes

self, child, descendant, descendant-or-self, follow-

ing-sibling, following, attribute and text as well as

predicate filters with logical expressions containing

comparisons of paths to constants. If additionally the

backward axes ancestor, ancestor-or-self, preceding-

sibling and preceding-sibling are required, this can

be provided by a preprocessing step described in

(Olteanu, Meuss, Furche, & Bry, 2002).

3 EVALUATIONS

3.1 Performance Evaluation

Environment

To evaluate the performance of the idea, a prototype

has been developed and was tested using the XMark

benchmark (Schmidt, Waas, Kersten, Carey,

Manolescu, & Busse, 2002). The prototype uses

Java 6 Update 18 and was optimized for compres-

sion efficiency.

Each benchmark was performed ten times to ac-

count for external effects like operating system in-

fluences. The system used for the benchmarks was

equipped with an AMD Phenom 9950 (Quad Core,

each core runs with 2.6 GHz) and 4 GB main memo-

ry and running Windows 7 (64 Bit). Despite having

a multi core processor, the prototype is single-

threaded and does not use the complete system ca-

pacity.

The benchmarks were performed on different

XML documents, generated with increasing XMark

scale factors, to determine the effect of different

document sizes on the prototype.

Table 1 shows the

XMark scale factors being used and the resulting

XML document size.

The generated documents were queried with a set

of 22 different XPath queries that produce a mix of

cache hits and cache misses. Queries 1-10 are close-

ly related to the “XPath-A” benchmark of XPath-

Mark (Franceschet, 2005) and are modified to over-

come limitations in the used XPath evaluator. Que-

ries 11-22 are selected to give an impression of (par-

tial) cache-hits and cache-misses.

Table 1: Used XMark scale factors.

XMark scale factor XML document size

0.000 ~ 35 kB

0.001 ~ 154 kB

0.002 ~ 275 kB

0.004 ~ 597 kB

0.008 ~ 1.178 kB

0.016 ~ 2.476 kB

0.032 ~ 4.899 kB

0.064 ~ 9.514 kB

3.2 Performance Results

Figure 3 shows the behavior of the prototype for each

measured combination (Uncompressed, DAG or

Succinct storage with or without cache) with grow-

ing document size. When the scale factor doubles,

the transmitted data for each graph also doubles,

meaning that the total amount of transmitted data

scales linearly with the input data.

With an active cache, less data has to be trans-

mitted in all cases. The additional use of compres-

sion techniques reduces the transferred data even

further. Comparing the total data that is transferred

(queries and query results including the compressed

structure and the compressed constants of the XML

representation), the best case scenario (Succinct

compression with active cache) uses only about 16%

of the data volume being used by worst case scena-

rio (no compression and no cache).

The following performance analysis is based on

benchmark results of the XML document that was

ENHANCING XML-CACHE EFFICIENCY BY XML COMPRESSION

generated using a scale factor of 0.064, unless oth-

erwise noted. The results are consistent through all

tested XML documents.

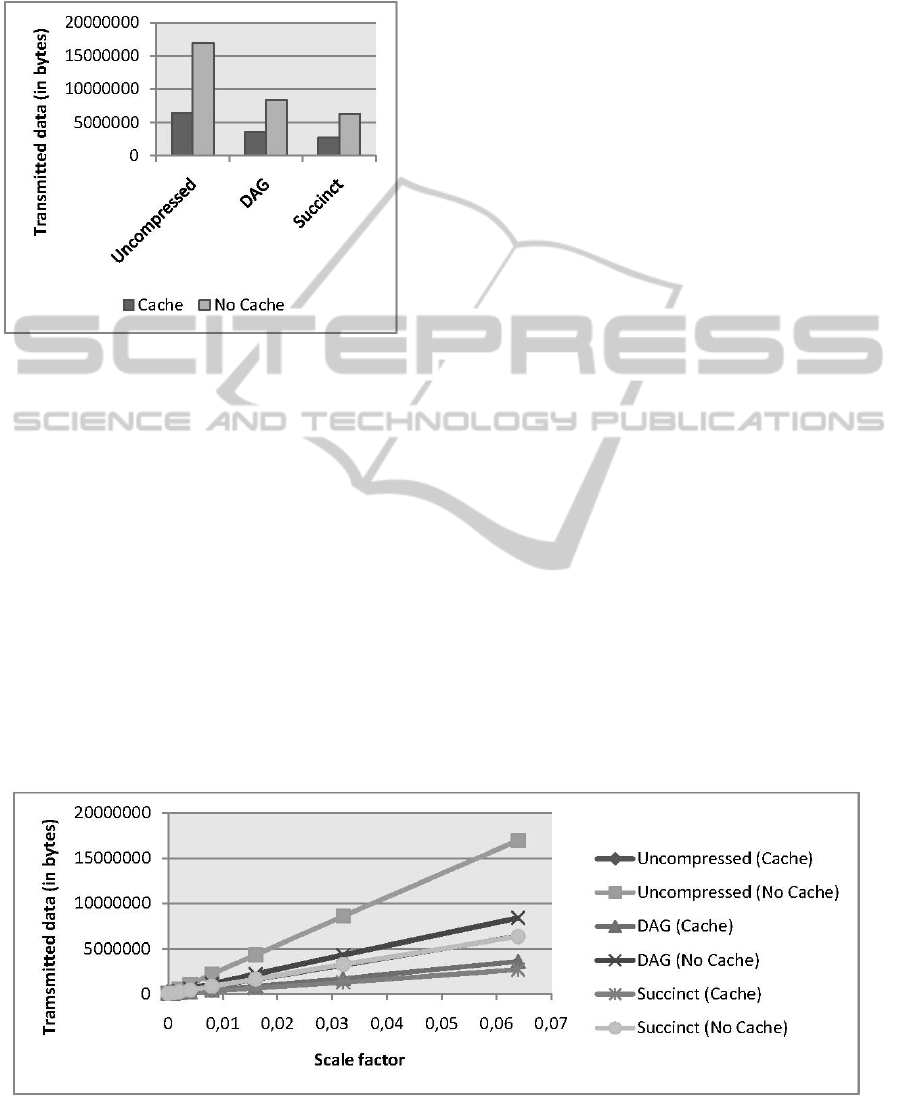

Figure 2: Total transmitted data.

Figure 2 shows an aggregation of the total trans-

mitted data of all 22 queries. The measured value

consists of the data transmitted to the server (query

information) and the result of the server (XML

fragment and numbering information). For each

compression technique, we measured twice with an

activated and with a deactivated cache.

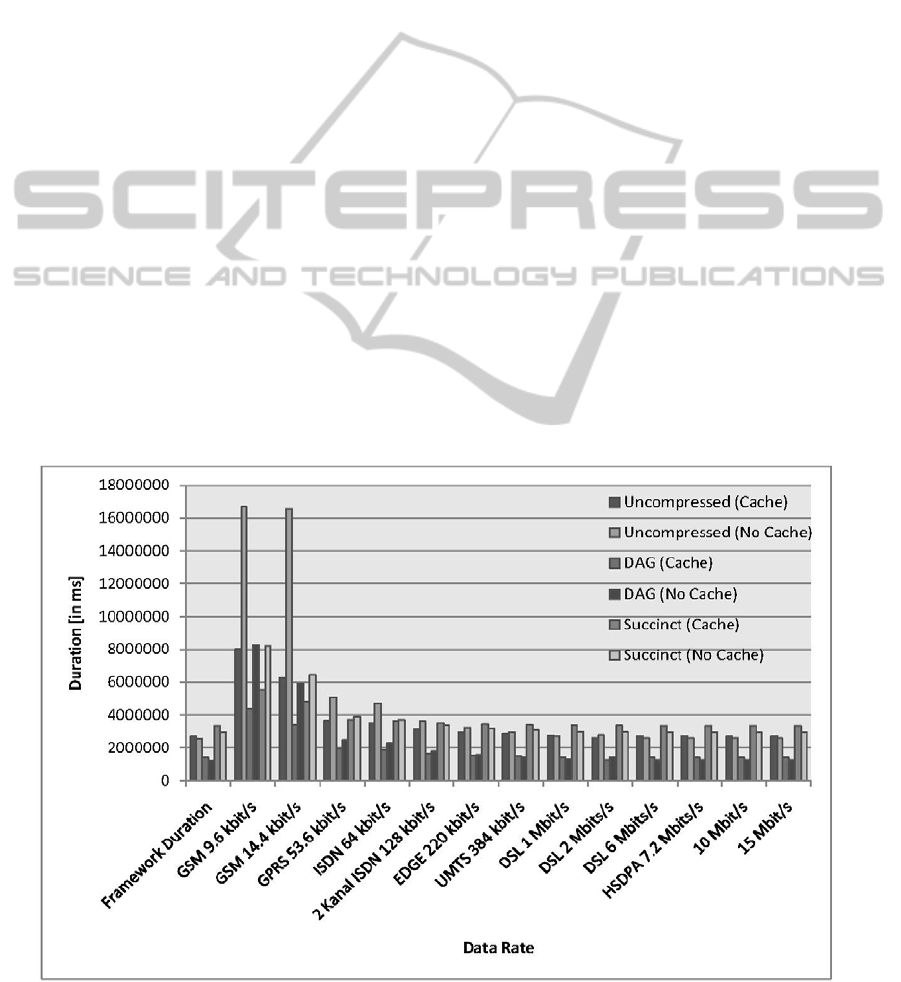

Figure 4 shows the simulation of a real world

scenario, considering different data rates on the

channel between client and server, where the overall

query evaluation time is calculated consisting of

- transferring data from client to server,

- evaluating query on server side,

- transferring data from server to client,

- integrating data into client’s cache, and

- evaluating the query on the client’s cache,

The left-most group of results in

Figure 4:,denoted as

framework duration, is given as a lower bound for

comparison purposes and includes only the time

needed to evaluate the query on the server, to build

the query difference on the server, to integrate the

data into the client’s cache and to evaluate the query

on the client’s cache, i.e. without the time needed to

transfer data from server to client and from client to

server.

Figure 4 shows that using the combination of

caching and succinct compression consumes less

time than using caching or compression alone up to

a channel speed of about 128 kbit/s. Independent of

the available data rate, the combination of caching

and succinct compression transfers less data than

using caching or compression alone. Using the com-

bination of caching and DAG compression delivers

speed improvements of up to 384 kbit/s, in compari-

son to using caching or using compression alone.

Furthermore, in terms of total time, using caching

only for uncompressed data outperforms the imme-

diate query evaluation on the server up to a data rate

of about 2 Mbit/s.

A breakdown of the total duration into each sub-

task (computing XPath result on client and server,

identification of missing nodes on the client, integra-

tion of missing nodes in the client cache and data

transfer from client to server and from server to

client) shows that the XPath evaluation on server

side as well as on the client side consumes the great-

est part of the time. Depending on the compression

algorithm, the client-side data integration can also

lead to noticeable runtimes, because it may require

renumbering or rearranging of existing data struc-

tures. The runtimes of all other operations are com-

paratively small and do not contribute much to the

total runtime.

Figure 3: Total aggregated sent data for growing documents.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

3.3 Evaluation Summary

Our evaluation has compared transferred data vo-

lume and evaluation time being used in different

combinations of caching and different compression

techniques in comparison to caching and compres-

sion alone and in comparison to the immediate query

evaluation on server site. Our evaluation has shown

that using the combination of caching and compres-

sion not only reduces the data volume that is trans-

ferred from client to server and from server to client,

but especially for data rates up to the data rate of

UMTS reduces the total time that is needed to an-

swer the query.

Clients with a limited bandwidth connection to

the server will benefit from using the compressed

XML cache as it is presented in this paper, whereas

clients that are connected to the server via a high-

speed connection might deactivate the cache and

might request the query results from the server di-

rectly.

Our evaluation was using an unlimited cache size

on the client side, thereby ignoring the following

further advantage of the combination of compression

and caching.

As the compressed data is significantly smaller

than the non-compressed data, a cache of a fixed

size can hold more XML data fragments in com-

pressed format than in non-compressed format.

Therefore, for limited cache size, we expect that

the number of cache misses is significantly smaller

for the combination of caching and XML compres-

sion than for caching only. In other words, if the

cache size is limited, this leads to even stronger

benefits of the combination of caching and XML

compression over caching only.

4 RELATED WORK

Although both, web data caching and XML com-

pression, contribute to a reduction of the data trans-

fer from server to client, the fields of web data cach-

ing and XML compression have mostly been inves-

tigated independently of each other.

There has been a lot of work in XML compres-

sion, some of which does not support query

processing on compressed data, e.g. (Liefke &

Suciu, 2000), and most of which support querying

compressed data, but not querying cached com-

pressed data, e.g. (Busatto, Lohrey, & Maneth,

2005), (Cheng & Ng, 2004), (Ng, Lam, Wood, &

Levene, 2006), (Skibinski & Swacha, 2007), (Zhang,

Kacholia, & Özsu, 2004).

Contributions to the field of caching range from

concepts of querying and maintaining incomplete

data, e.g. (Abiteboul, Segoufin, & Vianu, 2001),

over caching strategies for mobile web clients, e.g.

Figure 4: Aggregated total duration (framework duration and simulated transmission duration).

ENHANCING XML-CACHE EFFICIENCY BY XML COMPRESSION

(Böttcher & Türling, 2004), caching strategies for

distributed caching (Obermeier & Böttcher, 2008),

to caching strategies based on frequently accessed

tree patterns, e.g. (Yang, Lee, & Hsu, 2003). In

comparison, our approach allows for XPath queries

using filters and comparisons with constants even on

compressed cached XML.

Different approaches have been suggested for

checking whether an XML cache can be used for

answering an XPath query. On the one hand, there

are contributions, e.g. (Balmin, Özcan, Beyer,

Cochrane, & Pirahesh, 2004), (Mandhani & Suciu,

2005), (Xu & Özsoyoglu, 2005), that propose to

compute a compensation query. These approaches

can also be used on compressed XML data, but they

are NP-hard already for very small sub-classes of

XPath. On the other hand, containment tests and

intersection tests for tree pattern queries have been

proposed, and could in principle be used for decid-

ing whether a given XPath query can be executed on

the cached data locally. However, such intersection

tests and containment tests are NP-hard for rather

small subsets of XPath expressions (Benedikt,

Wenfei, & Geerts, 2005), (Hidders, 2003). In com-

parison, our approach uses a fast difference compu-

tation that can be done within a single scan through

the compressed XML file.

In contrast to (Böttcher & Hartel, CSC:

Supporting Queries on Compressed Cached XML,

2009), where the whole compressed structure was

loaded into the cache and only the text values

needed to answer the query was requested from the

server, our approach stores only that part of the

structure in its cache that was delivered from the

server in order to answer previous queries.

In comparison to all other approaches, our tech-

nique is to the best of our knowledge the only strate-

gy that combines the following advantages: it caches

compressed documents – whereas the compression

technique can be exchanged – and thereby reduces

data transfer volume and data transfer time in com-

parison to caching non-compressed XML data and in

comparison to transferring non-compressed or com-

pressed XML data without caching the results.

5 SUMMARY

AND CONCLUSIONS

Whenever the data exchange with XML-based in-

formation sources is a bottleneck, it is important to

reduce the amount of exchanged XML data. Our

approach combines two reduction techniques for

exchanged data, i.e. caching and XML compression.

Additionally, we have provided a performance

evaluation that shows that a significant reduction in

data transfer volume and transfer time can be

achieved by our approach in comparison to caching

only or to using only compression.

Altogether, our approach provides the following

advantages:

- It provides a technique to combine caching and

compression in such a way that any unnecessary

decompression of data is avoided. The document is

stored in a compressed format on the server, the

results are transferred in a compressed format from

server to client and all results are stored and inte-

grated in a compressed format in the client’s cache.

- The combination of compression and caching

yields a reduced data transfer volume in contrast to

each technique alone.

- Furthermore, the combination of compression

and caching yields a reduced data transfer time for

data rates up to that of UMTS in contrast to each

technique alone.

We assume it to be an interesting task to combine

our caching framework with other compression

techniques to find a compressions technique that is

most suitable in terms of strong compression capa-

bilities and fast query evaluation such that the bene-

fit in total evaluation time will be highest.

Finally, we assume that our approach will show

even stronger benefits if it is combined with real

world assumptions like a limited cache size.

REFERENCES

Abiteboul, S., Segoufin, L., & Vianu, V. (2001).

Representing and Querying XML with Incomplete

Information. Proceedings of the Twentieth ACM

SIGACT-SIGMOD-SIGART Symposium on Principles

of Database Systems, May 21-23, 2001, Santa

Barbara, California, USA.

Balmin, A., Özcan, F., Beyer, K. S., Cochrane, R., &

Pirahesh, H. (2004). A Framework for Using

Materialized XPath Views in XML Query Processing.

(e)Proceedings of the Thirtieth International

Conference on Very Large Data Bases (pp. 60-71).

Toronto, Canada: Morgan Kaufmann.

Benedikt, M., Wenfei, F., & Geerts, F. (2005). XPath

satisfiability in the presence of DTDs. Proceedings of

the Twenty-fourth ACM SIGACT-SIGMOD-SIGART

(pp. 25-36). Baltimore, Maryland, USA: ACM.

Böhme, T., & Rahm, E. (2004). Supporting Efficient

Streaming and Insertion of XML Data in RDBMS. In

Z. Bellahsene, & P. McBrien (Ed.), DIWeb2004, Third

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

International Workshop on Data Integration over the

Web, (pp. 70-81). Riga, Latvia.

Böttcher, S., & Hartel, R. (2009). CSC: Supporting

Queries on Compressed Cached XML. In A.

Bouguettaya, & X. Lin (Ed.), Database Technologies

2009, Twentieth Australasian Database Conference

(ADC 2009) (pp. 153-160). Wellington, New Zealand:

CRPIT.

Böttcher, S., & Steinmetz, R. (2007). Evaluating XPath

Queries on XML Data Streams. Data Management.

Data, Data Everywhere, 24th British National

Conference on Databases, BNCOD 24 (pp. 101-113).

Glasgow, UK: Springer.

Böttcher, S., & Türling, A. (2004). Caching XML Data on

Mobile Web Clients. Proceedings of the International

Conference on Internet Computing, IC '04 (pp. 150-

156). Las Vegas, Nevada, USA: CSREA Press.

Böttcher, S., Hartel, R., & Heinzemann, C. (2008).

Compressing XML Data Streams with DAG+BSBC.

In J. Cordeiro, S. Hammoudi, & J. Filipe (Ed.), Web

Information Systems and Technologies, 4th

International Conference, WEBIST 2008, Revised

Selected Papers, Lecture Notes in Business

Information Processing (pp. 65-79). Funchal, Madeira,

Portugal: Springer.

Buneman, P., Grohe, M., & Koch, C. (2003). Path Queries

on Compressed XML. Proceedings of 29th

International Conference on Very Large Data Bases

(pp. 141-152). Berlin, Germany: Morgan Kaufmann.

Busatto, G., Lohrey, M., & Maneth, S. (2005). Efficient

Memory Representation of XML Documents.

Database Programming Languages, 10th

International Symposium, DBPL 2005 (pp. 199-216).

Trondheim, Norway: Springer.

Cheng, J., & Ng, W. (2004). XQzip: Querying

Compressed XML Using Structural Indexing.

Advances in Database Technology - EDBT 2004, 9th

International Conference on Extending Database

Technology (pp. 219-236). Heraklion, Crete, Greece:

Springer.

Franceschet, M. (2005). XPathMark: An XPath

Benchmark for the XMark Generated Data. In S.

Bressan, S. Ceri, E. Hunt, Z. G. Ives, Z. Bellahsene,

M. Rys, et al. (Ed.), Database and XML Technologies,

Third International XML Database Symposium, XSym

2005, (pp. 129-143). Trondheim, Norway.

Hidders, J. (2003). Satisfiability of XPath Expressions.

Database Programming Languages, 9th International

Workshop, DBPL 2003 (pp. 21-36). Potsdam,

Germany: Springer.

Liefke, H., & Suciu, D. (2000). XMILL: An Efficient

Compressor for XML Data. Proceedings of the 2000

ACM SIGMOD International Conference on

Management of Data (pp. 153-164). Dallas, Texas,

USA: ACM.

Mandhani, B., & Suciu, D. (2005). Query Caching and

View Selection for XML Databases. In K. Böhm, C.

S. Jensen, L. M. Haas, M. L. Kersten, P.-A. Larson, &

B. C. Ooi (Ed.), Proceedings of the 31st International

Conference on Very Large Data Bases (pp. 469-480).

Trondheim, Norway: ACM.

Ng, W., Lam, W. Y., Wood, P. T., & Levene, M. (2006).

XCQ: A queriable XML compression system. Knowl.

Inf. Syst. , 421-452.

Obermeier, S., & Böttcher, S. (2008). XML fragment

caching for large-scale mobile commerce applications.

Proceedings of the 10th International Conference on

Electronic Commerce, ICEC 2008 (p. 26). Innsbruck,

Austria: ACM.

Olteanu, D., Meuss, H., Furche, T., & Bry, F. (2002).

XPath: Looking Forward. In A. B. Chaudhri, R.

Unland, C. Djeraba, & W. Lindner (Ed.), XML-Based

Data Management and Multimedia Engineering -

EDBT 2002 Workshops, EDBT 2002 Workshops

XMLDM, MDDE, and YRWS (pp. 109-127). Prague,

Czech Republic: Springer.

O'Neil, P. E., O'Neil, E. J., Pal, S., Cseri, I., Schaller, G.,

& Westbury, N. (2004). ORDPATHs: Insert-Friendly

XML Node Labels. In G. Weikum, A. C. König, & S.

Deßloch (Ed.), Proceedings of the ACM SIGMOD

International Conference on Management of Data (pp.

903-908). Paris, France: ACM.

Schmidt, A., Waas, F., Kersten, M. L., Carey, M. J.,

Manolescu, I., & Busse, R. (2002). XMark: A

Benchmark for XML Data Management. VLDB 2002,

Proceedings of 28th International Conference on Very

Large Data Bases, (pp. 974-985). Hong Kong, China.

Skibinski, P., & Swacha, J. (2007). Combining Efficient

XML Compression with Query Processing. Advances

in Databases and Information Systems, 11th East

European Conference, ADBIS 2007 (pp. 330-342).

Varna, Bulgaria: Springer.

Xu, L., Ling, T. W., Wu, H., & Bao, Z. (2009). DDE:

from dewey to a fully dynamic XML labeling scheme.

In U. Cetintemel, S. B. Zdonik, D. Kossmann, & N.

Tatbul (Ed.), Proceedings of the ACM SIGMOD

International Conference on Management of Data,

SIGMOD 2009 (pp. 719-730). Providence, Rhode

Island, USA: ACM.

Xu, W., & Özsoyoglu, Z. M. (2005). Rewriting XPath

Queries Using Materialized Views. Proceedings of the

31st International Conference on Very Large Data

Bases (pp. 121-132). Trondheim, Norway: ACM.

Yang, L. H., Lee, M.-L., & Hsu, W. (2003). Efficient

Mining of XML Query Patterns for Caching.

Proceedings of 29th International Conference on Very

Large Data Bases (pp. 69-80). Berlin, Germany:

Morgan Kaufmann.

Zhang, N., Kacholia, V., & Özsu, M. T. (2004). A

Succinct Physical Storage Scheme for Efficient

Evaluation of Path Queries in XML. Proceedings of

the 20th International Conference on Data

Engineering, ICDE 2004 (pp. 54-65). Boston, MA,

USA: IEEE Computer Society.

ENHANCING XML-CACHE EFFICIENCY BY XML COMPRESSION
