ONLINE ACTIVITY MATCHING USING WIRELESS SENSOR

NODES

Arie Horst and Nirvana Meratnia

Pervasive Systems, University of Twente, Drienerlolaan 5, Enschede, The Netherlands

Keywords:

Activity matching, Body sensor network, Dynamic time warping.

Abstract:

In this paper, we explore the capability of wireless sensor networks to perform online activity matching for

sport coaching applications. The goal is to design an algorithm to match movements of a trainee and a trainer

online and to ﬁnd their spatial and temporal differences. Such an algorithm can aid the trainer to better observe

performance of the trainees in group lessons.

We consider ﬁtness-like movements such as those performed in aerobic. We also limit ourselves to only

having one sensor node on the trainer and one sensor node on the trainee, however our algorithm scales

well to more trainees per trainer. We use Sun SPOT sensor nodes and use the accelerometer and gyroscope

sensors to capture the movements. The gravity vector is extracted and improved with a Kalman ﬁlter using

the accelerometer and gyroscope data. An automatic segmentation technique is developed that examines the

movement data for rest and activity periods and changes in movement direction. The segmentation and the

movement information are communicated with the node of the trainee where the movements are compared.

We choose to use Dynamic Time Warping (DTW) to perform the spatial and temporal matching of movements.

Because DTW is computationally intensive, we develop an optimized technique and provide feedback to the

trainee. We test all the design choices extensively using experiments and perform a system test using different

test methods to validate our approach.

1 INTRODUCTION

A sport coach is a person who instructs and gives

feedback to other individuals on correctness and their

performance. The sport coach is often called a trainer

and the individuals are often called trainees. Such a

construction is very common in almost all sport do-

mains, such as soccer, tennis, swimming, ﬁtness, etc.

In some of these domains the trainer has to instruct

a group on how to perform a movement. Especially

with large groups it becomes very difﬁcult for the

trainer to keep track of all the trainees and provide

feedback to them. We try to address this problem by

developing a system that assists the trainer with pro-

viding feedback to the trainees about correctness of

their performance using a wireless sensor network.

A wireless sensor network (WSN) is a network

of sensory devices that are wirelessly interconnected

through a radio communication link. All these de-

vices, also refered to as nodes, have some sort of pro-

cessing unit to which sensors are attached and make

perception of some physical quantity possible. Body

sensor networks (BSN) are a special type of WSN in

that they are mostly wireless but do not necessarily

need to realize this via a radio link. BSNs are com-

prised of nodes attached to a body and communicate

with each other either via radio link, the host body or

wires (Lo et al., 2005)(Jones et al., 2008).

Activity recognition is a ﬁeld of research that in-

vestigates how to accurately detect different activities

a person performs. Examples includes recognizing

activities such as walking, sitting, standing, cooking

and eating(van Kasteren and Krose, 2007)(Tran and

Sorokin, 2008), recognizing gestures from video or

motion sensor data (Whitehead and Fox, 2009)(Yin

and Xie, 2007), or recognizing interaction between

one or more persons or objects (Patterson et al.,

2005)(Wu et al., 2007). The latter is also known as

interaction detection.

Our work examines the use of BSNs to accom-

plish the task of ﬁnding spatial and temporal differ-

ences of human body motion between two persons

using inertial sensors in an online and decentralized

manner.

The remainder of this paper is organized as fol-

lows: First related work is discussed in section 2 after

which a detailed description of the system architec-

ture is given in section 3. The components of the ar-

Horst A. and Meratnia N..

ONLINE ACTIVITY MATCHING USING WIRELESS SENSOR NODES.

DOI: 10.5220/0003361100220031

In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2011), pages 22-31

ISBN: 978-989-8425-48-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

chitecture are described in more detail in section 4 to

6. Finally the evaluation and conclusion sections con-

clude this paper.

2 RELATED WORK

Activity recognition is a vast research domain that in-

tersects with the domains of image processing, audio

processing and motion sensor data processing.

A method for detection and classiﬁcation of inter-

action between two persons is presented in the work

of Ruzena Bajcsy et al. (Bajcsy et al., 2009). The goal

of the system is to detect if a classiﬁed movement de-

viates from the normal case. To detect these situations

a classiﬁcation is made by selecting a feature which

has ”minimum distance” to the feature that is tested.

A similar method is used by Davrondzhon Gafurov

et al. (Gafurov and Snekkenes, 2009) for gait recog-

nition using wearable motion sensors. Sensors are

placed on foot, hip, pocket and arm. The Euclidean

distance of the feature vectors and a template is then

compared with a speciﬁed threshold. Distance mea-

sures as used by Ruzena Bajcsy et al. (Bajcsy et al.,

2009) and Davrondzhon Gafurov et al. (Gafurov and

Snekkenes, 2009) are simple and generaly cheap in

terms of computation. The main disadvantage of the

method used by the authors is that it is not possible to

detect timing related information.

Yuji Ohgi (OHGI, 2006) uses dynamic time warp-

ing (DTW) to analyse the motion of a swimmer’s arm

stroke and the swing of a golf club in an ofﬂine man-

ner on a PC. DTW is a method for ﬁnding similarity

in two timeseries that are not necessarily of the same

length and speed and is mostly used in speech recog-

nition. DTW can use any distance meaure to detect

the similarity of two data sets. Furthermore, the two

data sets do not need to be aligned. A disadvantage of

DTW is that it is computationaly intensive.

Marin-Perianu et al. present a lightweight, inex-

pensive and fast incremental algorithm for calculating

cross-correlation (Marin-Perianu et al., 2007). Using

this method it is possible to calculate correlation coef-

ﬁcients on small resource constrained devices such as

wireless sensor nodes. To validate the technique, an

implementation is made that detects if two wireless

sensor nodes move together or separately. The cor-

relation function can detect similarity when the sig-

nals are shifted in time, but not when one signal is

stretched. The optimization made by the authors to

the correlation function introduces another disadvan-

tage. Their method requires very accurate synchro-

nization and cannot detect delays.

Jonathan Lester et al. propose a system that de-

tects if two devices are carried by the same person

(Lester et al., 2004). As a measure for similarity the

coherence function is used which is a measure of sim-

ilarity of two signals in the frequency domain. Using

this technique they can successfully detect if two de-

vices are carried by the same person with detection

rates up to 100%, even when the system is fooled by

two persons walking in step. By using frequency do-

main signals, all timing information is lost and there-

fore, detecting delays is not possible. Additionaly,

a time stretched signal will have very different fre-

quency characteristics than the orignal signal.

3 SYSTEM ARCHITECTURE

In this section a top-down explanation of our system

architecture is given. Nodes placed on the trainer

are designed as Master and the nodes placed on the

trainee are designed as Slave. Furthermore, the map-

ping of the master nodes to the slave nodes is one-to-

one. This means that if a master node is placed on

the left wrist, the slave node should also be placed on

the left wrist and exchange of sample data happens

only between these two nodes. This is deﬁned as a

pair of nodes. More than one slave can be connected

to a master but we will not consider this case. Fig-

ure 1 shows an example of two pairs of nodes placed

on the trainer and the trainee. We choose to place the

sensors on the wrist because at the wrist high acceler-

ations can be measured, while the sensor can still be

attached without causing much discomfort.

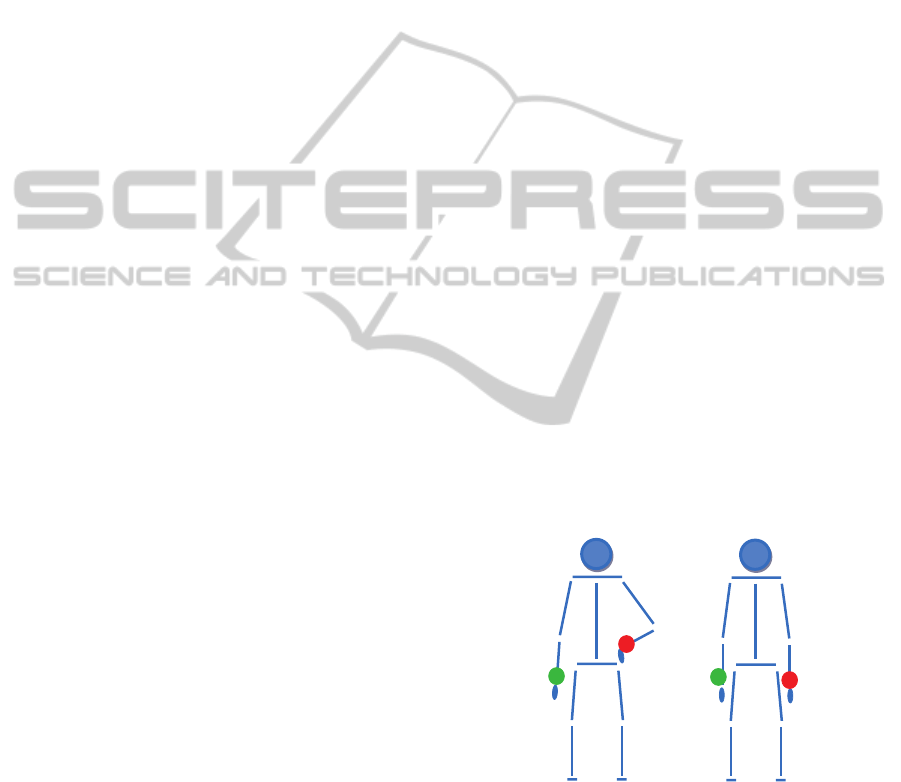

(a) Master (b) Slave

Figure 1: Sensor Placement.

The sensor hardware used are the PY530A gyro-

scope and the build-in LIS3L02AQ accelerometer of

the Sun Spot nodes.

Taking the level one step lower to the software

level the following components are required on the

nodes, of which some are master or slave speciﬁc.

ONLINE ACTIVITY MATCHING USING WIRELESS SENSOR NODES

Sampler

Preprocessing

Segmentation

Communication

(a) Master

Sampler

Preprocessing

Comparing

Communication

Feedback

(b) Slave

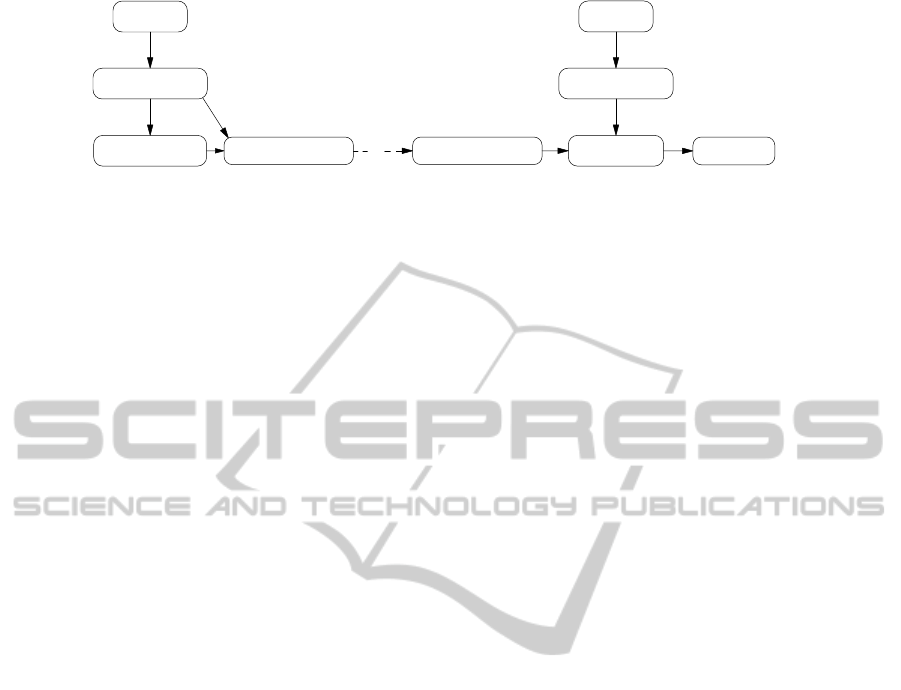

Figure 2: Software components.

The software components of our system architecture

are shown in Figure 2.

Sampling is the process of taking data samples of the

sensors. This component is subject to strict and accu-

rate timing as subsequent processing may fail other-

wise. This component is needed on both master and

slave.

Preprocessing involves conditioning and reﬁning the

sensor data and extracting features from the sensor

data. This is done in the preprocessing component

which will be elaborated in section 4.

Segmentation is used to mark the beginning, change

and end of movements in the sensor data stream.

The segmentation component runs only on the mas-

ter node as the trainer is supposed to do it right. The

methods used to accomplish the segmentation are ex-

plained in section 5.

Communication between the master and the slave

node is done wirelessly using the wireless commu-

nication capability of the sensor node.

Comparing of movement data is done on the slave

nodes. The comparison identiﬁes differences in the

amplitude, direction, and timing of movements. The

algorithm used for this process is further elaborated in

section 6.

Feedback is generated from the result of the compar-

ison of movement data and is sent to the base station.

4 PREPROCESSING

In the preprocessing stage, we ﬁlter out noise and ex-

tract the gravity vector from the accelerometer data.

To cancel out noise, a technique called oversam-

pling (Watkinson, 1993) can be used. Noise tends to

have the highest concentrations near the sampling fre-

quency because aliases of all higher frequency noise

will show up there. By oversampling this noise

is moved away from the measured frequency band.

The highest frequency of movements is emperically

found to be 10Hz. According to the Nyquist theorem

(Proakis and Manolakis, 2006), data should at least

be sampled twice the time of the highest frequency

component present in the measured signal. Therefore

the sampling frequency should at least be 20Hz. Us-

ing oversampling we choose therefore to sample the

sensor data at 40Hz.

The signal acquired from the accelerometer is the

summation of the accelaration caused by gravity and

the acceleration caused by movement of the device.

This is an undersirable effect when comparing the

movement directions, as how big the measured dif-

ference is then depends on the orientation of both de-

vices.

We choose to extract the gravity vector from the

signal of the accelerometer and then subtract this

gravity signal from the accelerometer signal to ob-

tain the movement vector. Having a movement vector

with gravity eliminated allows better comparison of

the movement direction.

A good ﬁrst approximation of the gravity vector

can be made using a low pass ﬁlter, but this approach

may fail when the sum of the imposed acceleration

and the gravity becomes very small. Here a kalman

ﬁlter can help to make a better approximation of the

gravity vector using the turn rates of the gyroscope.

To extract the gravity from the accelerometer data

we choose to apply a low pass ﬁlter. A ﬁnite impluse

response (FIR) ﬁlter is used because of its numeri-

cal stability (Proakis and Manolakis, 2006) and the

fact that it is easy to implement. We have empirically

found that, with regard to our speciﬁc type of consid-

ered movements, a cut-off frequency of 0.8Hz gives

excellent results. The gravity vector from this ﬁlter is

used as a basis and is further improved using a kalman

ﬁlter and the rates of change from the gyroscope.

We choose to use a kalman ﬁlter to improve the

estimation of the gravity vector with gyroscope data.

This has the advantage of adding more speed when

the orientation changes too quickly to be followed by

the low pass ﬁlter. Also, the gravity extracted by the

low pass ﬁlter suffers from overshoot, which will be

damped by the kalman ﬁlter when the gyroscope data

disagrees.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

A kalman ﬁlter needs a model of the system to

make an estimation of the new state of the system.

The goal is to have a very lightweight kalman ﬁlter

with respect to computational requirements. Others

have used kalman ﬁlters like the unscented kalman

ﬁlter in combination with quaternions to estimate ori-

entation of a rigid body (Kraft, 2003) or a classic

kalman ﬁlter with quaternions to estimate angular ve-

locity and position (Yun et al., 2003). Saito H. et al.

(Saito et al., 2009) use in their work a classic kalman

ﬁlter to correct joint angles measured from gyroscope

with inclination measured by an accelerometer.

We choose to use the Euler angles coordinate sys-

tem so that a much smaller and simpler steady state

kalman ﬁlter can be used. The advantage of a steady

state kalman ﬁlter is that it is much more efﬁcient

from a computational demand point of view. The

downside of using the Euler coordinate system is that

it gives singularities at ∼90

◦

. The alternative of a

vector based model would require a rotation matrix

as state transition matrix, which is time dependent. In

that case only an extended kalman ﬁlter can be used to

overcome the nonlinearity of the state transition ma-

trix, which is computationaly too demanding.

5 SEGMENTATION

We have empirically found out that the algorithm

to compare the movements needs speciﬁc periods of

time to evaluate over. More speciﬁcally the best pe-

riods to evaluate are from a beginning to the end of

a movement. To this end an algorithm is needed

that makes a temporal segmentation of the real-time

stream of data, such that each segment will hold at

least one movement. This algorithm will run on the

node of the trainer and will send segmentation events

along with the stream of movement data to the node

of the trainee.

Segmentation techniques can be classiﬁed in man-

ual segmentation (Jafari et al., 2007) and automatic

segmentation (Guenterberg et al., 2007)(Guenterberg

et al., 2009)(Chambers et al., 2004). Manual segmen-

tation can be done ofﬂine by examining the data or

online using for example a pushbutton. Both of them

are regarded as unacceptable as both the trainee and

the trainer should not be concerned with such a task

and ofﬂine segmentation is just not possible as the en-

tire system is to run online in real-time. Guenterberg

et al. (Guenterberg et al., 2007) present an automatic

segmentation technique using windowed standard de-

viation to detect transitions between sitting and stand-

ing states of a human body. Another algorithm also

from Guenterberg et al. uses the signal energy to dis-

tinguish between rest and activity states (Guenterberg

et al., 2009). Chambers et al. (Chambers et al., 2004)

calculate the log likelihood function over a sliding

window. Sharp changes of the likelihood values cor-

respond to change of acceleration value. Others have

used the most simple form of segmentation by using a

sliding window with some overlap (Patel et al., 2009).

All mentioned automatic segmentation techniques

suffer from the problem that stationary signals are de-

tected as rest. As the movements considered in our

scenario can be relatively slow, these methods are not

usable.

Instead we use two separate methods to detect seg-

mentation points. The ﬁrst method detects whether

the node is moving, and the second method detects

changes in movement direction. The results of these

two methods are then combined to generate segmen-

tation events that will be sent to the slave.

The ﬁrst method we use takes the magnitude of the

movement vector and the absolute value of the rates

of change of the gyroscope to detect activity or rest.

Three windowed moving average ﬁlters, one for the

movement magnitude data and two for the gyroscope

data, are used to smoothen the signals. When at least

one of these moving averages becomes higher than

a certain threshold, the node is considered moving.

When all the averages are lower than a certain thresh-

old, the node is considered not moving. A hysteresis

between these two thresholds is applied to prevent os-

cillation of the movement state.

The second method we use detects abrupt changes

in movement direction. This method evaluates the

dot product of the current movement direction with

a number of movements from recent history, as spec-

iﬁed by Equation 1.

f(i,m,n) =

∑

j=m

1−~x

·~x

i− j

m > 0 n > m |~x

|,|~x

i− j

| > 0.2

(1)

The input vector~x must be normalized so that the

dot product produces the cosine of the angle. The re-

sult of the dot product is then inverted such that two

vectors pointing at the same direction produce zero

and two vectors pointing at opposite direction pro-

duce two. This is evaluated and summed for a number

of vectors from recent history starting at i−m till i−n

such that the result is smoother. We have empirically

found that the magnitude of the vectors (unnormal-

ized) should be bigger than 0.2 to prevent noise trig-

gering the algorithm.

We choose to use a threshold to generate a direc-

tion change event that will be used by the fusion al-

gorithm that will fuse the results of the two methods.

ONLINE ACTIVITY MATCHING USING WIRELESS SENSOR NODES

This direction change event is generated only when

Equation 1 becomes higher than a certain threshold.

The two methods are fused using the movement

state and the direction change event. When the state

of movement transits from rest to moving a “Move-

ment Start” segmentation event is generated. A

“Movement Stop” event is generated when the state

of movement transits from moving to rest. When the

movement state is moving, events from the direction

change detection are allowed. In principle both event

types can occur with quick succession. This is pre-

vented by allowing events to occur only when a time-

out has expired since the last event.

6 COMPARING MOVEMENTS

The measurements of the sensors are a representation

of the movements made by the person to which the

sensor node is attached. These measurements are then

transfered from the node of the trainer to the node of

the trainee, where they are compared to ﬁnd differ-

ences in their movements.

There are many methods to accomplish this, such

as the work of Ryan Aylward et al. (Aylward, 2006)

and Martin Wirz et al. (Wirz et al., 2009) who use cor-

relation as a measure of similarity of movements. The

standard correlation function is improved by making

it incremental by Marin-Perianu et al. in (Marin-

Perianu et al., 2007), who also successfully used it

to measure similarity. Another method is used by

Jonathan Lester et al. (Lester et al., 2004) who used

Coherence to measure similarity.

What all these methods have in common is that

they produce poor results when movements are very

similar and differ only in speed. We choose there-

fore the similarity measure used by Yuji Ohgi (OHGI,

2006), in which dynamic time warping (DTW) is used

to assess the performance of swimmers and golfers.

DTW in its classic form as used by Ohgi is however

not suitable to be used in an online and realtime man-

ner.

To overcome this problem we present an opti-

mized version of the classic DTW in terms of com-

putational requirements. Our new technique, fast in-

cremental dynamic time warping (FIDTW), computes

the optimal shortest warping path and can run on low

power and resource constraint devices. Firstly, we

provide some background on DTW with a mathemat-

ical deﬁnition and some notes on related work re-

garding optimization of the conventional DTW algo-

rithm. The remainder of this section will be devoted

to the optimization of the DTW algorithm and we ﬁn-

ish with an evaluation of the choosen algorithm.

6.1 Classic DTW

DTW is a general time alignment and similarity mea-

sure for two temporal sequences and was ﬁrst intro-

duced by Bellman (Bellman, 2003). Suppose we have

the sequences C(i),1 ≤ i ≤ l,C(i) ∈ R and T( j), 1 ≤

i ≤ l,T( j) ∈ R. These are called a class sequence

and a test sequence, respectively. With these two se-

quences an I × J distance table D(i, j) is constructed

with which similarity can be measured. From the dis-

tance table a warping path W is then calculated which

consists of a set of table elements that deﬁnes a map-

ping and an alignment between C(i) and T( j).

W =



w(i(q), j(q))



q = 1,. . . , Q

max(i, j) ≤ Q ≤ I + J − 1



where i(q) ∈ {1, . . . , I} and j(q) ∈ {1, . . . ,J}.

This warping path is restricted by Continuity,

Monotonicity and Endpoint (the path must start at

i(1) = 1, j(1) = 1 and end at i(Q) = I, j(Q) = J). By

summing the local distances over the warping path,

the local distance DTW(C,T) is obtained. One of the

possible choices for ﬁnding the best alignment be-

tween the two sequences is to ﬁnd the warping path

with the minimum DTW distance out of all possible

warping paths. With the following recursive steps, the

optimal warping path can be found and applies local

constraints to the path:

D(i, j) = d(i, j) + min







D(i− 1, j − 1)

D(i, j− 1)

D(i− 1. j)







The recursion is generally initialized as D(1, 1) =

d(1,1) and terminates when i = I and j = J. The time

and space complexity of this approach is O(IJ).

6.2 Fast Incremental Dynamic Time

Warping Algorithm

In this section we explain our optimization made to

the classic DTW algorithm. One should ﬁrst note

that the aim of the optimization is to make it faster in

terms of required computation time and not necessar-

ily make it less resource hungry in terms of required

memory space. Secondly the optimization should pre-

serve all the characteristics of the classic DTW, which

means that:

• The optimal warping distance should be pre-

served.

• The optimal warping path should be preserved.

• The optimal warping path must be able to be re-

constructed afterwards for analysis.

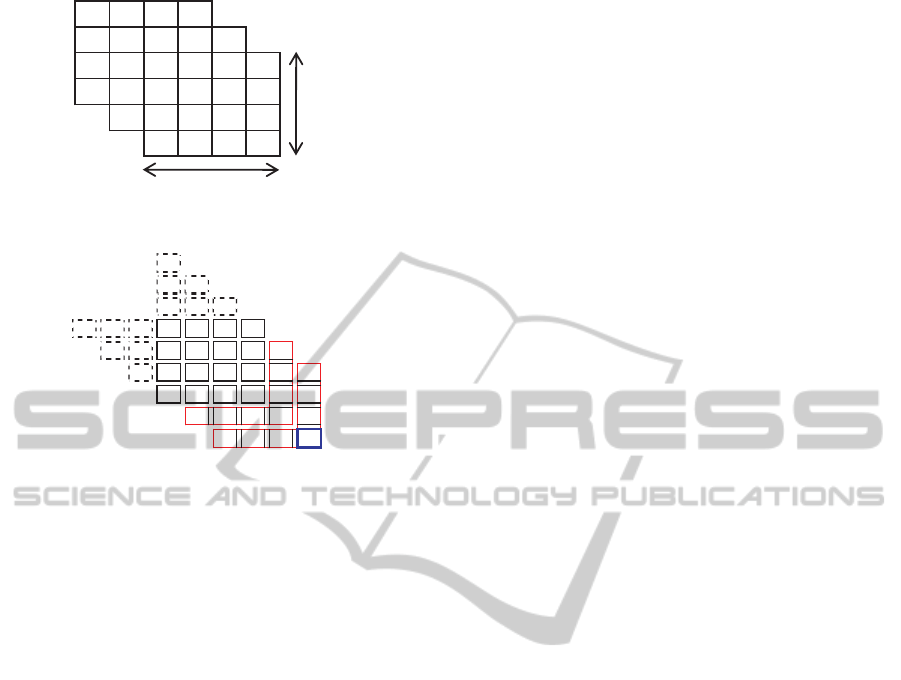

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

11 21 31 41

12 22 32 .. ..

13 23 .. .. .. ..

14 .. .. .. .. ..

.. .. .. .. ..

.. .. .. nk

(a) Reshaped DTW

11 21 31 41

12 22 32 .. ..

13 23 .. .. .. ..

14 .. .. .. .. ..

.. .. .. .. ..

.. .. .. nk

(b) Appearing stacked arrow form

Figure 3: Optimization steps of DTW.

Additionally, the algorithm should work with two

real-time streams that are expected to be synchronized

in time with an negligible error. In case of time syn-

chronized data, it is also observed that:

• The diagonal line from top-left to bottom-right

represents one-to-one allignment of time.

• A warping path that deviates from the diagonal to

the lower left side means that sequence 1 has a

delay compared to sequence 2.

• A warping path that deviates from the diagonal to

the upper right side means that sequence 2 has a

delay compared to sequence 1.

When a maximum positive and negative delay T is

considered, the DTW distance matrix can be reshaped

as shown in Figure 3(a), where the lower left and up-

per right matrix elements that fall outside the delay T

are removed. This is justiﬁed as the algorithm is re-

quired to be able to measure delays up to T. The now

appearing shape takes the form of stacked arrows, as

can be seen in Figure 3(b). This arrow shape is from

here on called an arrow object and all the elements

enclosed by the arrow shape directly belong to the ar-

row object. The element of the arrow object which is

emphesized by a blue box is from here on called the

center of the arrow object. The stack form will be ex-

ploited to make the algorithm incremental. The main

construct of the algorithm will then be a list of these

arrow objects. The list is extended at the head until

a maximum length L, after which one arrow object

is removed from the tail everytime an arrow object is

added at the head.

In classic DTW, the accumulated distance matrix

is recomputed everytime the ﬁrst row or column is re-

moved. One reason for this is because otherwise the

path distance obtained from the accumulated distance

matrix will not be representative anymore. Also from

a practical point of view when dealing with stream

data, values cannot be added into inﬁnity. One possi-

ble way of dealing with this is to recalculate the accu-

mulated distance matrix when needed, but this would

still has ∼O(n

) computation time.

It is observed from the classic DTW algorithm

that due to local constraints, only immediate neigh-

bour information is needed to calculate the accumu-

lated distance at a certain point in the matrix. This

means that when a new arrow object is added, the ac-

cumulated distances of this new arrow need only to be

consistent with its successor. However, the accumu-

lated distances are also used to ﬁnd the shortest DTW

path by traversing backward through the accumulated

distance matrix. This is solved by immediately stor-

ing the neigbor with the lowest accumulated distance

for all the elements of the new arrow object, so that

the shortest DTW path can be found without the ac-

cumulated distances. Now that the accumulated dis-

tances of the new arrow object are calculated and the

reason to keep the accumulated distances consistent

is eliminated, the accumulated distances of the new

arrow object can safely be adjusted. The only valid

method for adjustment is subtraction, because divi-

sion would cause range inconsistency of the distances

of a new arrow object with the accumulated distances

of its successor.

Although it is justiﬁed to make the adjustment by

subtracting the lowest accumulated distance in the ar-

row object, only one-eight of the lowest accumulated

distance is subtracted to better preserve the scale that

these distances represent. This is required for the

Flexible Endpoint algorithm that will be explained in

section 6.2.1.

To derive the computational complexity of adding

a new arrow object we assume one penalty for com-

puting the distance of an element and three penalties

for computing the accumulated distance of an ele-

ment. This needs to be computed for T elements of an

arrow object (see Figure 3(b)) so that the total com-

putational complexity becomes ∼O(6T). There is no

penalty for computing the neighbour with lowest ac-

cumulated distance because this is already computed

when the accumulated distance of an element is cal-

culated, and requires only extra storage per element

of an arrow object. However, traversing backwards

along the warping path becomes slightly faster. The

ONLINE ACTIVITY MATCHING USING WIRELESS SENSOR NODES

distance of a warping path is now obtained by adding

up all the distances when traversing backward along

the warping path, as the elements of the accumulated

distance matrix do not represent real distances any-

more.

6.2.1 Flexible Endpoint

While testing the algorithm, we found out that the al-

gorithm may ﬁnd a warping path with a very high dis-

tance although the two signals were very similar but

slightly delayed. An example of such a case is shown

in Figure 4(a). From this ﬁgure it can be seen that the

distance in the area at the bottom right corner is very

large. This is because the movement of the trainer is

ﬁnished at this point, but the trainee did not. From

Figure 4(a) it can be seen that there is an area with

very high distances at the bottom right corner. The

DTW path has to cross this area to reach the bottom

right corner, which gives the wrong impression that

the two movements are very distant.

This problem is solved by allowing ﬂexible end-

point at the start of the path at the bottom right corner.

The bottom right corner is the head of the list of ar-

row objects of the FIDTW algorithm. Evaluation of

the shortest DTW path starts at the head of the list of

arrow objects at the center of the arrow (the blue box

in Figure 3(b)). A ﬂexible endpoint algorithm there-

fore ﬁnds a more suitable start position in this arrow

object. Flexible endpoint algorithms are widely used

with DTW. It is unclear who ﬁrst proposed the use of

ﬂexible endpoints, but probably one of the ﬁrst to pro-

pose such a technique is Haltsonen (Haltsonen, 1985).

We chooseto accomplish the task by taking the ac-

cumulated distance of the center of the arrow object

as reference and ﬁnd an accumulated distance in the

arrow that is at least 25% or lower than the reference

with a 1% penalty for every element it is further away

from the reference. An example of a path produced

with the ﬂexible endpoint algorithm is shown in Fig-

ure 4(b). The path is identical, except in the bottom

right corner, where the path produced with the ﬂexi-

ble endpoint approach does not end in the far bottom

right corner.

6.2.2 Distance Calculation

The distances for the DTW distance matrix are a com-

bination of distance measures of multiple sources.

The used sources are the magnitude of the movement,

the direction of the movement and the change of ori-

entation as measured by the gyroscope. The distance

between the movement magnitudes are calculated us-

ing the squared Euclidean distance function (Equation

2). A magnitude is only one value such that equation

5 10 15 20 25 30 35 40

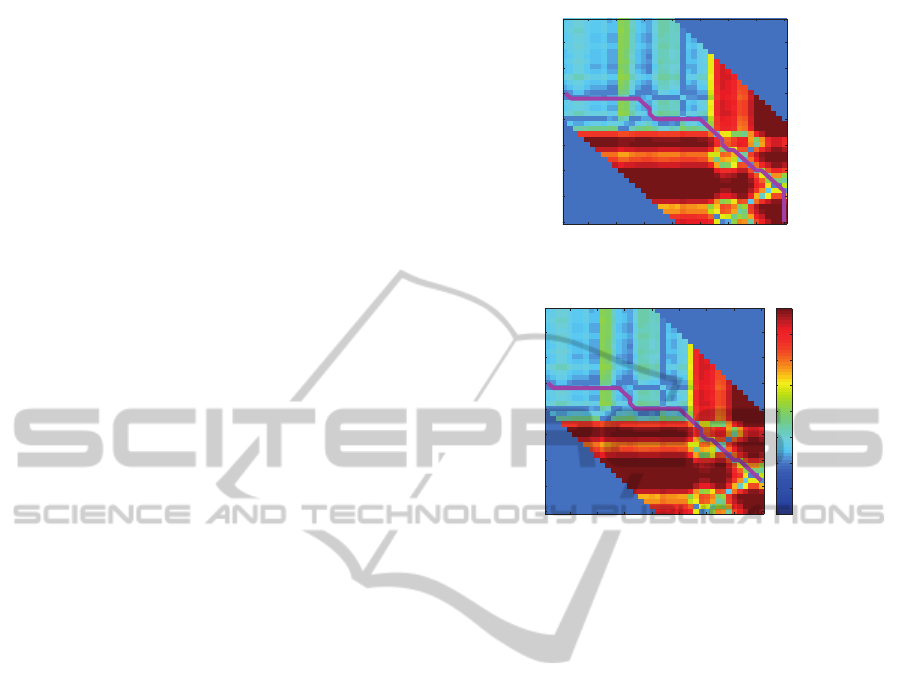

(a) Classic DTW path

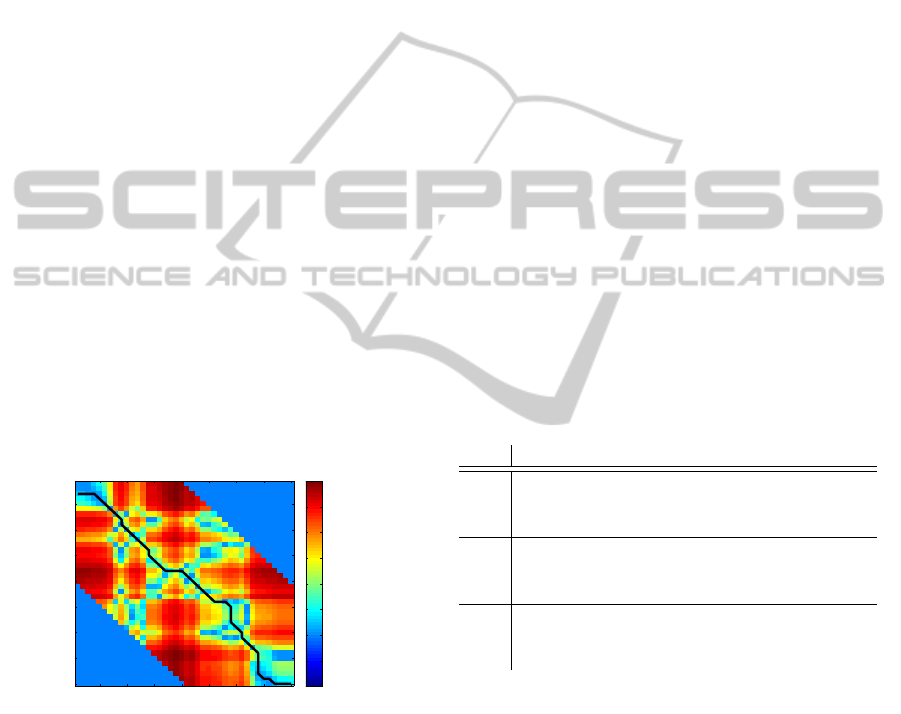

5 10 15 20 25 30 35 40

0.0001

0.000316228

0.001

0.00316228

0.01

0.0316228

0.1

0.316228

(b) Flexible endpoint

Figure 4: DTW paths.

2 simpliﬁes to Equation 3

d(p, q) =

∑

i=1

− q

)

(2)

d(p, q) = (p− q)

(3)

The changes of orientation measured by the gyro-

scope are linear, therefore the Euclidean distance can

safely be used as a distance measure. For a two di-

mensional gyroscope n becomes 2 in Equation 2.

The distance between the direction of movements

is measured using Equation 4, which calculates the

angle between two vectors by evaulating the arc co-

sine of the dot product of the two normalized move-

ment vectors. This distance measure is only evaluated

when the magnitude of both vectors is large enough,

because the noise becomes more dominant when the

magnitude of the movement is small.

d(~x

,~y

) = arccos(~x

·~y

) |~x

|,|~y

| > 0.2 (4)

These three distances are then combined by mul-

tiplying them with a weight factor and then adding

them up to one distance measure (Equation 5). The

weight factors facilitate the calibration of the system.

combined

= W

magn

∗ d

magn

dir

∗ d

dir

orient

∗ d

orient

(5)

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

6.3 Path Analysis

With the temporal segmentation information an anal-

ysis of the path produced by the FIDTW algorithm

can be made. From this analysis appropiate feedback

can be given to the trainee. From the DTW path a

number of statistical data can be extracted. Figure

5 depicts a typical path produced by our FIDTW al-

gorithm when two movements are very similar. The

diagonal elements from bottom-right to top-left of

the distance matrix represent perfect time alignment.

With respect to the stated direction of the diagonal

line, a deviation to the right represents a positive de-

lay and deviation to the left represents a negative de-

lay. Small differences between two movements may

already cause small delays, often shifting back and

forth from positive to negative delays. Therefore we

use the mean of the delays in a segment.

The DTW path distance represents the similarity

of two signals. This distance also depends on the

length of the path and is therefore normalized by the

path length. The smaller the path distance the more

similar the movements are.

When the path distance is high the two movements

are detected as dissimilar. The cause of the high dis-

tance needs to be found. This information is, for

every element, stored in the DTW distance matrix.

Then during path analysis this information is recov-

ered from the distance matrix such that it can be used

as feedback.

5 10 15 20 25 30 35 40

0.0001

0.000316228

0.001

0.00316228

0.01

0.0316228

0.1

0.316228

Figure 5: Example DTW path.

7 EVALUATION

We assess the correctness of our online matching

technique using three different methods:

1. The node of the trainer and the node of the trainee

are both placed on the same wrist of one person.

This test should always label the movements as

correct and not delayed.

2. The node of the trainer is placed on one wrist and

the node of the trainer on the other wrist of one

person. With this test there is already no real

ground truth anymore, other than the feeling of

the person that he made the same movement with

both arms.

3. One person wears the master node on the right

wrist while another person wears the slave node

on the right wrist.

The feedback which is sent from the slave node

holds information about the incorrectness of the

movement, the timing and the cause of the incorrect-

ness. The measure for incorrectness is the distance

between the movements measured using the FIDTW

algorithm. The timing is either an earlyness or a late-

ness in the form of a positive or negative average de-

lay. When the distance is larger than a certain thresh-

old, the movement can be regarded as incorrect.

7.1 Test Methodology

For the three test methods a test set of three tests, men-

tioned in Table 1, is deﬁned. This test set consists of

repetitive distinct movements. For every test in the set

there is one movement repetition deﬁned for the mas-

ter node and multiple variations of this movement for

the slave node. These variations differ in direction, in

amplitude and in timing.

Table 1: Test set.

Test Description

1 Stretched arm swings 90 degrees from horizon-

tal to vertical position in the upward direction

and goes back to the horizontal position.

2 Right arm is stretched away from the body to

the right in a horizontal straight line and then

attracted to the body again.

3 Right arm is stretched away from the body in

the upward direction in a vertical straight line

and moves back towards the body again.

7.2 Summary of Results

All tests are made indoors in a room with good radio

reception to prevent link losses corrupting the mea-

surements. For method 1 all tests are repeated three

times, and for methods 2 and 3 the tests are repeated

two times. The duration of every test is about 20 sec-

onds, during which the movement is repeated contin-

uously without rest. This results in about ten repeated

identical movements, which should be detected and

classiﬁed by the algorithm. The classiﬁcation can be

either correct or incorrect. The correct classiﬁcation

rate then is the number of correctly classiﬁed move-

ments over the total number of movements presented

ONLINE ACTIVITY MATCHING USING WIRELESS SENSOR NODES

in percentage for each method of testing.

In the tests with method 1 the master and slave

nodes are both attached to the same wrist of the per-

former. Therefore, there are no variations for the slave

node and the expected result is that the algorithm clas-

siﬁes all the movements as identical. We repeated all

tests three times and obtained a correct detection rate

of 99%.

In the tests with method 2 the master and slave

nodes are attached to two wrists of one performer. Us-

ing clear differences in movements we asses if the al-

gorithm correctly classiﬁes the movements. The cor-

rect detection rate for identical movements, 45

◦

di-

rection difference, 90

◦

direction difference, 0.5 sec-

ond timing difference and 30cm distance difference

are respectively 97%, 84%, 89%, 90% and 92%. We

observed that direction differences are undetectable

by the sensor nodes in this test. When the orienta-

tion of the sensor node would be known, this problem

could be solved. However, obtaining an orientation is

not easily accomplished.

In the tests with method 3 the master and slave

nodes are attached to the right wrist of two perform-

ers. With this test we asses the real life performance

of our algorithm. The correct detection rate for iden-

tical movements, 90

◦

direction difference, 0.5 second

timing difference and 30cm distance difference are re-

spectively 86%, 83%, 60%, and 40%.

8 CONCLUSIONS AND FUTURE

WORK

We presented an online and distributed activity

matching algorithm using wireless sensor networks.

Our experimental results show a high detection accu-

racy for identical movements, although it shows high

sensitivity on how movements are performed

The most important open issue is to make the al-

gorithm work reliably in detecting movement differ-

ences between two persons. The low reliability at

present is partly caused by the orientation issue, but

also because the algorithm is over sensitive to subtle

movement differences. The solution to this problem

may be found in using other distance measures and

other sensors.

A second open issue is the orientation problem.

Due to this problem, the sensor orientation must

closely match when attached to the wrist, but also dur-

ing movements the orientation must closely match.

This makes testing with two persons hard and more

unreliable. The problem maybe solved by using dif-

ferent sensors that allow to measure all degrees of

freedom, such that the orientation can be derived.

This is not an easy task and may not work reliably

or fast enough to be used for this application.

The gravity detection may be further improved by

using quaternions instead of euler angles, such that

singularities are avoided. This will make the Kalman

ﬁlter more complex, but will improve the reliability

of the estimation.

Future work will also require an extensive evalua-

tion with more users.

REFERENCES

Aylward, R. (2006). Sensemble: A wireless, compact,

multi-user sensor system for interactive dance. In

Proc. of NIME 06, pages 134–139.

Bajcsy, R., Borri, A., Benedetto, M. D. D., Giani, A.,

and Tomlin, C. (2009). Classiﬁcation of physical in-

teractions between two subjects. Wearable and Im-

plantable Body Sensor Networks, International Work-

shop on, 0:187–192.

Bellman, R. E. (2003). Dynamic Programming. Dover Pub-

lications, Incorporated.

Chambers, G. S., Venkatesh, S., West, G. A. W., and Bui,

H. H. (2004). Segmentation of intentional human ges-

tures for sports video annotation. In MMM ’04: Pro-

ceedings of the 10th International Multimedia Mod-

elling Conference, page 124, Washington, DC, USA.

IEEE Computer Society.

Gafurov, D. and Snekkenes, E. (2009). Gait recognition

using wearable motion recording sensors. EURASIP

J. Adv. Signal Process, 2009:1–16.

Guenterberg, E., Bajcsy, R., Ghasemezadeh, H., and Jafari,

R. (2007). A segmentation technique based on stan-

dard deviation in body sensor networks. In Dallas-

EMBS ’07: Proceedings of the IEEE Dallas Engineer-

ing in Medicine and Biology Workshop. IEEE.

Guenterberg, E., Ostadabbas, S., Ghasemzadeh, H., and

Jafari, R. (2009). An automatic segmentation tech-

nique in body sensor networks based on signal energy.

In BodyNets ’09: Proceedings of the Fourth Interna-

tional Conference on Body Area Networks, pages 1–7,

ICST, Brussels, Belgium, Belgium. ICST (Institute for

Computer Sciences, Social-Informatics and Telecom-

munications Engineering).

Haltsonen, S. (1985). Improved dynamic time warping

methods for discrete utterance recognition. Acoustics,

Speech and Signal Processing, IEEE Transactions on,

33(2):449 – 450.

Jafari, R., Li, W., Bajcsy, R., Glaser, S., and Sastry, S.

(2007). Physicalactivity monitoring for assisted living

at home. In BSN ’07: Proceedings of the 4th Interna-

tional Workshop on Wearable and Implantable Body

Sensor Networks, pages 213–219, Berlin, Heidelberg.

Springer.

Jones, V., in ’t Veld, R. H., Tonis, T., Bults, R., van,

B. B., Widya, I., Vollenbroek-Hutten, M., and Her-

mens, H. (2008). Biosignal and context monitoring:

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

Distributed multimedia applications of body area net-

works in healthcare. In Proceedings IEEE 10th Work-

shop on Multimedia Signal Processing, 2008, pages

820–825, Cairns, Australia. IEEE Signal Processing

Society.

Kraft, E. (2003). A quaternion-based unscented kalman ﬁl-

ter for orientation tracking. In Proceedings of the Sixth

International Conference on Information Fusion, vol-

ume 1, pages 47–54.

Lester, J., Hannaford, B., and Borriello, G. (2004). Are you

with me? using accelerometers to determine if two

devices are carried by the same person. In In Proceed-

ings of Second International Conference on Pervasive

Computing (Pervasive 2004, pages 33–50.

Lo, B. P. L., Thiemjarus, S., King, R., and zhong Yang,

G. (2005). Body sensor network - a wireless sensor

platform for pervasive healthcare monitoring. In Ad-

junct Proceedings of the 3rd International conference

on Pervasive Computing (PERVASIVE’05, pages 77–

80.

Marin-Perianu, R., Marin-Perianu, M., Havinga, P., and

Scholten, H. (2007). Movement-based group aware-

ness with wireless sensor networks. In PERVA-

SIVE’07: Proceedings of the 5th international confer-

ence on Pervasive computing, pages 298–315, Berlin,

Heidelberg. Springer-Verlag.

OHGI, Y. (2006). Mems sensor application for the motion

analysis in sports science. ABCM Symposium Series

in Mechatronics, 2:501–508.

Patel, S., Mancinelli, C., Healey, J., Moy, M., and Bonato,

P. (2009). Using wearable sensors to monitor physical

activities of patients with copd: A comparison of clas-

siﬁer performance. Wearable and Implantable Body

Sensor Networks, International Workshop on, 0:234–

239.

Patterson, D. J., Fox, D., Kautz, H., and Philipose, M.

(2005). Fine-grained activity recognition by aggregat-

ing abstract object usage. In ISWC ’05: Proceedings

of the Ninth IEEE International Symposium on Wear-

able Computers, pages 44–51, Washington, DC, USA.

IEEE Computer Society.

Proakis, J. G. and Manolakis, D. G. (2006). Digital Signal

Processing Principles Algorithms and Applications.

Prentice hall (4th ed).

Saito, H., Watanabe, T., and Ariﬁn, A. (2009). Ankle

and knee joint angle measurements during gait with

wearable sensor system for rehabilitation. In World

Congress on Medical Physics and Biomedical Engi-

neering, pages 506–509, Berlin, Heidelberg. Springer.

Tran, D. and Sorokin, A. (2008). Human activity recogni-

tion with metric learning. In ECCV ’08: Proceedings

of the 10th European Conference on Computer Vision,

pages 548–561, Berlin, Heidelberg. Springer-Verlag.

van Kasteren, T. and Krose, B. (2007). Bayesian activity

recognition in residence for elders. In Intelligent En-

vironments, 2007. IE 07. 3rd IET International Con-

ference on, pages 209–212.

Watkinson, J. (1993). The Art of Digital Audio.

Butterworth-Heinemann, Newton, MA, USA, 2nd

edition.

Whitehead, A. and Fox, K. (2009). Device agnostic 3d ges-

ture recognition using hidden markov models. In Fu-

ture Play ’09: Proceedings of the 2009 Conference on

Future Play on @ GDC Canada, pages 29–30, New

York, NY, USA. ACM.

Wirz, M., Roggen, D., and Troster, G. (2009). Decentral-

ized detection of group formations from wearable ac-

celeration sensors. Computational Science and En-

gineering, IEEE International Conference on, 4:952–

959.

Wu, J., Osuntogun, A., Choudhury, T., Philipose, M., and

Rehg, J. M. (2007). A scalable approach to activity

recognition based on object use. In In Proceedings

of the International Conference on Computer Vision

(ICCV), Rio de.

Yin, X. and Xie, M. (2007). Finger identiﬁcation and hand

posture recognition for human-robot interaction. Im-

age and Vision Computing, 25(8):1291 – 1300.

Yun, X., Lizarraga, M., Bachmann, E., and McGhee, R.

(2003). An improved quaternion-based kalman ﬁlter

for real-time tracking of rigid body orientation. In In-

telligent Robots and Systems, 2003. (IROS 2003). Pro-

ceedings. 2003 IEEE/RSJ International Conference

on, volume 2, pages 1074–1079.

ONLINE ACTIVITY MATCHING USING WIRELESS SENSOR NODES
