HEAD DETECTION IN STEREO DATA FOR PEOPLE COUNTING

AND SEGMENTATION

Tim van Oosterhout, Sander Bakkes and Ben Kr

ose

CREATE-IT Applied Research, Amsterdam University of Applied Sciences (HvA)

Duivendrechtsekade 36-38, 1096 AH Amsterdam, The Netherlands

Keywords:

Head detection, People counting, People tracking, Stereo cameras.

Abstract:

In this paper we propose a head detection method using range data from a stereo camera. The method is

based on a technique that has been introduced in the domain of voxel data. For application in stereo cameras,

the technique is extended (1) to be applicable to stereo data, and (2) to be robust with regard to noise and

variation in environmental settings. The method consists of foreground selection, head detection, and blob

separation, and, to improve results in case of misdetections, incorporates a means for people tracking. It is

tested in experiments with actual stereo data, gathered from three distinct real-life scenarios. Experimental

results show that the proposed method performs well in terms of both precision and recall. In addition, the

method was shown to perform well in highly crowded situations. From our results, we may conclude that the

proposed method provides a strong basis for head detection in applications that utilise stereo cameras.

1 INTRODUCTION

Counting people from video streams is important in

many applications such as bottleneck detection, wait-

ing line measurement, interesting route detection and

measurement of social behaviour. Numerous methods

discussed in the literature are based on the assumption

that people can be segmented from the background by

means of appearance (Stauffer and Grimson, 1999)

or motion properties (Heisele and Woehler, 1998).

When people overlap in the image domain these blob

based segmentation methods do not give an accurate

count of the amount of people visible. To reduce over-

lap, cameras are mounted on the ceiling and are di-

rected straight or slanted down. Methods have been

proposed that use appearance cues in the 2D image

for head detection (Fu et al., 2007; Ishii et al., 2004;

Zhao and Nevatia, 2003). However, appearance meth-

ods are very sensitive to illumination conditions and

colour similarity between subject and background.

Systems with stereo cameras have been proposed

to solve a number of these shortcomings. A prob-

lem with object segmentation from stereo data is that

stereo range data is generally noisy and as a result

leads to incorrect segmentations. Moreover, even in

clean stereo data many stereo correspondence algo-

rithms produce artefacts known as foreground fat-

tening (Scharstein and Szeliski, 2002) which may

prevent nearby but separate objects from being cor-

rectly segmented. In this paper, we propose a tailored

method to robustly detect and count people using data

from stereo cameras. We extract features from the

noisy range data in the form of sphere-shaped objects.

We show that the method accurately performs head

detection in applications with stereo cameras.

2 RELATED WORK

An approach to people counting in stereo is project-

ing all observations to the ground plane resulting in

an occupancy map. (Beymer, 2000) uses a volume

of interest located at head height. Points in this vol-

ume are projected and binned to obtain the positions

of people. (Hayashi et al., 2004) use a full occupancy

map and correct for the fact that people that are further

away from the camera have less points by giving far

points more inﬂuence on the occupancy map. Other

segmenting methods in stereo include 3D clustering

and region growing (Kelly et al., 2009) and connected

component labelling based on depth layers combined

with skin hue detection (Darrell et al., 2000).

One common technique in head detection is to

look for an omega shaped contour in a 2D side-view.

(Zhao and Nevatia, 2003) use edge detection to ob-

tain the contours which are then matched against the

620

van Oosterhout T., Bakkes S. and Kröse B..

HEAD DETECTION IN STEREO DATA FOR PEOPLE COUNTING AND SEGMENTATION.

DOI: 10.5220/0003362806200625

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2011), pages 620-625

ISBN: 978-989-8425-47-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

omega shaped template. (Park and Aggarwal, 2000)

localise people in stereo, but use a partial ellipse ﬁt-

ting technique to ﬁnd heads. (Luo and Guo, 2001)

use stereo vision to segment the image into different

depth layers after which they ﬁt a contour.

A number of approaches are based on ﬁnding el-

liptical shapes in 2.5D (range) or 3D (voxel) repre-

sentations. (Huang et al., 2004) uses scale-adaptive

ﬁltering in the range domain to ﬁnd elliptical objects

of predeﬁned size. (Hoshino and Izumi, 2006) detect

circles in one image from a stereo pair and project

them onto the other to test hypotheses for their posi-

tions and radii. 3D data from multiple cameras can be

used for body part localization (Miki

c et al., 2003).

In our system we use a shape based approach using

stereo (range) data instead of a 3D voxel representa-

tion.

3 METHOD

Data from the stereo camera consists of a colour map

and a depth map. The dynamic portion of both maps

is determined using an adaptive background model.

An algorithm is used that matches a spherical crust

template on the foreground regions of the depth map.

False positives are suppressed by putting constraints

on the spread of the points within the template. Then

blob separation is performed. In the last step the de-

tections are fed into a tracker that ensures the conti-

nuity of individual detections.

3.1 Foreground Selection

Foreground selection may be performed on the basis

of appearance or depth. Appearance based methods

are affected by shadows, whereas depth methods are

imprecise because of foreground fattening (Scharstein

and Szeliski, 2002). We overcome both by using

a hybrid model. The appearance of each pixel is

modelled by a mixture of Gaussian distributions aug-

mented with a shadow suppression method by (Hor-

prasert et al., 1999). We add a fourth dimension to the

model to represent the variation in each pixel’s depth.

A computational optimization is incorporated to dis-

card unsupported distributions (Zivkovic, 2004).

To repress noise, morphological operations are

used. The resulting foreground pixels are grouped

using a connected component labelling algorithm

(Horn, 1986). Blobs that contain too few pixels are

discarded. The data corresponding to the remaining

blobs are analysed with our head detector.

3.2 Head Detection

The depth map is treated as a point cloud in which

we search for clusters arranged in a sphere that is pro-

portional in size to human heads. Any such cluster is

checked against additional constraints.

Our method uses a spherical crust template as sug-

gested by (Miki

c et al., 2003). Their method works

with voxel data obtained from multi camera space

carving. Our stereo camera only provides a 2.5D de-

scription, wherein occlusion plays a bigger role. In

addition, their method assumes exactly one person is

in view deﬁning the problem as localisation, whereas

we are interested in detecting the number of heads.

3.2.1 Template Matching

The point cloud from each blob is searched for head

shapes using a template. This template consists of two

spherical bounds around the same centre that deﬁne

the minimum and maximum head sizes that can be de-

tected. Both are tuned to anatomically plausible val-

ues. To enforce roundness of the point cloud portion

inside the template, we augment the crust template

with negative regions. The locations of these regions

are illustrated in Figure 1. The region within the inner

bound rejects scattered or planar clouds, whereas the

region outside the outer bound enforces that the round

shape is not connected to other shapes as is the case

with shoulders. As a result, the template will only ﬁt

point clouds that lie around an empty core.

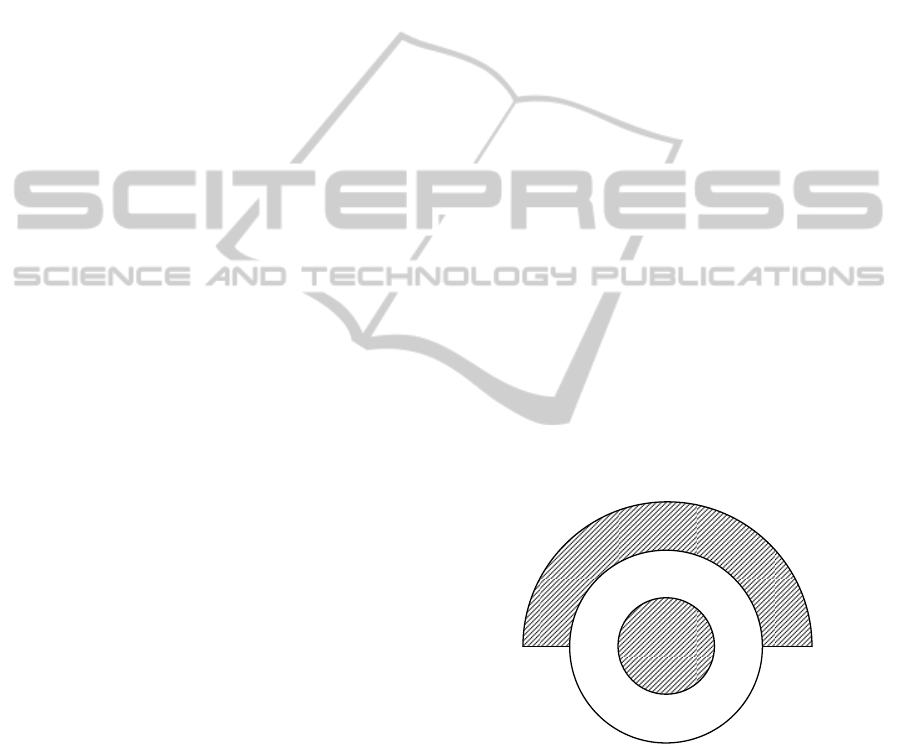

Figure 1: A cross-section of the template used for head de-

tection showing the positive and negative regions.

Candidate heads are found by applying the tem-

plate at regular discrete intervals throughout the

bounding volume of a blob’s point cloud. Once a

head candidate is localized using this template, its ex-

act dimensions can be calculated. A candidate is con-

sidered for further processing if it achieves a certain

density and a high enough ratio between positive and

negative points as described below.

HEAD DETECTION IN STEREO DATA FOR PEOPLE COUNTING AND SEGMENTATION

621

(a) Walking Frame 40 (b) Crossing Frame 38 (c) Walking Close Frame 29

(d) Walking Frame 77 (e) Crossing Frame 61 (f) Walking Close Frame 64

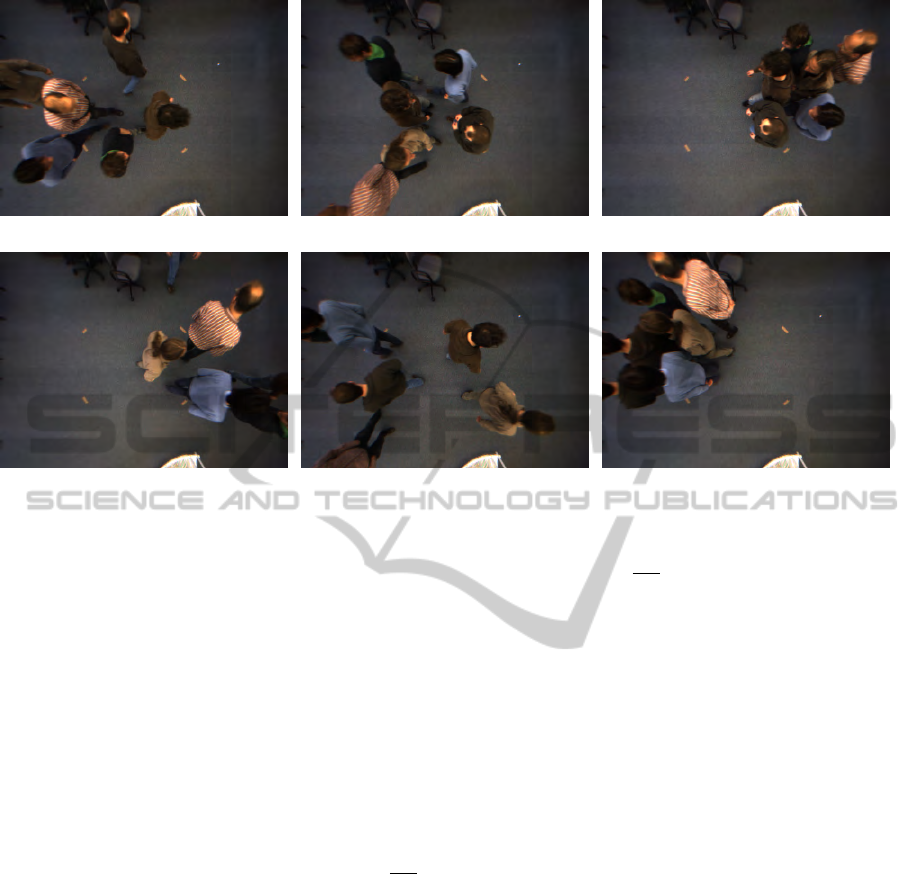

Figure 2: (2(a), 2(d)) “Walking”. (2(b), 2(e)) “Crossing”. (2(c), 2(f)) “Walking close”. See section 4.1 for descriptions.

3.2.2 Candidate Selection

As a ﬁrst criterion for candidate selection, the number

of points in the template needs to be sufﬁcient. We

can compute how many pixels the candidate would

cover in the camera’s view. We project a sphere with

the parameters of the candidate onto the image plane

and count the resulting amount of pixels.

As a second criterion, we acknowledge that the

amount of noise in the depth data will cause a cer-

tain number of points to fall outside the crust and into

the negative regions of the template. The number of

points in the negative regions n and the number of

points in the positive region p deﬁne a ratio r =

p+n

Should r be below a particular threshold, determined

by the amount of noise in the data, then the surface

described by the candidate’s points does not follow

the template shape and the candidate is discarded.

Subsequently, the distribution of points within the

template is inspected. The mean of all the candi-

date’s points is taken to be the centre of the point

cluster. The computed centre point must lie above the

template’s centre to prevent matches against concave

curves. In addition, the points must be evenly divided

around the sphere crust. This additional constraint

prevents unbalanced shapes that score high only in

one dense region but are not spherical.

Finally, overlapping candidates are removed. To

prevent pruning a good candidate in favour of a lesser

match, a ﬁtness measure is computed according as

such: Fitness = p ·

p+n

, where p and n are the pos-

itive and negative counts respectively. Starting with

the highest scoring candidate, all overlapping candi-

dates are discarded. This step eliminates candidates

competing for the same shape. The remaining candi-

dates are taken to correspond to heads and represent

the number of people in a blob along with their posi-

tions and person heights.

3.3 Blob Separation

After head detection has been completed, all blobs

that contain more than one detected head must be

split. All pixels in the original blob are each as-

signed to exactly one new blob. The blobs are split

in the range domain based on their position. First, all

points in the blob as well as the centre points from

the heads detected in the blob are projected on the

ground plane. A Voronoi decomposition is done in

this space. The ground plane projection resembles the

occupation maps used by some authors. However, we

already know the amount op people at this point and

the projection is used for a different purpose. With-

out projection, a taller person in the blob would not

be able to attract any points from their lower region.

Blobs in which no heads were detected can be the

result of (1) a person walking into view that is not

fully visible yet, (2) objects that are not people, or (3)

false negative detections by the head detection algo-

rithm. Depending on the application it can be decided

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

622

to use these blobs as if they were people, classify them

as non-people or discard them.

3.4 Tracking

Producing tracks from individual detections allows

route summaries to be created and detection errors

to be corrected by assuming object persistence. To

this end we use a set of Kalman ﬁlters. For measure-

ments we take the projected head locations. Because

we mean this method to work online, we do not look

ahead and do not re-evaluate previous measurement-

to-track assignments. We use the averaged Maha-

lanobis distance given by Equation 1 for data asso-

ciation, where ~m is a measurement,

t is a track’s ex-

trapolated state and σ denotes the covariance matrix.

Measurements and tracks are matched according to

their smallest distance, with each measurement being

matched to at most one track and vice versa.

New tracks are created for all measurements that

could not be matched. Tracks that do not get any mea-

surements assigned to them will be maintained for a

set amount of time after which they are removed from

the active set of tracks. In case a deactivated track has

had too few measurement assignments it is likely the

result of noise and is discarded.

D(~m,

t) =

(~m−

σ(~m)

(~m−

σ(

(1)

Equation 1: Distance measure between an object and an

extrapolated track state.

4 EXPERIMENTS

This section discusses experiments that evaluate our

method. We ﬁrst describe the experimental setup and

the utilised data (Subsection 4.1). Subsequently, we

present the experimental results (Subsection 4.2).

4.1 Experimental Setup

People counting is evaluated using three methods. All

three methods are evaluated on their own and in com-

bination with tracking. The ﬁrst method is the refer-

ence and is as described in Section 3.

The second method focusses solely on blob detec-

tion done by connected component labelling, where

the amount of blobs is judged against the number of

visible people. Blob detection is meant to separate

disconnected portions of the foreground. This alter-

native method works well to separate people when

they do not touch or overlap. However, in crowded

situations they often do (Figure 2(b) and Figure 2(d)).

The third method imposes an extra constraint on

the foreground pixels before connected component

labelling is applied, demanding a pixel’s height to

be 1.70m or higher. The effect of this is that the

lower points that are usually responsible for overlap

are cut off. If the cut-off height is chosen to lie above

all visible shoulders but below all visible scalps then

this method is essentially a crude head detector. The

method is judged against the number of people for

who a portion above the cut-off threshold is in view.

Evaluation. Each of the three methods is validated

against the correct number of people that are visible to

that method. To test their performances, three image

sequences totalling 292 frames (Figure 2) were anal-

ysed using each of the methods. The ﬁrst sequence

(‘walking’, 106 frames) shows a group of 6 people

walking across the image with all frames showing at

least ﬁve people in full or partially. The second se-

quence (‘Crossing’, 85 frames) shows a group of 2

and a group of 4 people walking in opposite direc-

tions and crossing in the middle. The third sequence

(‘Walking Close’, 101 frames) shows a group of 6

people walking across the image but closer together

than in sequence 1 and staying together. These se-

quences present increasing amounts of overlap and

mimic different real life scenarios. Ground truths

were set manually in all frames for the counts that

each method should have been able to reach in them.

We measure precision (the portion of results

that were heads/people) and recall (the portion of

heads/people that were correctly detected). Any time

a head is not detected this is counted as a false nega-

tive. When a head is detected in a place where there

is none this is counted as a false positive. If a head is

detected but it is off target then it is counted as both

a false negative and a false positive, since in this sit-

uation the head was not detected while a result was

returned that was not a head.

Tracking. We evaluate precision and recall when

used in combination with a tracker. In this case the

tracker’s position estimate is used when no head is de-

tected at or near that location. If the estimate appears

over a person’s locations then it is counted as a true

positive. If the tracker drifts or the person changes

course and no longer appears at the extrapolated lo-

cation then the tracker’s estimate is counted as both a

false positive and a false negative. No extra penalty

was given in terms of precision and recall to tracks

that switched target.

HEAD DETECTION IN STEREO DATA FOR PEOPLE COUNTING AND SEGMENTATION

623

Table 1: Numeric precision and recall per sequence per method, in parentheses with tracking.

Head Detection Blob Detection Height Threshold

Precision Recall Precision Recall Precision Recall

All Frames .92 (.94) .89 (.97) .47 (.47) .19 (.19) .91 (.92) .82 (.86)

Walking .91 (.92) .90 (.98) .48 (.53) .18 (.20) .98 (1.0) .98 (1.0)

Crossing .90 (.93) .89 (.96) .61 (.58) .37 (.36) .97 (.97) .94 (.97)

Walk Close .95 (.97) .88 (.96) .06 (.09) .01 (.02) .75 (.77) .55 (.63)

(a) Blob detection: 1 blob (b) Height thresholding: 5 blobs (c) Head detection: 6 heads

Figure 3: A visual example of the output of the three algorithms for frame 29 of “Walking close” (Figure 2(c)).

4.2 Results

In Table 1 the results for the precision and recall ex-

periment without tracking are given without paren-

thesis. We observe that without tracking, in all sce-

narios, the performances for both head detection and

height thresholding are considerably higher than that

of blob detection. Moreover, we observe that head

detection consistently achieves a comparatively good

performance throughout all scenarios, whereas height

thresholding performs better in the walking and cross-

ing sequences but considerably worse in the walking

close scenario.

The results for the tracking enhanced experiment

are shown in parenthesis in Table 1. We observe that

all results are equal or better than the results without

tracking except for blob detection in the crossing se-

quence. Further we see that in cases where results im-

prove, recall beneﬁts most from the addition of track-

ing. In only one scenario did tracks switch targets,

namely in the walking close sequence using the height

thresholding method. Over the course of the longest

streak of misdetections 5 trackers switched targets 6

times.

Illustrations from the segmentation output and

head localisation are given in Figure 3. The output for

the head detector is presented in 3D with wire-frame

spheres indicating the locations of heads.

5 DISCUSSION

Although height thresholding performs well un-

der certain circumstances (walking and crossing se-

quences), its performance drops for crowded scenes.

In the walking close sequence, stereo fattening

bridges the small gap between people even at head

level. Additionally, an optimal height threshold may

not exist, since the difference in person height can

easily put one person’s scalp below another person’s

shoulders. Raising the threshold will overlook short

people, whereas lowering it will push the performance

towards that of blob detection.

As expected the addition of tracking means many

false negatives can be recovered resulting in higher re-

call overall. However, a tracker can only increase per-

formance if misdetections are spread out. Although

the tracker can also isolate and discard single false

positives, tracks that should have been ﬁnalised some-

times lingered because a false positive appeared at its

extrapolated location.

The method is not limited to video sequences. In-

deed, heads are detected on a per frame basis, thus the

method works comparatively well on isolated frames.

In the experiments described in Section 4, ground

truths were created manually for all 292 frames of test

data, the majority of which featured multiple heads,

giving a total of 764 possible individual detections

over which the results were gathered. To ensure ad-

equate test data, the recorded sequences vary the dis-

tribution, density and appearance of people in view.

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

624

6 CONCLUSIONS AND FUTURE

WORK

Experimental results show that the proposed method

performs well in terms of both precision and recall.

In addition, the method was shown to perform well

in highly crowded situations. From our results, we

may conclude that the proposed method provides a

strong basis for head detection in applications that

utilise stereo cameras and that it works well both on

its own and in combination with tracking.

For future work, we will investigate how the blob

splitting method can be enhanced for a better segmen-

tation of people in stereo images. The detected head

locations may serve as a basis for detecting other body

parts and, ultimately, recognition of complete poses.

Finally, given the blob splitting that the method en-

ables, we can build rich proﬁles based on colour and

height that can be used for cross camera correlation in

a sparse camera setup.

ACKNOWLEDGEMENTS

The research reported in this paper was supported

by the Foundation Innovation Alliance (SIA - Sticht-

ing Innovatie Alliantie) with funding from the Dutch

Ministry of Education, Culture and Science (OCW),

in the framework of the ‘Mens voor de Lens’ project.

REFERENCES

Beymer, D. (2000). Person counting using stereo. In Work-

shop on Human Motion, pages 127–133.

Darrell, T., Gordon, G., Harville, M., and Woodﬁll, J.

(2000). Integrated person tracking using stereo, color,

and pattern detection. International Journal of Com-

puter Vision, 37(2):175–185.

Fu, H. C., Chen, J. R., and Pao, H. T. (2007). Re-

mote head counting and tracking in crowded scene via

WWW/Internet. In Proceedings of the IADIS Interna-

tional Conference WWW/Internet 2007.

Hayashi, K., Hashimoto, M., Sumi, K., Sasakawa, K., Cen-

ter, A. T., Co, M. E., and Hyogo, J. (2004). Multiple-

person tracker with a ﬁxed slanting stereo camera.

In Sixth IEEE International Conference on Automatic

Face and Gesture Recognition, 2004. Proceedings,

pages 681–686.

Heisele, B. and Woehler, C. (1998). Motion-based recog-

nition of pedestrians. In Pattern Recognition, 1998.

Proceedings. Fourteenth International Conference on,

volume 2.

Horn, B. (1986). Robot vision. McGraw-Hill Higher Edu-

cation.

Horprasert, T., Harwood, D., and Davis, L. S. (1999). A sta-

tistical approach for real-time robust background sub-

traction and shadow detection. In IEEE ICCV, vol-

ume 99.

Hoshino, T. and Izumi, T. (2006). Improvement of head

extraction for height measurement by combination of

sphere matching and optical ﬂow. In SICE-ICASE,

2006. International Joint Conference, pages 1607–

1612.

Huang, X., Li, L., and Sim, T. (2004). Stereo-based human

head detection from crowd scenes. In Proceedings of

International Conference on Image Processing, pages

1353–1356.

Ishii, Y., Hongo, H., Yamamoto, K., and Niwa, Y. (2004).

Face and head detection for a real-time surveillance

system. In Pattern Recognition, 2004. ICPR 2004.

Proceedings of the 17th International Conference on,

volume 3, pages 298–301. IEEE.

Kelly, P., O’Connor, N. E., and Smeaton, A. F. (2009).

Robust pedestrian detection and tracking in crowded

scenes. Image and Vision Computing, 27(10):1445–

1458.

Luo, R. and Guo, Y. (2001). Real-time stereo tracking

of multiple moving heads. In IEEE ICCV Workshop

RATFG-RTS01, pages 55–59.

Miki

c, I., Trivedi, M., Hunter, E., and Cosman, P. (2003).

Human body model acquisition and tracking using

voxel data. International Journal of Computer Vision,

53(3):199–223.

Park, S. and Aggarwal, J. K. (2000). Head segmentation

and head orientation in 3d space for pose estimation

of multiple people. In IEEE Southwest Symposium on

Image Analysis and Interpretation.

Scharstein, D. and Szeliski, R. (2002). A taxonomy and

evaluation of dense two-frame stereo correspondence

algorithms. International journal of computer vision,

47(1):7–42.

Stauffer, C. and Grimson, W. E. L. (1999). Adaptive

background mixture models for real-time tracking.

In Computer Vision and Pattern Recognition, 1999.

IEEE Computer Society Conference on., volume 2.

Zhao, T. and Nevatia, R. (2003). Bayesian human seg-

mentation in crowded situations. In IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition, volume 2.

Zivkovic, Z. (2004). Improved adaptive gaussian mixture

model for background subtraction. In Pattern Recog-

nition, 2004. ICPR 2004. Proceedings of the 17th In-

ternational Conference on, volume 2.

HEAD DETECTION IN STEREO DATA FOR PEOPLE COUNTING AND SEGMENTATION

625
