FLEXIBLE CLIPMAPS FOR MANAGING GROWING TEXTURES

Dirk Feldmann, Frank Steinicke and Klaus H. Hinrichs

Visualization and Computer Graphics Research Group, University of M

unster, Einsteinstr. 62, 48149 M

unster, Germany

Keywords:

Computer graphics, Real-time rendering, Texture generation, Texturing, clipmap, Growing texture.

Abstract:

Previous work on large image data sets has evolved techniques for handling representations of these data

that cache textures of arbitrary, but ﬁxed, size in a limited amount of physical memory for rendering in real-

time. In these approaches the texture data is usually pre-processed and arranged, for instance in a geometry-

independent texture clipmap. New technologies in the area of remote sensing generate aerial images in real-

time at a high rate in a patchwork-like pattern, and new images may replace previously captured image data.

These patchwork-like image data can be used to create a growing texture which is dynamic in the sense that

it may be updated in parts and grow in extension in the course of time. For such growing textures, current

clipmap techniques are not appropriate.

In this paper we introduce the Flexible Clipmap, a technique for incrementally generating a clipmap from a

large virtual texture of dynamically changing content and extent. Our technique makes use of a tile-based

clipmap approach and a common spatial indexing data structure to provide access to very large growing tex-

tures. We present an evaluation of our technique in the context of a remote sensing application which demands

real-time rendering of growing texture data.

1 INTRODUCTION

With the widespread use of applications like Google

Earth/Maps or GIS, textures depicting large surface

areas or even entire planets have become rather pop-

ular. The texture data in these applications may

have sizes in the gigabyte range and thus often ex-

ceed the available physical video memory. For this

reason different techniques for handling very large

textures have been developed. However, in many

of these applications textures are frequently treated

as resources having ﬁxed extent and static or rarely

changing content. While these constraints have ap-

plied until recently, advances in image acquisition

techniques makes it now possible to update such im-

age data more frequently and at lower costs. The

acquired images need to be processed to generate a

single virtual texture which can be used for render-

ings of a digital model of the captured environment.

Although the covered areas may be vast and the im-

ages may have high resolution, it is desirable to up-

date the content of such a very large virtual texture

in real time. Furthermore, any newly acquired im-

age may not only update existing content, but also

extend the area covered so far. In this case, the vir-

tual texture may extend in size, hence we refer to

such a kind of texture as a growing texture. Appli-

cations can be found in monitoring in-process image

acquisition, as it is done, for example, in microscopy,

robotics or aerial photography for purposes of survey-

ing and mapping. For instance, miniature unmanned

aerial vehicles (MUAVs) equipped with cameras can

capture image data about arbitrary areas and transfer

these images using advanced network technology to

ground control stations where the data can be dis-

played immediately (AVIGLE, 2010). Current tech-

niques for handling large textures, like clipmap im-

plementations, are not able to handle such growing

textures.

In this paper we present the Flexible Clipmap

(FCM) to incrementally generate a large, virtual tex-

ture of dynamically changing content and growing ex-

tent. Our technique makes use of a tile-based clipmap

approach, a common spatial indexing data structure

and commodity GPUs, and is independent of the un-

derlying geometry data.

2 RELATED WORK

If the size of textures to be displayed exceeds the

hardware limits, a common and obvious solution is

to divide them into smaller, manageable textures. For

173

Feldmann D., Steinicke F. and H. Hinrichs K..

FLEXIBLE CLIPMAPS FOR MANAGING GROWING TEXTURES.

DOI: 10.5220/0003363701730180

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2011), pages 173-180

ISBN: 978-989-8425-45-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

instance, Cline and Egbert proposed a simple divi-

sion of the texture data, but their approach was lim-

ited by a strict dependency on texture coordinates and

underlying geometry (Cline and Egbert, 1998). A

clipmap, as introduced in (Tanner et al., 1998), is

based on mipmaps (Williams, 1983) and keeps only

portions of the entire texture mipmap in video mem-

ory. Like mipmaps, the clipmap provides a level of

detail (LOD) concept and thus avoids texture alias-

ing. It uses a roaming window in video memory to

copy only those texels which are visible to the viewer

by logically centering the window around the cur-

rent eye point (clip center). As the eye point moves,

the window is updated by copying new texels using

toroidal addressing (Tanner et al., 1998). This is done

for each clipmap level corresponding to a texture of

a size greater than a certain clip size. Lower levels

are treated as an ordinary mipmap. No subdivision

of a large texture into so-called tiles is required, but

special hardware was employed for loading the texels

into video memory. Modern GPU features have elim-

inated the need for special hardware, and the clipmap

concept has been implemented on the GPU in vertex

and fragment shaders on commodity hardware mak-

ing it even more attractive for handling large textures.

The virtual texture in (Ephanov and Coleman, 2006)

also makes use of texture tiles and can employ shaders

for texture mapping. It supports multi-texturing, but

does not use toroidal addressing for loading tiles, the

texture coordinates are still coupled to the geome-

try and it requires multiple texturing units, even if

only a single texture is mapped. In (Seoane et al.,

2007) a roaming tile cache for each level is used,

which is updated using toroidal addressing and tex-

ture stacks. Geometry and texture data are kept in-

dependent from each other by computing the texture

coordinates within a shader. Both approaches as well

as the solution presented in (Li et al., 2009) generate

complete mipmaps for each tile at each LOD. Craw-

ﬁs et al. (Crawﬁs et al., 2007) also employ roaming

tile caches for each level, toroidal addressing, texture

compression and fragment programs, but they do not

generate mipmaps for the tiles. They investigate dif-

ferent methods for clipping and level determination

by utilizing fragment programs and arrays of textures

to hold the relevant portions of the logical mipmap.

Furthermore, they make use of a tile map to indicate

the highest available texture resolution for each pixel

to the shader for selecting the optimal clip level by

binding the tile map as an additional texture. In addi-

tion, they propose the usage of more efﬁcient texture

arrays, which became available in DirectX 10 hard-

ware. Recently, also (Barrett, 2008) and (Mittring

and Crytek GmbH, 2008) have used virtual textures

on modern GPUs.

Although the previously mentioned works on tex-

ture clipmaps deal with large textures of ﬁxed extent,

they do not seem to be capable to update the texture

content at a frequent rate. Recently, in (Taibo et al.,

2009) a method to handle large ﬁxed-size textures

of frequently changing content has been presented.

However, to our knowledge none of the current tech-

niques is able to handle growing textures.

3 THE FLEXIBLE CLIPMAP

The FCM allows to derive from a growing set of

images at different locations a single virtual texture

which can be rendered immediately on any geometric

model. This is only possible if along with the im-

ages the information about their location in the real

world is provided. Before images can contribute to

the virtual texture, georeferencing and registration of

the images have to be performed, and, if necessary,

perspective distortions need to be reduced. In aerial

imaging applications, georeferencing of the images is

realized based on position and orientation data which

may be provided by GPS and inertial measurement

units. After this preprocessing the area covered by an

image does not need to be rectangular any more, but

is an arbitrary convex quadrilateral. However, a min-

imal enclosing axis-aligned rectangle (bounding box)

can be computed efﬁciently. The undistorted image

together with its bounding box and some meta infor-

mation like position data, time stamp, image contrast,

etc. is called a patch.

3.1 Requirements and Contributions

In order to handle a growing texture, the FCM can-

not be conﬁned in advance to a ﬁxed area. Also it

may easily become too large to ﬁt entirely into video

memory or even main memory and therefore it has to

be partitioned, stored in secondary memory and pro-

vided with a LOD concept to avoid texture aliasing.

Furthermore, for a frequently changing set of images

overlapping the same area, there are lots of possibil-

ities to decide which of the images (or parts of the

images) are the “best” to contribute to the resulting

virtual texture. A rating can be based, for instance, on

image properties such as timestamp, contrast, bright-

ness, signal-to-noise ratio, degree of perspective dis-

tortion, or even content. In any case, whenever “bet-

ter” images are available, the affected region within

the virtual texture has to be updated. To summarize,

the FCM must satisfy the following requirements to

address the challenges stated above:

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

174

1. Partitioning and LOD concepts have to be sup-

ported, since the virtual texture may have physical

extent which exceeds hardware limits.

2. Efﬁcient updates of the virtual texture must be

possible, because updates of the underlying set of

images will occur frequently.

3. The virtual texture must be capable of growing,

i. e., it cannot be limited to a ﬁxed extent.

3.2 Clipmap

The ﬁrst requirement given in Section 3.1 can be

achieved with texture clipmaps, since they allow to

control memory consumption and provide LOD con-

cepts. The principle of a clipmap is illustrated in

Figure 1. At the lowest clip level l = 0 the clipmap

(cf. (Tanner et al., 1998)) contains a portion of the

texture at the highest available resolution. Like with

mipmaps, going from clip level l to clip level l + 1

the resolution of the texture decreases by a factor of

2 along each dimension. At the highest clip level

L − 1, the clipmap contains a down-sampled version

of the entire texture, which is managed like a standard

mipmap. During texture mapping the miniﬁcation of

a texel in screen space determines the clip level to be

used. We implemented a variation of the clipmap sim-

ilar to the one in (Crawﬁs et al., 2007) which makes

use of fragment shaders and texture tiles without re-

quiring any special hardware. We employ a tile map

as well and make use of the explicit index-based clip-

ping (Crawﬁs et al., 2007), but in contrast, we use a

special approach for indexing and generating the re-

quired texture tiles. Because of the tiling approach,

updates of the virtual texture are conﬁned to few tiles

only, which is helpful for achieving the second re-

quirement stated in Section 3.1.

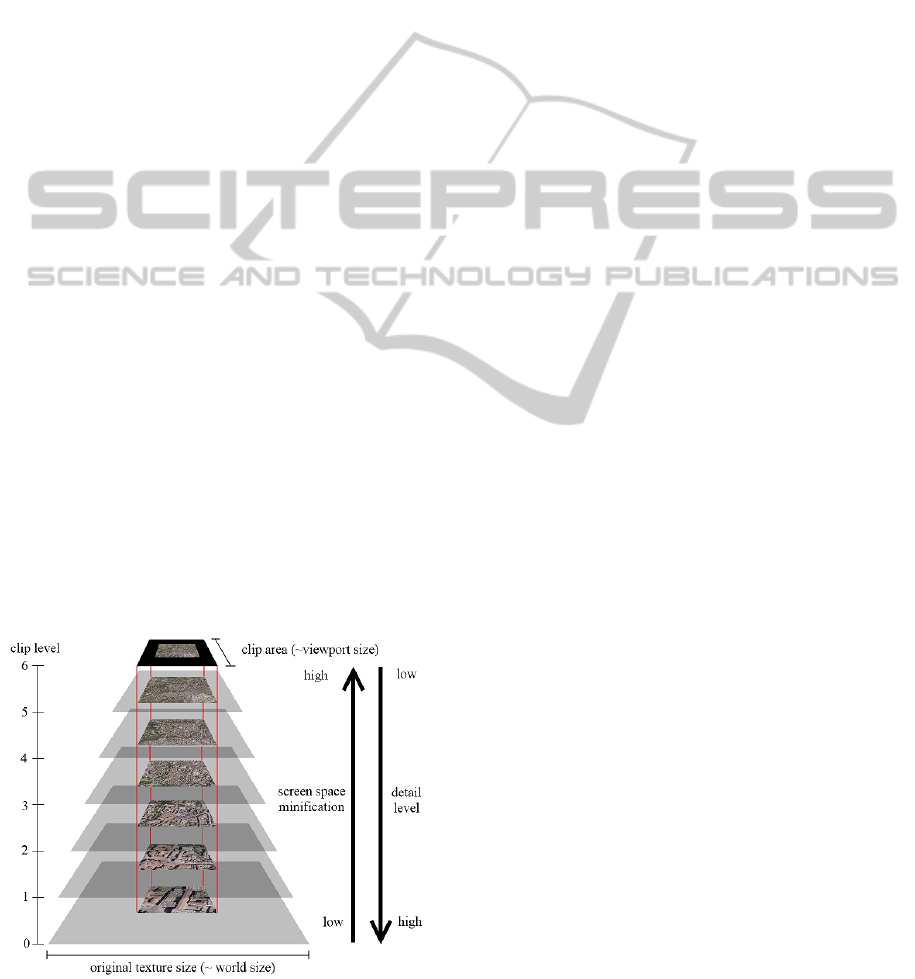

Figure 1: Scheme of a clipmap with L = 7 clip levels.

3.3 Patch Organization

In our application, the texel source for each tile is

the set of patches the tile overlaps. To satisfy the

second requirement from Section 3.1, we need to

be able to efﬁciently retrieve the patches contribut-

ing to a certain tile. For this reason, the patches

are stored in a spatial indexing data structure accord-

ing to their bounding boxes in real-world coordinates

(RWC). Since the spatial index has to support point

and especially window queries, we employ the R

∗

tree (Beckmann et al., 1990), a variation of the R-tree

(Guttman, 1984). Compared to other spatial index-

ing structures, the R

∗

-tree has the advantage that it

can be used as a secondary storage index, and that

it is well suited for incremental construction by suc-

cessive insertions as it does not require any periodic

re-organizations (Samet, 2006).

Since the R

∗

-tree stores in each node a bounding

box of all elements assigned to the corresponding sub-

tree, the bounding box for all patches is located and

maintained at the root node. This bounding box given

in RWC together with a given image resolution in pix-

els per RWC unit determine the current size of the

FCM. Therefore the extent of the FCM will change

when patches are inserted which do not lie completely

within its current boundaries (cf. Section 3.5).

Given the bounding box of a certain tile in RWC,

in order to update that tile the spatial index is queried

using the bounding box, and the retrieved patches are

blended into the texture tile (see Section 3.6).

3.4 Flexible Tiles Construction

In order to satisfy the third requirement from Sec-

tion 3.1, the key is to provide the FCM with additional

tiles whenever the underlying virtual texture becomes

larger. We start numbering the L clip levels of the

FCM from the most detailed level l = 0 to the least

detailed level l = L − 1, which contains a downsam-

pled version of the entire texture (see Figure 1). Con-

ceptually, we consider the virtual texture as the entire

. We denote the space covered by the bounding

box of the R

∗

-tree by A, its left lower and right upper

corners by ll and ru, respectively, and we mark the

region R

\A as empty.

We take an arbitrary but ﬁxed origin o = (o

)

in RWC, e. g., the starting location of the exploration

or any GPS position, to span a Cartesian grid with

spacing (g

) = (t

/ppu

) in x- respec-

tively y-direction, where t

and t

denote the width

respectively height of one tile in texels, and ppu

and

ppu

denote the resolution in the respective direction

in pixels per units. Each grid cell is identiﬁed with

FLEXIBLE CLIPMAPS FOR MANAGING GROWING TEXTURES

175

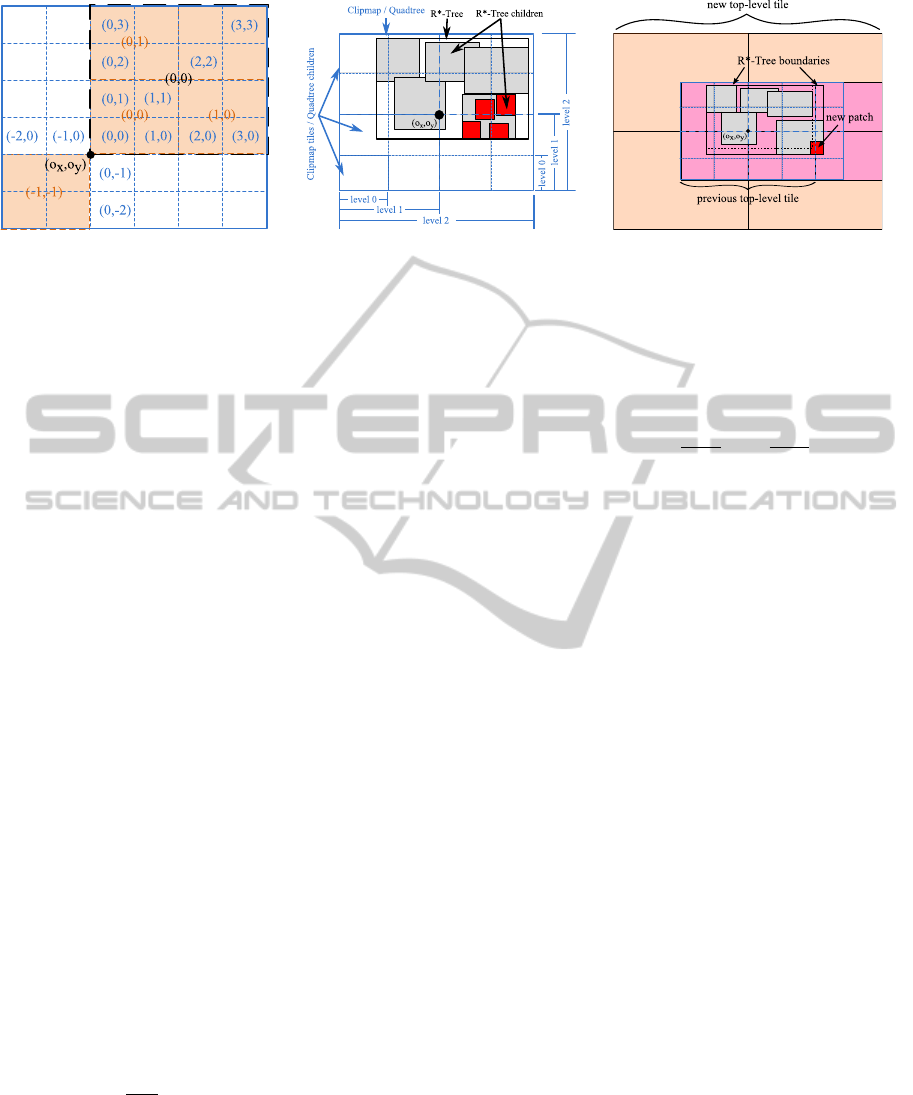

(a) indexing tiles within the FCM (b) relation of R

∗

-tree and quadtree (c) expansion of the FCM

Figure 2: Overview of the most important concepts used for constructing the Flexible Clipmap.

exactly one texture tile at level l = 0 and indexed as

shown in Figure 2(a). Starting with l = 0 at the ori-

gin, 2 ×2 neighbored grid cells at level l are grouped

to a cell of size 2

l+1

· g

× 2

l+1

· g

, and thus concep-

tually a quadtree is speciﬁed. This process is repeated

until A is covered in x- or y-direction by at most two

grid cells each, but by at least two in one of the direc-

tions. The tiles from higher levels 0 < l < (L −1) are

obtained by identifying each tile either with the corre-

sponding quadtree node at the same level or with the

area covered by the equivalent grid cell in RWC. Like

with mipmaps, the content of each tile is determined

by the content of its children, but the position of each

tile in RWC is ﬁxed.

The top-most tile at level L −1 requires some spe-

cial attention, because as a constraint for the FCM,

this level must cover A entirely while consisting of

exactly 2 × 2 subordinated tiles (children). In cases

of having only 1 × 2 or 2 × 1 children, the miss-

ing ones are replaced by the nearest, even empty,

neighbors in the corresponding direction. If the top-

level tile would be constructed from the quadtree as

well, the quadtree root might be located at a level

≥ L and many empty children would have to be in-

cluded to satisfy this constraint. Besides, the top-level

tile is indexed (0,0), because its quadtree node may

not necessarily be the parent node of all of its chil-

dren any longer, e. g., if it was formed by the nodes

((1,−1),(2,−1),(1,0),(2,0)) at L − 1.

Given a certain level, we can determine the tile

index n(l, r) = (n

) to which a location r = (r

)

in RWC belongs by the following relation:

n(l,r)

(

·g

0 ≤ l < (L −1)

0 l = (L − 1)

, d ∈

{

x,y

}

Since L depends on the position of ll and ru at the top

level L − 1, the total number of clip levels L cannot be

determined by the following quantity:

L = max

d∈

{

x,y

}

(

log

(ru

− ll

)

−

log

)

According to the description above, L − 2 is the level

where at least one of the two components of the dif-

ference of the tile indices n(l

,ru) and n(l

,ll) equals

one. This is expressed in the following equation:

n(l

,ru)

− n(l

,ll)





−





= 1 (1)

We actually determine the required number of clip

levels L by checking if l

L satisﬁes Equation 1. If

it does not, l

is incremented and checked again, until

a suitable l

is found.

Most important about this indexing is that n(l,r)

does not directly depend on A. This facilitates adding

new tiles to the FCM, because each tile at each level

has a unique index and conceptually already exists,

though it may not contain image information. The re-

lation of the R

∗

-tree, A and the quadtree is illustrated

in Figure 2(b).

3.5 Expanding Textures

An expansion of A into any direction is triggered by

the insertion of new patches which are not completely

covered by A. This leads to the addition of at least

one new clip level if A then exceeds the boundaries

of the current top-most tile at L − 1 as illustrated in

Figure 2(c). The total number of new clip levels de-

pends on the extension of A. In that case, the former

tile at level L − 1 does no longer satisfy the constraint

of covering at most 2 × 2 tiles from the next lower

level, and the maximum clip level has to be increased

by the number of new levels k, so we denote the for-

mer number of clip levels by L

and set L = L

+ k.

All other tiles remain unchanged with respect to their

indices, with the exception of the former top-level tile

at L

− 1, because its index (0,0) does not necessar-

ily reﬂect the indices of subordinated tiles any longer.

The entire tile is therefore discarded and then recre-

ated from its 2 × 2 children, which will have been up-

dated by then (see Section 3.6).

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

176

3.6 Updating Tiles

In principle, tiles need to be updated as soon as they

are covered by a new patch, but depending on the

application, it may be sufﬁcient to start updating af-

fected tiles only if a certain threshold for the number

of new patches has been reached or after a certain pe-

riod of time. The spatial index supports easy access

to all patches that contribute to a certain tile (see Sec-

tion 3.3). The number of contributing patches may

increase over time as well as the costs for updating

one tile. Therefore, different selection criteria can be

applied to discard patches which are not to contribute

to the ﬁnal texture, e. g., if the contrast of the image is

below a certain threshold or if it is outdated. Depend-

ing on the desired quality of the resulting virtual tex-

ture and the application, it may be sufﬁcient to update

existing tiles incrementally by processing only the lat-

est patches and blend them with the previously gen-

erated tiles. Independent of whether tiles are updated

incrementally or extensively, we only update the tiles

at level l = 0 from patches. The patches themselves

are moved to secondary memory afterwards in order

to free main memory. Tiles at l > 0 (parents) will be

updated in increasing level order by recursively copy-

ing and scaling the respective regions covered by the

tiles at l −1. Therefore we keep the most recently up-

dated children from the current level in main memory

until their parents have been updated. Afterwards, the

parents take the role of their children, and the process

is repeated until the top-most tile has been updated.

3.7 Architecture

One characteristic of clipmaps is the employment of

caching and secondary storage. In the FCM, we also

use a tile cache for caching an amount of c

(l) × c

(l)

texture tiles at each clip level l in main memory. As

described in (Tanner et al., 1998), the set is chosen

based on the current clip center with the c

(l) × c

(l)

neighbored tiles centered around it, and the set is

identical to the clip stack. Its content is updated as

the eye point moves by a distance greater than some

threshold, and the cache is accessed using toroidal

indexing on the tile indices. A smaller subset of

(l) × a

(l) tiles with a

(l) ≤ c

(l) and d ∈ {x, y},

which are also centered around the clip center and

visible to the viewer (active area), is copied to the tile

array in VRAM, which is realized as a texture array,

accessible by GPU shaders. The quantities c

(l) and

(l) depend on the clip level, but are limited by some

constants C

and A

deﬁned by the user or the applica-

tion. However, A

must be chosen so that a

(0) times

the width respectively height of one tile in texels is at

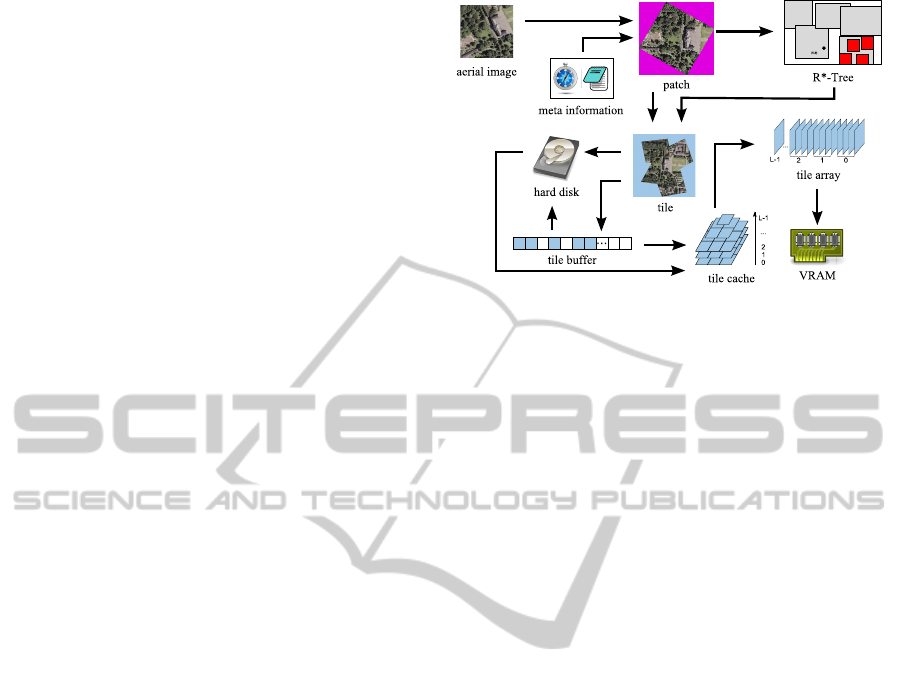

Figure 3: Overview of the architecture of the FCM.

least as large as the width respectively height of the

application’s viewport in pixels in order to avoid visi-

ble borders of lower resolution during rendering.

Following the idea in (Crawﬁs et al., 2007), we

use an extra texture, the tile map, which is a down-

scaled version of the entire virtual texture and con-

tains at every texel the highest currently available clip

level of a tile in the tile array. The position of a tile

map texel is determined by the position (i. e., index) of

the corresponding tile and its level. The lateral dimen-

sions of the tile map tm

, tm

must satisfy Equation 2,

so that each tile at level 0 is represented by at least

one texel in the tile map, with L denoting the number

of clip levels.

log



min

d∈

{

x,y

}

{

}



≥ (L − 1) (2)

To reduce storing and reloading tiles from sec-

ondary memory, we additionally keep a certain

amount b of the tiles which were not already cached

but have been loaded during updating in a tile buffer

in main memory. This is done because the viewer is

frequently tracking the regions which were recently

updated, and the affected tiles will likely be needed to

update the tile array in VRAM as well. Figure 3 con-

tains a sketch of the components and entities involved

in the FCM.

Whenever possible, reading from and writing to

secondary memory is done in a separate thread in or-

der to not stall the rendering and updating processes.

3.8 Rendering

Texture mapping using the FCM is implemented by

GPU fragment programs. The tile array and tile map

have to be bound to one texturing unit each and are

accessed by the shader. The texture coordinates (u,v)

are assumed to be in [0.0,1.0]

and have to map the

FLEXIBLE CLIPMAPS FOR MANAGING GROWING TEXTURES

177

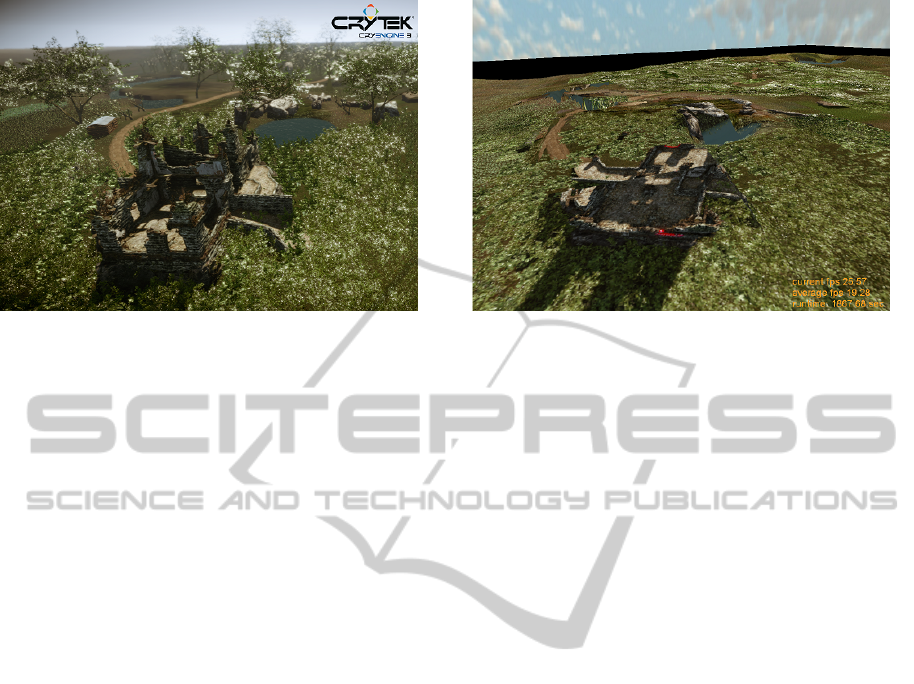

(a) simulated environment using CryEngine 3 (b) captured environment using FCM

Figure 4: Screenshots from the simulated environment and the captured environment. Black areas near the horizon in (b) have

not been captured so far.

entire R

, but the fragment shader transforms the co-

ordinates so that only the area covered by A is affected

by texture mapping from the FCM. For each fragment

the fragment program performs a look-up in the tile

map to determine the tile with the highest LOD l

max

available in the tile array and calculates an ideal level

ideal

(analog to (Crawﬁs et al., 2007)). The calcula-

tion of the ideal level is based on the texel miniﬁcation

in screen space and uses a simpliﬁed anisotropic ﬁlter-

ing method by Ewins et al. (Ewins et al., 1998). The

ﬁnal LOD l

is determined as l

= max (l

max

ideal

If a tile could not be uploaded on time, the tile map

would contain the level of the next coarser LOD avail-

able; in the worst case, at least the top-level at L − 1

would be present.

4 PERFORMANCE ANALYSIS

The proposed FCM has been developed and analyzed

in the context of the AVIGLE project. One goal of

this project is to capture low-altitude aerial images

by a swarm of MUAVs, transfer these images to a

ground mission control station, and display them im-

mediately. The realization of this project requires

the development of a novel type of MUAV, advanced

swarm algorithms, network technology, and in par-

ticular fast and accurate image processing and visu-

alization strategies. For that reason, we have devel-

oped a simulation framework (Strothoff et al., 2010),

which allows to generate virtual aerial images at cus-

tom locations, orientations, resolutions and frequen-

cies from renderings of digital 3D models using any

visualization library or computer game engine like

the CryEngine (Crytek GmbH, 2010). The images

with added meta information are sent by a separate

thread over a network via TCP to a client application

where they are processed by the employed FCM. Fig-

ure 4 shows a screenshot of the simulated 3D envi-

ronment (left) and a screenshot of the client applica-

tion, depicting the corresponding area textured with

the content from the FCM which has been derived

from the virtual aerial images captured by a virtual

MUAV (right).

4.1 Evaluation Setup

The run-time performance of the rendering and the vi-

sual quality of the resulting texture map in the FCM

depend on the following quantities: the resolution of

the incoming patches in texels (p

, p

), the number of

patches per second (patch rate), the number of tile

updates per second (update rate), the resolution of

the ﬁnal texture in pixels per unit (ppu), the resolu-

tion of tiles in texels (t

) and the sizes of the tile

cache (c

(l),c

(l)), the tile buffer b and the active

area (a

(l),a

(l)) in number of tiles at each level l.

We analyzed the performance of the FCM in terms of

the number of updated tiles per second during con-

tinuous insertion of patches, because high rates of tile

updates are essential for growing and dynamically ad-

justing the content of the virtual texture.

In our evaluation setup, we always used a view-

port/screen size of (s

) = (1024, 768) pixels,

ppu = 20, A

= ds

e, C

= 2 · A

with d ∈

{

x,y

}

and b = C

·C

. For each tested conﬁguration of tile

sizes, patch sizes and average patch rates, we sim-

ulated a single virtual MUAV equipped with a non-

metric camera and following exactly the same path

at a constant altitude of 50 m above sea level, and

we performed 10 runs each to obtain means. Means

are necessary, because the patches received by the

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

178

(a) tile size 256 × 256 texels (b) tile size 512 × 512 texels

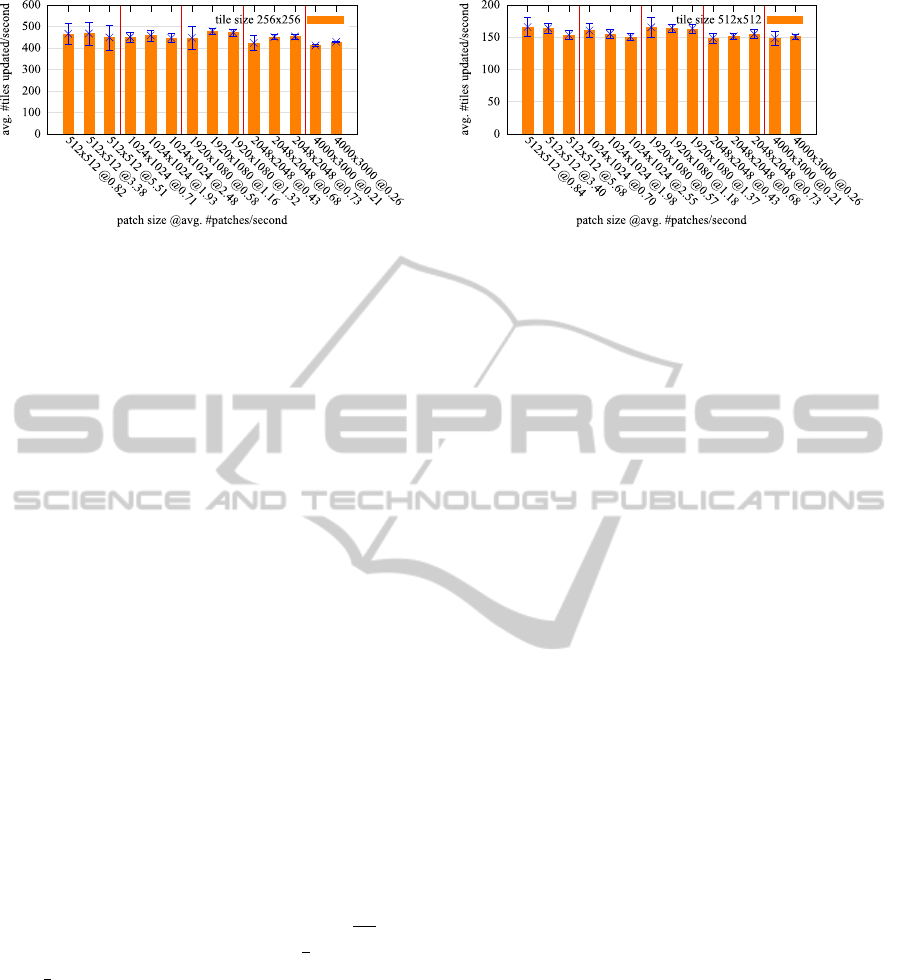

Figure 5: FCM performance in terms of tile updates/second in our evaluation setup.

client are located at random positions along the path

of the virtual MUAV during different runs, as there

is no synchronization between the applications. In

addition, the simulator cannot guarantee to provide

a certain patch rate, which also strongly depends on

the resolution of the patches and the network. Tile

updates were performed in every frame whenever at

least one new patch was received. The simulator and

the client applications were executed in parallel on

a single desktop computer with an Intel i7 CPU at

2.8 GHz, a NVidia GeForce 470 GTX with 1280 MB

VRAM, 6 GB RAM and 64-bit Windows 7 OS.

4.2 Results

The results of the FCM performance in terms of up-

dated tiles per second from the setup described above

for tile sizes of 256

and 512

texels and for different

patch sizes at different averaged patch rates are shown

in Figure 5. Error bars indicate the standard devia-

tions. During the evaluation the FCM had at most

L = 8 clip levels in case of 256

tiles and L = 7 in case

of the 512

tiles after the area of A covered the entire

DSM. This corresponds to a 32-bit RGBA texture of

×2

texels with a memory size of 4 GB. The most

demanding conﬁguration (4000 × 3000 texels@0.26)

corresponds to an average data rate of 11.9

but

still achieved tile update rates of 427.59

respectively

150.57

whereas the total number of tiles in the tile

array was only 85 respectively 25. This implies that

the average update rates are sufﬁcient to update the

entire tile array multiple times per second and still

permit interactive rendering frame rates.

5 DISCUSSION

Our evaluation has shown that the most important lim-

iting factors in our setup were the simulation of image

sources providing high resolution images at high fre-

quency, and the transmission over the network. This

prevented us from performing further measurements

and determining the limits of the FCM in the given

scenario. A problem arises if the patches cover the

entire area of the FCM or even more, e. g., when the

images are taken from high altitudes: the updates then

would not be conﬁned to few tiles and would affect

the entire FCM. However, this issue can be avoided

by limiting the amount of tiles updated in each frame,

which is advisable anyway, because performing many

tile updates between two frames would stall the ren-

dering and reduce interactivity.

Another severe issue is caused by the 32-bit ﬂoat-

ing point precision of the texture coordinates (u, v),

because they need to cover in principle the entire R

(see Section 3.8). This also arises in other GPU based

clipmap implementations (cf. (Ephanov and Cole-

man, 2006), (Taibo et al., 2009)). By deriving the

geometry from the FCM as well, we could drop that

constraint and map the range of [0.0,1.0] only to the

visible portion of the geometry.

We used the FCM only for color mapping and sin-

gle texturing, but it can be extended easily for multi-

texturing during single-pass rendering by adding tile

arrays for every additional texture and binding them

to additional texture units. Additional texture maps

could also be derived from additional spatial indexes

in order to immediately create large textures from dif-

ferent modalities like RGB and thermal images.

Furthermore, the size of the tile map can exceed

the hardware limits as the number of clip levels in-

creases (cf. Section 3.7). This can be countered

by virtualizing the clip stack, as already introduced

in (Tanner et al., 1998), by processing only a subset

min

max

] ⊂ [0,L − 1] of clip levels which are relevant

for the viewer at her current eye point. Though the tile

map requires an additional texture unit, it provides a

very easy LOD selection and avoids invalidating en-

tire detail levels, if a single tile is missing(cf. (Crawﬁs

et al., 2007)).

FLEXIBLE CLIPMAPS FOR MANAGING GROWING TEXTURES

179

6 CONCLUSIONS AND FUTURE

WORK

In this article we have presented the Flexible Clipmap

to dynamically generate on-the-ﬂy a very large grow-

ing virtual texture of frequently changing content at

several levels-of-detail, and we used it for instantly

rendering the captured area at interactive frame rates.

This permits to monitor the capturing process and to

interact with the capturing devices using commodity

hardware.

However, the images and the resulting texture map

itself are all located in the same image plane. To de-

rive highly detailed and therefore very large texture

maps of entire 3D objects or even 3D sceneries in the

same way, we must be able to handle images located

in multiple image planes. In addition, the environ-

ments we are planning to capture are highly dynamic

as well, and we will have to deal with ambiguous and

missing image information. We will also extend the

FCM to a kind of growing geometry clipmap (Losasso

and Hoppe, 2004), and then create a 3D mesh of the

underlying geometry in the same way we already cre-

ate the texture map and thus enable completely dy-

namic renderings of the captured environment in real

time.

ACKNOWLEDGEMENTS

Our work has been conducted within the project

AVIGLE, which is part of the Hightech.NRW initia-

tive funded by the Ministry of Innovation, Science

and Research of the German State of North Rhine-

Westphalia. AVIGLE is a cooperation of several aca-

demic and industrial partners, and we thank all part-

ners for their work and contributions to the project.

REFERENCES

AVIGLE (2010). AVIGLE Project - Avionic Digital Service

Platform. http://www.avigle.de.

Barrett, S. (2008). Sparse virtual textures.

http://silverspaceship.com/src/svt/.

Beckmann, N., Kriegel, H.-P., Schneider, R., and Seeger, B.

(1990). The R*-tree: An efﬁcient and robust access

method for points and rectangles. In SIGMOD ’90:

Proceedings of the ACM SIGMOD International Con-

ference on Management of Data, volume 19(2), pages

322–331. ACM.

Cline, D. and Egbert, P. K. (1998). Interactive display of

very large textures. In VIS ’98: Proceedings of the

Conference on Visualization ’98, pages 343–350, Los

Alamitos, CA, USA. IEEE Computer Society Press.

Crawﬁs, R., Noble, E., Ford, M., Kuck, F., and Wagner, E.

(2007). Clipmapping on the gpu. Technical report,

Ohio State University, Columbus, OH, USA.

Crytek GmbH (2010). Crytek CryEngine.

http://mycryengine.com/.

Ephanov, A. and Coleman, C. (2006). Virtual texture:

A large area raster resource for the gpu. In Inter-

service/Industry Training, Simulation, and Education

Conference (I/ITSEC) 2006, pages 645–656.

Ewins, J. P., Waller, M. D., White, M., and Lister, P. F.

(1998). Mip-map level selection for texture map-

ping. IEEE Transactions on Visualization and Com-

puter Graphics, 4(4):317–329.

Guttman, A. (1984). R-trees: A dynamic index structure for

spatial searching. In SIGMOD ’84: Proceedings of the

ACM SIGMOD International Conference on Manage-

ment of Data, pages 47–57. ACM.

Li, Z., Li, H., Zeng, A., Wang, L., and Wang, Y. (2009).

Real-time visualization of virtual huge texture. In

ICDIP ’09: Proceedings of the International Con-

ference on Digital Image Processing, pages 132–136,

Washington, DC, USA. IEEE Computer Society.

Losasso, F. and Hoppe, H. (2004). Geometry clipmaps: Ter-

rain rendering using nested regular grids. ACM Trans-

actions on Graphics (TOG).

Mittring, M. and Crytek GmbH (2008). Advanced virtual

texture topics. In SIGGRAPH ’08: ACM SIGGRAPH

2008 Classes, pages 23–51. ACM.

Samet, H. (2006). Foundatations of Multidimensional and

Metric Data Structures. Morgan Kaufmann.

Seoane, A., Taibo, J., and Hern

andez, L. (2007). Hardware-

independent clipmapping. In Journal of WSCG 2007,

pages 177 – 183.

Strothoff, S., Steinicke, F., Feldmann, D., Roters, J., Hin-

richs, K., Vierjahn, T., Dunkel, M., and Mostafawy, S.

(2010). A virtual reality-based simulator for avionic

digital service platforms. In Proceedings of Joint Vir-

tual Reality Conference (Additional Material).

Taibo, J., Seoane, A., and Hern

andez, L. (2009). Dynamic

virtual textures. In Journal of WSCG 2009, pages 25

– 32. Eurographics Association.

Tanner, C. C., Migdal, C. J., and Jones, M. T. (1998). The

clipmap: a virtual mipmap. In SIGGRAPH ’98: Pro-

ceedings of the 25th Annual Conference on Computer

Graphics and Interactive Techniques, pages 151–158.

ACM.

Williams, L. (1983). Pyramidal parametrics. In SIGGRAPH

’83: Proceedings of the 10th Annual Conference on

Computer Graphics and Interactive Techniques, pages

1–11.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

180
