HEAD TRACKING BASED AVATAR CONTROL FOR VIRTUAL

ENVIRONMENT TEAMWORK TRAINING

Stefan Marks

Department of Computer Science, The University of Auckland, Auckland, New Zealand

John A. Windsor

Department of Surgery, Faculty of Medicine and Health Sciences, The University of Auckland, Auckland, New Zealand

Burkhard W

unsche

Department of Computer Science, The University of Auckland, Auckland, New Zealand

Keywords:

Virtual Environments, Head Tracking, Nonverbal Communication, Teamwork Training, Surgery.

Abstract:

Virtual environments (VE) are gaining in popularity and are increasingly used for teamwork training purposes,

e.g., for medical teams. One shortcoming of modern VEs is that nonverbal communication channels, essential

for teamwork, are not supported well. We address this issue by using an inexpensive webcam to track the user’s

head. This tracking information is used to control the head movement of the user’s avatar, thereby conveying

head gestures and adding a nonverbal communication channel. We conducted a user study investigating the

inﬂuence of head tracking based avatar control on the perceived realism of the VE and on the performance of

a surgical teamwork training scenario. Our results show that head tracking positively inﬂuences the perceived

realism of the VE and the communication, but has no major inﬂuence on the training outcome.

1 INTRODUCTION

In recent years, virtual environments (VEs) have be-

come increasingly popular due to technological ad-

vances in graphics and user interfaces (Messinger

et al., 2009). One of the many valuable uses of VEs

is teamwork training. The members of a team can

be located wherever it is most convenient for them

(e.g., at home) and solve a simulated task in the VE

collaboratively, without physically having to travel to

a common simulation facility. Medical schools have

realised this advantage and, for example, created nu-

merous medical simulations within Second Life or

similar VEs (Danforth et al., 2009).

When looking at teamwork, communication is a

vital aspect. An ideal VE would therefore facilitate all

communication channels that exist in reality – verbal

as well as non-verbal. Due to technical limitations,

this is not possible, and therefore, existing commu-

nication in VEs is currently mostly limited to voice.

Other channels like text chat, avatar body gestures,

facial expressions have to be controlled manually and

thus do not reﬂect the real-time communicative be-

haviour of the user.

Analysis of communication in medical teamwork

has shown that nonverbal communication cues like

gesture, touch, body position, and gaze are equally

important to verbal communication in the analysis of

the team interactions (Cartmill et al., 2007). VEs that

do not consider those nonverbal channels are likely to

render the communication among the team members

less efﬁcient than it would be in reality.

We propose an inexpensive extension of a VE by

camera-based head tracking to increase the “commu-

nication bandwidth”.

Head tracking measures the position and the ori-

entation of the user’s head relative to the camera and

the screen. The rotational tracking information can be

used to control the head rotation of the user’s avatar.

That way, other users in the VE can see rotational

head movement identical to the movement actually

performed physically by the user, like nodding, shak-

ing, or rolling of the head.

The translational tracking information can be

used to control the view “into” the VE. This so called

(HCP) enables intuitive control, like peeking around

corners by moving sideways, or zooming in by simply

moving closer to the monitor. The use of head track-

257

Marks S., A. Windsor J. and Wünsche B..

HEAD TRACKING BASED AVATAR CONTROL FOR VIRTUAL ENVIRONMENT TEAMWORK TRAINING.

DOI: 10.5220/0003364702570269

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2011), pages 257-269

ISBN: 978-989-8425-45-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

ing information has therefore the potential to simplify

the usage of a VE by replacing non-intuitive manual

view control by intuitive motion-based view control.

Especially in medical applications, this has the poten-

tial to free the hands of the user, enabling the use of

other simulated instruments or tools, e.g., an endo-

scope.

This paper presents the results of an experimental

study designed to measure any inﬂuence that the in-

troduction of head tracking has on teamwork commu-

nication, teamwork efﬁciency, and perceived realism

of the VE.

2 RELATED WORK

The reproduction of nonverbal communication in vir-

tual environments is an ongoing research topic that

beneﬁts from technological advancement. In the early

stages, data was captured by using magnetic track-

ing sensors, facial markers, data gloves, etc. (see,

e.g.,(Ohya et al., 1993)). With the development of

better hardware and advanced tracking algorithms, it

became possible to use only one camera instead of

multiple systems.

(Cordea et al., 2002) track the head of the user

with a camera to extract the rotational information.

This can easily and efﬁciently be transmitted during a

video call to simulate the head movement of the user’s

avatar on the receiver’s side. However, the focus of

this paper is more on information reduction than on

virtual environments.

(Wang et al., 2006) use only the 2-dimensional po-

sition of the face within the camera image to control

the 2D-movement of a game character.

This idea is extended into the 3

dimension by

(Yim et al., 2008), where a head-mounted LED line

is used to track the position and rotation of the user’s

head. This information is used again to control a game

instead of an avatar.

Using only a single camera, (Sko and Gardner,

2009) present a range of interaction techniques based

on 3-dimensional translation and rotation tracking

data. A predeﬁned set of head gestures is recognized

and associated with certain actions in a game. Slightly

tilting the head sideways is used for peering around a

corner. Leaning forwards is interpreted as zooming.

Head rotation is used for a slight change in the view

direction, whereas head translation is used for HCP.

These techniques focus on a single user, but the au-

thors have not extended their research on the possibil-

ities for multi-user scenarios.

In a recent study, (Marks et al., 2010) found that

users can clearly perceive head motions, facial ex-

pressions, and mouth movement of avatars, and that

camera-based HCP is more natural and intuitive to use

than manual view control.

3 QUESTIONS

AND HYPOTHESES

In this paper, we are going to validate the following

hypotheses:

H1 When head tracking is enabled, the participants

demonstrate more overall head movement than

when head tracking is disabled.

H2 When head tracking is enabled, the amount of

head movement is greater when participants talk

to each other compared to when head tracking is

disabled.

H3 When head tracking is enabled, the participants

perceive the other avatars as more natural than

when head tracking is disabled.

H4 When head tracking is enabled, the participants

perceive the communication with the other partic-

ipants as more natural than when head tracking is

disabled.

H5 When head tracking is enabled, the participants

look more at each other’s avatars than when head

tracking is disabled.

H6 When head tracking is enabled, the participants

solve the teamwork task better than when head

tracking is disabled.

4 DESIGN

The following factors were involved in the design of

the study:

• The number of participants was limited to three

due to the amount of available game engine li-

censes.

• It should be impossible or at least infeasible for

only one or two participants to solve the scenario

efﬁciently and instead require the effective team-

work of all three users involved.

• To facilitate comparison of the results, the sce-

nario should be of equal length when repeated.

• To avoid too much of a learning curve effect, the

scenario should vary at least in parts.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

258

4.1 Overview

We chose a simpliﬁed surgical procedure for the sim-

ulation scenario. It involves three participants: a sur-

geon, an anaesthesiologist, and a nurse. Each of these

three roles has very clear and deﬁned tasks:

• The surgeon performs the necessary steps of the

surgical operation on the patient.

• The anaesthesiologist monitors the patient’s vi-

tal signs and stabilises the patient when critical

events occur.

• The nurse is responsible for supplying the surgeon

and the anaesthesiologist with the correct instru-

ment respectively medication.

This clear deﬁnition of the roles and tasks together

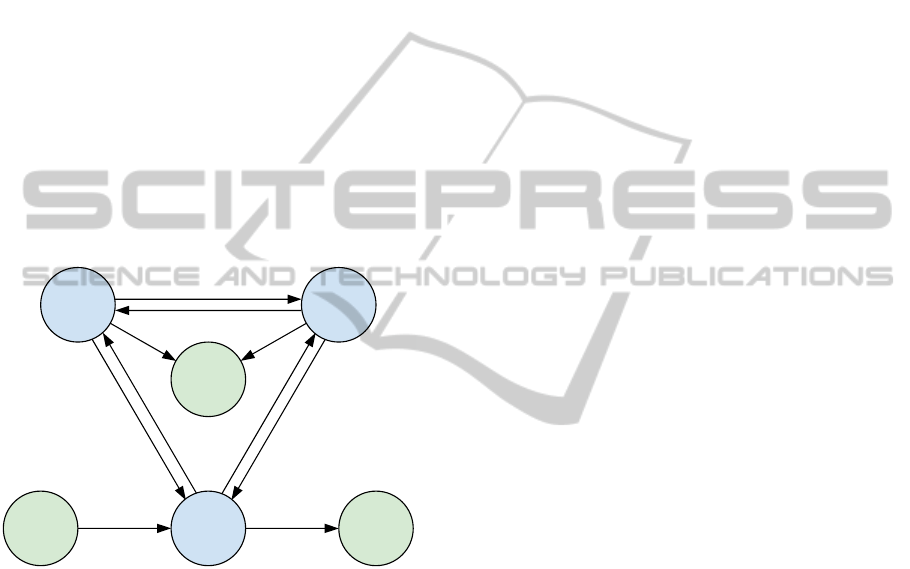

with the necessary interactions is depicted in Figure 1.

Every role has to communicate with every other role

throughout the scenario. Ineffective communication

would inevitably lead to an ineffective teamwork.

request status update

inform/interrupt

Drug/

Instrument

Trays

Disposal

Bin

take drug/

instrument

dispose of

instrument

Anaesthesi-

ologist

Patient

Nurse

Surgeon

Figure 1: Diagram of the relations and interactions between

the three roles and the patient.

For measuring the effectiveness of the teamwork

of a group of participants, we used the following two

metrics:

• The total time from the beginning of the ﬁrst step

of the surgical procedure until the completion of

the last step.

• The relative amount of time that the patient’s vi-

tal signs are critical (e.g., blood pressure too low,

heart rate too high).

For each group of three participants, we con-

ducted six experiments, rotating the roles and dis-

abling/enabling the head tracking so that no partic-

ipant would have the same role in two successive

experiments, and every participant would experience

each role with head tracking disabled and enabled.

4.2 Surgical Procedure

The selection of the nature of the simulated surgical

procedure was mainly based on the abilities of the

game engine we used for creating the VE, a modi-

ﬁed version of the Source Engine (Valve Corporation,

2004).

In general, larger objects can be handled more eas-

ily in this VE than small objects. Therefore, we chose

the relatively large torso of the patient as the operat-

ing ﬁeld, as opposed to the leg or other extremities.

This allowed us to design relatively large instruments

that would cause less problems for the participants to

move and position.

For the same reason, we chose to design a rather

large incision along the middle of the upper body, re-

vealing organs of the digestive system like stomach,

liver, pancreas, small intestines, and colon.

Located in the centre of this incision are the stom-

ach and the pancreas. After consultation with staff of

the surgical department, we decided on the removal of

dead and infected tissue from the pancreas of the pa-

tient as the surgical procedure to simulate. In medical

terms, this procedure is called pancreatic necrosec-

tomy.

4.3 Role Description

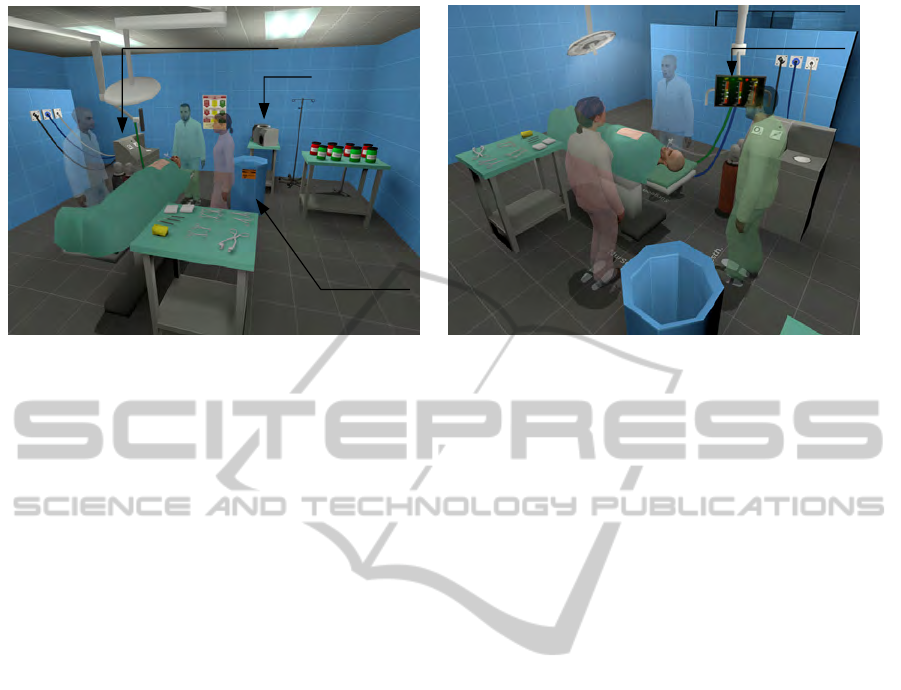

The positions of the three roles involved in the surgi-

cal procedure and the layout of the room can be seen

in Figure 2.

4.3.1 Surgeon

The surgeon operates on the right side of the patient.

The task of the surgeon is to apply the right instru-

ments in the right order to the patient to complete the

procedure step by step.

The steps of the simulated surgical procedure are

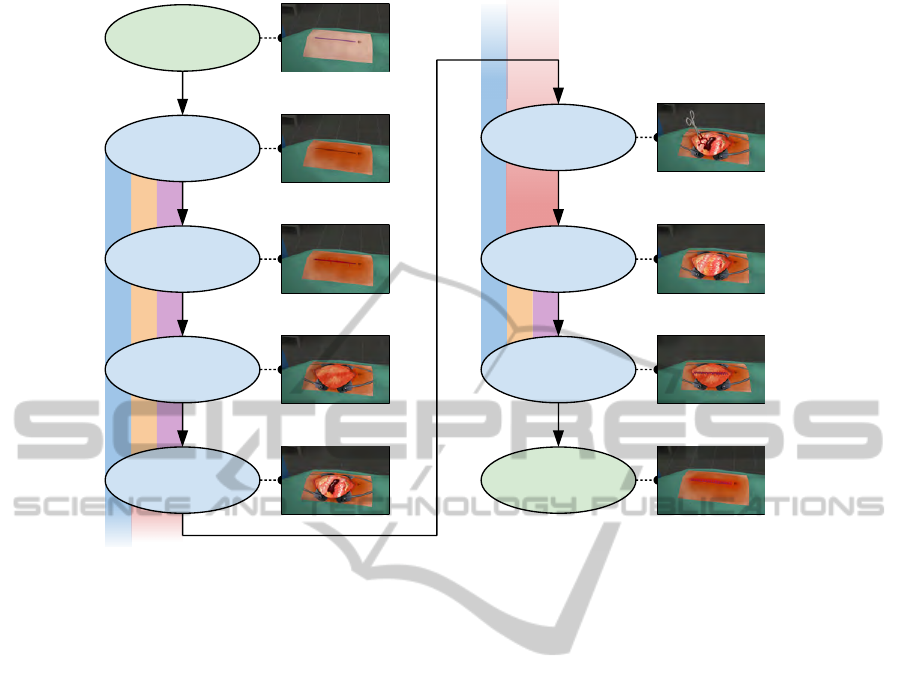

visualised in Figure 3. To get from one step to the

next, the indicated instrument has to be used. The

surgeon uses the instrument on the patient by touching

the operating ﬁeld with it.

When the instrument is the correct one for the

task, it starts to blink blue and a progress bar gets vis-

ible in the lower right corner of the screen. Each step

takes a certain amount of time, also listed in Figure 3.

When the instrument has been applied for that amount

of time, the progress bar disappears, the instrument

blinks green once and can now be disposed of by the

nurse.

When the surgeon applies a wrong instrument, it

blinks red and has no effect.

HEAD TRACKING BASED AVATAR CONTROL FOR VIRTUAL ENVIRONMENT TEAMWORK TRAINING

259

Nurse

Anaesthesiologist

Surgeon

Light

Patient

Patient Monitor

Instruments

Disposal Bin

Nurse

Surgeon

Blood/Drugs

Instruments

Anaesthetic Machine

Stereo

Disposal Bin

Figure 2: Two views of the operating theatre implemented in our simulation.

4.3.2 Anaesthesiologist

The anaesthesiologist is located at the head of the pa-

tient, close to the airways. The role of the anaesthe-

siologist is to observe the patient’s vital signs on the

patient monitor and to counteract four different types

of events that will occur at random times during the

operation:

1. The oxygen level of the patient’s blood falls lower

than 80%. This will cause a hypoxaemia alarm.

In this case, the anaesthesiologist has to press the

“O

” button of the anaesthetic machine to sup-

ply additional oxygen and cause the blood oxygen

level to rise back to normal again.

2. The blood pressure drops due to bleeding during

the procedure, resulting in hypotension. In this

case the anaesthesiologist has to start a blood in-

fusion to stabilise the blood pressure again. The

blood pressure will continue to drop as long as the

bleeding is not stopped by the surgeon who has to

apply pressure by using pads.

3. An increasing heartbeat rate is an indicator of

tachycardia and has to be treated by administer-

ing β-Blockers. The procedure does not have to

be stopped during this condition, but as it is the

nurse who has to hand the drug to the anaesthe-

siologist, the surgeon might have to wait for the

next instrument.

4. A decreasing heartbeat rate is a sign of brady-

cardia and has to be treated by administering At-

ropine to the patient. Similar to tachycardia, the

procedure does not have to be stopped, but might

be delayed by the nurse having to pass the drug to

the anaesthesiologist.

4.3.3 Nurse

The nurse is located opposite, on the other side of the

patient. The role of the nurse is to

• switch on the lighting of the operating ﬁeld,

• hand the requested instrument to the surgeon,

• take back the used instrument from the surgeon

and dispose of it, and

• hand the requested drugs to the anaesthesiologist.

4.3.4 Role Enforcement

Physical and logical barriers prevent any of the users

from taking over the role of any other user.

• The anaesthesiologist cannot reach the table with

the drug and blood bottles, because the stereo (see

Section 4.7 for details), a small tray, an IV stand,

and the disposal bin are in the way.

• The surgeon and the anaesthesiologist cannot eas-

ily reach the position of the other, because they

are blocked by the gas lines to the anaesthetic ma-

chine.

• The surgeon can see the instruments and guide the

nurse by looking at them, but it is impossible to

reach them from the other side of the patient.

• When roles other than the surgeon try to apply an

instrument on the patient, it will not have any ef-

fect.

• Running and jumping is disabled to prevent par-

ticipants with a higher experience in ﬁrst person

perspective games to jump over the patient or ob-

jects to reach other users’ locations.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

260

Start

Skin antiseptic

Skin layer cut

Skin layer retracted

Muscle layer

stitched

Use sponge to “paint patient”

with antisepsis solution (10s).

Clamp applied

Tissue removed

Cut skin layer

with scalpel (10s).

Muscle layer cut Finish

Retract skin layer

with retractor (7s).

Cut muscle layer

with scalpel (10s).

Remove necrotic tissue

in three steps

with different instruments (3x10s).

Stitch muscle layer

with needle and thread (10s).

Stitch skin layer

with needle and thread (10s).

Apply clamp (7s).

Figure 3: Overview of the steps of the simulated surgical procedure and the instruments necessary to reach the next step. The

coloured areas symbolise the sections of the procedure during which the events in Figure 4 can occur.

4.4 Events

During certain phases of the procedure, the events de-

scribed in Section 4.3.2 will occur. In Figure 3 and

Figure 4, the times at which the events can happen

are visualised by different colours.

During a certain phase of the operation, especially

while the clamp is applied or the necrotic tissue is be-

ing cut, unexpected and severe bleeding might occur.

This has to be stopped by applying pressure with a

pad. The operation can only be continued when the

bleeding has stopped. Bleeding is visualized by a red

particle system simulating a medium intense blood

ﬂow inside the operating ﬁeld. At the same time, the

anaesthesiologist will notice a loss of blood pressure.

Therefore, bleeding is an event that is easy to recog-

nise by all three roles.

At random times before and after this part, tachy-

cardia and bradycardia will occur. Those events are

most apparent to the anaesthesiologist who will see

the pointers on the patient monitor rise or fall. The

surgeon and the nurse will only have the audio cue

of the beeping heartbeat monitor becoming faster or

slower.

Finally, at another random point in time, the oxy-

gen saturation will drop signiﬁcantly. The anaesthe-

siologist has to keep an eye on this value to prevent

hypoxaemia. This event is apparent only to the anaes-

thesiologist.

All four events are spaced temporally so that they

do not occur at the same time. Only when the partic-

ipants do not react to an event and instead continue

with the operation, the effects of multiple events will

eventually build up.

4.5 Face Validity

The simulated procedure is a very simpliﬁed version

of a real surgery. We had to ﬁnd a compromise be-

tween face validity, the medical term for realism, and

simplicity for several reasons:

• The game engine has limitations in terms of phys-

ical simulation and animation.

• The interaction of the user with the VE has to be

kept simple.

• Some of the participants were non-medical stu-

dents who did not have a solid background in

medicine.

For both participant groups, medical and non-

medical, an explanation was given beforehand that

this scenario is a very simpliﬁed simulation and does

not always realistically reﬂect procedures, devices,

and effects.

HEAD TRACKING BASED AVATAR CONTROL FOR VIRTUAL ENVIRONMENT TEAMWORK TRAINING

261

Normal

Tachycardia Bradycardia

Blood loss/

Hypotension

Hypoxaemia

Administer β-Blocker

Administer Atropine

Start Blood Infusion / Surgeon: Stop BleedingIncrease Oxygen Flow

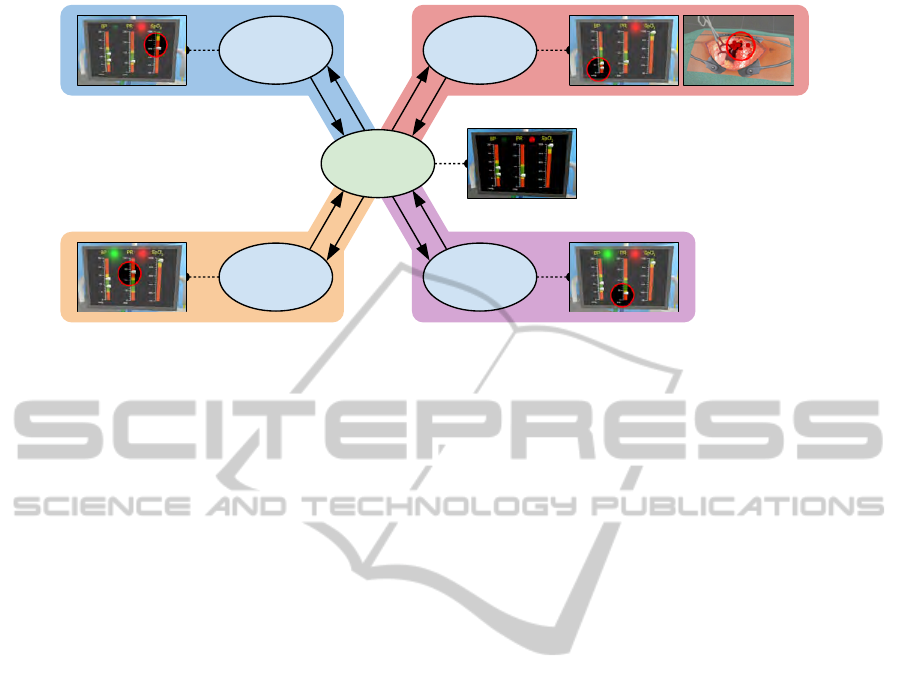

Figure 4: Overview of the four events that the team has to react to during the simulated surgical procedure. The events with

a coloured background occur at a random point of time during the steps of the procedure in Figure 3 with the same coloured

background.To return to the “Normal” state, the action next to the arrow has to be taken.

In summary, the following aspects of the simula-

tion are not realistic:

• The avatars don’t wear face masks which, in real-

ity, are mandatory for infection control (Lipp and

Edwards, 2002).

• A medical team is usually comprised of more than

only tree members. In our case, the roles of, e.g.,

the running nurse (responsible for fetching instru-

ments and gear from outside of the operating the-

atre) and anaesthesiology nurse (mainly responsi-

ble for assistive tasks required by the anaesthesi-

ologist) are not covered.

• The anaesthetic machine and the patient monitor

have a very simpliﬁed functionality and a different

look compared to real machines.

• In case of blood loss between 15% and 30% of

the total blood volume, deﬁned as Class II hem-

orrhage by the American College of Surgeons,

saline ﬂuid is usually sufﬁcient to stabilise the

blood pressure (O’Leary et al., 2008, p. 564). A

blood transfusion is only necessary when the pa-

tient has lost larger amounts of blood. In addi-

tion, due to its viscosity, blood would not ﬂow fast

enough into the circulatory system of the patient.

• In case of blood loss, the blood pressure does not

immediately decrease. Instead, the heart starts

to beat faster to maintain the blood pressure de-

spite the loss of blood volume (O’Leary et al.,

2008, p. 564). During this phase, only the dias-

tolic blood pressure starts to drop, caused by the

tachycardia and contracting blood vessels, while

the systolic pressure stays more or less the same.

• The incision is in general too large for an abdom-

inal procedure. In addition, removal of necrotic

pancreas is usually not done by an open opera-

tion. A multi-centre study (van Santvoort et al.,

2010) has shown that endoscopic procedures re-

sult in less complications and a lower mortality

rate among patients compared to open procedures.

• In the simulation, the pancreas is immediately vis-

ible. In reality, a larger part of the pancreas is hid-

den behind the stomach.

• The treatment for the critical events in the simula-

tion is extremely simpliﬁed.

• Instruments that have been dropped on the ﬂoor

can be used again on the patient without the risk

of infection (see further commentary to this issue

in 7.3).

• A team coming together for a real world medical

simulation already has a reasonable background

of medical knowledge and experience. During the

simulation, this knowledge and understanding of

their roles enables them to completely focus on

the teamwork and the task. In contrast, several of

the participants in our VE scenario had no medi-

cal knowledge and had to learn their roles as well

as having to work together as a team. For some

of them, having to learn the use of the VE was

another additional task.

4.6 Room Design

The overall design of the room was based on photos

of real operating theatres. 3D modelling of the in-

struments and other objects in the operating theatre

was done in the 3D open-source software Blender

(Blender Foundation, 2007). As for the room, we

used photos and schematic diagrams for textures and

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

262

measurements, but enlarged the majority of the instru-

ments by 20% to 50% to enable easier handling in the

VE.

4.7 Sound

To disrupt voice communication, we added two sound

sources to the simulation. Random announcements

can be heard in intervals of 20s to 40s through a

speaker mounted in the ceiling. Those announce-

ments are meant to disrupt the communication be-

tween the participants on a regular, but short basis.

A second sound source is a CD player with speak-

ers in the operating theatre, which is common practice

in operating theatres (Ullmann et al., 2008). It ran-

domly plays one of six music tracks that are all about

6min to 8min long and differ in style: Rock, Funk,

Folk, Jazz, Trip Hop, and Ambient. The anaesthesiol-

ogist can change the track, but cannot switch it off or

alter the volume.

The music is intended to be a continuous source

of noise, making it slightly harder for the participants

to fully rely on pure voice communication. There-

fore, we purposely violate a general recommendation

that, during a surgical procedure, the music should be

turned to a low volume in general and completely off

in cases of emergency (Hodge and Thompson, 1990).

5 SETUP

For the VE, we use the Source Engine, running a

heavily modiﬁed version of a multi-player death-

match game. The head tracking is done by an exter-

nal program that uses the commercial tracking engine

faceAPI (Seeing Machines, 2009). This program runs

in the background and communicates with the VE,

continuously transmitting updates of the user’s head

position and rotation.

We used three DELL Optiplex 745 desktop com-

puters

as clients and the development machine

the server.

The simulation was run with a 60Hz framerate on

the server as well as on the clients.

The client desktops were equipped with a Log-

itech QuickCam Pro 9000 webcam. This camera pro-

vided a stable framerate of 30fps with only the avail-

Intel Core

2 Duo CPU, 2.13GHz, 3GB memory, Windows

Vista Enterprise 32bit, Radeon X1300 graphics card with 256MB

graphics memory, DELL 2007FP 20.1inch ﬂat panel monitor with

1600x1200pixel resolution.

Intel Core

2 Quad CPU, 2.4GHz, 4GB memory, Windows

XP Professional, NVIDIA Quadro FX 570 graphics card with

256MB graphics memory.

able room lighting. Autofocus ensured that even with

movement away and towards to the monitor, the heads

of the participants always stayed in focus.

It was not possible to organise three separate

rooms for the participants, so we had to use other

methods to ensure that they could not hear or see each

other directly. One solution was the use of Logitech

G35 headsets which covered the ears of the partici-

pants completely and provided enough isolation from

outside sounds. That way, the participants had to rely

solely on communication channels provided by the

game engine.

To prevent the participants from seeing each other

or each other’s screens, we set up ofﬁce walls that

occluded direct line of sight between the three client

workstations and in addition provided further acous-

tic separation of the participants. A photo of the com-

plete setup is shown in Figure 5.

6 METHODOLOGY

We recruited participants by printed advertisements in

the buildings of the departments of Computer Science

and the Medical School, and by emails sent to classes

and postgraduate students of the department of Com-

puter Science.

On average, one user study took around 90min to

complete. Due to this extended duration, we reim-

bursed the participants by handing out grocery vouch-

ers valued 10 NZD. We assumed that this amount

would encourage participants sufﬁciently without in-

troducing the risk that they would “just do it for the

money”.

We explained the overall goal of the study to the

participants, mentioning the head tracking and the

possibility to control the view and the head movement

of the avatar. Afterwards, we gave a brief overview of

the procedure and the roles and their responsibilities.

The participants were encouraged to interrupt and ask

questions at any stage.

Before the actual study took place, We introduced

the participants to the VE by running an introduction

simulation without recording any data. The partici-

pants were able to get accustomed to the environment

and to experiment with objects, instruments, and de-

vices. Each participant had a set of three information

sheets in front of them that described their role, the

necessary instruments or devices, and the mouse and

keyboard controls.

After the introduction and any further questions

from the participants, we enabled data logging of the

simulation and started the actual series of six exper-

iments. The participants were not informed whether

HEAD TRACKING BASED AVATAR CONTROL FOR VIRTUAL ENVIRONMENT TEAMWORK TRAINING

263

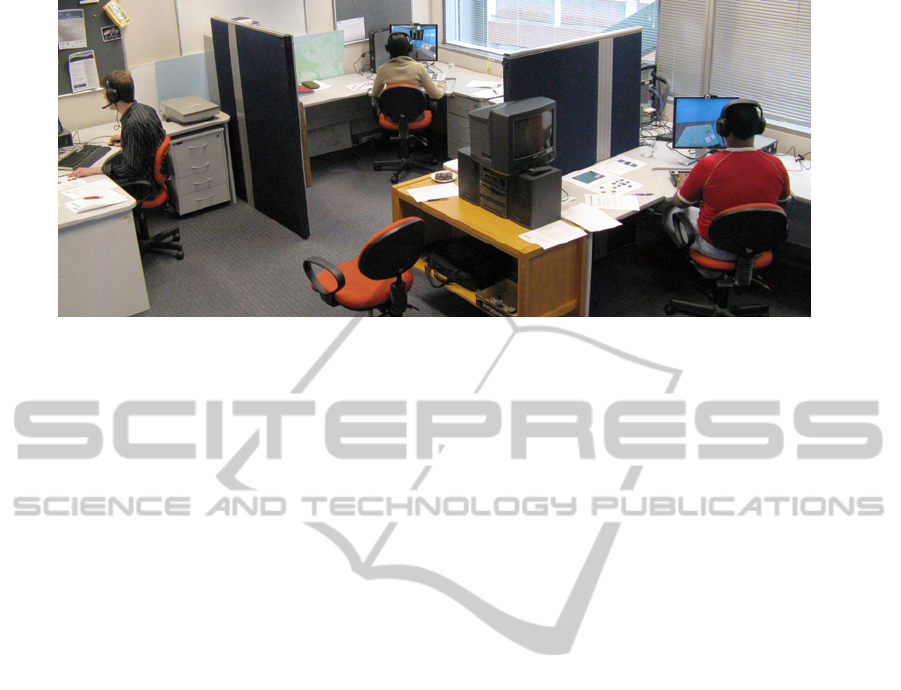

Figure 5: Photo of the experimental setup with three participants. The participants are isolated visually by ofﬁce walls and

acoustically by headsets that completely cover the ears.

head tracking was disabled or enabled.

After each experiment, the participants ﬁlled in a

short questionnaire about their opinion on teamwork

and communication aspects of the simulation. During

that time, we changed the information sheets accord-

ing to the rotating roles of the participants.

At the end of the six experiments, the participants

ﬁlled out an additional questionnaire page with gen-

eral questions about the VE.

7 RESULTS

7.1 Participants

More than 30 people answered to the invitation emails

and advertisements. However, due to ﬁnancial and

time constraints, we had to limit the amount of par-

ticipants to 27. The age of the participants, 6 of them

being female, covered a range from 20 to around 44

years (see Figure 6 for more details).

All participants have used a computer often or

more. 5 of them have not played computer games at

all within the three months before the study. 22 of the

participants have had experience in using a webcam,

e.g., by using it for video conferencing. 11 of them

have not used a VE before.

7.2 Hypotheses

Hypothesis H1: When head tracking is enabled, the

participants demonstrate more overall head move-

ment than when head tracking is disabled.

For the veriﬁcation of this hypothesis, we calcu-

lated the total amount of translational and rotational

head movement in 1s steps and compared the values

from experiments with head tracking disabled to the

values from experiments with head tracking being en-

abled.

The resulting data is not normally distributed, but

instead strongly skewed towards lower values and

tailing off towards higher values. For that reason, it is

not possible to apply the t-test to this data. Instead, we

chose the Wilcoxon rank sum test (McCrum-Gardner,

2008).

The results show a statistically signiﬁcant but only

minute difference in translational movement (me-

dian values 28.2mm / 26.7mm, Wilcoxon rank sum

test with continuity correction, p < 0.001, 95% CI

0.71mm to 1.51mm) and a minute and statistically in-

signiﬁcant difference in rotational movement (median

values 11.2

◦

/ 11.1

◦

, Wilcoxon rank sum test with

continuity correction, p = 0.500, 95% CI -0.07

◦

0.16

◦

). Based on this outcome, Hypothesis H1 has to

be falsiﬁed. When head tracking is active, the partici-

pants do not increase the amount of their overall head

movement. On the contrary, the data suggests that the

amount of movement is the same irrespective of head

tracking being disabled or enabled.

Hypothesis H2: When head tracking is enabled, the

amount of head movement is greater while partici-

pants talk to each other compared to when head track-

ing is disabled.

For the analysis of this hypothesis, we prepared

the data in the same way as described for the hypoth-

esis before, but selected only the subset of the mea-

surements when the participants were talking. Again,

we had to apply the Wilcoxon ranked sum test due to

the skewed distribution of the data.

Like for the previous hypothesis, the results of

the test for head movement of the participants when

they were talking do either indicate statistically sig-

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

264

Percent of Total

50%

100%

Female Male

6 21

(a) Gender

Percent of Total

50%

100%

<20 20−24 25−29 30−34 35−39 40−44 45−49 50−54 55−59 >=60

8 6 8 3 1 1

(b) Age Group

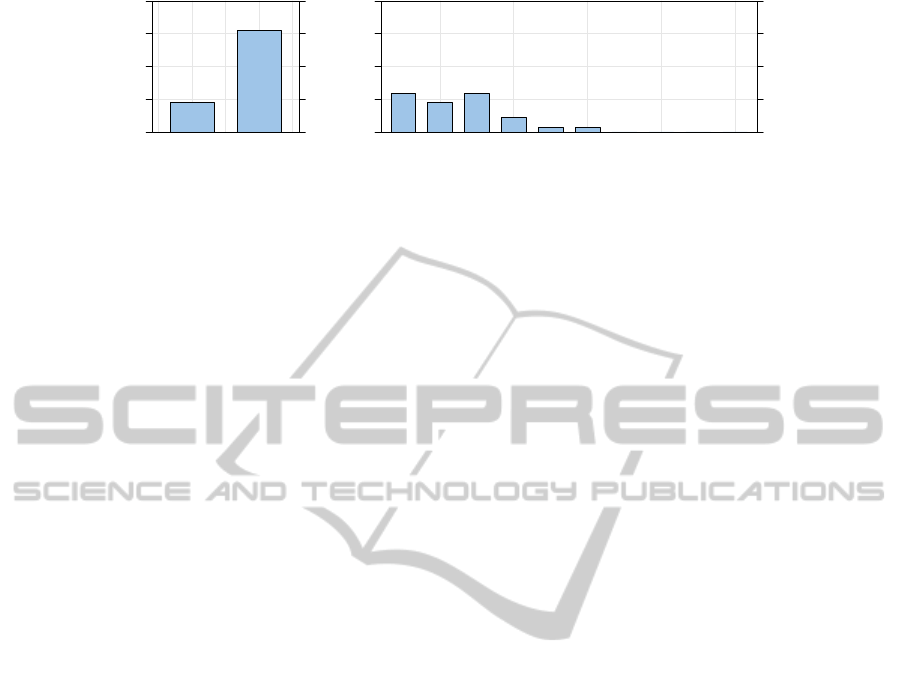

Figure 6: Demographic data of the participants of the multi user study.

niﬁcant but minor differences, or statistically in-

signiﬁcant differences. Translational head movement

differs only by -1.0mm (median values 35.9mm /

34.9mm, Wilcoxon rank sum test with continuity cor-

rection, p = 0.054, 95% CI -0.00 to 1.53), and rota-

tional movement by -0.2(median values 14.0 / 13.8,

Wilcoxon rank sum test with continuity correction,

p = 0.183, 95% CI -0.06 to 0.42).

Similar to the previous one, Hypothesis H2 has

to be falsiﬁed. While talking, the participants do not

increase their head movement signiﬁcantly when head

tracking is enabled. Instead, the results suggest that

the amount of movement is the same for head tracking

disabled respectively enabled.

Hypothesis H3: When head tracking is enabled, the

participants perceive the other avatars as more natu-

ral than when head tracking is disabled.

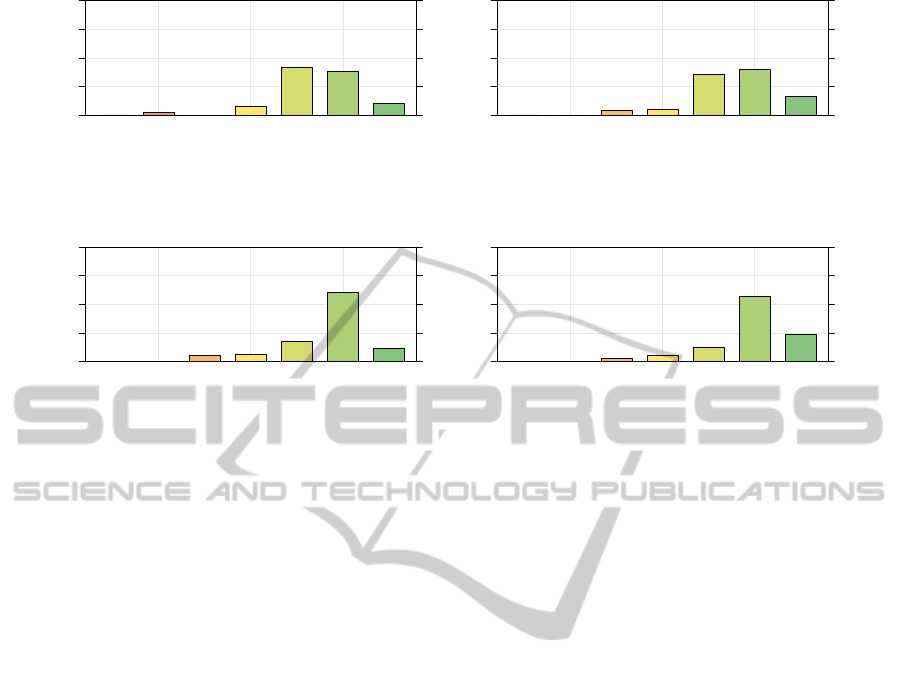

For the veriﬁcation of this hypothesis, we evalu-

ated the questionnaires that the participants had to an-

swer after each of the six experiments (see Figure 7).

We converted the answers to the 7-point Likert

scales on the questionnaires to a numerical value us-

ing a translation scale of −3 for “Strongly Disagree”

to +3 for “Strongly agree”. We then compared the

answers of experiments 1, 3, and 5 (head tracking dis-

abled) to the answers of experiments 2, 4, and 6 (head

tracking enabled) using a t-test.

The comparison reveals a statistically non-

signiﬁcant difference of 0.2 (mean values 1.4 / 1.6,

Welch Two Sample t-test, p = 0.282, 95% CI −0.45

to 0.13), thereby weakly supporting the validity of

the hypothesis. The participants perceive the other

avatars slightly more natural when head tracking is

enabled compared to when head tracking is disabled.

Hypothesis H4: When head tracking is enabled,

the participants perceive the communication with the

other participants as more natural than when head

tracking is disabled.

We evaluated the answers to the question about

how natural the communication is perceived (see Fig-

ure 8) in a similar way to the one described for the

previous hypothesis. Again, we compared the results

of experiments 1, 3, and 5 (head tracking disabled) to

the answers of experiments 2, 4, and 6 (head tracking

enabled) using a t-Test.

The comparison suggests that the participants per-

ceive the communication slightly more natural when

head tracking is enabled than when it is disabled

(mean values 1.7 / 1.9, Welch Two Sample t-test,

p = 0.059, 95% CI −0.55 to 0.01), thereby support-

ing the hypothesis.

Hypothesis H5: When head tracking is enabled, the

participants look more at each other’s avatars than

when head tracking is disabled.

The logged data from the simulation also recorded

which user has been looking at which object or avatar

for how long. We used this information to calculate

the relative amount of time each participant had been

looking at one of the team members. The results,

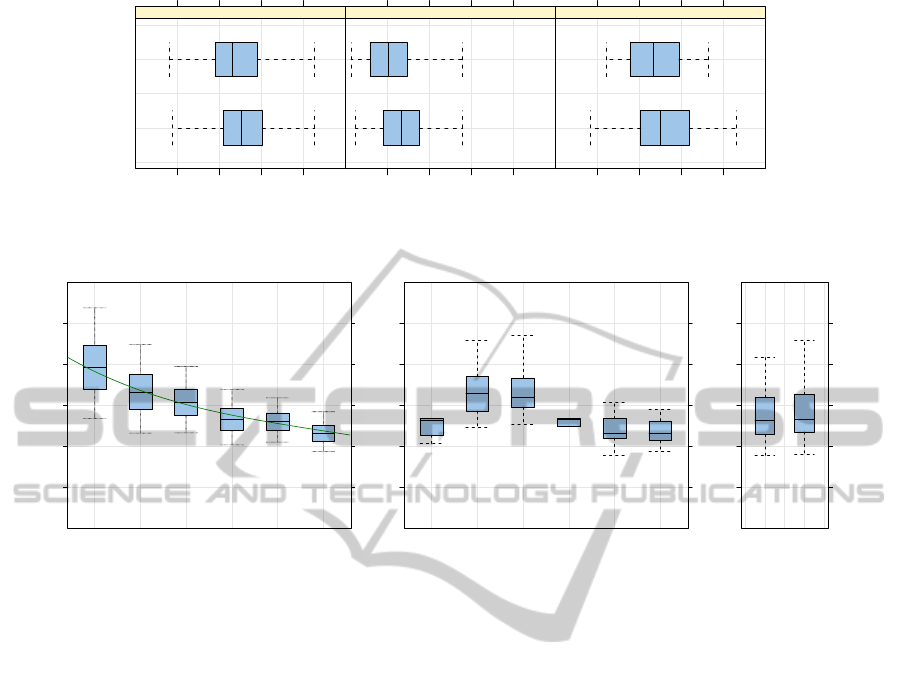

grouped by role, are visualized in Figure 9.

Though there are differences in the comparisons,

those are again only minor and statistically insignif-

icant. When head tracking is enabled, the surgeon

spends 0.4% more time looking at the colleagues

(mean values 25.0% / 25.4%, Welch Two Sample t-

test, p = 0.849, 95% CI -5.15% to 4.25%), the anaes-

thesiologist 1.6% (mean values 11.7% / 13.3%, Welch

Two Sample t-test, p = 0.430, 95% CI -5.71% to

2.47%), and the nurse 1.4% (mean values 23.9% /

25.3%, Welch Two Sample t-test, p = 0.576, 95% CI

-6.05% to 3.40%) compared to when head tracking is

disabled.

Overall, these results add only very weak support

for the hypothesis. Nevertheless, it is interesting to

see how the values reﬂect the different observation

patterns of the three roles. It is apparent that the

anaesthesiologist has a different pattern than surgeon

and nurse. This difference is most probably caused by

the primary task of the role of the anaesthesiologist:

to watch the patient monitor for changes in the vital

signs.

HEAD TRACKING BASED AVATAR CONTROL FOR VIRTUAL ENVIRONMENT TEAMWORK TRAINING

265

Percent of Total

50%

100%

Strongly

Disagree

Disagree Slightly

Disagree

Neutral Slightly

Agree

Agree Strongly

Agree

2 6 34 31 8

(a) Head Tracking disabled

Percent of Total

50%

100%

Strongly

Disagree

Disagree Slightly

Disagree

Neutral Slightly

Agree

Agree Strongly

Agree

3 4 29 32 13

(b) Head Tracking enabled

Figure 7: Results of the questionnaires about how natural the participants perceive the teammember’s avatars.

Percent of Total

50%

100%

Strongly

Disagree

Disagree Slightly

Disagree

Neutral Slightly

Agree

Agree Strongly

Agree

4 5 14 49 9

(a) Head Tracking disabled

Percent of Total

50%

100%

Strongly

Disagree

Disagree Slightly

Disagree

Neutral Slightly

Agree

Agree Strongly

Agree

2 4 10 46 19

(b) Head Tracking enabled

Figure 8: Results of the questionnaires about how natural the participants perceive the communication with their team mem-

bers.

Hypothesis H6: When head tracking is enabled, the

participants solve the teamwork task better than when

head tracking is disabled.

As described in Section 3, we calculated the efﬁ-

ciency of the teamwork based on two values that are

extracted from the data:

• The total time for completion of each experiment.

• The relative amount of time that the patient is in a

critical state.

For all two values, we expected the inﬂuence of

the head tracking to reﬂect on the results like shown in

Figure 10. The participants were repeating a similar

task six times, so we anticipated a learning curve that

would demonstrate a tendency towards faster comple-

tion with each repetition, with a gradient that would

ease out towards the end. The positive inﬂuence of

head tracking would be visible by average values that

are below the ﬁtting curve for experiments 2, 4, and 6,

whereas experiments 1, 3, and 5 without head track-

ing would produce results above the ﬁtting line.

However, the measured results look very differ-

ent. The learning curve is visible in experiments 2 to

6, but experiment 1 has a signiﬁcantly lower comple-

tion time than experiments 2 to 3. The reason for this

outlier is most probably the practice run that the par-

ticipants had to complete before the ﬁrst experiment

was conducted.

For the practice run, they performed the teamwork

task without their results being recorded and with help

and minor intervention from the simulation admin-

istrator. After the practice run, the ﬁrst experiment

started with the participants having the same roles

than in the practice run. They had gotten used to their

roles and were able to ﬁnish the teamwork task rela-

tively fast.

For experiment 2 and 3, the roles were rotated so

that every participants had to learn the requirements

and tasks of the new roles. The inﬂuence of this new

learning process reﬂects in the similar results for ex-

periments 2 and 3.

Finally, for experiments 4 to 6, the participants

were repeating former role combinations. Because by

now, they had experienced every role, they were bet-

ter able to focus on the task.

Due to the unusual values of the boxplots re-

sults, it is not possible to model an average curve for

the comparison of the results with and without head

tracking. Instead, we grouped the values by head

tracking “off” (experiments 1, 3, and 5) and “on” (ex-

periments 2, 4, and 6) and compared the mean values

using a t-test. The values do not differ signiﬁcantly

(mean values 285.2s /285.9s, Welch Two Sample t-

test, p = 0.974, 95% CI -45.21s to 43.74s). Instead,

the high p-value suggests that head tracking makes no

difference at all on the completion times of the team-

work task.

Likewise, the comparison of the relative amount

of time that the master alarm was on results in a sta-

tistically insigniﬁcant difference (mean values 16.7%

/ 17.3%, Welch Two Sample t-test, p = 0.821, 95%

CI -6.68% to 5.33%), suggesting additional support

for the hypothesis that head tracking makes no differ-

ence at all.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

266

Relative Time Looking at Avatars / %

Head Tracking

Off

10 20 30 40

●

Surgeon

10 20 30 40

●

Anaesthesiologist

10 20 30 40

●

Nurse

Figure 9: Plots of the relative amount of time the participants have been looking at the avatars of their team members.

Experiment Number

Completion Time / sec

100

200

300

400

500

1 2 3 4 5 6

(a) Expected results

Experiment Number

Completion Time / sec

100

200

300

400

500

1 2 3 4 5 6

●

(b) Measured results

Head Tracking

Completion Time / sec

100

200

300

400

500

Off On

●

tracking off/on

Figure 10: Box plots of the times the participants needed to complete the task.

7.3 Overall Impression

Overall, the participants enjoyed to work in teams

within the simulation and had no major problems with

the head tracking. In fact, the tracking was so unob-

trusive, that several participants later commented that

they were not at all aware of the tracking and the head

movements.

When being asked about the stressfulness of the

roles, the majority of the participants agreed that the

nurse was the most stressful role, in contrast to the

anaesthesiologist, who was considered the most re-

laxed role.

7.3.1 Head Tracking

There were slight problems resulting from a combi-

nation of head tracking jitter and handling of small

objects like the scalpel. In these cases, some partic-

ipants had problems passing on the scalpel from one

to another. The tracking jitter of one simulation client

would move the object in a slightly random pattern,

making it more difﬁcult for the opposite user to grab

it. In their comments, several participants agreed on

the fact that small objects were most difﬁcult to han-

dle, especially the scalpel.

On the other hand, head tracking was mentioned

as being very useful in precise placement of instru-

ments or for zooming in on the patient monitor.

In general, the rotation of the avatar’s heads by

head tracking was perceived, although most partici-

pants stated that they were too preoccupied by the task

to pay attention to the head movements. Occasions

where the tracking would stand out were when the

participants would physically look sideways to their

role description sheets and their avatar would also per-

form that sideways look. Other occasions were, for

example, head bobbing to the rhythm of the music.

7.3.2 Involvement

The participants demonstrated a high level on involve-

ment, characterized by utterances like “Oh No!”,

when the master alarm would go off, or “Don’t die,

please!” when the bleeding could not be stopped im-

mediately. Sometimes, participants would even en-

gage in role play and joke around or tease their team

colleagues.

On some occasions, when teamwork was not op-

timal, and the group was especially competitive, the

HEAD TRACKING BASED AVATAR CONTROL FOR VIRTUAL ENVIRONMENT TEAMWORK TRAINING

267

tone turned slightly aggressive. In one group, for ex-

ample, the nurse ignored the request of the surgeon for

the pad and instead decided to give a bottle of blood to

the anaesthesiologist ﬁrst. In terms of efﬁciency, this

step was not optimal, because as long as the bleeding

was not stopped, the patient continued to lose blood.

So the ﬁrst priority of the team should have been to

stop the bleeding ﬁrst (i.e., give the surgeon a pad)

and then to stabilise the blood pressure. The surgeon,

being aware of this ineffectiveness, commented in a

slightly annoyed tone: “We need another nurse!”, In

return, the nurse deﬁantly countered: “I think we need

another surgeon!”.

7.3.3 Unexpected Behaviours

A disadvantage of the rotation of roles was that on

several occasions, participants would take over re-

sponsibilities of other roles. A nurse who was the

anaesthesiologist in the previous run would keep an

eye on the patient monitor and grab the necessary

drug before the current anaesthesiologist would no-

tice and require it. However, in a training environ-

ment where roles are predetermined and not rotated

after every simulation, this problem would occur only

to a lesser extent or not at all.

Another unexpected behaviour, observed espe-

cially with participants who indicated a high amount

of computer game playing time, was the exploration

of similarities and differences between the simula-

tion and reality. When participants had, for exam-

ple, dropped the scalpel on the ﬂoor, there was an

initial hesitancy to use that scalpel again on the pa-

tient, caused by basic knowledge of the risk of in-

fection in reality. However, when the participants

found out that, in the simulation, this re-use did not

have any negative consequences, they continued to

use dropped instruments on the patient in favour to de-

manding a new and “clean” instrument from the nurse

and thereby losing time.

8 CONCLUSIONS

Table 1 summarizes the hypotheses and the results of

our ﬁndings. In summary, the evaluation of experi-

mentally obtained data is showing

• that avatars with tracking-based head movement

are perceived as more natural than avatars without

tracking-based head movement, and

• that avatars with tracking-based head movement

facilitate a communication that is perceived as

more natural than with avatars without tracking-

based head movement,

However, these results are either only weakly sup-

ported by the data or the difference in the participants’

perception is only marginal.

Table 1: This table summarises the results of the multi user

study. “+” indicates that the results support the hypothesis.

“-” indicates that the results falsify the hypothesis.

Hypothesis Experimental Result

H1 -

H2 -

H3 +

H4 +

H5 +

H6 -

Unfortunately, there is only very weak support for

the hypothesis that participants look at each other’s

avatars more regularly when head tracking is enabled.

Finally, contrary to the original hypotheses, the

analysis of the data also shows

• that the participants do not change the amount of

head movement when head tracking is enabled

compared to when head tracking is disabled,

• that, while talking, the participants do not change

the amount of head movement when head track-

ing is enabled compared to when head tracking is

disabled, and

• that the teamwork performance does not improve

when head tracking is enabled compared to when

head tracking is disabled.

While especially those last three statements have

the potential to discouragement, they nevertheless in-

dicate an important fact: Although a new technol-

ogy has been introduced with several possibilities for

failure and measurement errors, the participants were

largely unaware of that new technology. They per-

ceived an improvement in the naturalness of the VE

and an improvement of the quality of communication,

but did not experience any major negative limitations

imposed upon them by this new technology.

We assume that the main reason for the lack of

inﬂuence of head tracking was the fact that the simu-

lated scenario required more focus on the task and on

handling the instruments than on the communication.

In addition, not all possibilities of this new tech-

nology have been explored yet. For our experiment,

the head rotation was simply mapped onto the avatars

without any further semantic analysis. One future ex-

tension will be to calculate the actual target of the

user’s head direction on the screen and to use that in-

formation to transform the tracking data so that the

user’s avatar looks at the same target in the VE. An

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

268

additional level of realism would be introduced by eye

tracking and a similar transformation of the avatar’s

gaze.

Automatic recognition of facial expressions is an-

other future extension. This feature would not in-

crease the complexity of the physical setup and would

also not require any major changes in our simulation

engine. However, we would expected that the inclu-

sion of this communication channel can further in-

crease at least the perceived naturalness and ease of

use – if not more.

REFERENCES

Blender Foundation (2007). Blender. http://

www.blender.org.

Cartmill, J., Moore, A., Butt, D., and Squire, L. (2007).

Surgical Teamwork: Systemic Functional Linguistics

and the Analysis of Verbal and Nonverbal Meaning in

Surgery. ANZ Journal of Surgery, 77(Suppl 1):A79–

A79.

Cordea, M. D., Petriu, D. C., Petriu, E. M., Georganas,

N. D., and Whalen, T. E. (2002). 3-D Head Pose Re-

covery for Interactive Virtual Reality Avatars. IEEE

Transactions on Instrumentation and Measurement,

51(4):640–644.

Danforth, D., Procter, M., Heller, R., Chen, R., and John-

son, M. (2009). Development of Virtual Patient Sim-

ulations for Medical Education. Journal of Virtual

Worlds Research, 2(2):3–11.

Hodge, B. and Thompson, J. F. (1990). Noise pollution

in the operating theatre. The Lancet, 335(8694):891–

894.

Lipp, A. and Edwards, P. (2002). Disposable surgical

face masks for preventing surgical wound infection in

clean surgery. Cochrane Database of Systematic Re-

views 2002, 1(CD002929).

Marks, S., Windsor, J., and Wnsche, B. (2010). Evalua-

tion of the Effectiveness of Head Tracking for View

and Avatar Control in Virtual Environments. 25th In-

ternational Conference Image and Vision Computing

New Zealand (IVCNZ) 2010.

McCrum-Gardner, E. (2008). Which is the correct statistical

test to use? British Journal of Oral and Maxillofacial

Surgery, 46(1):38–41.

Messinger, P. R., Stroulia, E., Lyons, K., Bone, M., Niu,

R. H., Smirnov, K., and Perelgut, S. (2009). Vir-

tual Worlds – Past, Present, and Future: New Direc-

tions in Social Computing. Decision Support Systems,

47(3):204–228.

Ohya, J., Kitamura, Y., Takemura, H., Kishino, F., and

Terashima, N. (1993). Real-time reproduction of

3D human images in virtual space teleconferencing.

In Virtual Reality Annual International Symposium,

1993, pages 408–414.

O’Leary, J. P., Tabuenca, A., and Capote, L. R., editors

(2008). The physiologic basis of surgery. Wolters

Kluwer Health/Lippincott Williams & Wilkins, 4 edi-

tion.

Seeing Machines (2009). faceAPI. http://

www.seeingmachines.com/product/faceapi.

Sko, T. and Gardner, H. J. (2009). Human-Computer Inter-

action - INTERACT 2009. In Gross, T., Gulliksen, J.,

Kotz, P., Oestreicher, L., Palanque, P., Prates, R. O.,

and Winckler, M., editors, Lecture Notes in Computer

Science, volume 5726/2009 of Lecture Notes in Com-

puter Science, chapter Head Tracking in First-Person

Games: Interaction Using a Web-Camera, pages 342–

355. Springer Berlin / Heidelberg.

Ullmann, Y., Fodor, L., Schwarzberg, I., Carmi, N., Ull-

mann, A., and Ramon, Y. (2008). The sounds of music

in the operating room. Injury, 39(5):592–597.

Valve Corporation (2004). Valve Source Engine Features.

http://www.valvesoftware.com/sourcelicense/ engine-

features.htm.

van Santvoort, H., Besselink, M., Bakker, O., Hofker, H.,

Boermeester, M., Dejong, C., van Goor, H., Schaa-

pherder, A., van Eijck, C., Bollen, T., van Ramshorst,

B., Nieuwenhuijs, V., Timmer, R., Lamris, J., Kruyt,

P., Manusama, E., van der Harst, E., van der Schelling,

G., Karsten, T., Hesselink, E., van Laarhoven, C.,

Rosman, C., Bosscha, K., de Wit, R., Houdijk, A.,

van Leeuwen, M., Buskens, E., Gooszen, H., and

Dutch Pancreatitis Study Group (2010). A Step-

up Approach or Open Necrosectomy for Necrotizing

Pancreatitis. The New England Journal of Medicine,

362(16):1491–1502.

Wang, S., Xiong, X., Xu, Y., Wang, C., Zhang, W., Dai,

X., and Zhang, D. (2006). Face-tracking as an aug-

mented input in video games: enhancing presence,

role-playing and control. In CHI ’06: Proceedings of

the SIGCHI conference on Human Factors in comput-

ing systems, pages 1097–1106, New York, NY, USA.

ACM.

Yim, J., Qiu, E., and Graham, T. C. N. (2008). Experience in

the design and development of a game based on head-

tracking input. In Future Play ’08: Proceedings of

the 2008 Conference on Future Play, pages 236–239,

New York, NY, USA. ACM.

HEAD TRACKING BASED AVATAR CONTROL FOR VIRTUAL ENVIRONMENT TEAMWORK TRAINING

269
