A FRAMEWORK FOR WEBCAM-BASED HAND REHABILITATION

EXERCISES

Rui Liu, Burkhard C. W

unsche, Christof Lutteroth and Patrice Delmas

Department of Computer Science, University of Auckland, Private Bag 92019, Auckland, New Zealand

Keywords:

Hand tracking, Hand segmentation, Skin classiﬁers, Hand rehabilitation.

Abstract:

Applications for home-based care are rapidly increasing in importance due to spiraling health and elderly care

costs. An important aspect of home-based care is exercises for rehabilitation and improving general health.

In this paper we present a framework for demonstrating and monitoring hand exercises. The three main com-

ponents are a 3D hand model, a high-level animation framework which facilitates the task of specifying hand

exercises via skeletal animation, and a hand tracking program to monitor and evaluate users’ performance.

Our hand tracking solution has no calibration stage and is easily set-up. Segmentation is performed using a

perception-based colour space, and hand tracking and motion estimate are obtained using novel variations to

a CAMSHIFT and contour analysis algorithms. The results indicate that the robust tracking along with the

demonstration and reconstruction of hand exercises provide an effective platform for hand rehabilitation.

1 INTRODUCTION

Reduced or complete loss of control of hand and ﬁn-

gers is a catastrophic event which considerably re-

duces patients’ quality of life and their ability to par-

ticipate in society. Causes include injuries (muscles,

tendons, and/or bones), inﬂammatory and autoim-

mune diseases (arthritis), degenerative muscle dis-

eases (Welander distal myopathy and myotonic dys-

trophy type), overuse syndromes (Carpal Tunnel Syn-

drome, repetitive strain injury) and neurological dam-

age and diseases (stroke, Multiple Sclerosis, Parkin-

son’s disease) (Fischer et al., 2007; Wessel, 2004).

For many of the above diseases surgical or drug treat-

ment does not exist, is expensive, or only partially ef-

fective. Finger and hand exercises are a very effective

treatment and can assist with diagnosing and prevent-

ing some of these diseases (Wessel, 2004). Empiri-

cal evidence suggest that hand exercises can even im-

prove motor functions of the upper extremities (Fis-

cher et al., 2007; Boian et al., 2002).

A major problem with exercise training is that a

qualiﬁed instructor must be present in order to train

and supervise the patient and evaluate the success of

the exercises over time. While patients are encour-

aged to exercise at home, many patients lack motiva-

tion and there is no supervision and monitoring. This

reduces the effectiveness of exercises (Boian et al.,

2002) and prevents the evaluation of the patient sta-

tus.

We propose to use common consumer-level equip-

ment, i.e., personal computers and web-cams, in com-

bination with animation technology to teach patients

the correct exercises and to monitor and evaluate

them. Such a training platform can also be used to

organise rehabilitation groups where patients meet in

virtual space and encourage each other and compete

to improve their health status. The suggested frame-

work ﬁts well into the move towards home telehealth,

which is becoming an integral part of government

health policies, for example in New Zealand and the

UK.

Section 2 reviews some of the literature about

hand rehabilitation and markerless hand tracking.

Section 3 presents our 3D hand model and animation

framework. Section 4 and 5 present our algorithms

for detecting the hand in web-cam images and for

analysing its shape and motion. An evaluation and

discussion of our results in section 6 is followed by

our conclusion in section 7.

2 BACKGROUND

The human hand is composed of 27 bones. The

joints connecting the bones have different numbers

of degree-of-freedom (DOF) deﬁning their range of

626

Liu R., C. Wünsche B., Lutteroth C. and Delmas P..

A FRAMEWORK FOR WEBCAM-BASED HAND REHABILITATION EXERCISES.

DOI: 10.5220/0003365206260631

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2011), pages 626-631

ISBN: 978-989-8425-47-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

possible movements. In order to describe and moni-

tor hand exercises, the anatomy of the hand needs to

be modeled. Various works have been done in this

area, and a summary can be found in (Liu, 2010).

Hand rehabilitation exercises have been devised

for hand strength, grip, wrist, ﬁngers and dexter-

ity (Handexercise.org, 2010) and their effectiveness

has been demonstrated for a wide variety of dis-

eases, e.g., rheumatoid arthritis (Wessel, 2004). Var-

ious ideas have been suggested to make exercises

more interesting and motivate patients (Jack et al.,

2001). Simple, but effective tools are demonstra-

tion slides and exercise records (Health Information

Translations, 2010). For speed oriented exercises, a

virtual butterﬂy was projected onto the hand and the

user has to scare it away by closing the hand as fast

as possible, and a virtual piano was used for ﬁnger

fractionation for individually active and passive ﬁn-

gers (Jack et al., 2001). We have chosen two of the

most common hand exercises for testing our frame-

work: touching the thumb with the other ﬁngers and

abduction/adduction of ﬁngers. Originally, those ex-

ercises were advised for arthritis patients. However,

they are also being widely used for other purposes

such as rehabilitation after stroke and Parkinson’s dis-

ease.

A large variety of hand tracking algorithms has

been proposed. A good survey is given in (Mahmoudi

and Parviz, 2006). Two important categories are

marker-based and marker-less methods. Our track-

ing system employs a marker-less method. Without

markers the easiest way to identify (potential) hand

shapes is by using a skin colour classiﬁer. A large

amount of literature exist on this topic and some of

the more recent surveys and comparative studies in-

clude (Kakumanu et al., 2007; Vassili et al., 2003).

A common drawback of skin colour classiﬁers is

their sensitivity to changes in the illumination. Re-

cently a perception-based colour space has been pro-

posed (Chong et al., 2008). The authors argue that

the separation of the foreground and background ob-

jects will not be affected by the global illumination

changes. This property supports our goal of calibra-

tion free approaches which are also able to deal with

the real-world lighting conditions and backgrounds.

Once a (potential) hand shape has been identiﬁed

based on skin colour it must be veriﬁed and its 3D po-

sition and orientation must be determined. A popular

way to achieve this is by using a 3D hand model and

searching for a mapping between it and the perceived

hand shape subject to the model’s inherent constraints

(e.g., joint constraints and rigidity of bones). An ex-

ample is the technique by (Stenger et al., 2001), who

estimate the pose of the hand model with an Un-

scented Kalman ﬁlter (UKF). The opposite approach

can also be taken by matching a hand image to a set of

hand templates (Stenger et al., 2006). A different ap-

proach is to perform the matching between hand fea-

tures rather than the entire shape. Several authors use

Haar-like features, which describe the ratio between

the dark and bright areas within a region (Chen et al.,

2007). Advantages include fast matching and rapid

elimination of wrong candidates.

3 HAND MODELING AND

ANIMATION

The open source 3D humanoid character modeling

tool “MakeHuman

” (MHTeam, 2010) was cho-

sen for creating our hand model. The animation is

achieved using skeletal animation and skinning, con-

sidering anatomical constraints (Liu, 2010). Vertices

are bound to one or several bones using a local bone

coordinate system and vertex weights. If a bone

moves then the mesh positions with non-zero weights

for the corresponding bone move with it. Bones are

connected by joints and hierarchical structured. A

bone’s position is deﬁned relative to its parent bone.

We developed a high level control interface based

on the speciﬁc components of hand exercises. This

simpliﬁes the speciﬁcation of hand exercise anima-

tions and facilitates hand tracking by reducing the

number of transitions from one hand conﬁguration to

another.

The individual control library contains natural

movements of hand components deﬁned as

Movement

= {Name

, Components

, Prerequisite

StartState

, EndState

, Range

}

where Name is a unique identiﬁer and Components

are the parts of the hand model affected by the move-

ment. A Prerequisite speciﬁes a hand conﬁguration

necessary for starting a motion. The StartState and

FinalState indicate the component positions, deﬁned

as 3D transformation matrices, at the start and end of

the motion. Range is a percentage value describing

the extend of a motion, e.g., 80% abduction of the in-

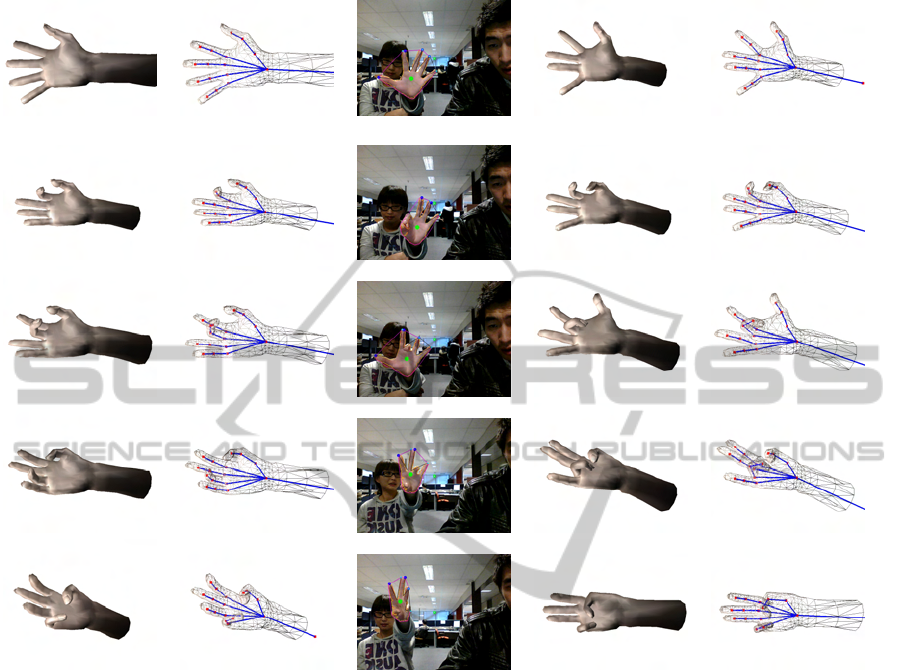

dex ﬁnger. Examples are shown in ﬁgure 3.

The pre-baked control library contains hand

movements which are difﬁcult to compute by using

individual controls such as a pinch of two ﬁngers. In

addition it stores postures frequently used in different

hand exercises, e.g., a full abduction posture of the

hand or a ﬁst. These postures are pre-calculated rather

than computed at run time. Examples are shown in

ﬁgure 3.

A FRAMEWORK FOR WEBCAM-BASED HAND REHABILITATION EXERCISES

627

4 HAND SEGMENTATION

Hand region segmentation is achieved using pixel-

based region-growing. A seed point is obtained by

displaying a target (e.g., hand template) in the center

of the screen and requiring the user to move their hand

until it matches the target. The seed point is added to

the currently detected hand region and all its neigh-

bours are stored in a queue data structure. In each

iteration a pixel is removed from the queue, tested

whether it belongs to the hand region, and if yes its

not yet tested neighbours are added to the queue.

In order to decide whether a pixel belongs to

the hand region we use a perception-based colour

space (Chong et al., 2008) and compute the current

pixel’s colour distance to the mean value of the hand

region detected so far. Two pixels are considered to

belong to the same region if their colour distance is

within a given threshold. Finding a suitable value

for thresholding is difﬁcult. Making the inclusion of

pixels only dependent on comparison with its direct

neighbours is error prone because of “colour leaking”.

Gradient based methods are common in other seg-

mentation applications, but work unsatisfactory be-

cause of local strong illumination changes over the

hand surface. We combine instead a colour distance

criteria with edge detection. Further improvements

are achieved by combining local and global thresh-

olds and using multiple seeds for region-growing. In-

appropriately positioned seed points are avoided by

deploying histogram matching (Bradski and Kaehler,

2008). More details are given in (Liu, 2010).

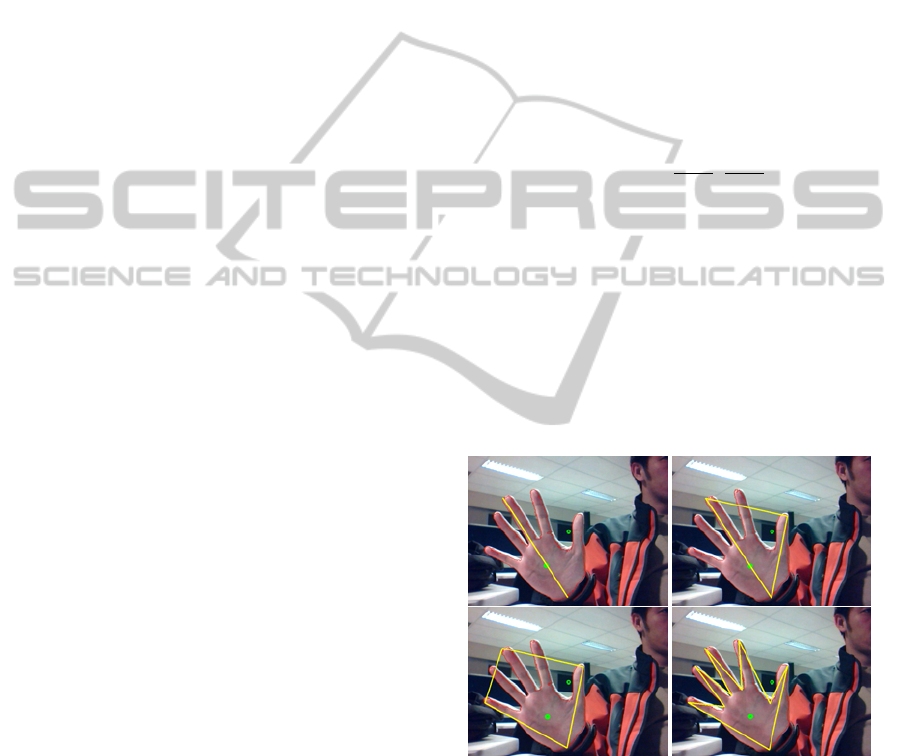

5 HAND TRACKING

Hand tracking is achieved using a continuously adap-

tive mean-shift (CAMSHIFT) algorithm (Bradski,

1998). By tracking the local extrema in the grow-

ing mask, the seed points for the region growing

algorithm are extracted for each subsequent frame.

Rather than computing the probability distribution of

the histogram for the histogram back projection step,

we recenter the mean window according to the re-

gion growing result. Therefore the ability of track-

ing the hand is enhanced by ﬁltering out the region

with lower probability before growing. In addition,

the perceptual distance between hand and other skin-

colour interferences helps preventing wrong segmen-

tations. With this approach, the previous calculation

for the center of the mean shift window can be rewrit-

ten as the accumulation of the pixels which are recog-

nised in the region and are under the mean window as

shown in equations 1–3.

N−1

∑

i=0

M−1

∑

j=0

R(x, y) (1)

N−1

∑

i=0

M−1

∑

j=0

xR (x, y) (2)

N−1

∑

i=0

M−1

∑

j=0

yR(x, y) (3)

N and M are the x and y-coordinate range of the

searching window, while R(x, y) indicates the pix-

els detected within the region mask generated from

hand segmentation results. The probability centroid is

turned into the center of mass of the current detected

region as shown below.

C0(x

, y

) = (

) (4)

After the approximated center is retrieved, the new

seed point in the frame will be taken from this point

and the region growing will start. In order to avoid

distractions when trying to relocate the mean window,

the seed point will be located within the hand region

in the next frame. Therefore a successive tracking re-

sult can be achieved. By taking only the seed with the

highest probability of lying in the hand region, the

tracking procedure will recovery quicker from seg-

mentation interferences (e.g., temporary occlusions).

Figure 1: The red thin contour is the boundary of the seg-

mented hand region. The yellow thick contour is the result

of the Douglas-Peucker algorithm with the error threshold

decreasing from top-left to bottom-right.

5.1 Hand Motion Estimation

Hand motion is estimated in four steps: contour ex-

traction, contour approximation, ﬁnger tip tracking,

and ﬁnger motion estimation. The process is simpli-

ﬁed by using the anatomical constraints of the hand

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

628

(Liu, 2010). We deﬁne the hand contour as the bound-

ary of the segmented hand region which ideally co-

incides with the real silhouette of the hand. This is

subtly different from the deﬁnition in (Bradski and

Kaehler, 2008), where the contours were organised as

a tree structure containing both exterior and hole con-

tours. We tried to obtain a continuous representation

of the contour using an active contour models (Kass

et al., 1988), but the method failed to recover all the

concavities in the hand shape. We therefore convert

the hand contour to a polyline by using the Douglas-

Peucker algorithm (Douglas and Peucker, 1973). Ini-

tially, the contour will be approximated as the line

connecting two extremal points on the contour (top-

left image in ﬁgure 1). In each step the furthest point

on the segmented region boundary will be added un-

til the distance between the contour and boundary is

less than a pre-deﬁned threshold. The procedure is

illustrated in ﬁgure 1.

The ﬁnger positions can be estimated from the

contour with reduced number of vertices by comput-

ing the convex hull and the convexity defects of the

convex hull (Homma and Takenaka, 1985). Figure 2

illustrates the depth of a convexity defect, which we

use to identify ﬁnger tip positions and the hand state.

The ﬁnger tips are deﬁned as the center positions be-

tween the start point of the i

defect and the end point

of the (i± 1)th defect. The ± depends on the order in

which the contour vertices are traversed (clockwise

or anticlockwise). The above described algorithm as-

sumes that the patient exercise starts from an abduc-

tion posture to detect the ﬁnger. This could be gener-

alised by using colour markers or template matching

to improve identiﬁcation of ﬁnger positions and hand

gestures. Along with the ﬁnger tips, we also retrieve

the position of the palm by using the points on the

hand contour with the largest distance to the convex

hull. Together with the ﬁnger tips, the system is able

to compute the relative position of the ﬁnger tips with

respect to the palm. The ﬁnger motion can be esti-

mated based on distance changes between ﬁnger tips

and between ﬁnger tips and the palm.

6 RESULTS

We evaluated our hand segmentation method for dif-

ferent illumination conditions, backgrounds and skin

colours, using 9 university students as test subjects.

We found that it is sufﬁciently stable and forms a

suitable foundation for low-cost hand tracking appli-

cations. We have compared our perceptual colour

space skin classiﬁer with traditional skin classiﬁers

and found that it is superior (Liu, 2010). The distor-

Figure 2: The convex hull (purple line), the convexity de-

fects (white regions) and the depth of one convexity defect.

tion of the perceptual colour space makes the segmen-

tation sensitive to colour leaking problems in bright

regions, e.g., highlights on the skin grow into bright

background regions. Using multiple seed points and

hue histogram back projection improved segmenta-

tion results considerably and reduced occurrences of

the colour leaking problem. Another problem oc-

curred for users with strongly visible skin wrinkles,

which resulted in the loss of ﬁnger segments due to

the edge feature criteria. The problem was alleviated

by tuning the high-low ratio of the Canny edge detec-

tor.

To evaluate hand tracking, three subjects were

asked to move their hand, rotate it, and move their

ﬁngers. As we expected, the ﬁnger positions are es-

timated well when the hand is posed at the initial po-

sition. Limitations became apparent when rotating

the hand, but such rotations are not required for our

hand exercises. When the ﬁngers were bend like in a

ﬁst motion, then the ﬁnger tip could not be tracked,

but the corresponding knuckle was usually correctly

identiﬁed. False tracking results occurred occasion-

ally when the hand and face overlapped.

We performed a small user study with three stu-

dents testing the performance of our framework for

tracking and correctly reconstructing hand conﬁgu-

rations. The correct reconstruction is important for

evaluating exercise performance and for patient col-

laboration in a virtual space. The subjects were asked

to imitate animations of hand exercises as closely as

possible. Figure 3 shows the results for a female Chi-

nese student performing exercise #1. The two left

most columns display the hand animation shown to

the user, the center column the web-cam images cap-

tured of the user performing the exercises, and the two

right most columns show the hand animation obtained

by tracking the hand motion on the web-cam images.

The user easily matched the hand with the initial seed

point. During the hand exercises, some further in-

structions about the orientation of the hand had to be

A FRAMEWORK FOR WEBCAM-BASED HAND REHABILITATION EXERCISES

629

Demonstration Demonstration User sample Reconstruction Reconstruction

Figure 3: User study results of user #8 for the hand exercise #1, which was generated using pre-baked animation. The two

left-most columns show screen shots of the hand model demonstrating the hand exercise. The center column shows the user

performing the hand exercises. The two right most columns show the hand motions obtained by evaluating the web-cam

images. Note that the participant uses the left hand and we currently mirror the webcam image in order to match it with the

model of the right hand.

given. Since the demonstration animation was very

slow, the subject ﬁnished touching each ﬁnger earlier

than the 3D hand model, i.e., the user predicted the

required ﬁnger movement from the animation without

following it precisely. This caused some mismatches

of the demonstration and generated results.

The feedback from the three subjects involved

shows a satisfactory recognition of the comparison

between the animation they saw and the animation

generated. None of the subjects involved in the tests

complained about the intensity of the exercises and

the length of them. No user reported discomfort or

pain. The results indicate that typical hand exercises

can be recognised and tracked with moderately slow

ﬁnger and hand movements. The tracking algorithm

can achieve satisfactory performance with respect to

different illumination conditions and real world back-

ground using low-cost webcam input. The application

can be initialised intuitively and exercises demonstra-

tion can be followed easily.

7 CONCLUSIONS

We have presented a framework for hand rehabili-

tation exercises and have demonstrated its potential

with a user study. In order to realise this framework

we developed a novel hand segmentation approach

which is calibration-free and illumination invariant

and hence well suited for unprepared home environ-

ments and real-world conditions. “Colour leaking”

problems were reduced with a novel approach us-

ing probability maps and histogram back projection.

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

630

Hand tracking was achieved using a novel variation

of a seed point-based CAMSHIFT tracking method

which utilises our segmentation results. The hand

motion was estimated using a simple ﬁnger tip esti-

mation based on the Douglas-Peucker algorithm and

a convexity criterion. User testing showed that the

algorithm provides stable tracking and that hand mo-

tion can usually be successfully reconstructed using

the ﬁnger tip (knuckle) estimate.

We have constructed a hand model based on an

existing modeling platform for human anatomy and

animated it using a skeletal animation framework

using predeﬁned high-level atomic motions based

on anatomical and physiological constraints. The

hand model proved suitable both to demonstrate hand

tracking and to represent the hand motion analysis

results. The reconstructed models had slight varia-

tions in ﬁnger positions, but the basic exercises were

successfully represented. Initial user testing showed

that the application is easy to use and that it would be

useful for measuring the correctness and repetition of

hand exercises.

REFERENCES

Boian, R., Sharma, A., Han, C., Merians, A., Burdea,

G., Adamovich, S., Recce, M., Tremaine, M., and

Poizner, H. (2002). Virtual reality-based post-stroke

hand rehabilitation. Studies in Health Technology and

Informatics, 85:64–70.

Bradski, D. G. R. and Kaehler, A. (2008). Learning

OpenCV, 1st edition. O’Reilly Media, Inc.

Bradski, G. R. (1998). Real time face and object tracking as

a component of a perceptual user interface. In WACV

’98: Proceedings of the 4th IEEE Workshop on Ap-

plications of Computer Vision (WACV’98), page 214,

Washington, DC, USA. IEEE Computer Society.

Chen, Q., Georganas, N., and Petriu, E. (2007). Real-time

vision-based hand gesture recognition using haar-like

features. In Instrumentation and Measurement Tech-

nology Conference Proceedings, 2007. IMTC 2007.

IEEE, pages 1–6.

Chong, H. Y., Gortler, S. J., and Zickler, T. (2008).

A perception-based color space for illumination-

invariant image processing. ACM Trans. Graph.,

27(3):1–7.

Douglas, D. H. and Peucker, T. K. (1973). Algorithm for

the reduction of the number of points required to rep-

resent a digitized line or its caricature. Cartographica,

10:112–122.

Fischer, H. C., Stubbleﬁeld, K., Kline, T., Luo, X., Kenyon,

R. V., and Kamper, D. G. (2007). Hand rehabilita-

tion following stroke: A pilot study of assisted ﬁnger

extension training in a virtual environment. Topics in

Stroke Rehabilitation, Volume 14:1–12.

Handexercise.org (2010). Hand exercise: A resource for

hand exercising. http://www.handexercise.org/.

Health Information Translations (2010). Active hand ex-

ercises. http://www.healthinfotranslations.org/ pdf-

Docs/Active Hand Exercises.pdf.

Homma, K. and Takenaka, E.-I. (1985). An image process-

ing method for feature extraction of space-occupying

lesions. J Nucl Med, 26(12):1472–1477.

Jack, D., Boian, R., Merians, A. S., Tremaine, M., Burdea,

G. C., Adamovich, S. V., Recce, M., and Poizner, H.

(2001). Virtual reality-enhanced stroke rehabilitation.

IEEE transactions on neural systems and rehabilita-

tion engineering, 9(3):308–318.

Kakumanu, P., Makrogiannis, S., and Bourbakis, N. (2007).

A survey of skin-color modeling and detection meth-

ods. Pattern Recogn., 40(3):1106–1122.

Kass, M., Witkin, A., and Terzopoulos, D. (1988). Snakes:

Active contour models. International Journal of Com-

puter Vision, 1(4):321–331.

Liu, R. (2010). A framework for webcam-based hand

rehabilitation exercises. BSc Honours Dissertation,

Graphics Group, Department of Computer Science,

University of Auckland, New Zealand.

Mahmoudi, F. and Parviz, M. (2006). Visual hand tracking

algorithms. Geometric Modeling and Imaging–New

Trends, 0:228–232.

MHTeam (2010). Make human open source tool for making

3d characters. http://www.makehuman.org/.

Stenger, B., Mendona, P. R. S., and Cipolla, R. (2001).

Model-based 3d tracking of an articulated hand. Com-

puter Vision and Pattern Recognition, IEEE Computer

Society Conference on, 2:310.

Stenger, B., Thayananthan, A., Torr, P. H. S., and Cipolla,

R. (2006). Model-based hand tracking using a hier-

archical bayesian ﬁlter. IEEE Trans. Pattern Anal.

Mach. Intell., 28(9):1372–1384.

Vassili, V. V., Sazonov, V., and Andreeva, A. (2003). A

survey on pixel-based skin color detection techniques.

In Proc. Graphicon, pages 85–92.

Wessel, J. (2004). The effectiveness of hand exercises for

persons with rheumatoid arthritis: A systematic re-

view. Journal of Hand Therapy, 17(2):174–180.

A FRAMEWORK FOR WEBCAM-BASED HAND REHABILITATION EXERCISES

631
