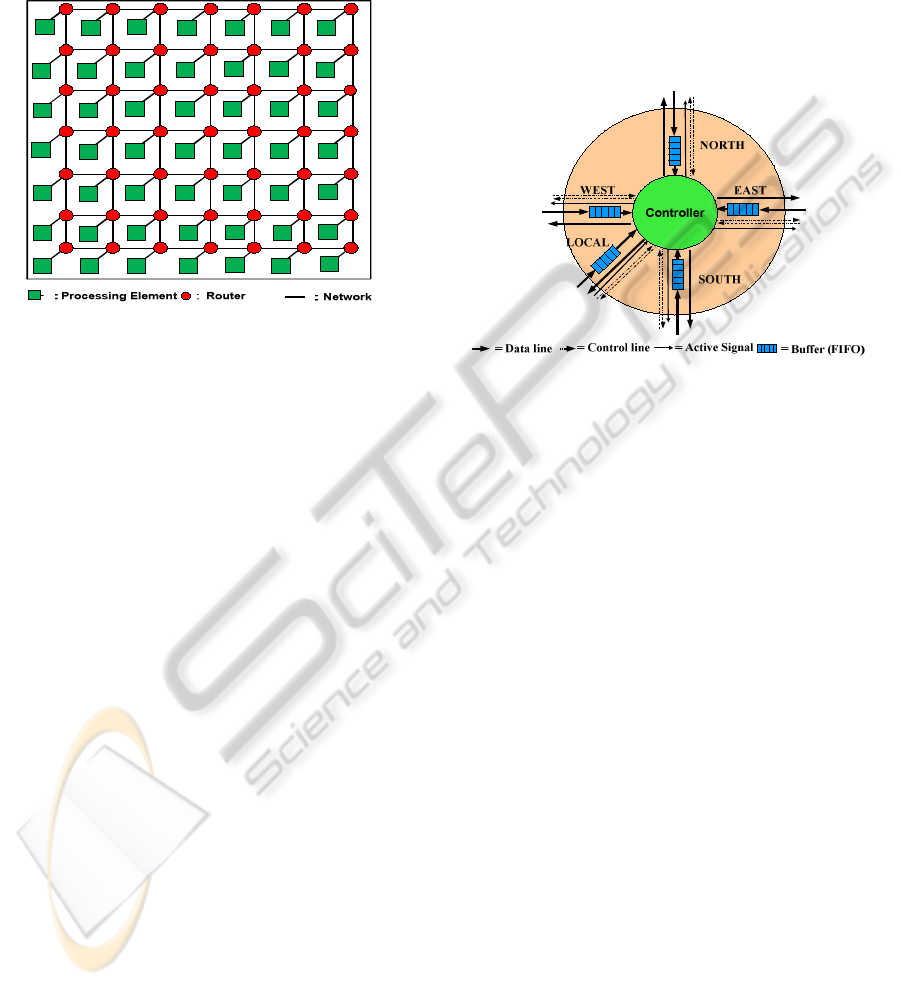

proposed in this paper. In a traditional NoC design,
the router architectures have fixed allocated buffer
space for each input channel. With communication
in future heterogeneous SoC architectures, especially
with running different applications with different
traffic patterns at different times, this will prove
highly inefficient due to the router resources not
getting utilised effectively, causing wastage of buffer
capacities. The proposed router architecture
endeavours to solve this problem, by using a fully
flexible ring buffer structure which can be shared
between all channels of router. The buffer size of
each channel will be allocated from the ring buffer
which can vary from a single buffer unit, when there
is no traffic on that channel, up to the whole buffer
length of the ring buffer which represents all
dedicated buffer resources of the router. Therefore,
the proposed router allocates buffer sizes at runtime
according to the traffic rate of each channel. This
router architecture enables utilisation of all available
buffer resources effectively and improves the quality
of service in the NoCs. A simple mechanism has also
been proposed to avoid deadlock and to make sure
that there is at least an escape channel for the
blocked messages to proceed.

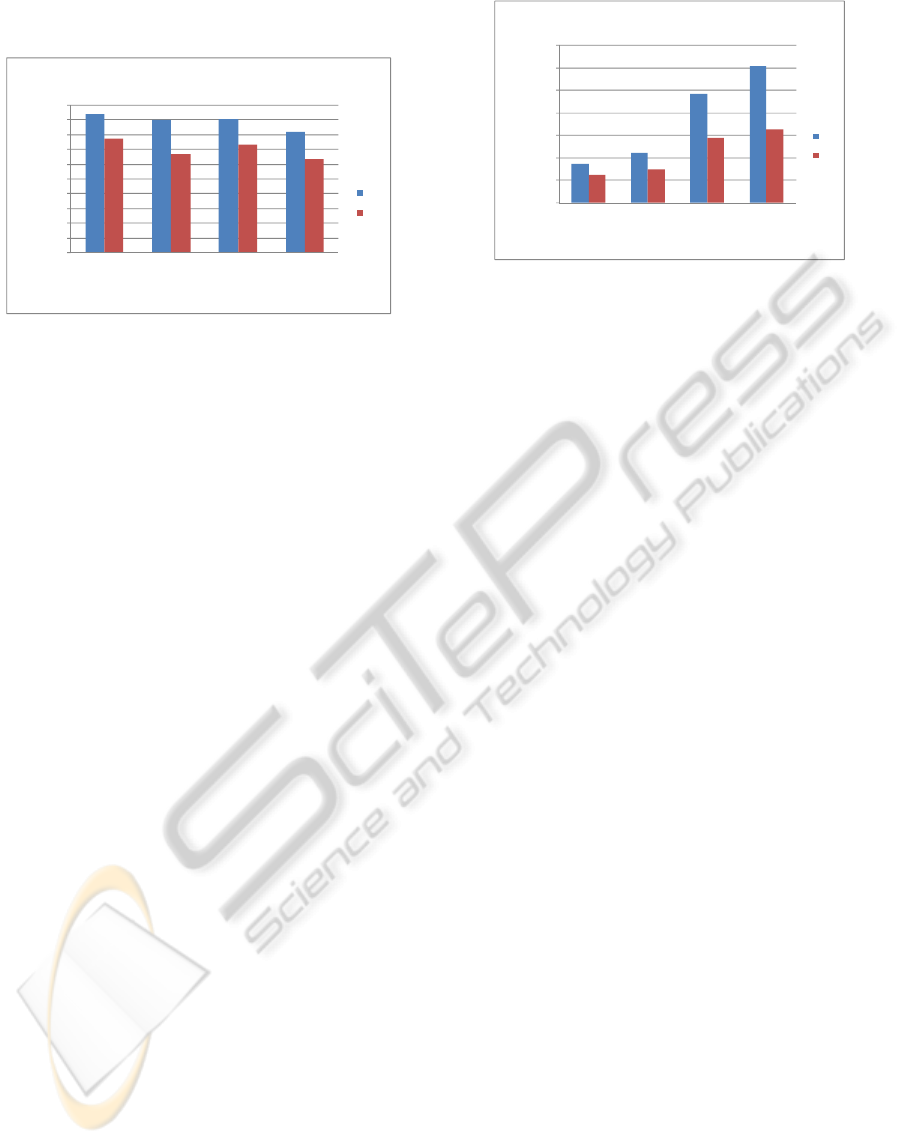

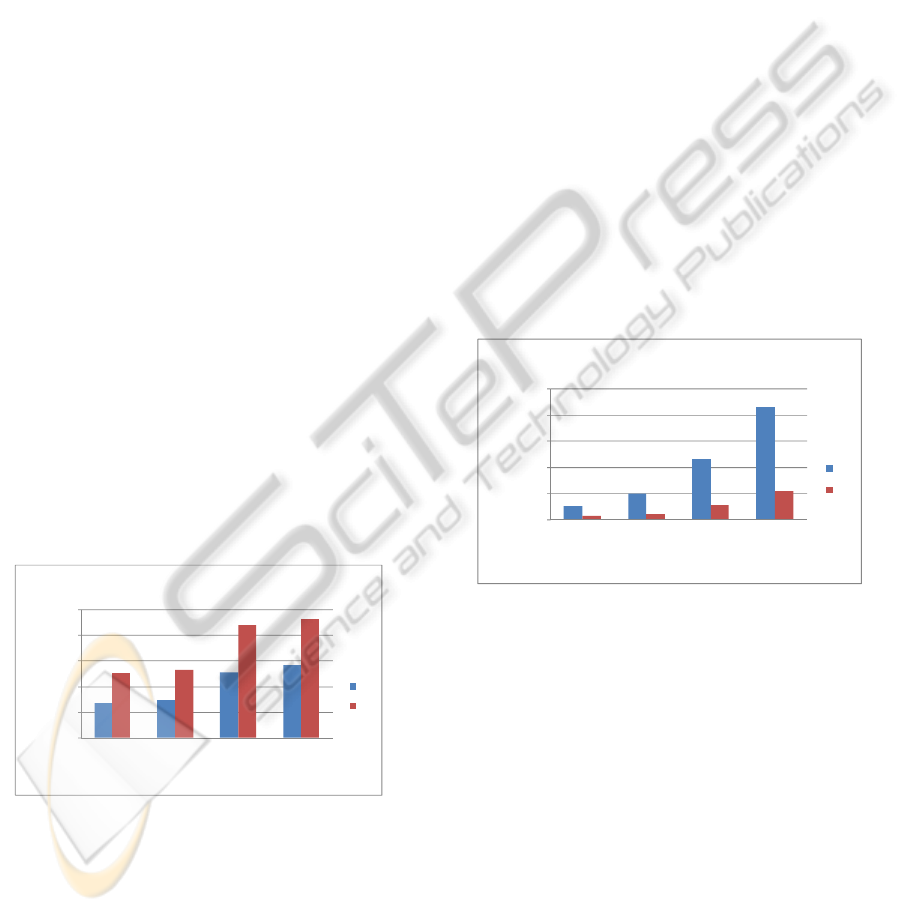

Although RTL implementation results showed an
increase of area, this architecture proved its
superiority in terms of power consumption as well as
memory overhead compared to the DB architecture.

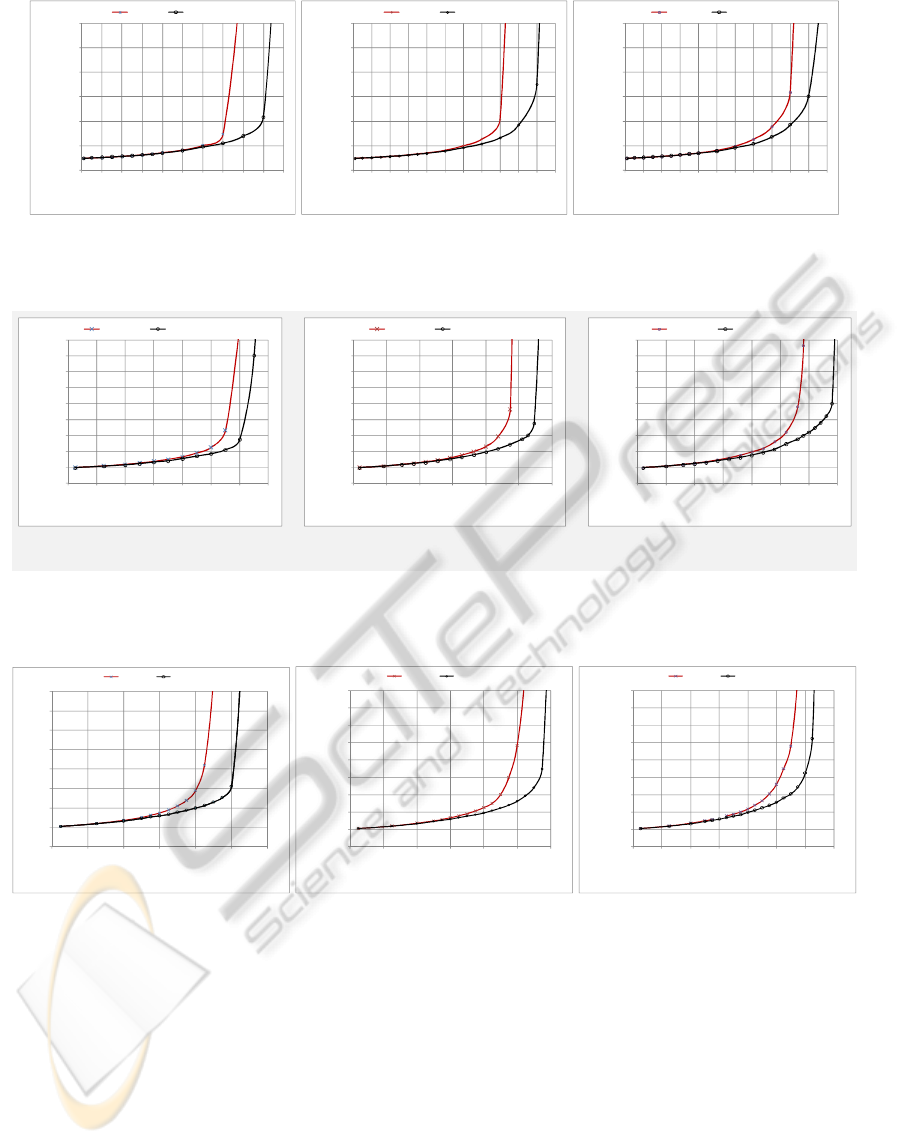

Moreover, our extensive simulation study has shown
the effectiveness of this approach in improving the
network performance. In all simulations scenarios,
the proposed architecture has
experienced lower
message latency under heavy moderate to traffic and
even when the network starts to approach saturation.
Furthermore, it has been shown that the maximum
sustained load of the proposed router is up to 20%
higher than that of a traditional router.
