AdaptO

Adaptive Multimodal Output

António Teixeira, Carlos Pereira, Miguel Oliveira e Silva, Osvaldo Pacheco, António Neves

DETI/IEETA, University of Aveiro, Campus Universitário de Santiago, Aveiro, Portugal

José Casimiro

Polytechnic Institute of Tomar, Tomar, Portugal

Keywords:

HCI, Multimodal output, Context-awareness, Universal access, User, Intelligent agents, Speech synthesis,

e-Health, Distributed systems, Smart environments.

Abstract:

Currently, most multimodal output mechanisms use a very centralized architecture in which the various output

modalities are completely devoid of any autonomy. Our proposal, AdaptO, uses an alternative approach,

proving output modalities with the capacity to make decisions, thus collaborating with the ﬁssion output

mechanism towards a more effective, modular, extensible and decentralized solution. In addition, our aim is to

provide the mechanisms for a highly adaptable and intelligent multimodal output system, able to adapt itself to

changing environment conditions (light, noise, distance, etc.) and to its users needs, limitations and personal

choices.

1 INTRODUCTION

Multimodal interaction aims to improve the accessi-

bility of content. It allows an integrated use of var-

ious forms of interaction simultaneously(sound, ges-

ture, GUI, etc.). It also intends to create an environ-

ment where a user accesses, transparently, the same

content, regardless of the device (mobile phone, PDA,

computer, etc.).

Multimodality allows a user to interact with a

computer by using his or her own natural communica-

tion modalities, such as speech, touch and gestures, as

in human-to-human communication. Multimodal in-

teraction constitutes a key technology for intelligent

user interfaces (IUI).

Initially the interaction had to be adapted to a

given application and for a speciﬁc interaction con-

text. The present diversity of environments, systems

and user proﬁles leads to a need for contextualization

of the interaction. “Nowadays, the interaction has to

be adapted to different situations and to a context in

constant evolution” (Rousseau et al., 2005a).

This diversity of the interaction context empha-

sizes the complexity of a multimodal system design.

It requires the adaptation of the design process and,

more precisely, the implementation of a new gen-

eration of user interface tools. These tools should

help the designer and the system to make choices

on the interaction techniques to use in a given con-

text (Rousseau et al., 2005a).

Users have individual differences due to anatomi-

cal and physiological factors (eg, gender, brain dom-

inance, vision, hearing and mobility/motor skills),

psychological factors which are difﬁcult to catego-

rize and quantify (eg, processes and cognitive styles,

skills, motivation, attention and concentration) and

cultural or environmental factors (eg, language, eth-

nicity or culture). Efﬁcient multimodal interfaces

should also be able to take into account user’s require-

ments and needs. Fast automatic adaptation to the

user characteristics (ex: hearing abilities) is very im-

portant for usable multimodal systems (Karpov et al.,

2008).

As stated in (Dumas et al., 2008), “less research

has been done on multimodal ﬁssion than on fusion.

Most applications use few output modalities and,

consequently, employ straightforward ﬁssion mecha-

nisms.” But the output modalities have the very im-

portant role of transmitting information to the user.

The relevance of improved ﬁssion and output is par-

ticularly relevant for groups of persons with some of

their senses affected, such as older adults, or com-

Teixeira A., Pereira C., Oliveira e Silva M., Pacheco O., Neves A. and Casimiro J. (2011).

AdaptO - Adaptive Multimodal Output.

In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems, pages 91-100

DOI: 10.5220/0003372500910100

 SciTePress

pletely compromised (ex: deaf people). There is a

need to create multimodal interaction with a more bal-

anced use and adaptation to user and context of input

and output modalities.

On the other hand, from the programmer and the

application builder point of view, modular and sim-

ple multimodal programming toolkits are required in

order to ease their adoption and to extend their use.

In this paper we present work on the output adap-

tation to users and context of an agent based multi-

modal system. Our aim is to provide the mechanisms

for a highly adaptable and intelligent multimodal out-

put system, able to adapt itself to changing envi-

ronment conditions (light, noise, distance, etc.) and

to its users needs, limitations and personal choices.

This multimodal system is aimed at being an essen-

tial part of a new telerehabilitation system in devel-

opment as part of the Living Usability Lab (LUL)

Project (www.livinglab.pt), presently at the prototype

stage (Teixeira et al., 2011). LUL is a Portuguese

industry-academia collaborative R&D project, active

in the ﬁeld of live usability testing, focusing on the

development of technologies and services to support

healthy, productive and active citizens. The project

adopts the principles of universal design and natural

user interfaces (speech, gesture) making use of the

beneﬁts of next generation networks and distributed

computing.

The paper is structured as follows: section 2

presents the concept of a new telerehabilitation ser-

vice. Section 3 brieﬂy presents, the most relevant re-

lated work. In section 4 we present the requirements

within our objectives for AdaptO. Section 5 presents

our proposal for adaptive multimodal output, includ-

ing architecture, adopted technologies and informa-

tion on the modules developed as proof of concept.

Section 6 shows some example scenarios of AdaptO

within the telerehabilitation service. Finally, sections

7 and 8 present a critical view of our work, showing

what is not yet done while drawing some conclusions

and future research.

2 A NEW

TELEREHABILITATION

SERVICE FOR THE ELDERLY

In very general terms, the new telerehabilitation ser-

vice in development (Teixeira et al., 2011) aims

at providing supervised remote exercise sessions at

home or community centres, as a mean to maintain-

ing health and prevent illness. Table 1 presents some

additional information on the service.

The creation of a prototype for the service depends

on, amongst other things, the development of two ap-

plications with suitable Human Computer Interaction,

one for the elderly at home, other for the health pro-

fessional planning, monitoring and evaluating the ses-

sion (Fig. 1). The two applications use multimodal

input and output, with particular emphasis in the use

of speech and text. The use of speech derives from

its potential to be usable by visually disabled people

and to enable interaction hands free and at some dis-

tance from the devices. This capability of receiving

information and giving commands to a computer at

a couple of meters of the TV/computer display is es-

sential when the aim is making all body movement

exercises.

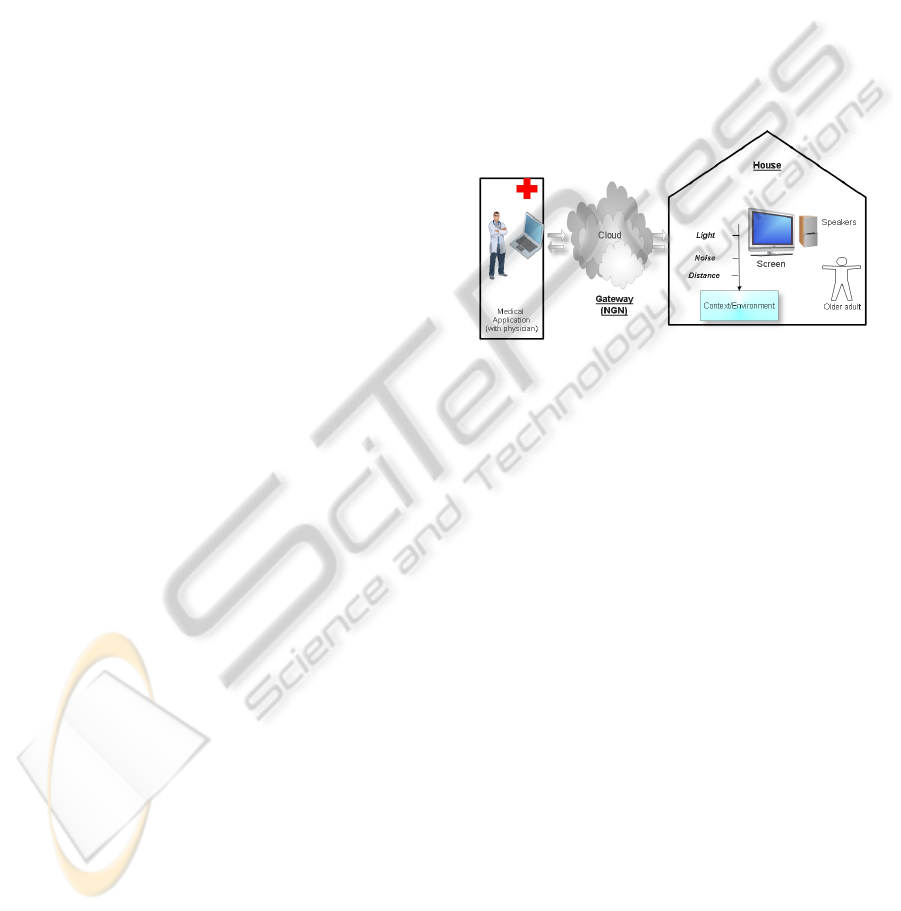

Figure 1: General view of the Telerehabilitation service,

testbed for the multimodal output prototype presented in

this paper.

3 RELATED WORK

The most relevant work addressing more directly the

problem of adequate and adaptive multimodal output

are (Rousseau et al., 2005b; Rousseau et al., 2005a;

Rousseau et al., 2006; Coetzee et al., 2009).

Rousseau and coworkers (Rousseau et al., 2004;

Rousseau et al., 2005b), in 2004, proposed the

WWHT model, dividing the life cycle of a multi-

modal presentation in four steps:

1. What is the information to present?

2. Which modality(ies) should be used?

3. How to present the information using the modal-

ity(ies) selected?

4. and, Then, how to deal with the output results?

The ﬁrst step, called the “semantic ﬁssion”, splits

the information provided by the dialog manager into

elementary information. The second step allocates

a modality for each piece of information. The third

step instantiates the selected modality with the in-

formation. These three steps are related to the con-

struction of a multimodal presentation. The last step

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

Table 1: LUL Telerehabilitation Service with Multimodal Interaction.

Description Remote supervised exercise sessions at home or community centres, for maintaining health

and prevent illness. Sessions carried out concurrently at several sites via networked mul-

timodal applications. A health professional supervises everything from the training cen-

tre/hospital, including the biosensors signals captured remotely and the (multiple) cameras

images. The system also includes mechanisms to request and process information regarding

effort level from the user.

End user People taking rehabilitation sessions at home and people wanting to do exercise in case it is

just training sessions.

Stakeholders and Roles Health/Sport professionals (physiotherapists, gerontologists, etc.) who conﬁgures the ses-

sions and directs them. Healthcare services provider, which should install and maintain the

platform.

Technological description The main user interface is a large size computer monitor (acting as a large size TV) combined

with speakers and video cameras. In addition, it should be possible to use a set of biosensors.

Sensors gather the vital signals from the patient and send them to the health professional.

(Then), renders the multimodal presentation to users

(Rousseau et al., 2005a).

The same researchers also developed the MOSTe

tool (Rousseau et al., 2005a; Rousseau et al., 2005c)

which is intended to ease the speciﬁcation of multi-

modal interfaces, realizing the ﬁrst step of the WWHT

model. It is composed by four editors (component

editor, context editor, information editor and behav-

ior editor). They are all graphic tools and express

the behavior of the system by a set of rules. Each

rule is called an election rule and is based in the if-

then instruction. Each one belongs to one of three

types: contextual, composition and property. The

architectural model design at MOSTe is exported in

XML format and implemented by the MOST sys-

tem (Multimodal Output Simulation Tool). This sec-

ond tool is responsible for selecting the correct output

modalities, realizing the second and third steps of the

WWHT model. Figure 2 shows the MOST architec-

ture.

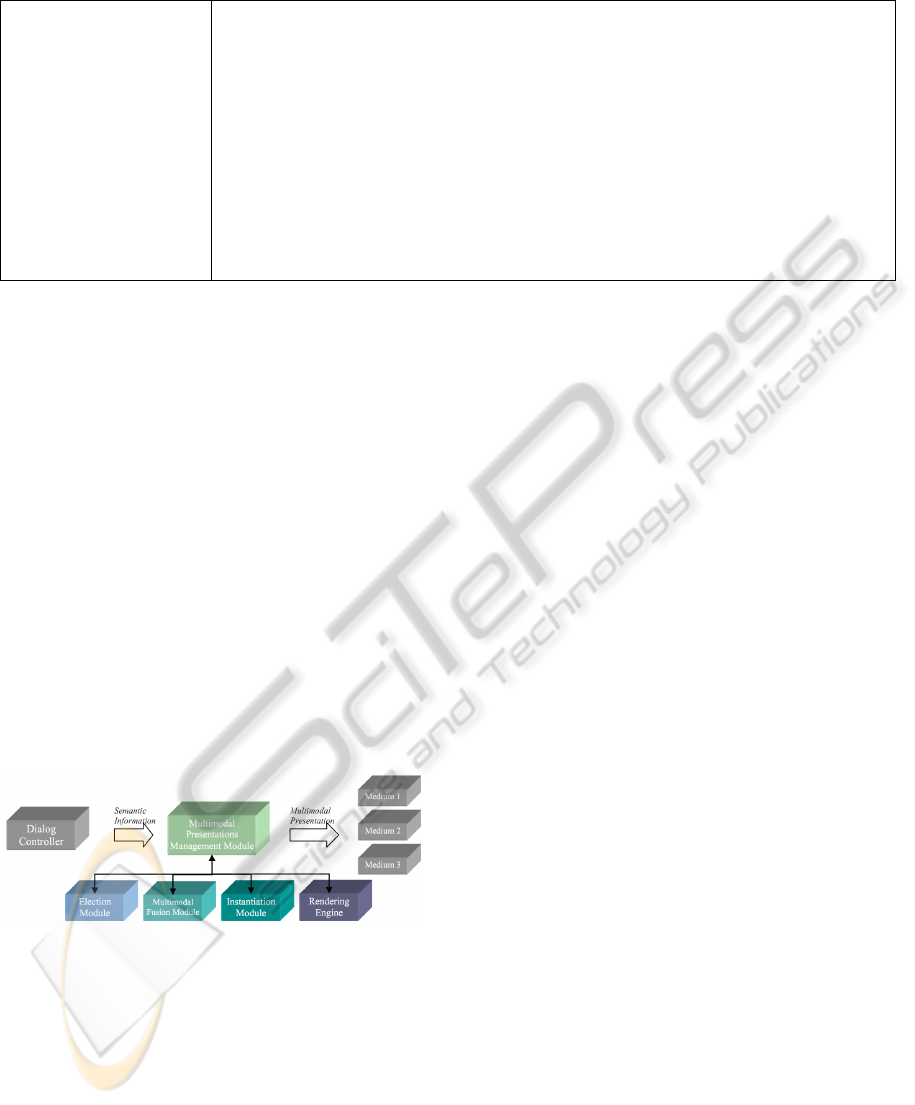

Figure 2: The MOST architecture, from (Rousseau et al.,

2005a).

Coetzee, Viviers and Barnard (Coetzee et al.,

2009) proposed a model to determine the best possi-

ble combination of input and output modalities. This

model, designed Cost Model, is a mathematical tool

that takes in consideration the user’s proﬁle and pref-

erences. The user proﬁle is deﬁned in terms of abil-

ities rather than disabilities. Preferences means how

the user uses his ﬁve senses to interact with the sys-

tem, and his literacy. The Cost Model takes in con-

sideration these factors, and deﬁnes a set of vectors to

determine the best solution for a speciﬁc user:

• a vector p, of real values scaled between 0 and

1 of length n, where each element in the vector

represents the user’s abilities: can talk, can click,

can move pointer, can read, etc.;

• a vector w, which represents an adjusted user pro-

ﬁle as based on his perceptual preferences. This

vector is deﬁned by multiplying the S matrix by

the transposed vector p, where S is a diagonal ma-

trix of size n x n, containing real values scaled

between 0 and 1 to represent the perceptual user

preferences;

• a vector c, which represents a cost estimation of

suggested components to be used per adjusted

user. The cost vector is deﬁned by multiplying

the D matrix by the transposed vector w, where D

is a matrix of size nxm (n is the number of mod-

eled user abilities and m the number of modeled

available input and output components). Matrix

D represents the relation between the user abili-

ties and the required modalities. A larger value in

c indicates which are the most important compo-

nents for a speciﬁc user proﬁle.

4 REQUIREMENTS

From the identiﬁed problems and aims for our multi-

modal system, several requirements were identiﬁed:

• Adaptability of the interaction according to the

user abilities, allowing equivalent utilizations pos-

sibly by means of different multimodal interac-

tions.

• Information on user capabilities, preferences and

eventual historic usage information must be avail-

able;

• Information on context (ex: environment condi-

tions) must be available;

AdaptO - Adaptive Multimodal Output

• Redundancy of modalities must be used in order

to increase the chances of message delivery ;

• Based on the environment and user, output modal-

ities must have capabilities to decide to acti-

vate/deactivate themselves. Ex: there is no reason

to keep active a TTS output when the user is deaf;

• Implementation of a registry upon which modal-

ities may inscribe themselves by category, sim-

plifying the search for possible modalities by the

system.

• Inclusion of Speech output (synthesized or not) to

enable use of the system by vision impaired per-

sons;

• Use of several output modalities to enable use of

the system by speech and hearing impaired per-

sons;

• Output characteristics, such as the volume of the

synthesized speech, must adjust themselves ac-

cording to user’s and environment (ex: distance

to speakers, noise level and users hearing acuity);

• Speech rate must be adapted to listener and listen-

ing conditions (ex: distance, hearing abilities);

• If possible, allow users to be informed through

their preferred modality(ies);

• The system should be modular, that is, the future

inclusion of modalities should be as easy as pos-

sible, and without making changes to the core of

the system.

• Fault-tolerance and extendibility should be taken

into account on the architecture design.

5 ADAPTIVE MULTIMODAL

OUTPUT (ADAPTO)

5.1 Rationale and Architecture

According to (Dumas et al., 2009a), “the generic

components for handling of multimodal integration

are: a fusion engine, a ﬁssion module, a dialog man-

ager and a context manager, which all together form

what is called the integration committee” (Fig. 3).

However, this architectural scheme implicitly as-

sumes that input and output devices are simple

dummy devices responsible only for sending input in-

formation to the system and to receive output mes-

sages already adapted to the context and user. In this

approach the fusion and ﬁssion coordination services,

are required to be very knowledgeable of all the avail-

able input and output devices, making it potentially

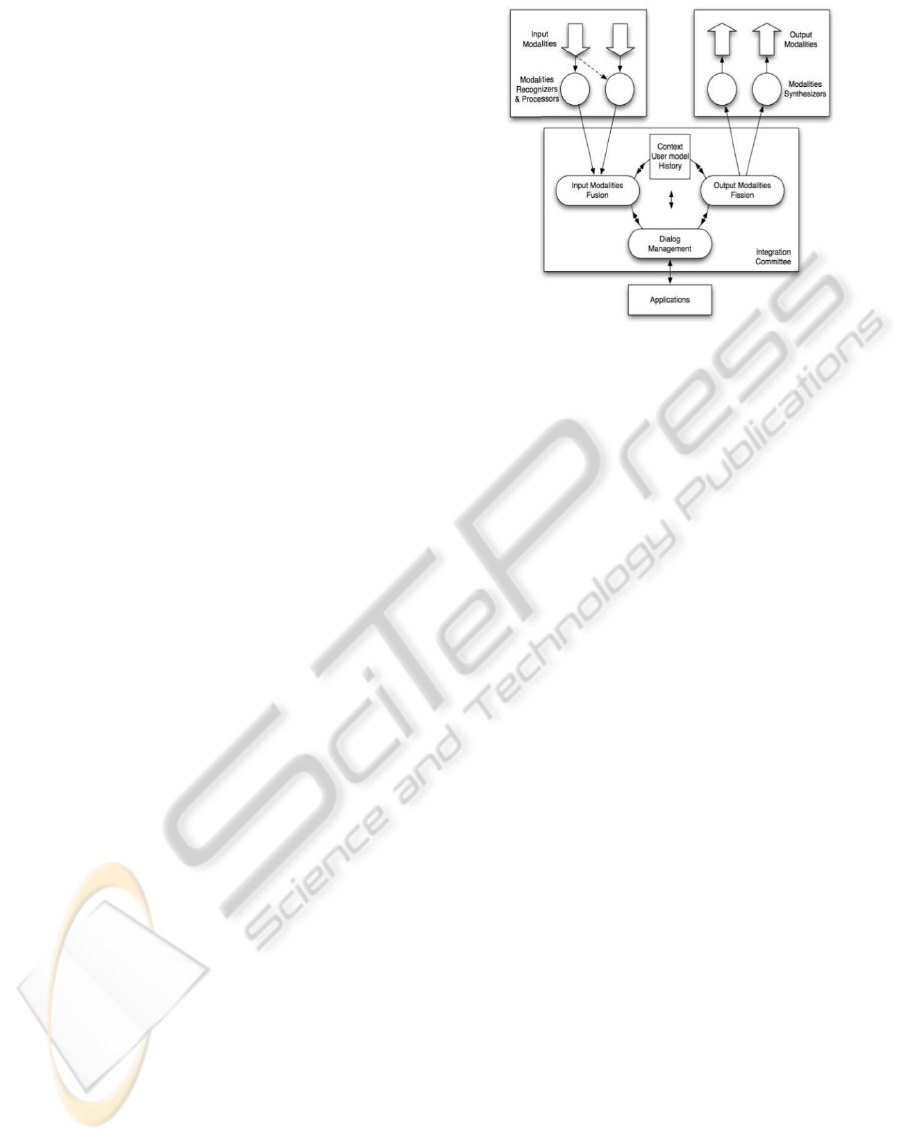

Figure 3: Architecture of a Multimodal System (Dumas

et al., 2009b).

very complex and more difﬁcult to scale and extend

our applications with new input and outputs devices.

This problem is particularly important in the output

devices since they convey the information to the users,

closing the interaction loop with the application.

An alternative approach (Fig. 4), is to enhance the

intelligence of output devices, making them able to

adapt themselves to a dynamic context and to the user.

In this way the responsibility to ensure adaptability

in the applications is not centralized in a potentially

very complex and knowledgeable ﬁssion engine, but

is shared with the output devices themselves.

A higher degree of adaptability is achieved by sep-

arating two different aspects: a varying context envi-

ronment, and speciﬁc knowledge of each application

user. In the context adaptation the output interface of

the application may adapt itself to varying light, noise

conditions, the distance of the user, and other envi-

ronment conditions. When user aspects are taken into

consideration, output agents may adapt themselves to

different users, such as a speech synthesizer to be-

come disabled in the presence of a deaf user, or due

to expressed interface preferences by the user.

To show why such architectural choice might be

preferable, let’s consider the case of an application us-

ing a speech output device. In a centralized approach,

the ﬁssion engine would be required to know that a

noisy environment, or a deaf user, may invalidate this

type of output, and act accordingly. In our proposal,

the speech output device handler, would be the one re-

quired to have such knowledge, and the one responsi-

ble the notify the (simpler) ﬁssion engine that it could

not send the message to the user.

Considering that there could exist many different

output devices in a single application, the impact of

this architectural option on the system’s complexity

is expected to be very signiﬁcant.

A collateral desirable side effect of this approach

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

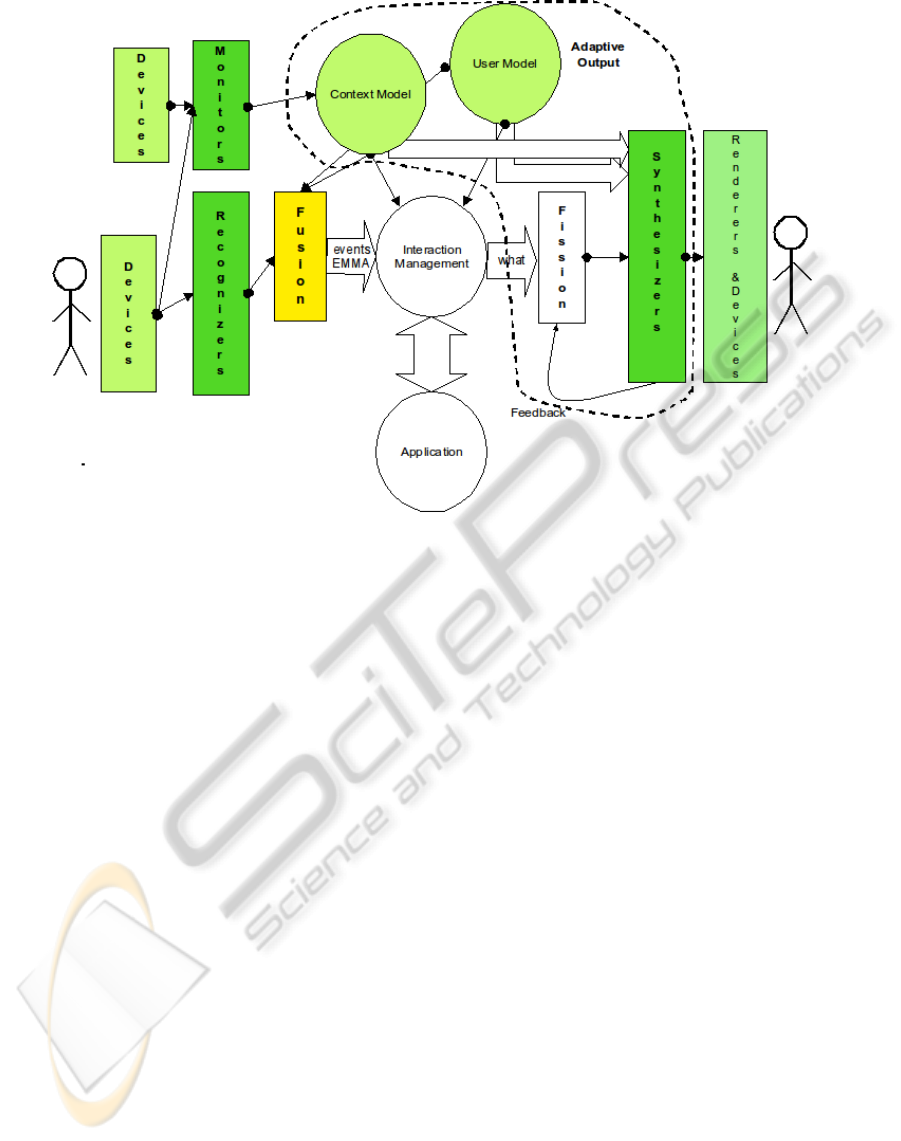

Figure 4: AdaptO Architecture.

is the possibility to have a more abstract ﬁssion en-

gine. Output messages can became more abstract,

making it easier to implement fault tolerant redundant

output in applications, and also providing a simpler

programming context for our dialog manager. For ex-

ample, a textual message can be output either by a text

message graphical window, or by a speech synthe-

sizer. From the application point of view such detail

is not important (as long as the message is success-

fully transmitted), so the dialog manager should only

be knowledgeable of this more abstract type of out-

put message, delegating concrete output realizations

of it (text window or speech, in the example) to the

availability of autonomous output agents.

The ﬁssion engine would be responsible for re-

porting either a successful transmission of the mes-

sage, or its failure. In both situations, however, the

speciﬁc output devices involved are abstracted away

from the application.

5.2 Technologies Adopted:

SOA and Agents

A natural choice to achieve a more autonomous and

intelligent behavior in the output devices is to make

them JADE agents (JADE, 2010). The choice of us-

ing an agent based platform is one of the best avail-

able options, because it is a mature and quite stable

technology, able to provide us also with a solution for

a distributed heterogeneous system, supported on

a standard communication protocol (FIPA, 2010),

which may simplify future integration of third party

services supporting new input and output devices.

Agents also provided us a versatile solution for the

need of a decentralized, scalable, adaptable, and in-

telligent system.

Agents were also used to implement the other ser-

vices in our architecture: the input devices, the con-

text, user and history engines; and the fusion, ﬁssion

and dialog manager services.

To reduce the cohesion between all these services,

an event based communication scheme is used to sim-

plify and abstract away the knowledge required for

the system to operate. An output agent required to

know about the noise level of the environment, or the

user distance to the speakers, registers itself in the

context agent to receive this type of information, de-

coupling itself from speciﬁc input agents able to ex-

tract such information. It may also register itself in

the user model service to become aware of possible

hearing or comprehension user problems. With such

knowledge, this device may change the volume of the

sound, and the rate of the speech to maximize a suc-

cessful transmission of the messages.

All available output agents register themselves in

the ﬁssion agent for output message types they are

able to transmit, thus making the ﬁssion agent knowl-

edgeable of the available (abstract) output agents,

hence able to ensure fault tolerance.

AdaptO - Adaptive Multimodal Output

There are also two more important services (also

implemented as agents): a logger service able to reg-

ister all the relevant history information for latter use,

such as for the creation of user speciﬁc information

for the user model. A coordination ﬁssion service

able to ensure the reliability of the application as a

whole. This service would be able to ensure fault tol-

erance, notifying the application when an output was

not transmitted (for example, due to the unavailability

of proper output devices).

5.3 Environment Monitoring Agents

At the time of writing, three environment monitor-

ing agents are available: an environment background

“noise” level estimator; a light conditions estimator;

and a distance of the user to the screen/display esti-

mator.

The “noise” level is obtained by using an event of

the speech recognizer, AudioLevelUpdated. Based

on a given variable, the algorithm records a number

of values from the environment and makes an average

between them. Given the capabilities of the sound

recognizer, the interval deﬁned is normally of 1 or 2

seconds.

The light conditions are evaluated based on statis-

tical measures – Mean Sample Value (MSV) – of the

intensities histogram calculated on the acquired im-

age.

The distance is obtained using algorithms based

on background subtraction to estimate the position of

the person in the image. Using the properties of the

vision system (position, camera and lens properties,

etc.), it is possible to estimate the position of the per-

son related to the camera.

5.4 Context and User models

The environment monitoring agents are all in commu-

nication with the context model. As mentioned ear-

lier, this service, implemented as an agent, is respon-

sible to register, in real-time, all the relevant environ-

ment conditions such as noise, light, distance of the

user to the output devices, etc.. The information for

this service comes from a set of specialized producer

agents that, in general, are connected, directly or indi-

rectly, to sensors, such as microphones and cameras.

When a change happens, for instance, on the dis-

tance agent, he alerts the context model which will

(if it perceives as necessary) alert other agents when

the distance parameter may inﬂuence their execution

state (a text synthesizer for instances). As such, the

context model functions as a gateway between envi-

ronment agents and application-derived agents.

A user model service is also provided, in order

to register and fetch speciﬁc user related capabili-

ties and preferences. Examples of capabilities are vi-

sion and hearing acuity, and mobility capabilities. As

preferences, we can have, for example, the personal

preference for receiving information visually or for a

speciﬁc color for text. In truth, this model may be

used for two things: one, to disambiguate possible in-

decisions (on fusion module); two, improve the com-

fort and usability for users when interacting with the

system.

The user model differs from the context model in

that it can be used as a service. As such, the user

model was design as web service, allowing for several

systems to use its content. With it, it is our intention,

that in the future, statistical information may be de-

rived from the data enabling us to analyze the user’s

preferences and thus improving the system.

5.5 Synthesizers

The agents capable of transmitting information from

the system to the user – named synthesizers in mul-

timodal interaction literature – include two important

mechanisms: The ﬁrst is capable of deciding if in the

current environment conditions and taking in consid-

eration user capabilities it is in position to be active

and fulﬁll the request. The second changes how the

message is rendered, also based on contextual and

user information 5.

The text Output and Text-to-Speech capabilities

of the system were made available by a speech syn-

thesizer agent and a text synthesizer agent, the ﬁrst

implemented using Microsoft’s Speech Platform (Mi-

crosoft, 2010) and the other using Java Swing.

Figure 5: AdaptO output.

Presently, and as proof of concept, the text syn-

thesizer varies, using simple heuristics, the font size

as a function of the user visual capacity, environment

lighting conditions and distance of the user to the

screen.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

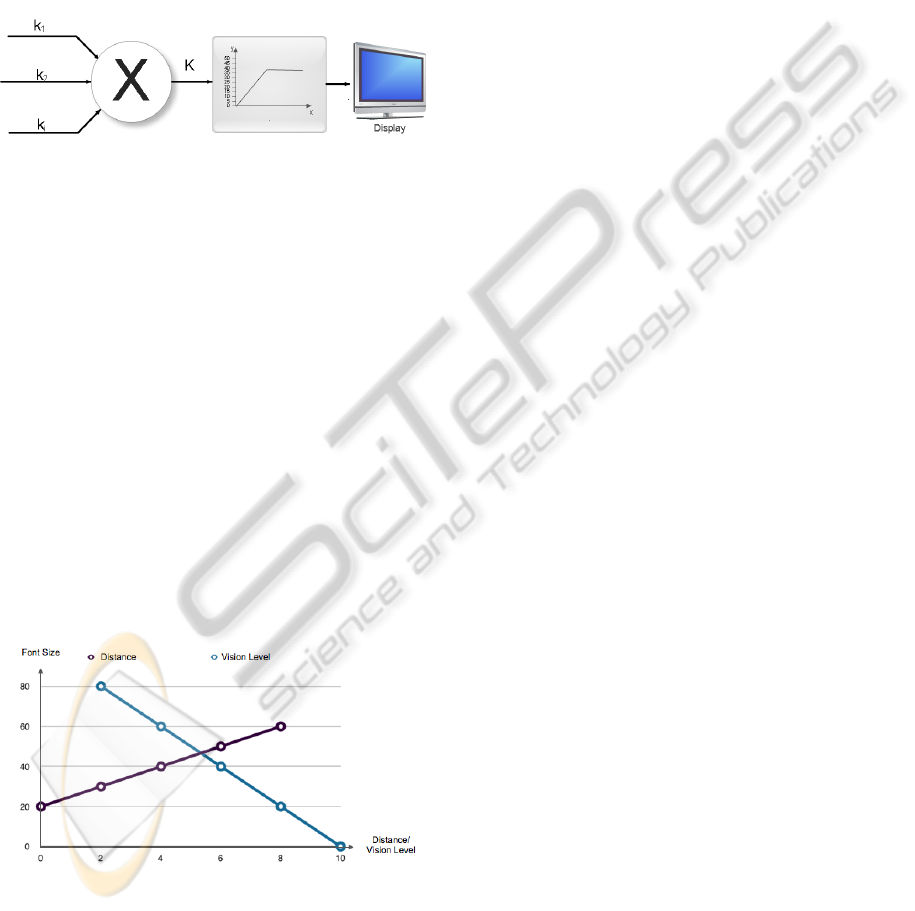

In general the process of adaptation of a parameter

from a synthesizer consists of 3 steps (Fig. 6):

1. calculation of individual gains/multiplication fac-

tors, k

, based on the factors chosen to affect the

parameter;

2. combination of the gains to obtain an unique gain,

K =

∏

;

3. transformation of K into the range accepted by the

renderer/device.

Figure 6: Parameter adaptation process.

Distance is measured according to the meters that

separate the user from the output mechanism (for in-

stance, a monitor). Anything that exceeds a prede-

ﬁned limit (10 meters in our ﬁrst prototype) is ignored

by the system. The output agent synthesizers that are

dependent on the distance shutdown when the values

exceed this limit.

Vision acuity is in our ﬁrst approach an “abstract”

value, from 0 to 10, where 0 represents a blind per-

son and 10 a person with perfect vision. We expect

in the near future to replace this by the use of the real

results from medical visual evaluation. Vision capa-

bilities below a threshold imply the shutdown of the

synthesizer dependent on this factor, thus giving pref-

erence to other output modalities.

Text size presently depends on two factors: dis-

tance of the user to output device and the vision ca-

pabilities of the user. This variation is shown by

Figure 7.

Figure 7: Text size variance according to the user’s distance

and vision capabilities.

The speech synthesizer is capable of varying both

volume and speech rate. This increases the chances

that the message is received and understood. The con-

text and user models are crucial to make these two

mechanisms possible. TTS volume uses a similar list

of factors, with the light information replaced by en-

vironmental noise information. For now the adapta-

tion of the TTS speech rate is only based on the user

age, with k

decreasing linearly starting at 40 years of

age (based on the results reported in (Gordon-Salant,

2005)).

At the time of writing, the scales and the formulas

used are quite simple. We used linear functions in

order to test our ideas, but in the future we expect to

replace them by more realistic ones.

As stated before, contrary to other systems, the

synthesizers on our model are not mere output

providers. They analyze their environment. They

are capable of calculating critical parameters for their

functioning and determine whether they can or not

satisfy output requests.

6 FIRST RESULTS

As already mentioned, the testbed for AdaptO is a

new telerehabilitation service for the elderly. In this

section, we present some possible runtime scenarios

that occur in this application as well as some prelim-

inary results regarding output adaptation to context

and user constraints.

6.1 Examples of the Adaptation

Mechanism in Action

Serving as illustrative examples and also to better ex-

plain the system described above, three scenarios are

presented with different user and context adaptations.

6.1.1 Scenario 1: Choice of One Synthesizer

based on the User’s Preferences

The system intends to output a message to the user

and the user is close to the screen. The system reads

the modality-registry and gets the information that

both the text and the speech synthesizer are ready to

output the message. However, the system also knows,

by consulting the user model, that the user prefers to

be notiﬁed via text messages and as such the message

is transmitted via text. The sequence of actions and

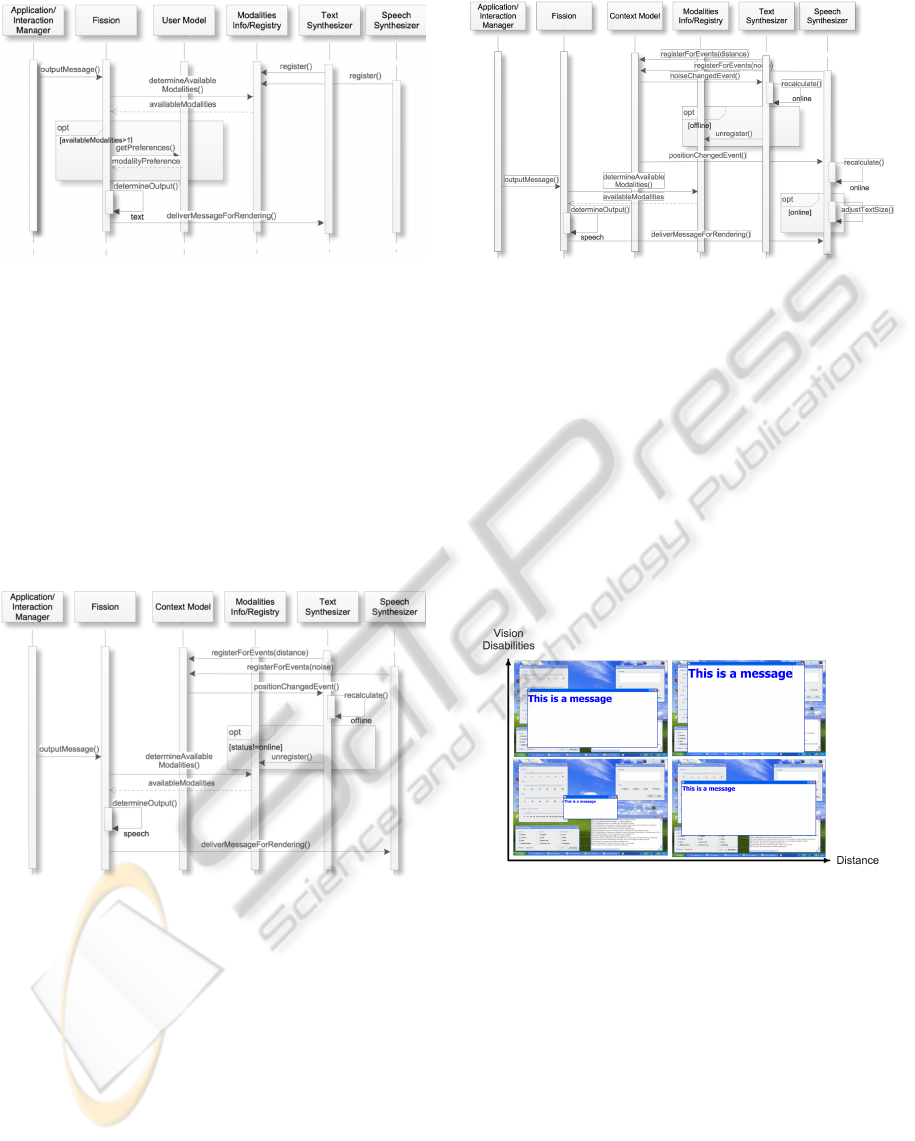

the intervening agents are illustrated in Fig. 8.

6.1.2 Scenario 2: Synthesizer Becomes

Unavailable Due to Context

The system needs to transmit another message to

the user. Assume that initially, both synthesizers

were available and registered in the modality registry.

AdaptO - Adaptive Multimodal Output

Figure 8: Scenario 1.

Nonetheless it was detected that the user went beyond

the text synthesizer’s range. When this happens, and

since the text synthesizer is dependent from distance

parameters, the context model alerts the text synthe-

sizer to this fact. The text synthesizer recalculates its

parameters and sees that it cannot output messages

in these conditions and as such notiﬁes the modality

registry that he is ofﬂine. So, the system only has

an option to provide the message and outputs it via

speech. Fig. 9 provides detailed information on the

actions and agents involved.

Figure 9: Scenario 2.

6.1.3 Scenario 3: Synthesizer Adjusts its

Parameters Due to Context

Another message is available to be transmitted to the

user. The user became once again in range of the text

output, but, this time, a high level of background noise

is present in the room. As such, following the same

pattern on previous scenario, the speech synthesizer

disconnects himself. The text synthesizer however

is online. Since the distance changed, the font size

also was recalculated proportionately. As the user is

in range, the system outputs the message.

These three scenarios illustrates the adaptive na-

ture of our proposal. In our view, the system gains in

Figure 10: Scenario 3.

usability and capability besides becoming more fault-

tolerant, critical in real-time systems.

6.2 Output Examples

To provide some information of the actual results ob-

tained with the present prototype, we present exam-

ples of the output created by the text synthesizer - the

one better suited for inclusion in a written document

as this paper - in response to combinations of groups

of factors. The combined effect of the user’s distance

to the output device and the vision capabilities of the

user are illustrated in Fig.11.

Figure 11: Combined effect on text size of vision capabili-

ties and user’s distance to the output device.

Included in the example are four pictures of the

system representing different distance values associ-

ated with different vision capabilities. It is possible to

observe that according to the distance of the user to

the output device, the font size dynamically changes.

Similarly, it is also possible to observe that the vi-

sual capabilities also inﬂuence the font size calcula-

tion which together with the distance determines the

font size.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

7 DISCUSSION

Focus on the communication between the system and

the user – multimodal output – is the main novelty of

our architecture and prototype. In general, systems

in this area of application incorporate various modali-

ties to communicate with the user (such as voice, text

or images) but they are completely devoid of any au-

tonomy, i.e. simply output the messages they receive

using default deﬁnitions. In the proposed model,

AdaptO, it is intended that these modalities have some

independence and self-adaptability to user and con-

text of use (ex: environment).

Another distinctive aspect of our proposal is the

delegation to the autonomous output agents of the re-

sponsibility for registering and, thereafter, of receiv-

ing the relevant user and context dynamic attributes

necessary for maximizing its adaptability to its desti-

nation users.

This design choice has several advantages: It sim-

pliﬁes the ﬁssion coordination service, which is no

longer required to know everything about all the avail-

able output devices. It also easies the introduction of

new output agents, making it a more modular and ex-

tensible architecture.

However, there are some parts of the output prob-

lem that we do not yet address. First, nothing has

been done regarding the semantic ﬁssion. Second,

our user model service is yet a very simpliﬁed proof-

of-concept engine, composed only of a few user re-

lated attributes. Future versions will require not only

a strong database infrastructure but also the ability to

gather and to learn user related information, such as

to register its expressed preferences and to learn from

its historical usage patterns. Such historic informa-

tion is to be systematically registered by an history

agent service which is also missing from our current

implementation.

A separation between styling and rendering is also

missing in out output agents making them less adapt-

able to different types of output devices (like when we

move from a large LCD device to a small smartphone

one).

In short, in the WWHT model we have essen-

tially addressed the middle WT parts (“Which” and

“How”).

8 CONCLUSIONS

The basis for an intelligent adaptation of output - that

we called AdaptO, a Portuguese word meaning (I)

adapt - was proposed and discussed. First versions of

the required services – context and user services – and

of a few output agents for text and speech synthesiz-

ing are already implemented and are being used for

supporting a prototype remote telerehabilitation ap-

plication.

Ongoing and future work includes: ﬁrst tests

with elderly users (the target for our work); re-

ﬁning adaptation heuristics; use of more advanced

user models, possibly making use of ontologies such

as GUMO (Heckmann et al., 2005); and creating

new output agents such as 3D dynamic graphics and

avatars.

ACKNOWLEDGEMENTS

This work is part of the Living Usability Lab

for Next Generation Networks (www.livinglab.pt)

project, a QREN project, co-funded by COMPETE

and FEDER.

REFERENCES

Coetzee, L., Viviers, I., and Barnard, E. (2009). Model

based estimation for multi-modal user interface com-

ponent selection. In 20th Annual Symposium of

the Pattern Recognition Association of South Africa

(PRASA 2009), pages 1–6.

Dumas, B., Ingold, R., and Lalanne, D. (2009a). Bench-

marking fusion engines of multimodal interactive sys-

tems. In ICMI-MLMI ’09: Proceedings of the 2009

international conference on Multimodal interfaces,

pages 169–176, New York, NY, USA. ACM.

Dumas, B., Lalanne, D., Guinard, D., Ingold, R., and

Koenig, R. (2008). Strengths and weaknesses of soft-

ware architectures for the rapid creation of tangible

and multimodal interfaces. In Proceedings of 2nd in-

ternational conference on Tangible and Embedded In-

teraction (TEI 2008), pages 47–54.

Dumas, B., Lalanne, D., and Oviatt, S. (2009b). Multimodal

interfaces: A survey of principles, models and frame-

works. In Lalanne, D. and Kohlas, J., editors, Human

Machine Interaction, volume 5440 of Lecture Notes

in Computer Science, pages 3–26. Springer Berlin /

Heidelberg.

FIPA (2010 (accessed 7 November 2010)). The foun-

dation for intelligent physical agents. Available:

http://www.ﬁpa.org.

Gordon-Salant, S. (2005). Hearing loss and aging: new

research ﬁndings and clinical implications. Journal

of Rehabilitation Research and Development, 42(4

Suppl 2):9–24.

Heckmann, D., Schwartz, T., Brandherm, B., Schmitz, M.,

and von Wilamowitz-Moellendorff, M. (2005). Gumo

- The General User Model Ontology. User Modeling

2005, pages 428–432.

AdaptO - Adaptive Multimodal Output

JADE (2010 (accessed 7 November 2010)). Jade -

java agent development framework. Available:

http://jade.tilab.com.

Karpov, A., Carbini, S., Ronzhin, A., and Viallet, J. E.

(2008). Two SIMILAR Different Speech and Ges-

tures Multimodal Interfaces. In Tzovaras, D., editor,

Multimodal User Interfaces, Signals and Communica-

tion Technology, chapter 7, pages 155–184. Springer

Berlin Heidelberg, Berlin, Heidelberg.

Microsoft (2010 (accessed 18 October 2010)). De-

veloping speech applications. Available:

http://www.microsoft.com/speech/developers.aspx.

Rousseau, C., Bellik, Y., and Vernier, F. (2005a). Multi-

modal output speciﬁcation / simulation platform. In

Proceedings of the 7th international conference on

Multimodal interfaces, ICMI ’05, pages 84–91, New

York, NY, USA. ACM.

Rousseau, C., Bellik, Y., and Vernier, F. (2005b). WWHT:

un modéle conceptuel pour la présentation mul-

timodale d’information. In Proceedings of the

17th international conference on Francophone sur

l’Interaction Homme-Machine, IHM 2005, pages 59–

66, New York, NY, USA. ACM.

Rousseau, C., Bellik, Y., Vernier, F., and Bazalgette, D.

(2004). Architecture framework for output multi-

modal systems design. In In Proceeding of OZCHI.

Rousseau, C., Bellik, Y., Vernier, F., and Bazalgette, D.

(2005c). Multimodal output simulation platform for

real-time military systems. In Proceedings of Hu-

man Computer Interaction International (HCI Inter-

national’05), Las Vegas, USA.

Rousseau, C., Bellik, Y., Vernier, F., and Bazalgette,

D. (2006). A framework for the intelligent multi-

modal presentation of information. Signal Process.,

86:3696–3713.

Teixeira, A., Pereira, C., Oliveira e Silva, M., and Alvarel-

hão, J. (2011). Output matters! adaptable multimodal

output for new telerehabilitation services for the el-

derly. In 1st International Living Usability Lab Work-

shop on AAL Latest Solutions, Trends and Applica-

tions - AAL 2011 (AAL@BIOSTEC 2011). Submitted.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

100
