USING BLENDER TO DESIGN AND IMPLEMENT DATA

VISUALIZATION COMPONENTS FOR X3D AND X3DOM

Mario A. Bochicchio, Antonella Longo and Lucia Vaira

Set-Lab, Department of Innovation Engineering, Universty of Salento, Lecce, Italy

Keywords: Visualization Tools, X3DOM, X3D, Blender, Logic Bricks.

Abstract: We discuss how to use Blender to design and implement data-bound components for Web-based data

visualization. The goal is twofold: to use Blender, with its declarative approach based on the logic brick

programming model, for prototyping data visualization components of Web3D applications, and to test the

advanced visualization capabilities of the new X3DOM framework based on HTML5 and WebGL. In order

to validate the approach we have extended Blender with a software module able to map both Blender

geometries and behaviours (logic bricks) code into X3D and X3DOM code.

1 INTRODUCTION

AND BACKGROUND

X3D has already been proposed for the design of

Web-based Data Visualization with positive

feedbacks (Sopin & Hamza-lup 2010), (Anslow

2008). The recent introduction of WebGL and

X3DOM (Drevensek et al. 2010) has increased the

potential integration between X3D applications and

the other Web technologies and it paves the way for

a new generation of Web3D applications. X3DOM

framework, in fact, aims at extending existing Web

applications adding 3D objects in the Document

Object Model (DOM) of Web pages without the

need of any plugin. Web programmers, in fact, are

attracted by 3D but they are often reluctant about

changing their production environments or their

programming tools. Moreover, Web application

designers don’t have extensive knowledge about

how to design 3D-enhanced applications and how to

describe them in terms of low-level geometric

primitives, spatial transformations, lighting models,

shaders etc. . (Sopin & Hamza-lup 2010).

In this context, the specific issue faced in the

paper is about the tools to design and implement

X3D objects for the Web. It is not straightforward to

select the proper tool for this task, since it must

include advanced 3D modelling, animations,

programming and debugging capabilities. Blender

(www.blender.org) owns several features of these

and it is one of the most rapidly-growing open

environments, with a large supporting community,

but it is not able to create interactive components for

HTML5. In order to cope with this lack, we

extended Blender with GBX, which is a custom

exporter tool, also discussed in the paper.

In the next section we begin with an overview of

the literature, then we discuss some preliminary

aspects about X3DOM and JavaScript performance

limitation. In section 4 we present the internal

structure of GBX, the main considerations about its

effectiveness and limitations and we draw

conclusions.

2 RELATED WORKS

The most straightforward method to create X3D

applications is to write geometric primitives and

scripting logic by means of a text editor. This

method, however, is time-consuming because of the

many low-level aspects required for 3D

programming (Sopin, 2010). For this reason, a

number of authors have proposed different

approaches to support the creation of X3D-based

GUIs. In 2004 D. Arendash proposed to adopt a

successful videogame editor to export X3D

applications (Arendash 2004). The approach is

effective for 3D scenes with animated objects and is

well-supported with new editor releases, but it’s not

general purpose. For example, it is not suitable for

the creation of data-bound 3D components like the

Cone Tree (CT), as proposed in this paper. From a

270

A. Bochicchio M., Longo A. and Vaira L..

USING BLENDER TO DESIGN AND IMPLEMENT DATA VISUALIZATION COMPONENTS FOR X3D AND X3DOM.

DOI: 10.5220/0003373002700273

In Proceedings of the International Conference on Imaging Theory and Applications and International Conference on Information Visualization Theory

and Applications (IVAPP-2011), pages 270-273

ISBN: 978-989-8425-46-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

theoretical point of view the adoption of visual

techniques for defining both the geometries and the

behaviors of a 3D world in a declarative way is

explored by(Arjomandy & Smedley 2004), but the

same authors state that to be productive the

environment used to specify the behaviors must be

strictly integrated with the environment used for 3D

modeling. For this reason we have decided to adopt

Blender, that shows an excellent integration between

3D modeling and ‘logic bricks’ programming

approach. In (Pellens et al. 2009) the authors try to

facilitate the design of virtual environments and to

make it more accessible to novice users by means of

behavior patterns and tools for the visual

specification of behavior rules. The approach is very

interesting for high level behaviors (e.g. strategies in

videogames) but, in our opinion, it is less effective

for the simple behaviors (e.g. expand, collapse, …)

needed to create the 3D data-bound components,

discussed in this paper. The bibliography related to

data visualization and database visualization is very

rich, starting from (Shneiderman 1996), that defined

the cone tree concept, used in this paper, and from

(Robertson 1991), that identified important

principles and guidelines for advanced visualization

applications. Two extensive and useful reviews of

techniques for software and data visualization, based

on X3D, are given by (Anslow 2008) and by (Sopin

& Hamza-lup 2010), that also define the reuse

concept. Another relevant step towards Web

technologies is about the integration between the

AJAX technology, WebGIS and X3D, which is

detailed in (Huang & Cheng 2009).

3 X3DOM AND JAVASCRIPT FOR

DATA VISUALIZATION

A lot of authors have proposed the adoption of X3D

for advanced visualization tasks with interesting

results, but the popularity of X3D and related

plugins is low if compared with other multimedia

plugins (e.g. Adobe Flash).

A reason is that the learning curve associated to

3D technologies in general (shaders, physics, 3D-

modeling, animations, rendering, …), and to X3D in

particular, is steep, also due to the lack of open

source, good quality, well documented examples.

We feel that the tight integration between Web3D

and the other Web technologies, led by WebGL, and

similar initiatives, is central to overcome these

problems.

In this strategy, X3DOM plays a central role

because of its ability to include xml-described 3D

components within the DOM of Web pages, while

interactivity, distribution, security, and scripting are

managed through standard web technologies.

Moreover, Web programmers can interact with the

3D objects via DOM events and JavaScript and not

only via the “sensor nodes” and the “routes” of X3D

(Anslow, 2008), or the “shaders” of WebGL. The

advantage is twofold:

• Web programmers can read, modify and adapt

live pages coming from the Web to their own

needs;

• the new 3D extensions are xml-based and,

therefore, they can be easily manipulated with

popular Web environments and technologies

(ASPX, PHP, JSP, …).

In this scenario, the efficiency drawback of

interpreted languages, like ECMAScript (also

known as JavaScript or JS, i.e. the interpreted client-

side language used to manipulate the DOM) can be

critical when large datasets are manipulated. So even

if ECMAScript is easy to use for processing HTML

events, it is not always suitable for 3D graphic

effects, interactions and animations.

In order to estimate this breaking point (i.e. when JS

become insufficient for smooth animations or

responsive pages), we measure the speed

degradation of a JS animated cone trees as a function

of the increasing number of nodes. More

specifically, we ran a set of randomly generated

cone trees with an increasing number of nodes on

different personal computers (we used X3DOM

v1.0, Firefox v4.0 Beta 6, ten different computers

with graphic cards ranging from GeForce Go 6200

to GeForce 9200M GS with OpenGL v7.15 driver

and DirectX 9.0c or 10).

In table 1, and in fig. 1, frame per second (fps)

and latency trends are shown as a function of the

increasing number of vertexes (#Pnts) and triangles

(#Tris) in the cone trees. All results are based on the

X3DOM built-in performance indicators. The same

test, performed with X3D and Octaga Player on the

same machines, gives no noticeable latency and no

reduction in fps.

This measure doesn’t take into account complex

factors like the adoption of shaders, animated

textures and other complex aspects, but we feel that

it can be useful as rule of thumb for Web

programmers.

The test shows that JavaScript can be currently

exploited to effectively manage thousands of

triangles, already sufficient to manage small to

medium data sets. We feel that, since X3DOM is

still in its infancy and ECMAScript interpreters are

under active improvements, better performances can

be expected.

USING BLENDER TO DESIGN AND IMPLEMENT DATA VISUALIZATION COMPONENTS FOR X3D AND

X3DOM

271

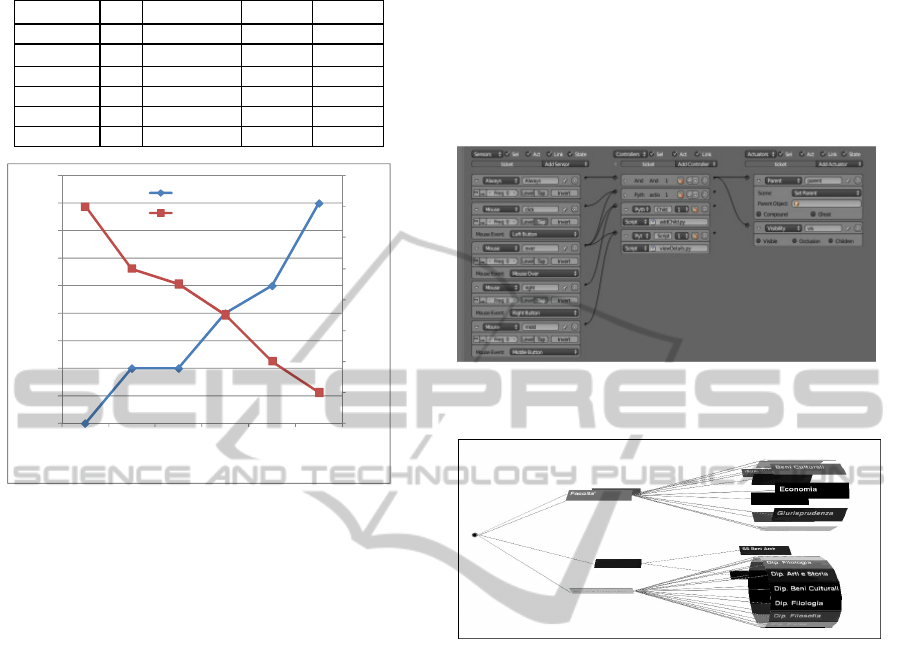

Table 1: Cone tree performance.

Tree size fps Latency [s] #Pnts #Tris

75 14 0 1800 900

150 10 0,1 3600 1800

300 9 0,1 5400 2700

600 7 0,2 10800 5400

1200 4 0,25 21600 10800

2400 2 0,4 43200 21600

0,05

0,1

0,15

0,2

0,25

0,3

0,35

0,4

0,45

900 1800 2700 5400 10800 21600

Framepersecond

Latency[s]

#Tris

Latency[s]

fps

Figure 1: Cone tree performance diagram.

4 IMPLEMENTATION ASPECTS:

THE CONE TREE EXAMPLE

Three phases are needed to design and implement

data visualization components in Blender. We start

to model the root node of the Cone Tree (CT) as a

sphere, the other nodes as prisms, and the tree

branches as wires. Parent nodes differ from leaves

because of the color, whose intensity is proportional

to the number of children nodes. This modelling

phase is rapid and effective and it’s easy to evaluate

different geometries for different presentation

solutions. The geometric primitives are completed

with the desired behaviours, described as networks

of logic bricks. In fig. 2, for example, the logic brick

network used for expand and collapse methods of

the node class is arranged in three columns: the first

column shows mouse events; the central column is

for “controllers” which compose the detected events

by means of Boolean operators (and, or, ...) and

Python scripts; the third column is for “actuators”, in

charge to change the visual aspects (and other

properties) of the tree components, to respond to the

user requests (expand-collapse). Geometric

primitives and behaviours are then “packed” as a

library of python classes (cone_tree, root_node,

level, leaf_node, parent_node) to enforce the object

orientation paradigm and to facilitate the code

maintainability and reuse. The constructor of the

cone_tree class, implemented as a Python script, is

in charge to dynamically load the tree nodes from a

relational table. For simplicity and portability, the

table is created by means of the SQLite DBMS that

is part of the standard Blender installation. An

instance of the CT is represented in fig. 3.

Figure 2: ConeTree: logic bricks network defining the

expand and collapse methods of the node class.

Figure 3: An instance of the ConeTree implemented in

3DBlender.

4.1 System Architecture

Each data visualization component (like the CT),

coming from the previously described approach, is

saved as a .blend file and can be trans-coded to X3D

or XHTML by means of our GBX (Graphics and

Behavior Exporter) tool, which consists of a set of

software modules developed with different

technologies.

GBX parses the geometric primitives and the

related logic brick networks and send them to the

Mapper module, in charge to generate the X3D

primitives corresponding to each blender construct,

while preserving the grouping and hierarchy

relationships coming from Blender. The generated

X3D primitives are therefore transformed in a .xml

stream by means of a stored procedure implementing

the LR topological numbering algorithm (Appelquist

2001).

The output of GBX can be included in any

.xhtml file, published by means of any web server

and can be directly rendered in 3D by any suitable

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

272

web browser. Thanks to the X3DOM integration

framework, each geometric primitive and each

method of the CT are fully integrated within DOM

of the web page, so that it’s very easy to use for web

applications. As discussed in the previous section,

the performance of these kind of Web3D

applications is low to medium (thousands of

triangles), but yet sufficient for embedding 3D data

visualization components in standard web pages.

In conclusion, the current implementation of the

GBX tool, which we created to validate the proposed

approach, is able to automatically export simple

Blender applications, like the CT, in X3D and

XHTML. This is useful for prototyping purposes, to

test the visualization capabilities of the new

X3DOM framework and to embed interactive 3D

components in HTML5-compliant web pages.

In the future we will investigate about the

implementation of more realistic data visualization

components and about its integration with the

current technologies for dynamic Web pages

(AJAX3D, ASPX, PHP, JSP, ...) and with the main

open source frameworks and applications (Joomla,

Moodle,...). For the reason that currently the Web

largely relies on relational DMBS and dynamic

pages, we feel that data visualization could play a

central role in the future Web and the proposed

components are suitable for creating dynamic and

interactive visualization.

REFERENCES

Anslow, C., 2008. Evaluating Extensible 3D ( X3D )

Graphics For Use in Software Visualisation. Master of

Science thesis, Victoria University of Wellington,

2008.

Appelquist, D. K., 2001. XML and SQL: developing Web

applications, Addison Wesley. Available at:

http://scholar.google.com/scholar?q=intitle:XML+and

+SQL:+Developing+Web+Applications#0.

Arendash, D., 2004. The unreal editor as a Web 3D

authoring environment. Proceedings of Web3D 2004-

9th international conference on 3D Web technology,

p.119.

Arjomandy, S. & Smedley, T. J., 2004. Visual

specification of behaviours in VRML worlds.

Proceedings of Web3D 2004- 9th international

conference on 3D Web technology, 1(212), p.127.

J. Behr et al., 2010. A Scalable Architecture for the

HTML5 / X3D Integration Model X3DOM. In P.

Slusallek, B. Yoo, & N. Polys, eds. Proceedings of

Web3D 2010- 15th International Conference on 3D

Web Technology.

Huang, J. & Cheng, B., 2009. Interactive Visualization for

3D Pipelines Using Ajax3D. 2009 International

Conference on Networking and Digital Society, pp.21-

24.

Pellens, B., Kleinermann, F. & De Troyer, O., 2009. A

development environment using behavior patterns to

facilitate building 3D/VR applications. Proceedings of

the Sixth Australasian Conference on Interactive

Entertainment - IE ’09, pp.1-8.

Robertson, G., 1991. Cone Tree Animated 3D

Visualizations of Hierarchical Information. In SIGCHI

’91.

Shneiderman, B., 1996. The Eyes Have It: A Task by Data

Type Taxonomy for Information Visualizations. In

IEEE Symposium on Visual Languages. pp. 336-343.

Sons, K. et al., 2010. XML3D – Interactive 3D Graphics

for the Web. In P. Slusallek, B. Yoo, & N. Polys, eds.

Proceedings of Web3D 2010- 15th International

Conference on 3D Web Technology.

Sopin, I. & Hamza-lup, F. G., 2010. Extending the

Web3D: Design of Conventional GUI Libraries in

X3D. In P. Slusallek, B. Yoo, & N. Polys, eds.

Proceedings of Web3D 2010- 15th International

Conference on 3D Web Technology.

USING BLENDER TO DESIGN AND IMPLEMENT DATA VISUALIZATION COMPONENTS FOR X3D AND

X3DOM

273
