MORPHOLOGICAL ANTIALIASING AND TOPOLOGICAL

RECONSTRUCTION

Adrien Herubel, Venceslas Biri

LIGM, UPEMLV, Champs sur Marne, France

Stephane Deverly

Duran Duboi, Paris, France

Keywords:

Antialiasing, Mlaa, Topology, Realtime, Gpu.

Abstract:

Morphological antialiasing is a post-processing approach which does note require additional samples compu-

tation. This algorithm acts as a non-linear ﬁlter, ill-suited to massively parallel hardware architectures. We

redesigned the initial method using multiple passes with, in particular, a new approach to line length com-

putation. We also introduce in the method the notion of topological reconstruction to correct the weaknesses

of postprocessing antialiasing techniques. Our method runs as a pure post-process ﬁlter providing full-image

antialiasing at high framerates, competing with traditional MSAA.

1 INTRODUCTION

In computer graphics, rendering consists in sampling

the color of a virtual scene. The mathematical proper-

ties of the sampling operation imply that rendering is

inherently bond to aliasing artifacts. Therefore, the

subject of antialiasing techniques has been actively

explored for the past forty years (Catmull, 1978).

Traditional approaches to handle aliasing involve

computing multiple samples for each ﬁnal sample.

However antialiasing by supersampling and its re-

ﬁnements for exemple MultiSamplge AntiAliasing

(MSAA), can be prohibitively costly notably in terms

of memory. Due to the popularity of deferred render-

ing approaches in recent real-time rendering engines,

a number of ﬁlter-based antialiasing techniques ap-

peared. Morphological Antialiasing (Reshetov, 2009)

(MLAA) is a relatively recent technique which en-

ables full image antialiasing as a post-process. Fig-

ure 1 compares two images corrected by respec-

tively MSAA and MLAA with similar results. How-

ever MLAA has its own caveats. As a pure image-

based techniques it can not handle subpixel geometry

aliasing. Moreover, as a non-linear ﬁlter, the tech-

nique uses proﬁciently deep branching and image-

wise knowledge thus is a poor candidate to a naive

GPU implementation.

We present in this paper both a practical real-

time implementation of the MLAA on the GPU and

a image-based technique to simulate subpixel geom-

etry antialiasing. Our GPU MLAA implementation

is a complete redesign of the original algorithm and

takes full advantage of hardware acceleration. We im-

prove results of MLAA on undersampled small scale

geometric details. Our algorithm is able to locally re-

construct subpixel missing data. Our method runs as a

pure post-process ﬁlter providing full-image antialias-

ing at high framerates.

2 ANTIALIASING TECHNIQUES

2.1 Supersampling

Antialiasing is a widely studied topic in computer

graphics from the very start (Catmull, 1978). An-

tialiasing is built in most graphics hardware (Akeley,

1993; Schilling, 1991) thanks to reﬁnements of the

supersampling technique. In this technique, named

SSAA for Supersampling AntiAliasing, rendering is

done at higher resolution then undersampled to pro-

duce the ﬁnal image. Though this technique gives

good results, it can be particularly costly in terms of

rasterization, shading and memory. Framerates can

decrease rapidly in case of complex shading or ray-

187

Herubel A., Biri V. and Deverly S..

MORPHOLOGICAL ANTIALIASING AND TOPOLOGICAL RECONSTRUCTION.

DOI: 10.5220/0003373201870192

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2011), pages 187-192

ISBN: 978-989-8425-45-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

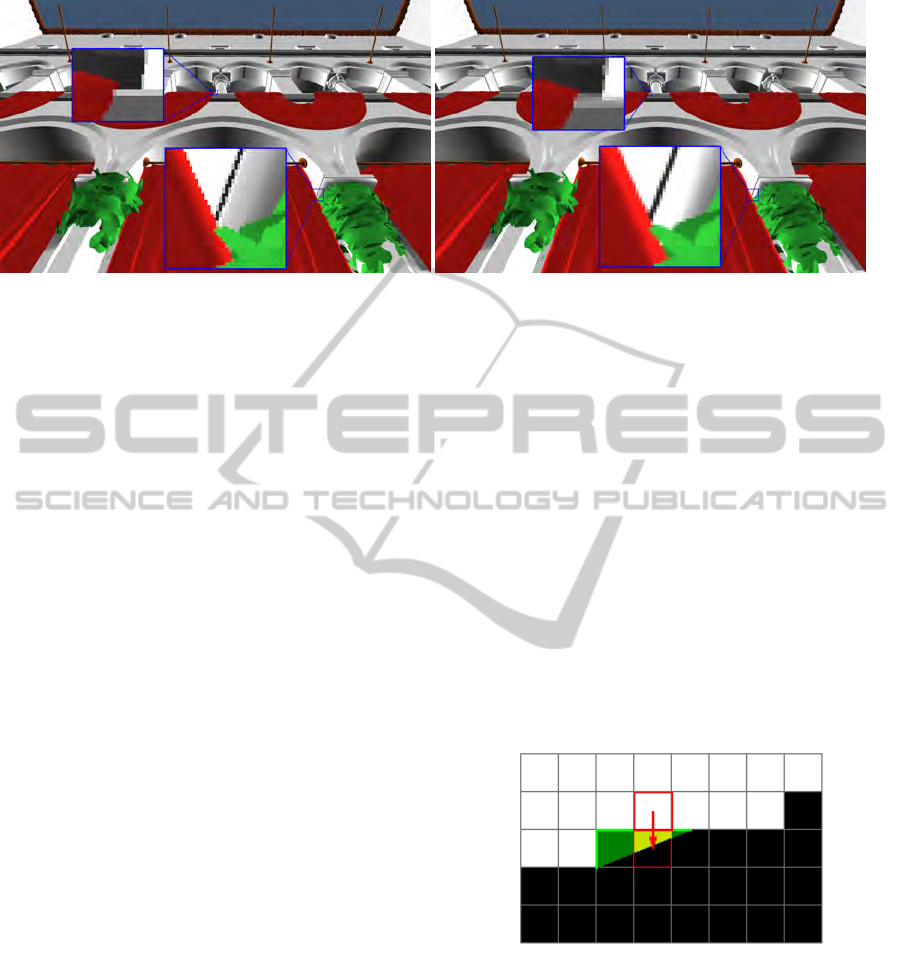

Figure 1: Left : Antialiasing with MSAA 4x. Right : with MLAA.

tracing.

The most common hardware supersampling ap-

proach is multisampling or MSAA (Akeley, 1993;

Schilling, 1991). In the naive supersampling, each

sample is shaded, therefore a pixel is shaded multi-

ple times. MSAA decreases the cost by decoupling

fragment shading and sampling. For each sample

in a pixel, the covering triangle is stored, shading is

then performed once for each covering triangle then

pixel color is extrapolated. CSAA or Coverage Sam-

pling Antialiasing reduces even more the number of

shaded samples by handling separately primitive cov-

erage, depth, stencil and color. Amortized Supersam-

pling (Yang et al., 2009) uses temporal coherence be-

tween frames to reduce computed samples but is lim-

ited to procedural shading.

Multisampling techniques are still tightly coupled

to ﬁxed parts of the graphic pipeline, but ﬁxed func-

tions tend to disappear. A recent technique by (Iour-

cha et al., 2009) takes advantage of new hardware

MSAA capabilities to acquire more accurate cover-

age values using neighbors of samples.

In deferred shading(Koone, 2007), the shading

stage is performed in image-space on G-Buffers.

Therefore using hardware multisampling with de-

ferred shading is usually considered challenging (En-

gel, 2009).

2.2 Image-based Antialiasing

In order to totally remove the dependency to geom-

etry, it is possible to directly ﬁlter the ﬁnal image.

Full-image ﬁltering offers the advantage of handling

triangle coverage aliasing as well as shadows or tex-

tures indifferently. With the recent gain in popularity

of deferred shading techniques and the limited MSAA

capabilities of the current generation of game console

these approaches ﬂourished. The combination of edge

detection and blur is a common and inexpensive tech-

nique (Shishkovtsov, 2005), however the results con-

tain lots of false positive resulting generally in over-

blurring. In (Lau, 2003), 5x5 masks are used to de-

tects patterns to blend.

MLAA (Reshetov, 2009) is an image-based algo-

rithm providing full-image antialiasing independently

of the rendering pipeline. Therefore it can be used

in rasterization as well as in raytracing. Moreover it

is perfectly adapted to deferred rendering techniques.

The initial algorithm is CPU based and was success-

fully ported to SPU for the PS3 console (Hoffman,

2010) with results comparable to MSAA4x.

The algorithm can be coarsely divided in two

passes. First we detect discontinuity segments along

lines and columns of the image. Crossing segments

are then detected and form L shapes of varying ori-

entations and sizes. Then the pixels of the frame

Figure 2: In MLAA, the bottom red pixel blends with the

top red pixel weighted by the area of the yellow trapeze.

The technique consists in detecting L shapes in green and

blending pixels along the green triangle with pixels oppos-

ing the L.

are blended with their opposite neighbor along the-

ses shapes (cf. ﬁgure 2). Concerned samples are

those contained in the L, they are covered by a trapeze

which is a sub-part of the triangle formed by the L.

Blending weight depends of the trapeze area.

Though this algorithm is naively parallelizable it

is ill-suited to massively parallel architectures such as

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

188

GPU. Indeed L shapes detection imply deep dynamic

branching and quasi-random access patterns in the

frame which cripples cache efﬁciency (Nvidia, 2007).

Moreover, as a post-processing technique, MLAA is

unable to handle small scale geometry aliasing, and

as a relatively local ﬁlter can suffer from poor tem-

poral coherence, which induces ﬂickering artifacts in

animation. Finally, using luminance for discontinuity

computation can lead to poor quality on RGB render-

ing.

3 MLAA ON THE GPU

3.1 Overview

The initial algorithm was entirely redesigned to ﬁt

with a GPU GLSL implementation thus allowing di-

rect usage in any rendering engine. GPU detection

and storage of L shapes can be avoided since the

main objective is to compute the area of the covering

trapeze on each pixel along discontinuity lines. This

area can be computed using the pixel position on the

L shape. Our algorithm will therefore detect discon-

tinuity segments, determine relative positions of pix-

els along these segments, compute covering trapeze

areas and then do the ﬁnal blending. The ﬁgure 3

shows an overview of the algorithm and samples for

each of these stages. Complete source code, including

shaders, can be found (Biri and Herubel, 2010).

discontinuity

detection

distance

propagation

blending map

computation

pixel

blending

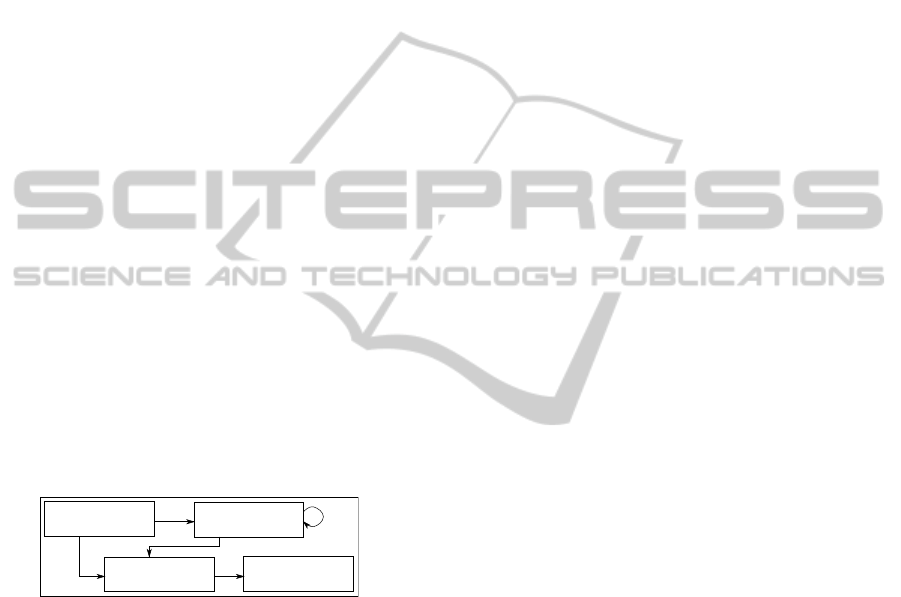

Figure 3: Algorithm overview.

3.2 Discontinuities Detection

In this stage, we seek color discontinuities between

two neighboring pixels. For greyscale images, we de-

tect discontinuity presence if the difference between

greyscale values exceeds a user deﬁned value called

the discontinuity factor, chosen between 0. and 1. For

color images we could use this factor as a threshold

in the luminance of the pixels. However in RGB, red

and blue share the same luminance leading to aliasing

artifacts on textures. Therefore we switch to CIELAB

color space where we are able to compute a color dif-

ference directly based on human perception (Kang,

2006). This discontinuity detection pass creates a tex-

ture containing, for each pixel, the existence of a dis-

continuity at its bottom and its right border. These

two booleans are stored in two different texture chan-

nels.

We also use this ﬁrst stage to initialize the texture

storing discontinuity line lengths. We simply write 1

to the left and right distance of any pixel belonging to

horizontal lines and 1 to up and down distance to the

ones belonging to vertical lines. This is done simply

using MRT.

3.3 Distance Propagation

In this stage, we want to compute the distance in num-

ber of pixel, from any pixel along discontinuity lines

to their two extremities. In fact, we will propagate

distance from the extremities. This is done in left

and right direction for horizontal lines and on up and

down directions for vertical ones. Adding these two

lengths also gives us the total length of the horizontal

(resp vertical) discontinuity line minus one. And of

course, it gives us the position of the pixel relatively

to this line which will be useful in the next step. All

lengths will be computed in pixel distance.

To propagate the distance to the extremities of

lines, we will use a modiﬁcation of the recursive dou-

bling approach (Dubois and Rodrigue, 1977; Hensley

et al., 2005). The computation will be done in up to

four steps. The ﬁrst one will compute length distance

up to four pixels, the second one up to 16, the third

one up to 64 and the ﬁnal one, up to 256. At each

step, for a given pixel X, we look at its distance d(X)

(for instance for left direction), fetch distance of the

texel at d(X) distance (at left) and add it to the current

distance d(X). Updating the distance is given by :

d(X) := d(X) + d(X.x − d(X).x,X.y) (1)

We do the same for right, up and down direction. We

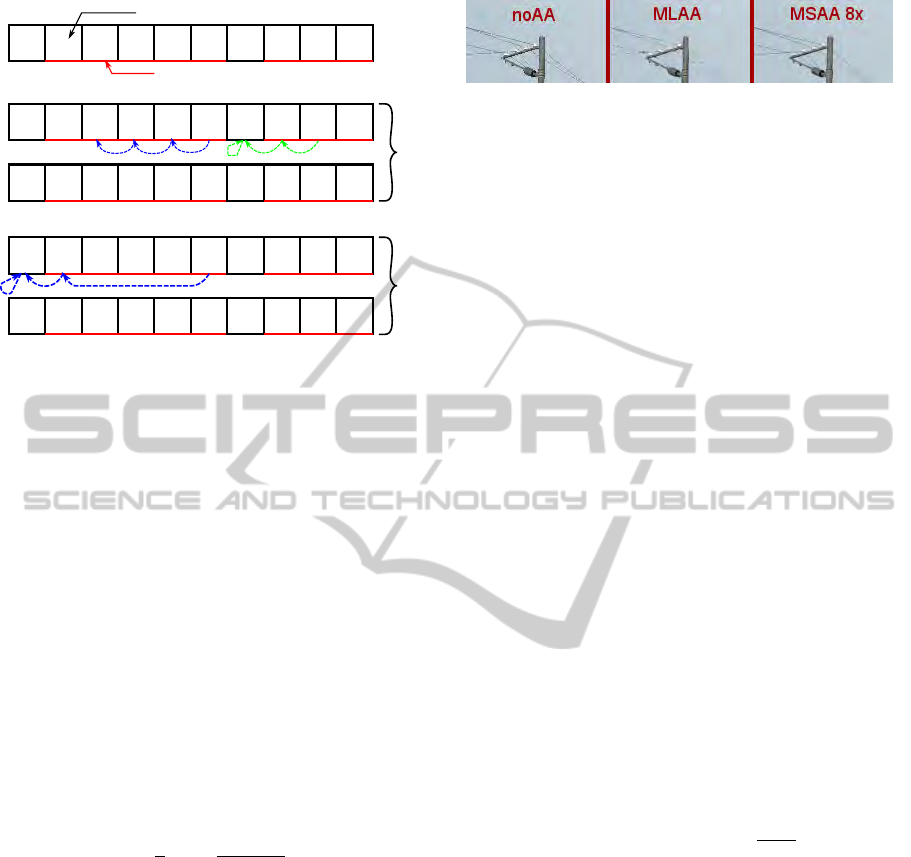

also do that three times at each step. Figure 4 illus-

trates computation of left distance for the two ﬁrst

steps of this stage. The reason we split the compu-

tation in several step is that, you can check, for each

step and pixel, if the pixel’s distance is below the max-

imum length we can obtain from the previous step. If

so, the pixel distance is already computed and can be

discarded.

Since distance will be stored in 8-bit precision, we

will restrict ourselves to 255 line length (in pixel).

The interest is that the four distance can be stored in

a regular RGBA texture. You need two such textures

in order to update distance, one texture for reading (in

the shader), and one for writing.

3.4 Computing Blending Factors

To this point we have computed the discontinuity seg-

ments, their lengths and the relative position of any

MORPHOLOGICAL ANTIALIASING AND TOPOLOGICAL RECONSTRUCTION

189

discontinuity line

1 1 1 1 1

initial distance value

1 1 1

1 1 1 1 1

1 1 1

1 2 3 4 4

1 2 3

1 2 3 4 5

1 2 3

1 2 3 4 4

1 2 3

A B

Figure 4: Overview of the recursive doubling approach to

compute the length of discontinuity lines. Example here

shows the computation of the relative distance to the left

horizontal end line. In the ﬁrst step, pixel A checks its three

closest neighbor, each one making him “jump” to the left.

Pixel B checks its closest left neighbor then its left pixel

which does not belong to a discontinuity line (distance is

zero then). So the computation will add 0 for the two last

times. In the second step, pixel B has a distance lesser than

4, so it is discarded as all pixels marked in red. Pixel A will

check the fourth - its distance - left neighbor, add one, check

the left neighbor and stop here.

pixel along these lines. Therefore, for each pixel bor-

dering a discontinuity segment, we need to identify

which type of L shape it belongs to. Each pixel can

belong to up to four L shapes and will be blended ac-

cordingly. For an identiﬁed L shape, the area of the

trapeze A can be precomputed and depends from seg-

ment length L in pixels, and from the relative position

p of the pixel in the segment. Trapeze area can be

computed by the formula :

A =



1 −

2 ∗ p + 1



(2)

This equation is true if p < L/2, else we have a tri-

angle. If L is odd, the area of this triangle is 1/(2L),

else it is 1/(8L). Therefore, given the relative posi-

tion computed in previous step, and the length of the

L shape, we can fetch the blending factor in a precom-

puted 2D texture. Given that a pixel may belong to up

to for L shapes, four blending factors are stored, one

for each neighbor, on a RGBA texture which is used

in the ﬁnal step.

3.5 Blending

At the end of the previous step, each pixel of the tex-

tures contains blending factors with its four neigh-

bors. Therefore the blending consists in using them

as local convolution kernels.

Figure 5: Comparison between no antialiasing (left),

MLAA (middle) and MSAA8x (right). Missing subpixel

data MLAA can’t close holes in the electrical lines.

4 TOPOLOGICAL

RECONSTRUCTION

An inherent problem to image based antialiasing algo-

rithm are their incapacity to “regenerate” geometry in

case of wrong sampling as in ﬁgure 5. We present in

this section a reconstruction technique for this geom-

etry, particularly in simple but frequent cases where

only one sample is missing. We use discrete geometry

and topology approaches to compute, for each pixel,

its connexity number (Kong and Rosenfeld, 1989) and

a characterization of its neighborhood. Using these

properties it is possible to determine whether a pixel

could reconnect two homogeneous areas and then “re-

construct” missing geometry.

4.1 Neighborhood and Connexity

In the case of binary images, we remind some el-

ements of digital topology (Kong and Rosenfeld,

1989). A point A ∈ Z

is deﬁned as (A

). We con-

sider neighborhood relationships N

and N

deﬁned

by, for each point A ∈ Z

(A) =



B ∈ Z

; |B1 − A1| + |B2 −A2| ≤ 1



(A) =



B ∈ Z

; max(|B1 − A1|,|B2 − A2|) ≤ 1



(3)

Let α ∈ {4, 8}, we deﬁne N

∗

(A) =

(A)

. A point B

will be α-adjacent at point A if B ∈ N

∗

(A). An α-path

is a sequence of points A

...A

so that A

is adjacent

to A

i−1

for i = 1...k.

Let X ⊆ Z

, two points A,B of X are α-connected

in X if an α-path exists in X between these two points.

This deﬁnes an equivalence relation. Equivalency

classes for this relationship are α-connected compo-

nents of X. A subset X of Z

is said α-connected if it

is constituted by exactly one α-connected component.

The set constituted by all α-connected compo-

nents of X is noted C

(X). A subset Y of Z

is said

α-adjacent to a point A ∈ Z

if it exists a point B ∈ Y

adjacent to A. The set of α-connected components of

X α-adjacent to point A is noted C

(X). Formally, the

connexity number for a point A in a subset X of Z

are deﬁned by :

(A,X) =



∗

(A) ∩ X]



(4)

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

190

Using the number of connexities we can measure

efﬁciently the number of connected components adja-

cent to a given pixel.

4.2 Image Reconstruction

Our objective is to work on the particular case of a sin-

gle pixel missing for small scale geometry as shown in

Figure 6. In this case, post-processing techniques due

to missing data can not handle this artifact. Neverthe-

less, local image structure can indicate the probable

presence of a missing element.

We work locally on each image pixel on a 3x3

mask. On each mask we identify potential shapes

which are cut in two connected component by the

current pixel. We focus on pixels linking the two

connected components. The shape is constituted by

pixels sharing the same color and different from the

current pixel color. Reciprocally, the complement of

the reconstructed shape has to be a unique connected

component, thus sharing the same color as the current

pixel, in order to avoid removing straight lines. If X

is the shape to be reconstructed, we select pixels A so

(A,X) = 2 and T

(A,X) = 1. Therefore we can re-

place their color by the color of the shape. Figure 6

gives an overview of the results.

4.3 Integration

The correction takes place before discontinuity lines

detection. On the whole image, we compute the con-

nexity number for each pixel. In order to do this, we

compare the color in CIELAB space with its 8 neigh-

bors. Each neighbor with a different color than the

current pixel color is marked as belonging to X , the

others are marked as belonging to the set X. Using the

gathered data, the number of connexities is fetched

using a lookup-table. If the number of connexities

(A,X) = 2 and T

(A,X) = 1, the pixel is then re-

placed by the mean color of X pixels.

5 RESULTS

The algorithm was implemented on an Intel Core i7

920 with a NVidia GeForce GTX 295 graphic card.

Measurements were done on a Sponza-like scene at

resolution of 1920x1080. The Table 1 sums up the

results in terms of frames per second on our deferred

renderer. In this case MLAA performs well against

SSAA both in terms of quality and performance cost.

Note that our implementation is currently used on the

in-house real-time rendering engine at DuranDuboi

Studio notably for asset previewing.

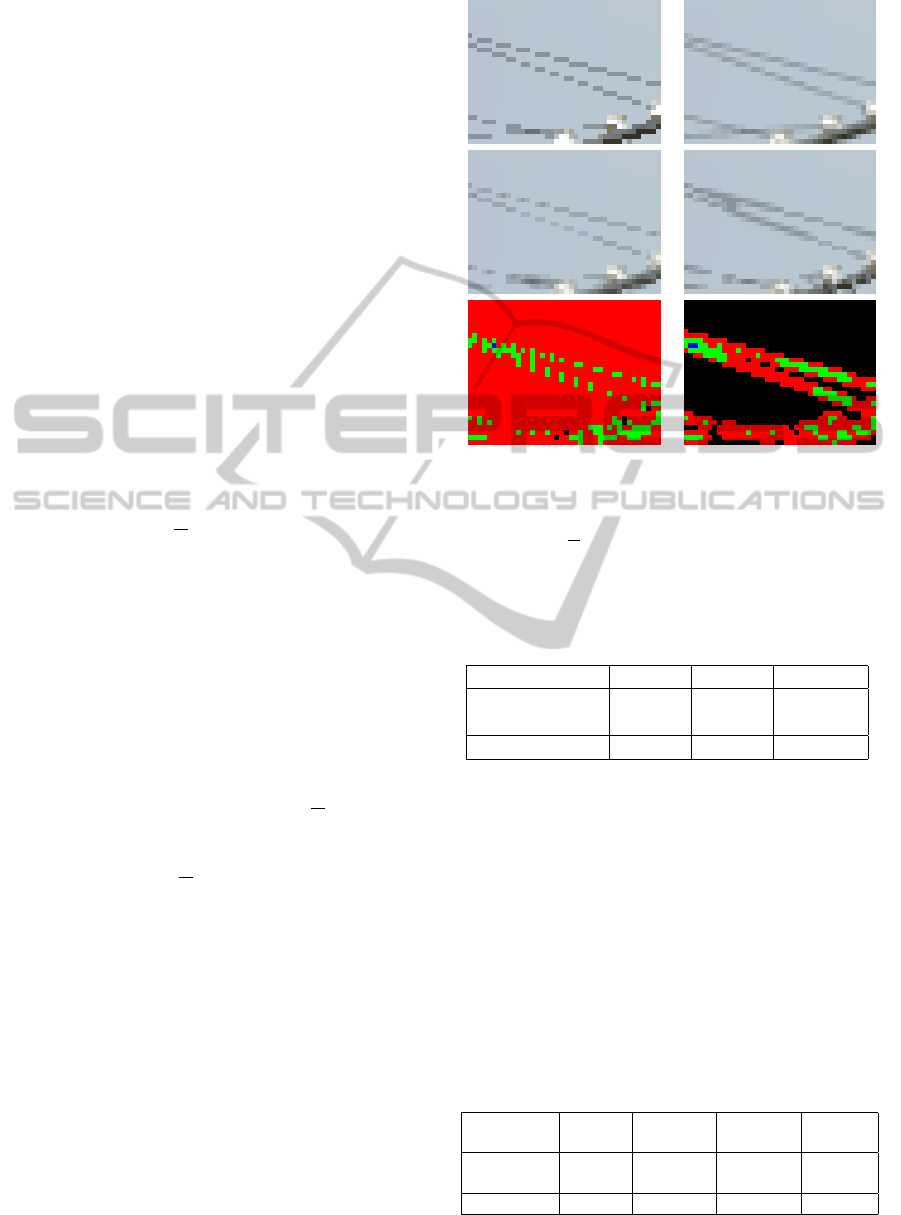

Figure 6: Detail of the reconstruction along electric lines.

Top left, original image. Top right, MSAA8x. Middle left,

MLAA without reconstruction. Middle right, MLAA with

topological reconstruction. Bottom line : connexity number

for X (left) and X (right), black = 0, red = 1, green = 2, other

> 2.

Table 1: FPS and additional cost of antialiasing techniques

on a deferred shading renderer.

Method No AA MLAA SSAAx2

Rendering 17.4 18.3 31.2

time (ms)

Add. cost (ms) 0 0.9 13.8

Figure 1 and table 2 compare antialiasing tech-

niques on a forward renderer. In terms of speed and

quality, MLAA is equivalent of MSAA4x.

However ﬁgure 5 illustrates a pathological case

for MLAA. Small scale geometry details lead to holes

between samples when the projected geometry is

smaller than pixel size. The topological reconstruc-

tion does have an additional cost of 0.55ms on our

testing conﬁguration and prevent some of these arte-

facts. Figure 7 presents MLAA ﬁltering with and

without correction on the whole image.

Table 2: FPS and additional costs of antialiasing methods

in a forward renderer.

Method no AA MSAA2 MSAA4 MLAA

Rendering

time (ms) 10.3 10.9 11.8 11.2

Add. cost 0 0.6 1.2 0.9

MORPHOLOGICAL ANTIALIASING AND TOPOLOGICAL RECONSTRUCTION

191

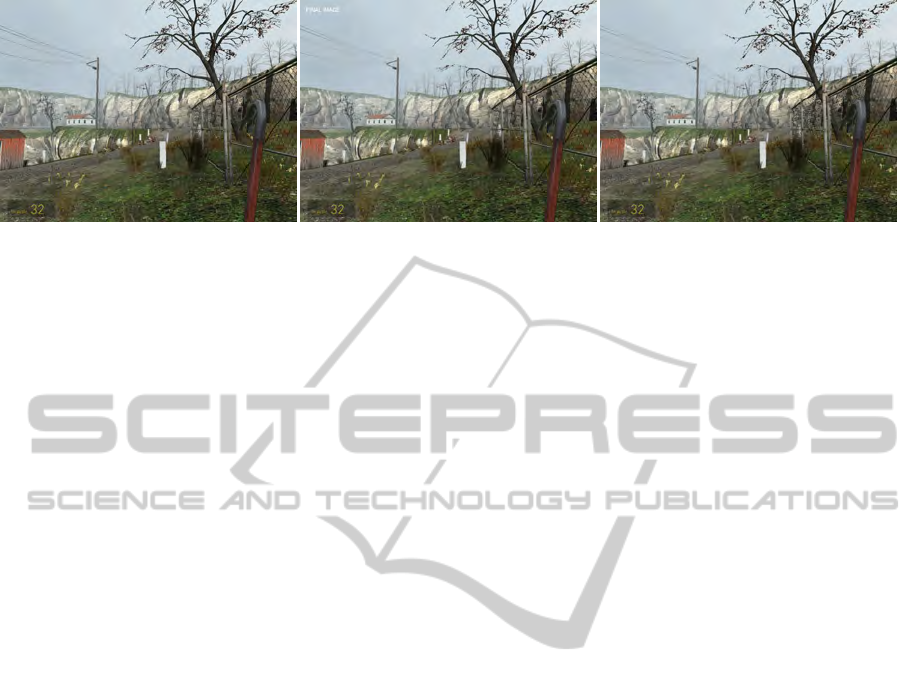

Figure 7: Original image (left), Standard MLAA (middle). MLAA with topological reconstruction (right).

6 CONCLUSIONS

In this paper, we presented a practical real-time im-

plementation of the MLAA algorithm suited to the

GPU. We introduced a new method using topological

reconstruction to handle pathological cases for image-

based antialiasing approaches. Our method improves

behavior of these algorithms on small scale geometric

details.

We intend to continue working on G-Buffer and

MLAA integration, particularly how to use additional

data in the G-Buffer such as depths and normals to

improve general MLAA behavior. We also aim to

improve the topological reconstruction to handle big-

ger gaps and to improve temporal coherence between

frames.

REFERENCES

Akeley, K. (1993). Reality engine graphics. In SIGGRAPH

’93: Proceedings of the 20th annual conference on

Computer graphics and interactive techniques, pages

109–116, New York, NY, USA. ACM.

Biri, V. and Herubel, A. (2010). Source code of TMLAA.

http://igm.univ-mlv.fr/ biri/mlaa-gpu/.

Catmull, E. (1978). A hidden-surface algorithm with anti-

aliasing. In Proceedings of the 5th annual con-

ference on Computer graphics and interactive tech-

niques, page 11. ACM.

Dubois, P. and Rodrigue, G. (1977). Analysis of the recur-

sive doubling algorithm. High Speed Computer and

Algorithm Organization, pages 299–305.

Engel, W. (2009). Deferred Shading with Multisampling

Anti-Aliasing in DirectX 10. in ShaderX7, W. Engel,

Ed. Charles River Media, March.

Hensley, J., Scheuermann, T., Coombe, G., Singh, M., and

Lastra, A. (2005). Fast summed-area table genera-

tion and its applications. Computer Graphics Forum,

24(3):547–555.

Hoffman, N. (2010). Morphological Antialiasing in God

of War III. http://www.realtimerendering.com/blog/

morphological-antialiasing-in-god-of-war-iii/.

Iourcha, K., Yang, J., and Pomianowski, A. (2009). A direc-

tionally adaptive edge anti-aliasing ﬁlter. In Proceed-

ings of the 1st ACM conference on High Performance

Graphics, pages 127–133. ACM.

Kang, H. (2006). Computational color technology. Society

of Photo Optical.

Kong, T. Y. and Rosenfeld, A. (1989). Digital topology: in-

troduction and survey. Comput. Vision Graph. Image

Process., 48(3):357–393.

Koone, R. (2007). Deferred Shading in Tabula Rasa, GPU

Gems 3, Nguyen, H.

Lau, R. (2003). An efﬁcient low-cost antialiasing method

based on adaptive postﬁltering. IEEE Transac-

tions on Circuits and Systems for Video Technology,

13(3):247–256.

Nvidia, C. (2007). Compute Uniﬁed Device Architecture

Programming Guide. NVIDIA: Santa Clara, CA.

Reshetov, A. (2009). Morphological antialiasing. In HPG

’09: Proceedings of the Conference on High Perfor-

mance Graphics 2009, pages 109–116, New York,

NY, USA. ACM.

Schilling, A. (1991). A new simple and efﬁcient antialias-

ing with subpixel masks. ACM SIGGRAPH Computer

Graphics, 25(4):141.

Shishkovtsov, O. (2005). Deferred shading in stalker. GPU

Gems, 2 ch 9:143–166.

Yang, L., Nehab, D., Sander, P., Sitthi-amorn, P., Lawrence,

J., and Hoppe, H. (2009). Amortized supersampling.

In ACM SIGGRAPH Asia 2009 papers, pages 1–12.

ACM.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

192
