HIGH-LEVEL SCENARIO EDITING FOR SERIOUS GAMES

Casper van Est, Ronald Poelman and Rafael Bidarra

Serious Gaming Centre, Delft University of Technology, Mekelweg 4, 2628 CD, Delft, The Netherlands

Keywords: Scenario editing, Simulation games, Serious games.

Abstract: Although simulation games provide a competetive and safe alternative to real-life training sessions, the

flexibility of adjusting such training sessions to fit the needs of individual trainees is relatively low. The

reason for this is that these games are often delivered as a static product with predefined scenarios that

cannot easily be edited by an instructor. This paper proposes a solution to this dilemma in the form of

scenario editing, which allows instructors to define and edit scenarios, using high-level actions and events

and some basic logic. A prototype scenario editing application was developed and subsequently evaluated,

featuring a graph-metaphor for easily editing scenarios and an interface that allows real-time editing. The

evaluation shows that the chosen approach is applicable and a good starting point for further development.

1 INTRODUCTION

When video games originally came into existence,

their purpose was solely to entertain. Nowadays,

with video games becoming more accepted by the

mainstream, and with more scientific research being

done in this area, a subset of video games called

serious games is being used for business and

educational purposes as well (Smith 2007). One

such application of a so called serious game is as a

replacement of professional training sessions, where

they are being used to educate and train safety

supervisors, medical professionals, police officers,

and other professionals. The advantages of using

such a simulation game to replace real-life training

sessions are numerous; simulation games arenot

expensive, safer, less time consuming and can

potentially offer better learning (Susi, Johannesson

et al. 2007).

However, simulation games are not being used to

their full potential yet. One important issue that

simulation games are currently facing is that the

flexibility of adjusting the virtual training session to

an individual trainee’s needs is relatively low,

compared to a real-life training session.

The fundamental problem with the current

development approach of simulation games is that a

simulation game is handed to the instructor as a

finalised product. In optimal conditions, the

instructor is indirectly involved in the process of

making the game, by defining the training program,

but once the development of the game has finished,

no additional changes can be made to the game, or to

its training program. Some simulation games do

have options for adjustability. However, these

options are still very limited and restrictive in nature.

With these games, the game developer has (perhaps

in consultation with an instructor) prepared a few

options for the instructor, which the instructor can

use to alter the gameplay. While this allows to

instructor to exercise some control over the game’s

scenario, the instructor can only adjust these

predefined settings. Thus, the game is still delivered

as a finalised, static product.

The approach described in this paper aims at

making the training session more adaptable to the

individual trainee’s needs, by providing the

instructor with a Scenario Editor. In this case, the

game developer delivers not one, but two products to

the instructor; the simulation game and an extensive

collection of scenario building blocks (Van Est,

2010). Then, a separate application called the

scenario editor can be used to arrange the scenario

building blocks according to a training program, and

combine them with the simulation game to create an

individual training experience, specific to a certain

trainee. Using the feedback from the training

session, adjustments can then be made to the training

program, by re-arranging the scenario building

blocks. This way, another individual training

experience can be created using the same scenario

building blocks and simulation game. With a large

339

van Est C., Poelman R. and Bidarra R..

HIGH-LEVEL SCENARIO EDITING FOR SERIOUS GAMES.

DOI: 10.5220/0003374503390346

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2011), pages 339-346

ISBN: 978-989-8425-45-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

collection of building blocks, the variations in

arrangements that can be made are endless. Thus,

the flexibility of adjusting a training scenario is

returned to the instructor. In the following sections,

this paper will discuss this approach in more detail,

and an application example will be presented.

2 PREVIOUS WORK

This section discusses current authoring methods.

These methods can be divided into two categories;

environment authoring and causality authoring. In

environment authoring, the editing environment is

similar to the game world; it provides the user with a

view of the environment which is comparable to the

world as it is presented to the player. In causality

authoring, the instructor operates in a distinctly

different environment than the game world, such as

an abstract graph-based editor.

In environment authoring, the instructor can

directly influence the game’s environment. The

instructor can place assets (objects, characters,

triggers, markers, etc) and move them around. By

placing a number of these assets, and assigning

certain properties to them, the instructor can

influence the course of the scenario. A real world

example of environment authoring is a child playing

in a sandbox: he builds an environment with perhaps

buildings or foliage, places a handful of characters

and then ‘runs’ the scenario. Environment authoring

offers the instructor direct control over specific

assets in a game environment. Thus, it offers the

instructor great and precise power. However, it also

requires the instructor to directly influence the game

world, thus requiring the instructor to have a decent

amount of knowledge about the game world. The

instructor is required to know about game

development concepts such as placing and moving

objects around in a virtual 3D world, using triggers,

materials, etc.

Examples of authoring applications that use

environment editing are UnrealEd, the level editor of

the Unreal 3 engine; and e-Adventure (Moreno-Ger,

Martinez-Ortiz et al. 2005) (Moreno-Ger, Blesius et

al. 2007). UnrealEd was developed by and for

professional game developers, and is as such very

powerful, but also very complex. When using e-

Adventure, on the other hand, creating a game in e-

Adventure is made easier for the instructor by

allowing him to author and execute a game without

any background in programming. The instructor can

author game scenarios and add content to them, such

as objects, characters and conversations. The

authoring application focuses on supporting those

tasks that are specific to the educational domain.

Among these are assessment and adaptation: the

need to track and evaluate the activity of the trainee

and the need to adapt the behaviour of the game to

fit different ranges of trainees, respectively. A

noteworthy feature of e-Adventure is the possibility

to link to other sources of information, to be

accessible during the game.

The functionality offered by e-Adventure is too

limited to be suited for professional game

developers; only one type of game can be created,

that game has to follow certain specific guidelines

and there are little options for customizing the game.

At the same time, the actions required to create a

game using e-Adventure are too detailed to be suited

for non-professional game developers. The user has

to concern himself with technical issues such as

foreground masks, layers, inventory item icons, etc.

Aside from causing the creation process of a game to

take an unnecessarily long time, these options are

overwhelming to a didactic expert with no game

development experience.

The second authoring method is called causality

authoring. This method lets the instructor edit the

causality processes of a scenario, usually by

presenting a graph metaphor. Using this authoring

method, authors can specify causalities such as

‘when the user opens that box, he will receive this

object’. Editing a graph is easier than editing a game

environment, since it requires less technical

knowledge of the author.

Examples of authoring applications that use

causality authoring are Unreal 3’s Kismet editor,

Scribe (Medler and Magerko, 2006), Façade (Mateas

and Stern, 2000), (Mateas and Stern, 2003), Scenejo

(Weiss, Muller et al., 2005), (Spierling, Weiss et al.,

2006), Art-E-Fact (Iurgel, 2004) and SAVEace

(Holm, Stauder et al., 2002). For a discussion on the

strengths and weaknesses of these applications, see

(Van Est, 2010).

Limitations in current authoring methods

provided by game development tools are found to be

 Authoring requires knowledge of gaming

concepts

 Authoring requires too much work

 Authoring systems are designed non-

generically

 Authoring systems offer unfriendly user

interfaces

 Graphs can become too complex

One disadvantage of all current authoring methods is

that none of them offers a generic solution; no

standalone tool exists that allows scenario authoring

to function with any other game development tool.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

340

This would improve the effectiveness of such a tool,

as it can then be applied in multiple projects.

The graph metaphor used in several high level

scenario authoring applications seems to be a good

fit, since it corresponds well with the user’s concept

of a scenario. However, the interface that is usually

provided can be very complex, especially for non

technical users. An authoring application would

benefit from using more graphical metaphors, such

as icons for pre- and post conditions, as can be found

in tools aimed at children. The main issue with

current authoring methods for the use in simulation

games is that they have not been explicitly designed

for use by a field expert or instructor. These experts

typically have little knowledge of the technical

concepts required in current authoring methods. For

maximum usability, a scenario authoring application

should offer functionality that allows people with

limited experience to easily create or edit a scenario.

Of course, since the scenario editor also needs to be

powerful and support creativity, the tool should offer

considerable depth, allowing the user to create

complex scenarios as well. Perhaps a separation

between basic and advanced features could offer

some improvements to the usability.

3 BASIC APPROACH

The goal of the approach proposed in this paper is to

give an instructor more control over the scenario of a

simulation game. Basically, this can be achieved in

three steps:

1. Represent the scenario of a simulation game

at a more abstract level of scripting.

2. Make the abstracted scenario editable by an

instructor.

3. Communicate the adjustments made by an

instructor to a simulation game.

By seamlessly supporting these steps, one can

enable instructors to make adjustments to abstracted

scenarios, and subsequently communicate these

adjustments to a simulation game.

3.1 Abstraction

First, two levels of scripting were identified. The

first, lowest, level is called the programming level.

The scripts in this level deal with low level concepts,

such as objects, vectors, math functions, etc. The

language used to write a script in this programming

level could be any programming language such as

C++ or UnrealScript.

The second level of scripting is called the

gameplay scripting level, in which the scripts deal

with the objects in a game level. The language used

in the gameplay scripting level is easier to use than

programming languages and could for instance be

UnrealEd’s visual scripting language Kismet

(UnrealEd, 2011).

These two scripting levels, programming and

gameplay scripting, are commonly used to develop

games. In current game development teams,

programmers operate in the lowest scripting level

and write all kinds of scripts on how the engine

should simulate the playing world. Then, gameplay

scripters define what can be called the game’s

behaviour, e.g. how it interacts with the player, in

the gameplay scripting level, as in Fig. 1.

What we propose in this approach is to add a

third level of scripting above the previously

mentioned levels, in which the global scenario of a

game is scripted. We call this third level the scenario

scripting level, and it deals with the scenario of a

game. This high level of scripting is useful because

it allows the instructor to focus on the scenario itself,

without worrying about unnecessary programming

or gameplay issues. For example, an instructor does

not want to be bothered by issues such as which

truck model should be used, how it moves or which

colour it has. All these issues are dealt with in lower

scripting levels, and are defined by one of the game

developers.

Achieving this higher abstracted scripting level

can be done by taking the same abstraction step that

is taken from the programming level to the

gameplay level, but now by applying it from the

gameplay level to the scenario level, as in Fig. 2. In

our approach, we’ve chosen to let the game

developer decide on how to abstract the contents of

the gameplay scripting level to the level of scenario

scripting, just as the programmer decides how to

abstract his code into the gameplay scripting level.

In this way, the game developer is responsible for

creating the content that can be used by the

instructor. In that sense, it is up to the game

developer to choose what information, or meta-data,

is supplied to the instructor, and thus at which level

of abstraction the instructor operates.

Therefore, there is no exact, strict, definition of the

boundary between the scenario scripting level and

the gameplay scripting level, and it can be precisely

defined on a case-by-case basis.

HIGH-LEVEL SCENARIO EDITING FOR SERIOUS GAMES

341

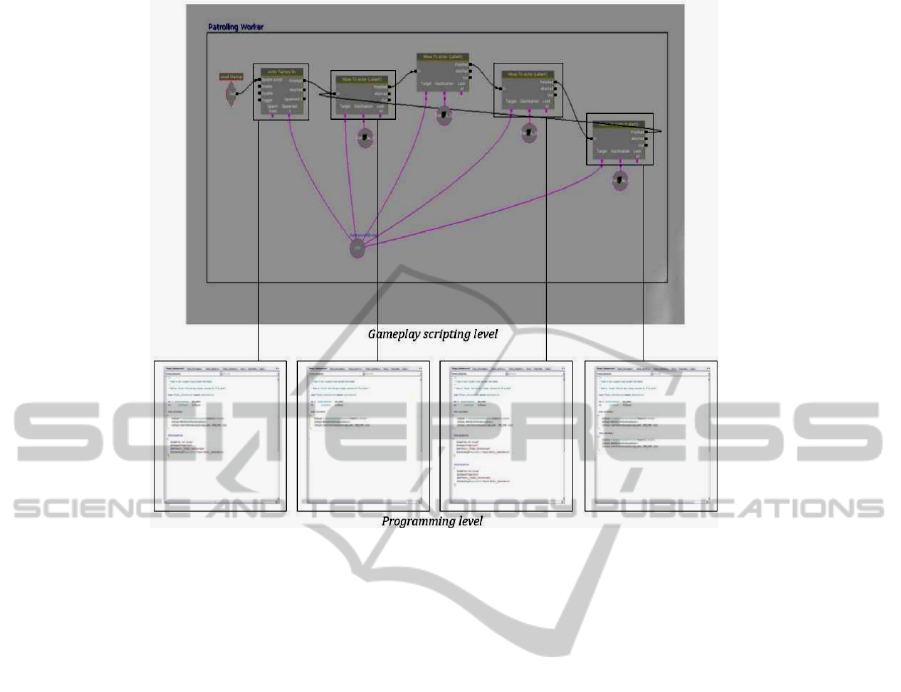

Figure 1: Nodes at the gameplay scripting level are abstractions of scripts at the programming level.

3.2 Editing

The editing actions of the scenario scripting

language are called building blocks, which the

instructor should have at his disposal in the scenario

scripting level. Above, we showed that sections of

gameplay script can together form scenario building

blocks. But which forms can such a building block

take? We start by identifying two entities that are the

most basic building blocks of a scenario script;

actions and events. An action is something that is

performed by the player, while an event is

something that is performed by the game. Together,

these two building blocks allow an instructor to

script a basic scenario. However, with just these two

entities, the instructor is fairly limited in his

expression of a scenario, as he can only create linear

scenarios. In order to create non-linear scenarios, the

instructor also needs to be able to apply some logic

at the level of scenario scripting, such as if-then

statements or other flow control strategies.

Additionally, in some types of games the

instructor might want more detailed control over a

scenario by using variables. At the level of scenario

scripting, a variable can be used for logical

decisions. The use of variables widens the options an

instructor has for creating non-linearity in his

scripts. Whereas without using variables, the

instructor can only base the logic in his script on

whether an action has been performed, with the use

of variables the instructor can also write scripts that

base their logic on how well an action was

performed. Finally, a variety of settings have been

introduced, including the scenario relevant

properties of a game, e.g. the number of pedestrians

in a driving simulation.

3.3 Interfacing

The arrangement and properties of the building

blocks defined above can now be applied in a

simulation game. The actual process of scripting a

scenario can potentially happen in two different

contexts and stages; within a game development

environment, as is the case in gameplay scripting , or

outside of the game development environment, by

utilising a standalone scenario authoring application.

Our approach is based on offering a standalone

authoring application. That way, the process of

scripting a scenario is independent of the specific

game in which the scenario will be used, so the

instructor can learn how to write scripts for one

game and apply this knowledge to other games as

well.

Considering that scenario building blocks are

created from sections of gameplay scripts, we use an

event-based communication between the scenario

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

342

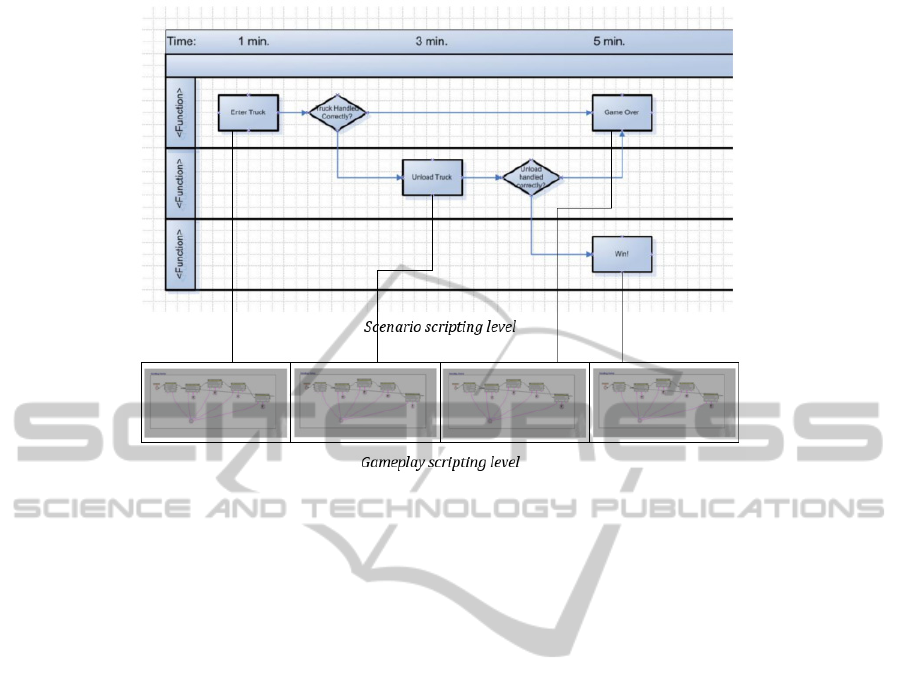

Figure 2: Nodes at the scenario scripting level are abstractions of scripts at the gameplay scripting level.

authoring application and the simulation game. This

system sends messages back and forth when a

building block, in the form of an action or event,

needs to be executed. The game itself is then

responsible for handling all the scripts at the

gameplay scripting and the programming level,

while the scenario authoring application is

responsible for handling the scripts at the scenario

scripting level, including the handling of scenario

logic. By sending messages between the editor and

the game, all communication occurs in real-time.

This allows the instructor to make adjustments to the

scenario, as long as these changes do not corrupt the

scenario.

In conclusion, our approach allows instructors to

exercise control over a scenario by interactively

editing a visual script at the abstracted level of

scenario scripting, using the language of scenario

building blocks. Furthermore, additional control is

given to instructors by allowing them to make real-

time adjustments to a scenario as it is running.

4 PROTOTYPE SCENARIO

EDITOR: SHAI

To evaluate the approach discussed in Section 3, a

prototype scenario editing application was

developed. This Section briefly discusses the design

and implementation of that prototype, called Shai.

The Library panel on the left presents the variety

of nodes that are available to the user. These nodes

can be dragged from the Library and dropped onto

the large Scenario panel on the right. Nodes in the

Library are grouped by their type; event nodes,

action nodes, logic nodes, time-based nodes and

miscellaneous nodes. Event and action nodes are

specific to a certain game, while the other nodes

types can be applied in any game. The node types

are corresponding to the entities discussed in Section

The main panel of the editor is the Scenario

Panel. Here, nodes can be linked together to form a

scenario. Starting the playback of a scenario is

straightforward; by simply pressing the play button,

the application boots up the game and the scenario

begins at the (requisite) ‘start game’ node. While a

scenario is being played, the instructor is free to

move nodes around and add or remove new nodes,

as long as this does not invalidate the scenario (such

an invalidation could be detected by the application,

but is not available in the current implementation).

Communication between Shai and the game is

performed using a separate application, called the

Communicator. Messages sent from Shai to the

game are first handled by the Communicator. The

Communicator can read these messages and decide

what to do with them. For instance, it can

simply forward the messages to any or all connected

game engines, or it can write to a debug log, perhaps

by forwarding them to a database, etc.

HIGH-LEVEL SCENARIO EDITING FOR SERIOUS GAMES

343

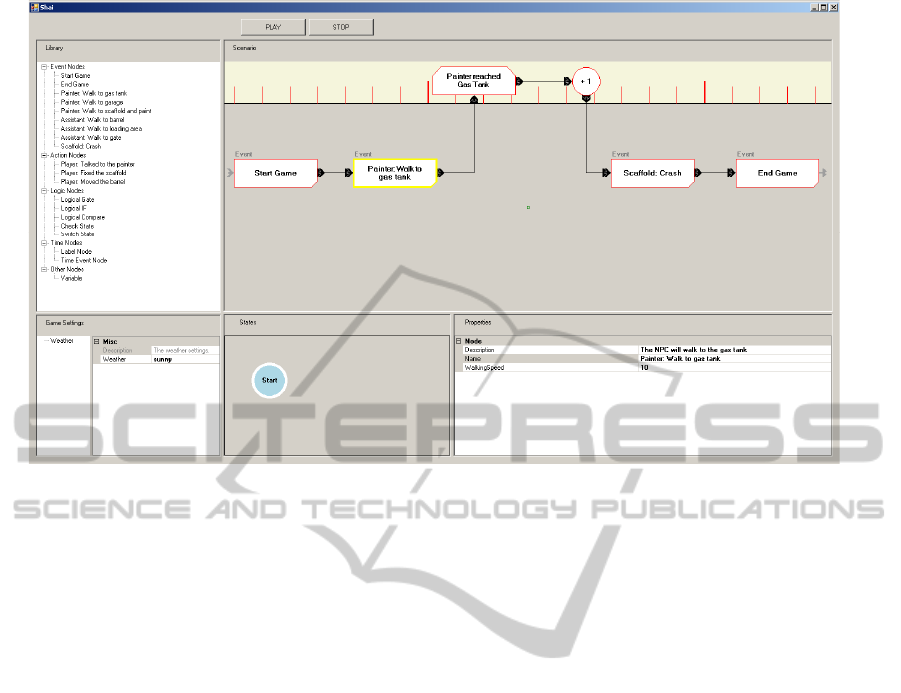

Figure 3: Interface of the prototype scenario authoring system Shai.

The Communicator can also forward messages from

the game engine to Shai. The Communicator can

handle multiple connections, both from Shai and

(any type of) game engines, using a TCP/IP

connection.

By separating the communicator and the scenario

authoring application, the author application is

shielded off from the game engine. This makes the

functionality of the authoring application

independent of the type of game engine used, which

improves the applicability of Shai.

5 APPLICATION EXAMPLE:

SUPERVISOR

This section demonstrates the power of our

approach, using Shai in combination with a concrete

simulation game called Supervisor. We also discuss

how that game needed to be set up properly by the

game developer, in order for it to be compatible with

Shai.

5.1 Supervisor

The Supervisor simulation game was commissioned

by Shell and developed at TU Delft. It is designed to

be used as a virtual alternative to

parts of real-life training sessions. In this game, the

player (or trainee) assumes, in first person

perspective, the role of a safety supervisor at an oil

drilling site. The trainee is expected to handle

hazardous situations, watch personnel and take care

of health, safety and environment regulations. The

instructor, or sometimes called the facilitator, is

responsible for deploying the game to teach trainees

how to become a competent safety supervisor.

Supervisor represents a prime example of the

issues that can be found in simulation games. The

instructors at Shell had limited influence on the

development of the game; they provided information

on what type of scenarios should be developed, but

once the game was finished, its use was limited to

whatever scenarios the game developers had

implemented. The instructor, who then used the

game to perform training sessions, had only the

choice of a handful of different scenarios. Therefore,

the use of the game was very limited.

Therefore, we made Shai use Supervisor as a test

case, as Shai can be used to improve the use of such

as game by allowing the instructor to make changes

to the game’s scenario, thus expanding the range of

possible training sessions.

5.2 Implementation

Before Shai can be used in combination with

Supervisor, the game needs to be able to properly

communicate with Shai. In the case of Supervisor,

which was developed using the Unreal 3 Engine, this

required two steps. First, a programmer needed to

write code for Kismet nodes, so they could be used

in the second step by the gameplay scripter.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

344

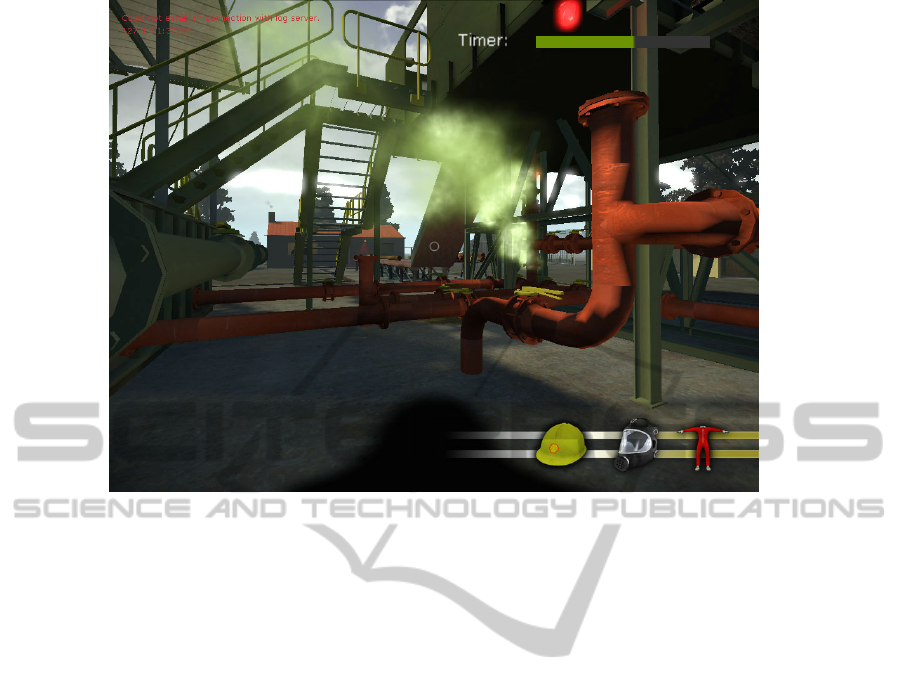

Figure 4: A screenshot of Supervisor, as seen through the viewport of the player.

The second step is taken when the programmer

has finished writing the code for the Kismet nodes;

the nodes can then be placed in Kismet. This is done

by the gameplay scripter. He will decide at which

points in the game’s logic messages will be sent

back and forth between Shai and the game.

Thus, the slight overhead required to make

Supervisor communicate with Shai is relatively

little. On the programming side, there are only a

handful of classes that need to be written, and their

content is trivial. On the Kismet side, however,

placing the extra nodes can be a bit tiresome.

However, when this is performed while the level is

being created (as opposed to afterwards, as was the

case in developing this prototype), the extra work is

bearable. Moreover, it helps the designer in keeping

the Kismet sequences organized, and guides him

into using modular design, which is always

beneficial.

6 EVALUATION AND RESULTS

As discussed before, an application as Shai is aimed

at non-programmers, such as instructors. The

prototype, therefore, needs to be evaluated by its

users. For this purpose, an evaluation plan was

developed and executed featuring a tutorial for users

to follow and a questionnaire to fill in.

The evaluation was performed using a

combination of several evaluation methods. Mainly,

the user was asked to fulfil a tutorial, in which he

was asked to perform several tasks using the

prototype. Secondly, the user was interviewed, using

both a questionnaire, and a discussion, to find out

about his experience with the prototype.

The prototype was tested by several field experts,

including experts from Shell, who are familiar with

the Supervisor game, and serious game industry

experts, who are familiar with scenario editing

challenges. The goal of this session was to evaluate

feature completeness, adequacy of scenario

representation and usability. For more details on the

evaluation process, see (Van Est, 2010).

The general consensus amongst the testers was

that this scenario editor presents significant

advantages in helping instructors develop scenarios.

However, the domain experts who already had some

experience in scenario development noted that this

application could best be used in the preparation

phase of using scenarios, because the real-time

adjustment options seemed to be too complex in the

current form. When large, complex scenarios are

involved, it can be very difficult for the user to fully

comprehend the long-term effects of changes he is

making in the scenario, especially under the

pressures of a running game session.

While the current features offered in the

prototype, such as the use of a visual node-based

causality chain, were well received by the domain

HIGH-LEVEL SCENARIO EDITING FOR SERIOUS GAMES

345

experts, they still had some suggestions on possible

improvements, which can be considered as valuable

recommendations. These included suggestions for

conversation nodes, nodes that can retrieve

information from the game, sub-graphing options

and 3D editing with object placing. Finally, Shai’s

usability was rated poorly, which implies that

significant improvements should be made in this

area, if the prototype is considered for practical use.

7 CONCLUSIONS

This project had as its main goal to let the instructor

exercise control over the scenarios of serious games

by writing a script at the abstracted level of scenario

scripting, using the language of scenario building

blocks. More control is given to the instructor by

allowing him to make real-time adjustments to the

scenario as well. A prototype has shown that this

approach is applicable and promising.

Now, we hope to see this project functioning as a

starting point for future research on developing

approaches that help instructors and other didactic or

creative experts gain expressive power in the

exciting and developing field of games. The current

implementation of Shai offers the basics of such an

approach, and with the right improvements, it could

very well be used to give instructors more control

over scenarios in simulation games.

REFERENCES

Holm, R., E. Stauder, et al. (2002). "A Combined

Immersive and Desktop Authoring Tool for Virtual

Environments." IEEE Virtual Reality Conference 2002

(VR 2002).

Iurgel, I. (2004). "From Another Point of View: Art-E-

Fact." Proceedings of the Second International

Conference, TIDSE 2004.

Mateas, M. and A. Stern (2000). "Towards Integrating

Plot and Character for Interactive Drama." Socially

Intelligent Agents: The Human in the Loop. Papers

from the 2000 AAAI Fall Symposium.

Mateas, M. and A. Stern (2003). "Façade: An Experiment

in Building a Fully-Realized Interactive Drama."

Game Developers Conference (GDC ’03).

Medler, B. and B. Magerko (2006). "Scribe: A Tool for

Authoring Event Driven Interactive Drama."

Proceedings of the Third International Conference,

TIDSE 2006.

Moreno-Ger, P., C. Blesius, et al. (2007). "Rapid

Development of Game-like Interactive Simulations for

Learning Clinical Procedures." Proceedings of the

Fifth International Game Design and Technology

Workshop and Conference (GDTW2007).

Moreno-Ger, P., I. Martinez-Ortiz, et al. (2005). "The <E-

Game> Project: Facilitating the Development of

Educational Adventure Games." Proceedings of the

5th International Conference on Entertainment

Computing (ICEC 2005).

Smith, R. (2007). "The Five Forces That Are Driving the

Adoption of Game Technologies within Multiple

Established Industries." Games and Society Yearbook.

Spierling, U., S. A. Weiss, et al. (2006). "Towards

Accessible Authoring Tools for Interactive

Storytelling." Proceedings of the Third International

Conference, TIDSE 2006.

Susi, T., M. Johannesson, et al. (2007). "Serious Games -

An Overview."

UnrealEd (2011). Epic Games, http://udk.com/ (last

accessed 06/01/2011)

Van Est, C. (2010) "Shai: Scenario Editing for Simulation

Games", MSc Thesis.

Weiss, S., W. Muller, et al. (2005). "Scenejo – An

Interactive Storytelling Platform." Proceedings of the

Third International Conference, ICVS 2005.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

346
