VIGNETTING CORRECTION FOR PAN-TILT

SURVEILLANCE CAMERAS

Ricardo Galego, Alexandre Bernardino and Jos´e Gaspar

Institute for Systems and Robotics, Instituto Superior T´ecnico / UTL, Lisboa, Portugal

Keywords:

Image formation, Vignetting correction, Pan-Tilt cameras, Visual event detection, Surveillance.

Abstract:

It is a well know result that the geometry of pan and tilt (perspective) cameras auto-calibrate using just the

image information. However, applications based on panoramic background representations must also com-

pensate for radiometric effects due to camera motion. In this paper we propose a methodology for calibrating

the radiometric effects inherent in the operation of pan-tilt cameras, with applications to visual surveillance

in a cube (mosaicked) visual ﬁeld representation. The radiometric calibration is based on the estimation of

vignetting image distortion using the pan and tilt degrees of freedom instead of color calibrating patterns.

Experiments with real images show that radiometric calibration reduce the variance in the background repre-

sentation allowing for more effective event detection in background-subtraction-based algorithms.

1 INTRODUCTION

Surveillance with pan-tilt cameras is often based on

(static) background representations. Whereas in ﬁxed

camera settings the background can be modeled with

a single image, with pan-tilt cameras we must adopt

representations suited to enlarged ﬁelds of view. In

this paper we use the cube based representation as

it allows a complete 360

× 360

ﬁeld-of-view with

simple homography transformations. Such a repre-

sentation can be built by sweeping the camera along

the available range of pan-tilt degrees-of-freedomand

creating a mosaic of the acquired images projected on

the cube. Once the mosaic is built, background dif-

ferencing can then be used to ﬁnd intrusions (events),

provided one has a good characterization of the un-

certainty of the model.

There are two main sources of uncertainty in the

process of building a panoramic background repre-

sentation: inaccurate knowledge of the geometry of

the camera and nonlinear-transformationof the radio-

metric readings. The geometry, deﬁned by the in-

trinsic parameters of the camera and the pan and tilt

angles, is tackled by calibration. Radiometric uncer-

tainty is mainly due to the nonlinearity of the radio-

metric response function and to vignetting, a decreas-

ing gain for increasing radial distances in an image

(Kim and Pollefeys, 2008; Yu, 2004). In the follow-

ing, we tackle both the uncertainty sources.

Geometric and radiometric calibration, are two as-

pects largely studied and documented in the litera-

ture. Hartley (Hartley, 1994) introduced the inﬁnite

homographies that link overlapping images acquired

by a rotating camera, and allow estimating the intrin-

sic parameters of the camera and the performed rota-

tions. Agapito et al. proved that the geometric cal-

ibration can also be done for a rotating camera with

varying intrinsic parameters (zoom) (Agapito et al.,

1999). Sinha and Pollefeys apply the same concept

to estimate how to stitch images acquired by a sys-

tem of multiple pan-tilt cameras and therefore build a

panorama in a collaborative manner (Sinha and Polle-

feys, 2006).

Methodologies for image blending, such as feath-

ering, have been proposed quite early (Anderson

et al., 1984). Brown and Lowe (Brown and Lowe,

2003) proposed a multi-band blending of the images,

which blends low frequencies over a large range and

blends high frequencies just over a short range. An

improved manner, proposed in (Levin et al., 2006),

was based on minimizing a cost function designed

in the gradient domain. Although these methods

render visually appealing mosaics, they do not take

into account the utilization of such representations for

surveillance applications, such as the ones based on

background subtraction where one needs to have sim-

ilar background and run-time images.

More recent research focused in understanding the

physical reasons for the differences found at the im-

age stitching seams. Stitching methodologies started

638

Galego R., Bernardino A. and Gaspar J..

VIGNETTING CORRECTION FOR PAN-TILT SURVEILLANCE CAMERAS.

DOI: 10.5220/0003374706380644

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2011), pages 638-644

ISBN: 978-989-8425-47-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

(a) Coordinate systems (b) Sample images (c) Cube faces (d) VRML view

Figure 1: Cube based background representation. (a) Coordinate systems of the cube, {X,Y,Z} and the pan-tilt camera,

} with zero tilt and non-zero pan. (b) A number of the images captured to build a mosaic. (c) Left, front and right

cube mosaicked-faces. (d) VRML view of the cube model showing one of the acquired images.

to encompass radiometric calibration to estimate the

radiometric response and vignetting functions of a

camera. Grossberg and Nayar introduced a camera

response model based on a large database of response

functions obtained from well controlled illumination

and color pattern setups (Grossberg and Nayar, 2003).

Kim and Pollefeys proposed estimating the vignetting

and radiometric response functions for high dynamic

range mosaics, from a set of images with different ex-

posures values (Kim and Pollefeys, 2008). Lin et al.

proposed to estimate the radiometric response func-

tion from images without changes in the exposure, us-

ing histograms of the edges regions (Lin and Zhang,

2005). However, vignetting is not considered in the

estimation of the radiometry. Zheng et al. also pro-

posed the correction of vignetting from a single im-

age, but requiring large piecewise ﬂat regions in the

image, which is highly dependent on the scene con-

tents (Zheng et al., 2009).

Alternatively, Wonpil Yu proposed to correct vi-

gnetting based on a white pattern (Yu, 2004). The

white image, decreasing in brightness towards the

borders due to a vignetting distortion function, was

approximated with a 2D hypercosine function. This

calibration methodology is however cumbersome due

to the requirement of having to use very large patterns

when the cameras to calibrate are far away, e.g. out-

doors at a second level ﬂoor, as it is usual with surveil-

lance cameras.

In this work we propose therefore using the geo-

metric calibration procedures adapted to pan-tilt cam-

eras, and propose exploring the pan and tilt degrees

of freedom instead of requiring large constant color

areas in the scenarios, or color calibrating patterns.

This paper is organized as follows: Section 2 de-

scribes the geometrical model and the background

representation for pan-tilt cameras, Section 3 dis-

cusses and proposes methodologies to correct the ef-

fect of vignetting on the background variance and

event detection, Section 4 shows experiments test-

ing the proposed methodologies, and ﬁnally Section

5 summarizes the work and draws some conclusions.

2 PANORAMIC SCENE

REPRESENTATION

The background scene of a pan-tilt camera can be rep-

resented in various ways, such as a plane, a cylin-

der, a sphere or a cube. In particular we select the

cube based representation as it can handle a complete

spherical ﬁeld-of-view (FOV), 360

× 360

, which is

not possible in the planar or cylindric mosaics, and

maps perspective images to/from the background us-

ing just homographies (as compared to using spheri-

cal mappings). See Fig. 1.

Building the cube based representation is a two

steps process: (i) obtaining a back-projection for each

image point and (ii) projecting the back-projection to

the right face of the cube. If one knows the intrin-

sic parameters matrix, K and the orientation R of the

camera, then each image point, m can be easily back-

projected to a 3D world point [x y z]

= (KR)

−1

m .

Projecting the world point to the right face of the cube

involves determining the face, namely front, back,

left, right, top or bottom (see Fig. 1a), and then com-

puting the 2D coordinates within that face. The cube

face where to project a world point is determined di-

rectly by inspecting the point coordinates. Deﬁning

v = max(|x|,|y|, |z|), one has that [x y z]

is imaged in

the right, left, bottom, top, front or back face of the

cube if v ≡ x,−x, y,−y,z or −z, respectively.

Having identiﬁed the cube faces for mapping the

image points, the mapping process consists simply in

projecting the back-projections of the image points

using a projection matrix P

= K

3×1

where K

is an intrinsic parameters matrix charac-

terizing the resolution (size) of the cube faces, and

are rotation matrices deﬁning optical axis or-

thogonal to the cube faces. The rotation matrices R

VIGNETTING CORRECTION FOR PAN-TILT SURVEILLANCE CAMERAS

639

(a) Pan-tilt spiral (b) One image sample and the CRI (c) The CRI as a 3D mesh

Figure 2: Building a Constant Radiance Image (CRI). Camera motion (a) and sample (patch) collection (b). (c) Regular grid

of patches, with brightness B, in a W × H CRI, obtained with approx. constant pan-tilt steps (d).

in essence rotate the 3D points closest to each of the

faces of the cube towards the front face. For example

is Rot

(180

) or Rot

(−90

), for the back or top

cube faces, respectively. In summary, an image point

is mapped to a point on a cube face m

as:

∼ K

−1

(1)

where ∼ denotes equality up to a scale factor.

Final note, in order to map an image to the cube,

one has to know precisely the camera orientation, R

and the intrinsic parameters, K. In this work we

assume that R is given by the camera control sys-

tem, while K is calibrated using corresponding points

found in images taken at various pan-tilt poses.

3 UNCERTAINTY ANALYSIS AND

EVENT DETECTION

In this section we describe the radiometric model of

image formation process, having as principal com-

ponents the radiometric response function and vi-

gnetting, and propose a patternless-methodology to

estimate and correct the vignetting in pan-tilt cam-

eras.

The effect of the radiometric response function

and vignetting in the image formation process can be

described as (Grossberg and Nayar, 2003; Yu, 2004;

Kim and Pollefeys, 2008; Zheng et al., 2009) :

I(m) = f (kV(m)L(m)) (2)

where I(m) is the image intensity at the image point

m, f(.) is the radiometric response function, k is the

exposure time, L(m) the radiance of a scene point im-

aged at m, and V(m) is the vignetting gain at m. Note

that both f(.) and V(m) have nonlinear natures, f(.)

depends on the pixel brightness / color, while V(m)

depends on the pixel location, such that central pix-

els tend to be unmodiﬁed, i.e. V(m) = 1 and pix-

els in the border of the image have lesser brightness

(V(m) < 1).

The patternless methodology for estimating vi-

gnetting is based on a mosaicked image, the Constant

Radiance Image, which is composed from a number

of images taken at various pan-tilt poses. The con-

struction of this composed image is described in the

following.

3.1 Constant Radiance Images

A static object illuminated by a constant light source

emits a constant radiation. Contrarily to the radiance,

the observed irradiance at the image plane of a mov-

ing pan-tilt camera is not constant. It varies with the

pan-tilt pose of the camera e.g. due to vignetting. In

order to describe the varying irradiance of a single

world point captured by moving pan-tilt cameras, it

is convenient to construct what we deﬁne as Constant

Radiance Images. These images represent the irradi-

ance of a single world point when it is observed at

different image coordinates.

The construction of a Constant Radiance Image,

, with a pan and tilt camera starts simply by choos-

ing one image point, m

= [u

, computing its

back-projection to a 3D point, and then moving (ro-

tating) the camera, R

, and re-projecting the 3D point

to obtain the new image point m

) = I

)

= I

(KR

−1

). (3)

Figure 2 shows the construction of one C

, and illus-

trates the typical aspect of a vignetting effect.

Assuming that (i) one estimates the radiometric

response function f(.), using e.g. the method in (Lin

et al., 2004), then one can remove the effect of f(.) by

redeﬁning I(m) → f

−1

(I(m)), (ii) the exposure time k

is the same for backgroundconstruction and event de-

tection, then it is no longer a distinguishing factor and

we can use without loss of generality that k = 1, and

(iii) the maximum of the vignetting gain is unitary,

i.e. keeps unchanged a number of central pixels of the

original image, then one ﬁnds that one Constant Ra-

diation Image characterizes the vignetting. More pre-

cisely, C

(m) = f

−1

( f (kV(m)L(m))) = V(m)L(m),

and the vignetting gain can be estimated as V(m) =

(m)/max(C

(m)).

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

640

3.2 Vignetting Correction

Given the estimated vignetting function, V(m), one

desires to apply a correction function, V

(m) that ap-

proximates the captured image equal to the radiance

image:

(m) = V

(m)I(m) = V

(m)V(m)L(m) (4)

i.e. one wants V

(m) = V

−1

(m), which means

(m) = max(C

(m))/C

(m). This approach has

however two problems, it requires a dense pan-tilt

sweeping to ﬁll all the pixels of a Constant Radiance

Image, and it is affected by image noise. We pro-

pose therefore an optimization methodology having a

smooth interpolating (parametric) vignetting correc-

tion function.

The parametric vignetting correction function is

in general a function that keeps the center pixels

unchanged, and gradually enhances (augments) the

brightness of the pixels closer to the border. In the

literature one ﬁnds for example sums of even pow-

ers of radial distances (see e.g. (Kim and Pollefeys,

2008)). In this work we follow the suggestion of (Yu,

2004):

(m;a) = cosh(a

(u− u

))cosh(a

(v− v

)) + a

(5)

where m = [u v 1]

is an image point, m

= [u

is the principal point, and the vector a = [a

]

contains the parameters characterizing the correction.

Having deﬁned the ﬁtting function, we can know

describe the optimization procedure to ﬁnd the vi-

gnetting correction as:

∗

= arg

min

∑



max(C

(m))

(m)

−V

(m;a)



(6)

which can be solved iteratively with the Levenberg-

Marquardt algorithm.

3.3 Radiometric Background Modeling

Given V

(m), we can now correct all acquired images,

I(m) := V

(m;a)I(m), which is beneﬁcial for the con-

struction of panoramic background representations.

A panoramic background representation com-

prises the superposition of various images, acquired

at different pan-tilt poses. Thus, the same 3D ob-

ject seen at various pan-tilt poses, despite having a

constant radiance, has a varying (captured) irradiance

imposed by the vignetting. A background model is

usually represented by the mean value and variance

of the irradiance at eack background location M, re-

spectivelly µ

B(M)

and σ

B(M)

. Without vignetting cor-

rection the “gray level” value of a background loca-

tion will change as the camera rotation changes. The

values of the background thus depend not only on im-

age noise but also on the changes due to vignetting in

the imaged pixelV(m), which can now be considered

a random variable with mean, µ

V(m)

, and a variance,

V(m)

B(M) = L(M)V(m) + η (7)

where η is a noise process, and L(M) denotes the radi-

ance that is expected to be observed at the background

pixel M. Taking expected values we get:



B(M)

= L(M) µ

V(m)

B(M)

= L

(m) σ

V(m)

+ σ

(8)

where σ

is the noise variance. The vignetting correc-

tion allows to decrease the variance at the superposi-

tion as shown next.

Considering that the processes of vignetting and

vignetting-correction can characterized by a mean

gain, µ

(m)V(m)

, and a variance of gains, σ

(m)V(m)

then we have that the background mean and vari-

ance are µ

B(M)

= L(M) µ

(m)V(m)

and σ

B(M)

(m) σ

(m)V(m)

+ σ

. In the case of not having vi-

gnetting correction, V

(m) = 1, we have that the vi-

gnetting directly effects on the image, µ

(m)V(m)

V(m)

and σ

(m)V(m)

= σ

V(m)

. On the other hand, if

one has a perfect correction, V

(m) = V(m)

−1

, then

we have a perfect observation of the scene radiance

B(M)

= L(M) and a zero variance on the background

representation, σ

B(M)

= L

(M) × 0 = 0.

3.4 Event Detection

Event detection is done by comparing a currently

captured image, vignetting-corrected, I(m) with the

corresponding image retrieved from the background

database, B(m), using the background variance, σ

B(m)

as a normalizing factor:

D(m) =



(I(m) − B(m))

/σ

B(m)



1/2

(9)

A pixel m is considered active, i.e. foreground, if

D(m) ≥ 3.

4 EXPERIMENTS

This section describes two experiments: (i) testing

the relationship between the variance of the vignetting

gains within a simulated white scenario such that the

images exhibit directly the vignetting effect, and (ii)

event detection on a real setup.

VIGNETTING CORRECTION FOR PAN-TILT SURVEILLANCE CAMERAS

641

4.1 Simulated White Scenario

In this experiment the scene luminance, L(M) is con-

stant. The vignetting correction gain, V

(m;a

) with

= [a

]

, is the one obtained from a real cam-

era (see Sec. 3.2). Vignetting distortion is deﬁned as

V(m;a

) ˙=1/V

(m;a

In order to compare various combinations of vi-

gnetting distortion and correction, we vary both both

of them in a parametric manner, by scaling the pa-

rameters. More precisely, we use V(m;αa

) and

(m;βa

), with α ∈ {0,.3, .6,1,1.3,1.6} and β ∈

{0,.5, 1,1.1, 1.2,1.5}. Note that α = 1 corresponds

to introducing the reference vignetting, while α = 0

corresponds to not introducing vignetting. Similarly,

β = 0 and β = 1 correspond to no vignetting correc-

tion and to perfect correction, respectively.

Figure 3 shows in the vertical axis an experimen-

tal estimate of the standard deviation of a background

pixel, ρ

B(m)

, which is obtained as the square root of

the variance, σ

B(m)

estimated empirically from the

cube based representation constructed from a set of

images acquired at various pan-tilt poses. In the hor-

izontal axes, Fig. 3 has the theoretical estimate of the

background standard deviationconsidering there is no

vignetting correction, i.e. ρ

V(m)

, and the

parameter β regulating the amount of vignetting cor-

rection.

From Eq.8 with σ

= 0 one has that ρ

B(m)

≡ ρ

only when β = 0. Otherwise, one may have ρ

(m) = 0

when the vignetting correction removes perfectly the

vignetting distortion, β = 1, which is conﬁrmed by

the plot.

0.5

1.5

← No correction

← Perfect correction

Correction β

Experimental ρ

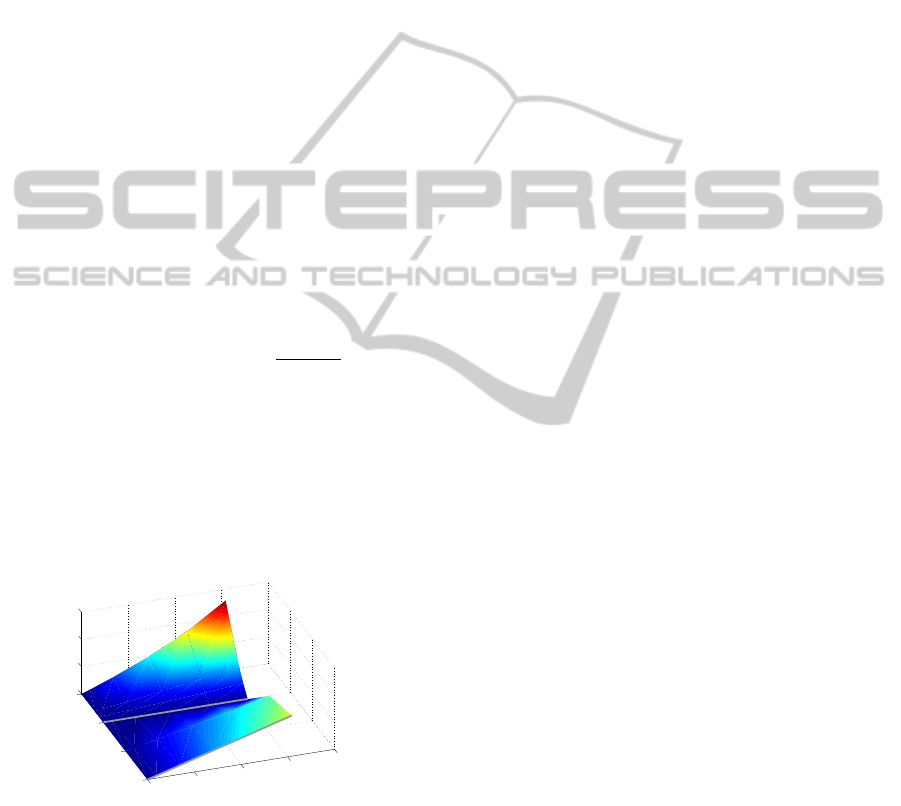

Figure 3: Background standard deviation vs vignetting ef-

fects and corrections. The correction β is adimensional,

while ρ

and ρ

have their dimensions deﬁned in a 8 bits

gray-scale space.

4.2 Event Detection in a Real Scenario

We use a Sony EVI D30 to scan a room and create

two background representations: one lacking and the

other one having vignetting-correction (Fig. 4(b) and

(c), resp.). These representations result from 347 im-

ages, acquired with approximately 2

in pan and 3.5

in tilt steps.

The images with events to be detected during the

run time, were created afterwards using a video pro-

jector superimposing text (digits) towards the ceiling

of the room. The digits are progressively less visi-

ble toward the borders in order to test the limits of

the proposed event detection methodology. Two run-

time images are shown in Fig. 4(d). For comparison

purposes, a mosaic built from 48 run-time images is

shown in Figs. 4(e,f), without and with vignetting cor-

rection, respectively. The pan and tilt steps are about

and 10.5

, being therefore much larger than in the

database images. The ﬁelds of view do not match ex-

actly the ones of the images of the database.

Our event detection methodology is based on

comparing the run time images (not the run time mo-

saics, which in general are not available) with match-

ing database images extracted from the background

mosaics (Figs. 4(c)). In the case of using vignetting

correction it is applied to the run time images before

comparing them with the background (Fig. 4(c)).

Figures 4(g,h) show the estimated vignetting cor-

rection function and the change motivated by vi-

gnetting correction on a scan-line of a mosaic (we are

displaying just 1/3 of the scan-line). As expected, the

vignetting correction gradually enhances (augments)

the brightness values when walking towards the im-

age periphery, and the mosaic scan-lines are much

smoother after vignetting correction.

Figures 4(i,j) show correct detections of digits, us-

ing or not vignetting correction, however one sees

more detections (true positives) and less false de-

tections (false positives) when there is used the vi-

gnetting correction. The brightness differences moti-

vated by the vignetting when compared with the back-

ground, built just keeping at each location the most

recent image pixel or averaging all superimposed-

image-pixels hitting that location, are signiﬁcantly

more relevant than when using the vignetting correc-

tion.

5 CONCLUSIONS

In this paper we proposed a vignetting correction

method for pan-tilt cameras. Experiments haveshown

that the correction allows building (mosaicked) scene

representations with less variance and therefore more

effective for event detection. Future work will fo-

cus on maintaining minimized variance representa-

tions accompanying the daylight change.

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

642

(a) Database (b) Database mosaic (c) With vignetting correction

(d) Run time (e) Run time mosaic (f) With vignetting correction

(g) Correction gain (h) Scanline proﬁles (i) Results of BS using (b) (j) Results of BS using (c)

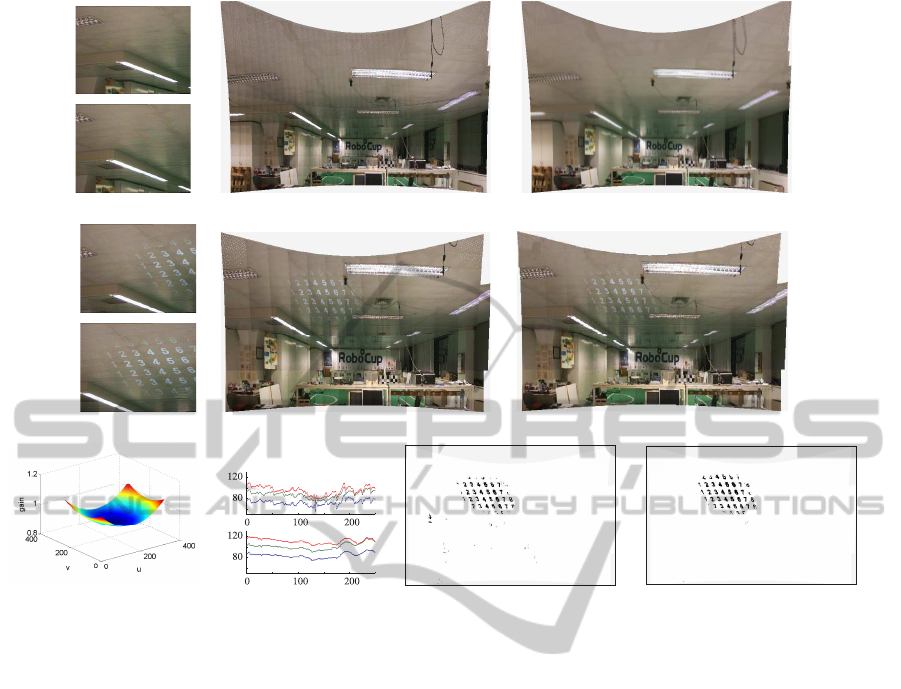

Figure 4: Event detection experiment. (a,b,c) Two database images of a set of 347, the database mosaic before and after

vignetting correction. (d,e,f) Two run time images, a mosaic built from 47 run time images, and the same mosaic with

vignetting correction. (g) Vignetting correction gain. (h) Top and bottom plots are scanlines of (b) and (c), respectively. (i,j)

Display in mosaics of events found in the run time images (some examples in (d)) using the database mosaics (b) and (c).

ACKNOWLEDGEMENTS

This work has been partially supported by the

Portuguese Government - FCT (ISR/IST pluri-

annual funding) through the PIDDAC program

funds, and by the project DCCAL, PTDC / EEA-

CRO / 105413 / 2008.

REFERENCES

Agapito, L., Hartley, R., and Hayman, E. (1999). Linear

calibration of a rotating and zooming camera. In Pro-

ceedings of the IEEE Conference on Computer Vision

and Pattern Recognition, pages 15–21. IEEE Com-

puter Society, Fort Collins, Colorado, USA.

Anderson, C. H., Bergen, J. R., Burt, P. J., and Ogden, J. M.

(1984). Pyramid methods in image processing. RCA

Engineer, 29(6):33–41.

Brown, M. and Lowe, D. (2003). Recognising panoramas.

Computer Vision, 2003. Proceedings. Ninth IEEE In-

ternational Conference on, pages 1218 –1225 vol.2.

Grossberg, M. and Nayar, S. (2003). What is the space

of camera response functions? In IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

volume II, pages 602–609.

Hartley, R. I. (1994). Self-calibration from multiple views

with a rotating camera. In In Proceedings of the Euro-

pean Conference on Computer Vision, pages 471–478.

Springer-Verlag.

Kim, S. J. and Pollefeys, M. (2008). Robust radiometric

calibration and vignetting correction. IEEE T-PAMI,

30(4):562 –576.

Levin, A., Zomet, A., Peleg, S., and Weiss, Y. (2006).

Seamless image stitching in the gradient domain. In

In Proceedings of the European Conference on Com-

puter Vision.

Lin, S., Gu, J., Yamazaki, S., and Shum, H.-Y. (2004). Ra-

diometric calibration from a single image. Computer

Vision and Pattern Recognition, IEEE Computer So-

ciety Conference on, 2:938–945.

Lin, S. and Zhang, L. (2005). Determining the radio-

metric response function from a single grayscale im-

age. Computer Vision and Pattern Recognition, IEEE

Computer Society Conference on, 2:66–73.

VIGNETTING CORRECTION FOR PAN-TILT SURVEILLANCE CAMERAS

643

Sinha, S. N. and Pollefeys, M. (2006). Pan-tilt-zoom cam-

era calibration and high-resolution mosaic generation.

Comput. Vis. Image Underst., 103(3):170–183.

Yu, W. (2004). Practical anti-vignetting methods for digital

cameras. Consumer Electronics, IEEE Transactions

on, 50(4):975 – 983.

Zheng, Y., Lin, S., Kambhamettu, C., Yu, J., and Kang,

S. B. (2009). Single-image vignetting correction. Pat-

tern Analysis and Machine Intelligence, IEEE Trans-

actions on, 31(12):2243 –2256.

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

644
