3D INTERACTIVE OBJECTS LAYOUT USING VIRTUAL REALITY

TECHNIQUES AND CONSTRAINT PROGRAMMING

Marouene Keﬁ, Paul Richard

Laboratoire d’Ing

enierie des Syst

emes Automatis

es (LISA), Universit

e d’Angers, 62 Avenue ND du Lac, Angers, France

Vincent Barichard

Laboratoire d’Etudes et de Recherche en Informatique d’Angers (LERIA)

Universit

e d’Angers, 2 Bd Lavoisier, Angers, France

Keywords:

Virtual environment, 3D Interaction, Decision-making, 3D Objects layout, Constraint programming.

Abstract:

Virtual Reality (VR) is a promising tool for effectively visualizing and interacting with objects and 3D envi-

ronments. However, Virtual Environments (VEs) should provide some assistance to help the users in complex

solving tasks. We aim to combine VR and Constraint Programming (CP) techniques in order to assist the

users in realizing 3D objects layout in restricted spaces. The proposed approaches are based on a tight com-

munication between a 3D rendering module and a highly efﬁcient constraint solver. Layout modiﬁcation are

translated in incoming queries to the solver which generates the solutions that satisfy predeﬁned constraints.

In order to achieve users’ immersion in the VE and intuitive manipulation of the objects, a human-scale VE

platform with haptic feedback is used. In this paper, we focus on the system architecture and we describe the

implementation of simple constraints. Finally, some results based on geometric constraints are presented.

1 INTRODUCTION

A spatial problem may be deﬁned as a placement

problem for which a positioning of components inside

a container is seeked. The development of methods

for automatic solving of such problems is challeng-

ing while the systems become more complex. This is

mainly explained by the difﬁculty related to the mod-

eling and the formalization of these problems.

Virtual Reality (VR) aims to immerse users in syn-

thetic worlds in which they will experience multi-

modal interactions with virtual objects (Bowman,

1999). VR is therefore a promising tool for effec-

tively visualizing and interacting with 3D environ-

ments (Drieux et al., 2005). However, in order to

be really effective, virtual environments (VEs) should

provide some assistance to help the users in complex

solving tasks.

We apropose to combine VR and Constraint Pro-

gramming (CP) techniques in order to assist the users

in 3D objects layout in restricted spaces. The context

of this work is the design and the 3D layout of mili-

tary vehicles or shelters. The proposed approaches in-

volve a tight communication between a 3D rendering

module and a highly efﬁcient constraint solver. Lay-

out modiﬁcation are translated in incoming queries to

the solver which generates the solutions that satisfy

predeﬁned constraints. A constraint expresses a prop-

erty or a condition that must be satisﬁed. It can be

deﬁned as a relation-ship between one or more vari-

ables. The notion of constraint is naturally present

in several areas such as resources allocation, planning

and industrial production.

In the next section, we survey the previous work.

Then, we present our system including a human-scale

VR platform. We focus on the interaction model and

the communication process between the 3D environ-

ment and the solver. In section four, we describe in-

teractive approaches based on CP techniques. In sec-

tion ﬁve, we present the results associated with some

basic geometric constraints. Then we examine the

time required by the solver to compute the existing

solutions of an under-constrained problem (two con-

straints only). The paper ends by a conclusion that

provides some tracks for future work.

308

Keﬁ M., Richard P. and Barichard V..

3D INTERACTIVE OBJECTS LAYOUT USING VIRTUAL REALITY TECHNIQUES AND CONSTRAINT PROGRAMMING.

DOI: 10.5220/0003377303080313

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2011), pages 308-313

ISBN: 978-989-8425-45-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

Some works have proved the relevance of CP

techniques for the solving of conﬁguration prob-

lems (Honda and Mizoguchi, 1995) and Pfeffer-

korn (Pfefferkorn, 1975). Honda and Mizoguchi, and

Pfefferkorn have demonstrated the suitability of CP

as an approach which facilitates the description of

constrained problems and its efﬁciency for avoiding

combinatorial explosion. CP have been also suc-

cessfully used for deﬁning and solving physical con-

straints (Glencross and Murta, 1998).

Among interesting approaches based CP or Con-

straint Logic Programming (CLP) in 3D environ-

ments, we can cite Codognet’s work in which he in-

cluded a concurrent CP system into the VRML lan-

guage (Codognet, 1999). Axling et al., (Axling et al.,

1996) have incorporated OZ (Smolka et al., 1993),

a high-level programming language supporting con-

straints into a distributed VE (Andersson et al., 1993).

These works have been essentially dedicated to the

behavior of individual objects or autonomous agents

within the environment and did not address user inter-

action or interactive problem solving.

More recent approaches involving under-

constrained problems in VEs have been developed.

For example, Fernando et al., have presented the

design and the implementation details of a constraint-

based VE (Fernando et al., 1999). Xu et al., have

investigated the combination of physics, semantics,

and placement constraints and how it permits to

quickly and easily layout a scene (Xu et al., 2002).

Xu also generalized a richer set of semantic infor-

mation leading to a new modeling technique where

users can create scenes by specifying the number

and distribution of classes of object to be included

in the scene. Calderon et al., have presented a

novel framework for interactive problem solving

applied to VEs (Calderon et al., 2003). The proposed

implementation was based on a fully interactive

solution where both visualization and the generation

of a new solution are under the control of the user.

Sanchez et al. have presented a general-purpose

constraint-based system for 3D object layout built

on a genetic algorithm (Sanchez et al., 2003). They

have described the 3D-scene by using semantic

and functional features associated with the objects.

The system was able to process a complex set of

constraints, including geometric and pseudo-physics

ones. Fages et al., have developed a generic graph-

ical user interface (CLPGUI) for visualizing and

controlling logic programs (Fages et al., 2004). The

proposed architecture involves a CLP process.

More recently, Jacquenot has developed a hy-

brid generic method to solve multi-objective place-

ment problems of free-form components (Jacquenot,

2009). The proposed method involves a hybrid ap-

proach based on both an evolutionary algorithm and a

separation algorithm. A main drawback of these ap-

proaches is that all the possible solutions are not pro-

vided. In addition the user has no explanation about

the non-feasibility of a given solution.

In the last few years, powerful CP-based solvers

such as Gecode (Schulte, 1997), CHOCO (Jussien

et al., 2009), or ILOG CP (IBM, 2010) have been de-

veloped. These CP-based solvers provide an API and

could therefore be embedded in any C/C++ or java ap-

plications. However, none of them has been used in

the context of interactive layout of 3D environments.

3 SYSTEM OVERVIEW

The proposed system supports interactive 3D objects

layout through a thight communication between the

constraint solver and the 3D layout. Objects manipu-

lation are transcribed to queries sent to the constraints

solver. Then automatic reconﬁguration of the 3D lay-

out will be achieved. In addition, this system allows

the user to explore the different solution (Keﬁ et al.,

2010).

In order to allow users’ immersion in the vir-

tual world and assist him/her in the 3D layout task,

a human-scale VR platform with haptic feedback is

used (Fig.1). This platform provides haptic cues us-

ing a string-based force feedback interface (Richard

et al., 2006). Stereoscopic images are displayed on a

rear-projected large screen and are viewed using po-

larized glasses.

Figure 1: User manipulating the 3D objects using the

human-scale VR platform.

Generally, mechanisms for solving under-

constrained problems are triggered by a modiﬁcation

of the variables values and/or constraints.

3D INTERACTIVE OBJECTS LAYOUT USING VIRTUAL REALITY TECHNIQUES AND CONSTRAINT

PROGRAMMING

309

In our case, 3D layout modiﬁcations will be

translated into inputs to the solver which will act

on the variables whose values were changed by the

user’s interaction. For example, for a given spatial

conﬁguration, the user can change the position

of certain objects which modiﬁes the underlaying

constraints. This triggers the solver which, by

propagation of constraints, provides new possible

conﬁgurations of the 3D layout.

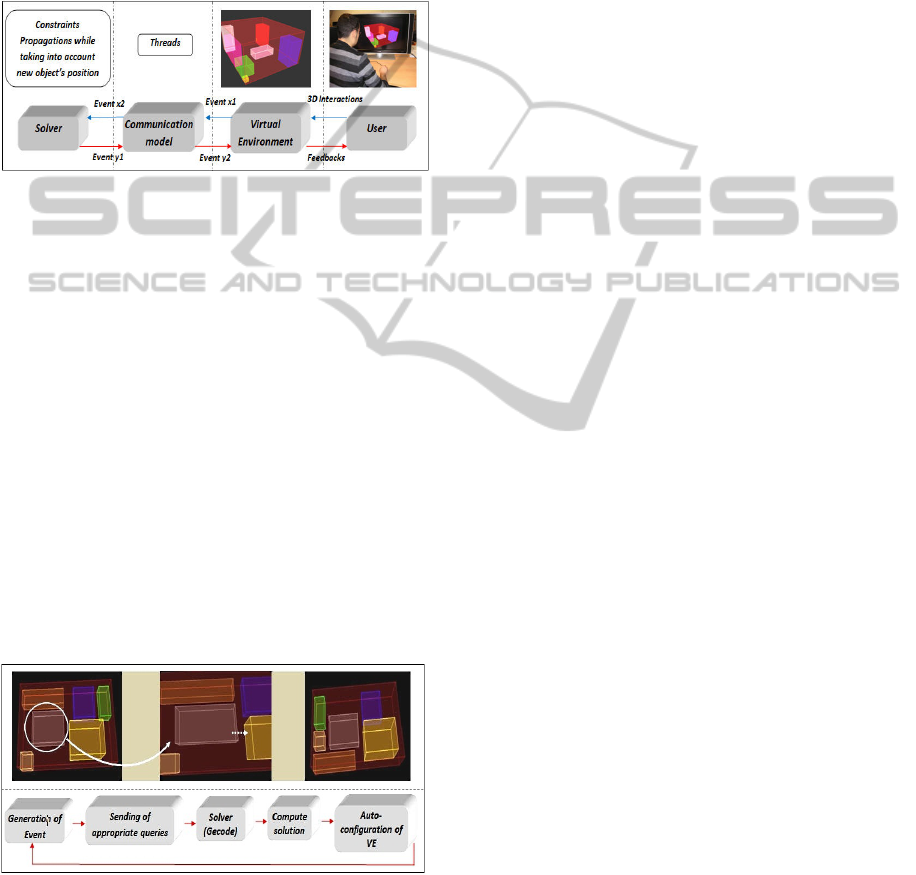

Figure 2: Illustration of the system architecture.

The general architecture of the system is illus-

trated in ﬁgure 2. Exploration of the solutions begins

by a ﬁrst solution from which the user can explore

other possible conﬁgurations. The user is thus able

to interact with the selected conﬁguration by moving

any objects.

3.1 Architecture of Interaction Model

The aim of the interaction model is to link user’s inter-

action with the VE and inputs / outputs of the solver.

The work of the solver is based on a speciﬁc logic

depending on which it is triggered by the addition of

new constraints and produces results in the form of

new positions of objects. Thus, two aspects are con-

cerned: (1) how the solver responds to user’s actions,

and (2) how the solutions proposed by the solver will

automatically modify the VE.

Figure 3: Interaction mechanism.

The modiﬁcation of the environment will gener-

ate an event that will be sent to the solver through the

communication module. According to these queries,

the solver will propose new solutions that will update

the current conﬁguration of the VE. Let us consider

the simple example where the user moves the gray

object (circled) to the right from an initial solution

computed by the solver (Fig. 3). An event will be au-

tomatically generated and the communication module

will post new constraints to the solver. These con-

straints will be applied on the object whose index is

encapsulated in the event sent to the solver. The solver

will thus be re-called and the new position of the con-

cerned objects, and possibly those of other objects,

will be encapsulated in another event sent to the VE

via the communication module. The new positions of

objects will be extracted and the VE will be updated.

4 INTERACTIVE APPROACHES

As mentioned before, our objective is to propose and

implement interactive approaches to allow interactive

3D layout. Most approaches are based on the archi-

tecture and interaction mechanisms described above.

The application starts by allowing the user to select

3D objects and constraints to be satisﬁed. Then the

system launches a dialogue with the constraint solver

to check the feasibility of 3D arrangements. Then, the

user will have three possibilities for interaction with

the objects. These are described in following para-

graphs.

4.1 First Approach

This approach is the most straightforward. Taking

into account the predeﬁned constraints and the objects

selection, all feasible conﬁgurations will be computed

by the solver and displayed. Then, the user will be

able to visualize successively the solutions. The only

possible interactions are the control of the viewpoint.

If the case of too many solutions, the system only dis-

plays the ﬁrst ten solutions. In order to reduce the

number of proposed solutions, closer ones will be au-

tomatically eliminated.

4.2 Second Approach

The second approach is illustrated in Figure 4. In this

case, the user interacts with the solutions by mov-

ing any objects in space. After each displacement,

the solver is re-called to compute the new solutions.

The last displacement could also be canceled if a con-

straint is not respected. Once the new solutions are

computed, the 3D environment is automatically re-

conﬁgured. In order to assist the user during object

manipulation, the system provides multi-modal (vi-

sual, auditory and kinesthetic) feedbacks.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

310

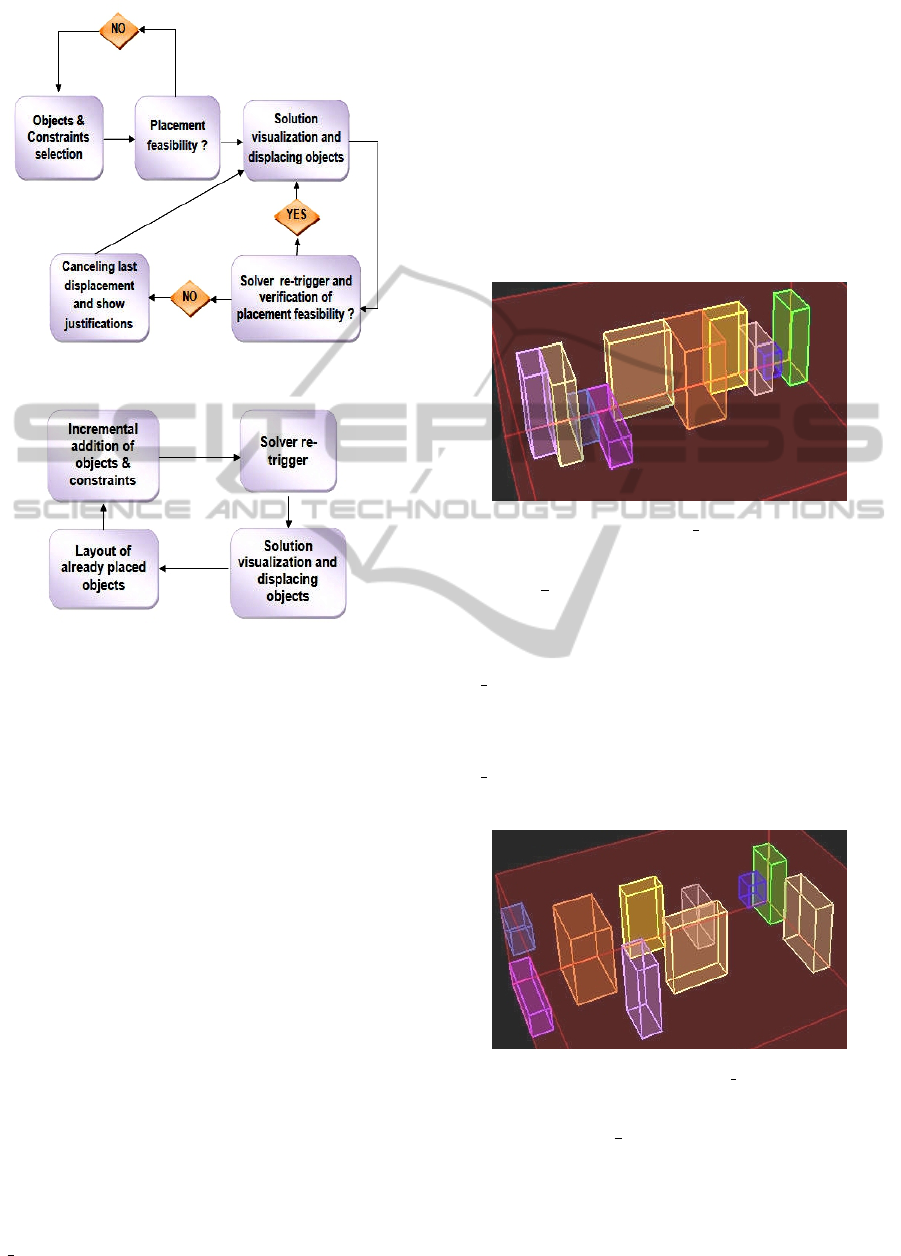

Figure 4: Illustration of the second approach.

Figure 5: Illustration of the third approach.

4.3 Third Approach

This approach is the more interesting one because it

allows to take into account the user’s preferences from

the very beginning. Thus, the system enables the user

to add objects successively in the environment. Each

addition of object calls the solver that applies the new

constraints added on the object and propagates these

to calculate new layout solutions (Fig. 5). Thus, the

system automatically reconﬁgures itself as a conse-

quence of the addition of a new object. It is important

to note that the solver is not called to deﬁne a new

constraint satisfaction problem but only to propagate

new constraints.

5 IMPLEMENTATION OF

CONSTRAINTS

In our context, constraints can be divided into two

categories: geometric constraints and sematic con-

straints. The geometric constraints are related to the

physical placement of 3D objects. For example, the

no overlapping constraint, illustrated in Figure 6, pre-

vents the objects to overlap. The semantic constraints

are related to variables such as temperature, vibration

or electromagnetic radiation. This type of constraints

are based of physical equation and are more difﬁcult

to implement.

This section presents the results associated with

some basic geometric constraints that are illustrated

by simple examples. In these examples, the same

propagation techniques have been used. Similarly, we

used the same heuristics to select the variables and

their associated values (Solnon, 2003).

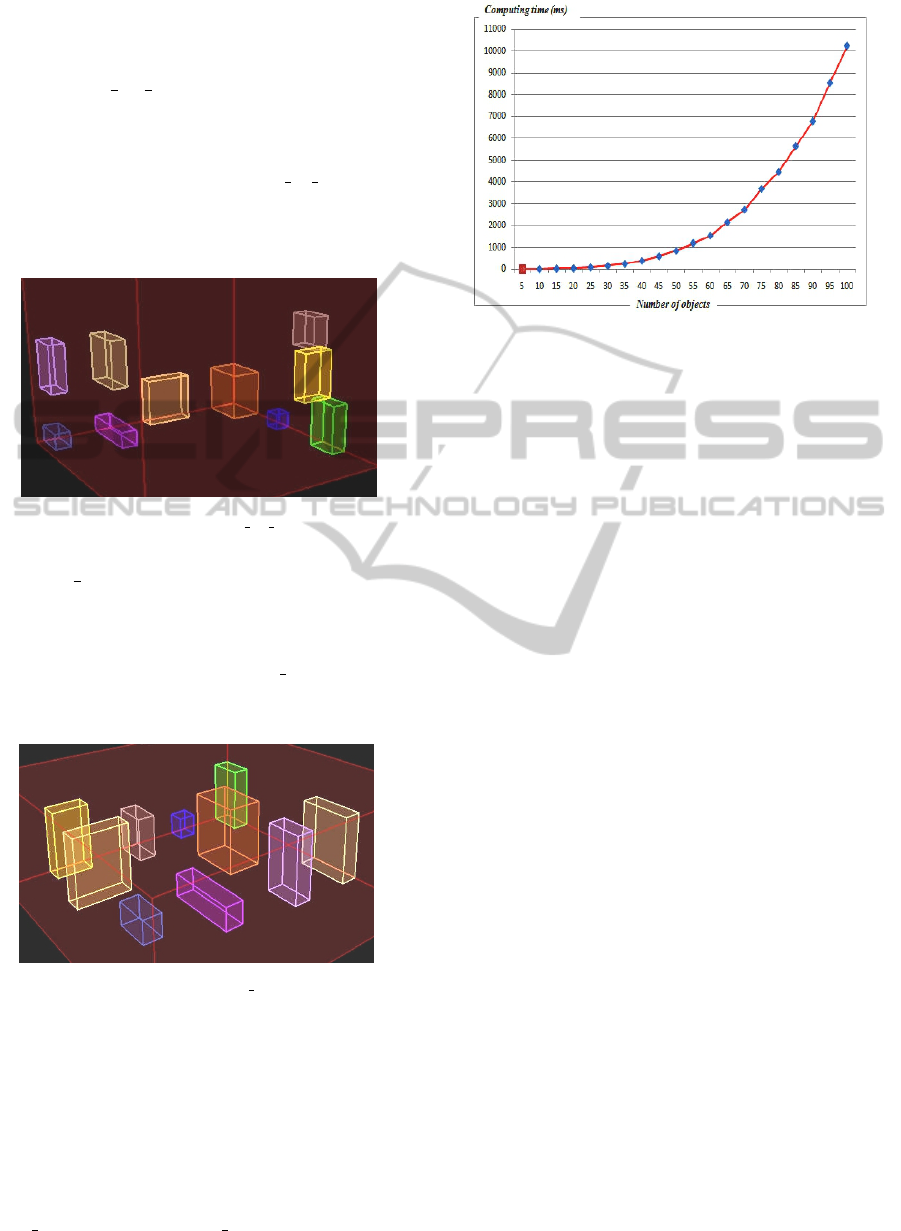

Figure 6: Illustration of the no overlapping constraint.

5.1 No overlapping Constraint

Whatever the context of the layout problem,

the straightforward constraint to satisfy is the

No overlapping constraint. Indeed, this constraint

avoids the intersection between the different objects.

Let us consider the example of ten objects (repre-

sented by their bounding box) on which we apply the

No overlapping constraint. The ﬁgure shows the ﬁrst

solution computed by the solver.

Figure 7: Illustration of the minimum distance constraint.

5.2 Minimum distance Constraint

This constraint forces the 3D objects to be separated

by a distance greater than or equal to a minimum dis-

tance (dmin) speciﬁed by the user. This constraint

can also be used for positioning heat sources away

3D INTERACTIVE OBJECTS LAYOUT USING VIRTUAL REALITY TECHNIQUES AND CONSTRAINT

PROGRAMMING

311

from other objects. An illustration of this constraint

is given in the Figure 7.

5.3 Object on object Constraint

In many situations, the application requires that some

objects are placed on others. We have considered this

situation by implementing a Object on object con-

straint. In the example illustrated in Figure 8, this

constraint is applied on the green and yellow objects,

and then on the yellow and the gray objects.

Figure 8: Illustration of the object on object constraint.

5.4 On ﬂoor Constraint

In most applications, some objects have to be placed

on the ﬂoor to reduce the center of gravity of the sys-

tem. Therefore, we implement the on ﬂoor constraint.

In the example illustrated in Figure 9, this constraint

was applied to ten objects.

Figure 9: Illustration of the on ﬂoor constraint.

6 RESPONSE TIME

In order to be effective the system should have a

response time as small as possible. We measured

the time required by the solver (Gecode) to ﬁnd

all the solutions, for different number of objects.

Two geometric constraints have been used :the min-

imum constraint and the on ﬂoor constraint. The

computing time vs. the number of objects is shown

Figure 10: Computing time vs. number of objects.

in Figure 10. We observed that the computing time

is less than 1 sec. for a number of objects less that

50. This is acceptable since our application (3D lay-

out of military vehicles or shelters) involves less that

50 objects. In addition, the computing time of a con-

straint solver highly decreases with the number of

constraints. In our example, we considered two types

of constraints, and we therefore expect a decrease of

the computing time and a reduced number of solu-

tions with the addition of new constraints.

7 CONCLUSIONS

We proposed to combine Virtual Reality (VR) and

Constraint Programming (CP) techniques in order

to assist the users in realizing 3D objects layout

in restricted spaces. The proposed approaches are

based on a tight communication between a 3D ren-

dering module and a highly efﬁcient constraint solver

(GeCode). Layout modiﬁcation are translated in in-

coming queries to the solver which generates the so-

lutions that satisfy some predeﬁned constraints. Some

basic geometric constraints have been implemented

and tested. Results showed that the response time of

the system is less than 1 sec. for a number of ob-

jects less that 50. In the near future we will deﬁne

and implement some semantic constraints and other

variables such as objects orientation. In addition we

will investigate the evolution of the computing time

for different geometric and semantic constraints.

REFERENCES

Andersson, M., Carlsoon, C., Hagsand, O., and Stahl, O.

(1993). Dive - the distributed interactive virtual envi-

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

312

ronment - tutorials and installation guide. In Swedish

Institute of Computer Science.

Axling, T., Haridi, S., and Fahlen, L. (February 1996). Vir-

tual reality programming in oz. In Proceedings of the

3rd EUROGRAPHICS Workshop on Virtual Environ-

ments.

Bowman, D. (1999). Interaction Techniques for Common

Tasks in Immersive Virtual Environments : Design,

Evaluation, and Application. PhD thesis, Georgia In-

stitute of Technology.

Calderon, C., Cavazza, M., and Diaz, D. (2003). A new

approach to the interactive resolution of conﬁguration

problems in virtual environments. Lecture notes in

computer science, 2733:112 – 122.

Codognet, P. (1999). Animating autonomous agents in

shared virtual worlds. In Proceedings DMS’99, IEEE

International Conference on Distributed Multimedia

Systems. IEEE Press.

Drieux, G., Guillaume, F., Leon, J., and Chevassus, N.

(2005). Samira: A platform of virtual mainte-

nance simulation with haptic feedback incorporating

a model preparation process. In Proceedings of Vir-

tual Concepts.

Fages, F., Soliman, S., and Coolen, R. (2004). Clpgui:

A generic graphical user interface for constraint logic

programming. Constraints, 9:241 – 262.

Fernando, T., Murray, N., Tan, K., and Wimalaratne, P.

(1999). Software architecture for a constraint-based

virtual environment. Proceedings of the ACM sympo-

sium on Virtual reality software and technology, pages

147 – 154.

Glencross, M. and Murta, A. (Manchester, 1998). Multi-

body simulation in virtual environments. In Proceed-

ings of 12

European Simulation Multiconference.

Honda, K. and Mizoguchi, F. (1995). Constraint-based

approach for automatic spatial layout planning. In

Conference on Artiﬁcial Intelligence for Applications.

IEEE Press.

IBM (2010). Ilog products and solutions,

http://ftp.ilog.fr/products/cp.

Jacquenot, G. (2009). M

ethode g

erique pour

l’optimisation d’agencement g

eometrique et fonc-

tionnel. Th

ese de Doctorat, Ecole Centrale de

Nantes.

Jussien, N., homme, C. P., Cambazard, H., Rochart, G., and

Laburthe, F. (2009). choco: an Open Source Java

Constraint Programming Library.

Keﬁ, M., Richard, P., and Barichard, V. (2010). Interactive

conﬁguration of restricted spaces using virtula real-

ity and constraints programming techniques. In Inter-

national Conference on Computer Graphics Theory

and Applications (GRAPP 09), May 17-21, Angers,

France, pages 384–389.

Pfefferkorn, C. (1975). A heuristic problem solving design

system for equipment or furniture layouts. Communi-

cations of the ACM, 18(5):286–297.

Richard, P., Chamaret, D., Inglese, F., Lucidarme, P., and

Ferrier, J. (2006). Human-scale virtual environment

for product design: Effect of sensory substitution.

The International Journal of Virtual Reality, 5 (2)

(2006):p. 37–44.

Sanchez, S., Roux, O. L., Inglese, F., Luga, H., and Gail-

dart, V. (2003). Constraint-based 3d-object layout us-

ing a genetic algorithm. In International Conference

on Computer Graphics and Artiﬁcial Intelligence (3IA

2003), May 14-15, Limoges, France.

Schulte, C. (1997). Oz explorer: A visual constraint pro-

gramming tool. Proceedings of the 14

International

Conference on Logic Programming, July 8-11, Leu-

ven, Belgium, pages 286–300.

Smolka, G., Henz, M., and Wurtz, J. (1993). Object-

oriented concurrent constraint programming in oz. re-

search report. In Deutsches Forschungszentrum fur

Kunstliche Intelligenz.

Solnon, C. (2003). Programmation par contraintes.

http://www710.univ-lyon1.fr/ csolnon/Site-PPC/e-

miage-ppc-som.htm.

Xu, K., Stewart, J., and Fiume, E. (2002). Constraint-

based automatic placement for scene composition. In

Graphics Interface Proceedings, University of Cal-

gary.

3D INTERACTIVE OBJECTS LAYOUT USING VIRTUAL REALITY TECHNIQUES AND CONSTRAINT

PROGRAMMING

313
