DEALING WITH ROGUE VIRTUAL MACHINES IN A CLOUD

SERVICES ENVIRONMENT

B. Colbert and L. M. Batten

Deakin University, 221 Burwood Highway, Burwood, Victoria 3125, Australia

Keywords: Virtual machine, Rogue machine, Attack, Security.

Abstract: In current cloud services hosting solutions, various mechanisms have been developed to minimize the

possibility of hosting staff from breaching security. However, while functions such as replicating and

moving machines are legitimate actions in clouds, we show that there are risks in administrators being able

to perform them. We describe three threat scenarios related to hosting staff on the cloud architecture and

indicate how an appropriate accountability architecture can mitigate these risks in the sense that the attacks

can be detected and the perpetrators identified. We identify requirements and future research and

development needed to protect cloud service environments from these attacks.

1 INTRODUCTION

Over the last few years, cloud computing has grown

from being a promising business to one of the fastest

growing segments of the IT industry (Gartner, 2009)

because businesses can now gain access to the latest

concept and best business applications while, in

most cases, minimising the cost of

hardware/infrastructure. This is achieved by a client

of a cloud services provider being able to share

computer platforms, networking and storage

infrastructure with the provider’s other clients.

However, the downside of this arrangement is

that the onus is on the cloud service provider, not the

client, to ensure that the particular client’s

confidential company information is kept

appropriately separated and secure, and to take

measures to protect that client’s company

information from malicious software and processes

that may be initiated on any of the cloud’s virtual

machines. Consequently, there is a significant, and

growing, level of concern about the cloud and its

security (Ristenpart et al. 2009).

One of the security issues which became evident

in outsourcing business models, and which is now

seen in the cloud services environment, is the trust

of staff (Cattedu et al., 2009). In current hosting

solutions, various mechanisms have been developed

to minimize the possibility of hosting staff from

breaching security such as physical separation and

logging and audit controls. However, while

functions such as replicating and moving machines

(often done to optimize operations and efficiencies)

are legitimate actions in clouds, we shall show that

there are risks in administrators being able to

perform them, including the potential to:

• impersonate clients,

•

expose confidential data,

•

corrupt data, and

•

make fraudulent transactions.

In this paper, we describe three attacks on the virtual

machine layer of a typical cloud services

architecture which can be perpetrated by hosting

staff, resulting in all of the above risks being

effected.

We describe requirements on the cloud

architecture which allow partial mitigation of the

above risks in the sense that the attacks can be

detected and the perpetrators identified. These

requirements include logging of access events, staff

profiling and machine profiling. While some of

these requirements are not yet in use in cloud service

environments, we believe that research and

development over the near future will enable the

gaps to be filled.

In the next section we discuss current work in

this area. In Section 3, we describe our attacks

scenarios. In Section 4 we analyze these scenarios

and describe how they can be mitigated. In Section

5, we conclude and propose further work.

Colbert B. and M. Batten L..

DEALING WITH ROGUE VIRTUAL MACHINES IN A CLOUD SERVICES ENVIRONMENT.

DOI: 10.5220/0003381700430048

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 43-48

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

Cloud service systems are dynamic and require

organizational collaboration across many sectors,

including business services, administration and

technical services. Thus, predefined business logic

and service level agreements are normally in place

to enable smooth business processing. This, in itself,

is not sufficient to ensure that the environment can

be completely trusted. Violations can occur. As

pointed out in (Yao et al. 2010), the ability to detect

violations is a critical component of developing a

trusted computing environment. They argue that this

ability requires a separation of activities and

evidence logging into different domains which they

call the ‘business service domains’ and the

‘accountability domains’ respectively. This is now a

commonly accepted approach to cloud architecture

(Yao et al. 2010), (Popa et al. 2010).

Yao et al. argue that the purpose of

accountability is ‘binding each activity to the

identity of its actor’ and thus demonstrate a method

which is shown to do this for a loan-service scenario

implemented on the Amazon Elastic Compute cloud

(http://aws.amazon.com/ec2/).

Dalton and colleagues in (Dalton et al., 2009)

argue that reducing the size and complexity of the

code which needs to be trusted is the best approach

to providing security and trustworthiness. Figure 1

provides a standard description of the use of a

hypervisor in a virtual machine environment. The

hypervisor is a layer of software that sits between

hardware and higher-level software structures such

as applications, and decides which of them gets how

much access to memory, storage and CPU time. In

the top of the figure, several virtual machines,

software versions of PCs, are available for use by

customers, as in for instance an online shop. The

chassis supplies the power to the blade server which

has its own CPU, memory and hard disk. In (Dalton

et al., 2009), the authors disaggregate the hypervisor,

identifying ‘the security critical features of the

platform and moving them into separate and smaller

restricted privilege domains’ and develop in the

paper an architecture around an interface with the

disaggregated hypervisor (see Figure 3 of their

paper). The authors claim that this new architecture,

along with a trusted platform module allows for

better integrity measurement and reporting, though

they do not report on any experimental work.

In work of Corney, Mohay, Clark and Lopes

(Corney et al, 2011) prototype software was

developed which identifies anomalous events in a

computing environment based on usage patterns and

user profiles. The authors are able to detect

unauthorized use of software by users in an

organization. They do this by building a user profile

for each user and detecting departures from the

routine. At this point, their work is based on the

presence or absence of a particular application in a

user’s file, but they plan to extend the work to build

probabilistic models. In Section 5, we indicate how

this type of profiling can be a solution to stopping

the attacks with which we deal in this paper.

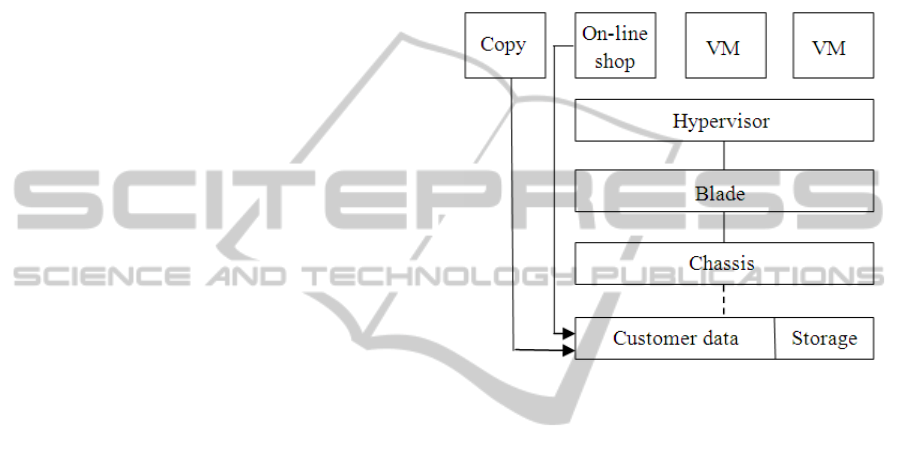

Figure 1: An on-line shop is copied.

3 THE ATTACK SCENARIOS

We consider the hardware set-up of the virtual

machine environment. Figure 1 presents this in

detail. A number of virtual machines run off a

hypervisor supported by the blade and chassis. Data

gathered from the virtual machine is sent to the

storage area once it has been processed.

We assume, as in (Yao et al. 2010), that the

Business Services Domain is separated logically

from the Accountability Domain and that no staff in

either domain are able to perform the functions of

the staff in the other domain.

The following three sub-sections describe attacks

on this set-up.

3.1 Unauthorized Activities

A cloud staff member may abuse the privilege of

accessing the storage area and gain access to

information which is an abuse of their privilege

status. This individual may also run unauthorized

software or applications on machines in the Business

Services Domain. We describe in Section 5 how the

CLOSER 2011 - International Conference on Cloud Computing and Services Science

cloud architecture can detect these abuses and

identify the individual.

3.2 VM Machine Copying

In order to handle peak demands on the system, it is

standard practice to make copies of virtual machines

in order to deal with the excessive traffic. For

example, an on-line shop may experience a peak in

business during lunch-time hours from Monday to

Friday. A copy of the shop can be made to deal with

the peak hours and then closed down when no longer

needed.

A business service staff member therefore,

legitimately, has both the ability and right to

establish a copy of a virtual machine, as shown in

Figure 1. The copied virtual machine has the same

capability and data as the original and can be used to

impersonate clients, fraudulently purchase goods

using customer credit card information, corrupt

credit card information with the aim of denying a

customer the opportunity to purchase, for example,

or gather credit card information for the purposes of

selling it.

3.3 A Rogue VMware Machine

A cloud staff member may be authorized to replace a

mal-functioning machine, but may introduce a rogue

machine to the stack, substituting it for a legitimate

machine. This machine may then access the storage

and steal or corrupt customer data. It may carry

malware which can infiltrate the hypervisor and so

the other virtual machines in the stack, stealing or

corrupting data, playing havoc with the network and

connections and business processes.

We argue that the Accountability Domain must

be able to deal with these situations in a number of

ways.

1. It must be able to detect these violations.

2. It must be able to determine the exact time at

which the violation occurred.

3. It must be able to determine which staff were

responsible.

4. It must be able to differentiate between the

scenarios 3.2 and 3.3.

In the next section, we analyze these attack

scenarios and determine the information needed by

the accountability domain in order to provide

answers to the above questions.

4 PROVIDING

ACCOUNTABILITY

In this section we develop the framework for an

Accountability Architecture which will, amongst

other things, be able to successfully complete the

four tasks delineated in Section 3.2. In doing so, we

draw on work of other authors as well as introducing

some novel components.

We first define some of the terms we shall use in this

section.

Definition. An ‘event’ is an action initiated either by

the user or the computer. An example of a user event

is a keystroke. An example of a computer generated

event is a notification based on the time of day

Definition. An ‘enactor’ is the entity generating an

event. This might be a computer or a user.

4.1 Binding Events to Enactors

Following Yao et al., we stipulate that each event is

bound to its enactor. This is done in the Business

Services Domain by administrative means. There is

a set list of events (with associated times) available

for execution. Staff members are assigned to enact

these events at specific times.

When staff member S enacts event E, for

example instantiating or copying a virtual machine,

she signs a set of input parameters to the event and a

set of output parameters from the event with her

private key from the company’s public key scheme.

These are then lodged with the Accountability

Domain which can verify the enactor by means of

her public key which produces information

connected to the event.

For actions, such as loading software onto virtual

machines, or reconfiguring the environment, change

management processes and approval structures

should be in place to provide further accountability

for these actions.

4.2 Logging of Events

Each event is automatically logged by the

Accountability Division along with the identity of

the enactor in the form of the two signed data-

strings, and the time the signing occurred. At the

time of logging, the identity of the enactor is

confirmed and also logged in the Accountability

Domain.

We note that ensuring the integrity of the logs

themselves has been considered by several people.

For example, (Schneier et al., 1999) use hash chains

to ensure that logs cannot be tampered with.

DEALING WITH ROGUE VIRTUAL MACHINES IN A CLOUD SERVICES ENVIRONMENT

4.3 Staff Profiling

Here, we introduce a methodology based on ideas in

(Corney et al. 2010). The Accountability Domain

starts to build a profile of each staff member in the

Business Services Domain as of their date of

appointment. All events enacted by each staff

member are logged in the profile. Each profile is

then regularly checked for anomalies and this

process should be automated in some reliable

fashion. Nevertheless, the amount of data needing to

be checked can grow quickly into quantities that

distract from the core business. This can be managed

very well by means of a sliding window approach,

as demonstrated in (Corney et al. 2010). In this

method, while all data in the profile is stored, only

the last n hours are checked on a regular basis. The

number, n, of hours chosen may be a function of

level of access assigned to the staff member, level of

confidentiality of data accessed during the event, or

any subset of a number of additional items. We

assume that for each staff member S, the number n

of hours checked on a regular basis is pre-

determined jointly by the administration of the

Business Services Division and the Accountability

Division. The number n

may change from time to

time relative to the same staff member S and

depending on changes in the role and responsibilities

of S.

4.4 An Accountability Architecture

We now combine the components discussed in

Sections 4.1, 4.2 and 4.3 into an accountability

architecture which is exhibited in Figure 2.

Figure 2: Accountability architecture.

In Figure 2, the enactor and event are represented as

being bound by means of the private key of the

enactor which signs the event. The event is logged

and, at the same time, the fact that the enactor

performed the event is recorded in her profile.

5 DEALING WITH THE ATTACK

SCENARIOS

We now explain how the Services Accountability

Architecture, introduced in the previous section, can

deal with the situations posed in Section 3.

5.1 Detecting Unauthorized Activities

As discussed in Section 4, the practice of logging the

actions of privileged users is necessary to provide

accountability for staff. While standard logging

procedures may be in place, the diagnostics of such

logs in this environment need development in order

to deal with mass production and to deal with

dynamic features of virtual machines. To our

knowledge, there is no current research on the most

appropriate or the most accurate diagnostic methods

in such an environment; nor is there any indication

that diagnostic methods used in past service provider

environments are appropriate for cloud services.

However, once such research has been

accomplished, the Accountability Domain will be

able to examine the activities of all virtual machines

and correlate them to determine which were

unauthorized and when they occurred, as well as

which staff were involved. On the other hand, we

note in the next two sub-sections some problems

which need to be understood when developing log

diagnostics to determine the time and the staff

member responsible.

5.2 Determining the Exact Time of a

Violation

Consider the situation where a virtual machine is

shut down under certain conditions; this may include

the case where the number of requests falls below a

certain threshold for example. Precise conditions

such as these would be established in the working

environment. However, if a staff member uses a

machine as a false copy of a legitimate machine,

request rates may remain high enough to maintain

machine operation. In such a situation, technically, a

violation occurred at the time at which the flow of

legitimate requests fell below the pre-determined

threshold. But the system cannot distinguish

between legitimate and illegitimate requests; it is

only at the time that the machine is discovered to be

a copy that the system logs will be invoked to

determine when the copy was made.

Business Services Domain

Accountability Domain

Enactor

Event

Profile built

Event logged

CLOSER 2011 - International Conference on Cloud Computing and Services Science

5.3 Determining the Staff Member

Responsible

Once the time of a violation has been determined,

the profiles of all staff on duty at that time can be

examined. Events logged at that time identify the

staff member or members associated with the event

by means of the private key used. The events related

to the violation then indicate which staff were

involved.

5.4 Differentiating between Violations

3.2 and 3.3

Unauthorized actions, such as accessing storage, will

either come from a virtual machine in the

environment or from a management console. Access

from management consoles and virtual machines is

logged and so detectable by examination of the logs.

Other types of attacks may come from virtual

machines however, and their detection relies on

suitable logging actions. Machine copying, for

example, can be detected if the machine acts in an

unusual way. A machine profile is an appropriate

method of detecting a copy, since a machine which

has been functioning in the cloud service

environment performs particular, specified tasks

(such as those relevant to an online shop) and its

operation follows a regular pattern over a particular

block of time (one day or one week for example). A

copy of such a machine is expected to follow the

same pattern. Any departure from such a pattern

would be suspicious.

A rogue machine introduced as a new piece of

hardware as described in Section 3.3, would not

have established a usable profile with which to

compare behaviour. However, unlike the situation of

a copied machine, which would try to remain

undetected, a rogue machine would have negative

impact on other machines in its environment. In this

case, it is the profiles of the affected machines that

would detect anomalies, and the collection of these

anomalies would point to a rogue machine.

In summary, appropriate logging methods in

conjunction with staff and machine profiles enable

the cloud service provider to deal with any of the

attacks discussed in this paper, either individually or

combined. Methods of ensuring tamper-proof logs as

in (Kelsey et al. 1999) can be extended to ensuring

that profiles are also tamper-proof.

6 FUTURE WORK

Simulation of authorized and unauthorized activities

in large production domains will provide direction

for the development of efficient and accurate log-

based diagnostics in cloud environments.

The establishment of profiles for individual staff

members is extremely useful in identifying

anomalies in the individual’s behaviour which may

be indicative of suspicious behaviour. Such profiling

can be extended to sections of the cloud operation

such as a particular business process or a particular

machine or cluster of machines in order to detect a

situation which may indicate malicious behaviour.

Future work in this area might include the use of

techniques currently used to detect a denial-of-

service attack on a server from outside the firewall.

The gathering of data in an on-going automated

way for potential forensic use is a second area of

research which is worthwhile pursuing. This would

have to be done in such a way that the rights and

privacy of staff members were not violated (with

respect to all relevant laws) and also such that data

was gathered efficiently and in a manner that was

easy to access and use when needed.

The ability of a cloud customer to detect the

failure of conditions in the service level agreement

would be a useful addition to assurance of data

integrity. This idea has been proposed in several

publications, for instance, in (Simmhan, 2010) and it

is an area of interest for further work by the present

authors.

REFERENCES

Cattedu, D. and Hogben, G., editors. ‘Cloud computing

security benefits, risks and recommendations’, Nov.

2009 Report by the European Network and

Information Security Agency.

Corney, M., Mohay, G., Clark, A., R., Lopes, J. 2011.

Detection of anomalies from user profiles generated

from system logs. In Proceedings of AISC; to appear.

Dalton, C., Plaquin, D., Weidner, W., Kuhlmann, D.,

Balacheff, B. and Brown, R. 2009. Trusted virtual

platforms: A key enabler for converged client devices.

In ACM SIGOPS Operating Systems Review, vol.43,

36-43.

Gartner Inc. ‘How cloud computing will change business’

in www.businessweek.com/print/magazine/content/

09_24/b4135042942270.htm

Popa, R., Lorch, J., Molnar, D., Wang, H., Zhuang, L.

2010. Enabling security in cloud storage SLAs with

CloudProof. Microsoft report available at http://

research.microsoft.com/pubs/131137/cloudproof-msr-

tr.pdf

DEALING WITH ROGUE VIRTUAL MACHINES IN A CLOUD SERVICES ENVIRONMENT

Ristenpart, T., Tromer, E., Shacham, H., & Savage, S.

(2009). Hey, You, Get off of my Cloud: Exploring

Information Leakage in Third

Schneier, B., Kelsey, J. 1999. Secure audit logs to support

computer forensics. In ACM Transactions on

Information and System Security, 2, 159-176.

Simmhan, Y. and Gomadam, K. 2010. Social web-scale

provenence in the cloud. In Proceedings of IPAW

2010, LNCS vol. 6378, pp 298-300.

Yao, J., Chen, S., Wang, C., Levy, D. Zic, J. 2010.

Accountability as a service for the cloud. Proceedings

of IEEE International Conference on Services

Computing, IEEE Computer Society, 81-88.

CLOSER 2011 - International Conference on Cloud Computing and Services Science
