ACCOUNTABLE REPUTATION RANKING SCHEMES FOR

SERVICE PROVIDERS IN CLOUD COMPUTING

Wassim Itani, Cesar Ghali, Ayman Kayssi and Ali Chehab

Department of Electrical and Computer Engineering, American University of Beirut, Beirut, Lebanon

Keywords: Reputation, Secure event logs, Cryptographic coprocessors, Cloud computing, Secure performance

monitoring.

Abstract: We present RaaS (Reputation as a Service), a set of accountable reputation ranking schemes for service

providers in cloud computing architectures. RaaS provides a secure reputation reporting system producing

results and recommendations that can be published as a service and verified by trusted third parties or by the

cloud service providers themselves. The reputation service is based on an assortment of ranking criteria

ranging from multilevel performance and quality of service measures to security and pricing assessments.

This makes RaaS a valuable IT component in supporting verifiable and accountable compliance with

service-level agreements and regulatory policies, encouraging competition among cloud providers for better

security and quality of service, and providing new and existing cloud customers with valuable advice for

selecting the appropriate cloud service provider(s) that suit their performance, budgeting, and security

requirements. The RaaS reputation system does not rely on subjective feedback from cloud customers but

rather carry out the reputation calculation based on observable actions extracted from the computing cloud

itself. A proof of concept implementation shows that the incorporated RaaS protocols impose minimal

overhead on the overall system performance.

1 INTRODUCTION

Cloud computing has achieved unprecedented

success and adoption in the last few years. This

evolutionary computing model relies on the great

advancements in virtualization technologies,

commodity hardware, processor design, and most

importantly Internet communication networks to

provide compelling services to enterprises and

individuals.

Currently, some cloud service providers

guarantee the quality of their services by defining a

set of Service Level Agreements (SLAs) with their

customers. These SLAs typically lack any technical

means of enforcement which leaves the customer’s

data and software processes under the total control

of the cloud service provider. Any failure to meet

the SLA terms and obligations will have disastrous

effects on the cloud customer and provider, such as

losing reputation and client trust and legal or

financial penalties that may lead to putting an end to

the entire business. This fact will put pressure and

responsibility on the customers when selecting a

particular cloud service provider for running their

business processes and storing data. The severity of

this decision is further aggravated when we estimate

the serious losses incurred when dealing with

“misbehaving” cloud providers or the technical

difficulties, financial losses, and service downtimes

accompanying the process of switching between

service providers. Terabytes of data migration tasks

over expensive communication links, software

reconfiguration and adaptation, and data leakage and

privacy implications are some factors that render the

migration process highly expensive.

To alleviate customers concerns, and to aid them

in selecting the appropriate cloud service provider at

the outset, we believe that a secure and accountable

cloud reputation service should be developed to rank

service providers based on performance, security,

and pricing criteria. The advantages of such a

reputation service would be reflected on both

customers and providers. The cloud customer will be

able to take better selection decisions when choosing

a cloud infrastructure guided by a set of measurable

and quantified reputation scores. On the other hand,

the reputation service will encourage the cloud

Itani W., Ghali C., Kayssi A. and Chehab A..

ACCOUNTABLE REPUTATION RANKING SCHEMES FOR SERVICE PROVIDERS IN CLOUD COMPUTING.

DOI: 10.5220/0003384100490055

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 49-55

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

provider to enhance its provided services and

offerings to attract a larger customer base.

In this paper, we present RaaS, a set of

accountable reputation ranking schemes for service

providers in cloud computing architectures. RaaS

provides a secure reputation reporting system

producing results and recommendations that can be

published as a service and verified by trusted third

parties or by the cloud service providers themselves.

The reputation service is based on an assortment of

ranking criteria ranging from multilevel performance

and quality of service measures to security and

pricing assessments. This makes RaaS a valuable IT

component in supporting verifiable and accountable

compliance with service-level agreements and

regulatory policies, encouraging competition among

cloud providers for better security and quality of

service, and providing new and existing cloud

customers with valuable advice for selecting the

appropriate cloud service provider(s) that suit their

performance, budgeting, and security requirements.

The RaaS reputation system does not rely on

subjective feedback from cloud customers but rather

carry out the reputation calculation based on

observable actions extracted from the computing

cloud itself. A proof of concept implementation

shows that the incorporated RaaS protocols impose

minimal overhead on the overall system

performance.

The rest of this paper is organized as follows: in

Section 2 we discuss the main system players

assumed in this work. Section 3 provides a brief

overview of a proposed hardware-based security

infrastructure in cloud computing. Section 4 presents

the design of the RaaS reputation system. In Section

5, a proof of concept implementation of the RaaS

protocols is evaluated and analyzed. Section 6

provides a literature survey of the main models

related to the proposed work. Conclusions are

presented in Section 7.

2 RaaS MAIN PLAYERS

RaaS operates in a traditional cloud computing

environment consisting of the two main

communicating entities, namely a cloud service

provider and a cloud customer. The provider

manages and operates a cloud infrastructure of on-

demand storage and processing services. The

customer consumes the cloud services provided by

the service provider.

The cloud applications managed by the provider

abide with the 3-tier enterprise architecture. In this

model, the enterprise application is divided into

three main logical layers. The first layer is the

presentation layer which is responsible for providing

the application's user interface. The second layer, the

business layer or the middle tier, is responsible for

executing the application's business logic. Finally,

the third layer, the data persistence layer, is

responsible for storing and maintaining the data

required by the cloud application (mainly in

relational database management systems).

3 HARDWARE-BASED

SECURITY IN THE CLOUD: A

PROPOSED TECHNICAL

OVERVIEW

For a reputation system to be trustworthy, it has to

rely on a trusted cloud computing infrastructure that

supports the accountability and credibility of the

overall system operation. RaaS relies on secure

cryptographic coprocessors to enforce the

accountability of the reputation calculation

protocols. This section is inspired from our previous

work on privacy-aware data storage and processing

in cloud computing (Itani, Kayssi, Chehab, 2009).

3.1 Secure Coprocessor Overview

A cryptographic coprocessor is a tamper-proof piece

of hardware that interfaces, mainly via a PCI-based

interface, to a main computer or server. The chief

security property supported by a crypto coprocessor

is its ability to provide a secure and isolated

execution environment in the computing cloud. A

crypto coprocessor is a full-fledged computing

system with its own processor, RAM, ROM, battery,

network interface card, and persistent storage.

However due to economic reasons, the coprocessor

is usually less capable in terms of processing and

memory resources than the main server it interfaces

to, and thus cannot replace it.

3.2 Coprocessor Authoritative

Configuration and Distribution

The main authoritative entity responsible for

configuring the crypto coprocessors and distributing

them to cloud service providers is a trusted third-

party (TTP) trusted by the cloud provider and

customer. The resources of the crypto coprocessors

installed in the computing cloud are shared among

the cloud customers registered in the provider’s

CLOSER 2011 - International Conference on Cloud Computing and Services Science

storage and processing services. This resource

sharing mechanism supports the economic feasibility

of the solution and, most importantly, complies with

the general cloud computing vision and paradigm.

The TTP is responsible for securing the provider

rating process and analyzing the rating records to

generate the provider’s absolute reputation score.

Technically, the TTP loads a set of private/public

key pairs into the persistent storage of the crypto

coprocessor. Every public/private key pair

(PU

CID

/PR

CID

) is to be securely allocated and

distributed to a single customer when the latter

registers with the cloud service provider.

In addition to loading the customer’s

CID

/PR

CID

key pair, the TTP also loads its own

secret key K

TTP

into the persistent storage of the

crypto coprocessor. This key is needed by the TTP

to remotely authenticate to the crypto coprocessor

and to securely execute commands against it.

Moreover, K

TTP

is used to secure the integrity and

confidentiality of log records produced by the RaaS

reputation protocols on the cloud provider’s side.

The notion of a TTP has proved to be feasible in

certification authority services in public-key

infrastructures (PKIs).

3.3 Coprocessor Process Model

and Software Division

The crypto coprocessor process structure abides by

the ABYSS (Weingart, 1987) model. RaaS supports

the economic and performance feasibility of the

reputation system by adopting the software division

concept. This concept urges the cloud customer to

logically divide its software application components

into two categories: protected and unprotected. The

protected classification indicates that the logical

component should be executed in a protected

process in the address space of the cryptographic

coprocessor. On the other hand, the unprotected

classification indicates that the logical component

can be executed in a traditional process on the main

server’s processor.

The software division mechanism is also applied

to the RaaS performance evaluation protocols to

ensure the accountability of the feedback logging

mechanism on the cloud provider’s side. In the same

sense, the protocols execution steps are divided into

secure and non-secure based on their role in the

performance evaluation process. It is worth

mentioning that it is possible to run the entire

software application in the secure coprocessor;

however, this would affect the performance and

economic efficiency of the application.

4 REPUTATION SYSTEM

ARCHITECTURE

RaaS provides a secure and accountable reputation

service that does not rely on subjective feedback

from cloud customers. The main source of input

feeding the reputation calculation mechanism resides

in the computing cloud itself at the provider side.

The reputation service utilizes a trusted crypto

coprocessor to provide a secure execution

environment in the computing cloud, and thus

produces authentic event logs that constitute the

basis for the reputation score calculation.

The provider’s reputation score is computed by

the TTP and consists of three main components: a

security reputation score, a pricing reputation score,

and a performance reputation score which is

subdivided into two sub scores: the data retrieval

and processing reputation scores.

The reputation service consists of three main

phases: the secure event monitoring and auditing

phase, the reputation score calculation phase, and the

service publication phase.

4.1 Secure Event Monitoring

and Auditing

Depending on the type and sensitivity of operations

requested by the cloud customer, three performance

evaluation and logging protocols are developed to

securely generate the event logs about customer

transactions. The RaaS performance evaluation

protocols are presented below:

4.1.1 The Bulk Data Fetch (BDF) Protocol

This protocol is executed whenever the cloud client

sends a query for fetching bulk database/file data

from the cloud storage facility. The main goal

behind running this protocol is to securely and

accurately measure the time needed by the cloud

service provider to retrieve the requested data from

the cloud storage. Figure 1 presents the interaction

between the trusted coprocessor and the main server

processor to execute the BDF protocol steps. In step

1, the cloud customer sends a storage query along

with its authentication credentials to the computing

cloud. In step 2, the crypto coprocessor authenticates

the customer and initiates a performance timer at

time t

. In step 3, the crypto coprocessor relays the

query to the main server processor which fetches the

required data from the storage facility in steps 4 and

5. In step 6, the main server processor calculates and

sends to the crypto coprocessor a hash of the

ACCOUNTABLE REPUTATION RANKING SCHEMES FOR SERVICE PROVIDERS IN CLOUD COMPUTING

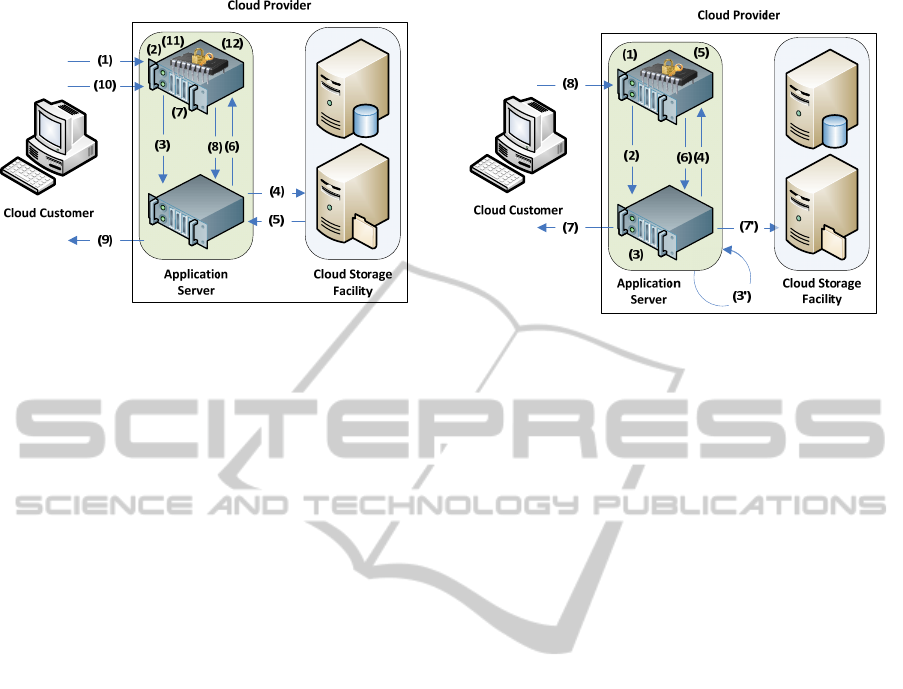

Figure 1: The BDF protocol execution steps.

retrieved data. The hash message has a double

purpose; firstly it represents a signaling message

from the main server processor to the crypto

coprocessor indicating that the data fetch process is

accomplished. Secondly, the hash value constitutes a

commitment that binds the cloud service provider

with the results it fetched from the cloud storage.

This commitment scheme prevents the cloud

provider from rushing a fake and premature signal to

the secure coprocessor before the actual data

fetching mechanism is really executed. In step 7, the

crypto coprocessor terminates the performance timer

at time t

and verifies the received hash value, and

then it authorizes the main server processor to

deliver the data to the cloud customer in steps 8 and

9. In step 10, the client sends the hash value of the

query data received to the crypto coprocessor. In

step 11, the crypto coprocessor compares the

commitment hash value received from the main

server processor in step 6 with the hash value

received from the client in step 10. Equal hash

values indicate that the cloud provider has fully

accomplished the query request before sending the

finish signal to the crypto coprocessor in step 6.

Finally in step 12, the crypto coprocessor generates a

secure log entry containing, most importantly, the

value of the time interval (t

– t

4.1.2 The Data Fetch for Execution (DFE)

Protocol

This protocol is a variant of the BDF protocol with

the exception that the fetched data is not sent to the

cloud customer; instead it is consumed by internal

software processes. If the software processes are

secure, i.e. running in the address space of the crypto

coprocessor, then steps 8, 10, 11, and 12 will not be

needed since in this case the processes receiving the

Figure 2: The DEM protocol execution steps.

data are already running on a trusted platform. Step

9 will be modified to deliver the requested data to a

software process instead of the cloud customer. This

will be illustrated in the next section.

4.1.3 The Data Execution Monitoring

(DEM) Protocol

This protocol is executed after the DFE protocol. Its

chief goal is to measure the time needed by the

internal software processes on the cloud provider

side to process the data retrieved by the DFE

protocol. A very important property of the DEM

protocol is that it operates on non sensitive customer

data. Processing operations on sensitive data do not

necessitate the presence of a dedicated performance

evaluation protocol. This fact is illustrated as

follows: Due to the high sensitivity of the processed

data, the software processes handling it should be of

the secure type; that is running in the address space

of the secure crypto coprocessor. Since the

processing platform is trusted and controlled by the

TTP, no performance evaluation is carried out or

required and thus this protocol has no direct effect

on the reputation score calculation. Figure 2

illustrates the DEM protocol execution steps. In step

1, the crypto coprocessor identifies the start of the

data processing by initiating the performance timer

at time t

, and commands the main server processor

to start data processing in step 2. In step 3, the main

server processor carries out the processing task and

produces the final execution results (execution

pipelining may be employed here). In step 4, the

server main processor sends a hash of the final result

to the secure coprocessor. The purpose of this hash

value is analogous to that described in the BDF

protocol step 6. In step 5, the secure coprocessor

terminates the timer at time t

and validates the

CLOSER 2011 - International Conference on Cloud Computing and Services Science

received hash value, and then it authorizes the main

server coprocessor to send the results to the cloud

customer or to store them in the cloud storage

facility in steps 7 and 7’, respectively. In step 8, the

cloud customer sends the hash of the processing

results, received in step 7, to the crypto coprocessor.

The secure processor validates the commitment hash

values and then generates a secure log entry in steps

9 and 10.

4.2 Reputation Calculation

This section describes the performance, security, and

pricing reputation scores calculation. The reputation

scores for providers are calculated periodically by

the TTP which can carry out the calculation on a

monthly, quarterly, semi-annual, or annual basis.

4.2.1 Performance Reputation Scores

The securely generated logs are analyzed in order to

calculate the provider performance reputation

scores. The calculation is done as follows: for each

log entry, the TTP utilizes the τ (the data size in

bytes retrieved in the transaction) and β (the time

required to retrieve the data in the transaction in

milliseconds) fields to calculate the transaction data

retrieval rates and compares them to the rates

promised in the SLA based on the following

equations:

,











−









× 100 (1)

,

represents the percent improvement over the

SLA retrieval rate Ψ



for the 



log record. By

applying averaging and normalization operations on

the calculated Φ



log entry improvement rate, the

overall retrieval reputation score 



can be

computed. 



is a function of the average retrieval

rates Χ





and their standard deviations 















×Φ

,







(2)















×Φ

,

− Χ















(3)





=+×









100

 ±  ×









100

 (4)

Where 



is the number of retrieval log entries per

provider, and  is a normalization constant that

represents the middle value of the reputation score

range. The range of the retrieval reputation score

component lies in



0,10



, hence =5. Note that the

data processing reputation score 



is calculated

analogously.

4.2.2 Security Reputation Scores

The security reputation calculation in RaaS is carried

out in two main phases: a static analysis phase and a

dynamic penetration testing phase. In the static

analysis phase, the TTP statically analyzes the

provider’s SLAs for security-related terms and

specifications, classifies them into a set of security

categories, and assigns a reputation weight to each

category. The category reputation weight is provided

based on the quality of security this category

represents.

Three security categories are currently supported

in RaaS: (1) The degree of provider’s compliance

with regulatory policies and recommendations, (2)

the set of cryptographic protocols supported by the

cloud service provider, and (3) the strength of the

symmetric and asymmetric keys used in these

cryptographic protocols. The list of security

categories is implementation dependent and can be

extended with additional classification groups as

devised by the TTP.

In the dynamic penetration testing phase the TTP

performs a security assessment of the provider’s site

using advanced and up-to-date vulnerability

scanning techniques such as the Nmap and Nessus

network scanners. The dynamic penetration testing

phase aims at scanning the provider’s network

resources and applications for known vulnerabilities

to verify the immunity of the provider’s system

against possible security exploitations.

4.2.3 Pricing Reputation Scores

The pricing reputation score is calculated by ranking

a set of service providers according to the cost of the

cloud services they provide. The ranking is achieved

by employing a simple order statistics algorithm. In

brief terms, the algorithm assigns higher pricing

scores to providers offering lower service prices.

4.3 Reputation Publication

After the TTP accomplishes the log analysis and

reputation score calculation, it publishes the results

online as a cloud service. The TTP also provides a

set of procedures for resolving disputes and enabling

the cloud service provider to check the validity and

coherency of the provider published reputation

scores.

ACCOUNTABLE REPUTATION RANKING SCHEMES FOR SERVICE PROVIDERS IN CLOUD COMPUTING

5 RaaS PROTOTYPE

IMPLEMENTATION

A prototype proof of concept of the RaaS reputation

service algorithms and protocols is implemented on

the VMware vSphere 4 cloud computing platform.

We created five client virtual machines (VMs) on

the vSphere virtualization server to support the

execution of the customer application business logic.

The guest operating systems running on these

machines are: 2 Windows XP SP3 VMs, 1 Windows

7 VM, and 1 Ubuntu 9.04 VM. The vSphere

physical server specifications are as follows:

Intel(R) Core(TM) i7 CPU Q 720 running at 1.6

GHz equipped with 4GB RAM. We implemented 2

sample customer enterprise applications, using the

C# programming language, to run in the vSphere

cloud: A Customer Relationship Management

(CRM) application and a Human Resource (HR)

management application. The applications execute

SQL queries on an SQL Server 2005 RDBMS. To

implement the functionality of a secure crypto

coprocessor, we assume that one of the core CPUs

on the virtualization server is the secure coprocessor

while the other core CPUs are those of the main

untrusted server. We believe this assumption

provides a viable proof of concept sufficient for

testing the system configuration, functionality, and

reputation mechanisms.

For evaluating the performance reputation score,

a set of 2000 data retrieval and processing

transaction events is generated by the implemented

performance monitoring protocols. The event

records generated are evenly distributed over 4

virtual time periods. The data size, retrieved or

processed, ranges from 10 KB to 10 MB. The

transaction logs are analyzed and processed based on

the equations presented in Section 4.2 to produce the

RaaS performance reputation scores.

Employing the RaaS performance monitoring

protocols and secure log generation mechanisms

added minimal overhead to the overall application

performance. This fact is illustrated in Figures 3

which presents the average time in seconds

consumed by the data retrieval and processing

operations with and without the application of the

RaaS performance monitoring protocols. The

overhead is roughly 15% for the different RaaS

performance evaluation protocols. We believe that

this cost is considered reasonable in return of the

reputation service provided.

7.24

6.87

3.44

6.12

5.82

2.93

0.00

1.00

2.00

3.00

4.00

5.00

6.00

7.00

8.00

BDF DFE DEM

Execution Time (Secs)

Protocol

RaaS Protocol

Execution Cost

Execution Time

without Employing

the RaaS Protocols

Figure 3: Execution time with and without the application

of the RaaS performance protocols.

6 RELATED WORK

A common property shared by existing service-

oriented reputation systems is that they base the

reputation calculation on the consumers’ feedback.

Since this form of feedback information maybe, in

many cases, subjective, biased, or even malicious,

the results and recommendations provided by this

category of reputation systems is characterized by

incompleteness and inaccuracy and thus cannot be

fully trusted. Mármol

and Pérez (2009) present some

of the key challenges and threats facing the process

of reputation calculation in distributed systems.

According to (Mármol

and Pérez, 2009),

differentiating among honest and dishonest clients

and handling malicious peers and information

collectives are on top of the list of challenges and

risks to be tackled when designing distributed

reputation systems. Some of the proposed service-

oriented reputation systems are presented in (Malik

and Bouguettaya, 2009; Chang, Dillon and Hussain,

2006; Hwang, Kulkareni and Hu, 2009). A

comprehensive survey of Internet trust and

reputation systems is presented in (Lim, Keung and

Griffiths, 2010).

Haeberlen (2009) discusses the key requirements

for establishing an accountable computing cloud and

suggests the presence of an “Audit” primitive

function that enables the customer to check the

compliance of the provider with the service

agreements. The requirements provided in

(Haeberlen, 2009) are not accompanied with a

technical solution. This paper is viewed as a “call for

action” for further research in this field as stated by

the author.

Li, et al. (2010) present a set of benchmarking

tools for estimating the performance and costs of

deploying a customer cloud application on different

CLOSER 2011 - International Conference on Cloud Computing and Services Science

cloud providers. This work suffers from a set of

limitations that RaaS overcomes by design: (1) they

do not consider the validity of the benchmarking

results when possibly dealing with malicious cloud

providers, (2) the performance measurements

produced represent a snapshot in time and hence

they are affected by variations in customer’s

workloads or by any modification in the software,

hardware, or network infrastructure, (3) they

represent a client-side estimate of the provider’s

performance and (4) they do not consider any

security evaluation metric which we believe is a

major requirement that should be considered when

selecting a cloud provider.

A considerable amount of research work has

dealt with the design and implementation of secure

cryptographic coprocessors. The secure crypto

coprocessor concept was firstly introduced by Best

(1980). The advancements in physical security

mechanisms and packaging technology (Weingart,

1987) and the assortment of secure applications that

can be implemented on top of physically secure

coprocessors (Tygar and Yee, 1994) was a major

driving force to a prosperous commercial market.

IBM was the leader on this front by providing a set

of successful implementations meeting the strictest

FIPS 140 security standards. This is represented in

the IBM 4758 PCI cryptographic coprocessor (Dyer,

et al., 2001) and the IBM 4764 PCIX cryptographic

coprocessor (PCIXCC) (Arnold and Doorn, 2004).

The IBM coprocessor product family was the first to

meet the FIPS level 4 security standard based on its

tamper-resistance and tamper-responding

mechanisms. Moreover, Gutmann (2000) presented

a general-purpose open-source crypto coprocessor

that provides competitive performance and higher

functionality compared to commercial products at a

cost of one to two orders of magnitude lower.

7 CONCLUSIONS AND FUTURE

EXTENSIONS

In this paper we presented RaaS, a set of

accountable reputation ranking schemes for service

providers in cloud computing architectures. RaaS

builds on a set of integrity-assurance mechanisms

and protocols to provide a secure execution

environment for supporting the reputation

calculation. Dedicated light-weight performance

evaluation protocols are established to secure the

event log generation and storage mechanisms. A

prototype implementation of the various RaaS

algorithms and protocols is tested on the VMware

vSphere 4 cloud computing operating system. The

incorporation of the RaaS protocols added negligible

overhead to the overall system performance.

Future extensions will include: augmenting a

more comprehensive description of the reputation

protocols, devising a cumulative reputation score

calculation mechanism, and extending the system

simulation with a set of stochastic load and stress

factors.

REFERENCES

Itani, W., Kayssi, A. and Chehab, A., 2009. Privacy as a

Service: Privacy-Aware Data Storage and Processing

in Cloud Computing Architectures. In DASC’09.

Tygar, J. and Yee, B., 1994. Dyad: A system for using

physically secure coprocessors. In IP Workshop.

Weingart, S., 1987. Physical security for the mABYSS

system. In IEEE Computer Society Conf. on Security

and Privacy.

Schneier, B. and Kelsey, J., 1999. Secure audit logs to

support computer forensics. ACM Transactions on

Information and System Security, 1(3), pp.159-196.

Mármol, F. and Pérez, G., 2009. Security threats scenarios

in trust and reputation models for distributed systems.

Computers and Security, 28(7), pp.545-556.

Malik, Z. and Bouguettaya, A., 2009. RATEWeb:

reputation assessment for trust establishment among

web services. VLDB Journal, 18(4), pp.885–911.

Chang, E., Dillon, T. and Hussain, F., 2006. Trust and

reputation for service-oriented environments. Wiley.

Hwang, K., Kulkareni, S. and Hu, Y., 2009, Cloud

Security with Virtualized Defense and Reputation-

Based Trust Management. In DASC’09.

Lim, S., Keung, C. and Griffiths, N., 2010. Trust and

Reputation. In Springer Agent-Based Service-Oriented

Computing.

Haeberlen, A., 2009. A Case for the Accountable Cloud.

In LADIS.

Li, A., Yang, X., Kandula, S. and Zhang, M., 2010.

CloudCmp: Shopping for a Cloud Made Easy. In

HotCloud'10.

Best, R., 1980. Preventing Software Piracy with Crypto-

Microprocessors. In COMPCON 80.

Dyer, J., Lindemann, M., Perez, R., Sailer, R., Smith, S.,

Doorn, L. and Weingart, S., 2001. Building the IBM

4758 secure coprocessor. IEEE Computer.

Arnold, T., Van Doorn, L., 2004. The IBM PCIXCC: A

new cryptographic coprocessor for the IBM eServer.

IBM Journal of Research and Development, 48(3),

pp.475.

Gutmann, P., 2000. An Open-source Cryptographic

Coprocessor. In the 9th USENIX Security Symposium.

ACCOUNTABLE REPUTATION RANKING SCHEMES FOR SERVICE PROVIDERS IN CLOUD COMPUTING
