KANGAROO: A DISTRIBUTED SYSTEM FOR SNA

Social Network Analysis in Huge-Scale Networks

Wu Bin, Dong Yuxiao, Qin Lei, Ke Qing and Wang Bai

School of Computer Science, Beijing University of Posts and Telecommunications, Tucheng 10, West Road, Beijing, China

Keywords: Social network analysis, Distributed system, MapReduce, Huge-scale network.

Abstract: Social network analysis is the mapping and measuring of relationships and flows between people, groups,

computers and other information or knowledge entities. The continued exponential growth in the scale of

social networks is giving birth to a new challenge to social network analysis. The scale of these graphs, in

some cases, is millions of nodes and billions of edges. In this paper, we present a distributed system,

KANGAROO, for huge scale social network based on two main computing models which are for finding

common neighbour and maximal clique. KANGAROO is implemented on the top of the Hadoop platform, the

open source version of MapReduce. This system implements most algorithms of social network analysis,

including basic statistics, community detection, link prediction and network evolution etc. based on the

MapReduce computing framework. More than anything else, KANGAROO is applied to a real-world huge

scale social network. The application scenarios, including degree distribution, linear projection algorithm for

community detection and community visualization of presentation layer, demonstrate KANGAROO is

efficient, scalable and effective.

1 INTRODUCTION

Social networks have grown stronger as a form of

organization of human activity. Social networks are

nodes of individuals that tie in one or more types of

independencies. It represents the human relationships

by the links among the nodes. There are so many

ubiquitous social networks around us, the

co-authorship network, the mobile call network, the

email network, the Facebook network etc. There are

two kinds of forms to represent information of the

social network: matrix and graph (Costa et al., 2005).

In this paper, we use graphs to learn and understand

the social networks with nodes representing actors

and edges representing relations. The graph theory is

the foundation of social network analysis.

With the expanding range of human activities,

human relations are becoming increasingly complex

and closely. This results in more and more large

social networks. In some cases, the scale of the

network has billions of nodes, trillions of edges. The

continued exponential growth in scale of networks is

giving birth to a new challenge to the social networks

analysis. The traditional social network analysis

based on graph theory mainly can not be able to play a

significant role because of the restriction by Moore’s

Law.

Recently, Yahoo have come up with a peta-scale

Graph Mining System, namely PEGASUS (Kang,

2009)and Google have dealt with this intractable

problem by using PREGEL which is also a system for

large-scale graph processing (Malewicz et al., 2010).

The two great companies concentrate on the graph

mining, and we put our focus on the distributed

network analysis using graph mining in this paper. At

the same time, Yahoo’s PEGASUS is run on M45,

one of the top 50 supercomputers in the world,

however, our system, namely KANGAROO, is

constructed on commodity machines without

supercomputers. The powerful capability of

MapReduce distributed computing framework

provides a solution of efficient processing of graph

mining. The move to distributed and parallel

computing model is being driven not because it is an

idea of dividing and conquering, but because it is an

efficient way to utilize numerous surplus computing

resource of large amount of commercial equipment

(Yang et al., 2009).

The rest of the paper is structured as follows.

Section 2 presents the related work. Section 3

404

Bin W., Yuxiao D., Lei Q., Qing K. and Bai W..

KANGAROO: A DISTRIBUTED SYSTEM FOR SNA - Social Network Analysis in Huge-Scale Networks.

DOI: 10.5220/0003387304040409

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 404-409

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

describes the model of computing. Section 4 presents

the framework and Implementation of KANGAROO.

Section 5 discusses several application scenarios. In

the last Section, we discuss the conclusion and future

work.

2 RELATED WORK

The related work forms two groups, social network

analysis and Hadoop MapReduce framework.

2.1 Social Network Analysis

A social network is a social structure made of nodes

that are tied by one or more specific types of

interdependency (Costa et al., 2005). Its origin can be

traced back to the pioneering works on percolation

and random graphs by Flory (1941), Rapoport (1957)

and Erdos and Renyi (1961), social network became a

focus of attention for that it had characteristics which

are not like the uniformly random complex network.

Social network involves community structure, power

law degree distributions and bubs, among other

features (Barabasi and Albert, 1999).Two

developments motivated many ongoing research:

Watts and Strogatz’s investigation of small-world

networks (Watts and Strogatz, 1998) and Barabasi

and Albert characterization of scale-free models

(Barabasi and Albert, 1999). In this paper, we

demonstrate the efficiency and effectiveness of our

framework by focusing on presenting the insights of

several large real social networks. In this paper, we

put our focus on the basic statistics, link prediction,

maximum clique and community detection.

2.2 MapReduce Framework

MapReduce is a programing framework (Dean and

Ghemawat, 2004) for processing huge amounts of

unstructured data in a massively parallel way,

collectively referred to as a cluster. Computational

processing can occur on data stored in a distributed

file system. The framework is inspired by map and

reduce functions commonly used in functional

programming. In Map step, the master node takes the

input, chops it up into smaller sub-problems, and

distributes those to worker nodes. In Reduce step, it

then takes the answers to all the sub-problems and

combines them in a way to get the output.

MapReduce framework has two may advantages: (a)

the programmer is oblivious of the details of the data

distribution, replication, load balancing etc. And

furthermore (b) the programming concept is familiar,

for example, the concept of functional programming

(Wu et al., 2009).

Hadoop is an open source implementations of the

MapReduce framework. It provides a distributed file

system (HDFS) to store data and a means of running

applications on large clusters built of commodity

hardware which is near the data.

3 MODEL OF COMPUTING

The input to a KANGAROO computation is an

undirected graph G. V(G) represents vertices and

E(G) represents its edges. In this paper, each vertex is

uniquely identified by a string and each edge is

associated with the source vertex and destination

vertex, and it consists of its weight, too. For a vertex

v in G, let τ

(

)



u∈V

u , v

)

∈E} represents the

neighbors of v, and k



= | τ(v) | represents the

number of the neighbors, namely the degree of the

node v.

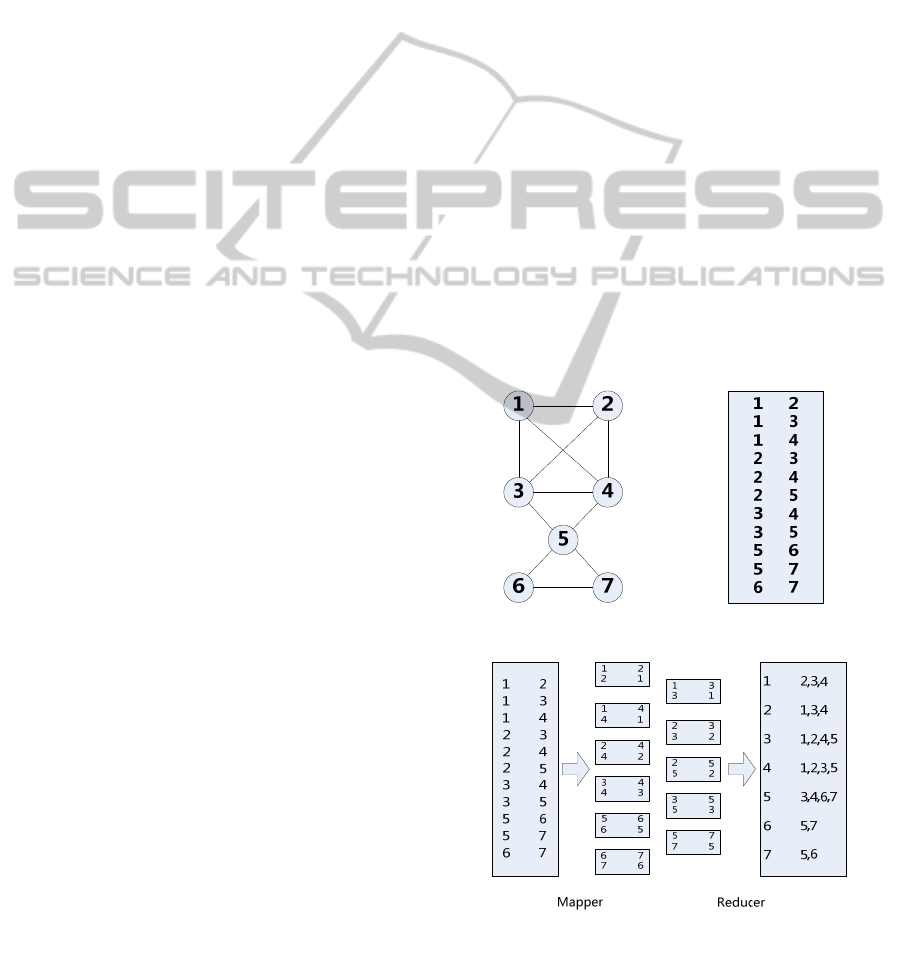

For example in Figure 1, we lay out a typical

KANGAROO computation. Figure 1.b represents the

input data of the social network which has a simple

graph structure composed of 7 vertices and 11 edges

in Figure 1.a.

Figure 1.a. Figure 1.b.

Figure 2: The Process for Adjacency List.

KANGAROO: A DISTRIBUTED SYSTEM FOR SNA - Social Network Analysis in Huge-Scale Networks

405

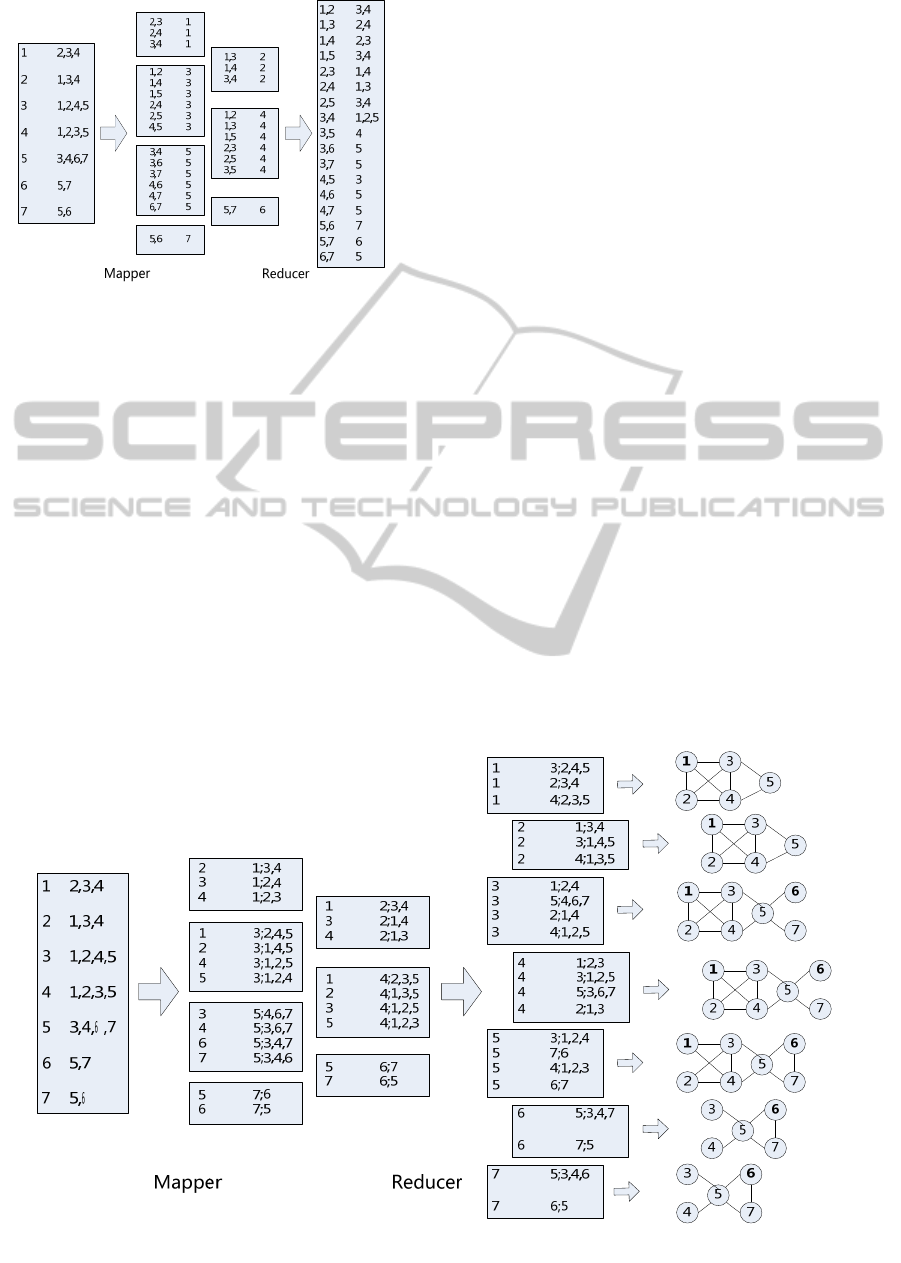

Figure 3: The Process for Common Neighbors.

3.1 MapReduce for Common

Neighbors

In graph G, A node z which belongs to the common

neighbors of nodes x and y, means that the neighbors

of node x contain z, and the neighbors of node y also

contain z. In Figure 1.a, the common neighbors of

nodes 1 and 2 contain node 3 and 4.

Given a Graph, firstly, we generally transform it

to an adjacency list from the form of Figure 1.b,

which can be efficiently employed for further

analyses. In Figure 1.a, we launched a MapReduce

job to obtain the adjacency list of this graph. The flow

of the data is represented in Figure 2.

With the adjacency list of the graph, we can get

the common neighbors using MapReduce as

described in Figure 3.

3.2 MapReduce for Cliques

In a graph G, a clique C is a complete subgraph of G

in which any two nodes are adjacent. A k-clique

defined as a clique containing k nodes (k>=3) (Yang

et al., 2009). A k-clique is called maximal clique if its

edge between any two nodes is not part of any other

clique which has more than k nodes. In Figure 1, for

example, the graph consists 3 maximal cliques,

(1,2,3,4), (3,4,5) and (5,6,7).

The process for cliques has the same first step that

is to get the adjacency list of every node with finding

common neighbors. Adjacency list is the one-leap

information of a node. However, to extract a maximal

clique, we should obtain the two-leap information of

every node. Figure 4 represents the process of getting

maximal clique.

The models for common neighbors and cliques

with MapReduce are the foundation of algorithms in

KANGAROO, such as degree distribution, link

prediction based on node similarity, community

detection etc.

4 FRAMEWORK AND

IMPLEMENTATION

In this chapter, we describe the overview of

KANGAROO and the basic implementation of this

system, without mentioning the specific

technological detail.

Figure 4: The Process for Maximal Clique.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

406

4.1 Basic Architecture

The overview architecture of KANGAROO is

presented in Figure 5. It has a hierarchical

architecture with three main layers: cluster layer, core

algorithm layer and high layer service.

The function and feature of each layer is described

as followed:

 In cluster layer, there is cluster environment,

distributed computing platform and layer of

preprocess. The cluster environment

consists of heterogeneous servers with

which virtualization provides flexible and

transparent perspective. Besides, Hadoop

cluster supply the distributed file system and

distributed computing ability.

 Core algorithm layer is constructed on the

top of the cluster layer, intending to provide

the core algorithms of social network

analysis which consists of basic statistics,

community detection, link prediction and

network evolution etc.

 High layer services supply the presentation

and solutions which are based on the basic

algorithm layer. The result of the social

network analysis is presented by the forms

of the visualization, report, and text, also

provides the data mining and business

intelligence solutions.

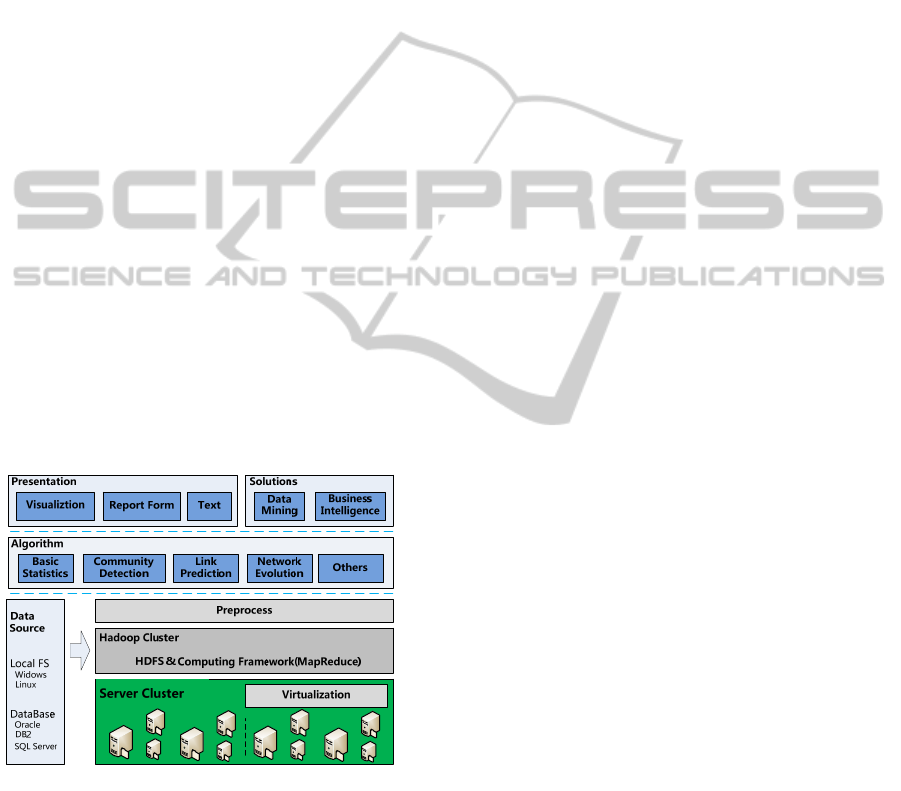

Figure 5: KANGAROO overview.

4.2 Hardware Construction

We set up a hadoop cluster environment, composed

of one master and 32 computing nodes(Intel Xeon

2.50GHz×4, 8GB RAM, 250GB×4 SATA II disk,

Linux RH4 OS). The cluster is interconnected

through 1000Mbps Switch. And deployed Hadoop

platform version is 0.20.0

4.3 Core Algorithms

Social network analysis is the mapping and

measuring of relationships and flows between people,

groups, organizations, computers, URLs, and other

connected information or knowledge entities (Kredbs

2004). To analyze the social network, an adequate

acquaintance of network is necessary by basic

statistics. After that, the process of social network

analysis includes the community detection, link

prediction, network evolution and other aspects.

KANGAROO provides both a mathematical and

visual analysis of human relationships by these basic

algorithms as described below.

 Basic Statistics: In this section, KANGAROO

supply the implementation for understanding the

overview of the network, including the numbers

of nodes and edges, degree distribution, weight

distribution, betweenness centrality, cluster

coefficience, closeness centrality, shortest path,

diameter and page rank etc.

 Community Detection: KANGAROO

implements the main community detection

algorithm, including the clique percolation

method and linear projection algorithm.

 Link Prediction: KANGAROO provides the

nine local similarity-based link prediction

algorithms, Common Neighbors, Salton Index,

Jaccard Index, Sorensen Index, Hub Promoted

Index, Hub Depressed Index,

Leicht-Holme-Newman Index, Preferential

Attachment Index and Adamic-Adar Index, and

two global similarity-based algorithms

including Katz Index and

Leicht-Holme-Newman Index (Lv and Zhou,

2010).

 Network Evolution: Here, KANGAROO uses

an effective algorithm TrackMapper (Yang et al.,

2009)that can generate an evolving timeline

throughout the network, because of its

optimization for MapReduce model.

To the best of our knowledge, KANGAROO

implements these algorithms by using MapReduce

first, including betweenness centrality, cluster

coefficience, closeness centrality, shortest path,

network diameter, linear projection algorithm and all

link prediction algorithms which are based on node

similarity.

5 CASE STUDIES

In this chapter, we validate KANGAROO by an

analysing procedure. The graph employed here is a

KANGAROO: A DISTRIBUTED SYSTEM FOR SNA - Social Network Analysis in Huge-Scale Networks

407

huge undirected social graph that has 4.8 million

nodes and 43 million edges extracted from directed

LiveJournal friendship online social network. The

following experiments on this huge dataset are

inspected from the scalability and the performance.

5.1 Degree Distribution

In the study of networks, the degree of a node in a

network is the number of edges it has to other nodes

and the degree distribution is the probability

distribution of these degrees over the whole network

(Barabasi and Albert, 1999).

In this section, KANGAROO run the MapReduce

implementation of degree distribution job. We show

the results of degree distribution in Figure 6 and the

chart demonstrates the power low degree distribution.

As represented in Figure 7, there is a good speedup

ratio with the change of the computing node numbers.

When the number of nodes comes 16 or 32, there is

redundant computing resource for this job.

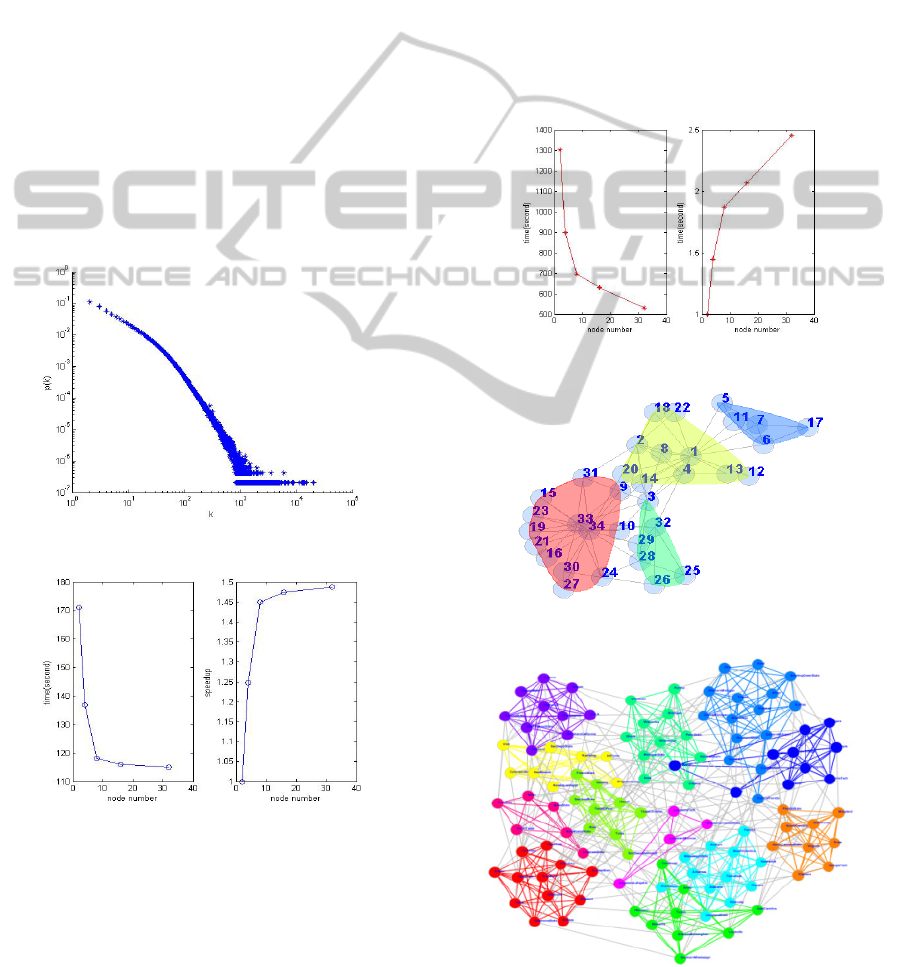

Figure 6: The degree distribution of LiveJournal.

Figure 7: Running time and scalability of degree

distribution.

5.2 Linear Projection Algorithm

Community is groups of nodes within which

connections are dense, but between which

connections are sparser. Next we intend to find

meaningful communities by linear projection

algorithm. Linear projection algorithm resolves

community structure by transforming network

community detection problem into a common

clustering problem. It uses the factor that the main

features of the community structure are actually

captured by just the low-dimension vectors, which

allows KANGAROO to reduce the computational

cost (Liao, 2009).

The paralleled linear projection algorithm using

MapReduce has a nearly linear speedup ratio before

the number of computing nodes comes 8 in the

environment of KANGAROO. As Figure 8 shows,

that superfluous computing resource exists is the

same with the process of degree distribution when

there are 16, 32 or more nodes.

Figure 8: Running time and scalability of LPA.

Figure 9: The community of Karate graph.

Figure 10: The community of American football games

graph.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

408

5.3 Community Visualization

The visualization is a significant part of

KANGAROO, also a very difficult part. In this

section, we show the community visualization which

is most tough task for the presentation layer.

After community detection on Karate graph, the

visualization of the communities is represented in

Figure 9 which is clear and intelligible to distinguish

the different nodes among all communities. In Figure

10, we represent a more beautiful graph which

contains 12 communities in diverse colors.

6 CONCLUSIONS AND FUTURE

WORK

Motivated by recently increasing request for the large

scale social network analysis, in this paper, we

introduce our solution, KANGAROO based on

distributed system, and report how to construct it

using the open-source Hadoop project, also the

advantages of this system, including the ability to

analyze the huge scale social network and the high

performance with linear speedup ratio.

We employ a huge scale real-world network with

ten million nodes and edges to analyze with

KANGAROO, including basic statistics, community

detection and community visualization. In these cases,

we do not only show the result of our algorithms but

also the speedup ratio of our system.

At present, KANGAROO is an on-going system,

our future work will continue in the construction of

this system, especially the computing modes and

algorithms for large scale social network, scalability

and performance. Fundamentally, we hope

KANGAROO can serve as a practical social network

analysis framework for huge scale real-world

network.

ACKNOWLEDGEMENTS

This work is supported by the National Science

Foundation of China (Grant No.60905025, 90924029,

61074128), National High Technology Research and

Development Program of China

(No.2009AA04Z136), National Key Technology

R&D Program of China (2006BAH03B05) and the

Fundamental Research Funds for the Central

Universities.

REFERENCES

U. Kang. Charalampos E. Tsourakakis, Christos Faloutsos.

2009. PEGASUS: A Peta-Scale Graph Ming System –

Implementation and Observations. In ICDM2009,

Ninth IEEE International Conference on Data Mining.

Grzegorz Malewicz, Matthew H. Austern, Aart J. C. Bik,

James C. Dehnert, Ilan Horn, Naty Leiser, Grzegorz

Czajkowski. 2010. Pregel: A System for Large-Scale

Graph Processing. In SIGMOD2010, ACM SIGMOD

International Conference on Management of Data.

Shengqi Yang, Bai Wang, Haizhou Zhao and Bin Wu.

2009. Efficient Dense Structure Mining using

MapReduce. In ICDM2009, Ninth IEEE International

Conference on Data Mining workshop on Large-scale

Data Mining.

A. L. Barabasi and R. Albert. 1999. Emergence of scaling in

random networks. In Science, 286(5439):509-512.

D. J. Watts and S.H. Strogatz. 1998. Collective dynamics of

small-world networks. In Nature, 393(6684):440-442.

Linyuan Lv, Tao Zhou. 2010. Link Prediction in Complex

Networks: A Survey. In arXiv:1010.0725v1 [Physics

and Society (physics.soc-ph)] 4 Oct 2010.

Shengqi Yang, Bai Wang, Haizhou Zhao, Yuan Gao, Bin

Wu. 2009. DisTec: Towards a Distributed System for

Telecom computing. In International Conference on

Cloud Computing 2009.

Bin Wu, Shengqi Yang, Haizhou Zhao, Yuan Gao and

Lijun Suo. 2009. CosDic: towards a Comprehensive

System for Knowledge Discovery in Large-scale data.

In The 2009 IEEE/WIC/ACM International Conference

on Web Intelligence 2009.

J. Dean and S. Ghemawat. 2004. Mapreduce: Simplified

data processing on large clusters. In OSDI 2004

L. da F. Costa, F. A. Rodrigues, G. Travieso, P. R. Villas

Boas. 2005. Characterization of Complex Networks: A

Survey of measurements. In Condensed

Matter/0505185

P. J. Flory. 1941. Molecular size distribution in

three-dimensional polymers. i. gelation. In Journal of

the American Chemical Society, 63:3083-3090

A. Rapoport. 1953. Contribution to the theory of random

and biased nets. In Bulletin of Mathematical Biophysics,

19:257-277, 1957.

P. Erdos and A.Renyi. 1961. On the strength of

connectedness of a random graph. In Acta Mathematica

Scientia Hungary, 12:261-267, 1961.

Valdis Kredbs 2004. Valdis Krebs’ website for Inflow, a

software-based SNA tool. In

http://www.orgnet.com/sna.html

XiaoPing Liao, Wei Ren, Guiying Yan. 2009. A Linear

Projection Approach for Resolving Community

Structure. In The Third International Symposium on

Optimization and Systems Biology 2009.

KANGAROO: A DISTRIBUTED SYSTEM FOR SNA - Social Network Analysis in Huge-Scale Networks

409
