SAURIDA: CLOUD COMPUTING BASED

Data Mining System in Telecommunication Industry

Qing Ke, Bin Wu

School of Computer Science, Beijing University of Posts and Telecommunications, Beijing, China

Yuxiao Dong, Lei Qin

School of Computer Science, Beijing University of Posts and Telecommunications, Beijing, China

Keywords: Cloud Computing, Data Mining, Data Flow, Telecommunication.

Abstract: Telecommunication data mining has been often used as a background application to motivate many

technical problems in data mining research. However, traditional mining algorithms face new challenges

which are tremendous amount of data and high time and space complexity of algorithms. Recently, Map-

Reduce parallel computing model has been emerging. In this paper, we combine data mining with Map-

Reduce based cloud computing to meet the challenges and showcase our applied system named Saurida. As

a full functionality system, we provide data flow oriented preprocessing utilities which achieve almost linear

speedup and extensively support for user defined functions, and we also provide many data mining

algorithms. More importantly, we elaborate several application scenarios as real-word requirements of

telecom industry by employing a large volume of data obtained from telecom operator. And we validate our

system has a good scalability, effectiveness and efficiency.

1 INTRODUCTION

Telecommunication data analysis has stimulated

great interests in recent years. Typical application

scenarios are customer churn prediction and

customers’ relationship management.

However, these analysis methods face new

challenges. Firstly, the telecom industry generates

and stores a tremendous amount of data. Secondly,

many data mining algorithms have high time and

space complexity.

Traditional business solutions of data mining are

commercial database or data warehouse systems or

commercial data mining tools. However, these

systems or tools are low scalability and high cost. In

research areas, Wang et.al (Wang, 2009) developed

a working data mining system on real mobile

communication data, but the system mainly focused

on algorithms in research such as sequential patterns

mining and community detection.

Recently, the Map-Reduce (Dean, 2004)

computational model and its open-source

implementation, Hadoop, are widely applied both in

research and industry areas. The model mainly

focuses on share-nothing parallelism, and its storage

system focuses on scalability. These advantages are

very suitable for telecom data mining.

In this paper, we combine data mining with

Map-Reduce based cloud computing to meet the

challenges and introduce our applied system,

Saurida. The system is built on distributed cluster

infrastructure as hardware and Hadoop distributed

computing platform as

fundamental software. As a

full functionality system, we provide data

preprocessing utilities, data mining algorithms

More importantly, we elaborate several application

scenarios as real-word requirements of telecom

industry by employing a large volume of data

obtained from telecom operator, we validate our

system from the view of scalability, effectiveness

and efficiency. In summary, Saurida takes the

following challenges as its destination as well as the

contributions to this work:

 Data flow oriented and almost linear

speedup of preprocessing.

 Extensive support for user defined functions.



Nearly linear speedup of data mining

algorithm.

516

Ke Q., Wu B., Dong Y. and Qin L..

SAURIDA: CLOUD COMPUTING BASED - Data Mining System in Telecommunication Industry.

DOI: 10.5220/0003387905160519

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 516-519

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

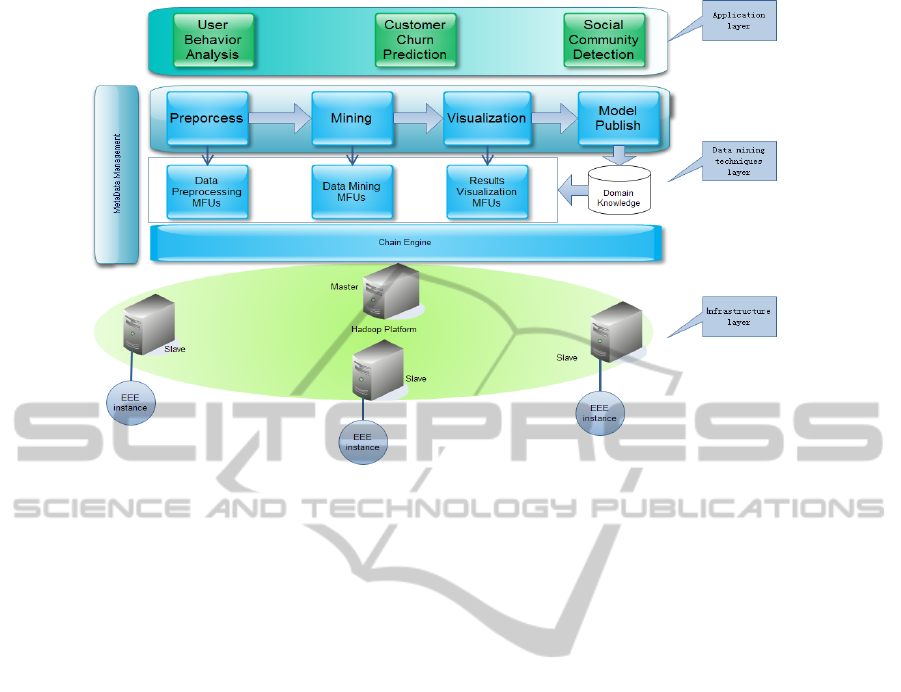

Figure 1: Saurida architecture.

 Real-word application in telecom industry.

The rest of this paper is structured as follows.

Section 2 describes system architecture. Section 3

discusses implementation issues. In Section 4, we

present several applications. Finally, we draw the

conclusion and discuss future work.

2 SYSTEM ARCHITECTURE

The architecture of Saurida is depicted in Figure 1.

As can be seen, the system consists of three layers.

The functions and features of each layer are

described as follows:

 Application layer implements business

applications of telecom industry, such as user

behavior analysis, customer churn prediction

and social community detection.

 Data mining techniques layer completes

functions mainly including preprocessing, data

mining and results visualization, and a very

important component named Chain Engine

which is responsible for chaining the

preprocessing utilities together and submitting

to Hadoop, we will discuss it in detail in

Section 3.2.

Infrastructure layer consists of Hadoop

platform where every slave node runs an

Expression Evaluation Engine (EEE) instance

which is the essential component to

implement custom processing.

3 IMPLEMENTATION

We set up a cluster environment, composed of one

master node and 21 computing nodes (Intel Xeon

2.50GHz×4, 8GB RAM, 250GByte×4 SATA II

disk, Linux RH4 OS). The cluster is interconnected

through 1000Mbps Switch. And deployed Hadoop

platform version is 0.20.0.

3.1 Preprocessing Utilities

Our system provides many preprocessing utilities

which are mainly categorized into operations on

record and operations on attribute. All of them are

implemented through running Map-Reduce jobs.

We complete a performance benchmark which

processes a terabyte data by running some typical

utilities on 128 nodes. Figure 2 depicts the running

time. We can see that all of them complete duration

1,500 seconds except the Merge because it actually

process total 2 terabyte data and transferring

intermediate data from mapper to reducer also

consumes some time. Figure 3 shows derived

scalability on 32, 64 and 128 nodes. The experiment

results indicate that the parallel data preprocessing

has excellent scalability.

SAURIDA: CLOUD COMPUTING BASED - Data Mining System in Telecommunication Industry

517

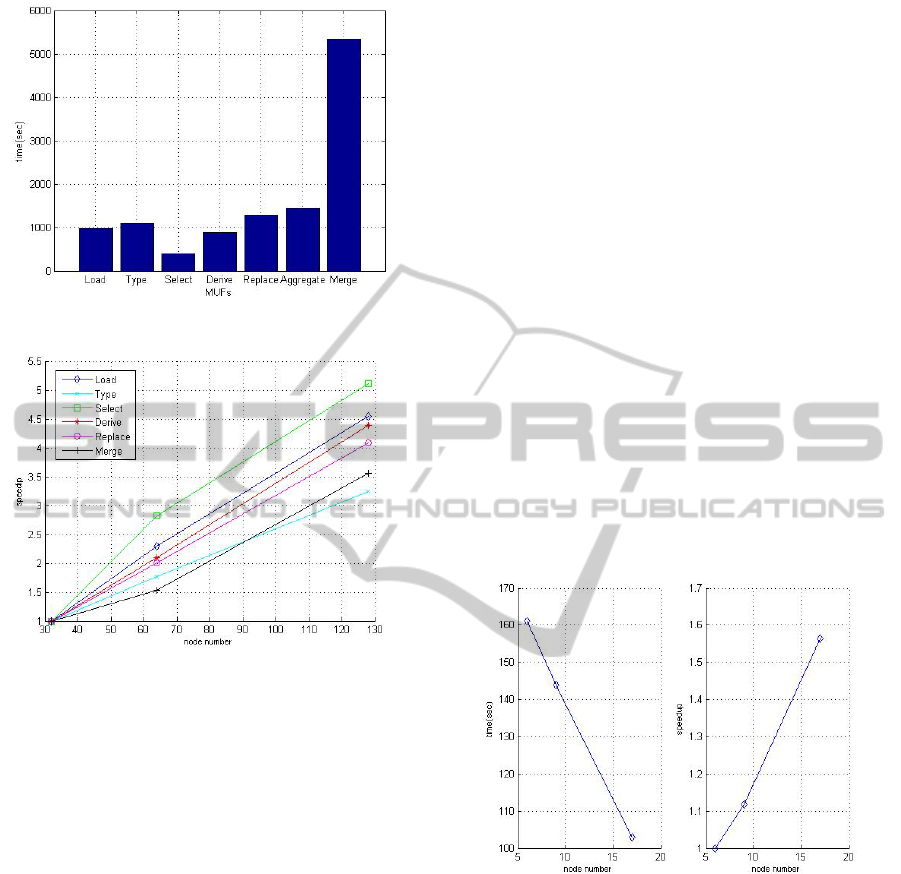

Figure 2: Benchmark results of preprocessing MFUs.

Figure 3: Scalability of preprocessing Utilities.

3.2 Chain Engine

We use native APIs provided by Hadoop,

ChainMapper and ChainReducer to develop chain

engine which is working as following steps:

1. Chaining all the user selected utilities together;

2. Changing the logical data flow into Map-

Reduce jobs;

3. Submitting the jobs to Hadoop;

The immediate benefit of chained pattern is a

dramatic reduction in disk I/O because the output of

the first utility becomes the input of the second one,

and so on until the last one, all the intermediate

results do not need to flush to disk. So the execution

time of the data flow dramatic reduced.

3.3 EEE

To accommodate specialized data processing tasks,

Saurida has extensive support for User Defined

Functions (UDFs). Essentially all aspects of

preprocessing utilities in Saurida including Select,

Derive, Replace and so on can be customized

through the use of UDFs.

When the Map-Reduce job is executing, all the

UDFs are put into EEE instance. Every DataNode of

the Hadoop cluster is running an instance, we can

achieve and the engine will output the result of each

UDF. EEE uses traditional Reverse Polish Notation

algorithm to evaluate the expression.

4 APPLICATION SCENARIOS

4.1 Ad-hoc Query

In this Section, we describe a sample ad-hoc data

analysis tasks. The SQL is:

SQL: Select ID, fee_A, fee_B,

case when fee_A>100 then 1

When fee_A>200 then 2

else 0 as fee_A_interval

from fee_info where fee_A>50;

Figure 4 is shown with the number of nodes

increasing from 6, 9 to 17, the chain which process

12GB data has excellent scalability, that is to say,

the speedup ratio increases nearly linearly with the

number of nodes.

Figure 4: Running time and scalability of a sample ad-hoc

query.

4.2 PCA

PCA (Wold, 1987) transforms a number of possibly

correlated variables into a number of uncorrelated

variables called principal components, commonly by

an orthogonal transformation based on variance.

PCA is very useful both in research and industry

area. In many telecom data mining applications, the

training data set may be as many as hundreds of

feature items. However, many features are correlated,

and these relevant features can be removed.

We run the parallel implementation of PCA on a

real-world data set and on different number of nodes

CLOSER 2011 - International Conference on Cloud Computing and Services Science

518

to test performance and scalability. The data is 12

GB and contains 49 fields. We set the number of

principal component to 10. The results are shown in

Figure 5. And we can see that the PCA algorithm

achieves good scalability.

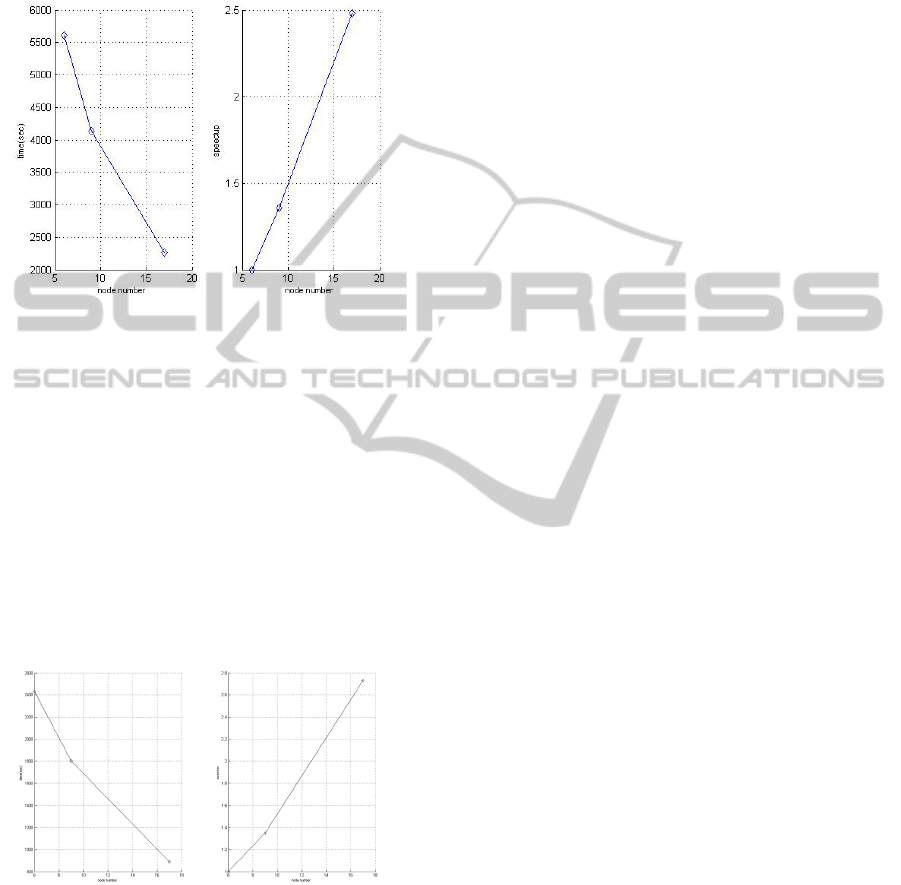

Figure 5: Running time and scalability of PCA.

4.3 NN

We run the parallel implementation of Feed-forward

back-propagation neutral network (BP) (

Williams,

1986) on a real-world data set and on different

number of nodes to test performance and scalability.

The data set is 14 GB, containing total 67 fields, we

choose 55 fields of them as training attributes and

the classification attribute contains 2 values. Figure

6 shows the results of running time on 6, 9 and 17

nodes and corresponding derived scalability. And

the parallel NN algorithm also achieves nearly linear

speedup.

Figure 6: Running time and scalability of NN.

5 CONCLUSIONS AND FUTURE

WORK

Motivated by recently increasing request for the

capability of large scale data computing in

telecommunications industry, in this paper, we

introduce our system, Saurida, and demonstrate the

system has advantages that open-source or

commercial data mining tools do not have. These

advantages include ability to process terabytes scale

of data, high performance, linear speedup, cost-

effective and custom processing. From the industrial

view, we describe several application scenarios over

large scale data as real-word requirements.

Nonetheless, Saurida is an experimental

framework at present. Further development and

improvement is needed at aspects such as

functionality, performance and reliability to meet

telecom industry requirements. Essentially, we hope

our system can serve as a practical data mining

system in telecom industry.

ACKNOWLEDGEMENTS

This work is supported by the National Science

Foundation of China (Grant No.60905025,

90924029, 61074128).

REFERENCES

Wold, S., Esbensen, K., Geladi, P., 1987. Principal

Component Analysis. Chemometrics and Intelligent

Laboratory Systems 2, pp. 37-52.

T. Wang, B. Yang, J. Gao, D. Yang, S. Tang, H. Wu, K.

Liu, and J. Pei, 2009. MobileMiner: A Real World

Case Study of Data Mining in Mobile Communication.

In SIGMOD'09, Proceedings of the 2009 ACM

SIGMOD International Conference on Management of

Data.

Dean, J., Ghemawat, S., 2004. MapReduce: Simplified

data processing on large clusters. In OSDI '04, Sixth

Symposium on Operating System Design and

Implementation.

Williams R. J., Rumelhart D. E., Hinton G. E., 1986.

Learning representation by back-propagating errors.

Nature, vol. 323, pp. 533–536.
