INCREASING FLEXIBILITY AND ABSTRACTING COMPLEXITY

IN SERVICE-BASED GRID AND CLOUD SOFTWARE

Per-Olov

Ostberg and Erik Elmroth

Department of Computing Science, Ume

a University, SE-901 87, Ume

a, Sweden

Keywords:

Service-oriented architecture, Grid computing, Cloud computing, Service-oriented component model.

Abstract:

This work addresses service-based software development in Grid and Cloud computing environments, and

proposes a methodology for Service-Oriented Architecture design. The approach consists of an architecture

design methodology focused on facilitating system ﬂexibility, a service model emphasizing component mod-

ularity and customization, and a development tool designed to abstract service development complexity. The

approach is intended for use in computational eScience environments and is designed to increase ﬂexibility

in system design, development, and deployment, and reduce complexity in system development and admin-

istration. To illustrate the approach we present case studies from two recent Grid infrastructure software

development projects, and evaluate impact of the development approach and the toolset on the projects.

1 INTRODUCTION

In this paper we discuss service-based software devel-

opment, propose a methodology for Service-Oriented

Architecture (SOA) design, and present a toolset de-

signed to abstract service development complexity.

To illustrate the approach we present case studies

from two recent Grid infrastructure software devel-

opment projects, and evaluate impact of the develop-

ment approach and the toolset on the projects.

Grid and Cloud computing alter and intro-

duce new software requirements for computational

eScience applications. Increasingly, eScience soft-

ware now require the ability to be ﬂexible in de-

ployment, dynamically reconﬁgured, updated through

modules, customized, and have the ability to integrate

non-intrusively in heterogeneous deployment envi-

ronments. At the same time, software size and com-

plexity is growing in multiple dimensions (Kephart

and Chess, 2003), and limitations and complexity in

current service development tools increase develop-

ment overhead. Software development projects in-

clude more developers, require more coordination,

and result in more complex systems. Software ad-

ministration is growing in complexity and new mech-

anisms for software administration are required.

This work addresses an identiﬁed need for scala-

bility in more dimensions than just performance, and

builds on prior efforts in service composition-based

software design (Elmroth and

Ostberg, 2008) and a

model of software sustainability based on the notion

of an ecosystem of software components (Elmroth

et al., 2008). We explore an approach to service-based

software development based on separation of service

functionality blocks, reduction of software complex-

ity, and formulation of architectures as dynamically

reconﬁgurable, loosely coupled networks of services.

To support the approach, we present a toolset de-

signed to abstract complexity in service description

and development. The approach is illustrated in two

case studies from recent development projects.

The rest of this paper is structured as follows:

Section 2 overviews related and prior work. Section 3

discusses software development in Grid and Cloud

computing environments, and illustrates the need for

ﬂexibility in design, development, and deployment of

eScience software. Section 4 proposes a methodol-

ogy for service-based software design, and Section 5

presents a toolset for service development. To illus-

trate the methodology and use of the toolset, Section 6

presents case studies of two recent software develop-

ment projects, and the paper is concluded in Section 7.

2 RELATED AND PRIOR WORK

This work builds on a service composition model

and a set of architectural design patterns presented

in (Elmroth and

Ostberg, 2008), and further reﬁnes a

240

Östberg P. and Elmroth E..

INCREASING FLEXIBILITY AND ABSTRACTING COMPLEXITY IN SERVICE-BASED GRID AND CLOUD SOFTWARE.

DOI: 10.5220/0003389002400249

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 240-249

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

software design and development model based on the

notion of an ecosystem of software components (Elm-

roth et al., 2008). The approach is designed to facili-

tate software ﬂexibility and adaptability, and promote

software survival in natural selection settings. While

the approach does not deﬁne explicit self-* mecha-

nisms, it does adhere to the line of reasoning used

in Autonomic Computing (Kephart and Chess, 2003),

and deﬁnes a component model well suited for con-

struction of self-management mechanisms, e.g., self-

healing architectures and self-conﬁguration compo-

nents. Contributions of this paper include reﬁnement

of a software development model for ﬂexible compo-

nents and architectures, and presentation of a toolset

designed to abstract service development complexity.

(Lau and Wang, 2007) provides a taxonomy for

software component models that identiﬁes a set of key

characteristics, e.g., encapsulation and composition-

ality, for service-based component models. In (Lau

et al., 2005), the authors also propose a component

model based on exogenous connectors designed to fa-

cilitate loose coupling in aggregation control ﬂow.

(Curbera et al., 2005) outlines a component-based

programming model for service-oriented computing.

This model focuses on goals similar to our approach

and, e.g., identiﬁes a need for ﬂexibility and cus-

tomization in SOA systems, and employs a view of

Service-Oriented Architectures (SOAs) as distributed,

abstractive architectures built on service-oriented

components. While (Curbera et al., 2005) outlines

requirements and structures for service-oriented com-

ponent models and classiﬁes component composition

models, we propose a development methodology con-

sisting of best practice recommendations for architec-

ture design and component development.

Similar to the Spring Java application de-

velopment framework (Spring Framework, 2011),

iPOJO (Escofﬁer et al., 2007) provides a service-

oriented component model where logic is imple-

mented as POJOs and service handlers are injected

through byte code modiﬁcation. iPOJO emphasizes

separation of service logic and interface implemen-

tations and provides a component model built on

OSGi (OSGi, 2011) that provides both component-

and application-level containers. The approach of this

work aims to facilitate service-based application de-

velopment, and presents a toolset to abstract service

development complexity, while iPOJO provides a full

and extensible software component model.

In addition to these component models, a number

of service integration models exist (Peltz, 2003), and

be categorized as, e.g., service composition, service

orchestration, and service interaction models. In this

work, we build architectures based on a model where

we focus on component abstraction, and deﬁne com-

ponent interactions in programming language terms

rather than system-level orchestrations. Note that

components developed using our development model

are still compatible with service discovery and or-

chestration techniques, while we aggregate compo-

nents in conﬁguration and programming languages.

The Service-Oriented Modeling and Architecture

(SOMA) (Arsanjani et al., 2010) approach outlines a

development methodology for identiﬁcation, design,

development, and management of service-oriented

software solutions. SOMA constitutes a complete ser-

vice lifecycle development model that addresses mod-

eling and management of business processes in ad-

dition to software development tasks. Compared to

our approach, SOMA is a mature development model

that provides guidelines for modeling and develop-

ment tasks in large software projects. Our approach

targets smaller development projects and aims to sim-

plify service and component development by abstract-

ing development complexity.

In addition to these efforts, a number of commer-

cial service-based software development tools and en-

vironments, e.g., Microsoft .NET (Lowy, 2005), exist.

In comparison to open source and scientiﬁc projects,

commercial development tools are in general mature,

well documented, and more continuously maintained.

Commercial enterprises do however have business in-

centives for restricting development and integration

ﬂexibility in products, and commercial products are

often associated with license cost models that discour-

age use in eScience application environments.

3 GRID AND CLOUD SOFTWARE

DEVELOPMENT

Grid and Cloud eScience systems are distributed and

designed for asynchronicity, parallelism, and decen-

tralization. Grid environments organize users in Vir-

tual Organizations (VOs) mapped onto virtual infras-

tructures built through resource site federations. As

Grids build and provide abstract interfaces to existing

resources through middlewares, Grid infrastructures

focus heavily on integration of existing resources and

systems, and have adapted a number of tools well

suited for system integration. For these reasons, many

Grid architectures are designed as SOAs and imple-

mented using Web Services.

Cloud computing evolved from a number of dis-

tributed system efforts and inherits technology and

methodology from Grid computing. To applications,

Clouds provide the illusion of endless resource ca-

pacity through interface abstraction, and run virtual

INCREASING FLEXIBILITY AND ABSTRACTING COMPLEXITY IN SERVICE-BASED GRID AND CLOUD

SOFTWARE

241

machines on resources employing hardware-enabled

virtualization technologies. As the notion of a ser-

vice (an always-on, network-accessible software) ﬁts

well in the Cloud computing model, many Cloud en-

vironments build on, or provide, service-oriented in-

terfaces. In effect, Grids provide scalability through

federation of resources, while Clouds provide compu-

tational elasticity through abstraction of resources.

In service-based software development, a number

of trade-offs and development issues exist.

Software Reuse. Development of Grid and Cloud

computing infrastructure components and applica-

tions consists, at least in part, of integration of ex-

isting systems. Integration projects tend to produce

software speciﬁc to integration environments, and

limit software reuse to component level. To enable

software reuse, components should be kept ﬂexible

and customizable (Elmroth and

Ostberg, 2008; Elm-

roth et al., 2008), and SOA programming models

should emphasize construction of modules that devel-

opers can customize without source code modiﬁca-

tion (Curbera et al., 2005).

Software Flexibility. In SOA environments, com-

ponent interactions are speciﬁed in terms of service

interfaces, orchestrations, and compositions. Ser-

vices deﬁne interfaces in terms of service descriptions

(SOAP style Web Services), or via exposure of re-

sources through HTTP mechanisms (REST services).

As SOAs are typically designed to abstract underly-

ing execution environments and dynamically provi-

sion functionality, services may be deployed in dy-

namic and heterogeneous environments. To facili-

tate integration between components, SOAP Web Ser-

vice platforms provide Application Programming In-

terfaces (APIs) and employ code generation tools to

provide boilerplate solutions for component interac-

tion. REST architectures deﬁne resource representa-

tions in documentation and often encapsulate compo-

nent invocation in APIs. By providing mechanisms

for dynamic recomposition of architectures and re-

conﬁguration of components, SOAs facilitate system

deployment and administration ﬂexibility.

Multi-dimensional Scalability. There are many

types of scalability in Grid and Cloud Computing.

Within performance, scalability can be categorized

in dimensions such as horizontal or vertical scala-

bility, i.e. ability to efﬁciently utilize many or large

resources, or in time, e.g., in terms of computation

throughput, makespan, and response time. In Clouds,

hardware virtualization enabled resource elasticity

describes system ability to vary number and size of

hardware resources contributing to Cloud resource

and infrastructure capacity.

While achieving performance scalability is cen-

tral to computational systems (and the explicit focus

of many Grid and Cloud Computing efforts), there

are also other types of scalability likely to impact

software sustainability in Grid and Cloud Comput-

ing environments. Scalability in, e.g., development,

deployment, and administration, are becoming limit-

ing factors as software projects scale up. In devel-

opment, scalability is often limited by system com-

plexity and problem topology. Deployment ﬂexibility

can be measured in terms of adaptability and integra-

bility, and is typically limited by restrictions imposed

by architecture design or implementation choices. In-

creasingly, as software projects grow in size and com-

plexity, conﬁguration and administration scalability is

becoming a factor. Administration scalability can be

measured in terms of automation, conﬁguration com-

plexity, and monitoring transparency. Computational

and storage scalability are often limited by problem

topology, while development and deployment scala-

bility tend to be limited by solution complexity.

Development Complexity. Limitations in current

service engines, frameworks, and development tools

often result in increased component implementa-

tion complexity and reduced developer productiv-

ity (when compared to non-service-based software

development). Service development APIs expose

low level functionality and service engine integration

logic leaving, e.g., parts of message serialization tasks

to service and client developers. For services deﬁned

with explicit service interface descriptions, e.g., Web

Service Description Language (WSDL) documents, a

number of code generation tools exist. These typi-

cally extract type systems and service interface infor-

mation from service interface descriptions, and gener-

ate code to integrate and communicate with services.

Current service APIs and code generators tend to

be service platform speciﬁc and tie service and ser-

vice client implementations to speciﬁc service en-

gines. Tool complexity often leads to complex in-

teractions with and within service implementations,

resulting in service interface implementations being

mixed with service functionality logic. In addition,

service description and type validation languages are

often complex. WSDL and XML Schema are exam-

ples of widely used languages with great expressive

power and steep learning curves that lower developer

productivity and obstruct component reuse.

Complexity and ambiguity in service description

formats lead to steep learning curves, high develop-

ment overhead, and incompatibilities in service in-

terface and message validation implementations. As

generated code is intended for machine interpreta-

tion, it is typically left undocumented, unindented,

CLOSER 2011 - International Conference on Cloud Computing and Services Science

242

and hard to read, reducing toolset transparency. Tool

complexity results in vendor lock-in, reduced devel-

opment productivity, and decreased software stability.

4 DESIGN METHODOLOGY

To address service software reuse, ﬂexibility, and

scalability issues, we propose a SOA development

methodology consisting of two parts: an architec-

ture design methodology and a service component

model. The methodology emphasizes modularity and

customization on both architecture and component

level. Architectures isolate functionality blocks in

services and deﬁne architectures as loosely coupled

networks of services that can be customized through

recomposition mechanisms. Services separate com-

ponent modules and offer customization through ex-

posure of plug-in customization points. To support

this methodology we provide a service development

toolset (presented in Section 5) designed to abstract

service development complexity. The overall goal of

this methodology is to raise service development ab-

straction levels and produce systems that are ﬂexible

in development, deployment, and administration.

4.1 Design Perspective

To design modular and reusable software, we employ

a model of software evolution based on the notion of

an ecosystem of infrastructure and application com-

ponents (Elmroth et al., 2008). Here systems form

niches of functionality and components are selected

for use based on current client or application needs.

Over time, software are subject to evolution based

on natural selection. In conjunction with this model,

we observe the line of reasoning used in autonomic

computing (Kephart and Chess, 2003), and address

scalability through modularity and reduction of soft-

ware complexity. The proposed methodology pro-

vides component and architecture models well suited

for construction of software self-* mechanisms.

In architecture design, we combine the top-down

perspective of structured system design with the mod-

eling of objects and relationships between objects of

object-oriented programming. Similar to the reason-

ing of (Lau and Wang, 2007), we design compo-

nents that expose functionality through well-deﬁned

Web Service interfaces and compose architectures as

SOAs. System composition takes place in the compo-

nent design (through interface, dependency, and com-

munication design) and deployment (through run-

time conﬁguration) phases, and is determined through

a system de- and recomposition approach (Elmroth

and

Ostberg, 2008). As encapsulation (modular-

ity) counters software complexity (Lau and Wang,

2007), we utilize interface abstraction and late bind-

ing techniques to construct loosely coupled and loca-

tion transparent components.

The design approach deﬁnes architectures as ﬂex-

ible, dynamically reconﬁgurable, and loosely coupled

networks of services. Autonomous blocks of func-

tionality are identiﬁed and isolated, and components

are modeled to keep component interactions coarse-

grained and infrequent. Functionality likely to be of

interest to other components or clients is exposed as

services or customization points.

For applications, this approach provides ﬂexibility

in utilization and customization of system functional-

ity, and increases system task parallelization poten-

tial. Construction of software as SOAs emphasizes

composition of new systems from existing compo-

nents, allows a model of software reuse where appli-

cations dynamically select components based on cur-

rent needs, and facilitates replacement and updates of

individual components. On component level, this ap-

proach results in increased modularity and a greater

focus on interface abstraction, beneﬁting component

and system ﬂexibility, adaptability, and longevity.

While architectures designed as networks of ser-

vices may be distributed, components are likely to

(at least partially) be co-hosted for reasons of perfor-

mance and ease of administration. Co-hosted com-

ponents are able to make use of local call optimiza-

tions, which greatly reduce service container mem-

ory and CPU load, as well as system network band-

width requirements. Use of local call optimizations

results in less network congestion issues, fewer net-

work stack package drops, fewer container message

queue drops, and reduced impact of component com-

munication overhead and errors. Local call opti-

mization mechanisms allows design of systems that

combine the component communication efﬁciency of

monolithic systems with the deployment ﬂexibility of

distributed service-based systems.

4.2 Architecture Design

Our design approach is summarized in three steps.

Identiﬁcation of Autonomous Functionality

Blocks. Similar to how objects and object relation-

ships are modeled in object-oriented programming,

autonomous functionality blocks are identiﬁed and

block interactions are modeled using coarse-grained

service communication patterns. Key to this ap-

proach is to strike a balance between architecture

fragmentation and the need to keep components

small, single-purpose, and intuitive. Component

INCREASING FLEXIBILITY AND ABSTRACTING COMPLEXITY IN SERVICE-BASED GRID AND CLOUD

SOFTWARE

243

dependency patterns are identiﬁed to illuminate

opportunities for parallelization of system tasks.

Identiﬁcation of Exposure Mechanisms for Func-

tionality Blocks. Functionality of interest to compo-

nents in neighboring ecosystem niches, with clear lev-

els of abstraction, and where well-deﬁned interfaces

can be deﬁned is exposed as services. Functionality

not of interest to other systems, but where compo-

nent customization would increase system ﬂexibility

is exposed as customization points, e.g., through con-

ﬁguration and plug-ins. Service-exposed functional-

ity is generally identiﬁed at architecture level, while

customization points are typically identiﬁed at com-

ponent level.

Design of Service Interactions and Interfaces. For-

mulation of interfaces and service communication

patterns are essential to performance efﬁciency in

SOAs. Key to our approach is to design architectures

that allow services to function efﬁciently as both lo-

cal objects and distributed services. As exposure of

components as services may lead to unexpected in-

vocation patterns, defensive programming techniques

and design patterns are employed to keep service in-

terfaces unambiguous, simple, and lean.

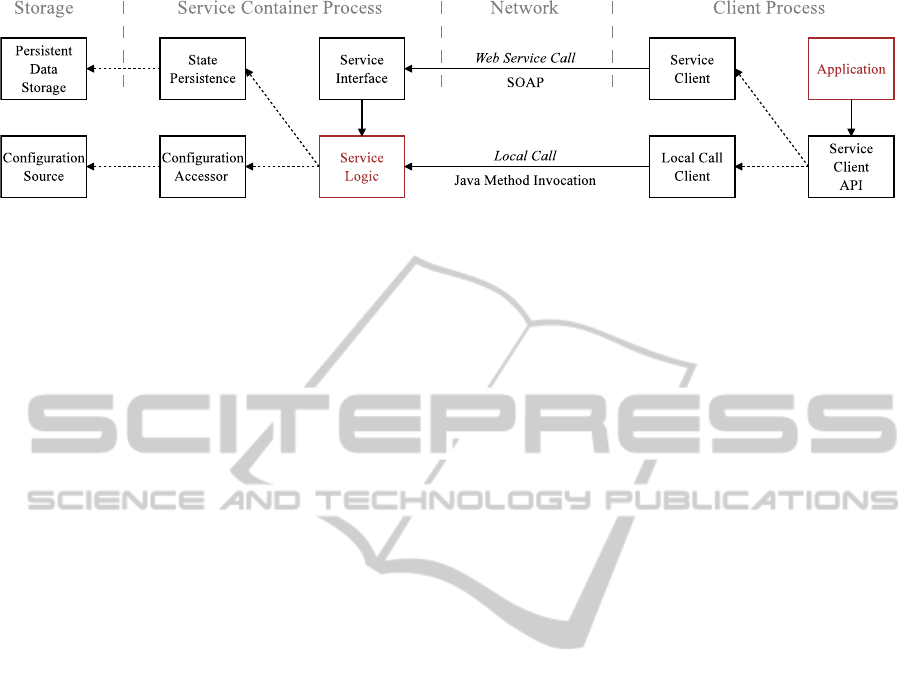

4.3 Component Design

In component design, we adhere to the general prin-

ciples for a service-oriented component model pre-

sented in (Cervantes and Hall, 2004) and organize

service components in a way similar to classic three-

tier architectures. To enable a software development

model facilitating loose coupling of service compo-

nents, we emphasize separation of modules in compo-

nent design (Yang and Papazoglou, 2004). Separation

of service client, interface, logic, and storage compo-

nents facilitates ﬂexibility in distributed system devel-

opment and integration. Separation of service clients

and interface implementations is a key mechanism

in Service-Oriented Computing (SOC) that facilitates

loose coupling in systems, and is here extended to

provide (optional) ﬂexibility in logic implementation.

Use of language and platform independent tech-

niques for data marshaling and transportation allows

service clients to be implemented using application-

speciﬁc languages and tools, facilitating system in-

tegrability and adoptability. Development of service

components using this pattern can be used to, e.g.,

create lightweight Web Service integration interfaces

for existing components running in component envi-

ronments such as the Common Object Model (COM)

or Enterprise Java Beans (EJB).

Separation of service interface and logic imple-

mentation enables use of alternative wire protocols

and communication paradigms, and facilitates imple-

mentation and deployment of service logic in compo-

nent model environments. Encapsulation of platform-

speciﬁc code, i.e. service client and interface imple-

mentations, facilitates migration and porting of ser-

vice logic to alternative service platforms.

Implementation of local call optimizations allow

logic components to function as local Java objects in

service clients (Elmroth and

Ostberg, 2008), reduc-

ing component communication overhead to the lev-

els of monolithic architectures (

Ostberg and Elmroth,

2011). Embedding local call optimizations in com-

ponent APIs allows optimizations to be transparent to

developers and ubiquitous in service implementations

(see Section 5), combining the deployment ﬂexibility

of distributed SOAs with the communication perfor-

mance of monolithic architectures.

Implementation of service logic in component

models introduce additional requirements for soft-

ware development. Best practices for Web Service

and component-based software development overlap

partially. Web Service components should, e.g., be

implemented to be thread safe, communicate asyn-

chronously, consume minimal system resources, and

minimize service response times. Separation of ser-

vice logic from storage layers enables loose cou-

pling between component models and storage mech-

anisms, and facilitates migration of service logic be-

tween component environments.

To provide component-level ﬂexibility, we deﬁne

structures for customization points as plug-ins. Com-

ponent interfaces are deﬁned for advisory and func-

tionality provider interfaces, and customization point

implementations are dynamically loaded at runtime.

Through this mechanism, third parties can replace,

update, and provide plug-in components for internal

structures inside services without impacting design of

application architectures.

5 DEVELOPMENT TOOLSET

Software reuse in highly specialized, complex, and

low maturity environments such as emerging Grid

and Cloud computing eScience platforms is limited

and inefﬁcient. Code generation tools target automa-

tion of software development and can facilitate soft-

ware reuse by providing boiler-plate solutions for ser-

vice communication and isolate service logic. To

address software reuse and abstraction of develop-

ment complexity, we present a service development

toolset called the Service Development Abstraction

Toolset (SDAT). SDAT builds on the component de-

CLOSER 2011 - International Conference on Cloud Computing and Services Science

244

Figure 1: SDAT service structure. Manually developed components (application and service logic) decoupled from gener-

ated components (service invocation, conﬁguration management, and state persistence). Transparent local call optimizations

reduce service invocation overhead and container load.

sign model of Section 4.3 and is designed to raise ser-

vice development abstraction levels through a simpli-

ﬁed service description language and a code genera-

tion tool that separates service components and pro-

vides boiler-plate solutions for, e.g., data representa-

tion, validation, and communication.

5.1 Simpliﬁed Service Description

To promote loose coupling of service clients and im-

plementations, enable service code generation, and

facilitate service discovery, we deﬁne a simplis-

tic XML-based service interface description format

called the Abstractive Service Description Language

(ASDL). The format speciﬁes service interfaces in

terms of tree-based data types and call by value op-

erations on deﬁned types. Data types are deﬁned

in a schema language deﬁned as a subset of XML

Schema. Conceptually, ASDL can be seen as a min-

imalistic subset of the Web Service Description Lan-

guage (WSDL), where the expressive power of XML

Schema and WSDL are reduced in favor of simplicity

in interface interpretation and data representation.

The ASDL type schema language consists of a re-

stricted set of XML and XML Schema tags. Data

ﬁeld types are deﬁned using simpleType tags, and

organized in hierarchical records using complexType

tags. For message validation schema completeness

element tags are inserted, and service interfaces are

deﬁned using service and operation tags. All

schemas deﬁne a target namespace, use explicitly

referenced namespaces, and all tags are qualiﬁed.

XML Schema mechanisms for include and import

tags are supported to facilitate type deﬁnition reuse.

ASDL is designed to provide a service interface de-

sign model semantically equivalent to Java interfaces

using immutable Java classes.

Through ASDL, SDAT exploits XML Schema

document validation without encumbering interface

designers with the full complexity of XML Schema

and WSDL. For translation to WSDL interface de-

scriptions and generation of SOAP Web Service im-

plementations, the following assumptions are made.

All service communication is kept document-oriented

and use literal encoding of messages. Interfaces are

designed to have single-part messages and deﬁne a

single service per service description. Services deﬁne

a single type set per service description and all data

ﬁelds are encoded in XML elements. Exceptions are

exposed as SOAP faults and serialized as messages

deﬁned in the service type schema.

5.2 Code Generation

To facilitate design of architectures as loosely cou-

pled networks of services, SDAT deﬁnes a service

structure (illustrated in Figure 1) that isolates service

functionality blocks and employs a local call opti-

mization mechanism for co-hosted services. Local

call optimizations transparently bypass network se-

rialization and reduce invocation overhead and con-

tainer load (Elmroth and

Ostberg, 2008). Immutable

data types are exposed in service interfaces and used

for service invocation. Optional message validation is

performed in service client and interface components.

The service structure deﬁnes modules for:

• Data type representations. Flat record structures

are extracted from service description schemas

and data type representation components are de-

ﬁned as immutable and serializable Java classes.

• Service interfaces. A service invocation frame-

work abstracting call optimizations is built into

service implementations and client APIs, making

optimizations transparent to service clients.

• Message data validation. XML Schemas are ex-

tracted from service interface descriptions and

used to generate message validation components.

• Service conﬁguration management. A conﬁgu-

ration accessor and monitor API is deﬁned for

service components. Conﬁguration modules are

available to service client and logic components.

INCREASING FLEXIBILITY AND ABSTRACTING COMPLEXITY IN SERVICE-BASED GRID AND CLOUD

SOFTWARE

245

• Persistent state storage. A framework for persis-

tent service state storage is deﬁned and accessible

to service logic components. Persistence modules

are customizable and can be extended to support,

e.g., additional databases or serialization formats.

Separation of service interface and logic implementa-

tion allows compartmentalization of service platform

speciﬁc code and facilitates abstraction of service in-

terface and invocation implementation.

As illustrated in Figure 1, the SDAT service struc-

ture isolates manually coded components (applica-

tion and service logic) from generated service compo-

nents. Typical service development using SDAT con-

sists of speciﬁcation of a ASDL interface, generation

of service components and interfaces, and implemen-

tation of a service logic interface. The goal of the tool

is to abstract service development complexity to the

level of implementation of a Java interface while pro-

viding optional customization of service components.

In addition to service components, SDAT gener-

ates deployment information (WSDL service descrip-

tions, deployment descriptors, etc.), security code

(WS-Security implementations, policy ﬁles, etc.), and

a (Apache Ant) build environment. By default, SDAT

generates compiled and deployable service packages

where developers only need to add service logic im-

plementations to services. To facilitate transparency,

all source code generated is designed to be well for-

matted, easy to read, and documented.

Conﬁguration of SDAT services is segmented into

separate container and service conﬁguration. As

SDAT services expose customization points in the

form of plug-ins for, e.g., service logic implemen-

tation, some conﬁguration of the generated SDAT

framework must be done on container level. A typ-

ical example of this is service plug-ins, which are

speciﬁed in container Java runtime property settings.

Conﬁguration of service logic components is typ-

ically done through service conﬁguration ﬁles ac-

cessed through the SDAT conﬁguration API.

To enforce user-level isolation of service capa-

bilities, service interface implementations instantiate

unique service logic components for each invoking

user. User-level isolation is implemented through a

singleton factory that caches service instances based

on invocation credentials, i.e. user certiﬁcates. This

mechanism is designed to coexist with native mecha-

nisms for component-level isolation of services.

For platform independence, clear representations

of service interfaces, strong Web Service support, and

in-memory compilation, SDAT is built and produces

services in Java. For separation of service interface

speciﬁcation and service development, SDAT primar-

ily supports SOAP style Web Services. Currently,

SDAT integrates with the Apache Axis2 SOAP en-

gine, but as service interface components are decou-

pled from service logic components, support for ad-

ditional service engines, client languages, or commu-

nication patterns can be extended without affecting

other service mechanisms. In extension, this model is

expected to be of interest for creating components that

can be hosted in different service engines, or even (si-

multaneously) support multiple types of service com-

munication (e.g., REST, TCP/IP, and SOAP).

The aim of SDAT is to provide a development tool

that abstracts complex and error-prone service com-

munication development and allows service develop-

ers to focus on service logic. The tool is designed

to provide a simplistic service model where service

interfaces are kept simple, but still have expressive

power enough to create efﬁciently communicating

services. SDAT is designed as a prototype develop-

ment tool that aims to integrate with existing service

containers and development environments. While

current code generators are tied to particular service

environments or languages, SDAT is designed to sup-

port a development methodology rather than a spe-

ciﬁc platform or toolset.

6 CASE STUDIES

To illustrate our design approach, we present

case studies from two recent software development

projects. In these projects, which target develop-

ment of Grid infrastructure components, emphasis is

placed on development of ﬂexible architectures ca-

pable of seamless integration into existing Grid and

High-Performance Computing (HPC) environments.

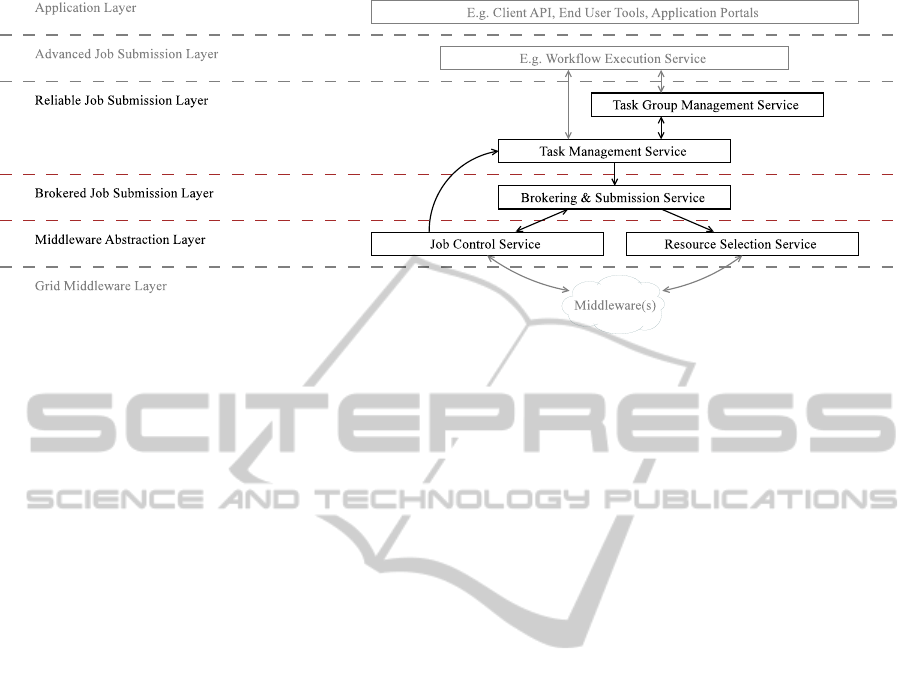

6.1 GJMF

The Grid Job Management Framework

(GJMF) (

Ostberg and Elmroth, 2010) illustrated

in Figure 2 is a Grid infrastructure component built

as a loosely coupled network of services. Designed

to provide middleware-agnostic and abstractive job

management interfaces, the GJMF offers concurrent

access to multiple Grid middlewares through com-

ponents organized in hierarchical layers. Services

in higher layers aggregate functionality of lower

layers, and form a rich middleware-agnostic Grid job

management interface. Through a set of integration

plug-ins, the framework can be customized to, e.g.,

support additional Grid middlewares, replace job bro-

kering algorithms, and deﬁne job failure management

policies. Framework composition, plug-in selec-

tion, and component conﬁguration are conﬁgurable

CLOSER 2011 - International Conference on Cloud Computing and Services Science

246

Figure 2: The Grid Job Management Framework (GJMF). A hierarchical framework of services offering abstractive Grid job

management. Illustration from (

Ostberg and Elmroth, 2010).

through dynamic conﬁguration modules.

The GJMF predates the service development

toolset of Section 5 and has served as a testbed for the

development methodology. The framework is devel-

oped using the Globus Toolkit v4 (Foster, 2005) and

employs WSRF notiﬁcations for service monitoring

and coordination. Due to the ﬂexibility of the frame-

work architecture, the GJMF is deployable in multi-

ple concurrent settings as, e.g., a gateway job man-

agement interface, an alternative job brokering mech-

anism, or a personal client-side job monitoring tool.

6.2 FSGrid

FSGrid (

Ostberg et al., 2011) is a job prioritization

mechanisms for scheduler-based Grid fairshare pol-

icy enforcement. Designed as a distributed architec-

ture consisting of a network of services, FSGrid is

segmentable and can be tailored to resource site de-

ployments. The system virtualizes usage metrics and

resource site capacity, and is capable of collaboration

between different types of FSGrid conﬁgurations.

As illustrated in Figure 3, FSGrid deploys com-

ponents to be close to data and computation, and en-

forces VO and resource site allocation policies simul-

taneously. The system mounts VO allocation policies

onto resource site policies, assembles and operates on

global usage data, and injects a fairshare job prioriti-

zation mechanism into local scheduling decisions.

The ﬂexibility of the architecture allows FSGrid

to be deployed in different conﬁgurations on differ-

ent sites, to be dynamically reconﬁgured, and adapt

to dynamic changes in usage data and allocation poli-

cies. FSGrid exposes customization points through

dynamic service conﬁguration modules, and plug-ins

for usage decay functions and fairshare metrics.

In FSGrid, all service interfaces are describe us-

ing ASDL and all service components developed us-

ing SDAT. The code generation tools of SDAT help

to isolate service implementations from service ser-

vice container and communication dependencies. The

system is deployed using Apache Axis2 (Apache Web

Services Project - Axis2, 2011) service containers and

integrates into cluster schedulers using custom ser-

vice clients. As GJMF and FSGrid are designed us-

ing the same methodology but different tools and plat-

forms, they make a suitable platform for evaluation.

6.3 Evaluation

The GJMF and FSGrid are developed using the same

approach to SOA design, and designed with the same

goal: to provide ﬂexible architectures for Grid in-

frastructure. Both systems are designed as loosely

coupled and reconﬁgurable networks of services, ex-

pose customization points for tailoring of component

functionality, and provide APIs to facilitate integra-

tion into deployment environments.

Experiences from integration of GJMF with the

LUNARC application portal (Lindemann and Sand-

berg, 2005) and a problem-solving environment

in R are documented in (Elmroth et al., 2011)

and (Jayawardena et al., 2010) respectively. These

projects illustrate beneﬁts of construction of infras-

tructure components as ﬂexible networks of service

SOAs. The GJMF exposes a range of job submis-

sion, monitoring, and control interfaces that can be

utilized to integrate in heterogeneous deployment en-

vironments. The deployment ﬂexibility of the frame-

work allows parts of the framework to fulﬁll different

job management roles and be hosted separately.

A recent performance analysis (

Ostberg and Elm-

INCREASING FLEXIBILITY AND ABSTRACTING COMPLEXITY IN SERVICE-BASED GRID AND CLOUD

SOFTWARE

247

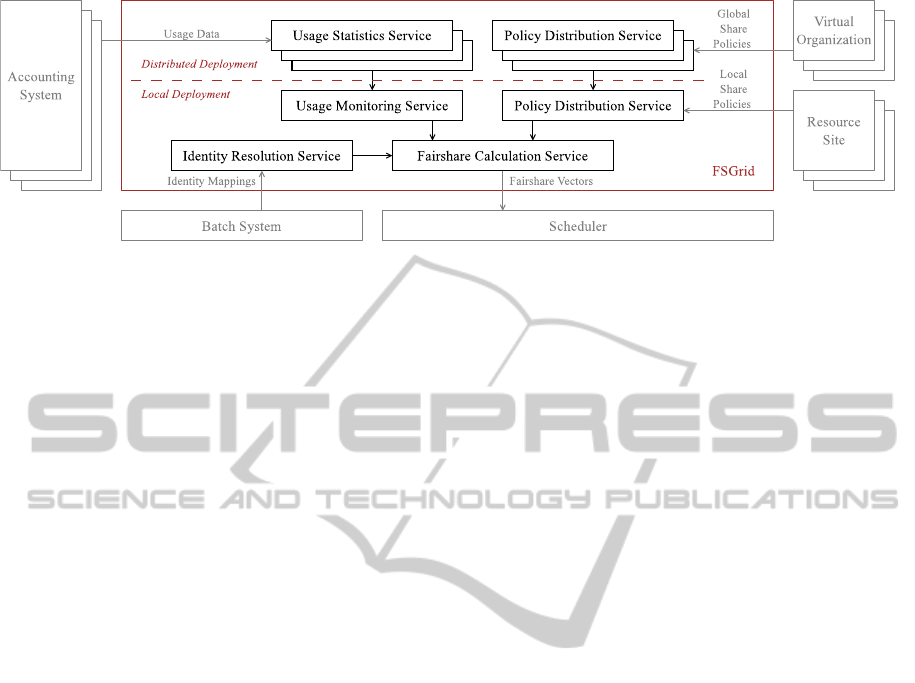

Figure 3: FSGrid, a scheduler-based fairshare job prioritization framework for Grid environments built as a distributable set

of services. Illustration from (

Ostberg et al., 2011).

roth, 2011) illustrates that organization of services

in hierarchical layers allows the GJMF to mask ser-

vice communication overhead through parallel task

processing. Local call optimizations signiﬁcantly re-

duce communication overhead and container load for

inter-service communication. The service structure

abstracts use of local call optimizations and allows

optimizations to be ubiquitous and transparent.

Compared to GJMF development, the FSGrid

project beneﬁts from use of SDAT in reduction of

service interface implementation complexity. FSGrid

development cycles are shorter, and use of ASDL and

SDAT facilitates experimentation in architecture de-

sign. FSGrid beneﬁts from use of SDAT in com-

partmentalization and reduction of complexity in ser-

vice logic implementation. The proposed develop-

ment methodology provides GJMF and FSGrid archi-

tecture and component level reconﬁgurability, adap-

tivity, and ﬂexibility. The SDAT abstracts service de-

velopment and facilitates porting of core system func-

tionality to alternative service platforms.

Impact of the proposed methodology on the in-

ternal quality of produced software can be evaluated

through, e.g., evaluation of the maintainability and

cohesion of service interfaces (Perepletchikov et al.,

2010). Study of the impact of SDAT on the quality of

GJMF and FSGrid is subject for future work.

7 CONCLUSIONS

In this paper we address software development prac-

tices for eScience applications and infrastructure. We

discuss service-based software development in Grid

and Cloud computing environments and identify a set

of current software development issues, e.g., com-

plexity and lack of ﬂexibility in service development

tools. To address these issues, we propose a SOA-

based software design methodology constituted by a

set of architecture design guidelines, a component de-

sign model, and a toolset designed to abstract service

development complexity. The approach is illustrated

and evaluated in a case study of experiences from two

recent software development projects.

Our design approach aims to produce software

architectures that are ﬂexible in deployment, reduce

need for complex distributed state synchronization,

and facilitate distribution and parallelization of sys-

tem tasks. The component model isolates service

components in standalone modules, exposes function-

ality as services and customizable plug-ins, and com-

partmentalizes platform-speciﬁc service interface and

invocation code. The toolset is designed to support

the design methodology through abstraction of de-

velopment complexity and facilitation of ﬂexibility in

service development, deployment, and utilization. A

simpliﬁed service description language abstracts ser-

vice interface and type description complexity.

Experiences from recent software development

projects illustrate the need for structured development

models for Service-Oriented Architectures. The hier-

archical structure of the GJMF allows the framework

to dynamically function as several types of job man-

agement interfaces simultaneously as well as mask

service invocation overhead. Building the system as

a network of services allows FSGrid to deploy com-

ponents close to data and computations as well as

provide more ﬂexible interfaces for scheduler integra-

tion. The design approach provides both systems with

increased ﬂexibility in development and deployment.

Use of the SDAT toolset abstracts service develop-

ment complexity and provides FSGrid a component

model that supports dynamic reconﬁguration and en-

capsulation of platform-speciﬁc service functionality.

ACKNOWLEDGEMENTS

The authors extend their gratitude to the anonymous

reviewers, Deb Agarwal, and Vladimir Vlassov for

CLOSER 2011 - International Conference on Cloud Computing and Services Science

248

valuable feedback that has contributed to the qual-

ity of this paper. This work is funded in part by

the Swedish Research Council (VR) under Contract

621-2005-3667, the Swedish Government’s strategic

research project eSSENCE, and the European Com-

munity’s Seventh Framework Programme (FP7/2001-

2013) under grant agreement 257115 (OPTIMIS).

The authors acknowledge the Lawrence Berkeley Na-

tional Laboratory (LBNL) for supporting the project

under U.S. Department of Energy Contract DE-

AC02-05CH11231.

REFERENCES

Apache Web Services Project - Axis2 (2011). http://

ws.apache.org/axis2, February 2011.

Arsanjani, A., Ghosh, S., Allam, A., Abdollah, T., Ganapa-

thy, S., and Holley, K. (2010). SOMA: A method for

developing service-oriented solutions. IBM Systems

Journal, 47(3):377–396.

Cervantes, H. and Hall, R. (2004). Autonomous adaptation

to dynamic availability using a service-oriented com-

ponent model. In Software Engineering, 2004. ICSE

2004. Proceedings. 26th International Conference on,

pages 614 – 623.

Curbera, F., Ferguson, D., Nally, M., and Stockton, M.

(2005). Toward a programming model for service-

oriented computing. In Benatallah, B., Casati, F., and

Traverso, P., editors, Service-Oriented Computing -

ICSOC 2005, volume 3826 of Lecture Notes in Com-

puter Science, pages 33–47. Springer Berlin / Heidel-

berg.

Elmroth, E., Hern

andez, F., Tordsson, J., and

Ostberg, P.-

O. (2008). Designing Service-Based Resource Man-

agement Tools for a Healthy Grid Ecosystem. In

Wyrzykowski, R. et al., editors, Parallel Processing

and Applied Mathematics, Lecture Notes in Computer

Science, vol. 4967, pages 259–270. Springer-Verlag.

Elmroth, E., Holmgren, S., Lindemann, J., Toor, S., and

Ostberg, P.-O. (to appear, 2011). Empowering a Flex-

ible Application Portal with a SOA-based Grid Job

Management Framework. In The 9th International

Workshop on State-of-the-Art in Scientiﬁc and Paral-

lel Computing.

Elmroth, E. and

Ostberg, P.-O. (2008). Dynamic and

Transparent Service Compositions Techniques for

Service-Oriented Grid Architectures. In Gorlatch, S.,

Fragopoulou, P., and Priol, T., editors, Integrated Re-

search in Grid Computing, pages 323–334. Crete Uni-

versity Press.

Escofﬁer, C., Hall, R. S., and Lalanda, P. (2007). iPOJO: an

Extensible Service-Oriented Component Framework.

Services Computing, IEEE International Conference

on, 0:474–481.

Foster, I. (2005). Globus toolkit version 4: Software for

service-oriented systems. In Jin, H., Reed, D., and

Jiang, W., editors, IFIP International Conference on

Network and Parallel Computing, LNCS 3779, pages

2–13. Springer-Verlag.

Jayawardena, M., Nettelblad, C., Toor, S.,

Ostberg, P.-

O., Elmroth, E., and Holmgren, S. (2010). A Grid-

Enabled Problem Solving Environment for QTL Anal-

ysis in R. In In Proceedings of the 2nd International

Conference on Bioinformatics and Computational Bi-

ology (BICoB), pages 202–209. ISCA.

Kephart, J. O. and Chess, D. M. (2003). The Vision of Au-

tonomic Computing. Computer, 36:41–50.

Lau, K.-K., Velasco Elizondo, P., and Wang, Z. (2005).

Exogenous connectors for software components. In

Heineman, G. T., Crnkovic, I., Schmidt, H. W.,

Stafford, J. A., Szyperski, C., and Wallnau, K., ed-

itors, Component-Based Software Engineering, vol-

ume 3489 of Lecture Notes in Computer Science,

pages 90–106. Springer Berlin / Heidelberg.

Lau, K.-K. and Wang, Z. (2007). Software component

models. Software Engineering, IEEE Transactions on,

33(10):709 –724.

Lindemann, J. and Sandberg, G. (2005). An extendable

GRID application portal. In European Grid Confer-

ence (EGC). Springer Verlag.

Lowy, J. (2005). Programming .NET Components, 2nd Edi-

tion. O’Reilly Media, Inc.

OSGi (2011). http://www.osgi.org, February 2011.

Ostberg, P.-O. and Elmroth, E. (submitted, 2010).

GJMF - A Composable Service-Oriented Grid Job

Management Framework. Preprint available at

http://www.cs.umu.se/ds.

Ostberg, P.-O. and Elmroth, E. (submitted, 2011). Impact of

Service Overhead on Service-Oriented Grid Architec-

tures. Preprint available at http://www.cs.umu.se/ds.

Ostberg, P.-O., Henriksson, D., and Elmroth, E. (sub-

mitted, 2011). Decentralized, Scalable, Grid Fair-

share Scheduling (FSGrid). Preprint available at

http://www.cs.umu.se/ds.

Peltz, C. (2003). Web Services Orchestration and Choreog-

raphy. Computer, 36(10):46–52.

Perepletchikov, M., Ryan, C., and Tari, Z. (2010). The

impact of service cohesion on the analyzability of

service-oriented software. IEEE Transactions on Ser-

vices Computing, 3:89–103.

Spring Framework (2011). http://www.springsource.org,

February 2011.

Yang, J. and Papazoglou, M. P. (2004). Service compo-

nents for managing the life-cycle of service compo-

sitions. Information Systems, 29(2):97 – 125. The

14th International Conference on Advanced Informa-

tion Systems Engineering (CAiSE*02).

INCREASING FLEXIBILITY AND ABSTRACTING COMPLEXITY IN SERVICE-BASED GRID AND CLOUD

SOFTWARE

249
