OVERCAST SKIES

What Cloud Computing Should Be?

Mark Wallis, Frans Henskens and Michael Hannaford

Distributed Computing Research Group, School of Electrical Engineering and Computer Science

University of Newcastle, Callaghan, NSW, Australia

Keywords:

Cloud computing, Enterprise service bus, Web engineering, Client computing.

Abstract:

From an consumer perspective the Cloud is opaque. Online storage and the rise of web applications are

changing the way users work. There continues though to be no distinction from a user experience point of view

between accessing a Cloud-based application and accessing a web application deployed on a classic server. We

propose a new paradigm for online application development which takes the best from web applications, thick

client applications and the new ”application store” market. This approach expands the cloud to encompass all

resources that belong to a user; be it local client resources or server-farm resources procured using a traditional

cloud model. By implementing these concepts we can bring the beneﬁts of cloud computing directly to the

end user while breaking developers out of the conﬁnes of the web browser.

1 INTRODUCTION

From a consumer perspective, the Cloud (Boss et al.,

2007) is opaque. The web browser provides the soli-

tary interface between the user and the application.

Application developers are moving to web application

models to take full advantage of the beneﬁts that cloud

computing provides. This has forced the end user ex-

perience into the web browser where security (Web-

Devout, 2009) and usability continue to be a con-

cern. While technologies such as HTML5 (Coursey,

2009) attempt to address the growing pains of the web

browser, they appear to be destined to encounter early

adoption issues (Krill, 2010).

Thick client applications have a history of provid-

ing stable and secure end-user experiences, but lack

such beneﬁts as rapid deployment and single support

platform. A new trend towards ”application store”

platforms does attempt to address some of the tradi-

tional issues with thick client deployment. In review,

it is obvious that there are beneﬁts from each of these

three deployment styles.

We propose a new paradigm for component-based

software engineering. The paradigm takes advantage

of each of the three historical application deployment

methodologies. A truly component-based system al-

lows us to expand the concept of the cloud to encom-

pass all resources to which a user has access. In turn,

the user experience can break outside of the web br-

owser into process-based user-interface components

while maintaining the beneﬁts of dynamic patching

and ease-of-deployment.

This new global component-based design ad-

dresses some of the published concerns with cloud

computing, which are delaying wide-spread adoption.

We show that issues such as compliance and security

in the cloud can be addressed by designing our appli-

cations in a component fashion based around a global-

scale component service bus.

2 PROBLEM DESCRIPTION

The competition between web application and tradi-

tional thick client applications has largely been de-

cided. The web application is now seen as a viable

deployment methodology that provides many bene-

ﬁts over the traditional thick client approach. While

web applications are thriving, especially in the cloud,

a number of key issues remain;

• Security concerns about user data in the cloud

continue to stiﬂe uptake. Concerns that revolve

around end-user privacy, transparency and com-

pliance are key (Buyya et al., 2009; Newman,

2009).

• The user experience is limited by the virtual en-

vironment provided within the web browser. Web

Wallis M., Henskens F. and Hannaford M..

OVERCAST SKIES - What Cloud Computing Should Be?.

DOI: 10.5220/0003390900730078

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 73-78

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Browsers are not able to provide full feature-rich

user interfaces whereas traditional thick client ap-

plications can be implemented using a wide range

of interface features.

• Application development in a cloud environment

is still prone to vendor lock-in issues due to a lack

of common application programming interfaces

(Brandel, 2009)

Issues such as these have led to continued use of

thick client applications. In addition, we are seeing

adoption of a new model revolving around ”Applica-

tion Stores”. These application stores provide a way

for thick clients to be easily deployed and updated

on end-user devices. Unfortunately, each application

store to-date has been limited to a single platform. No

common abstraction has been developed that allows

applications to execute across multiple platforms, dis-

tributed by multiple stores. Application stores present

a move away from large integrated software pack-

ages to smaller, function-speciﬁc applications. These

small fat client applications provide service-style, sin-

gle purpose, functionality. Another deﬁning point is

that application stores are generally controlled by the

hardware vendor for the device to which they relate.

It has been proposed that this tight relationship pro-

vides a level of quality control, but often it has been

critized as a way of limiting innovation and control-

ling the user (Kaneshige, 2010).

The three main application development and de-

ployment approaches - web application, thick ap-

plication and application store all have well docu-

mented issues (Kaneshige, 2010; Gilbertson, 2007).

These represent a hindrance to adoption of a single

consolidated approach. We propose a new global

component-based paradigm, which takes the best

from all three models, while addressing key concerns

found in the areas of Web 2.0, user experience and

cloud computing.

3 EXISTING FRAMEWORKS

There are many distributed component-based frame-

works that aim to resolve key points raised in the

above problem description.

The .NET framework and corresponding Azure

(Microsoft, 2009) cloud computing platform present

a component-based environment for code execution.

A key failing with the .NET approach is the lack of

global scale and open protocol. Non .NET compo-

nents must use bridges to access the .NET environ-

ment and transparent migration of components across

WANs is not supported.

Component migration and location transparency

is a feature of the OMG’s CORBA (Object

Management Group, 2004) component technology.

Again, CORBA fails to scale to a global environ-

ment in which objects housed in multiple virtual

clouds discover/locate each other and exchange mes-

sages. Many technologies and concepts from within

CORBA have been leveraged in our new proposed

framework.

Web Services and the traditional Service-

Orientated Architectures (Bell, 2008) approaches

also address issues relevant to this paper. Web

Services rely on DNS names for transparency and

component locality functions are restricted to discov-

ery services and ill-deﬁned service speciﬁcations.

The web browser itself can be viewed as a dis-

tributed execution platform, especially due to recent

developments in web browser ’plugin’ and ’exten-

sion’ technology. Enhancements to the web browser

model to support a lower-level of component exe-

cution have been suggested (Henskens and Ashton,

2007) and may provide a stepping stone for a com-

plete component-based solution.

In Section 4 we present a truly global component-

based architecture, which builds on lessons learnt

from the above technologies.

4 COMPONENT-BASED

ARCHITECTURE

Component-based software engineering is not a new

concept. Component-based systems from a de-

sign perspective are commonly compared to Object-

Oriented approaches (Szyperski, 1997). The key

difference is that each component retains its own

execution thread within the system. By taking a

component-based approach to application develop-

ment we can clearly deﬁne each application as a set

of components. These components do not need to

all execute within the one run time environment. The

application developer may deﬁne one group of com-

ponents as server-components and have them execute

within a traditional remote cloud environment. An-

other group may be client-components that execute

on end-user devices, outside of a sandbox such as the

web browser. Some components are deﬁned as data

storage components and are in charge of persisting ap-

plication information. There is no need for all appli-

cation data to be stored by a single component using

this approach. For example, the design allows a user

to instantiate different storage components for private

and public data.

Such a component-based system requires technol-

CLOSER 2011 - International Conference on Cloud Computing and Services Science

ogy that allows components to locate and commu-

nicate with each other. While technologies such as

CORBA and SOA address some of these require-

ments, no existing system can scale to a global model.

The quest for a global model leads us to Cloud Com-

puting.

4.1 Cloud Computing

Currently, the Cloud encompasses processing and

storage resources within one or more data centres.

The Cloud is opaque to the end-user with the inter-

nal resources being hidden. Taking this traditional

cloud approach excludes incorporation of end-user re-

sources. Despite this, there are many beneﬁts that the

Cloud can provide. Dynamic resource scaling, rapid

deployment and abstraction of resources are all key

to a global deployment model. Bringing together a

component-based design with the inclusion of client

based resources within a cloud environment provides

a powerful, global approach to application develop-

ment.

A key aspect of this expanded cloud concept re-

lates to the end-user’s perspective of the system. Cur-

rently, any processing or data storage that occurs on

the local PC is seen as being ’my data’. When mov-

ing to a cloud computing based model this distinction

is blurred as the end-user is seen as giving their data

and processing away to a 3rd party system. This rep-

resents a loss of control, transparency and trust in the

overall system. Applications in the cloud, and in Web

2.0 in general, are also tailored to suit the general user

base. Traditional thick client applications, in contrast,

can be conﬁgured for that speciﬁc end-user.

By expanding the boundaries of the cloud (Wal-

lis et al., 2010b) to encompass all resources available

to the user we can extend deployment of the applica-

tion components to include client devices and work-

stations. This creates a ’virtual cloud’, for each user,

which surrounds all resources that the user can ac-

cess - be they local computing resources or remote

server resources. Users essentially become part of the

cloud with full control over where data is stored and

processing takes place. Speciﬁc components of ap-

plications can be tailored and even replaced to suit

end-user speciﬁc needs. Each component has its own

execution thread, which ensures that the end-user sees

the executing application as ’my application’, as com-

pared to a multi-tenant shared instance.

To bring this concept to the end-user requires

a new component-based system that can extend the

boundaries of the cloud and give processing and con-

trol back to the end-user.

4.2 The New Paradigm

Figure 1 shows the current model of cloud computing

in which the user and their workstation/device is ex-

ternal to the cloud. Notice that the role of the worksta-

tion/device in this model is as an input/output device

only. Figure 2 depicts the enhanced model in which

the users’ resources are brought into the cloud, allow-

ing components of applications to execute across all

available resources.

Figure 1: Existing Cloud Computing Model.

Figure 2: Expanded Cloud Concept.

Application developers can release updates at a

component level, and share versioned components

between applications. Components can be listed as

mandatory and pre-loaded onto client devices when

an application is purchased. These techniques allow

for an application store approach to deployment while

retaining the openness of a traditional thick client

platform.

At a high-level, the following key advances can be

expected for a global component-based model:

OVERCAST SKIES - What Cloud Computing Should Be?

• Local data storage of sensitive data while retain-

ing web application access to the data for process-

ing.

• Component level application patching which will

allow application developers to push out updated

code in a distributed manner, retaining many of

the deployment beneﬁts found with existing web

applications.

• Distributed execution will allow unused resources

in a user’s local environment to be consumed by

processor-intensive and storage-intensive compo-

nents.

• Component mobility will allow users to move

components from system to system as required.

• User interaction to the application is abstracted as

a graphical user interface (GUI) component and

is deployed into the system in the same manner as

other application components.

• Existing technology such as web browsers can be

wrapped in component shells and executed within

the new web platform environment providing a

large amount of reuse of existing technology.

5 INTER-COMPONENT

COMMUNICATION

To provide a global communication backbone for

these components an extension to the classic enter-

prise service bus is required. A hierarchical de-

ployment of multiple buses will allow components

in LANs to communicate with a single bus, while

buses can communicate in a hierarchical fashion to

pass inter-component messages across WANs and in-

ternets. This model allows inter-cloud communica-

tion and treats each cloud as a logical LAN in a global

internet. A service bus also facilitates inter-language

and inter-platform communication. This allows com-

ponents within an application to be developed using

distinct languages. For instance, the developer may

decide to implement a user interface component in

native C++/OpenGL while implementing data storage

using J2EE. The service bus will handle the commu-

nication between those components and provide any

required data transformations.

A service bus architecture also allows for com-

ponent mobility. Combined with abstraction on the

run time environment, this allows for components to

migrate from one processing resource to another in

a transparent fashion without losing connectivity to

other components within the application. It is fore-

seeable that user-interface components could migrate

from device to device without losing state or connec-

tivity to the system.

Security is implemented at the service bus layer,

inspecting all messages between components. Inter-

cloud communication also occurs through publish ser-

vice bus endpoints and as such allows the bus to val-

idate all external requests. Public-key cryptography

and existing trust-relationships have be leveraged to

provide request signing and validation functions.

Client-side bi-directional connectivity will be re-

quired and hence provisions have to be made to ad-

dress such end-user technology blockers as NAPT.

Previous research (Wallis et al., 2007) provides a dy-

namic technique for addressing such issues in a IPv4

setting. The introduction of IPv6 (Deering and Hin-

den, 1998) will also assist in addressing this issue due

to the removal of NAT and translation layers.

6 DATA STORAGE

A key focus of this research is data storage within

the web/cloud environment. Previous research (Wal-

lis et al., 2010c; Wallis et al., 2010a) has presented

a solution to the issues surrounding data duplication,

data freshness and data ownership online. The more

data stored by web applications the greater these con-

cerns become. By making data storage a resource

within each user’s virtual cloud we can move the onus

of data storage away from the application and back to

the data owner.

Our previous research presents a model for data

storage which has the end-user being responsible for

the storage of their own personal information. Web

applications can broker access to this data and present

it to 3rd parties in a transparent fashion using au-

thentication tokens based on protocols such as SAML

(OASIS, 2007). Figure 3 depicts this approach.

Taking this approach to a component-based sys-

tem allows these data storage services to become

components addressed within each user’s virtual

cloud. High-risk information such as date of birth and

credit card numbers can be stored on private data stor-

age services managed directly by the end-user, while

public information such as photo libraries and blog

entries can be stored on less-secure infrastructure. By

connecting these data storage services to a common

communication bus it allows each service to be ac-

cessed transparently by any services requiring access

to this information. Requests from 3rd party com-

ponents outside of the user’s domain (such as a mer-

chant requesting access to a credit card number) can

be tightly controlled and validated by the service bus

before making it to the data storage service for further

CLOSER 2011 - International Conference on Cloud Computing and Services Science

validation.

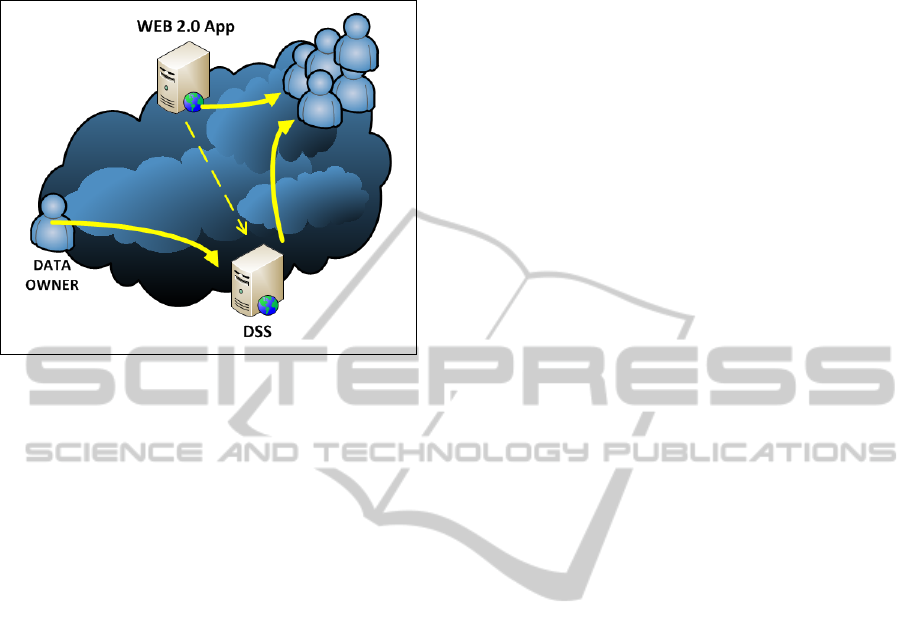

Figure 3: Data Storage Service model.

7 IMPLEMENTATION

To prove the model presented by this new paradigm,

an implementation that focuses on the following key

issues has been created:

• Application design and deﬁnition.

• Component deployment, installation and updat-

ing.

• Component locality and mobility.

• Inter-component communication.

A focus has been placed on providing an open API

for the component-based system, which allows cloud

vendors and operating system designers to adopt the

model at a core level. This provides a common infras-

tructure across both local and remote resources and

addresses many of the vendor and technology lockin

issues that continue to stiﬂe cloud adoption.

This proof of concept implementation will be

used to prove the model is providing a step for-

ward beyond what is capable with existing technolo-

gies. A generic set of applications will be devel-

oped across all four application approaches - web ap-

plication, thick application, application-store and the

new global component-based model. Metrics will

then be collected around data transfer, user interface

response and general performance before a feature-

comparison is completed to review non-function re-

quirements such as ease of development and deploy-

ment.

The current implementation is focused on execut-

ing components developed in the Java programming

language. The actual execution environment for the

components is generic as long as the components can

obtain access to the service bus communication back-

bone. The API being developed as part of this re-

search does not limit the application developer to any

speciﬁc language or framework as long as the API is

adhered to and communication with the service bus is

possible.

8 CONCLUSIONS AND FUTURE

WORK

This new paradigm continues to be an open project

with a key emphasis being placed on providing an

open API for discussion within the cloud and software

engineering community. The concept of deﬁning an

application as a series of components where those

components can be deployed on a global scale with

high levels of transparency is novel and non-trivial.

This research will provide a platform that addresses

this issue while also providing for future application

development, which does not limit the developer to

the conﬁnes of a single runtime environment.

For cloud computing this new approach opens up

the resources of the client for use by the cloud. Clouds

will no longer encompass data centres, but instead,

surround all resources belonging to a single user or

corporation. These virtual clouds can communicate

through well-deﬁned service bus entry points, which

logically ﬁrewall one cloud from another.

Open issues such as how to allow the application

developer to deﬁne where each component should ex-

ecute need to be addressed. While maximum ﬂexi-

bility is ensured, it is unreasonable to expect the end-

user to be able to direct components to resources in a

micro-managed fashion. Generic application proﬁles

can address these issues in a fashion that still allows

power-users full control of their resources.

Adoption of the API being developed as part of

this work can be used to help facilitate inter-cloud

communication and break the user away from a web-

browser based experience. Operating Systems have

been providing rich user experiences for years at a

native level without an abstraction such as the web

browser. The presented technology allows for native

execution of user interfaces while retaining all of the

beneﬁts of a dynamic web application. By moving out

of the web browser to a component-based model we

can help address some of the security concerns raised

in the web browser space which have been caused by

the rapid evolution of the browser far beyond its orig-

inal intention.

OVERCAST SKIES - What Cloud Computing Should Be?

REFERENCES

Bell, M. (2008). Introduction to Service-Oriented Mod-

eling, Service-Oriented Modeling: Service Analysis,

Design, and Architecture. Wiley and Sons.

Boss, G., Malladi, P., Quan, D., Legregni, L.,

and Hall, H. (2007). Cloud computing.

http://download.boulder.ibm.com/ibmdl/pub/software

/dw/wes/hipods/Cloud computing wp ﬁnal 8Oct.

pdf.

Brandel, M. (2009). The trouble with cloud: Vendor lock-

in. CIO.com.

Buyya, R., Yeo, C. S., Venugopal, S., Broberg, J., and

Brandic, I. (2009). Cloud computing and emerging

it platforms: Vision, hype, and reality for delivering

computing as the 5th utility. Future Generation Com-

puter Systems, 25(6):599 – 616.

Coursey, D. (2009). Html5 could be the os killer. PCWorld

Business Centre.

Deering, S. and Hinden, R. (1998). Rfc 2460 - internet pro-

tocol, version 6. Technical report, Network Working

Group.

Gilbertson, S. (2007). Jakob nielsen on web 2.0: ”glossy,

but useless”. Wired Magazine.

Henskens, F. A. and Ashton, M. G. (2007). Graph-based

optimistic transaction management. Journal of Object

Technology, 6(6):131–148.

Kaneshige, T. (2010). Apple iphone kill switch: Can cios

trust apple ? cio.com.

Krill, P. (2010). W3c: Hold off on deployment html5 in

websites. InfoWorld.

Microsoft (2009). Microsoft azure. http://www.microsoft.

com/windowsazure/.

Newman, H. (2009). Why cloud storage use could be lim-

ited in enterprises. Enterprise Storage Forum.

OASIS (2007). Security assertion markup language (saml)

v2.0 technical overview. Technical report, Working

Group.

Object Management Group (2004). Common Object Re-

quest Broker Architecture: Core Speciﬁcation.

Szyperski, C. (1997). Component Software: Beyond

Object-Oriented Programming. Addison-Wesley Pro-

fessional.

Wallis, M., Henskens, F. A., and Hannaford, M. R. (2007).

A system for robust peer-to-peer communication with

dynamic protocol selection. The 8th International

Conference on Parallel and Distributed Computing,

Applications and Technologies (PDCAT).

Wallis, M., Henskens, F. A., and Hannaford, M. R. (2010a).

A distributed content storage model for web appli-

cations. In The Second International Conference on

Evolving Internet (INTERNET-2010).

Wallis, M., Henskens, F. A., and Hannaford, M. R. (2010b).

Expanding the cloud: A component-based archi-

tecture to application deployment on the internet.

In IEEE/ACM International Symposium on Cluster,

Cloud and Grid Computing (CCGrid).

Wallis, M., Henskens, F. A., and Hannaford, M. R. (2010c).

Publish/subscribe model for personal data on the in-

ternet. In 6th International Conference on Web In-

formation Systems and Technologies (WEBIST-2010).

INSTICC.

WebDevout (2009). Web browser security statistics,

http://www.webdevout.net/browser-security. WebDe-

vout.

CLOSER 2011 - International Conference on Cloud Computing and Services Science
