HYBRID INFRASTRUCTURE AS A SERVICE

A Cloud-oriented Provisioning Model for Virtual Hosts and Accelerators in

Hybrid Computing Environments

Thomas Grosser, Gerald Heim, Wolfgang Rosenstiel

University of T¨ubingen, Computer Engineering Department, T¨ubingen, Germany

Utz Bacher, Einar Lueck

IBM Deutschland Research & Development GmbH, Ehningen, Germany

Keywords:

Hybrid computing, Hybrid infrastructure, HyIaaS, Mainframe, Accelerators, Logical system modeling.

Abstract:

State of the art cloud environments lack a model allowing the cloud provider to leverage heterogeneous re-

sources to most efﬁciently service workloads. In this paper, we argue that it is mandatory to enable cloud

providers to leverage heterogeneous resources, especially accelerators, to optimize the workloads that are

hosted in accordance with the business model. For that we propose a hybrid provisioning model that builds on

top of and integrates into state of the art model-driven provisioning approaches. We explain how this model

can be used henceforth to handle the combinatoric explosion of accelerators, fabrics, and libraries and discuss

how example workloads beneﬁt from the exploitation of our model.

1 INTRODUCTION

Large data centers consist of many machines and var-

ious architectures. Virtualization is widely used to en-

able abstraction from hardware and provide isolation

of systems and its data, as well as driving utilization

of resources to achieve cost-effective data process-

ing. Moreover, special-purpose hardware becomes

popular to increase processing efﬁciency. The cloud

paradigm has been accepted by data centers for ﬁne-

grained billing of customers. We propose to extend

the cloud provisioning model towards heterogeneous

collections of resources, which delivers Hybrid In-

frastructure as a Service (HyIaaS for short). This

leverages cost-effectiveness across all involved sys-

tems and special-purpose resources. In hybrid infras-

tructure services, accelerator resources can be shared,

thereby increasing utilization of such attachments.

Accelerator sharing is abstracted in the infrastructure,

so that accelerator software runtime components do

not need to be aware of any level of virtualization.

Business data is typically processed by robust,

centralized systems, implemented on server farms or

mainframes. Especially mainframes come with so-

phisticated reliability, availability, and serviceability

capabilities (RAS). The strengths of such systems are

efﬁcient processing of transactional, data-intensive,

and I/O-intensive workloads. On the other hand, com-

pute and data-intensive workloads in the ﬁeld of high

performance computing (HPC) demand for additional

compute resources. In order to move to hybrid sys-

tems, additional management functionality must be

incorporated. As an example, the latest Mainframe

IBM zEnterprise (IBM, 2010b) is extended with racks

full of blades, which can be used as accelerators

or appliances. The Uniﬁed Resource Manager run-

ning on the Mainframe provides common manage-

ment across the system complex. Moreover, the ﬁrst

supercomputer to reach a peak performance of over

one petaﬂops was the supercomputer built by IBM at

the Los Alamos National Laboratory (LANL) (Koch,

2008). This setup is also a hybrid system, consisting

of two different processor architectures. In this paper,

we envision that cloud-oriented hybrid infrastructure

provisioning services will become common practice

in the future. Thereby, we discuss multi-tenant access

and a consolidated programmer’s view that allows ab-

straction from the underlyinginterconnect in a hetero-

geneous data center. With upcoming implementations

of the proposed model it will be possible to evaluate

the feasibility of our approach.

170

Grosser T., Heim G., Rosenstiel W., Bacher U. and Lueck E..

HYBRID INFRASTRUCTURE AS A SERVICE - A Cloud-oriented Provisioning Model for Virtual Hosts and Accelerators in Hybrid Computing

Environments.

DOI: 10.5220/0003391001700175

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 170-175

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

In the course of hybrid system exploration we are

working on two applications, which are outlined in

this section, and will be used later in this paper to ex-

emplify the application of the proposed model. The

ﬁrst application under investigation implements ac-

celeration of compute-intensive tasks for insurance

product calculations (Grosser et al., 2009). Compute-

intensivetasks are executed by network-attached IBM

POWER blades. Acceleration is achieved through

leveraging parallelism and calculating insurance al-

gorithms by just-in-time compiled code snippets on

the attached blades. Requirements towards availabil-

ity are met by tightly controlling execution from the

host’s off-loading facility.

The second application scenario focuses on nu-

meric and data-intensive calculations of seismic mod-

eling problems. Seismic algorithms are parallelized

on various types of accelerators, each having its

advantages and disadvantages (Clapp et al., 2010).

FPGAs can be exploited efﬁciently, by implement-

ing pipeline-based stream processing architectures.

Besides FPGAs, we also investigate in CPU SIMD

processing, threads, MPI, and OpenCL. By using

OpenCL we are moreover able to evaluate multiple

architectures, like different types of CPUs and GPUs.

The focus of this application is to have a broad range

of accelerators and programming environments, in or-

der to evaluate different compositions of a hybrid sys-

tem and its resulting performance.

3 PROBLEM STATEMENT

In the cloud computing anatomy there are three lay-

ers to deliver infrastructure, platform, and software as

a service, i.e. IaaS, PaaS, and SaaS, respectively (Va-

quero et al., 2008). To service infrastructure, phys-

ical deployment methods are used to implement the

established cloud services. Infrastructure deployment

methods are realized using model-based approaches,

which enable abstraction from the underlying hard-

ware. Today, no cloud provisioning models exist for

offering multiple adapted accelerator environments

complexity is imposed on the administrator to build

workload optimized solutions based on resources of

various types and architectures. A composite system

built from host resources, connectivity, and accelera-

tor resources needs to be provisioned as a single entity

in order to establish hybrid infrastructure. Abstrac-

tion of the physics allows for both accelerator sharing

Meanwhile, Amazon EC2 offers Nvidia-based GPU com-

pute racks (http://aws.amazon.com/ec2/hpc-applications/).

and ﬂexibility of the cloud service provider. Isolation

needs to be ensured to create a multi-tenancy capable

landscape.

Table 1 lists the manifoldness of an arbitrary het-

erogeneous data center. The table allows to create any

combination of host, accelerator, fabric, including the

desired programming platform.

Table 1: Each possible combination imposes challenges to

handle hosts and interrelationships to multiple accelerators.

In addition, the used library must be adapted to the under-

lying system and interconnect.

Host Accelerator Fabric Library

i386 Cell/B.E. Ethernet OpenCL

x86 64 GPGPU InﬁniBand MPI

s390 Cluster PCIe DaCS/ALF

POWER FPGA/DRP Myrinet SOAP

Itanium DataPower Quadrics CUDA

Manufacturers develop all kinds of multi-core

and many-core accelerators, each having its targeted

application domain. This includes, among others,

multi-core CPUs, GPGPUs, Cell/B.E., and FPGAs.

Arising standards for heterogeneous computing, like

OpenCL, enable to use GPGPUs for number crunch-

ing. An OpenCL implementation is provided, among

others, for Nvidia GPUs (NVIDIA, 2010), Cell/B.E.,

and POWER (IBM, 2010a). OpenCL enables easy

parallelization over a device’s compute units, exploit-

ing data-parallel computing power. In order to scale

an accelerated application, multiple devices must be

incorporated, thus additional management function-

ality is needed in the host code to queue opera-

tions efﬁciently. As another example, some appli-

cation domains ﬁt efﬁciently onto FPGAs, eventu-

ally forming appliances. Multiple access to these re-

sources must also be shared. Regarding the fabric,

in HPC, InﬁniBand may be preferred over Ethernet.

Traditional Ethernet networking allows to send mes-

sages, while InﬁniBand channel adapters also provide

RDMA capabilities. Also, Ethernet adapters may be

equipped with RDMA capabilities to reduce commu-

nication overhead, though. Unlike networking, PCIe

is an attachment approach where devices are accessi-

ble through the memory-mapped PCI address space.

Thus, the use of PCIe-attached accelerators is differ-

ent from network-attached ones. From an infrastruc-

ture point of view, there is a variety of available hosts,

available accelerators, fabrics, programming environ-

ments, frameworks, and libraries. In the following

sections, we introduce the model and discuss how ex-

ample workloads beneﬁt from hybrid infrastructure.

HYBRID INFRASTRUCTURE AS A SERVICE - A Cloud-oriented Provisioning Model for Virtual Hosts and

Accelerators in Hybrid Computing Environments

171

4 HYBRID PROVISIONING

MODEL

To achieve abstraction from the underlying hetero-

geneous data center, an object-relationship model is

used to deﬁne a logical system structure. By us-

ing this, host systems, compute nodes, and acceler-

ators are speciﬁed, including additional information

on their interrelationship. That is, in the logical view

the system is modeled consisting of hosts, accelera-

tors, and the connection. This enables to model con-

nectivity requirements between two nodes. Using this

representation, it is possible to create arbitrary logical

conﬁgurations of a hybrid system.

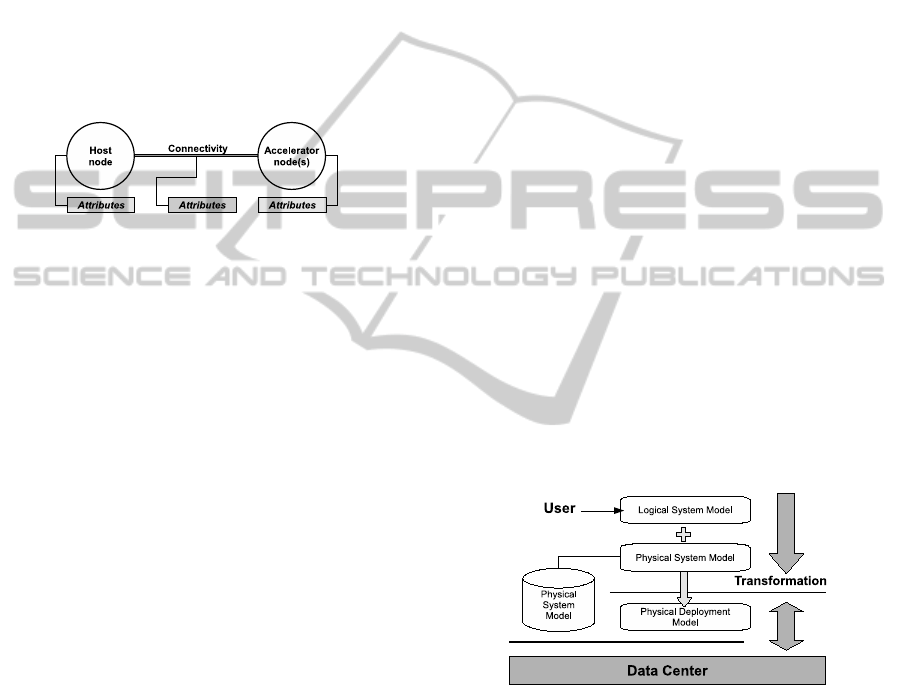

Figure 1: The logical system structure is built using an

object-relationship model.

The object-relationship model in ﬁgure 1 enables

cloud providers to implement the attributes according

to their particular business model. A cloud provider

with a very simple and homogeneous data center

could for example focus on a model that allows a

customer to specify attributes like number of CPUs,

memory, number of GPGPUs and required through-

put, regarding the interconnect. In contrast, another

cloud provider with a more advanced heterogeneous

data center allows the customer to specify the host

architecture including a speciﬁc accelerator architec-

ture, thereby offering various attributes. Attributes are

used to operate on multiple levels, i.e. to reﬂect physi-

cal attributes, business goals, deployment constraints,

and performance requirements.

The use of a model as abstraction allows trans-

formations to generate physical deployment conﬁg-

urations. In this section, we study model-based ap-

proaches that are used to deploy physical systems us-

ing automated processes. Based on this, we propose

a model ﬂow to handle hybrid systems. To service

Hybrid Infrastructure as a Service, we claim that ac-

celerator resources are connected to the host system

and appear as fabric-attached devices in the infras-

tructure system. The idea is to provide a single re-

liable node instead of multiple individual nodes. To

accommodate multiple users, an accelerator sharing

model is discussed which allows to handle different

types of accelerators. According to our hybrid appli-

cation scenarios, considerations regarding the runtime

management are introduced as well.

4.1 libvirt on Linux

The model proposed in this section is intended to be

integrated as part of

libvirt

(Coulson et al., 2010)

on Linux-based systems in the future. We aim to use

libvirt

as part of our hybrid managementprototype,

as it allows to manage virtual machines, virtual net-

works, and storage. Adding extensions to

libvirt

may enable creation, attachment, and operation sup-

port of accelerators, forming hybrid infrastructure.

4.2 Prerequisites

Physical deployment is an automated process to ser-

vice connectivity, security, and performance. Model-

based approaches are used to service physical topol-

ogy designs according to transformation rules and

constraints. There are several approaches that can be

adapted to setup infrastructure in constrained environ-

ments (Eilam et al., 2004). The underlying object-

relationship model shown in ﬁgure 1 is used to repre-

sent logical resources including the components’ rela-

tionships. The ﬂow depicted in ﬁgure 2 represents the

transformation process to a physical deployment. The

user provides a Logical System Model that is trans-

formed to a Physical Deployment Model by using an

Physical System Model, which represents hardware

available in the data center. At each stage of the trans-

formation the model incorporates attributes represent-

ing business goals and conﬁguration dependencies.

Figure 2: The physical deployment includes VM creation,

network deployment, etc.

Using model-based approaches it is also possible

to deﬁne platform services and applications by sep-

arating business logic and IT deployment. Transfor-

mation rules are then used to create platform-speciﬁc

models from platform-independent models. Targeted

applications are service-oriented architectures with

Web service interfaces (Koehler et al., 2003). More-

over, frameworks for enhanced autonomic manage-

ment of distributed applications are enabled using

similar techniques (Dearle et al., 2004). The opti-

mal use of hardware in large heterogeneous data cen-

CLOSER 2011 - International Conference on Cloud Computing and Services Science

172

ters leads to distributed service management (Adams

et al., 2008). The proposed architecture uses de-

tailed knowledge about available resources including

resource interrelationships to achieve sharing. To im-

plement a reﬁnement process, the deployment is grad-

ually improved as the system communicates the cur-

rent status of the physical resources back into the

logical model to adjust further deployment conﬁgu-

rations. As in other model-based approaches, rules

and constraints are used during transformation which

are denoted as attributes in ﬁgure 1.

As model-based approaches are used to imple-

ment various services, such models can also be de-

ﬁned to provision cloud-oriented infrastructure. The

hardware of large heterogeneous data centers can be

shared to multiple users, thus improving overall uti-

lization of few specialized hardware. In order to fur-

ther move from heterogeneous to managed hybrid in-

frastructure deployment, it is crucial to deﬁne models

speciﬁc to accelerator management. This includes an

accelerator runtime, which can be serviced as part of

the hybrid infrastructure. The runtime is part of a soft-

ware stack to query, allocate, and operate accelerator

engines. Out-of-band monitoring may be used by the

cloud service provider to obtain capacity and utiliza-

tion data with respect to all resources in the hybrid

environment. According to user-speciﬁed goals, the

deployment of shared accelerator resources is conﬁg-

ured autonomously.

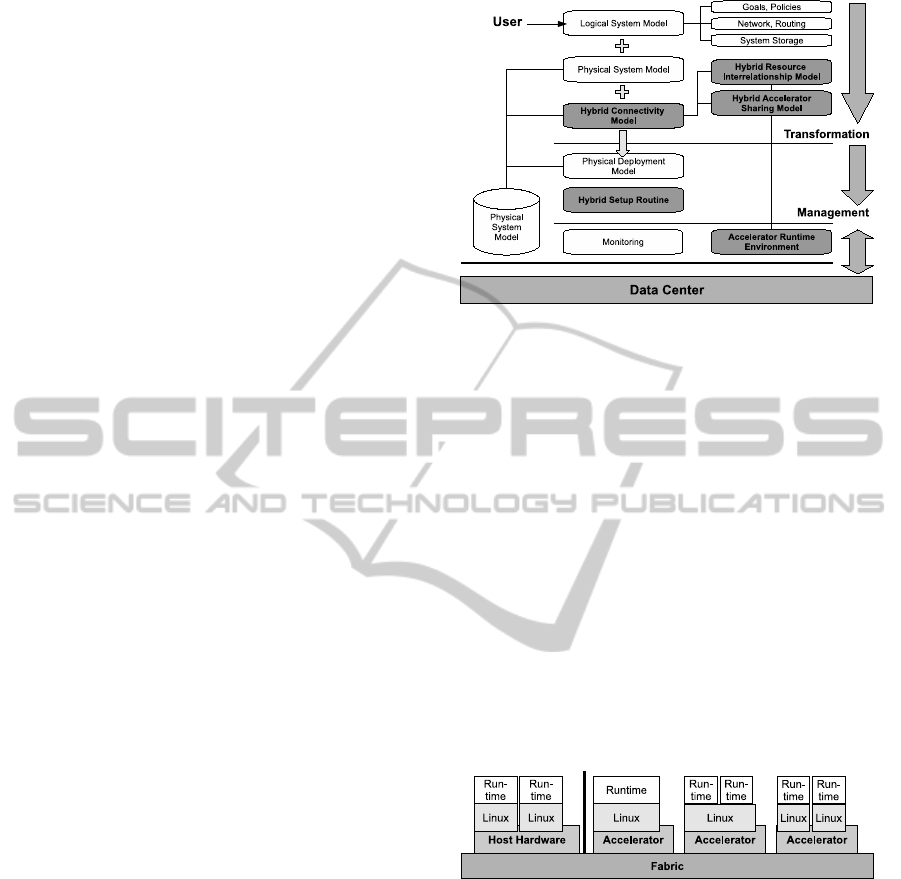

4.3 Proposed Hybrid Model Flow

In contrast to ﬁgure 2, the HyIaaS deployment ﬂow

uses additional models and methods (shaded gray), as

depicted in ﬁgure 3. The transformation requires an

additional Hybrid Connectivity Model in order to re-

ﬂect available fabrics in the data center. Attributes

include bandwidth and latency allowing implementa-

tion of Quality of Service. Besides the physical de-

ployment, a Hybrid Setup Routine is created, which

initializes and conﬁgures involved resources, i.e. cre-

ates the host node and enables connectivity to desig-

nated accelerators. As soon as the fabric is shared

between accelerator instances, isolation of the logi-

cal connectivity is included (e.g. via virtual LANs) to

avoid interference of other host or accelerator nodes.

Another essential part of our ﬂow is the Resource

Interrelationship Model, which can deﬁne limitations

and constraints used to set up the runtime environ-

ment or select connectivity and acceleration resources

by meeting performance requirements. In the remain-

der of this section, the Accelerator Sharing Model and

Accelerator Runtime Environment will be described

more detailed.

Figure 3: Hybrid Infrastructure as a Service ﬂow.

4.4 Accelerator Sharing Model

While virtualization can improve overall resource

utilization, the variety of accelerator architectures

imposes several challenges on sharing and multi-

tenancy. Figure 4 depicts three accelerators, each of-

fering hardware resource abstraction at different lev-

els. Virtualization offers entire virtual sets of ac-

celerator hardware, each instance running the entire

accelerator-resident software service stack. An exam-

ple for this level of virtualization is a Linux-based

accelerator framework running on general purpose

CPUs virtualized by a hypervisor. Not all sorts of

accelerators exhibit such mature virtualization capa-

bilities. Therefore accelerator sharing can also be

achieved on other levels by means of multi-tenancy

in the accelerator-resident software service stack.

Figure 4: Sharing of accelerators at different level.

In correlation to ﬁgure 4 the schemes for acceler-

ator abstraction and sharing include:

• Fully virtualized, using a hypervisor

• Time sharing, scheduling

• Queuing, with ordering and blocking

• Exclusive use of the accelerator

The sharing technique imposes implications to ef-

ﬁcient data handling. This includes data and cache

locality, scheduling, and connectivity to achieve ad-

equate performance and utilization. Multi-tenancy

of the accelerator service requires proper abstrac-

tion, which allows for isolation between different con-

HYBRID INFRASTRUCTURE AS A SERVICE - A Cloud-oriented Provisioning Model for Virtual Hosts and

Accelerators in Hybrid Computing Environments

173

sumers of virtual accelerators. Selection of the shar-

ing technique can be performed by the transformation

process of the HyIaaS ﬂow. It may be guided by per-

formance requirements as stated in the logical system

model deﬁned by the user. Selection of the accelera-

tor architecture can be made an attribute of the logi-

cal system model, or can be determined as part of the

transformation process, again guided by deﬁnitions of

the user.

4.5 Accelerator Runtime Environment

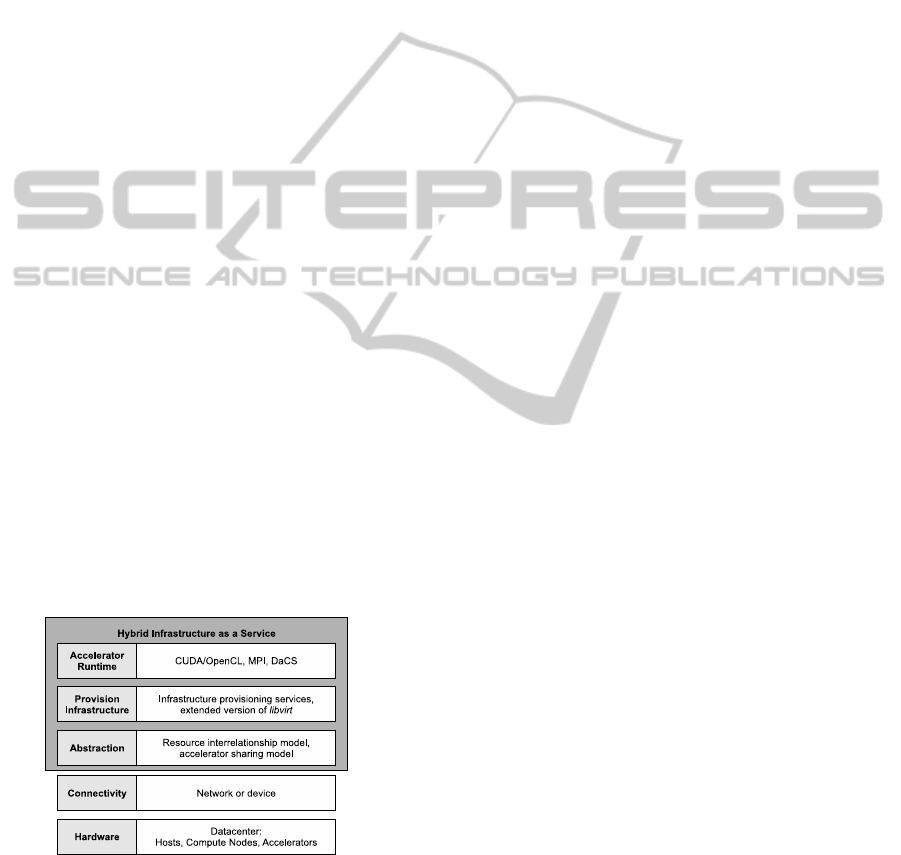

Figure 5 shows the individual layers of the HyIaaS

model, with the accelerator runtime as top layer. The

accelerator runtime environment can be provided by

the cloud service provider as part of a pre-deployed

image. It depends on the architecture and attach-

ment type of the accelerator and offers a well-deﬁned

set of interfaces. Each combination of accelerator,

fabric and API may result in a different implemen-

tation of the accelerator runtime environment, and

some combinations may not exist at all. The API of-

fered by the accelerator runtime also deﬁnes the in-

terface that applications have to use to consume ac-

celerator resources, and is therefore speciﬁed as part

of the logical system model. In most cases, the user

will start out with a desired API and derive lower

levels of the system model from that. Use of fu-

ture software as well as applicability to future accel-

erator architectures suggest the use of de-facto stan-

dards like OpenCL, rather than vendor-proprietary

programming paradigms. Quality of Service im-

provements like redundant execution, job retry, and

accelerator failover, can be implemented efﬁciently in

the runtime environment, if not offered by the under-

lying fabric and accelerator infrastructure.

Figure 5: Essential functionality for the Hybrid Infrastruc-

ture as a Service model.

5 APPLICATION OF THE MODEL

In this section, we outline how the applications stated

in section 2 can be represented using the proposed

cloud-oriented hybrid infrastructure model.

5.1 Insurance Calculations

The insurance application is used for both batch and

interactive processing. While acceleration of batch

processing results in shorter batch windows and ben-

eﬁts from higher batch throughput in off-shift hours,

the interactive processing of insurance calculations

has requirements to handle workload peaks and must

be able to return results with low latency. In both

cases, hybrid infrastructure can enable workload op-

timized processing and improves the capacity of the

overall solution. In the logical system model for this

application, the host system and multiple CPUs as

accelerators, connected through an IP-capable fabric,

are deﬁned. To scale out according to workloads, the

logical system deﬁnes a 1 : n correlation of host and

accelerators. In order to guarantee low-latency re-

sults, the network topology must be adapted to avoid

bottlenecks. As this application is run on a main-

frame, the acceleration has to incorporate RAS ca-

pabilities which are speciﬁed in the logical system

and result in deployment of an appropriate acceler-

ator runtime environment. In this case, the accelera-

tor communicates with a host-side session manager to

dispatch individual tasks.

5.2 Seismic Processing

The seismic application exhibits more degrees of free-

dom for selecting accelerators. The host application

itself started out as cluster application, working on

large amounts of seismic data. In order to achieve

maximum compute throughput, the workload is dis-

tributed to several nodes, which also applies to the

hybrid environment. The targeted accelerator can be

a combination of the following: a cluster of homo-

geneous nodes, a cluster of OpenCL-enabled nodes

(CPUs and GPUs), or a cluster of specialized FPGA

accelerators. Besides FPGAs and GPGPUs (Clapp

et al., 2010), the Cell/B.E. processor may also be con-

sidered (Perrone, 2009). For maximum bandwidth,

InﬁniBand may be favored over Ethernet, which is ex-

pressed by performance attributes in the logical sys-

tem structure. In any of these combinations, the trans-

formation has to ﬁnd a suitable network topology by

evaluating the resource interrelationship model, at-

tach appropriate accelerators, and establish the proper

runtime environment. So, hybrid infrastructure has

to support selecting the right runtime with regard to

the speciﬁed accelerator, fabric, and API. Assum-

ing OpenCL is used as acceleration method, the run-

CLOSER 2011 - International Conference on Cloud Computing and Services Science

174

time may be extended to transparently switch to other

OpenCL-enabled nodes.

6 CURRENT AND FUTURE

WORK

In the course of our current work, we started to im-

plement the proposed model on Linux-based systems

using

kvm

as hypervisor and

libvirt

as infrastruc-

ture provisioning engine. By using

libvirt

, the sys-

tem description is provided as XML. To implement

the ﬂow of our model, hybrid infrastructure XML

descriptions have to be deﬁned and integrated into

libvirt

. In the current work, we ported libvirt to

s390

in order to enable the basic ﬂow as depicted in

ﬁgure 2. Using the application scenarios described in

the previous sections, we address the proposed ﬂow

shown in ﬁgure 3. That way, the provided hybrid in-

frastructure can, for example, be modiﬁed or extended

by accelerator elements as well as networking or de-

vice structures.

7 CONCLUSIONS

In this paper we propose a model to enable cloud pro-

visioning of accelerator resources in heterogeneous

data centers. This will allow cloud users to con-

sume composite systems equipped with accelerator

resources, instead of having to deal with a multiplic-

ity of nodes and orchestration thereof. According to

our proposal, the user speciﬁes his requirements via

a logical system structure, consisting of nodes, accel-

erators, and fabrics. The model ﬂow allows produc-

ing a transformation engine, which maps the logical

system structure to the actual hardware of the data

center, fulﬁlling the user’s requirements speciﬁed as

model attributes. We introduce sharing of acceler-

ators and multi-tenancy, which requires appropriate

isolation at the accelerator entity as well as in the fab-

ric. A runtime software stack allows for using the ac-

celerator from the host, thereby abstracting from the

environment’s actual implementation. Such use of ac-

celerator resources attached to host nodes results in a

cloud paradigm to combine the advantages of work-

load optimized systems with the data center’s com-

mercial model: applications can improve compute ef-

ﬁciency through the use of accelerators, and the cloud

provider can achieve high utilization and offer a cost-

competitive environment.

REFERENCES

Adams, R., Rivaldo, R., Germoglio, G., Santos, F., Chen,

Y., and Milojicic, D. S. (2008). Improving distributed

service management using Service Modeling Lan-

guage (SML). Salvador, Bahia. IEEE.

Clapp, R. G., Fu, H., and Lindtjorn, O. (2010). Selecting

the right hardware for reverse time migration (in High-

performance computing). In Leading Edge, pages 48–

58, Tulsa, OK.

Coulson, D., Berrange, D., Veillard, D., Lalancette, C.,

Stump, L., and Jorm, D. (2010). libvirt 0.7.5: Ap-

plication Development Guide. URL: http://libvirt.org/

guide/pdf/.

Dearle, A., Kirby, G. N., and McCarthy, A. J. (2004).

A Framework for Constraint-Based Deployment and

Autonomic Management of Distributed Applications.

Autonomic Computing, International Conference on.

Eilam, T., Kalantar, M., Konstantinou, E., Paciﬁci, G.,

Eilam, T., Kalantar, M., Konstantinou, E., and Paci-

ﬁci, G. (2004). Model-Based Automation of Service

Deployment in a Constrained Environment. Research

report, IBM.

Grosser, T., Schmid, A. C., Deuling, M., Nguyen, H.-N.,

and Rosenstiel, W. (2009). Off-loading Compute In-

tensive Tasks for Insurance Products Using a Just-in-

Time Compiler on a Hybrid System. In CASCON ’09,

pages 231–246, New York, NY, USA. ACM.

IBM (2010a). OpenCL Development Kit for Linux on

Power. URL: http://www.alphaworks.ibm.com/tech/

opencl.

IBM (2010b). The IBM zEnterprise System – A new di-

mension in computing URL: http://www-01.ibm.com/

common/ssi/rep ca/9/877/ENUSZG10-0249/ENUSZ

G10-0249.PDF.

Koch, K. (2008). Roadrunner Platform Overview. URL:

http://www.lanl.gov/orgs/hpc/roadrunner/pdfs/Koch -

Roadrunner Overview/RR Seminar - System Over-

view .pdf.

Koehler, J., Hauser, R., Kapoor, S., Wu, F. Y., and Ku-

maran, S. (2003). A Model-Driven Transformation

Method. In EDOC ’03, Washington, DC, USA. IEEE

Computer Society.

NVIDIA (2010). Developer Zone – OpenCL. URL:

http://developer.nvidia.com/object/opencl.html.

Perrone, M. (2009). Finding Oil with Cells: Seismic Imag-

ing Using a Cluster of Cell Processors. URL: https://

www.sharcnet.ca/my/documents/show/44.

Vaquero, L. M., Rodero-Merino, L., Caceres, J., and Lind-

ner, M. (2008). A break in the clouds: towards a cloud

deﬁnition. SIGCOMM Comput. Commun. Rev., 39.

HYBRID INFRASTRUCTURE AS A SERVICE - A Cloud-oriented Provisioning Model for Virtual Hosts and

Accelerators in Hybrid Computing Environments

175
