SECURITY IN SERVICE LEVEL AGREEMENTS

FOR CLOUD COMPUTING

Karin Bernsmed, Martin Gilje Jaatun

SINTEF Information and Communication Technology, Trondheim, Norway

Astrid Undheim

Telenor Corporate Development, Trondheim, Norway

Keywords:

Cloud computing, Security, Service level agreements, SLA, Quality of service, QoS.

Abstract:

The Cloud computing paradigm promises reliable services, accessible from anywhere in the world, in an on-

demand manner. Insufﬁcient security has been identiﬁed as a major obstacle to adopting Cloud services. To

deal with the risks associated with outsourcing data and applications to the Cloud, new methods for security

assurance are urgently needed. This paper presents a framework for security in Service Level Agreements for

Cloud computing. The purpose is twofold; to help potential Cloud customers to identify necessary protection

mechanisms and, in the next step, to facilitate automatic service composition based on a set of predeﬁned

security requirements. We demonstrate the practical applicability of the ﬁrst objective with a small case study.

1 INTRODUCTION

Cloud computing is a hot topic in both industry and

research. Cloud services can be found everywhere,

offering all possible IT services imaginable in an on-

demand and scalable manner. In the Cloud, secu-

rity has been identiﬁed as one of the main obsta-

cles for adoption. This contrasts with the fact that

few of the security issues related to cloud computing

are new and unique; most of them have been investi-

gated and addressed in the traditional system and net-

work security context. Mechanisms for data protec-

tion, access control, trust delegation and mitigation

of DDoS attacks, etc. are well known and have been

(more or less) successfully applied in many other con-

texts. However, some characteristics of cloud com-

puting are fundamentally new in an outsourcing per-

spective, such as multi-tenancy and on-demand elas-

ticity, which creates new threats.

Cloud computing is outsourcing, and outsourcing

implies trust. In the Cloud the responsibility for im-

plementing and maintaining efﬁcient security mecha-

nisms will be in the hands of the provider. To over-

come the fear of the Cloud, the provider needs to

convince the customer that his data and applications

will be properly secured. Trusting the provider is one

thing; however, in the near future it is expected that

complex Cloud services will be composed of sev-

eral other services from different providers in multiple

steps, something that will introduce a longer chain of

trust than the traditional ICT system outsourcing con-

text. It will be a huge challenge to assure the customer

that adequate security mechanisms exist and are cor-

rectly implemented throughout the whole chain of

providers.

To mitigate the security risks associated with the

Cloud, existing security mechanisms and their effec-

tiveness should be formalized in contracts. In this pa-

per we argue that Service Level Agreements (SLAs)

in the Cloud should be extended to include the se-

curity mechanisms offered by the provider. We then

outline a framework for such mechanisms. The pur-

pose is not only to increase the trust in the provider,

but also facilitate for potential Cloud customers to

make an objective comparison between different ser-

vice providers on the basis of their security features.

Moreover, identifying and organizing critical security

mechanisms in a systematic manner forms a basis for

composing services from different providers, based

on a set of predeﬁned security requirements.

This paper is organized as follows. We discuss

some of the previous work related to security man-

agement in the Cloud in Section 2. Section 3 explains

our vision of SLAs for Cloud computing. In Sec-

636

Bernsmed K., Gilje Jaatun M. and Undheim A..

SECURITY IN SERVICE LEVEL AGREEMENTS FOR CLOUD COMPUTING.

DOI: 10.5220/0003391606360642

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 636-642

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

tion 4 we identify security mechanisms suitable for

Cloud services and outline a framework for security-

aware Cloud SLAs. Section 5 demonstrates how a

real-world scenario could beneﬁt from our approach.

Section 6 concludes the paper by discussing our ap-

proach and laying out the directions for future work.

2 RELATED WORK

Security mechanisms for Cloud computing has previ-

ously been discussed in a comprehensive report pub-

lished by ENISA (European Network and Informa-

tion Security Agency (ENISA), 2009), which out-

lines an information assurance framework where di-

vision of responsibilities between the customer and

the Cloud provider is clariﬁed. Another example is

the report by Gartner (Heiser and Nicolett, 2008) that

provides a basic description of the potential risks in-

volved with Cloud computing. We have used these

reports as a basis for the security framework derived

in this paper.

There have been some projects in the research

community looking into various aspects of security

in SLAs. Early work on security agreements was per-

formed already in 1999 by Henning (Henning, 2000),

who already then raised the question whether security

can be adequately expressed in a SLA. Security re-

quirements for web services have been treated by Ca-

sola et. al., who proposed a methodology to help eval-

uate and compare security SLAs (Casola et al., 2006).

Frankova and Yautsiukhin have also recognized the

need for security in SLAs (Frankova and Yautsiukhin,

2007), however, their approach focuses on the process

of selecting the optimal service composition based on

a set of predeﬁned requirements rather than detail-

ing what security mechanisms to include. Also de

Chaves et al. explore security in SLAs, but with fo-

cus on measurable security metrics (De Chaves et al.,

2010), combined with a monitoring and controlling

architecture (Righi et al., 2006). Our approach aims

to be more practically applicable, since we provide a

framework for auditable security mechanisms specif-

ically targeted for Cloud computing services SLAs.

3 SERVICE LEVEL

AGREEMENTS FOR CLOUD

COMPUTING

Deploying services in the Cloud creates new chal-

lenges for both service providers and customers, es-

pecially regarding the service quality. The customers

have less control of the service delivery, and need

to take precautions in order not to suffer low per-

formance, long downtimes or loss of critical data.

Service Level Agreements (SLAs) have therefore be-

come an important part of the Cloud service delivery

model. A SLA is a binding agreement between the

service provider and the service customer, which is

used to specify the level of service to be delivered. A

SLA includes information about the service delivered

by the cloud provider, together with the penalties if

the SLA is broken. The penalties are usually stated as

service credits to the customers.

3.1 Quality of Service in the Cloud

In order to verify that the Cloud provider delivers ser-

vice in accordance with the SLA, the SLA usually

contains Quality of Service (QoS) parameters. QoS

refers to the (measurable) ability of a distributed sys-

tem to provide the network and computation services

such that the customer’s expectations are met. SLAs

have previously been used for many years to specify

QoS guarantees between telecom operators and cor-

porate customers, as well as for regulating outsourc-

ing contracts. However, SLAs have (until now) not

been adopted by the public at large.

The advent of the Cloud concept, which is char-

acterized by its elastic and measurable services (Mell

and Grance, 2009), has given rise to a new demand

for such agreements. In the Cloud, two aspects of

QoS are of special interest; dependability and perfor-

mance. Service dependability is usually deﬁned as

a combination of the service availability (the propor-

tion of time a system delivers service according to the

requirements) and reliability (the ability to provide

uninterrupted service) (International Telecommunica-

tion Union, 2008), whereas performance is usually

characterized by throughput (the number of bits per

second of data transmitted or processed) and delay

(the number of seconds used for transmission or pro-

cessing). The term QoS usually does not include se-

curity, even though some previous efforts have tried

to extend the term in this respect (Irvine, 2000; Lind-

skog, 2005).

Today, most of the major Cloud service providers

include QoS guarantees in their SLA proposals, how-

ever the focus in most cases is on availability

. In

most cases, the SLA lacks performance guarantees,

which from the customer’s point of view is a major

drawback. A very low performance will be perceived

An example is the Amazon EC2 Cloud service, which

at the time of writing offers 99.95% availability on a yearly

basis and issues 10% credits if the SLA is broken. Perfor-

mance is not mentioned.

SECURITY IN SERVICE LEVEL AGREEMENTS FOR CLOUD COMPUTING

637

by the customer as service unavailability and should

be credited accordingly.

3.2 Security in SLAs

Even though service availability and performance of-

ten are identiﬁed as critical issues, the number one

barrier of adopting Cloud computing services is as-

surance (European Network and Information Security

Agency (ENISA), 2009): how can a potential cus-

tomer be sure that it is safe to place data and applica-

tions in the Cloud? Since the SLA is used to explicitly

state the obligations of the provider, the implemented

security mechanisms, their effectiveness and the im-

plications of possible mismanagement should be a

part of this agreement. This concept is also known

as Quality of Protection (QoP), which comprises the

ability of a service provider to deliver service accord-

ing to a set of speciﬁc security requirements. A stan-

dardized framework for constructing a SLA in the

Cloud, based on guaranteed levels of these attributes

and the consequences of mismanagement, is therefore

of utmost importance for creating trustworthy and re-

liable Cloud computing services. This includes clar-

ifying the consequences of a service provider’s pos-

sible failure to deliver the service in accordance with

the contract. Figure 1 outlines the basic structure for

such a SLA.

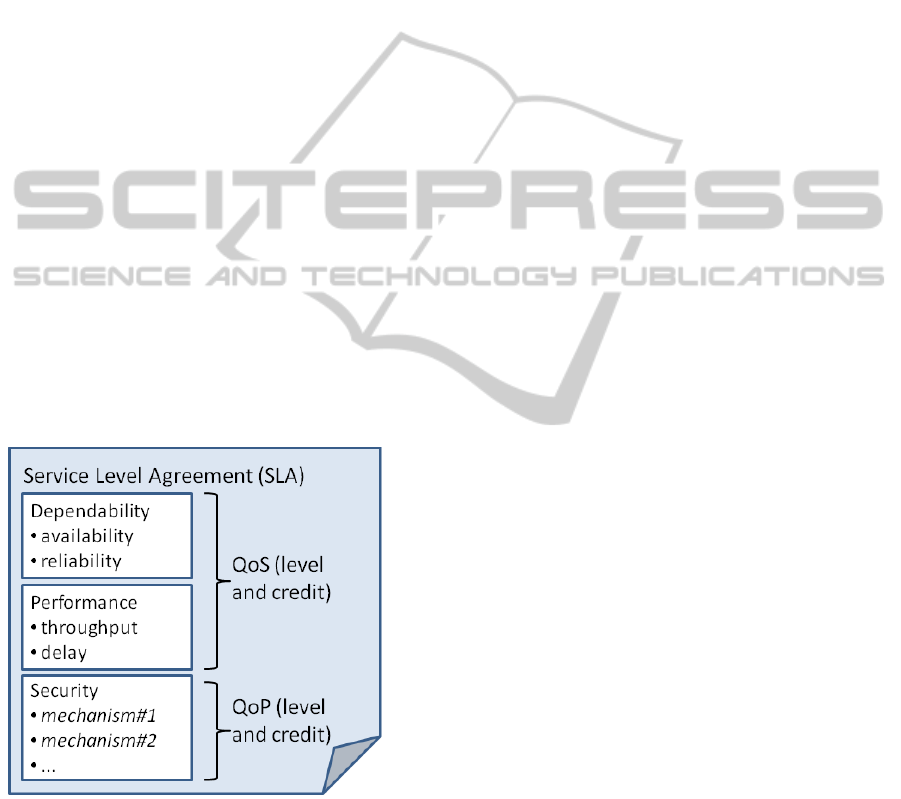

Figure 1: The basic structure of a SLA with dependability,

performance and security guarantees.

The speciﬁc security mechanisms that should be

included in the SLA will then mirror the needs for the

particular (composed) service.

3.3 Auditing Security Effectiveness

A plausible objection against introducing security in a

SLA (as proposed in Figure 1) derives from the inher-

ent difﬁculty in measuring security (Verendel, 2009);

it is generally very difﬁcult to prove that, e.g. an

encryption algorithm is secure, but often very easy

to show that it is insecure when a ﬂaw has been

discovered. Another option is therefore to measure

breaches that occur, rather than trying to measure se-

curity strength. This means that our framework do not

require the provider to estimate the strength of their

security mechanisms, but simply expects them to pro-

vide the agreed level of security in any way they see

ﬁt. If they fail, the punitive mechanisms come into

play.

In practice, it is often up to the Cloud customer to

monitor and verify that the delivered service is in ac-

cordance to the QoS guarantees stated in the contract.

This means that transparent monitoring solutions are

needed in order for the customer to measure or check

the provided service level. Methods for auditing the

security mechanisms and measuring breach frequen-

cies will be necessary to use our framework. We dis-

cuss this issue further in Section 6.

4 SECURITY MECHANIMS FOR

CLOUD SLAs

Returning to the Cloud SLA outlined in Figure 1, in

order to identify what security mechanims to include

in the contract we need to take a further look into

the security related threats associated with the Cloud.

As explained in the introduction, Cloud computing

presents some fundamentally new security challenges

in addition to the traditional ones. Following the well

established deﬁnition from NIST (Mell and Grance,

2009), Cloud computing has ﬁve important charac-

teristics, namely: i) on-demand self-service, ii) broad

network access, iii) resource pooling, iv) rapid elastic-

ity, and v) measured service. The on-demand aspect

must be taken into account when providing Cloud

SLAs, since a SLA must also be allowed to be com-

posed on-demand. Our framework is speciﬁcally con-

structed with this in mind. Network access does not

present any new security challenges but network se-

curity becomes even more important in the Cloud,

where large amounts of conﬁdential data are regularly

transmitted over the public Internet. Resource pool-

ing and rapid elasticity presents some new challenges

with respect to security, as will be described in the

following. In addition, we have identiﬁed three cat-

egories of security mechanisms that need special at-

CLOSER 2011 - International Conference on Cloud Computing and Services Science

638

tention in Cloud computing, and therefore should be

a part of the SLA. These are ”access control”, ”audit,

veriﬁcation and compliance” and ”incident manage-

ment and response”. Together with ”secure resource

pooling” and ”secure elasticity” these ﬁve categories

can be used in a structured approach to pick the right

security mechanisms for a particular service.

Figure 2 illustrates our proposed framework. The

security mechanisms are divided into three main ser-

vice categories, depending on the particular Cloud re-

sources that are used. These are storage, processing

(CPU and memory), and network. These three re-

sources can be virtualized and offered as Infrastruc-

ture as a Service (IaaS), they can be used to offer

a Platform as a Service (PaaS), or applications can

run on top of these physical resources and being of-

fered as Software as a Service (SaaS). The security

mechanisms suggested for the framework are related

to Secure Resource Pooling (RP), Secure Elasticity

(E), Access Control (AC), Audit, Veriﬁcation & Com-

pliance (AU) and Incident Management & Response

(IM); these will be further described below.

4.1 Secure Resource Pooling

Resource pooling in Cloud computing today is

achieved by using virtualization either at the hardware

level (as with Amazon Web Services

) or at the appli-

cation level (as with Google Docs

). Both techniques

enable multi-tenancy, i.e., different users share the

same resources, and virtualization ensures the isola-

tion of data and applications owned by different users.

The sharing of physical resources in the Cloud

give rise to new security threats. One of the most im-

minent is unauthorized access to applications or data

through the hypervisor (Christodorescu et al., 2009),

which may occur if proper isolation of applications

and data is not achieved. It is therefore necessary to

make sure that protection mechanisms exist and that

they are stated in the SLA. In the framework outlined

in Figure 2 this is illustrated as ”RP1: Data isolation”

and ”RP8: Application isolation”, which are related

to storage services and processing services, respec-

tively. Moreover, resource sharing implies that the

customers need guarantees that their property remains

conﬁdential (RP3: Data encryption) and is integrity

protected (RP6: Data integrity, RP12: Application in-

tegrity), that their data and applications are properly

deleted from the physical hardware when requested

(RP2: Data deletion), and that the data can be brought

back in-house if necessary (RP5: Data portability,

RP7: Data back-up). The customer should also have

http://aws.amazon.com

http.//docs.google.com

the possibility to put restrictions on the geographic

location of storage and processing (RP4: Data loca-

tion, RP9: Application location). Regarding network

services (inside Clouds, between Cloud data centers

and between the Cloud and the customer’s premises),

the customer should make sure that his trafﬁc is prop-

erly protected (RP13: Network encryption, RP15: In-

tegrity protection) and isolated from other customers

trafﬁc (RP14: Trafﬁc isolation).

4.2 Secure Elasticity

Cloud computing promises rapid scalability of re-

sources, scaling up and releasing resources as needed.

This elasticity is also enabled by virtualization.

Adding more virtual resources on the same physical

machine does not in itself pose any new threats, but

migrating virtual resources to new physical resources

requires a secure migration process (E1: Secure data

migration, E2: Secure virtual machine migration), in-

cluding the actual network transfer. It must also be

ensured that the new physical resource fulﬁls the same

security requirements.

4.3 Access Control

Access control is especially important in the Cloud,

where both competing customers sharing the same re-

sources as well as insider personnel may try to gain

unauthorized access to the customer’s data. The re-

source must also be protected from unauthorized re-

mote access. It is therefore crucial to make sure that

proper access control mechanisms are implemented

(AC1: Identity management, AC2: Access manage-

ment, AC3: Key management), and that there are

strict restrictions on e.g. who may enter Cloud dat-

acenters (AC4: Internal security control).

4.4 Audit and Veriﬁcation

The possibility to audit and verify the security of a

service is very often crucial to the customer, however

in the Cloud this is often not standard practice. Cus-

tomers may require access to server logs, failed log-

in attempts records or database change records (AU1:

Logging) and sometimes also the possibility to audit

the activity on speciﬁc Cloud resources (AU2: Audit-

ing). In addition, the customers may want to make

sure that a security certiﬁcation scheme exists and

is adapted to the Cloud infrastructure (AU3: Certi-

ﬁcation). Customers may also have privacy concerns

(AU4: Customer privacy).

SECURITY IN SERVICE LEVEL AGREEMENTS FOR CLOUD COMPUTING

639

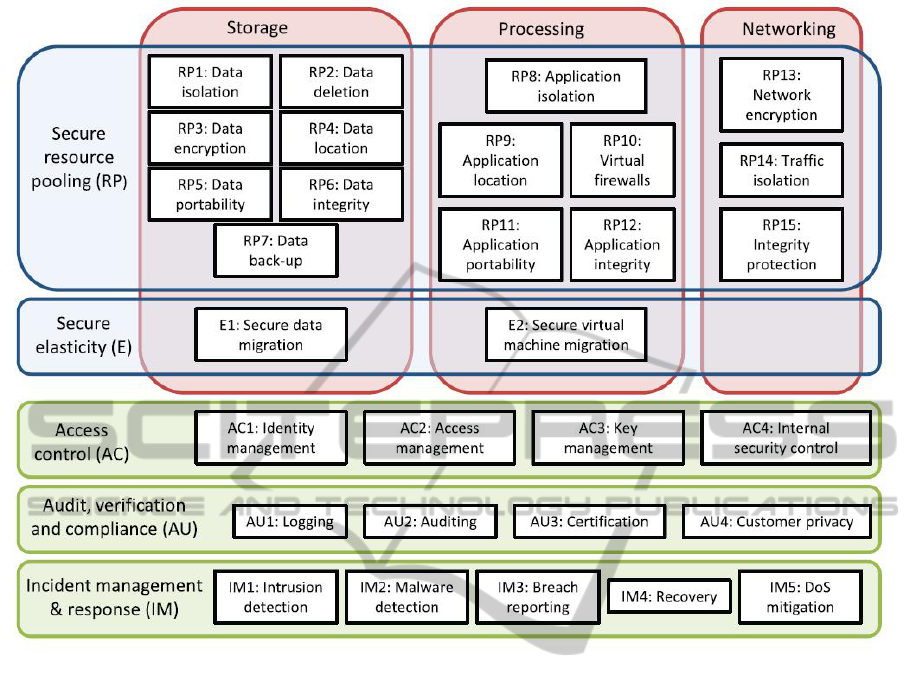

Figure 2: A framework for security mechanisms for Cloud SLAs.

4.5 Incident Management and Response

To make sure that the Cloud provider detects and

responds to threats, the SLA may contain mecha-

nisms for intrusion and malware detection (IM1: In-

trusion detection, IM2: Malware detection), that secu-

rity breaches are recorded and reported (IM3: Breach

reporting), that data and applications can be recon-

structed in the case of disasters (IM4: Recovery) and

that mechanisms to prevent and mitigate DoS attacks

are implemented (IM5: DoS mitigation).

The framework in Figure 2 represents a ﬁrst step

towards a security-aware SLA, as we described it

in Section 3. The purpose of the framework is to

serve as a basis for constructing a SLA for a spe-

ciﬁc Cloud service, by identifying security mecha-

nisms that should be stated in the SLA. In the next

section we will demonstrate how the framework can

be applied in a real-world scenario.

5 CASE STUDY:

CUSTOMER RELATIONSHIP

MANAGEMENT

Customer Relationship Management (CRM) repre-

sents the total set of processes and applications for

interacting with customers, both for sale, customer

service, and marketing. When applying Payne &

Frow’s preferred perspective of CRM as “a holistic

approach to managing customer relationships to cre-

ate shareholder value” (Payne and Frow, 2005), the

software solution is often quite complex. Maintaining

this software is typically not part of “core business”

of the CRM user, and CRM applications is thus one

area where companies have successfully embraced

the SaaS concept.

Payne & Frow presents a framework for CRM

strategy composed of ﬁve main processes:

• Strategy Development.

• Value Creation.

• Multichannel Integration.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

640

• Performance Assessment.

• Information Management.

In principle, a CRM system can cover the com-

plete sale process for a business, implying that the

customer-related information stored in the system is

absolutely vital to the business, and exposure of this

information to a competitor would be a serious threat.

In addition, private customer data such as address and

account information should not be visible to others.

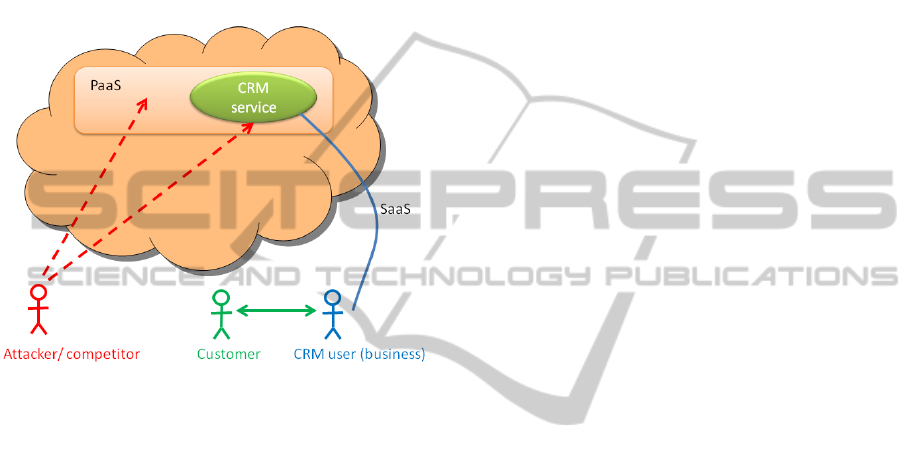

Figure 3: A Customer Relationship Management case.

The Cloud-based CRM system is illustrated in

Figure 3. We assume that the CRM user (the busi-

ness) interacts with its customers via some undeter-

mined channel, but that the customers are not gener-

ally aware of the CRM application being Cloud-based

(in general, the customers may not even be aware of

there being a CRM application at all). The CRM user

is likely to have a competitor, and it is quite possible

that the competitor is a user of the same CRM service

– or could be a user of an underlying PaaS offered by

the same provider.

The multi-tenancy property of Cloud services im-

plies that it is necessary to protect against both at-

tacks that are completely external, and against attacks

from other users of the service. As mentioned, the lat-

ter attackers may have legitimate access to the Cloud

provider’s infrastructure either at SaaS or PaaS levels.

Next, the elasticity property of Cloud comput-

ing means that both applications and stored data are

(more or less) frequently migrated between physical

resources. This is true also for CRM data and appli-

cations. A company may typically see peaks in cus-

tomer interaction around holidays or after some dis-

aster (for a travel agency, insurance company etc.).

Referring to Figure 2, there are a number of secu-

rity mechanisms that are important to the CRM user

when deploying the CRM application in a Cloud. The

most important mechanisms are related to secure re-

source pooling, most importantly for the stored cus-

tomer data:

• Data isolation (RP1) - stored customer data must

not be available to competitors.

• Data deletion (RP2) - data no longer needed must

be properly deleted.

• Data encryption (RP3) - stored customer data

must be encrypted.

• Data location (RP4) - parts of the customer data

may be deﬁned as Personal Identiﬁable Informa-

tion (PII) and must be treated thereafter.

• Data portability (RP5) - the CRM user wants to

avoid lock-in of customer data.

• Data integrity (RP6) - the CRM user wants to en-

sure that all customer data is free of errors, and in

case of PII the customers may have a legal right

to demand that all information is correct.

Next, some mechanisms are important for secure elas-

ticity:

• Secure data migration (E1) - conﬁdential data

must be securly moved between physical storage

resources

Of the general security mechanisms shown in Fig-

ure 2, the CRM user will want to ensure that the

provider employs:

• Access control mechanisms (AC1 and AC2) - to

authenticate and authorize customers and to repel

external attackers

• Logging (AU1) - CRM user wants to be able to

determine after the fact if errors were made or

breaches occured.

The resulting security SLA with the required

mechanisms is then shown in Figure 4.

6 DISCUSSION AND

CONCLUSIONS

This paper presents a ﬁrst step toward including secu-

rity mechanisms in Cloud SLAs. The purpose is to in-

crease trust in the Cloud by simplifying the process of

designing security contracts for Cloud services, and in

the next step, to enable services to be composed from

a speciﬁc set of security requirements. The main ad-

vantage of our approach in its current form is its prac-

tical applicability, which we have tried to demonstrate

with our simple case study.

SECURITY IN SERVICE LEVEL AGREEMENTS FOR CLOUD COMPUTING

641

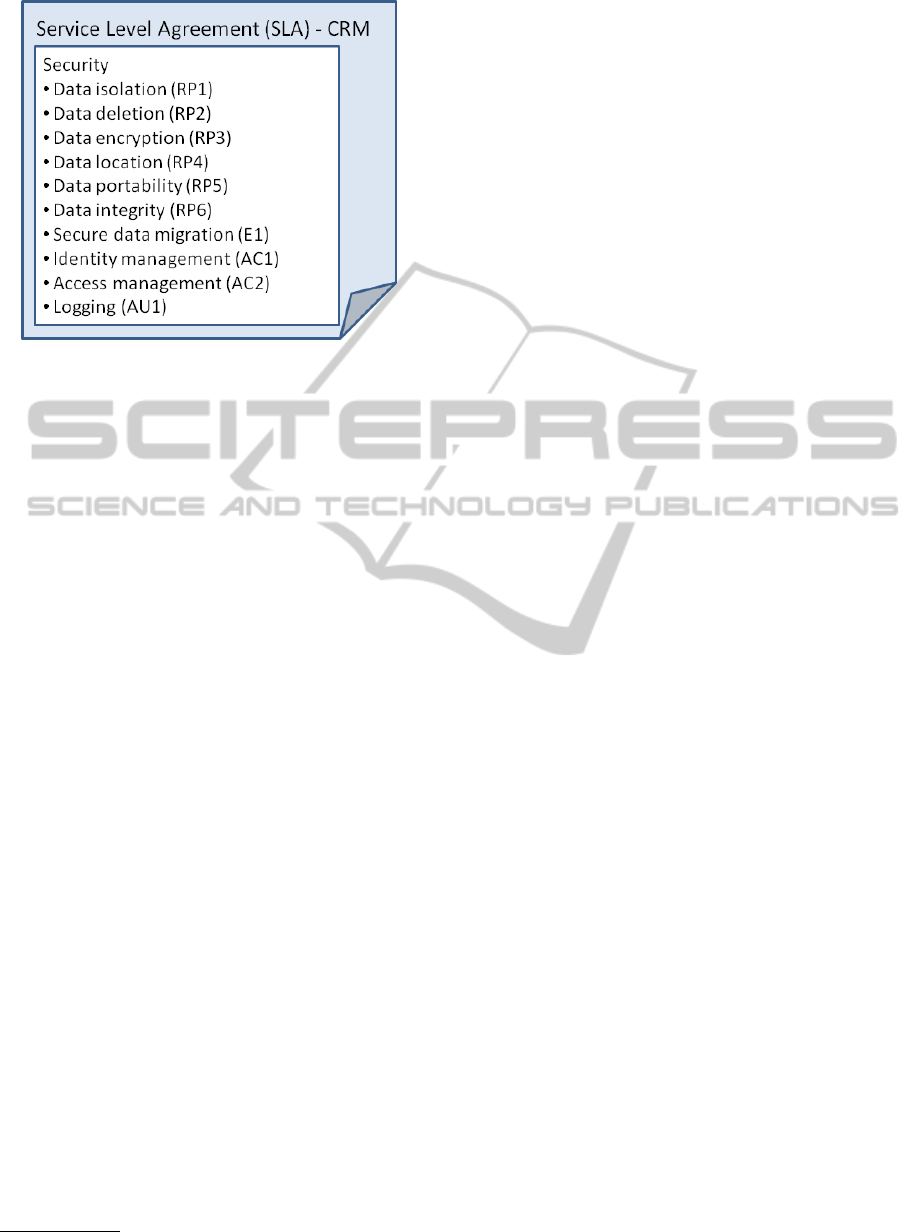

Figure 4: Security SLA for the CRM service.

One of the main unsolved challenges related to our

approach is related to the difﬁculty of auditing that

security promises stated in the SLAs are being kept.

Of the general security mechanisms shown in Figure

2, internal access control mechanisms, audit and in-

cident management can typically be veriﬁed against a

checklist according to ISO/IEC 27002 (27002, 2005).

In the context of a SLA, the provider will provide

yes/no answers to most of these items, whereas other

items can be graded (how often is backup performed,

is there a dedicated incident response team, etc.).

Here it is possible to learn from the results produced

by e.g. the CloudAudit

association.

We are in the process of designing a management

architecture based on our proposed framework. Its

main tasks will be to compose Cloud services in ac-

cordance to the security requirements stated in a SLA.

In addition, the management architecture will provide

auditing mechanisms that will be used to verify that

the contracted level of security is being obeyed. As

a ﬁrst step we will design and implement support for

simple Cloud services, which require only a few se-

curity mechanisms, in order to evaluate the feasibility

of our approach. The long-term vision is to establish

a comprehensive architecture where SLAs including

security, dependability and performance guarantees

will form the basis for service composition.

ACKNOWLEDGEMENTS

This work has been supported by Telenor through the

SINTEF-Telenor research agreement.

http://www.cloudaudit.org/

REFERENCES

27002 (2005). Information technology – Security tech-

niques – Code of practice for information security

management.

Casola, V., Mazzeo, A., Mazzocca, N., and Rak, M. (2006).

A SLA evaluation methodology in Service Oriented

Architectures. In Gollmann, D., Massacci, F., and

Yautsiukhin, A., editors, Quality of Protection, vol-

ume 23 of Advances in Information Security, pages

119–130. Springer US.

Christodorescu, M., Sailer, R., Schales, D. L., Sgandurra,

D., and Zamboni, D. (2009). Cloud security is not

(just) virtualization security: a short paper. In Pro-

ceedings of the 2009 ACM workshop on Cloud com-

puting security, CCSW ’09, pages 97–102, New York,

NY, USA. ACM.

De Chaves, S. A., Westphall, C. B., and Lamin, F. R. (2010).

SLA Perspective in Security Management for Cloud

Computing. In Proceeding of the 2010 Sixth Interna-

tional Conference on Networking and Services, pages

212–217. IEEE.

European Network and Information Security Agency

(ENISA) (2009). Cloud Computing: Beneﬁts, risks

and recommendations for information security.

Frankova, G. and Yautsiukhin, A. (2007). Service and pro-

tection level agreements for business processes. In

Young Researchers Workshop on Service.

Heiser, J. and Nicolett, M. (2008). Assessing the Security

Risks of Cloud Computing.

Henning, R. R. (2000). Security service level agree-

ments: quantiﬁable security for the enterprise? In

Proceedings of the 1999 workshop on New security

paradigms, NSPW ’99, pages 54–60, New York, NY,

USA. ACM.

International Telecommunication Union (2008). Terms and

Deﬁnitions Related to Quality of Service and Network

Performance Including Dependability, ITUT E.800.

Irvine, C. (2000). Quality of security service. In Proc. ACM

New Security Paradigms Workshop, pages 91–99.

Lindskog, S. (2005). Modeling and tuning security from a

quality of service perspective. Chalmers University of

Technology.

Mell, P. and Grance, T. (2009). The NIST Deﬁnition of

Cloud Computing, v.15.

Payne, A. and Frow, P. (2005). A strategic framework for

customer relationship management. Journal of Mar-

keting, 69(4):167–176.

Righi, R. R., Kreutz, D. L., and Westphall, C. B. (2006).

Sec-mon: An architecture for monitoring and control-

ling security service level agreements. In XI Workshop

on Managing and Operating Networks and Services.

Verendel, V. (2009). Quantiﬁed security is a weak hypoth-

esis: a critical survey of results and assumptions. In

Proceedings of the 2009 workshop on New security

paradigms workshop, pages 37–50. ACM.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

642
