SHARING SECURE DOCUMENTS IN THE CLOUD

A Secure Layer for Google Docs

Lilian Adkinson-Orellana, Daniel A. Rodríguez-Silva, Francisco J. González-Castaño

GRADIANT, ETSI Telecomunicación, Campus, 36310 Vigo, Spain

David González-Martínez

University of Vigo, ETSI Telecomunicación, Campus, 36310 Vigo, Spain

Keywords: Cloud security, SaaS privacy, Google Docs, Collaborative work, Document sharing, Document encryption.

Abstract: With the advent of Web 2.0, end users generate and share more and more content. One of the most

representative services in this context is the collaborative edition of online documents. This service is

commonly provided through Cloud Computing as Software as a Service. However, the Cloud paradigm still

requires users to place their trust in Cloud providers with regard to privacy. This is the case of Google Docs,

a very popular service without privacy support for the documents stored on its servers. In this paper we

present and discuss a secure layer to guarantee privacy of shared Google Docs documents. To our

knowledge, this is one of the first approaches to private shared edition with real Cloud tools.

1 INTRODUCTION

In Web 2.0, and social networks in particular, users

are active agents who generate content

collaboratively (T. O’Reilly, 2007). This is

particularly interesting when several users from

different locations work together and it has resulted

in the development of new mechanisms for sharing

documents through the Internet.

Furthermore, new paradigms have emerged

following improvements in Internet technologies and

computing resources. Among them, the Cloud

Computing (or simply “Cloud”) paradigm takes

application complexity to the server side to simplify

clients and client maintenance. Cloud solutions are

intrinsically scalable and ubiquitous, and follow a

pay-per-use approach at all levels (M. Armbrust et

al., 2009). Of the three levels of Cloud Computing,

Infrastructure as a Service (IaaS), Platform as a

Service (PaaS) and Software as a Service (SaaS), we

will focus on the third. We introduce a security layer

at the SaaS (or application) level to manage shared

documents privately. This level is highly familiar to

end users because it provides final services such as

GMail, Google Docs, Zoho and Microsoft Office

Live.

One of the main barriers to the adoption of Cloud

Computing is security (CSA, 2010): user data are

stored on provider servers and there are no rigorous

guarantees that this information will not be

accessible to a third party. This can contravene legal

requirements when the stored data are sensitive, as

occurs in health care or banking environments. For

this reason many users do not trust Cloud services,

despite the fact that, from an operational perspective,

there are optimal solutions for sharing their work.

Although the privacy problem has been adressed

in virtualization platforms, Cloud privacy is

completely open (T. Ristenpart et al., 2009). Indeed,

in the case of Google Docs –one of the most

important shared Cloud services– there is no

guarantee that the documents will be safe at the

server side, as there is evidence that Google has

analyzed user information in the past, in particular to

personalize advertisements (T. O’Reilly, 2004 and S.

Lederer et al., 2004). In a previous paper (L.

Adkinson-Orellana et al., 2010), we presented a

solution based on the encryption of user data before

storing it on Google Cloud servers, but we only dealt

with the case of a single user. In this article we

address secure on-line document sharing. To our

knowledge, this is one of the first approaches to

private shared edition with real Cloud tools.

439

Adkinson-Orellana L., A. Rodríguez-Silva D., J. González-Castaño F. and González-Martínez D..

SHARING SECURE DOCUMENTS IN THE CLOUD - A Secure Layer for Google Docs.

DOI: 10.5220/0003391904390444

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 439-444

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

The paper is organized as follows: Section 2

discusses the background in on-line document

sharing and encryption. Section 3 presents technical

insights into Google Docs document handling by

external applications, with a particular emphasis on

sharing options. Section 4 describes our solution to

the problem of encrypted document sharing,

focusing on Google Docs. Finally, section 5

concludes the paper and proposes future lines of

work.

2 BACKGROUND

In this section we describe some on-line

collaborative edition solutions related to our work,

emphasizing characteristics such as security and

sharing options.

From the point of view of SaaS, popular products

such as Zoho, Microsoft Office Live and Google

Docs itself support document sharing (H. Park et al.,

2009). However, they do not offer document storage

privacy. Zoho (www.zoho.com) expects to provide

additional features for document encryption,

although these have not yet been implemented. The

same holds for Microsoft Office Live

(workspace.officelive.com) and Google Docs

(docs.google.com). The complete API of the latter

simplifies the development of extensions such as

those described below.

DocCloak (DocCloak, 2010) is a commercial

product under development that encrypts Google

Docs documents. It has three options with different

features: individuals (free), groups and enterprises.

In the simplest free version, only three users can

share encrypted documents, but these cannot be

modified once shared. Furthermore, the ciphering

keys are kept on the user’s computer, so SaaS access

is not ubiquitous.

SeGoDoc (G. D’Angelo et al., 2010) is an

extension for the Firefox browser based on the

gDocsBar add-on (www.gdocsbar.com) to protect

on-line document privacy and integrity against

service providers. It works for Google Docs, but it

has few data encryption options (it only includes the

AES algorithm). In addition, this plugin is not

directly integrated with the Google Docs interface

and depends on third-party developers, meaning that

it is unstable and not completely transparent for

Google Docs users. Moreover, the password used to

encrypt the documents is saved locally, at the client

side, as in the previous case, and it currently does

not support encrypted document sharing.

In Y. Huang and D. Evans, 2010, a “Secure

Docs” Firefox add-on to enable private edition of

Google Docs is presented. It is a proof-of-concept

that allows users to access the Cloud editing service

from Google securely (ensuring both data

confidentiality and integrity) without the need for

trusting the service provider. The content of the

document that the user submits is incrementally

encrypted using a password that is hidden from the

service provider. However, as with the previous

tools, it does not yet support collaborative edition.

We conclude that a transparent solution to share

and edit secure documents in the Cloud is still

missing. For this reason we have focused on

improving such a popular Cloud application as

Google Docs. We thus offer the possibility of

working with personal or shared documents using a

public Cloud service, preventing access to third

parties.

3 HANDLING DOCUMENTS IN

GOOGLE DOCS

3.1 Google Docs API

The Google Docs API (Google, 2010) is intended

for programmers who wish to write client

applications accessing Google Docs. The protocol

used to interact with Google Docs documents is

based on XML and HTTP and allows client

applications to request a list of the users’ documents,

query their content, upload/download documents,

modify sharing permissions, view the revision

history, and organize documents into folders.

To request or upload documents, the client needs

an authentication token that can be obtained in

different ways depending on the type of client,

according to the options available through Google

Accounts. For example, to obtain the document list

of a particular user, a GET request is sent to the

URL:

https://docs.google.com/feeds/default/private/full

The result is an XML file containing a list of all

available documents, where each entry represents a

user document with a document identifier (docID).

As described, there is a mechanism for accessing

Google Docs from an external application, but we

need another mechanism to intercept information

from and towards the Google Docs interface in order

to encrypt/decrypt documents so that users can work

with their interface as usual. This mechanism is

described in the following section.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

440

3.2 Listeners

To intercept and modify the content of the

documents that are sent from the Google Docs

interface to Cloud servers and vice versa, we have

defined two listeners. These listeners should be

embedded in the Internet browser (as a plugin or

add-on) to facilitate the capturing of data.

Each listener will be in charge of certain HTTP

requests:

 http-on-modify-request: output requests that are

sent from the client

 http-on-examine-response: requests that are

received from the server

By combining both types of requests, it is

possible to intercept all GET/POST requests and

responses. Two listeners may respectively capture

incoming and outgoing information. It is necessary

to filter the packets by IP address using the URI

field included in each request.

Therefore, the following combinations help us

achieve our target:

 http-on-modify-request + POST: request to

save a document on the server

 http-on-modify-request + GET: request to

retrieve a document from the server

 http-on-examine-response + POST: data

returned after saving a document

 http-on-examine-response + GET: response

from a document retrieval request

3.3 Sharing Documents in Google Docs

One of the most interesting features of Google Docs

is the document sharing option. This allows a group

of users to access a specific document when the

owner configures its permissions properly,

maximizing productivity.

The Google Docs API allows the management of

shared documents through an Access Control List

(ACL) feed. ACLs are simply basic lists that show

who has access to a given resource. We can find the

following roles in the ACL feed for a given

document:

 owner: the owner of the document. This role

can modify the ACL feed, delete or modify

the document, etc.

 writer: a collaborator. This role can modify but

not delete the document.

 reader: a viewer (equivalent to read-only

access).

The API supports multiple levels of sharing

permissions. It describes four levels (user, group,

domain and default), which refer to the different

scopes that the shared document may have.

Documents containing the user attribute are private

while those containing the default attribute are

public.

As the ACL feed is the list that allows to share

documents, the API supports several operations with

the feed using the common HTTP operations GET,

POST, PUT and DELETE through

https://docs.google.com/feeds/default/private/full/do

cID/acl.

In the context of our work, the most relevant

interactions with the ACL feed are related to

retrieval, modification, update and removal of the

permissions assigned to a document.

4 “SECURE GDOCS”: SECURING

SHARED AND PRIVATE

CLOUD DOCUMENTS

4.1 Encrypting Documents

The Secure GDocs add-on for the Firefox browser

allows the encryption of Google Docs documents,

meaning that the encrypting process is transparent to

users. As explained in our previous work (L.

Adkinson-Orellana et al., 2010), Secure GDocs

provides seven symmetric key algorithms for data

ciphering: AES, DES, Triple DES, Blowfish, RC4,

TEA, xxTEA (S. Rinne et al., 2007 and A. Nadeem

and M.Y. Javed, 2005), each of which has different

characteristics of speed and security. Thus, users can

choose one or another depending on their particular

needs.

In order to encrypt and decrypt the content of

documents, certain information must be stored, such

as the password used to cipher each document. For

this purpose, a hidden index document containing

this critical information is created through the

Google Docs API. In this way, Cloud Computing

ubiquity is respected, as the information required for

deciphering the documents is preserved on-line.

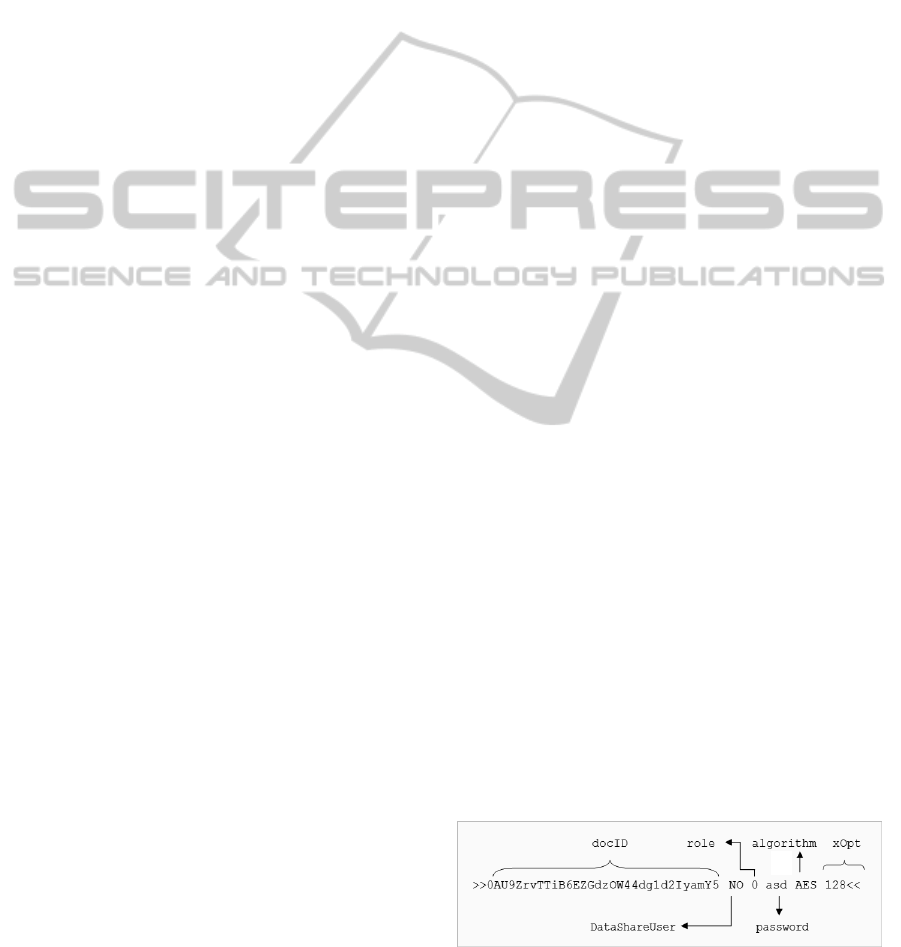

Figure 1 shows a line of an index document. This

structure is repeated for every encrypted document.

Figure 1: Example of index structure.

SHARING SECURE DOCUMENTS IN THE CLOUD - A Secure Layer for Google Docs

441

To strengthen the security of the process, the

content of the index document is ciphered with the

AES algorithm using a 128-bit key, meaning that its

sensitive information will not be exposed when

stored on Google servers. Thus, an additional

security layer for the ciphered documents is

provided, since the password needed to access the

information for deciphering the documents is

different from the Google account password or the

password used to encrypt each document.

Thanks to the listeners explained in the previous

section, combined with the selected algorithm and a

master password, the documents are decrypted and

presented to the user as plain text when requested. In

most cases, the document will be received in

packets, meaning that it will have to be stored

temporarily in a buffer until it is ready to be

deciphered.

As expected, the size of the documents increases

after encryption. Depending on the algorithm used,

this size can double. The documents are thus

compressed before they reach the servers as the

current storage limit of Google Docs is 512 KB.

Thus, we can assume that the ciphering process does

not have a significant effect on typical editing in

terms of size. Furthermore, there are even cases in

which the compressed ciphered document is smaller

than the original, unciphered version.

4.2 Encrypted Document Sharing

To address the encrypted document-sharing

problem, we have extended our previous work and

proposed a new solution based on the creation of a

new index for each new document to be shared. This

new shared index document must contain a unique

line with data related to the encryption of the shared

document, as it appears in the general index. This

data will be created as a hidden file.

The names of the different indices follow a

particular notation to identify them:

 plugin.doc: the general index. This contains

data related to all ciphered documents,

regardless of their status (shared or private).

 plugin_<docID>.doc: shared index for the

shared document with the identifier docID. Its

content is also included in the general index.

For the owner, sharing a ciphered document with

other users involves the same process as in the case

of unciphered documents; there is no difference in

the use of the Google Docs interface.

When an owner shares a document, the request is

intercepted by the listeners. If this is the first time

the owner is sharing a ciphered document, a new

popup will appear asking for a new password: the

shared key. Once this value has been set, it will be

written in the general index for future operations.

Moreover, the first time a specific encrypted

document is shared, a new associated shared index

will be created using the Google Docs API.

The new shared index will contain the

information associated with the encryption of the

document, copied from the general index. The

content of this index is also ciphered using AES with

a 128-bit key, as occurs with the general index. The

password to encrypt the index will be the shared

key, which will preferably be different from the

master key. Accordingly, when an owner shares a

document he will simply have to give the shared key

to the rest of the users (using a secure channel),

meaning that the master key will remain private and

safe.

It is important to highlight that the information

relating to the shared and general index must be

synchronized at all times. If any kind of incoherence

occurs, the data from the owner’s general index will

be prioritized, and the shared index information will

be updated accordingly.

4.2.1 Sharing the New Index

After the sharing of the ciphered document and the

creation of its shared index, the index itself needs to

be shared with the users who have access to the

corresponding document. To share this index, a new

petition will be made through the Google Docs API

with all the necessary information. This petition will

be repeated for every user who has access to the

document, keeping the owner’s general index with

its critical information private.

As shown in Figure 2, the owner of the documents

will have as many shared indices as documents that

are being shared, each distinguishable by its name,

which contains the document identifier. In the

example, the owner has four encrypted documents,

two of which (UD1 and UD2) are private; their

ciphering information is stored in the hidden index

file plugin.doc. The other two documents, with

docID values SD1 and SD2, are shared with three

different users. For each document a new hidden

document is created, plugin_<docID>.doc,

containing the same ciphering information as in the

general index, plugin.doc. The general index is

ciphered with the private master key (MK), while

the shared indices use the same shared key (SK). If

the owner decides to assign a different encryption

key to SD1 or SD2, it would be transparent to the

rest of the users, who would only need to know the

CLOSER 2011 - International Conference on Cloud Computing and Services Science

442

Figure 2: Private and shared indices of the owner of the

documents. MK indicates master key; SK, shared key.

shared key to decipher their shared indices. Thus,

the users are unaware of the options used to encrypt

each document.

4.2.2 Modifying Document Permissions

The plugin extends some Google document-sharing

features for encrypted documents, namely adding

new permissions to a previously shared document

and making a shared document private again for its

owner.

Adding new permissions to a document. Providing

access for additional users to an already shared

document is similar to the first time the owner

decides to share it. The main difference is that the

shared index with the necessary data for decrypting

the document already exists, meaning that this step

is skipped.

When the owner of the document shares it

through the Google Docs interface, the listeners will

detect the petition; a new request will thus be issued

to the Google Docs API, modifying the document’s

ACL feed and offering the new user access to the

shared index content.

In this case, the shared key must be distributed

using methods that are external to the add-on (i.e. a

secure channel). A remarkable aspect in which our

implementation outperforms others is that the

number of users accessing a shared document is

limited only by Google Docs, as the add-on does not

impose any restrictions on the number of users

accessing a shared document.

Removing Sharing Permissions. If the owner of a

document decides to no longer share it with other

users, it would suffice to remove their permissions in

the corresponding shared index through the

appropriate request to the API. The rest of the users

would still have the original document on their list,

but it would be undecipherable, since the data

needed to decrypt it would be restricted.

When the owner removes the document

permissions via the Google Docs interface, this

action is detected by the listeners and a new request

is sent to the API to remove public access from the

shared index. If the number of users with access to

the document drops to zero, the shared index will be

deleted from the list of the owner’s documents.

However, the owner will still be able to work on the

encrypted document because the corresponding

ciphering information will still be stored in the

general index.

5 CONCLUSIONS

Google Docs is one of the main tools for document

edition in the Cloud. Moreover, the Google API

simplifies its extension.

In this context, Cloud privacy can be guaranteed

by ciphering the documents at the client side. A

system with this functionality is conceptually

simple. It simply requires the user to enter an initial

password. In L. Adkinson-Orellana et al., 2010 we

presented one of the first on-line encryption plugins

based on the Google API.

In this paper, we go a step further and propose a

solution that guarantees the privacy of shared

documents. Document sharing is one of the most

demanded SaaS features, with many applications in

business, e-learning and professional Web 2.0

applications in general.

As future work we plan to provide new features

such as document ownership changes and support

for public or asymmetric cryptography, which would

eliminate the need for password exchanging between

users. In our current implementation, real-time

collaborative edition with Google Docs encrypted

documents works, but has not been fully tested. We

are currently working on a new stable version

including this feature.

SHARING SECURE DOCUMENTS IN THE CLOUD - A Secure Layer for Google Docs

443

ACKNOWLEDGEMENTS

This research has been supported by the ACETIC

consortium and the SAFECLOUD grant

(09TIC014CT), funded by Xunta de Galicia, Spain.

REFERENCES

Adkinson-Orellana, L., Rodríguez-Silva, D., Gil-

Castiñeira, F. and Burguillo-Rial J. C. (2010). Privacy

for google docs: Implementing a transparent

encryption layer. In Proceedings of the CloudViews

2010 - 2nd Cloud Computing International

Conference, pages 21–22, Porto, Portugal.

Armbrust, M., Fox, A., Griffith, R., Joseph, A.D., Katz,

R.H., Konwinski, A., Lee, G., Patterson, D.A., Rabkin,

A., Stoica, I. and Zaharia, M. (2009). Above the

Clouds: A Berkeley View of Cloud Computing, Tech.

Rep. UCB/EECS-2009-28, EECS Department,

University of California, Berkeley, USA.

CSA (2010). Domain 10: Guidance for Application

Security V2.1. Cloud Security Alliance Whitepaper.

Retrieved December 16, 2010 from

http://www.cloudsecurityalliance.org/guidance/csagui

de-dom10-v2.10.pdf.

D’Angelo, G., Vitali, F. and Zacchiroli, S. (2010). Content

cloaking: Preserving privacy with Google Docs and

other web applications. In 2010 ACM Symposium on

Applied Computing, pages 22–26, Sierre, Switzerland.

DocCloak (2010). DocCloak website. Retrieved December

16, 2010 from http://www.gwebs.com/doccloak.html.

Google (2010). Google Docs API website. Retrieved

December 16, 2010 from

http://code.google.com/intl/es-ES/apis/documents/.

Huang Y. and Evans D. (2010). Secure Google Docs

Extension website. Retrieved December 16, 2010 from

http://www.mightbeevil.org/securedocs/.

Lederer, S., Hong, J. I., Dey, A. K. and Landay, J. A

(2004). Personal Privacy through Understanding and

Action: Five Pitfalls for Designers. Personal and

Ubiquitous Computing 8/ 6, pp. 440-54.

Nadeem, A. and Javed, M.Y. (2005). A Performance

Comparison of Data Encryption Algorithms. In

Information and Communication Technologies 2005,

ICICT 2005, Cairo, Egypt

O’Reilly, T. (2004). The Fuss About Gmail and Privacy:

Nine Reasons Why It's Bogus. Retrieved December 16,

2010 from http://oreillynet.com/pub/wlg/4707.

O’Reilly, T. (2007). What is Web 2.0: Design Patterns and

Business Models for the Next Generation of Software.

Communications & Strategies, 1st Quarter 2007, p. 17.

Park H., Lee K., Lee Y., Kim S. and Won D (2009).

Security Analysis on the Online Office and Proposal

of the Evaluation Criteria. World Academy of Science,

Engineering and Technology. Issue 59, pp. 198-204.

Rinne, S., Eisenbarth, T. and Paar, C. (2007). Performance

Analysis of Contemporary Light-Weight Block

Ciphers on 8-bit Microcontrollers. In ECRYPT

Workshop SPEED - Software Performance

Enhancement for Encryption and Decryption,

Amsterdam, Netherlands.

Ristenpart, T., Tromer. E., Shacham, H. and Savage S.

(2009). Hey, you, get off of my cloud: exploring

information leakage in third-party compute clouds. In

CCS’09: Proceedings of, the 16th ACM Conf. on

Computer and Comm. Security, pp. 199–212.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

444
