DEFINING GENERIC ARCHITECTURE FOR CLOUD IAAS

PROVISIONING MODEL

Yuri Demchenko, Cees de Laat

System and Network Engineering Group, University of Amsterdam, Amsterdam, The Netherlands

Aleksej Mavrin

Verizon Nederland B.V., Amsterdam, The Netherlands

Keywords: Cloud computing, Infrastructure as a Service (IaaS), on-Demand Infrastructure Services Provisioning

(ISOD), Composable Services Architecture (CSA), GEANT Multidomain Bus (GEMBus).

Abstract: Infrastructure as a Service (IaaS) is one of the provisioning models for Clouds as defined in the NIST

Clouds definition. Although widely used, current IaaS implementations and solutions doesn’t have common

and well defined architecture model. The paper attempts to define a generic architecture for IaaS based on

current research by authors in developing novel architectural framework for Infrastructure Services On-

Demand (ISOD) provisioning that is originated from the telecommunication and networking area and allows

for combined network and IT resources provisioning. The paper proposes the Composable Services

Architecture (CSA) for dynamically configurable virtualised services. The proposed CSA includes such

important component as the Services Delivery Framework (CSA SDF) that defines the services provisioning

workflow and supporting infrastructure for provisioned services lifecycle management. The CSA SDF

extends existing lifecycle management frameworks with additional stages such as “Registration and

Synchronisation” and “Provisioning Session Binding” that specifically target such scenarios as the

provisioned services recovery or re-planning/migration and provide necessary mechanisms for consistent

security services provisioning as an important component of the provisioned on-demand infrastructure. The

paper also describes the GEMBus (GEANT Multidomain Bus) that is considered as a CSA middleware

platform. The presented architecture is the result of the on-going cooperative effort of the two EU projects

GEANT3 JRA3 Composable Services and GEYSERS.

1 INTRODUCTION

Cloud technologies (NIST, GFD.150) are emerging

as infrastructure services for provisioning computing

and storage resources, and expectedly they will

evolve into the general IT resources. Cloud

Computing can be considered as a natural evolution

of the Grid Computing technologies to more open

infrastructure-based services.

The growing interest and adoption of the Cloud

based service provisioning, operational and business

models are facilitated by the fact that different

groups of users, vendors, providers and operators see

new opportunities related to their own specific needs

and interests: scientist and specialist users like

simplicity of setup and elasticity of

execution/computation environment; computer

scientists and programmers see a new environment

for using and developing new programming models;

providers, and in particular telecommunication

providers, and operators expect to benefit from new

provisioning models and new market for complex

infrastructure services.

The current Cloud services implement 3 basic

provisioning models (as defined in the NIST

document (NIST)): Infrastructure as a Service

(IaaS), Platform as a Service (PaaS), and Software

as a Service (SaaS). IaaS suggests involving

different types of resources, of which one is the

network connectivity with guaranteed Quality of

Service (QoS), and availability of user controlled

infrastructure operation via dynamically created

control and management planes/functions. Most of

currently available Cloud providers are positioned as

Demchenko Y., de Laat C. and Mavrin A..

DEFINING GENERIC ARCHITECTURE FOR CLOUD IAAS PROVISIONING MODEL.

DOI: 10.5220/0003392600790085

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 79-85

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

PaaS; although some of them may claim to do IaaS

but in practice this turns to be rather PaaS like in

case of Amazon EC2 Cloud or RackSpace Cloud as

in fact they deliver single provider services based on

their private network infrastructure.

Despite a rapid grow, Cloud technologies are

lack of well-defined architectural framework(s) and

operational models. Current industry standardisation

activity is primarily focused on functional

interoperability of deployment platforms and

components supporting basic/core usage scenarios

such as applications and Virtual Machine (VM)

images creation, deployment and management,

services request and execution management.

This paper attempts to define a generic

architecture for the Cloud Infrastructure as a Service

provisioning model which is defined as the

Composable Services Architecture (CSA). The CSA

extends virtualisation and dynamic service

provisioning concepts to complex infrastructure

services that are composed of multiple composable

component services and resources. The CSA is SOA

based and built upon industry adopted Enterprise

Service Bus (ESB).

The presented architecture is the result of the

ongoing cooperative effort of the two EU projects

GEANT3 JRA3 Composable Services (GEANT

Project) and GEYSERS (GEYSERS Project) and

currently considered to be contributed to the Open

Grid Forum (OGF) standardisation activity. Current

development is based on previous works by the

authors in the framework of the EGEE and

Phosphorus projects (EGEE Project), (Phosphorus

Project) that have been resulted in proposing the

general Complex Resource Provisioning (CRP)

model (Demchenko et al., 2009) that includes such

main stages as reservation, deployment, access, and

decommissioning.

The paper is organized as follows. Section 2

analyses the typical infrastructure for e-Science

applications that includes computing, storage,

visualisation and their connection to network

infrastructures. Section 3 presents the proposed

Composable Services Architecture and section 4

describes the proposed Services Delivery

Framework (CSA SDF) that defines the on-demand

service provisioning sequence and workflow.

Section 5 provides information about the ongoing

development of the GEMBus that is considered as a

middleware and enabling technology for the

dynamically provisioned composable services

integration. Section 6 provides general requirements

and suggestions for building consisting security and

refers to other ongoing works by the authors.

2 ON-DEMAND

INFRASTRUCTURE SERVICES

PROVISIONING

Two general use cases for on-demand infrastructure

services provisioning can be considered for defining

basic requirements to Cloud IaaS: large scientific

infrastructure and transport network infrastructure

provisioning. These use cases represent the two

different perspectives in developing infrastructure

services – users and application developers

perspective, on one side, and providers perspective,

on the other side. Users are interested in uniform and

simple access to the resource and the services that

are exposed as Cloud/Grid resources and can be

easily integrated into the scientific or business

workflow. Infrastructure providers are interested in

infrastructure resource pooling and virtualisation to

simplify their on-demand provisioning and extend

their service offering and business model to Virtual

Infrastructure provisioning.

Figure 1 illustrates the typical e-Science

infrastructure that includes Grid and Cloud based

computing and storage resources, instruments,

control and monitoring system, visualization system,

and users represented by user clients. The diagram

also reflects that there may be different types of

connecting network links: high-speed and low-speed

which both can be permanent for the project or

provisioned on-demand.

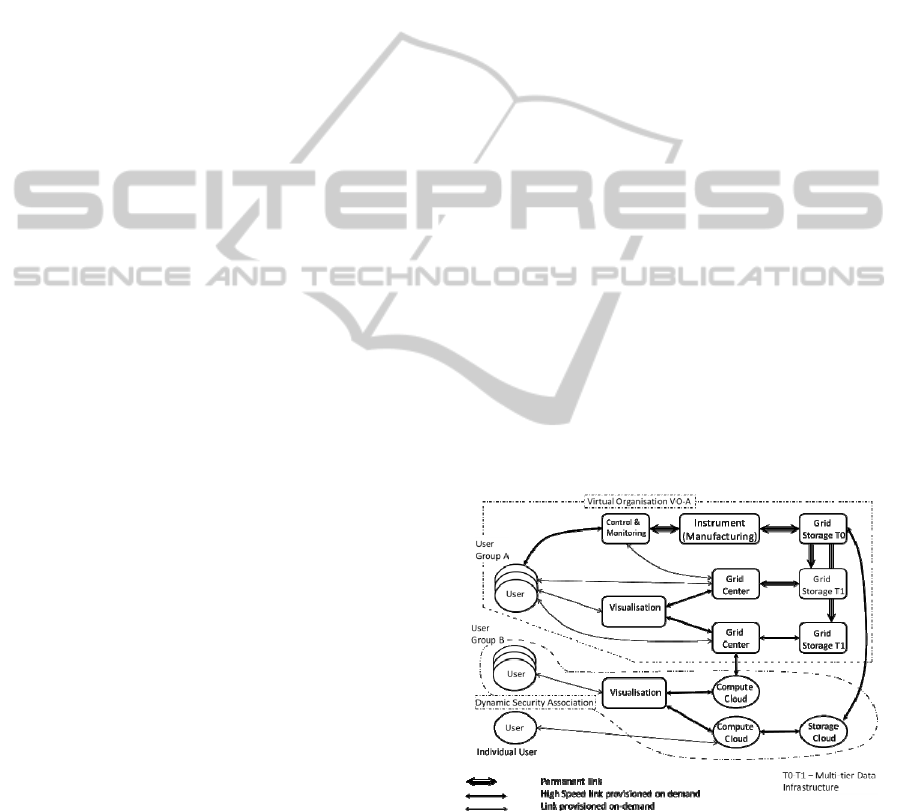

Figure 1: Components of the typical e-Science

infrastructure involving multidomain and multi-tier Grid

and Cloud resources and network infrastructure.

The figure illustrates possible different relations

between users/actors in Clouds and Grids. Grid

architecture is built around so-called Virtual

Organisations (VO) that are defined as collaborative

associations/federations of the member organisations

CLOSER 2011 - International Conference on Cloud Computing and Services Science

to share complex resources which are however

remaining under control and in ownership of the VO

member organisations. Grids natively supports

project oriented collaborative environment with

sharing resources committed/donated by the VO

members. Clouds are considered as a technology for

provisioning complex computing resources,

applications and increasingly infrastructure

resources and services on-demand on the pay-per-

use base.

Typically business relations between provider

and customer are expressed in the Service Level

Agreement (SLA) that defines the services provided

by the provider, including security services that are

provided as a part of the provider Cloud

environment. The offered/provided services are

uniform and cannot be modified or configured by

user what creates problems for their integration into

the existing user infrastructure or building effective

project based collaborative environment. With wider

adoption of the Cloud infrastructure services and

their integration into organisational IT infrastructure

the demand for dynamically configurable/

manageable composable services will be growing.

The solution for mentioned problems can be seen in

provisioning manageable, dynamically configured

services that support all stages of on-demand

infrastructure services provisioning. This problem is

being researched as a part of the GEANT3 JRA3

Composable Services activity (GEANT Project) and

GEYSERS project Logical Infrastructure

Composition Layer (LICL) definition and design

(GEYSERS Project).

3 THE COMPOSABLE SERVICES

ARCHITECTURE (CSA)

The Infrastructure as a Service provisioning involves

dynamic creation of infrastructure consisting of

different types of resources together with necessary

control and management planes, all provisioned on-

demand. The proposed CSA provides a framework

for the design and operation of the

composite/complex services provisioned on-

demand. It is based on the component services

virtualisation, which in its own turn is based on the

logical abstraction of the (physical) component

services and their dynamic composition. Composite

services may also use the Orchestration service

provisioned as a CSA infrastructure service to

operate composite service specific workflow.

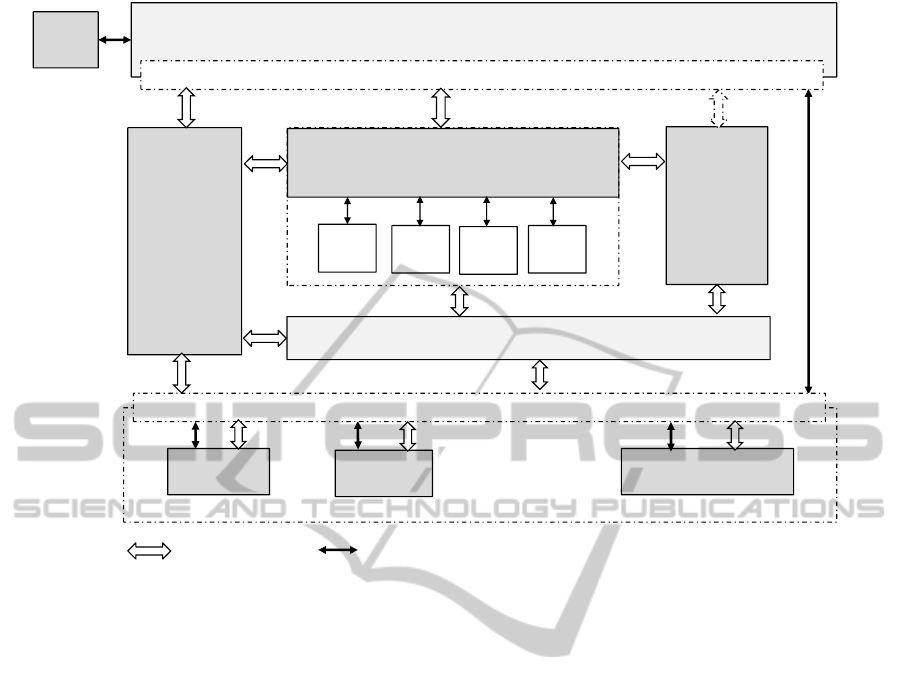

Figure 2 shows the major functional components

of the proposed CSA and their interaction. The

central part of the architecture is the CSA

middleware that should ensure smooth service

operation during all stages of the composable

services lifecycle.

Composable Services Middleware (CSA-MW)

provides common interaction environment for both

(physical) component services and

complex/composite services, built with them.

Besides exchanging messages, CSA-MW also

contains/provides a set of basic/general

infrastructure services required to support reliable

and secure (composite) services delivery and

operation:

• Service Lifecycle Metadata Service (MD SLC)

that stores the services metadata and in

particular the services state and the provisioning

session context.

• Registry service that contains information about

all component services and dynamically created

composite services. The Registry should support

automatic services registration.

• Logging service that can be also combined with

the monitoring service.

• Middleware Security services that ensure secure

operation of the CSA/middleware.

Note, both logging and security services can be

also provided as component services that can be

composed with other services in a regular way.

The CSA defines also Logical Abstraction Layer

for component services and resources that is

necessary part of creating services pool and

virtualisation. Another functional layer is the

Services Composition layer that allows presentation

of the composed/composite services as regular

services to the consumer.

The Control and Management plane provides

necessary functionality for managing composed

services during their normal operation. It may

include Orchestration service to coordinate

component services operation, in a simple case it

may be standard workflow management system.

CSA defines a special adaptation layer to support

dynamically provisioned Control and Management

plane interaction with the component services which

to be included into the CSA infrastructure must

implement adaptation layer interfaces that are

capable of supporting major CSA provisioning

stages, in particular, service identification, services

configuration and metadata including security

context, and provisioning session management.

The application or service middleware layer can

be defined as an additional upper CSA architecture

layer to provide application – infrastructure interface

DEFINING GENERIC ARCHITECTURE FOR CLOUD IAAS PROVISIONING MODEL

ApplicationsandUserTerminals

Composition

Layer

(Reservation

SLA

Negotiation)

LogicalAbstraction LayerforComponent

ServicesandResources

Control&

Management

Plane

(Operation,

Orchestration)

ComposableServicesMiddleware

(GEMBus)

NetworkInfrastructure

Compute

Resources

Storage

Resources

ComponentServices&Resources

AdaptationLayer‐ ComponentServicesandResources

AdaptationLayer–Composite/Virtualised ServicesandResources

MDSLC

Registry Logging Security

User

Client

Datalinks/flows

Controllinks

Figure 2: Composable Service Architecture and main functional components.

with the underlying virtual infrastructure

provisioned by CSA, but this functionality is

typically addressed by the applications provider

themselves.

4 CSA SERVICE DELIVERY

FRAMEWORK

The proposed CSA Service Delivery Framework

(CSA SDF) implements the Service Delivery

Framework defined by the TeleManagement Forum

(TMF) (TMF) and extends it with additional stages

to address secure composable services operation and

integration into the heterogeneous multidomain

Cloud IaaS environment. Figure 3 illustrates the

main service provisioning stages:

Service Request (including SLA negotiation).

The SLA can describe QoS and security

requirements of the negotiated infrastructure service

along with information that facilitates authentication

of service requests from users. This stage also

includes generation of the Global Reservation ID

(GRI) that will serve as a provisioning session

identifier and will bind all other stages and related

security context.

Composition/Reservation that also includes

Reservation Session Binding with GRI what

provides support for complex reservation process in

potentially multidomain multi-provider environ-

ment. This stage may require access control and

SLA/policy enforcement.

Deployment, including services Registration

and Synchronisation. Deployment stage begins

after all component resources have been reserved

and includes distribution of the common composed

service context (including security context) and

binding the reserved resources or services to the GRI

as a common provisioning session ID. The

Registration and Synchronisation stage (that

however can be considered as optional) specifically

targets possible scenarios with the provisioned

services migration or re-planning. In a simple case,

the Registration stage binds the local resource or

hosting platform run-time process ID to the GRI as a

provisioning session ID.

Operation (including Monitoring). This is the

main operational stage of the provisioned on demand

composable services. Monitoring is an important

functionality of this stage to ensure service

availability and secure operation, including SLA

enforcement.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

Decommissioning stage ensures that all sessions

are terminated, data are cleaned up and session

security context is recycled. Decommissioning stage

can also provide information to or initiate services

usage accounting.

The two additional (sub-)stages can be initiated

from the Operation stage and/or based on the

running composed service or component services

state, such as their availability or failure:

Re-composition or Re-planning that should

allow incremental infrastructure changes.

Recovery/Migration can be initiated both the

user and the provider. This process can use MD-SLC

to initiate full or partial resources re-

synchronisation, it may also require re-composition.

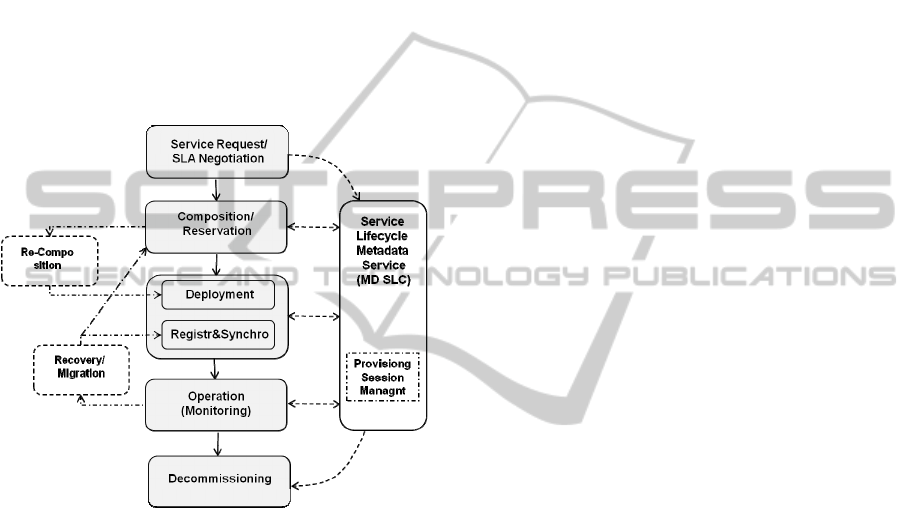

Figure 3: On-demand Composable Services Provisioning

Workflow.

5 GEMBUS AS A CSA

MDDLEWARE PLATFORM

GEANT Multidomain Bus (GEMBus) is being

developed as a middleware for Composable Services

(GEANT3 Project) in the framework of the

GÉANT3 project aimed for creating a new

generation of the pan-European academic and

research network GÉANT. GEMBus incorporates

the SOA services management paradigm (OASIS) in

on-demand service provisioning. The Composable

Services Architecture will span over different

service interactions, from the infrastructure up to

application elements and will provide functionality

to define, discover, access and combine services in

the GÉANT environment. The goal of GEMBus is to

establish seamless access to the network

infrastructure and the services deployed upon it,

using direct collaboration between network and

applications, and therefore providing more complex

community-oriented services through their

composition.

GEMBus is built upon the industry accepted

Enterprise Service Bus (ESB) (Chappell, 2004) and

extends it with the necessary functional components

and design patterns to support multidomain services

and applications. Figure 4 illustrates the suggested

GEMBus architecture. GEMBus infrastructure

includes three main groups of functionalities:

• GEMBus Messaging Infrastructure (GMI) that

includes the messaging backbone and other

message handling services such as routing,

configuration services, secure messaging, and

event handler/interceptors. GMI supports both

SOAP-based and RESTful services conforming

to Representational State Transfer architecture

(REST) (Pautasso et al., 2008).

• GEMBus infrastructure services that support

reliable and secure composable services

operation and the whole services provisioning

process. These include such services as service

registries, composition and orchestration,

security and access control, logging and

monitoring, and the also important Lifecycle

Metadata Service.

• Component services, although typically

provided by independent parties, will need to

implement special GEMBus adaptors or use

special “plug-in sockets” that allow their

integration into the GEMBus/CSA

infrastructure.

The following functionalities are essential to

enable GEMBus operation in the multidomain

heterogeneous service provisioning environment:

• Service registries supporting service registration

and discovery. Registries are considered as an

important component to allow cross-domain

heterogeneous services integration and metadata

management during the whole services

lifecycle.

• Security, access control, and logging should

provide consistent services and security context

management during the whole provisioned

services lifecycle.

• Service Composition and Orchestration models

and mechanisms should allow integration with

the higher level scientific or business workflow.

The GEMBus and GMI in particular are built on

the top of the standard Apache/Fuse messaging

infrastructure that includes the following

components (Fuse ESB, Apache ServiceMix):

DEFINING GENERIC ARCHITECTURE FOR CLOUD IAAS PROVISIONING MODEL

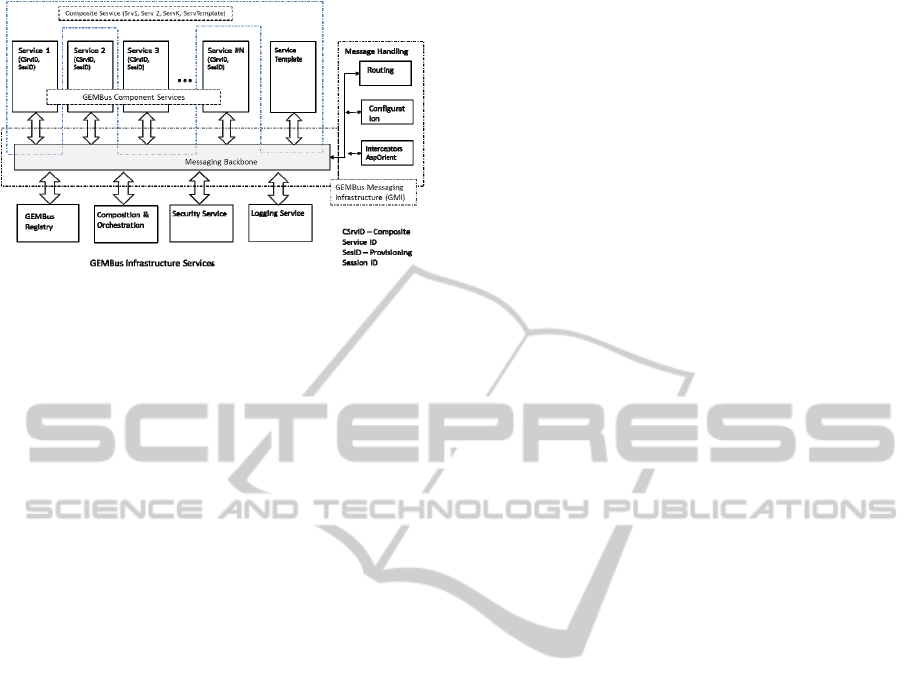

Figure 4: GEMBus infrastructure, including component

services, service template, infrastructure services, and core

message-processing services.

• Fuse Message Broker (Apache ActiveMQ)

messaging processor

• Fuse Mediation Router (Apache Camel)

normalised message router

The GEMBus services and applications can be

deployed on the standard Fuse or Apache ESB

server. As component services that can be integrated

with the standard OSGi (OSGi) and Spring (Spring

Security) compliant service development

frameworks and platforms such as Fuse Services

Framework/Apache CXF and Fuse ESB/Apache

ServiceMix.

6 CSA SECURITY

INFRASTRUCTURE

Providing consistent security services in CSA and

GEMBus is of primary importance due to potentially

multi-provider and multi-tenant nature of Clouds

IaaS environment. The CSA security infrastructure

(CSA-Security) should address two aspects of the

IaaS operation and dynamic security services

provisioning:

• Provide security infrastructure for secure IaaS

operation, including access control and SLA

and policy enforcement for all interacting roles

and components in CSA, secure messaging and

transport services.

• Provisioning dynamic security services,

including creation and management of the

dynamic security associations, as a part of the

provisioned complex/composite services or

virtual infrastructures.

The first task is a traditional task in security

engineering, while dynamic provisioning of

managed security services remains a problem and

requires additional research.

An important issue in building consistent

security services for dynamically provisioned virtual

infrastructures is the Security Services Lifecycle

Management (SSLM) that extends the described

above CSA SDF service lifecycle management

model with additional sub-stages and functions to

bind dynamic security context to the general

provisioning session and Cloud virtualisation and

hosting platform in such a way that to ensure all

operations on the virtual infrastructure and user data

to be secured during their whole lifecycle. It is

described in details in earlier authors’ paper

(Demchenko et al., 2010).

CSA-Security and GEMBus should implement

the following basic infrastructure security services to

ensure normal operation of the virtual infrastructure:

• Access control (e.g. Authentication,

Authorisation, Identity Management)

• Policy and SLA enforcement

• Data, messaging and communication security

• Additionally, auditing/logging and accounting.

CSA-Security should implement multi-layer

security services including transport, messaging and

application/data security, and additionally network

layer security for distributed VPN based enterprise

domains. Security and security services in the CSA

and GEMBus design are applied at different layers

and can be called from different functional

components using standard/common security

services interface. Security services are governed by

related security policies.

Security services should support the whole

provisioned/composable services lifecycle and

consequently support session-related security

context management.

Security services can be designed as: pluggable

services operating at the messaging layer; OSGi

bundles that can be dynamically added as

composable services to other composable services to

form an instant virtual infrastructure; or exposed as

Web services and be integrated with other services

by means of higher level workflow management

systems.

7 SUMMARY AND FUTURE

DEVELOPMENTS

This paper presents the ongoing research on

developing architecture and framework for

dynamically provisioned and reconfigurable

CLOSER 2011 - International Conference on Cloud Computing and Services Science

infrastructure services to support modern e-Science

and high-technology industry applications that

require both high-performance computing resources

(provisioned as Grids or Clouds) and high-speed

dedicated transport network.

The paper proposes the Composable Services

Architecture (CSA) that is intended to provide a

conceptual and methodological framework for

developing dynamically configurable virtualised

infrastructure services.

The proposed CSA is currently being

implemented in the framework of the GEANT3

Project as an architectural component of the GEANT

Multidomain service bus (GEMBus). The GEMBus

extends the industry adopted Enterprise Service Bus

(ESB) technology with the additional functionality

to support multidomain services provisioning. The

GEMBus infrastructure intended to allow dynamic

composition of the infrastructure services to support

collaboration of the distributed groups of

researchers.

The concepts and solutions presented in this

paper are intended to be offered as a contribution to

the Open Grid Forum (OGF) Research Group on

On-Demand Infrastructure Services Provisioning

(ISOD-RG) initiated by the authors and the involved

projects (for details see materials of ISOD BoF at

OGF30 (ISOD BoF) and planned ISOD-RG meeting

at OGF31).

The authors believe that concepts proposed in this

paper will provide a good basis for the further

discussion among researchers about defining an

architecture for dynamically configured virtualised

infrastructure services as a part of the Clouds IaaS

model.

ACKNOWLEDGEMENTS

This work is supported by the FP7 EU funded

project GEANT3 (FP7-ICT-238875), and the FP7

EU funded Integrated project The Generalised

Architecture for Dynamic Infrastructure Services

(GEYSERS, FP7-ICT-248657).

REFERENCES

NIST Definition of Cloud Computing v15. [Online] http://

csrc.nist.gov/groups/SNS/cloud-computing/cloud-def-

v15.doc

GFD.150 Using Clouds to Provide Grids Higher-Levels of

Abstraction and Explicit Support for Usage Modes.

[Online] http://www.ogf.org/documents/ GFD.150.pdf

GEANT Project. http://www.geant.net/pages/ home.aspx

Generalised Architecture for Dynamic Infrastructure

Services (GEYSERS Project)-http://www.geysers.eu/

Enabling Grid from E-sciencE (EGEE Project). [Online].

http://www.eu-egee.org/

Phosphorus Project. [Online]. Available: http:// www.ist-

phosphorus.eu/

Demchenko, Y., M. Cristea, C. de Laat, E. Haleplidis,

Authorisation Infrastructure for On-Demand Grid and

Network Resource Provisioning, Proc. 3rd Intl ICST

Conference on Networks for Grid Applications

(GridNets 2009), Athens, Greece, 8-9 Sept 2009.

ISBN: 978-963-9799-63-9

TMF Service Delivery Framework. http://

www.tmforum.org/servicedeliveryframework/4664/

home.html

Deliverable DJ3.3.1: Composable Network Services use

cases. GEANT3 Project Deliverable. January 11,

2010. http://www.geant.net/Media_Centre/Media_

Library/Media%20Library/GN3-09-198-DJ3_3_1_

Composable_Network_Services_use_cases.pdf

OASIS Reference Architecture Foundation for Service

Oriented Architecture 1.0, Committee Draft 2, Oct. 14,

2009. http://docs.oasis-open.org/soa-rm/soa-ra/v1.0/

soa-ra-cd-02.pdf

Chappell, D., "Enterprise service bus", O’Reilly, June

2004. 247 pp.

Pautasso, C., O. Zimmermann, F. Leymann, "RESTful

Web Services vs. Big Web Services: Making the Right

Architectural Decision", 17th International World

Wide Web Conference (WWW2008), Beijing, China.

Fuse ESB - OSGi based ESB. - http://fusesource.com/

products/enterprise-servicemix/#documentation

Apache ServiceMix an Open Source ESB. - http://

servicemix.apache.org/home.html

OSGi Service Platform Release 4, Version 4.2. -

http://www.osgi.org/Download/Release4V42

Spring Security. Reference Documentation. http://

static.springsource.org/spring-security/site/docs/3.1.x/

reference/springsecurity-single.html

Demchenko, Y., D. R. Lopez, J. A. Garcia Espin, C. de

Laat, "Security Services Lifecycle Management in On-

Demand Infrastructure Services Provisioning",

International Workshop on Cloud Privacy, Security,

Risk and Trust (CPSRT 2010), 2nd IEEE International

Conference on Cloud Computing Technology and

Science (CloudCom2010), 30 November - 3 December

2010, Indianapolis, USA.

On-Demand Infrastructure Services Provisioning BoF

(ISOD BoF), OGF30 meeting, 25 October 2010,

Brussels. http://www.gridforum.org/gf/event_

schedule/index.php?id=1961

DEFINING GENERIC ARCHITECTURE FOR CLOUD IAAS PROVISIONING MODEL
