FUNCTIONAL DOMAIN CONCEPTS IN THE MODELLING OF

CLOUD STRUCTURES AND THE BEHAVIOUR OF

INTEGRATED POLICY-BASED SYSTEMS THROUGH

THE USE OF ABSTRACTION CLASSES

Jonathan Eccles

Department of Computer Science and Information Systems, University of London, Birkbeck, London, WC1E 7HX, U.K.

George Loizou

Department of Computer Science and Information Systems, University of London, Birkbeck, London WC1E 7HX, U.K.

Department of Computer Science and Engineering, European University Cyprus, 1516 Nicosia, Cyprus

Keywords: Cloud architecture, Profiles, Policy management, Virtualisation, Abstraction classes, Service control.

Abstract: We succinctly summarise the various current approaches encountered in Policy-Based Control of Functional

Networking within Cloud Structures by integrating these concepts with those of Profile generation, and

generic environment representation, based on Entity-Relationship (ER) and Class-Based Modelling. The

subsequent problems that this integration gives rise to are identified and discussed. We present a generic

solution to these problems, which has been partially implemented, and show how this work is being

extended using the concept of Abstraction Classes. We indicate further work to be undertaken in this area.

1 INTRODUCTION

In this paper we will initially outline current

approaches by which policies and profiles are

implemented in a network-based environment. This

is followed by a description of the way in which

policy/profile-based control systems are used to

address specific types of problem in cloud process

management in the context of Functional Domain

(FD) design, together with abstracted system

modelling. The current approaches give rise to

various problems that to date are unresolved. This

problem area is identified and discussed. To this end

we describe a generic approach that has been used to

implement a unified solution to these problems by

way of a partial implementation. We conclude by

outlining the future work currently in progress.

The organisation of this paper is as follows: in

section 2 we identify current problems and present

an overall approach to addressing these problems. In

section 3 we present a generic design for the solution

of the said problems, and finally we give a critique

and conclusions in sections 4 and 5, respectively.

2 PRELIMINARIES

2.1 Current Approaches

A domain can simply be defined as a set of entities

of a particular class within the controlling database

structure representing a specific network operating

system. For example, within the Windows 2008

Active Directory (Desmond and Richardson, 2009),

a domain is simply a partition of the namespace that

forms a security boundary (Neilsen, 1999). This is

hosted within the Organisational Unit (OU), serving

as the local domain container object. Conventional

operating system domain membership normally

applies to workstations and server classes of network

nodes, where each such node may be a member of

only one specified domain. This introduces an

inherent limitation in the sense that domain

membership cannot be fluid, and the properties of

the node are therefore required to be rigid. For

example,

Operating_System_Domain(x) = { Network Node(i)

| (Network_Node(i).[VLAN]

∈Domain(x).[VLAN])

Eccles J. and Loizou G..

FUNCTIONAL DOMAIN CONCEPTS IN THE MODELLING OF CLOUD STRUCTURES AND THE BEHAVIOUR OF INTEGRATED POLICY-BASED

SYSTEMS THROUGH THE USE OF ABSTRACTION CLASSES.

DOI: 10.5220/0003393100860097

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 86-97

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

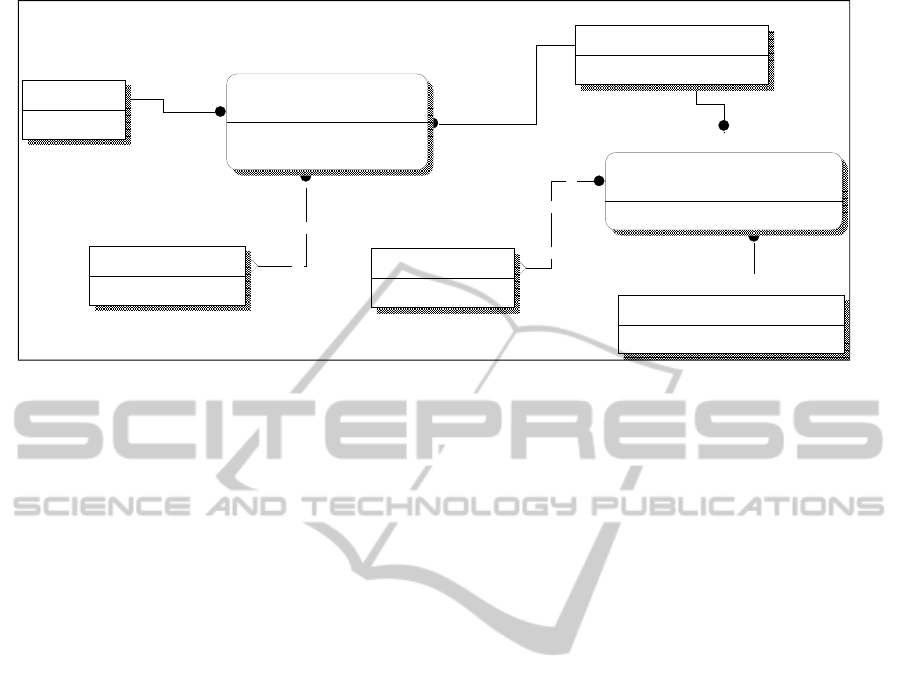

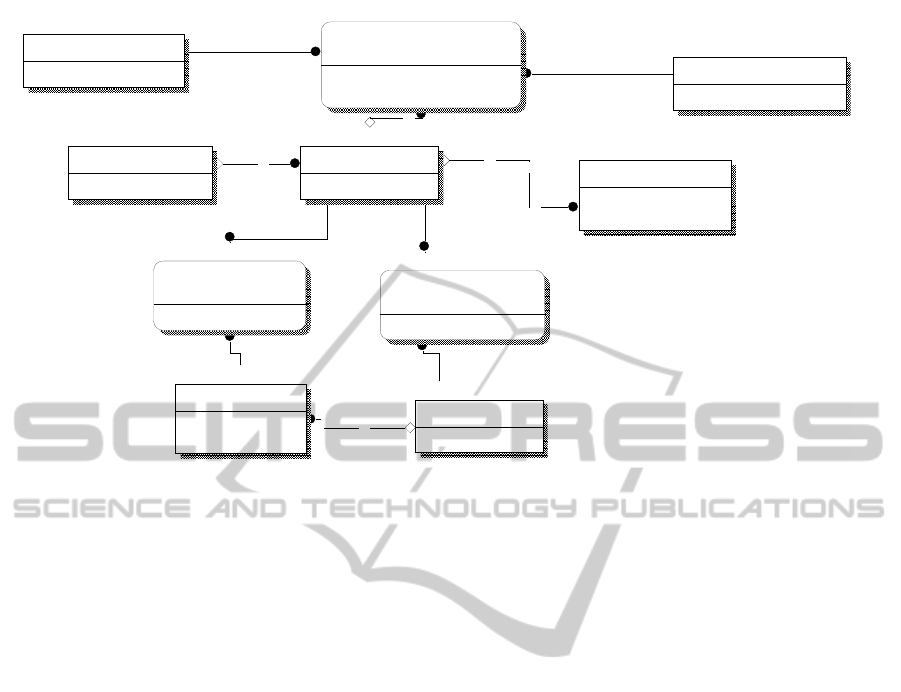

Figure 1: ER diagram from the main ER/Class cloud model introducing the FD concept.

∧ (1 ≤ i ≤ Max(Domain(x).[VLAN])) ∧

(Domain(x).[OS] = Network_Node(i).[OS]) }

Next we briefly look at a business system in the

context of existing compute models (e.g. client-

server) and then within a cloud environment. A

business system is loosely defined as a set of one or

more processes which, when combined, address the

requirements of a specific business problem. In the

traditional client-server model such systems were

implemented as one or more servers that were

dedicated to hosting the required business system

processes (Microsoft, 2001e). These were accessed

over one or more networks by individual sets of

workstations, whose functionality may have been

mutually exclusive with respect to each other.

Where the business process invoked requires

heterogeneous systems access, then there is a

problem with the current definition of the term

domain, referred to earlier, with respect to policy–

based control (0 et al., 2002, Stegmann, 1997), and

therefore the term functional policy domain or

functional domain should be used instead (Figure 1)

(Tezuka et al., 2000).

Throughout the paper the abbreviation Abs

stands for Abstraction / Abstracted, IPM for Inter-

Process Message and FK for Foreign Key.

This means that one dimension of the inheritance

of policy-based data may be controlled through the

specific business system being invoked by the client.

One of the key problems that is encountered in the

design and configuration of large-scale open

enterprise systems (Sutherland and Van den Heuvel,

2002, Murray, 2009, Nezlek et al., 1999, Pereira and

Sousa, 2004, Gorton and Liu, 2004, Arsanjani,

20020) is the lack of flexibility in the inherent

domain-mapping properties associated with the

operating systems of the network nodes (Figure 2).

This is combined with the properties relating to the

concept of ownership that are inherent within the

control structure of a domain; the domain is also in

turn normally tightly-coupled to either the operating

system or the network operating system of each

network node, such as Active Directory (Desmond

and Richardson, 2009) in the case of the Windows

operating system or X.500 (Chadwick, 1994) in the

case of Unix. This situation leads to an inherent

problem in that control structures formed through

the use of policies and profiles have to be repeated

for each operating system domain and between each

level of integration with the target network node or

network group. Where the design of a network

domain follows a strict, yet standard, hierarchy in

accordance with a relatively simple and repeatable

QMS (Quality Management System) requirement

model, there is a 1:M relationship between the

operating system/control system (e.g. Active

Directory) and the network node. There is also a

1:M relationship between the operating

system/control system and the associated business

systems. Both of these relationships do not lend any

significant degree of flexibility to their environment,

and as such are not specifically suited to fulfilling

the role of a control system within a cloud.

2.2 New Approach

To date the modelling which has been proposed for

the basic inter-communication management

structural methods, within the structure of a cloud,

uses the concept of abstraction classes (Eccles and

Loizou, 2010a, b) within the context of large-scale

Cloud

Cloud_ID

Cloud_Name

Cloud_FD_Mapping

Functional_Domain_ID (FK)

Cloud_ID (FK)

FD_Active_Status

FD_Def_ID (FK)

Functional_Domain

Functional_Domain_ID

Functional_Domain_Name

FD_Definition_Policy

FD_Def_ID

FD_Def_Name

Functional_Domain_Policy_Set

FD_Policy_ID

FD_Policy_Name

Operational_Policy

Op_Policy_ID

Op_Policy_Name

Func_Dom_Policy_Mapping_Env

Functional_Domain_ID (FK)

FD_Policy_ID (FK)

Op_Policy_ID (FK)

FUNCTIONAL DOMAIN CONCEPTS IN THE MODELLING OF CLOUD STRUCTURES AND THE BEHAVIOUR

OF INTEGRATED POLICY-BASED SYSTEMS THROUGH THE USE OF ABSTRACTION CLASSES

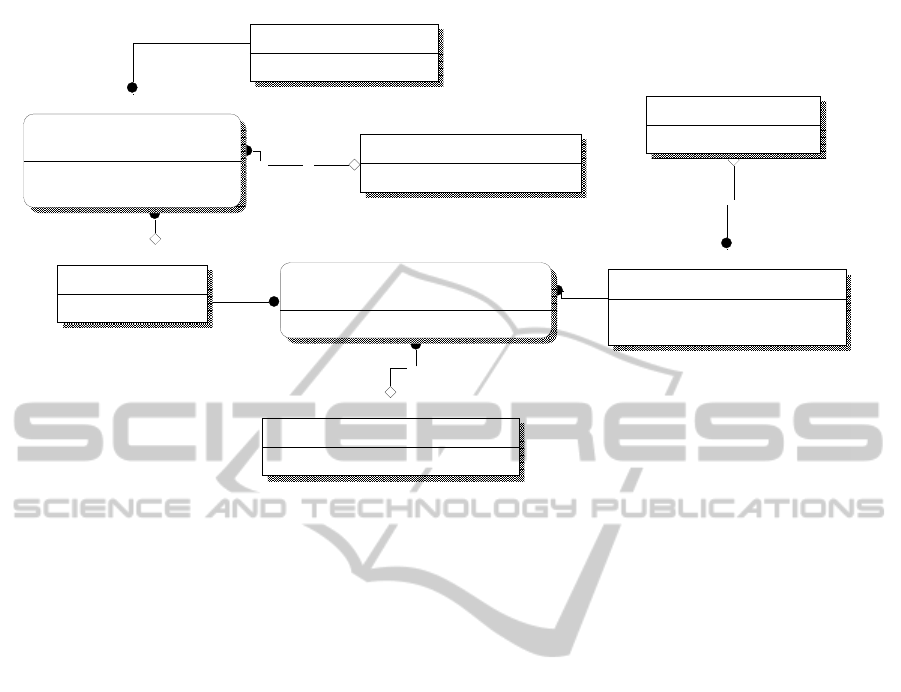

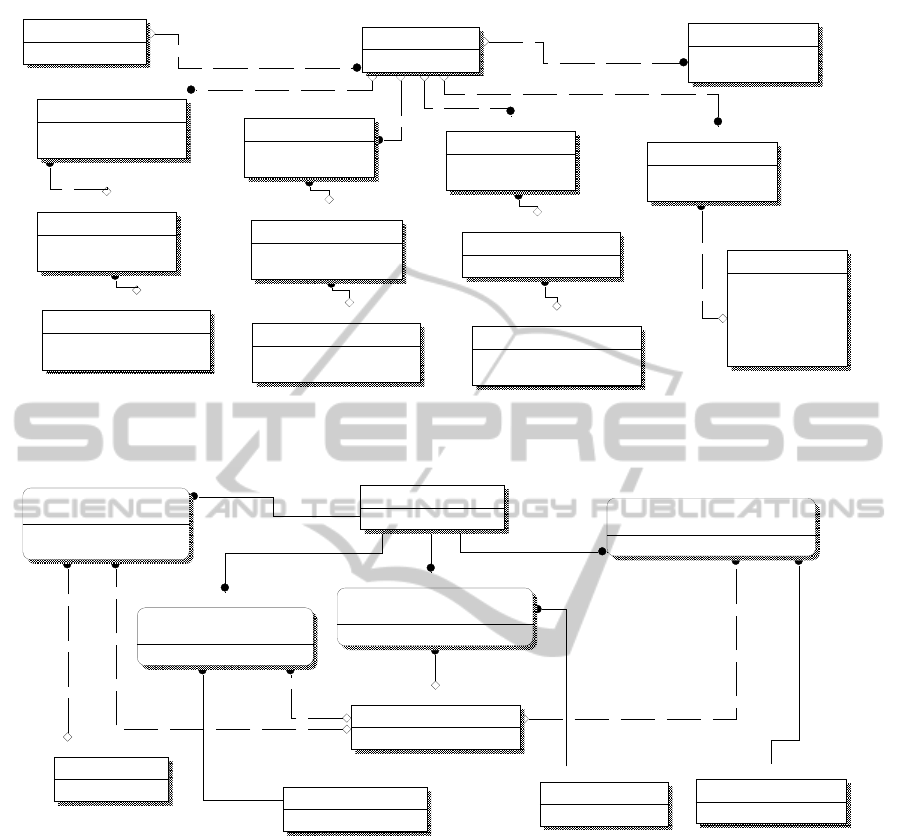

Figure 2: ER subschema showing the relationship between the FD concept and a conventional domain structure.

enterprise design structures. The next level of

structure that we propose is termed the Functional

Domain (Figure 1), and constitutes a logical area

within an Enterprise Domain (ED) that is defined by

the constraints of that domain or as a consequence of

the design policies that together define the properties

of that FD

The class of ED that is proposed to utilise a set

of related component structures, such as FDs, is that

of a cloud (Figure 1). The set of application

components linked to an enterprise function is called

the FD of that enterprise function (Wendt et al.,

2005). The elements of an FD require functional

integration with regard to the enterprise function

given. The given set of enterprise functions

correlates with the set of abstraction classes referred

to above. These may be integrated with respect to

their joint class of function by association with one

or more individual FDs (Figure 3, Figure 4). As

such, the resultant properties of the abstraction class

may vary as a consequence of belonging to a

specific FD, and the variation of these properties is

expressed via the policy or policies associated with

that specific FD. The FD may be enabled as part of

the design structure for the virtualised cloud

environment, and the methodology and design

structure for this are the subject of a future paper.

Such a policy may be modified by being part of an

operational policy class (Figure 3), which therefore

enables what is being invoked as opposed to how

such an invocation process is taking place.

A key operational requirement within an

environment, such as a cloud, is to be able to have a

control system that can take advantage of the

dynamic nature of such an operational scenario. One

of the key attributes of the concept of the FD,

referred to in this paper, involves the M:M

relationship to a business system (Figure 2). This

gives the required degree of flexibility necessary to

enable multiple business systems functions (e.g.

services) to relate to multiple degrees of control

structure on a peer-to-peer basis in conjunction with

hierarchies within a cloud. This naturally leads to the

following formalism for the logical representation of

the properties of a generic FD ; namely,

∀ Network_Node(x

) ∃ { Functional_Domain(y) |

Network_Node(x

) ∈ {Functional_Domain(y)}

∧ ((1 ≤ y

≤ Max(Functional_Domain(y)))

∧ (1 ≤ x

≤ Max(Network_Node(x

))))

∧ ((Network_Node(x

)

∈ {Business_System.Node(a

)})

∧ (1 ≤ a

≤ Max(Business_System.Node(a

))))

∧ ((Business_System.Node(a

)

∈ {Functional_Domain(y).BusSys(z)})

∧ (1 ≤ z ≤

Max(Functional_Domain(y).BusSys(z)))) }

The concept of the FD, as it is herein presented,

enables the requirement that a node may belong

either to different domains within an operational

session, depending on the set of abstracted processes

Network_Node

Network_Node_ID

Node_Class_ID (FK)

Network_Node_Class

Node_Class_ID

Node_Class_Name

IP_Address

IP_Subnet_ID (FK)

Network_Node_ID (FK)

OS_Domain_Nodes

Network_Node_ID (FK)

OS_Domain_ID (FK)

Non_OS_Domain_Nodes

OS_ID (FK)

Network_Node_ID (FK)

OS_Domain

OS_Domain_ID

OS_Domain_Name

OS_ID (FK)

Operating_System

OS_ID

OS_Name

Functional_Domain

Functional_Domain_ID

Functional_Domain_Name

Func_Dom_Node_Membership

Functional_Domain_ID (FK)

Business_System_ID (FK)

FD_Policy_ID (FK)

Network_Node_ID (FK)

Business_System

Business_System_ID

Busines_System_Name

CLOSER 2011 - International Conference on Cloud Computing and Services Science

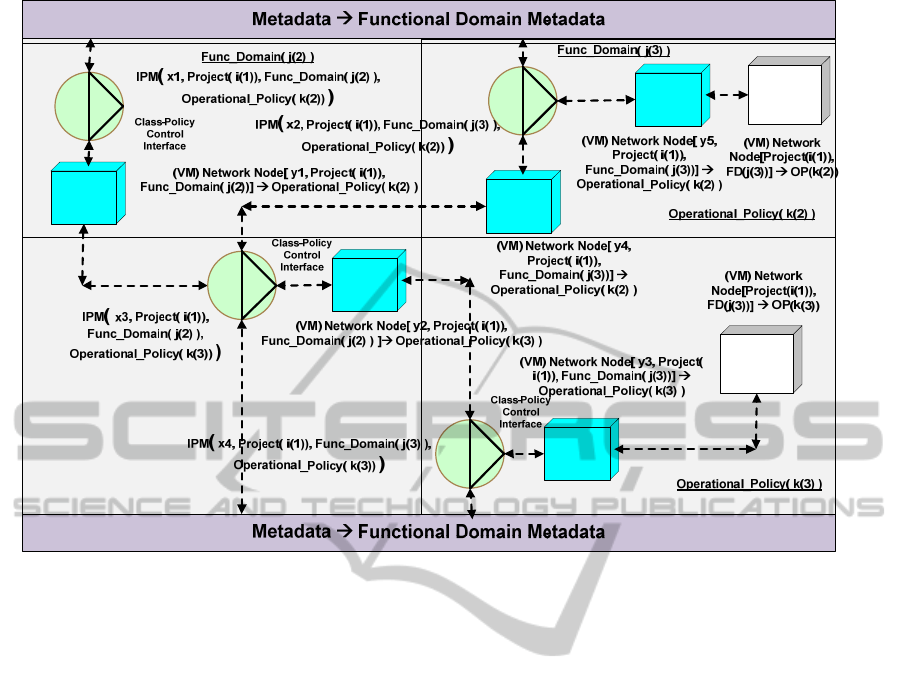

Figure 3: Abstraction Classes (VMs) in a cloud structure realised within the context of FDs and associated operational

policies. The metadata contains the definition of the operational policies, the location of the classes of operational functions

and the application of each such function within each host FD. These functions are accessed directly by the IPM modules,

using local policies specific to each IPM or IPM Class ID within an FD, Operational Policy (OP) area.

being invoked; or alternatively, it may be a member

of more than one domain simultaneously. By

abstracting the concept of the network node (Figure

5) within a cloud, each Network_Node object can be

associated with different subclasses of abstracted

cloud classes, such as those of users, user groups or

workstations (Figure 9)

3 DESIGN OF A GENERIC

APPROACH

There is a great degree of overlap in the structure

and the basic design of a cloud when compared to a

large-scale open enterprise system.

Many current definitions, and in some cases

working models of systems, described as clouds,

essentially comply with this basic characteristic

(Traore and Ye, 2003). The additional characteristics

of sets of services are presented as accessible utility

functions. However, it is also reasonable to assert

that a cloud differs from a large-scale open

enterprise system in that the internal structure may

vary in both its apparent architecture and in the

presentation over time on a dynamic basis.

Therefore, the points of reference used for internal

processing, and which may be available to external

events, may also vary in their nature and in their

location, leading to variations in the complexity of

cloud systems. Such variations may depend on the

interaction between other clouds and external events.

This is further complemented by the goal of making

all functional attributes of a cloud abstracted with

reference to the means by which they are accessed or

referred to.

En passant we note that the initial focus for the

concept of FDs originates from an analogous

concept that is used in the field of protein structure

research (Bajaj et al., 2011). In this area rather than

using the amino acid composition to represent a

protein sample, the FD composition is introduced to

incorporate the sequence order-related features

(Vlahovicek, 2001, Chou and Cai, 2004). Therefore,

a protein is now represented in terms of the FD

composition in a lower-order memory space,

incorporating not only some sequence order-related

features but also some function-related features

within the representation.

FUNCTIONAL DOMAIN CONCEPTS IN THE MODELLING OF CLOUD STRUCTURES AND THE BEHAVIOUR

OF INTEGRATED POLICY-BASED SYSTEMS THROUGH THE USE OF ABSTRACTION CLASSES

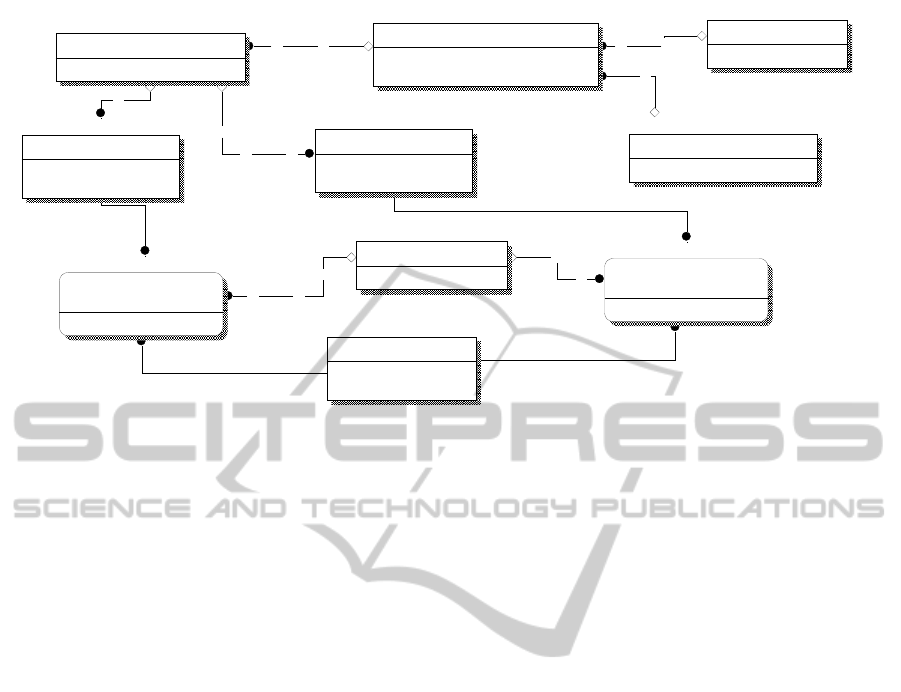

Figure 4: ER diagram for the control policy attributes within the cloud metadata that is responsible for governing the

operation of the FDs and the associated classes of NNs.

When a cloud is modelled by using a subset of

methods used for modelling other analogous

systems, the resultant artifact exhibits some

interesting properties.

One of the properties of the concept of an FD is

that of using it as an integral part of the generic

control structure, described later in this paper

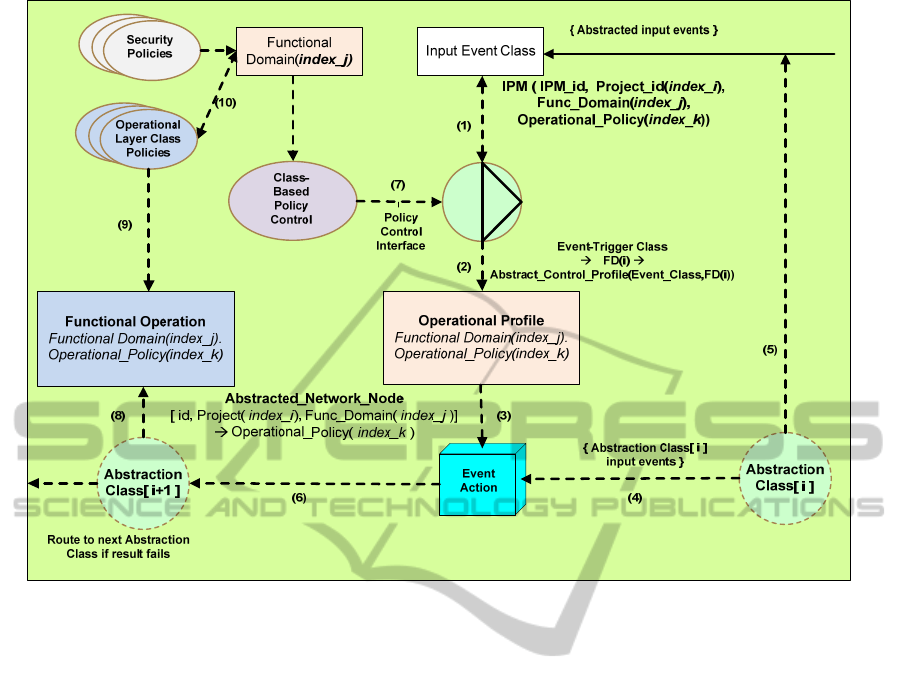

(Figure 7, Figure 8), involving the use of policy

combined with event trapping in the context of one

or more sets of FDs, in order to produce an input

event command profile. Thus in order to achieve this

in a manner most applicable to each class of event, it

is required that the most appropriate class of control

policy be applied at the most relevant point within

the cloud. This is made possible through the use of

the layered metadata used to co-ordinate the control

management mechanisms within the cloud. The sets

of ER diagrams included in this paper are sub-

schemas taken from the overall metadata model of

the cloud and its associated management structures.

Some parts of the metadata database refer to the

nature and function of the said policies with

reference to their respective FDs (Figure 3), whilst

other parts form subschemas that relate to the

different aspects of the cloud and the control

structures (Figure 2) that are formulated for its

management through the use of integrated

frameworks (Traore and Ye, 2003). An example of

these are abstraction classes (Eccles and Loizou,

2010a, b). Within these ER diagrams can be seen

many instances of policy as they are applied to a

specific target entity (e.g. NN_AC_Policy_ID

applied to a specific Network_Node abstraction (see

Figure 4), where NN stands for Network_Node).

Thus, using the metadata ER design model (see

Figure 3), it becomes possible to finely tune the

policies with respect to both their content and their

direct applicability to the subject area to which they

are to be applied. (Policies are software-enabled

devices that enable a single instance of the

declaration of one or more rules concerning the state

of the environment in which they apply.)

It must be noted that the full model for the design of

the cloud, referred to in the discussion, incorporates

a much more complete range of techniques taken

from the Unified Modelling Language (UML)

(Bjorkander and Kobryn, 2003) and the Business

Process Modelling Notation (BPMN) (Caetano et al.,

2007). It must be observed that in order to

incorporate the output artifacts from these

techniques within a control metadata database that is

accessed by event-driven policies, for practical real-

time use, it is required to represent the artifacts

emanating from these techniques in a relational

manner using an ER model. The full methodology

for the proper design and construction of a cloud is

currently being developed, as we continue to

develop the management and control structures

through extending and modifying certain

architectures and standards for large-scale open

Functional_Domain

Functional_Domain_ID

Functional_Domain_Name

Func_Dom_Node_Membership

Functional_Domain_ID (FK)

Business_System_ID (FK)

FD_Policy_ID (FK)

Network_Node_ID (FK)

Network_Node

Network_Node_ID

Node_Class_ID (FK)

Network_Node_Abstraction_Class

Net_Node_Abs_Class_ID

User_Abs_Class_ID (FK)

Net_Node_Abs_Class_Name

Net_Node_Abstraction_Class_Policy

NN_AC_Policy_ID

NN_Abs_Policy_Name

Net_Node_Abstraction_Class_Mapping

Network_Node_ID (FK)

Net_Node_Abs_Class_ID (FK)

NN_AC_Policy_ID (FK)

Functional_Domain_Policy_Set

FD_Policy_ID

FD_Policy_Name

User_Abstraction_Class

User_Abs_Class_ID

User_Abs_Class_Name

CLOSER 2011 - International Conference on Cloud Computing and Services Science

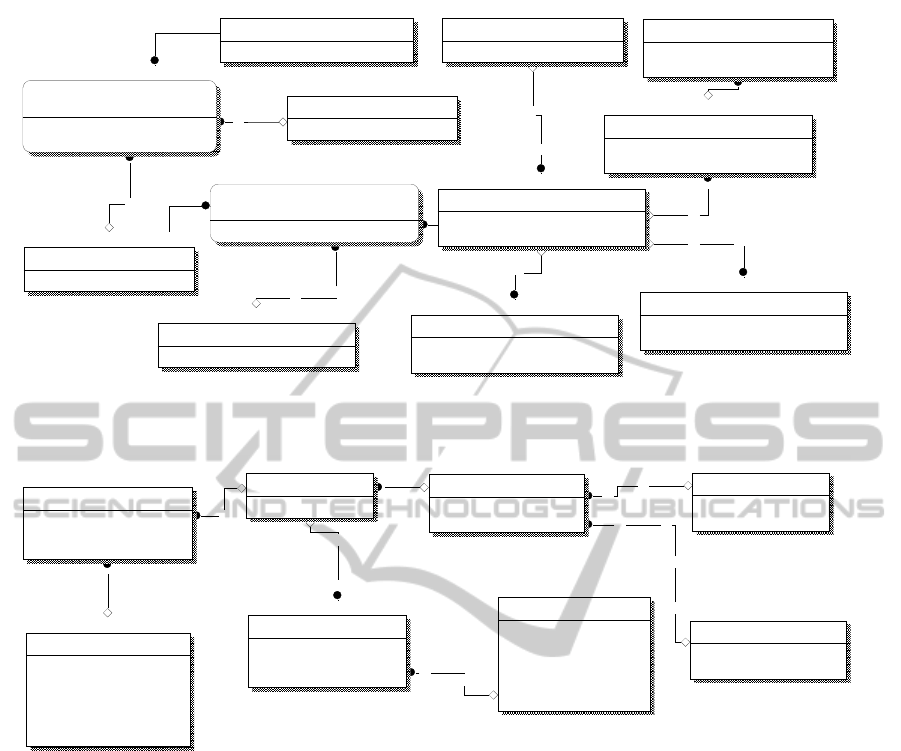

Figure 5: ER diagram representing the generic abstraction of different network entities related to the common entity

Network_Node.

Figure 6: ER diagram from the model of a cloud structure illustrating the abstracted nature of different classes of cloud-

based conceptual structures.

enterprise systems in order that they may be applied

to a cloud.

Control policies may be enabled with reference

to many different classes of Network_Node entity,

such as users, workstations and servers. In order for

the cloud model being developed to be correct with

respect to the characteristics described earlier, it

becomes essential to refer to the cloud components

in an abstracted sense, as shown in Figure 4 and

Figure 5, where NIC stands for Network Interface

Card, Con stands for Conceptual and Sw stands for

Switch. This concept is extended further in Figure 6

(SW stands for Software), where the functional

constructs hosted by the cloud, such as clusters,

applications, different classes of service objects are

also defined in an abstracted manner, each as part of

an FD.

In general, policies are used within specific FDs and,

for the most part, are applied to relatively simple

areas within those domains, such as user and

workstation configuration control. Within this

context, the general use of policies is either to

control the presentational level of processes, or to

control how their management may be restricted

with respect to their operating environment. Policies

may be applied using whatever form of rule-

interpretation is best suited to the local environment,

viewed in an abstracted manner. These policies may

in turn be associated with Active Directory objects,

such as sites, domains or OU’s (Desmond and

Network_Node

Network_Node_ID

Node_Class_ID (FK)

Network_Node_Class

Node_Class_ID

Node_Class_Name

bstracted_Server

bstracted_Server_ID

Con_Server_Name

Con_Serv_Class_ID (FK)

bstracted_Workstation

Workstation_ID

Workstation_Name

Con_Wkstn_Class_ID (FK)

Host_Server

Host_Server_ID

Host_Server_Name

Host_OS_ID (FK)

Cluster_ID (FK)

Host_Server_Version

Latest_Update

Blade_ID (FK)

IP_Address

IP_Subnet_ID (FK)

Network_Node_ID (FK)

Server_NIC

bstracted_Server_ID (FK)

Network_Node_ID (FK)

Wkstn_NIC

Network_Node_ID (FK)

Workstation_ID (FK)

Host_NIC

Host_Server_ID (FK)

Network_Node_ID (FK)

bstracted_Server_Class

Con_Serv_Class_ID

Con_Serv_Class_Name

Net_Node_Abs_Class_ID (FK)

bstracted_Wkstn_Class

Con_Wkstn_Class_ID

Con_Wk stn_Class_Name

Net_Node_Abs_Class_ID (FK)

Network_Switch_NIC

Net_Switch_NIC

Network_Node_ID (FK)

Net_Switch_ID (FK)

bstracted_Network_Switch

Net_Switch_ID

Con_Sw_Class_ID (FK)

bstracted_Net_Switch_Class

Con_Sw_Class_ID

Con_Sw_Class_Name

Net_Node_Abs_Class_ID (FK)

Functional_Domain

Functional_Domain_ID

Functional_Domain_Name

Network_Node

Network_Node_ID

Node_Class_ID (FK)

Func_Dom_Node_Membership

Functional_Domain_ID (FK)

Business_System_ID (FK)

FD_Policy_ID (FK)

Network_Node_ID (FK)

bstracted_Cluster

bstracted_Cluster_ID

bstracted_Cluster_Name

Func_Dom_Cluster_Membership

Functional_Domain_ID (FK)

bstracted_Cluster_ID (FK)

FD_Policy_ID (FK)

Functional_Domain_Policy_Set

FD_Policy_ID

FD_Policy_Name

bstracted_SW_Object

bstracted_SW _Obj_ID

bstracted_SW _Obj_Name

bstracted_Application

bstracted_App_ID

bstracted_App_Name

Func_Dom_Application_Membership

Functional_Domain_ID (FK)

bstracted_App_ID (FK)

FD_Policy_ID (FK)

Func_Dom_Abs_SW_Obj_Membership

Functional_Domain_ID (FK)

bstracted_SW_Obj_ID (FK)

FD_Policy_ID (FK)

FUNCTIONAL DOMAIN CONCEPTS IN THE MODELLING OF CLOUD STRUCTURES AND THE BEHAVIOUR

OF INTEGRATED POLICY-BASED SYSTEMS THROUGH THE USE OF ABSTRACTION CLASSES

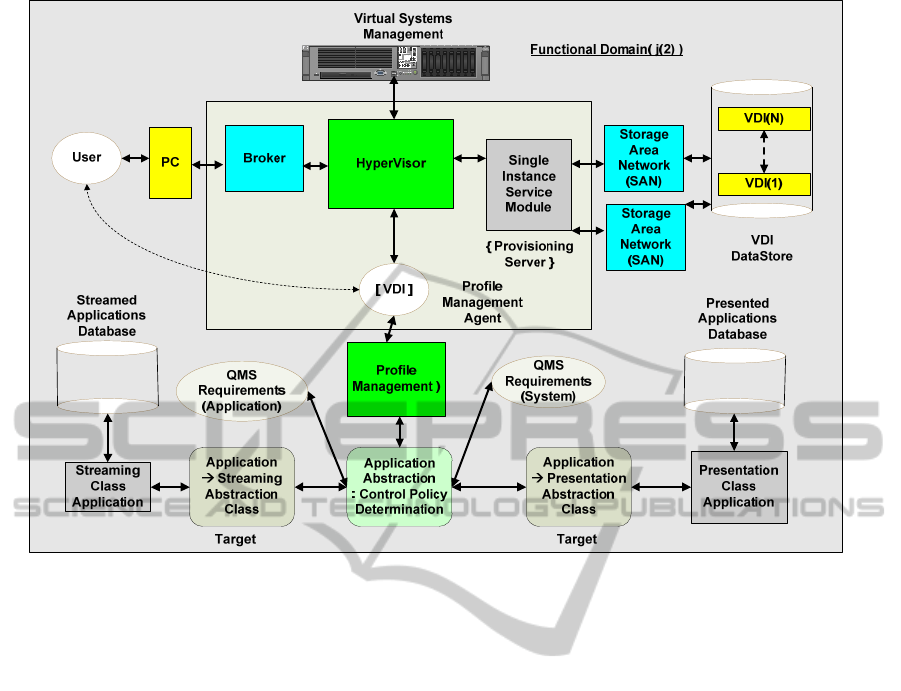

Figure 7: An intra-cloud dataflow structure employing an input (user) event, a control policy from the relevant FD, and a

resultant control profile in the selection of an abstracted (user) application.

Richardson, 2009, Allen and Lowe-Norris, 2003,

Allen, 2003). System policies enable local registry

values to be overridden with settings specific to the

particular process being addressed. Control policies

are defined in a policy file, normally located in an

area that is accessible to the requesting process.

The policies enabled through the use of FDs are

closer to the class of Control Policies than, for

example, the class of firewall policies (Lee et al.,

2003, Lee et al., 2002). As such, these are more in

keeping with the class of policy that may be utilised

in control structures such as those encountered in the

SOA context model (Zhou and Liu, 2010).(In Figure

7 VDI stands for Virtual Desktop Interface).

An example of such a class of process is the

Application Abstraction: Control Policy

Determination that is shown in Figure 7. As a result

of such a process, a resultant policy is formulated

from the system policy settings and the user policy

and/or default settings in the local registry

(Microsoft, 2001a), depending on the relative

security settings of each class of policy owner.

Based on the appropriate control structure, the

instance of this latter resultant process produced

from the Control Policy Determination process

results in the formulation of the system profile,

which controls the target process to be accessed

(Figure 7). Figure 7 represents an example of a

standard method of invoking abstraction classes

within a cloud structure using events that are

formulated such that the event class, the policy

acquisition, the profile generation and the associated

functional access are all derived at the abstract level.

Initially on receipt of the initial input event class (e.g.

a logon process), the local configuration information

is checked for the location of the policy file

(Microsoft, 2001b). The policies are then

downloaded by initially checking as to whether the

event profiles are enabled. If so, the policy file is

searched for the relevant event and, if found, then

the event-specific policy is enabled. If not then the

default user policy is enabled (Posey, 2001). If

group policy support (Microsoft, 2001c, d) has been

enabled, then it is established as to whether the user

is a member of any of the relevant set of groups. If

so, then the group information is downloaded

beginning with the lowest-priority group and ending

with the highest, thereby enabling the data belonging

to the latter group to supersede the rest. This is then

copied to the registry of the abstracted host, or its

equivalent. The policy file is then checked for

information pertaining to the relevant abstracted host.

If this exists, then the relevant policies are applied to

the environment of the abstracted host.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

Figure 8: A low-level view of the interaction between the FD (Functional_Domain(index_j)), Policy

(Operational_Policy(index_k)) and Events to produce the control structure by way of an Operational Policy for the

Functional Operation.(Cf. Application Abstraction:Control Policy Determination in Figure 7).

Network-based policies within a cloud,

controlling the interpretation of event class

information and the actions that are undertaken as a

consequence of such events being invoked, are

examples of threshold management applications. An

example of this is Threshold Manager (Cisco, 1997),

which allows thresholds to be set and retrieves event

information. Thresholds can be set for targeted

abstracted nodes using threshold policies,

implemented as sets of configuration data that

specify the conditions for triggering a threshold

event for a particular management attribute affected

across a particular node given certain constraints

(Microsoft, 1997, Microsoft, 2001c, e).

An event is essentially a change of state of a

system, where the quantifying of the degree of

change of the system depends on both the class of

the event and the environment within which it

occurs. That is to say, both the nature of the event

and the method of its measurement will depend on

the class model of the relevant event and the class of

FD within which it occurs. All captured events are

related to the values of threshold-related events and

then cross-referenced to the user-configured

threshold policies.

Figure 8 we have determined to clarify the

explanation of the represented dataflows by labelling

each of the said dataflows from 1 to 10. These are

referred to in the ensuing text as, for example, (1),

(2), etc.

As shown in Figure 8, an abstracted input event

from a source other than an abstraction class is

examined by the policy control interface (1). This

uses the class-based control policy in conjunction

with the determined class of event to generate the

appropriate trigger for the operational profile

generation (2). This operational profile is to become

part of the protocol of the generated event (3), so as

to enable correct operation within the context of the

FD of the next abstraction class (6). This event

action may also be directly input through the use of

an abstraction class (4) or indirectly input through

the latter set of processes, if there is a requirement

for an operational profile to be generated (5). The

control policy sets the thresholds (7) that are set for

the class of input events (e.g. Systems Network

Management Protocol (SNMP) events), generated

from the local Management Information Base (MIB)

database variables, which exist in the local

environment controlled by the specified FD.

FUNCTIONAL DOMAIN CONCEPTS IN THE MODELLING OF CLOUD STRUCTURES AND THE BEHAVIOUR

OF INTEGRATED POLICY-BASED SYSTEMS THROUGH THE USE OF ABSTRACTION CLASSES

Figure 9: ER subschema to show how the abstraction of the Network_Node entity is conceptually related to the abstracted

layer of equivalent network entities with a 1:1 relationship.

Figure 10: ER subschema of a cloud model showing the entity Abstracted_Server and how this is related to physical /virtual

servers irrespective of their operational state within a dynamic cloud environment.

The profile is generated as a consequence of the

specific FD (2) adapting the local control policies in

accordance with its own internal policy, producing a

localised profile control structure for the input event

classes. The generated event calls the next

abstraction class in the relevant sequence of

abstraction classes derived from the controlling

metadata (Figure 3). In Figure 8 this next abstraction

class locates an instance of an object that will

perform the functional operation required (8), which

is itself influenced by the operational layer class

policies (9) in conjunction with the current FD (10).

This leads to the production of a set of abstracted

levels of technical (business) systems within a cloud

model; these systems lead to the simplification of

the management of the sets of their points of control.

An initial example of this is given in Figure 10,

where the entity Abstracted_Server is the point of

control that relates to the Server technical business

system. This is then related to the entity

Functional_Domain by way of the entity

Network_Node in Figure 9. It is thus demonstrated

how the dynamic properties of a cloud, referred to

earlier in this section, may be expressed by means of

the entity Operational_Server_Instance via the use

of the attribute Operation_State. This enables simple

centralised control at an abstracted level of the

different classes of server, where the current

practical requirements of implementing that specific

server, or set of servers, change depending on

whether the servers in question be physical or virtual.

As a result of the salient concept of FDs, there is

an associated class of control policy (Functional_

Domain_Policy_Set) that relates each FD and the

abstraction class of each Network_Node, as shown

in Figure 9. Each such policy interacts with the

Functional_Domain

Functional_Domain_ID: Long Intege

Functional_Domain_Name: Text(20)

Func_Dom_Node_Membership

Functional_Domain_ID: Long Intege

Business_System_ID: Long Integer

FD_Policy_ID: Long Integer

Network_Node_ID: Long Integer

Network_Node

Network_Node_ID: Long Intege

Node_Class_ID: Long Integer

Functional_Domain_Policy_Set

FD_Policy_ID: Long Integer

FD_Policy_Name: Text(20)

Net_Node_Abstraction_Class_Mapping

Network_Node_ID: Long Integer

Net_Node_Abs_Class_ID: Long Integer

NN_AC_Policy_ID: Long Integer

Net_Node_Abstraction_Class_Policy

NN_AC_Policy_ID: Long Integer

NN_Abs_Policy_Name: Text(20)

User_Abstraction_Class

User_Abs_Class_ID: Long Intege

User_Abs_Class_Name: Text(20)

Network_Node_Abstraction_Class

Net_Node_Abs_Class_ID: Long Intege

User_Abs_Class_ID: Long Integer

Net_Node_Abs_Class_Name: Text(20)

bstracted_Server

bstracted_Server_ID: Long Intege

Con_Server_Name: Text(20)

Con_Serv_Class_ID: Long Integer

bstracted_Wkstn_Class

Con_Wkstn_Class_ID: Long Integer

Con_Wkstn_Class_Name: Text(20)

Net_Node_Abs_Class_ID: Long Intege

bstracted_Server_Class

Con_Serv_Class_ID: Long Integer

Con_Serv_Class_Name: Text(20)

Net_Node_Abs_Class_ID: Long Intege

bstracted_Net_Switch_Class

Con_Sw_Class_ID: Long Integer

Con_Sw_Class_Name: Text(20)

Net_Node_Abs_Class_ID: Long Intege

bstracted_Server

Conceptual_Server_ID

Con_Server_Name

Con_Serv_Class_ID (FK)

Operational_Server_Instance

Op_Server_ID

Conceptual_Server_ID (FK)

Operation_State_ID (FK)

Physical_Server

Physical_Server_ID

Physical_Server_Name

Cloud_Server_ID (FK)

Physical_Server_Class_ID (FK)

Virtual_Machine

Virtual_Machine_ID

Virtual_Machine_Name

Virtual_Server_Class_ID (FK)

Cloud_Server_ID (FK)

Physical_Server_Class

Physical_Server_Class_ID

Physical_Server_Class_Name

Number_of_CPUs

CPU_Frequency

RAM

C_drive

D_drive

Virtual_Server_Class

Virtual_Server_Class_ID

Virtual_Server_Class_Name

vCP U

vCP U_F re q

vRA M

vC_ dr ive

vD_ dr ive

Cloud_Server_Mapping

Cloud_Server_ID

Op_Server_ID (FK)

Operation_State_Class

Operation_State_ID

Operation_State_Description

Operation_State_Name

CLOSER 2011 - International Conference on Cloud Computing and Services Science

Figure 11: ER subschema from a cloud model to show how the abstraction of an application can be used to control the

nature of the implementation interface depending on the entity Selection_Control_Policy and the process Application

Abstraction : Control Policy Determination in Figure 7.

policy for the abstracted Network_Node as shown in

Figure 9 (Net_Node_Abstraction_ Class_Policy).

The latter policy will inherit from the former in

order to produce a resultant policy for the specific

abstracted Network_Node class with respect to the

FD in which it is located (De Bruijn and De Vreede,

1999). This process is more complex than it

seemingly is, due to the possible M:M relationship

between the entities Functional_ Domain and

Network_Node, implemented as the control entity

Func_Dom_Node_Membership in Figure 9.

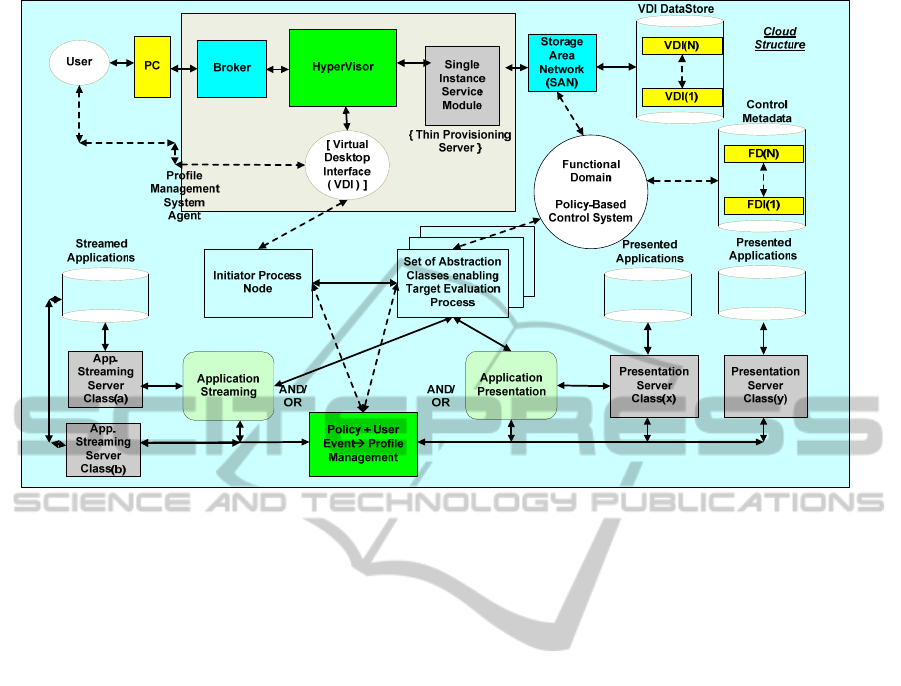

As shown in Figure 12, this design is put into

practical use by means of a generic architecture that

produces a system able to operate within a cloud

environment as well as a large-scale virtual/physical

environment. This system is designed to utilise

virtualised applications rather than install them on a

target network node, typically a workstation.

Utilising this mechanism within an FD- controlled

cloud environment may result in the location of the

virtualised applications shifting with FD policy–

based rules, due to the dynamic nature of the cloud.

It is also the case that as the access mechanism for

the virtualised applications is abstracted, there is no

need to change the initial function call made to the

application via the Initiator Process Node in Figure

12, nor to the target node (e.g. workstation/server),

since both are abstracted (Figure 5). This gives the

initial basis for a very flexible management system

that is intended to serve as the basis for a control

system employed for a cloud construct currently

under development. A prototype of this design

construct is now under development / testing.

4 DISCUSSION

Once a virtualised environment has been properly

developed as a computing resource for a specific

business, or set of businesses, a new set of problems

emerge which are only now being recognised and

addressed. To begin with, the methodology and

associated modelling structure must now become an

intricate part of the active operational structure as

well as the more passive system management, since

the idea of the total replacement of layers of the

system will no longer be applicable. Therefore, the

complete set of artifacts used to model and design

the full range of components contributing to a cloud

control and management system must be

implemented as a data model. In practice this

becomes a distributed system and is the subject of

impending future research.

Finally, there is a need for subsequent research

concerning the integration of the concept of

functional policy domains with different network-

based operating systems. This must be extended to

deal with policy integration between different

domains (FDs) and between different types of such

domains in the context of a network environment.

This is being addressed by designing policies and

network-based systems in an abstracted manner.

bstracted_Application

bstracted_App_ID

bstracted_App_Name

Operational_Application

Operational_Application_ID

bstracted_Application_ID (FK)

pplication_Operational_State_ID (FK)

Streaming_Application

Streamed_App_ID

Streamed_App_Name

Cloud_Application_ID (FK)

bstracted_Server

bstracted_Server_ID

Con_Server_Name

Con_Serv_Class_ID (FK)

Streaming_Interface

Streamed_App_ID (FK)

bstracted_Server_ID (FK)

pp_Select_Policy_ID (FK)

Selection_Control_Policy

pp_Select_Policy_ID

Presentation_Application

Presentation_App_ID

Presentation_App_Name

Cloud_Application_ID (FK)

Presentation_Interface

Presentation_App_ID (FK)

bstracted_Server_ID (FK)

pp_Select_Policy_ID (FK)

pplication_Operational_State

pplication_Operation_State_ID

pplication_Operational_State

Cloud_Application_Mapping

Cloud_Application_ID

Operational_Application_ID (FK)

FUNCTIONAL DOMAIN CONCEPTS IN THE MODELLING OF CLOUD STRUCTURES AND THE BEHAVIOUR

OF INTEGRATED POLICY-BASED SYSTEMS THROUGH THE USE OF ABSTRACTION CLASSES

Figure 12: Summary diagram showing a generic control-flow system for the activation of an application by either

Presentation or Streaming mechanisms within the context of one or more FDs.

5 CONCLUSIONS

We have shown how formulating a set of simple

extensions to the object control policy methodology

by using the concept of FDs can produce the basis

for a policy-based network, which governs not only

how an object is initiated, but introduces seamless

flexibility into specifying which class of the

functional application should be invoked. This can

be tested using a cloud model, which is being

produced from an evolving cloud development

methodology; this is the subject of an upcoming

paper.

REFERENCES

Allen, R., 2003. Active Directory Cookbook, O’Reilly.

London.

Allen, R., Lowe-Norris, A.G., 2003. Active Directory,

O’Reilly. London, 2

edition.

Arsanjani, A., 2002. Developing and Integrating

Enterprise Components and Services. Communications

of the ACM, 45, 10, pp.31-34.

Bajaj, C., Chowdhury, R.A., Rasheed, M., 2011. A

Dynamic Data Structure for Flexible Molecular

Maintenance and Informatics. BioInformatics, 27, 1,

pp.55-62.

Bjorkander, M., Kobryn, C., 2003. Architecting Systems

with UML 2.0. IEEE Software, 20, 4, pp.57-61.

Caetano, A., Pombinho, J., Tribolet, J., 2007.

Representing Organizational Competencies. In ACM

SAC’07, pp.1257-1262. ACM Press.

Chadwick, D., 1994. Understanding X.500, Chapman &

Hall. London.

Chou, K., Cai, Y., 2004. Predicting Protein Structural

Class by Functional Domain Composition.

Biochemical and Biophysical Research

Communications, 321, pp.1007–1009.

Cisco Systems Inc., 1997. Using Threshold Manager.

Cisco White Paper. Cisco Press.

Damianou, N., Bandara, A.K., Sloman, M., Lupu, E.C.,

2002. A Survey of Policy Specification Approaches.

Submission for Review. < http://www.doc.ic.ac.uk/

~mss/Papers/PolicySurvey.pdf > .

De Bruijn, H., de Vreede, G., 1999. Exploring the

Boundaries of Successful GSS Applications. In

Proceedings of the 33

IEEE Hawaii International

Conference on Systems Science. IEEE Press.

Desmond, D., Richardson, J., 2009. Active Directory ;

Design, Deploying and Running Active Directory,

O’Reilly. London.

Eccles, J., Loizou, G., 2010a. An Approach to Enable

Cloud Computing by the Abstraction of Event-

Processing Classes. GSTF International Journal on

Computing, 1, 1, pp.138-144.

Eccles, J., Loizou., G. 2010b. A Cloud-Computing

Environment Based on a Model of Integrated

Abstraction Classes. In Annual International

CLOSER 2011 - International Conference on Cloud Computing and Services Science

Conference on Cloud Computing and Virtualization,

CCV 2010, pp.153-162.

Gorton, I., Liu, A., 2004. Architectures and Technologies

for Enterprise Application Integration. In IEEE

Proceedings of the 26th International Conference on

Software Engineering (ICSE’04). IEEE Press.

Lee, T.K., Yusuf, S., Luk, W., Sloman, M., Lupu, E.,

Dulay, N., 2003. Compiling Policy Descriptions into

Reconfigurable Firewall Processors. In Proceedings of

the 11th Annual IEEE Symposium on Field-

Programmable Custom Computing Machines

(FCCM’03). IEEE Press.

Lee, T.K., Yusuf, S., Luk, W., Sloman, M., Lupu, E.,

Dulay, N., 2002. Development Framework for

Firewall Processors. In Proceedings of the IEEE

International Conference on Field-Programmable

Technology. IEEE Press.

Microsoft Corporation, 1997. Guide to Microsoft Windows

NT 4.0: Profiles and Policies. Microsoft Windows NT

Server White Paper. Microsoft.

Microsoft Corporation, May 2001a. System Policies.

Technical Information, Chapter 8. Microsoft.

Microsoft Corporation, May 2001b. User Profiles and

System Policies. Technical Information, Chapter 15.

Microsoft.

Microsoft Corporation, May 2001c. Step-by-Step Guide to

Understanding the Group Policy Feature Set.

Operating System White Paper. Technical Information.

Microsoft.

Microsoft Corporation, May 2001d. Introduction to

Windows2000 Group Policy. Operating System White

Paper. Technical Information. Microsoft.

Microsoft Corporation, May 2001e. Windows DNA

Architecture Design: A Scalable, Highly Available

Business Object Architecture. White Paper. Technical

Information. Microsoft.

Murray, P., 2009. Enterprise Grade Cloud Computing. In

WDDDM’09. ACM Press.

Nezlek, G.S., Jain, H.K., Nazareth, D.L., 1999. An

Integrated Approach to Enterprise Computing

Architectures. Communications of the ACM, 42, 11,

pp.82-90.

Nielsen, M.S., 1999. Windows 2000 Server Architecture

and Planning, Coriolis Group Publishers. Scottsdale,

Arizona.

Pereira, C.M., Sousa, P., 2004. A Method to Define

Enterprise Architectures using the Zachman

Framework. In ACM Symposium on Applied

Computing (SAC’004). ACM Press.

Posey, B.M., May 2001. Protecting Users from

Themselves. Technical Information, Microsoft

Corporation. Microsoft.

Stegmann, C., 1997. A Framework for Authorization

Policies,

Professional Thesis. Institut Eurécom, IBM

Zurich Research Laboratory, Rüschlikon, Switzerland.

Sutherland, J., Jan van den Heuvel, W., 2002. Enterprise

Application Integration and Complex Adaptive

Systems. Communications of the ACM, 45, 10, pp.59-

64.

Tezuka, S., Sasaki, R., Kataoka, M.(Hitachi Ltd), 2000.

Seamless Object Authentication in Different Security

Policy Domains. In Proc. 33

Hawaii IEEE

International Conference on Systems Science. IEEE

Press.

Traore, D.B., Ye, H., 2003. An Integrated Framework for

Forma1 Deve1opment of Open Distributed Systems.

In ACM Symposium on Applied Computing (SAC2003).

ACM Press.

Vlahovicek, M.J., 13

April 2001. Prediction of Protein

Functional Domains from Sequences using Artificial

Neural Networks. In Genome Research. Cold Spring

Harbor Laboratory Press. < http://www.genome.org/

cgi/doi/10.1101/gr.168701 >.

Wendt, T., Brigi, B., Winter, A., Nov 4

2005. Assessing

the Integration of Information System Components. In

ACM IHIS’05. ACM Press.

Yu Chen Zhou, Y., Xin Peng Liu, 2010. Context Model

SOA Policy Framework. In IEEE International

Conference on Web Services. IEEE Press.

FUNCTIONAL DOMAIN CONCEPTS IN THE MODELLING OF CLOUD STRUCTURES AND THE BEHAVIOUR

OF INTEGRATED POLICY-BASED SYSTEMS THROUGH THE USE OF ABSTRACTION CLASSES
