C2GEO

Techniques and Tools for Real-time Data-intensive Geoprocessing in Cloud

Computing

Hassan A. Karimi and Duangduen Roongpiboonsopit

Geoinformatics Laboratory, School of Information Sciences, University of Pittsburgh

135 North Bellefield Avenue, Pittsburgh, U.S.A.

Keywords: Cloud computing, Geoprocessing, Real-time, Data-intensive, Geospatial data.

Abstract: Interest in implementing and deploying many existing and new applications on cloud platforms is

continually growing. Of these, geospatial applications, whose operations are based on geospatial data and

computation, are of particular interest because they typically involve very large geospatial data layers and

specialized and complex computations. In general, problems in many geospatial applications, especially

those with real-time response, are compute- and/or data-intensive, which is the reason why researchers often

resort to high-performance computing platforms for efficient processing. However, compared to existing

high-performance computing platforms, such as grids and supercomputers, cloud computing offers new and

advanced features that can benefit geospatial problem solving and application implementation and

deployment. In this paper, we present a distributed algorithm for geospatial data processing on clouds and

discuss the results of our experimentation with an existing cloud platform to evaluate its performance for

real-time geoprocessing.

1 INTRODUCTION

Cloud computing has received much attention in

recent years. Enabled by tremendous advances in

computing, storage, and networking, cloud

computing has become one of the most promising

developments towards the vision of utility

computing. It offers applications an unprecedented,

on-demand scalability. Much of the current research

in cloud computing is focused on developing cloud

infrastructures that can solve problems in a variety

of disciplines. While elements of such

infrastructures are in place, many application-

specific issues in cloud computing, such as

application/service optimization, still remain

unresolved.

One class of applications is geospatial modeling,

analysis, and simulation (geoprocessing). The

coordination, collaboration, and sharing of

geoinformation has been a long standing and

challenging problem ever since Geospatial

Information System (GIS) technology became

available as a tool for geoprocessing. In the early

years, the problem of managing such location-

oriented information was less complex due to the

limited amount of available geospatial data sources,

geospatial data formats and structures. Today, the

problem is extremely complicated and seemingly

insurmountable due to the availability of numerous

geospatial data sources, geospatial data in diverse

and heterogeneous formats and structures, and

various geospatial data collection technologies

including geo-positioning and remote sensing. The

problem is compounded by a paradigm shift from

centralized geoprocessing, through stand-alone GIS

software packages, to decentralized geoprocessing

through Web services.

While the geospatial community has been active

in addressing compute- and data-intensive geospatial

problems by utilizing high-performance computing

(HPC) platforms, primarily supercomputers and

grids, over the past decade, there are many existing

and emerging geospatial applications that have not

yet been tackled through the HPC approach. One

reason for this can be attributed to the fact that the

utilization of existing HPC platforms often requires

that domain scientists and engineers become

computer experts by gaining complex computational

knowledge and skills.

Using cloud computing for data-intensive, time-

371

A. Karimi H. and Roongpiboonsopit D..

C2GEO - Techniques and Tools for Real-time Data-intensive Geoprocessing in Cloud Computing.

DOI: 10.5220/0003394203710381

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 371-381

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

sensitive geospatial applications is advantageous

over supercomputers and grids. Cloud computing

provides much more suitable platforms for storing

and manipulating very large map databases, typical

in geospatial applications. In particular, clouds,

unlike grids, are able to quickly scale up or down to

the computing and storage needs of applications.

This makes them an attractive alternative for

deploying the next generation of data-intensive

geoprocessing applications. An example application

is location-based services (mostly available through

smartphones) with a large number of current users,

anticipated to increase by an order of magnitude in

the next few years. However, for cloud computing to

be useful in the geospatial community, there is a

need for solutions and tools that specifically handle

the unique characteristics of geoprocessing such as

3D indexing, retrieval, and computation techniques

(uncommon in most current database management

systems) and that are simple to utilize allowing

scientists and engineers to focus on the problem at

hand rather than trying to tweak and optimize

complex codes.

In this paper, we focus on the class of geospatial

applications that: (i) are increasingly becoming

available on smartphones, (ii) involve very large

databases (stored in RDBMSs), (iii) require data-

intensive techniques for efficient geoprocessing, and

(iv) require real-time response. The objective is to

overcome the challenges of these applications using

cloud computing. To that end, we present new

techniques (distributed and parallel algorithms)

suitable for real-time processing of data-intensive

geospatial problems, called Cloud Computing for

Geoprocessing (C2Geo). C2Geo is unique in several

ways. First, despite the awareness and the

availability of cloud computing, to date,

geoprocessing in cloud computing has been limited

to a handful of projects and there are no available

techniques and tools for different classes of

applications. Second, the real-time processing of

data-intensive geospatial applications is expected to

provide an insight into the capabilities and

limitations of cloud computing paving the way to a

better understanding of cloud computing as an

emerging computing platform for problems across

domains. C2Geo is intended to be scalable and

provide high-performance geoprocessing

automatically and transparently. C2Geo is expected

to facilitate anywhere and anytime computing and

provide means of solving compute- and data-

intensive geoprocessing.

To emphasize the need for C2Geo, we evaluated

a cloud computing platform for storing and

retrieving large-scale Triangulated Irregular

Networks (TINs) required for the real-time

integrated Global Navigation Satellite System

(iGNSS) QoS prediction for navigation services.

Google App Engine (GAE) was chosen due to the

fact that currently it is the only cloud computing

platform available to researchers at no cost.

The contributions of the paper are development

of a distributed algorithm for efficient processing of

data-intensive geospatial applications in clouds, and

evaluation of a cloud computing platform for real-

time geospatial applications using navigation

services as a case study.

The structure of the paper is as follows. Section

2 briefly overviews research studies and existing

services/products that are geospatial related in

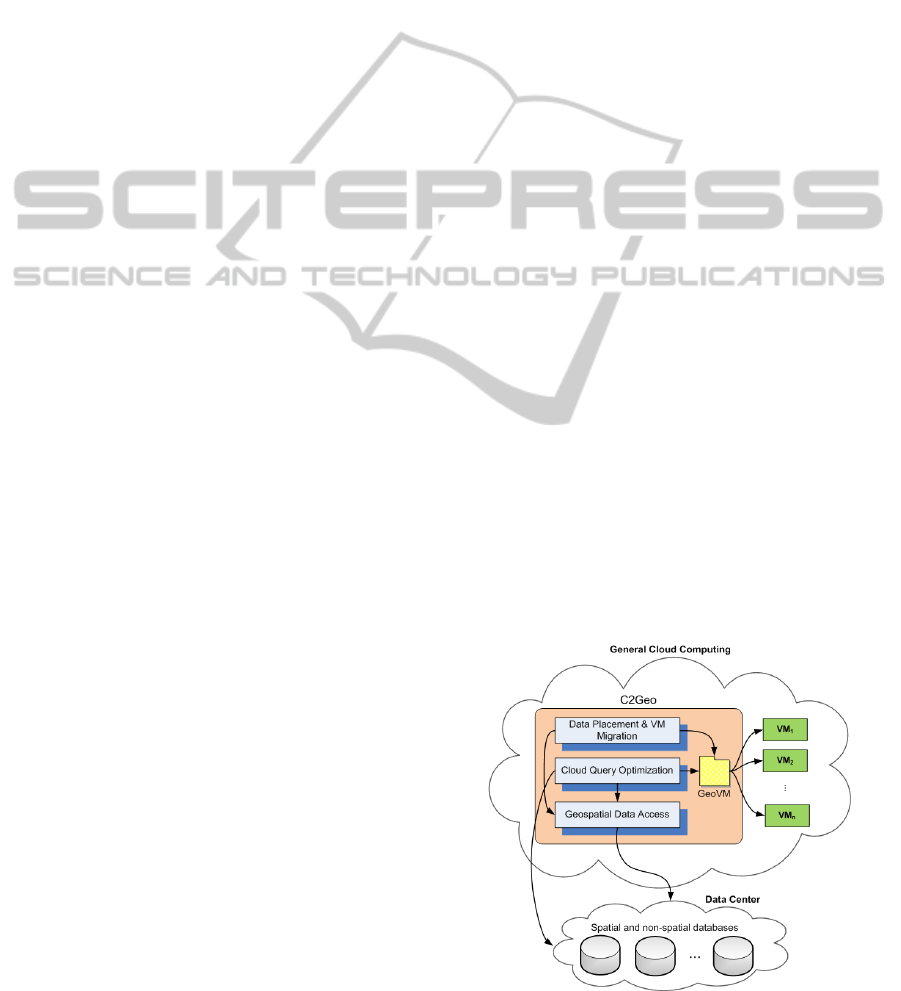

clouds. Section 3 describes the concepts of C2Geo

with a discussion of each module. Section 4 and 5

discusses and reported an evaluation of a cloud for

handling large-scale TINs used in a real-time

geospatial application. The paper ends with

conclusions and future research in Section 6.

2 BACKGROUND

Geospatial applications typically require the access

to and manipulation of large volumes of geospatial

data. Recent trends show tremendous growth in

geospatial data. This is due to two factors (Foerster

et al., 2010): (i) the availability of more

sophisticated data acquisition techniques and devices

(e.g., airborne laser scanning, smartphones equipped

with GPS, geo-enabled sensors) and (ii) advances in

networking and Web technologies enabling

unprecedented levels of data accessibility. In

addition to being data intensive, geospatial

applications often require intensive processing.

Moreover, many of these applications inherently

require that a large number of users (potentially

anyone) be able to share data stored on several

distant servers which translates into substantial data

movement. The data, computing, and networking

intensive nature of geospatial applications has made

it challenging to achieve reasonable performance

and scalability at affordable costs.

Until recently, most geospatial applications have

been developed to run on desktops (Schäffer and

Baranski, 2009). For applications that require higher

levels of performance and scalability, two other

options have been considered: supercomputers and

grids. Supercomputers are often too costly for most

geospatial applications. Grids usually achieve less

than the required level of performance. With these

CLOSER 2011 - International Conference on Cloud Computing and Services Science

372

and other limitations of both supercomputing and

grid computing, cloud computing is emerging as,

potentially, the ideal paradigm for the development

and deployment of geospatial applications. While

still in its infancy, geospatial cloud computing is

currently the focus of an intensive research and

development efforts. Geospatial cloud computing

was introduced as a specific type of cloud

computing that focuses on adding geography to the

cloud computing paradigm. It provides dynamically

scalable geographic information technology,

geospatial data, and geo-applications as a Web

service/utility. It leverages the power of geography

without needing the massive investment in

specialized geo-data, people, and software typically

required in an “enterprise GIS” implementation

(Williams, 2009).

Cloud computing is now widely viewed as a

promising paradigm for building tomorrow’s

geoprocessing systems (Brauner et al., 2009).

Several projects both in academia and in industry

have recently started efforts to develop prototypes of

geospatial systems on clouds. For example,

Cornillon (2009) explored the suitability of cloud

computing for processing large volumes of satellite-

derived sea surface temperature data. Hill (2009)

presented the results of experiments using Amazon’s

Elastic Compute Cloud (EC2) for ocean-atmosphere

modeling. Blower (2010) presented an

implementation of a Web map service for raster

imagery using the GAE environment. Wang et al.

(2009) describe a prototype for retrieving and

indexing geospatial data developed for GAE. In

parallel with these efforts in academia, several

vendors of GIS software have recognized the

promise of cloud computing and some have already

introduced cloud-based GISs. ESRI currently

provides preconfigured ArcGIS Server Machine

Images (AMI) for use in the Amazon Cloud

infrastructure (ESRI, 2010). Running ArcGIS Server

on Amazon allows organizations to deploy ArcGIS

Server across more than one data center and access

to Amazon's elastic computing infrastructure. In

addition, ESRI’s MapIt features Spatial Data

Assistant (SDA) and Spatial Data Service (SDS) for

Microsoft Windows Azure as in its current version it

is unable to manage and process geospatial data

(ESRI, 2009). Another example is Omnisdata’s GIS

Cloud (Omnisdata, 2010). GIS Cloud is a Web-

based GIS powered by cloud computing with

advanced capability of creating, editing, uploading,

sharing, publishing, processing and analyzing

geospatial and attribute data. Kim and MacKenzie

(2009) used Amazon’s EC2 in a climate change

study with the purpose of calculating the number of

days with rain in a given month on a global scale

over the next 100 years. The computation used 70

gigabytes of daily sets of climate projection data. It

took about 32 hours to process 17 billion records.

Cloud computing is seen as the needed paradigm

to finally shift the (often intensive) processing part

of geospatial applications from the desktop to

distributed spatial data infrastructures (SDIs)

(Schäffer and Baranski, 2009). By outsourcing

computing and/or data intensive tasks to the cloud,

geospatial applications will benefit in terms of

performance, scalability, and startup cost.

While most initial research has concluded that

cloud computing is a viable paradigm for compute-

and data-intensive geoprocessing, the fundamental

limitation remains that cloud infrastructures are, in

general, developed for generic computing; they often

are not aware of the spatial nature of the data. As a

result, existing cloud computing infrastructures still

require extensive research to develop optimization

techniques that would lead to true geospatial clouds.

3 C2GEO TECHNIQUES

& TOOLS

C2Geo is a set of techniques and tools designed for

the efficient processing of real-time data-intensive

geospatial applications. Considering the continual

demand for geospatial applications, cloud computing

providers can implement C2Geo in their clouds, as

part of geospatial database handling and

geoprocessing, in order to meet the requirements of

real-time data-intensive geospatial applications,

especially those that involve a large number of users

with mobile devices (e.g., smartphones).

Figure 1: C2Geo in a cloud.

C2GEO - Techniques and Tools for Real-time Data-intensive Geoprocessing in Cloud Computing

373

Figure 1 shows the concept of C2Geo in clouds.

C2Geo encompasses three main modules: data

placement and Virtual Machine (VM) migration,

optimal query processing, and geospatial data

access. A VM in the context of geoprocessing

contains geospatial data and operations on the data

that can be processed on any physical machine. A

master VM, called Geospatial Virtual Machine

(GeoVM), acts as a directory of all VMs (geospatial

data and processes).

The objective of the data placement and VM

migration module is to place geospatial data in the

most suitable way for the usage pattern of real-time

data-intensive geospatial applications. The objective

of the optimal query processing module, Cloud

Query Processing (CQO), is to discover VMs

through GeoVM. The objective of the geospatial

data access module is to provide a suitable indexing

strategy for optimal retrieval of geospatial data

based on locations of VMs.

3.1 Data Placement and VM Migration

Two key factors determine the performance of a

data-intensive application in a cloud: data placement

and VM deployment and migration. Data placement

determines the location of the data being accessed.

VM deployment and migration determine where the

VMs must be initially deployed and, if necessary,

when and where they must be subsequently

relocated (Sato et al., 2009). Although they

generally contribute to the same purposes (higher

performance, improved availability, and better fault

tolerance), data placement and VM migration are

considered, in most current research, as two

independent mechanisms. As a result, most existing

data placement and VM relocation solutions are sub-

optimal. For this, algorithms that significantly

reduce response time through a novel approach

where data placement and VM relocation are

accomplished in tandem are needed. Specifically,

these algorithms should simultaneously take into

account several criteria relevant to the geospatial

nature of data and to the workload including: (i)

location of users, (ii) correlation between data and

users’ queries, (iii) load distribution on servers, (iv)

network parameters (e.g., bandwidth of links,

congestion), and (v) mobility of users. We argue that

by simultaneously considering these and other

relevant factors, it will be possible to achieve far

higher performance, availability, and fault tolerance.

Static data placement solutions are not able to

efficiently adapt to dynamic changes in the cloud,

e.g., increase in the workload at some servers and

congestion in some areas of the network. The task of

placement is further complicated by the issues of

shared data, data inter-dependencies, application

changes and user mobility (Agarwal et al., 2010).

Because of the limitations of static data replication, a

few recent research efforts have introduced dynamic

replication schemes. These include Skute (Bonvin et

al., 2009), Re:FRESHiT (Voicu et al., 2010), and

Volley (Agarwal et al., 2010). In Skute, the number

of replicas is dynamically adapted to the query load

while maintaining availability guarantees in case of

failures. In Re:FRESHiT, the focus is on managing

replicas of frequently updated data. Because of the

high cost of updating all replicas, the proposed

protocol, i.e., Re:FRESHiT, organizes read-only

sites in virtual trees based on the sites’ freshness

levels, and introduces a routing mechanism for

reading data, while at the same time allowing users

to specify their own freshness requirements. Trees

are automatically reorganized after individual nodes

are refreshed or when new replicas join.

3.2 Cloud Query Optimization

CQO is based on the assumptions that the geospatial

data is stored in RDBMSs and the data is available

through VMs. To find an optimal query processing

in C2Geo, CQO first, through GeoVM, discovers all

relevant VMs, i.e., locations of geospatial data

components and the processes on them. Then, using

the requirements of the query and the locations of

the required VMs, it finds an optimal geoprocessing

strategy, which will then be passed on to the cloud.

One goal of CQO is to minimize response time and

power consumption. A second goal of CQO is to

minimize computing load on smartphones, which

means pushing geoprocessing to the cloud as much

as possible. In our previous work, we experimented

with some of the techniques in CQO using grid

platforms (see Liu and Karimi, 2008).

CQO consists of two main modules, resource

selection and parallelism processing, and three

auxiliary processes. Optimizing queries for clouds is

challenging as it entails a large search space that

decreases the overall performance. To overcome this

problem, CQO limits the search space by selecting a

subset of VMs in the resource selection module thus

improving optimization time performance. The

resource selection module is based on a ranking

function that incorporates several performance-

related factors. Available VMs are ranked by their

costs for a specific operation and the one with the

least cost is selected for executing the operation. The

resource selection module helps CQO reduce

CLOSER 2011 - International Conference on Cloud Computing and Services Science

374

optimization cost without excluding potential

superior computing resources. To further improve

query response time, CQO exploits parallelism by

detecting data dependency among operations in the

parallelism processing module. Before discussing

the two main modules of CQO, auxiliary services

that supply statistics and other types of information

for query optimization are presented next.

3.2.1 Input and Auxiliary Services

The input to CQO is represented in a tree structure

called the Abstract Query Tree (AQT). Each leaf

node in an AQT is an equi-join with two base

relations and an internal node is an operation on the

results of its leaf nodes. There are three auxiliary

services built in CQO to provide run-time

information for query optimization: Environment

Information Service (EIS), Database Information

Service (DIS), and Transmission Prediction Service

(TPS). EIS is responsible for providing both static

and dynamic information about a given VM, such as

system workload in a percentage rate, CPU speed,

and RAM amount. DIS manages a catalog of

existing replicas of base relations in the cloud and

retrieves them back to a client upon request. For a

given relation, DIS can provide VMs that maintain a

replica of the relation and statistics about the relation

such as relation size and field size. For a relation in a

given query, TPS is responsible for estimating a

candidate VM’s transmission performance with

respect to other VMs involved in that query. Mean

transmission latencies between VMs from historical

data are often used to measure a VM’s transmission

capacity. But a problem with this approach is that

mean values can be significantly affected by data

distribution—outliers with arbitrarily high or low

values can greatly impact mean values. In CQO, an

index, Transmission Latency Reputation (TLR), is

designed to reduce such inaccuracy. The calculation

of TLR is as follows.

Suppose that the query Q to be executed during a

time period t involves relations R

, R

, …, R

Relation R

has M

replicas that are located at VMs

, H

, …, H

iMi

, respectively. The TLR of

VM H

for Relation R

in query Q during t is

computed as a weighted mean:

(, ) (, )

(, )

()

ij kl ij kl

ij kl

wTL

TLR k i

=≠

∑∑

(1)

where TL

(ij,kl)

is the mean transmission latency

between H

and H

during t. If, for H

and H

relation R

is the only relation they have that is

involved in Q, H

should not be taken in computing

TLR

. The reason for excluding such VMs from the

calculation is that there will be no transmission

between that VM and the VM used in the

computation while executing the query; they

compete to be the provider of R

(, )ij kl

is the weight

assigned to H

by comparing

),( klij

, the variance of

transmission latencies between H

and H

, with the

maximum of variances of transmission latencies

between H

and other VMs, noted as max

(, )

max ( )

ij kl

(2)

Plugging Equation (2) into (1) simplifies the

latter to:

(, ) (, )

(, )

()

ij kl ij kl

ij kl

sTL

TLR k i

≠

∑∑

(3)

By introducing

(, )ij kl

w , the mean transmission

latency of a VM is adjusted; the more outliers a VM

has in its latency data and the larger values of

outliers, the larger will be the value of TLR and thus

the smaller its transmission capacity with respect to

other VMs. The ranking function discussed in the

following section uses TLR as an index of a VM’s

transmission capacity when selecting resource

providers.

3.2.2 Resource Selection

In the resource selection module, an AQT is

recursively visited in order to find candidate VMs

for each base relation in the AQT. This process is

performed in a sub-module called resource locator.

For each base relation, the resource locator contacts

DIS which will return a list of candidate VMs

containing the requested base relation. The returned

list is passed to a sub-module called resource ranker.

The resource ranker checks with DIS, TPS, and EIS,

respectively, to obtain both static and dynamic

statistics about all candidate VMs. A ranking

function based on the cost function proposed by

Mackert and Lohman (Mackert and Lohman, 1986)

is used in the resource ranker to compute the rank of

a given candidate VM H

for a base relation R

. The

ranking function is a linear combination of weighted

and standardized values of five factors:

C2GEO - Techniques and Tools for Real-time Data-intensive Geoprocessing in Cloud Computing

375

(min()) (min())

max( ) min( ) max( ) min( )

( min( ))

max( ) min( )

( min())/(max()min())1

( min( )) /(

ij cpu ij ram

ij count

TLR

mips mips w ram ram w

rank

mips mips ram ram

count count w

count count

wk wk wk wk

TLR TLR

−× −×

−−

−×

−

−−+

−

max( ) min( )) 1TLR TLR−+

(4)

where mips

is MIPS (Million Instructions Per

Second) of H

;

mips

is weight of MIPS; ram

RAM amount at H

(MB); w

ram

is weight of RAM;

count

is number of relations that are involved in a

query and maintained by H

; w

count

is weight of

count; wk

is current workload of H

(0 means idle

and 1 means that H

is fully utilized); w

is weight

of workload.

The introduction of count into the ranking

function increases the chances of VMs with multiple

relations getting higher ranks. The higher rank a VM

receives, the more likely it performs joins locally.

For special running environments where certain

factors become dominant or subordinate,

corresponding weights can be adjusted accordingly.

After computing the ranks of all candidate VMs

for a base relation, the VM with the highest rank is

chosen as the provider of the base relation and added

to the AQT. Since the factors in the ranking function

are those that will greatly impact the performance of

a query execution, it can be argued that the rank a

VM receives reflects the fitness of a VM as a

candidate for a base relation in a given query. The

higher the rank, the higher are the chances of a VM

to be chosen as the provider of the relation. Once all

relations are allocated to specific VMs, the AQT will

be transformed into a Physical Query Tree (PQT)

which in turn is passed to the parallelism processing

module for further optimization.

3.2.3 Parallelism Processing

We have developed a strategy for parallelism

processing which alleviates the burden of Message

Passing Interface (MPI) development on geospatial

developers. Before checking parallelism in a PQT,

information about intermediate results (i.e., result of

a join that is part of the input to another join) needs

to be known since CQO needs to determine data

transfers between operations. This information

includes: number of records, record size, number of

blocks, and number of distinct values and index

height of the join field. These statistics are

temporarily added on to the information repositories

in DIS and are removed once an execution plan for a

query is determined.

After the resource providers are selected, CQO

checks to see if it is possible to exploit parallelism

during the execution of the query. Based on the

dependency among the operations of a query,

parallel processing in clouds can be achieved in

different forms: single operation single data (SOSD),

single operation replicated data (SORD), multiple

operations single data (MOSD), and multiple

operations multiple data (MOMD).

Implementing SOSD or MOSD involves

replicating a data set in one or more VMs. With

large volumes of data in clouds (terabytes) and VMs

connected via local and wide area networks, data

replication could introduce an overhead that may

reduce parallelism gains. Thus, SOSD and MOSD

are not considered in CQO. As for SORD, it requires

knowledge of domain-specific operations (e.g., how

to partition a data set and how to combine results

from parallel processes). For instance, in building a

parallel routing algorithm to obtain a best path,

Karimi and Hwang (1997) suggest to partition a

network into equal sub-networks in order to

maximize load balancing and improve performance.

Such an algorithm can be implemented in an

independent module and plugged into CQO.

Input: PQT

Output: an ordered set of sequential steps

Variables:

Set N; Set S;

Node n;

Begin

Name intermediate results;

Estimate statistics of intermediate results (using DB information

service);

While there is a node in PQT do

Begin

Create new sequential step s;

N Å all leaf nodes;

For i = 1 to #of nodes in N do

Begin

n Å N[i];

If n does not have dependency of any other node in N then

Add the operation at n into s;

Remove n from N;

Remove n from PQT;

End;

Add s to S;

End;

Return an ordered set of sequential steps;

End.

Figure 2: Algorithm to detect MOMD parallelism.

The algorithm in Figure 2 is proposed to

implement MOMD. Since MOMD exists when there

is no data dependency between operations, it can

only be found between operations in the leaf nodes

of a PQT. The algorithm checks all operations in all

leaf nodes in a PQT for data dependency. Operations

with data independency are removed from the PQT

and are added to a new sequential step. This process

is repeated until all joins in the PQT are processed.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

376

The outcome is an ordered set of sequential steps.

After parallel executions are determined for

each step, a structure called “parallelism-inside-of-

sequential-steps” (PSS) is used to represent the

output of optimization (i.e., an execution plan). In

PSS, an execution plan is formed by a series of

sequential steps. Each sequential step includes a set

of operations that is scheduled to run in parallel and

hence the name is “parallelism-inside-of-sequential-

steps”. Operations in one sequential step have to

wait for the operations in the previous steps to be

completed so that all their input data become

available. If no parallelism is possible in a query, for

instance, a left-deep join, a sequential step only has

one operation (e.g., a join). Upon determination of

the execution order of operations in PSS and

allocation of each operation with specific resources,

PSS is ready to be submitted for execution.

3.3 Geospatial Data Access

In this module, we are developing novel techniques

for geospatial data indexing and retrieval in cloud

environments. Specifically, we focus on four major

directions: (i) geospatial indexing, (ii) location-

aware data placement, (ii) network-aware indexing,

and (iv) access-based data reindexing, replication,

and migration.

3.3.1 Geospatial Indexing

Geospatial indexing has been an active research area

for many years. In particular, several spatial

indexing techniques have been developed for

distributed systems. Substantial efforts focused on

adapting well studied spatial indexing techniques

such as kd-Trees (Robinson, 1981), Quadtrees

(Finkel and Bentley, 1974, Samet, 1984), R-Trees

(Guttman, 1984), and Octrees (Hunter, 1978, Reddy

and Rubin, 1978) to the context of distributed

systems. For example, Zimmermann et al. (2004)

presented an architecture to efficiently route and

execute spatial queries based on distributed R-tree

and Quadtree structures. The architecture supports

both spatial range and k nearest neighbor queries.

With more data-intensive applications being

hosted in clouds, research has recently shifted to

developing spatial indexing techniques specifically

designed for clouds (e.g., see Mouza et al. 2007,

2009; Wang et al., 2010; Wu and Wu, 2009. Mouza

et al. (2007, 2009) propose a new indexing structure,

called SD-Tree (Scalable Distributed Rtree), with

the objective of evenly balancing the utilization of

the processing power and storage of a pool of

distributed data servers. Wu and Wu (2009)

presented an indexing framework for clouds where

processing nodes are organized in a structured

overlay network, and each processing node builds its

local index to speed up data access. A global index

is built by selecting and publishing a portion of the

local index in the overlay network. The global index

is distributed over the network, and each node is

responsible for maintaining a subset of the global

index. Wang et al. (2010) integrate a CAN-based

routing protocol (Ratnasamy et al., 2001), called

RT-CAN, and an R-tree based indexing scheme to

support efficient multi-dimensional query processing

in a cloud system. RT-CAN organizes storage and

compute nodes into an overlay structure based on an

extended CAN protocol and supports the processing

of multi-dimensional range and KNN queries.

A fundamental issue is how to store the spatial

index on the cloud. For example, assume that a

Quadtree index is used. Data is first partitioned until

it becomes possible to store one or more quadrant(s)

on a server of the cloud. A simple alternative is to

store the entire index on a single node. Another

alternative offering improved scalability and

availability could be to distribute the index on an

overlay formed by some or all of the cloud’s nodes.

3.3.2 Location-Aware Data Placement

Efficient data placement aims at two objectives: (i)

reducing disk I/O cost needed for data retrieval and

(ii) reducing communication cost associated with the

retrieval operation. To illustrate, assume that

Quadtree indexing is used. A simple approach to

reduce disk I/Os is to partition data so that the

maximum number of the most frequently accessed

quadrants can be stored in the main memory of the

cloud’s servers. Reducing communication cost

requires that the data be stored where it is most often

accessed. A natural way of achieving this in

geospatial applications is to store geospatial data on

servers located in the area referenced by the data

itself. The intuition is that, in most geospatial

(location-based) applications, users access geospatial

data relevant to their current location.

A possible approach for data placement is

location-aware data placement (LDP). Intuitively,

LDP consists of partitioning and distributing

geospatial data on cloud’s nodes so that every data

unit is stored on a server that is as close as possible

to the area referenced by that data unit. On a given

server, the memory constraints are also considered

when determining the size of data units (e.g.,

quadrants).

C2GEO - Techniques and Tools for Real-time Data-intensive Geoprocessing in Cloud Computing

377

3.3.3 Network-Aware Spatial Indexing

It is well known that, in a distributed environment,

the search complexity is dominated by the

communication overhead between servers rather

than by I/O operations at individual servers

(Zimmermann et al., 2004). To achieve near real-

time latency, it is therefore crucial to take into

account the network characteristics when deploying

the distributed spatial index on the cloud’s nodes.

We introduce the concept of network-aware spatial

indexing. In this new indexing paradigm, the index’s

partitions are stored on the nodes such that the

average indexing latency, time to reach the relevant

key in the index tree structure, is minimized.

3.3.4 Access-based Data Reindexing,

Replication and Migration

In cloud computing, a substantial share in query

processing time is the time to access the indexes and

the time to retrieve the data. In location-based

applications, performance may deteriorate

significantly if a static index and data

distribution/replication scheme is adopted. In

addition to location, other temporal parameters can

also have an impact on response time in many

geospatial applications. Examples include: the time

of the day (day vs. evening), day of the week

(working day, week-end day), public events,

weather, holidays, period in the year, etc. These

spatial and temporal parameters directly determine

the query load submitted to an application. For

example, on a hot week-end summer day, a

significantly higher than usual number of queries are

likely to be submitted to a navigation application by

users driving on a highway on their way to the

beach. Because of the dynamic nature of queries, a

static distribution/replication of data and indexes is

likely to yield sub-optimal performance.

4 CLOUD EVALUATION

Since implementation of C2Geo on each cloud

platform requires an understanding of some of its

techniques and the availability of certain tools to

utilize the cloud effectively, a comprehensive

evaluation of C2Geo is beyond the scope of this

paper. However, to illustrate some of the potential

issues that may arise while implementing C2Geo on

clouds, we evaluated the performance of an existing

cloud computing for real-time geospatial

applications.

We have chosen navigation applications, one

type of location-based services, as a representative

real-time data-intensive geoprocessing. Navigation

applications have a usage pattern that is ideal for

cloud computing as it can adequately scale (down or

up) to multiple simultaneous users (very small to

very large numbers) with performance appropriate

for the real-time response. The application we are

focusing on is a real-time prediction module for

quality of services for iGNSS (iGNSS QoS) with

real-time processing constraints. iGNSS QoS

prediction requires large-scale TINs for satellite

visibility calculation, which is a real-time process.

Thus, there is a need for an efficient strategy to

retrieve large-scale TINs from a cloud.

GAE was chosen due to its publicly available

service at free (or low) cost and its full featured

platform that allows developers to test their web

applications on a cloud platform in a short time.

However, the current GAE does not natively support

geospatial data and processing. An open-source

project, called GeoModel, for GAE was used to

index geospatial data and perform basic spatial

operations (i.e., proximity and bounding box) (Nurik

and Shen, 2009).

A TIN, covering the University of Pittsburgh’s

main campus and the surrounding neighbourhoods

with a 3.048 km by 3.048 km area, was created from

LiDAR point cloud. The LiDAR point cloud has a

point spacing of 1 m and the total number of LiDAR

points is about 3.4 million. Since the GAE datastore

is a schemaless or non-relational database, the

created vertices and triangles were uploaded to GAE

database as vertex (or point) and triangle entities.

Point entities were uploaded through the use of

GeoModel, which it defines a geocells property for

spatial indexing, while triangles were uploaded as

generic entities with no geocell attached.

Each point and triangle entity has a unique key

assigned by the GAE for expediting the search. Point

entity also has a property that contains a list of

triangle IDs that have the point as their vertex. Each

triangle entity has a property that contains a list of

point IDs used as its vertices. To retrieve a TIN from

the GAE datastore for a querying area, we used a

two-step approach: (1) retrieve point entities using

geocells generated by GeoModel and (2) retrieve

triangles associated with the retrieved point entities

using triangle IDs.

Due to GAE’s limited quota on the total storage

space (1 GB), only a small part of the prepared TIN

could be stored in the GAE datastore, which covers

100 m x 3,048 m containing 225,369 vertices and

226,120 triangles.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

378

The performances of GAE with the use of

GeoModel were measured for performing proximity

and bounding box queries. Various sizes and

locations of the two query types were used in this

evaluation, which are reasonable sizes for visibility

calculation of iGNSS QoS prediction. For proximity,

queries with the proximity distance of 10, 20, 30,

and 40 m at 10 different locations (within the

boundary of the uploaded) were created. For

bounding box, long narrow strips with the size of the

100, 200, 300, 400, and 500 m length by the 1-m

width were created at 5 different locations.

5 RESULTS AND DISCUSSION

For proximity search, only 32 of 40 defined queries

could be completed due to the 30-second request

limit imposed by GAE. A majority of elapsed times

were caused by GeoModel. GeoModel determined

relevant geocells, retrieved point entities of the

computed geocells through the GAE datastore, and

calculated and sorted the retrieved entities by

distance, then returned a querying result. Searching

entities from a string of geocells, which is an

attribute not a key of entities, is not an optimal

approach provided by GAE. In addition, the internal

process of GeoModel of calculating and sorting

distance is sequential for each query thread. Thus,

increasing the proximity distance tends to decrease

the performance. In addition, high variation of

elapsed times can be observed due to the nature of

sharing resources in the cloud. The circle symbols in

Figure 3 show the elapsed time by the first-step of

TIN query (point entities) for proximity queries.

The second-step of TIN query (triangle entities)

required relatively short time, about 1,3,5,9 seconds

for the proximity distance of 10 to 40 m,

respectively.

For bounding box search, all the defined sizes

were completed within the 30-second limit. The

square symbols in Figure 3 show the elapsed time by

the first-step of TIN query (point entities) for

bounding box queries. Again, the second-step of

TIN query (triangle entities) required relatively short

time, about 1,2,3,4, and 5 seconds for the bounding

boxes with length of 100 to 500 m, respectively. The

performances varied greatly according to the sizes of

the bounding boxes. The long latency was mainly

caused by the process of retrieving points for the

computed geocells that contain the bounding box.

In summary, GAE is a general-purpose cloud

computing platform that even though it provides a

full set of features for easily developing web

applications, it does not natively support storing,

indexing, and retrieving geospatial data. This makes

geoprocessing on an existing cloud, like GAE, more

challenging and requiring more efforts than other

Web applications with generic types of data.

Therefore, techniques and tools like C2Geo are

expected to facilitate development of geospatial

applications in cloud and enhance the performances

of real-time geoprocessing.

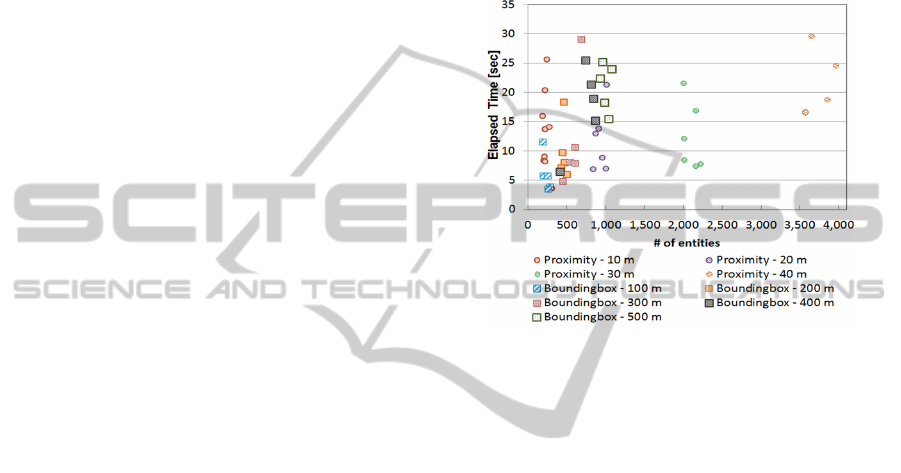

Figure 3: Evaluation performance of GAE for retrieving

TIN data.

6 CONCLUSIONS & FUTURE

RESEARCH

This paper discusses the result of evaluation of the

Google App Engine cloud for addressing the

requirements of iGNSS QoS prediction, a real-time

geospatial application.

A large-scale TIN was used for testing the

geospatial data retrieval performance of GAE with

GeoModel. The result reveals that the current GAE

platform and available tools are not ready yet to

handle efficiently some of the data- and/or compute-

intensive problems in real-time geospatial

applications. There are several reasons for this. One

is that the current GAE platform offers limited

techniques and tools for geoprocessing.

Research in utilizing cloud computing for real-

time geoprocessing should address the following:

development of geoprocessing techniques and tools

specifically designed for cloud implementation and

deployment, such as C2Geo; development of tools

that allow developers flexibility in using cloud

resources for geospatial applications.

C2GEO - Techniques and Tools for Real-time Data-intensive Geoprocessing in Cloud Computing

379

REFERENCES

Agarwal, S., Dunagan, J., Jain, N., Saroiu, S., Wolman, A.

and Bhogan, H. (2010). Volley: Automated data

placement for geo-distributed cloud services. In 7th

USENIX Symposium on Networked Systems Design

and Implementation (NSDI), San Jose, CA.

Blower, J. (2010). GIS in the cloud: implementing a Web

Map Service on Google App Engine. In 1st Intl. Conf.

on Computing for Geospatial Research &

Applications, Washington D.C.

Bonvin, N., Papaioannou, T. and Aberer, K. (2009).

Dynamic cost-efficient replication in data clouds. In

1st workshop on Automated control for datacenters

and clouds, Barcelona, Spain, 49-56.

Brauner, J., Foerster, T., Schaeffer, B. and Baranski, B.

(2009). Towards a research agenda for geoprocessing

services. In 12th AGILE International Conference on

Geographic Information Science, Hanover, Germany.

Cornillon, P. (2009). Processing large volumes of satellite-

derived sea surface temperature data - is cloud

computing the way to go? In Cloud Computing and

Collaborative Technologies in the Geosciences

Workshop, Indianapolis, IN.

ESRI, (2009). Spatial data service deployment utility for

Windows Azure is available! Retrieved from: http://

blogs.esri.com/Dev/blogs/mapit/archive/2009/12/18/S

patial-Data-Service-Deployment-Utility-for-Windows-

Azure-is-available_2100.aspx.

ESRI, (2010). ArcGIS and the cloud Retrieved from:

http://www.esri.com/technology-topics/cloud-gis/arc

gis-and-the-cloud.html.

Finkel, R., Bentley, J. (1974). Quad trees a data structure

for retrieval on composite keys. Acta informatica,

4(1), 1-9.

Foerster, T., Schaeffer, B., Baranski, B. and Lange, K.

(2010). Geoprocessing in hybrid clouds. In

Geoinformatik, Kiel, Germany.

Guttman, A. (1984). R-trees: a dynamic index structure for

spatial searching. In Proceedings of the 1984 ACM

SIGMOD international conference on Management of

data, Boston, Massachusetts, 47-57.

Hill, C. (2009). Experiences with atmosphere and ocean

models on EC2. In Cloud Computing and

Collaborative Technologies in the Geosciences

Workshop, Indianapolis, IN.

Hunter, G. (1978). Efficient computation and data

structures for graphics. Princeton University,

Princeton, NJ, USA.

Karimi, H. A., Hwang, D. (1997). A Parallel Algorithm

for Routing: Best Solutions at Low Computational

Costs. Geomatica, 51(1), 45-51.

Kim, K. S., MacKenzie, D. (2009). Use of cloud

computing in impact assessment of climate change. In

Free and Open Source Software for Geospatial

(FOSS4GT), Sydney, Australia.

Liu, S., Karimi, H. (2008). Grid query optimizer to

improve query processing in grids. Future Generation

Computer Systems, 24(5), 342-353.

Mackert, L. F., Lohman, G. M. (1986). R* Optimizer

Validation and Performance Evaluation for Distributed

Queries. In the Twelfth International Conference on

Very Large Data Bases, Kyoto.

Mouza, C. D., Litwin, W. and Rigaux, P. (2007). SD-

Rtree: A scalable distributed Rtree. In IEEE 23rd

International Conference on Data Engineering

(ICDE), Istanbul, Turkey, 296-305.

Mouza, C. D., Litwin, W. and Rigaux, P. (2009). Large-

scale indexing of spatial data in distributed

repositories: the SD-Rtree. The VLDB Journal, 18(4),

933-958.

Nurik, R., Shen, S., (2009). Geospatial Queries with

Google App Engine using GeoModel Retrieved from:

http://code.google.com/apis/maps/articles/geo

spatial.html#geomodel.

Omnisdata, (2010). GIS Cloud beta: the next generation of

GIS Retrieved from: http://www.giscloud.com/.

Ratnasamy, S., Francis, P., Handley, M., Karp, R. and

Schenker, S. (2001). A scalable content-addressable

network. In ACM SIGCOMM Computer

Communication Review, San Diego, CA, USA, 161-

172.

Reddy, D., Rubin, S., 1978. Representation of three-

dimensional objects (No. CMU-CS-78-113).

Pittsburgh, PA: Computer Science Department,

Carnegie-Mellon University.

Robinson, J. (1981). The KDB-tree: a search structure for

large multidimensional dynamic indexes. In

Proceedings of the 1981 ACM SIGMOD International

Conference on Management of Data, Ann Arbor,

Michigan, 10-18.

Samet, H. (1984). The quadtree and related hierarchical

data structures. ACM Computing Surveys (CSUR),

16(2), 187-260.

Sato, K., Sato, H. and Matsuoka, S. (2009). A model-

based algorithm for optimizing I/O intensive

applications in clouds using VM-based migration. In

9th IEEE/ACM International Symposium on Cluster

Computing and the Grid (CCGRID), Shanghai, China,

466-471.

Schäffer, B., Baranski, B. (2009). Towards spatial related

business processes in SDIs. In 12th AGILE

International Conference on Geographic Information

Science, Hannover, Germany.

Voicu, L. C., Schuldt, H., Breitbart, Y. and Schek, H.-J.

(2010). Data and flexible data access in a cloud based

on freshness requirements. In 3rd IEEE International

Conference on Cloud Computing (CLOUD2010),

Miami, FL, USA, 45-48.

Wang, J., Wu, S., Gao, H., Li, J. and Ooi, B. C. (2010).

Indexing multi-dimensional data in a cloud system. In

ACM SIGMOD/PODS Conference, Indianapolis, IN,

USA.

Wang, Y., Wang, S. and Zhou, D. (2009). Retrieving and

indexing spatial data in the cloud computing

environment. Lecture Notes in Computer Science,

Cloud Computing, 322-331.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

380

Williams, H. (2009). A new paradigm for geographic

information services. Spatial Cloud Computing (SC2),

White Paper.

Wu, S., Wu, K.-L. (2009). An indexing framework for

efficient retrieval on the cloud. IEEE Data

Engineering, 32(1), 75-82.

Zimmermann, R., Ku, W. and Chu, W. (2004). Efficient

query routing in distributed spatial databases. In 12th

annual ACM international workshop on Geographic

information systems, Washington DC, USA, 176-183.

C2GEO - Techniques and Tools for Real-time Data-intensive Geoprocessing in Cloud Computing

381
