CONTEXT-AWARE REASONING ENGINE

WITH HIGH LEVEL KNOWLEDGE FOR SMART HOME

Jiaqi Zhu, Lee Vwen Yen, Jit Biswas

Institute for Infocomm Research (I

R), Agency for Science, Technology and Research (A*STAR), Singapore, Singapore

Mounir Mokhtari, Thibaut Tiberghien, Hamdi Aloulou

Image & Pervasive Access Lab (IPAL), I

R, A*STAR, Singapore, Singapore

Keywords: Context-aware, Reasoning engine, High level knowledge, Smart home, Sensor network, Pervasive

environment, Ambient assistive.

Abstract: We are interested in providing people living or working in smart home environment with sensor network

based assistive technology. We propose a novel rule-based reasoning engine that could be used in

ubiquitous environments to infer logical consequences from events received over a sensor network. We

introduce methods for rule design with high level knowledge input and using minimum information to infer

micro-context. Personalised profiles can be introduced into the reasoning engine to customise features for a

particular user using our rule refinement and generation module. New mechanism for sensor-engine

communication is also introduced. As a proof of concept, a prototype system (using DROOLS) has been

developed to demonstrate the functionalities of our reasoning engine in a simulated smart home

environment.

1 INTRODUCTION

Homes have basically not changed in centuries and

the ways we live in homes have not varied much too.

However, with the introduction of the Smart Home

concept, this interdisciplinary research that

addresses the challenges facing the future of home

technologies, offers a range of technological benefits

to the user (Feki, 2007). Coupled with the gradual

trend of ageing populations around the world, much

interest have been placed into designing and

developing smarter systems to assist and enable an

individual to stay at home and take care of

themselves independently without the need for

constant monitoring of their Activities of Daily

Living (ADL).

In current hospitals, nursing homes and other

similar health care facilities, nurses and caregivers

often have to manage many duties in order to

provide excellent patient care. These duties include

the need to dispense medication throughout the day

at stipulated timings and also having to go on their

rounds in their designated wards to observe patients

and ensure there are no significant incidents. These

two main duties take up quite a lot of the nurses’

time. Hence there would be insufficient medical

personnel and caregivers that are available to

provide prompt and quick responses to every patient

around the clock. Emergency situations that require

immediate responses have to be given priority over

other common occurring incidents and thus

assistance could not always be rendered to patients

in a timely manner.

The solution to these situations is to install

Ambient Intelligent systems and sensors in homes,

hospitals and nursing homes to assist nurses and

caregivers in monitoring patients or the elderly.

However, sensors are only able to provide low-level

context which is useful for informing users about

simple events like opening or closing a door.

Middleware like a reasoning engine would then be

used to receive sensor information via a sensor

network and also to infer higher-level context like a

person’s ADL.

This paper looks at an integrated approach

consisting of building a rule-based reasoning engine

that initially generates generic rules with modifiable

and adjustable variables based on a person’s profile.

292

Zhu J., Vwen Yen L., Biswas J., Mokhtari M., Tiberghien T. and Aloulou H..

CONTEXT-AWARE REASONING ENGINE WITH HIGH LEVEL KNOWLEDGE FOR SMART HOME .

DOI: 10.5220/0003396202920297

In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2011), pages

292-297

ISBN: 978-989-8425-48-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

The reasoning engine could also adapt to different

smart home environments through a rule generation

process. Rules are created such that logical

consequences could be inferred from low-level

context received over a sensor network. The

reasoning engine is also built to detect any

anomalies in a person’s ADL and also to reason if

any accident has happened. Based on a given set of

rules controlled by the nurses or caregivers, alerts or

reminders could then be sent out to the medical

personnel in-charge or patients whenever

abnormalities are detected, for example when

somebody stays too long in the shower and needs to

be reminded to leave the washroom. With this set of

rules, nurses and caregivers would be able to

determine and configure actions to be taken and the

different type of reminders to be issued based on

each person’s unique personality or habits.

In scenarios where sensors are unavailable to

transmit sensor information due to low battery

power or incorrect sensor data being transmitted to

the reasoning engine, a probabilistic model would be

used to determine the type and number of rules that

are to be fired and the subsequent consequences due

to the fired rules.

In addition, we note that existing reasoning

engines are mostly governed by rules that are pre-

defined by programmers before being deployed for

end-users usage. Editing of such initial set of rules is

often too difficult for non-technical end-users and is

also a barrier for user’s acceptance towards the

system. Therefore we intend to only host generic

rules with a pre-defined setting and also develop a

control mechanism that allows the user to determine

preferences within their personal profiles to be

uploaded into our reasoning engine.

The rest of the paper is organised as follows.

Existing reasoning engines and related work are

listed and compared in Section 2. We introduce our

novel context-aware reasoning engine in Section 3.

In Section 4, we describe the implementation of our

prototype and scenario which our prototype has

already been tested in, together with feedback from

medical personnel. We end with the conclusion in

Section 5.

2 RELATED WORK

We are aware of current reasoning engines with

similar capabilities pertaining to the uncertainty

aspect. Many probabilistic schemes for context

processing have been used to tackle the issue of

uncertainty. The theory on fuzzy logic (Zadeh, 1996)

and Hidden Markov Models (HMM) (Krogh et al.,

1994) have been mentioned and discussed as

potential probabilistic schemes that could be used

(Dargie, 2007). Ranganathan et al. (Ranganathan,

2004) have used Microsoft’s Belief Network

(MSBN) software to create Bayesian networks to

represent relationships between events. Liu Peizhi et

al. (Liu, 2008) applied the combination rule in

Dempster-Shafer Theory of Evidence (DST) to their

reasoning mechanism to construct the inferencer.

There was work done on Dynamic Bayesian

Networks (DBN) that are able to represent and learn

in order to produce more complex models. Murphy

modelled hierarchical HMMs as DBNs, as part of

his work (Murphy, 2002).

These approaches, apart from fuzzy logic, are

mainly generalizations of the Bayesian network and

are proposed as possible solutions to solving the

uncertainty problem by providing the probabilistic

reasoning mechanism. Our approach towards

uncertainty is to also create a probabilistic model

with probabilistic information optimally pre-defined.

However, generic rules related to common smart

home scenarios would initially be obtained via a

rules repository.

We could not afford to have learning processes

when we deploy our reasoning engine as it is

expected to be effective on deployment. Therefore,

as and whenever the reasoning engine is unable to

handle any given situation with the prepared rules,

the end-user could personalise or customise the rules

and probabilistic information to meet their needs.

This manner of customisation would be covered by

our rule generation process and end-user control

mechanism within our reasoning engine. User

profiles from different individuals could also be used

for customisation purposes.

There are other reasoning engines that are rule

based, but do not take into account high level

knowledge that could be used to optimize rule

design (Goh, 2007). There are also methods that

utilise high level knowledge but are instead used to

computerize Clinical Practice Guidelines (CPG) so

as to operationalize them within Clinical Decision

Support Systems (Hussain, 2007).

3 OUR REASONING ENGINE

3.1 Rule with High Level Knowledge

Our context-aware reasoning engine (later referred

to as “engine”) is rule driven and based on first order

logic. It is able to work without training. The engine

CONTEXT-AWARE REASONING ENGINE WITH HIGH LEVEL KNOWLEDGE FOR SMART HOME

293

uses predefined rules in a rule repository (in our case

about 30 rules) as the initial rules. The initial rules

are predefined in the way that domain expert

knowledge is built into them. Domain expert

knowledge could be the knowledge from doctors or

nurses in the domain of healthcare as they know

exactly how a patient or an elderly performs his/her

activities of daily living. The knowledge can then be

mapped to some rules or components of some

specific rules. The components of a standard rule in

the rule repository are described in Table 1.

Table 1: Rule components.

Rule name

Person

Location

Time

Sensor

status

Sensor

status

...

Sensor

status

Sensor selection scheme

Firing condition

The first 4 components are easy to understand. The

sensors status is the related sensors behaviour that

would imply the underlying micro-context. We have

created the “sensor selection scheme”. This spirit in

the rule design of the engine is that we always use

minimum information possible to make judgement

of the current context (location of a person, status of

location) or the micro-context (activity of a person)

although there is more information available. Only

when we do not have sufficient information on hand

to make a sound judgement, do we actually resort to

seek for additional available information to perform

inference. This is to alleviate the workload of the

processing server and to save on data transmission

bandwidth. Firing condition specifies the input

conditions of the first order logic.

For example, a rule which monitors person A’s

showering activity and alerts when person A is

showering for too long is defined in Table 2. The

duration of sensor

and sensor

in active state being

the threshold for judging is set according to expert

knowledge. Though we have four sensors installed,

we try to only use sensor

and sensor

in the first

place. Only when sensor

is not available (may due

to malfunction or battery failure) or if certain

conditions are not satisfied, do we take into account

information received from sensor

and sensor

So in the afternoon, when the status of sensor 1

and 2 are met or those of sensor 1, 3 and 4 are met,

the showering for too long rule is fired and an alert

will be sent to a speaker in the washroom telling

person A to finish shower quickly.

Table 2: Rule for showering for too long.

Rule name showering for too long

Person A

Location washroom

Time afternoon

Sensor

status shower pipe shake sensor: active for

15 minutes

Sensor

status shower area PIR sensor: active for 15

minutes

Sensor

status shower soap dispenser: pressed

Sensor

status washroom door reed switch sensor:

closed

Sensor selection

scheme

check sensor 1 and 2 first, and then

sensor 3 and 4

Firing condition if sensor 1 and 2 are satisfied, or if

sensor 1, 3 and 4 are satisfied

3.2 Rule Generation and Refinement

The engine uses predefined initial rules obtained

from a rules repository. However, we have designed

algorithms for the engine to refine the rules

accordingly overtime, and generate new rules when

necessary. The idea is shown in Figure 1.

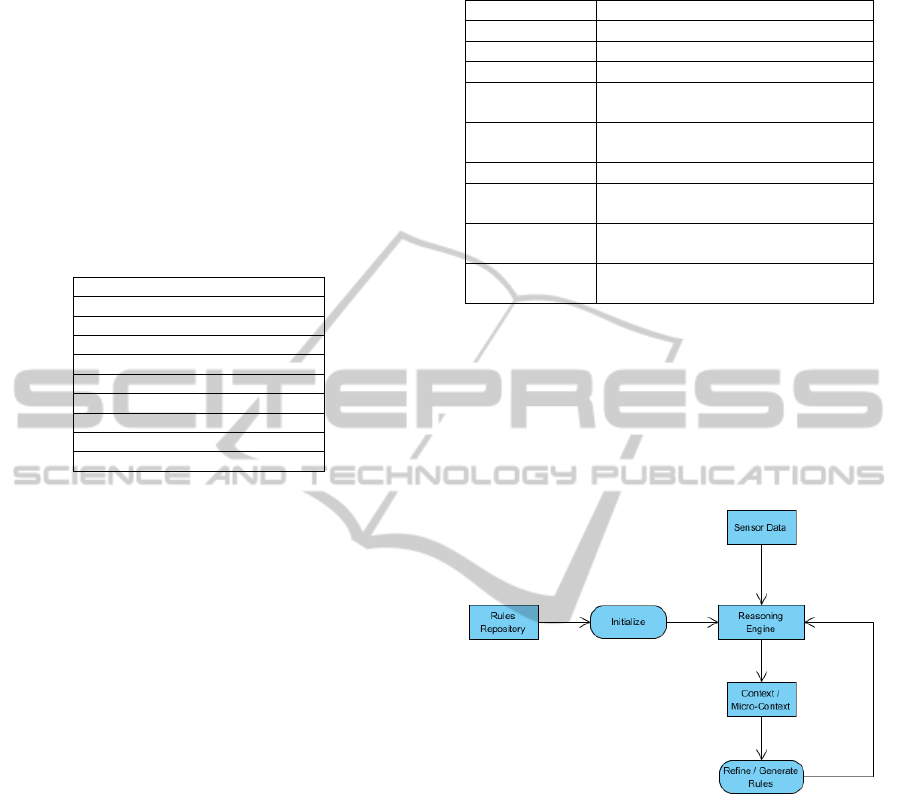

Figure 1: Rule refinement and generation.

Figure 1 shows that the rules repository is used

to initialize the reasoning engine. On receiving

sensor data, the engine does reasoning to infer the

context and micro-context.

The temporal information in the context and

micro-context is used to modify the components of

the existing rules, such as sensor duration and status.

If some new micro-context is discovered, new rules

can be generated by combining the spatial, temporal

and sensor information.

The engine will save the modified rules and the

newly generated rules back into the rules repository

so that the repository always reflects the most

updated set of rules.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

294

3.3 Engine-sensor Communication

One important characteristic of the engine is its

Sensor Universal Plug and Play (SUPnP) feature.

This feature is to overcome the drawback of existing

sensor network smart home systems as it allows the

engine to automatically recognize newly deployed

sensors and then adopt them to work together with

our rules. No restart or re-configure of the engine is

needed.

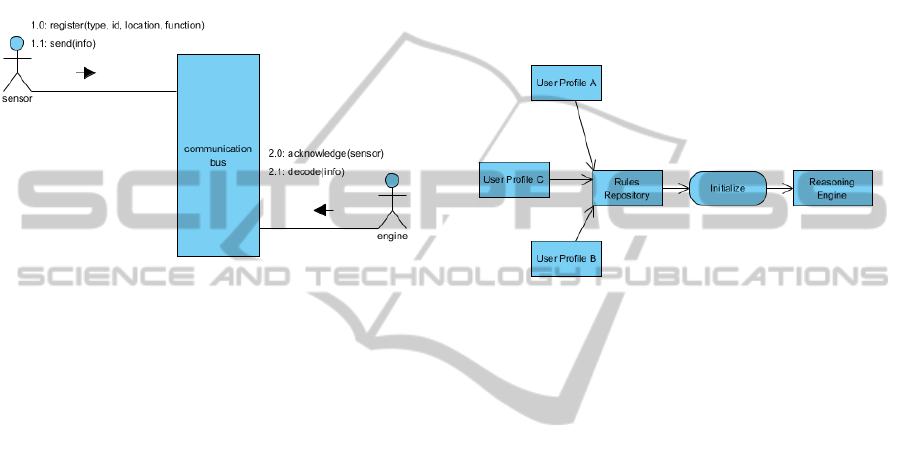

Figure 2: SUPnP feature.

When a new sensor is deployed into the network,

it has to use a “register” function (provided by the

engine) to register itself. The sensor sends its

information such as the sensor type, identity (must

be unique), location and functionality to the engine.

The engine then adds the sensor into its working

sensor list and uses the ‘acknowledge’ function to

reply. Subsequently, the sensor and the engine

communicate through a communication bus using

‘send’ and ‘decode’ functions respectively.

With the design of SUPnP, the engine will no

longer need to stop and restart whenever a new

sensor comes. When used in conjunction with our

rule generation and refinement module, the designer

of the engine does not have to manually re-write

existing rules or write new rules in order to include

the sensors into the system. The system will

automatically add new sensors into rules according

to their functionality using their unique sensor id.

3.4 Other Features

Some other features of the engine include abstract

rule, rule image and rule verification.

An abstract rule is a rule with one or more

components being some variable(s). A rule image is

an instantiation of an abstract rule. When we want to

create a rule for multiple people and it has some

component with values that will vary for different

people, we would firstly create an abstract rule with

the component being a variable instead of a value.

We then retrieve the necessary related value from a

profile and replace the variable with a specific value

specifically denoted for the particular person. So,

this rule becomes an image of the abstract rule. With

the introduction of the rule image, we do not have to

explicitly define different rules for different people.

The engine will create an image of an abstract rule

the moment it receives an input from a user’s

profile. Abstract rules are also stored in the rules

repository (refer to Section 3.1). Figure 3 illustrates

how this works.

Figure 3: User profile is used to instantiate abstract rules.

We are using Process Analysis Toolkit (PAT)

(PAT, 2010) to conduct verification of rules, i.e. to

discover conflicting, redundant and non-reachable

rules. This is done based on PAT’s model checking

techniques.

4 PROTOTYPE

We used a Rules Engine implementation termed

JBoss rules (Jboss, 2010), tailored for Java language

to assist us in creating the rule file. This rule file can

be edited with normal text editors or IDEs like

Eclipse or NetBeans. By using DROOLS, we also

have the ability to use Domain Specific Language

(DSL) to simplify our rules for end-users to

understand.

The sequence flow of our prototype reasoning

engine starts off with the administrator generating

and obtaining the initial set of rules from the rules

repository. If there are occasions where specific new

rules need to be constructed or present rules need to

be modified, the amendment could be completed by

the administrator. Using a main java program

MainReasoner to read in the rules, the reasoner

would accept user profiles and using the information

from the profile to create rule images, which are

instantiations of the abstract rules. In this way, the

reasoner would be able to personalise particular sets

CONTEXT-AWARE REASONING ENGINE WITH HIGH LEVEL KNOWLEDGE FOR SMART HOME

295

of rules for users according to their profiles. The

modified rule image would then be inserted into the

working memory of the knowledge base.

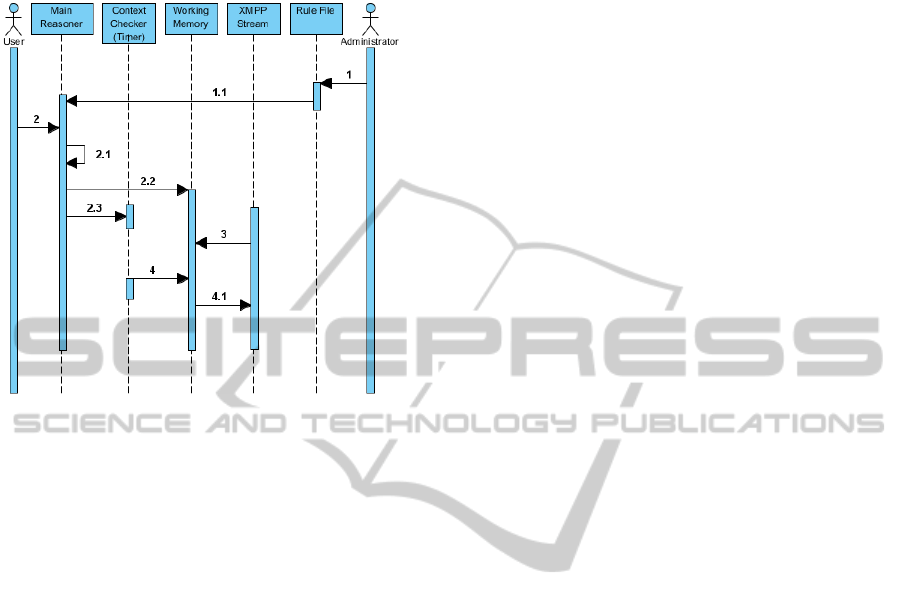

Figure 4: Sequence diagram for our prototype reasoning

engine with numbered annotations as follows:

1 setRule()

1.1 readRules()

2 sendProfile()

2.1 initialiseUser()

2.2 insertRules()

2.3 setTimer()

3 decode()

4 fireAllRules()

4.1 sendData()

Sensor information in string format would be

transmitted by sensors and received over the XMPP

(XMPP, 2008) stream whenever an event has

occurred. The decoding of the strings would then

provide us with information of events, which would

then be used for comparison with the current

information within the working memory. This

updating process would also allow us to decide

whether the conditions of the rules within the

working memory are fulfilled and if any appropriate

alerts or reminders need to be fired.

A context checker which works as a timer would

constantly check the context at every fixed interval,

detecting if there are any changed states or variables

within the working memory. If the XMPP stream is

silent and there are no events within the fixed

interval, the context checker would then proceed to

check through the rules within the working memory

and decide on any alerts or reminders based on the

fulfilled conditions of rules within the working

memory.

The alerts would be in the form of sending

messages back into the XMPP stream whereby a

separate UI component would then pick up the

message and translate them into verbal reminders to

be communicated to the users involved.

Working together with two other teams

consisting of a sensor team and a UI team, we were

able to present several demonstrations of our

engine’s capabilities to medical personnel and

caregivers. We have generated a few scenarios based

on inputs and feedback from medical institutions

about the current situation regarding elderly and

patient care, so as to allow our scenarios to be as

closely related to real-life situations as possible. The

general feedback obtained from these personnel was

largely positive with the view that this system in

conjunction with our sensors would be suitable for

future clinical trials as the capabilities of the entire

system proved to be useful for nurses or caregivers,

and would also help in reducing their workload

during their shifts.

It was also pointed out that present Ambient

Intelligent systems tend to over-saturate the user

with too many reminders when an incident or user

error has occurred, which we took into consideration

when building our system. Hence, with further

considerable information from medical personnel

and users, we would be able to further fine-tune our

engine to cater to their actual needs and provide a

better service.

5 CONCLUSIONS

In this paper, we have presented our context-aware

reasoning engine for ambient assistive systems. The

engine does not require training as it can start

working with predefined rules in a rule repository.

The engine infers micro-context from minimum

information possible and then uses the micro-context

to refine its rules or generate new rules. It

communicates with sensors in an automated way

that new sensors will be incorporated into the engine

without the need to restart the engine.

A DROOLS version has already been

implemented and demonstrated. Currently, we are

developing a new version of the engine based on

ontology using JENA (JENA, 2010). We plan to

make it OSGi (OSGi, 2010) ready, so other modules

in the ambient assistive system will be able to call

methods implemented in the engine directly. Our

work is also part of an ongoing project on Activity

Monitoring and UI Plasticity for supporting Ageing

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

296

with mild Dementia at Home (AMUPADH)

(Biswas, 2010).

Some of the future works include dealing with

uncertainty from sensors and managing the

reliability of the rule factory when the number of

rules is large.

REFERENCES

Feki, M. A., 2007. An Ontology based Context aware

modelling and reasoning to enhance Human

Environment Interaction. National Institute of

Telecommunication.

Zadeh, L. A., 1996. Fuzzy Sets, Fuzzy Logic, and Fuzzy

Systems: Selected Papers. World Scientific Publishing

Co., Inc.

Krogh A., Brown, M., Mian, I. S., Sjolander K., and

Haussler D., 1994. Hidden Markov models in

computational biology: Applications to protein

modelling. Journal of Molecular Biology.

Dargie, W., 2007. The Role of Probabilistic Schemes in

Multisensor Context-Awareness. In Fifth IEEE

International Conference on Pervasive Computing and

Communications Workshops (PerComW'07).

Ranganathan, A., Al-Muhtadi, J., Campbell, R. H., 2004.

Reasoning about Uncertain Contexts in Pervasive

Computing Environments. In IEEE Pervasive

Computing.

Liu, P., Zhang, J., 2008. A Context-Aware Application

Infrastructure with Reasoning Mechanism Based on

Dempster-Shafer Evidence Theory. In Vehicular

Technology Conference (VTC Spring 2008).

Murphy, K. P., 2002. Dynamic Bayesian Networks:

Representation, Inference and Learning. University of

Carlifornia, Berkeley.

Goh E., Chieng D., Mustapha A. K., Ngeow Y. C., and

Low H. K., 2007. A Context-Aware Architecture for

Smart Space Environment. In International

Conference on Multimedia and Ubiquitous

Engineering.

Hussain S., and Abidi S. S. R., 2007. Ontology Driven

CPG Authoring and Execution via a Semantic Web

Framework. In The 40th Hawaii International

Conference on System Sciences.

Biswas, J., Mokhtari, M., Dong, J. S., Yap, P., 2010. Mild

Dementia at Home – Integrating Activity Monitoring,

User interface plasticity and Scenario verification. In

8th International Conference on Smart Homes and

Health Telematics, (ICOST 2010).

Jboss Rules (Drools 5.1), http://www.jboss.org/

drools/documentation.html (accessed October 2010).

PAT: Process Analysis Toolkit, http://www.comp.nus.edu.

sg/~pat (accessed December 2010).

JENA, Semantic Web Framework for Java,

http://jena.sourceforge.net (accessed December 2010).

Extensible Messaging and Presence Protocol, XMPP,

http://www.e-framework.org/Default.aspx?tabid=708

(accessed December 2010).

Open Services Gateway initiative (OSGi),

http://www.osgi.org/Main/HomePage (accessed

December 2010).

CONTEXT-AWARE REASONING ENGINE WITH HIGH LEVEL KNOWLEDGE FOR SMART HOME

297
