INTEGRATING ASYNCHRONOUS COMMUNICATION

INTO THE OSGI SERVICE PLATFORM

Marc Schaaf, Volker Ahlers, Arne Koschel

Faculty IV, Department of Computer Science, University of Applied Sciences and Arts

120 Ricklinger Stadtweg, 30459 Hannover, Germany

Irina Astrova, Ahto Kalja

Institute of Cybernetics, Tallinn University of Technology, 21 Akadeemia tee, 12618 Tallinn, Estonia

David Bosschaert

Progress Software, 158 Shelbourne Road, Ballsbridge 4, Dublin, Ireland

Roman Roelofsen

Weigle Wilczek GmbH, 42-44 Martinstraße, 73728 Esslingen a., Neckar, Germany

Keywords: Asynchronous communication, Remote services, OSGi service platform, Event admin service (EAS),

Message-oriented middleware (MoM).

Abstract: OSGi is a popular Java-based platform that was originally intended for embedded systems. But today OSGi

is used more and more in enterprise systems. To fit this new application area, OSGi is continuously

extended by the OSGi Enterprise Expert Group (EEG). For example, recently, support for remote services

has been added to OSGi. But this support implies only synchronous communication of remote services, thus

limiting the application of OSGi in the area of enterprise systems, as enterprise systems typically embody

both synchronous and asynchronous communication. To fill this gap, we propose a novel approach to

integrating asynchronous communication into OSGi.

1 INTRODUCTION

Due to the manifold requirements of real-world

examples, enterprise systems typically embody both

synchronous and asynchronous communication

(Krafzig, Banke, and Slama, 2005). Synchronous

communication is characterized by that a service

sends a request to another service and keeps waiting

until it receives a response. Asynchronous

communication is less stringent. A service sends a

request to another service but it does not wait for a

response. Rather, it continues working. The response

can be received at any later time.

Recently, support for distribution has been

introduced into OSGi. This support is based on

synchronous invocations of methods for accessing

remote services. However, OSGi does not specify

any methods for asynchronous accessing remote

services yet; this is an area of future standardization.

Therefore, we propose a novel approach to

integrating asynchronous communication into OSGi.

2 OSGI

The OSGi Service Platform (OSGi Alliance, 2009)

is a popular Java-based platform that has arisen in

the context of embedded systems. OSGi is freely

available and continuously extended by the OSGi

Enterprise Expert Group (EEG).

There are a number of commercial and open

source implementations of OSGi, including Eclipse

165

Schaaf M., Ahlers V., Koschel A., Astrova I., Kalja A., Bosschaert D. and Roelofsen R..

INTEGRATING ASYNCHRONOUS COMMUNICATION INTO THE OSGI SERVICE PLATFORM .

DOI: 10.5220/0003401601650168

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 165-168

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Equinox, Apache Felix, Knopflerfish and ProSyst’s

mBedded server. Well-known applications that are

based on OSGi include the Eclipse IDE and Apache

Service Mix.

The core of OSGi is the OSGi Framework. This

framework simplifies the development and

deployment of extensible applications also called

bundles, by decoupling the bundle’s specification

from its implementation. This means that a bundle is

accessed by the framework through an interface,

which is by definition separate from the bundle’s

implementation. This separation enables changing

the bundle’s implementation without changing the

environment and other bundles.

The OSGi Framework makes it possible to run

multiple applications simultaneously within a single

Java Virtual Machine (JVM), by dividing

applications into bundles that can be loaded at

runtime and also removed. For communication

within the JVM, the framework provides a service

registry to register services, so that services can be

found and used by other bundles.

3 OUR APPROACH

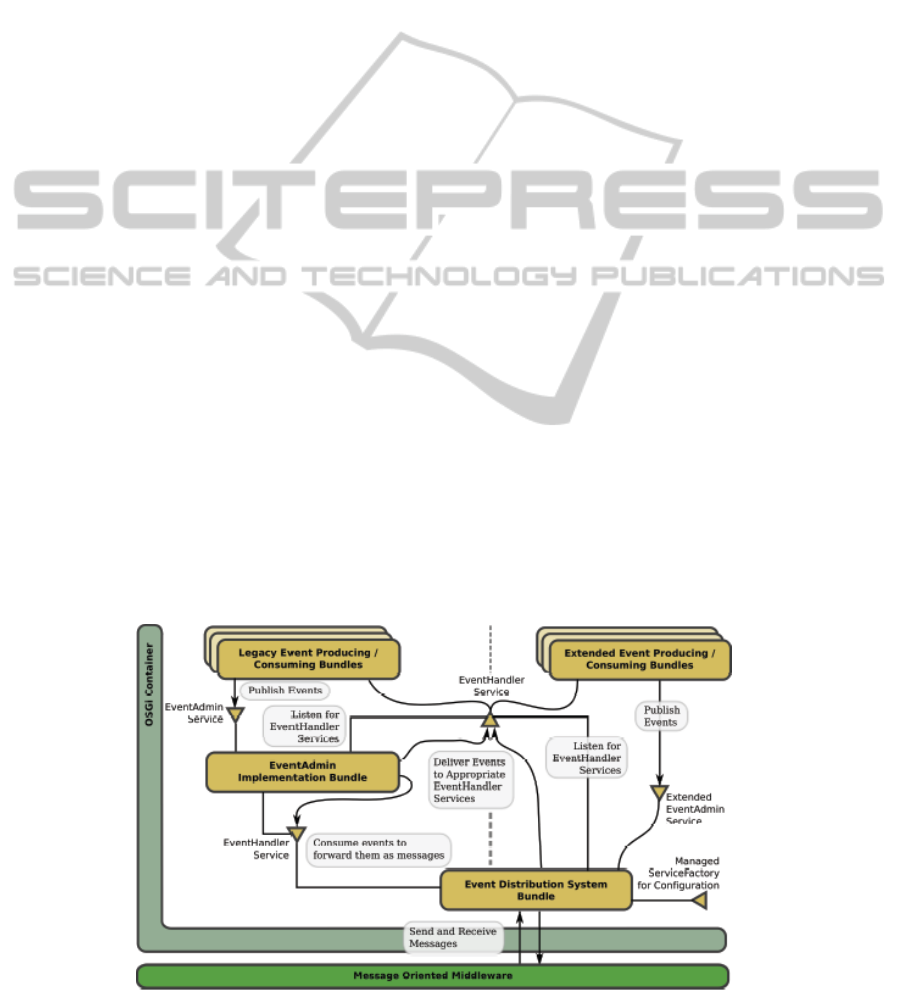

Figure 1 provides an overview of our approach. Our

approach aims at integrating asynchronous

communication into OSGi with little or no impact on

OSGi itself. Therefore, our approach is leveraging

the OSGi Event Admin Service (EAS), which

provides asynchronous communication. This

communication is based on the publish-and-

subscribe mechanism, where an event sending

bundle (“producer”) can publish the event to a topic,

whereas an event receiving bundle (“consumer”) can

subscribe to that topic. For subscription, an event

receiving bundle registers an event handler service

with the appropriate service properties. These

properties specify the topic the event handler service

is listening for and an optional filter expression. An

event handler service can be registered by any

bundle that wants to receive the event.

However, leveraging the EAS is more difficult

than it originally appears. This is because the EAS

provides facilities only for receiving events from

bundles and delivering them to all (registered) event

handler services. Concepts like distribution and

guaranteed delivery are not part of the EAS itself.

Next we’ll show how our approach addresses these

issues.

3.1 Distribution

The EAS provides asynchronous communication.

But this communication is limited to a (local) OSGi

container. We solved this problem by using

message-oriented middleware (MoM) for

distribution (see Figure 1).

But herein lies another problem. The

communication mechanism of the MoM is based on

messages, whereas the communication mechanism

of the EAS is based on events. We solved this

problem by introducing a mediation component

called Event Distribution System (EDS) (see Figure

1). The EDS receives events from the EAS and

forwards them as messages to the MoM. In the other

direction, the EDS receives messages from the MoM

and forwards them as events to the EAS. Thereby

the EDS is used to enable the communication

between the MoM and the EAS.

Figure 1: Our approach is leveraging the OSGi Event Admin Service, while leaving the core OSGi relatively untouched.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

166

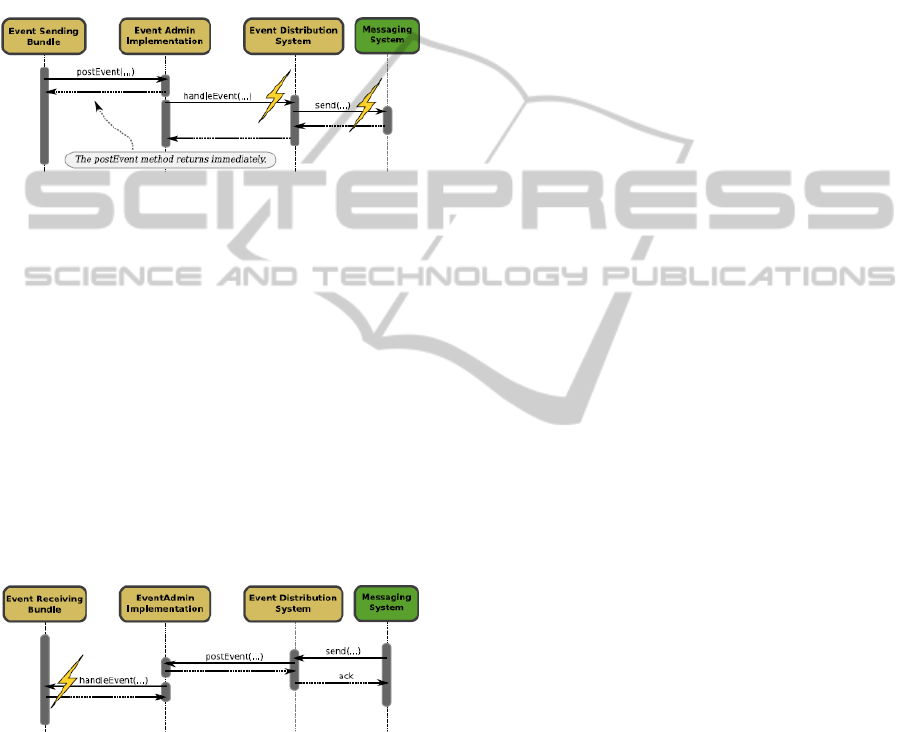

Figure 2 illustrates this communication when a

bundle sends an event to the MoM. At first, this

event is sent to the EAS. The EAS fulfils its normal

duty by delivering the event to all (registered) event

handler services. One of those services is registered

by the EDS, which thereby receives the event. The

EDS creates a message from the contents of the

event and forwards it to the MoM. Thus, the event

sending bundle communicates with the EAS only; it

has no direct knowledge of the EDS and the MoM.

Figure 2: Asynchronous event delivery. The event sending

bundle has no possibility to determine if the event was

received by the EDS and delivered to the MoM as a

message.

Figure 3 illustrates the communication between

the MoM, the EDS and the EAS when a bundle

receives a message from the MoM. At first, this

message is sent to the EDS. The EDS creates an

event from the contents of the message and forwards

it to the EAS. The EAS delivers the event to all

(registered) event handler services that are listening

for this event. One of those services is registered by

the bundle, which wants to receive the event. Thus,

the event receiving bundle also communicates with

the EAS only; it has no direct knowledge of the EDS

and the MoM.

Figure 3: Asynchronous event reception. The EDS has no

information if the delivery of the event to the destination

was successful. But it needs to acknowledge the successful

reception and processing of the message.

3.2 Guaranteed Delivery

The EDS mediates between the MoM and the EAS.

It receives messages from the MoM and forwards

them as events to the EAS for further delivery to the

(registered) event handler services (see Figure 3). As

soon as, the EDS forwards an event to the EAS, it

cannot know if the event reaches its destination and

if the event is processed successfully. We solved this

problem by connecting the EDS to the event handler

services so that the EDS can forward the event to

them directly (see Figure 1). This way the EDS can

inform the MoM about a successful or failed

delivery.

The EAS completely decouples the event

sending bundle from the EDS and the MoM (see

Figure 2). It only guarantees the delivery of an event

to all (registered) event handler services that are

available at the very moment of this delivery. Since

the event sending bundle cannot know which of the

event handler services are available, it has no

information if the event was successfully delivered

to the EDS. We solved this problem by connecting

the event sending bundle to the EDS (see Figure 1).

Now the event sending bundle knows that the

event was successfully delivered to the EDS as it

sends the event to the EDS directly. However, the

EDS still has no way to inform the event sending

bundle about a failed delivery of the event. This is

because the EAS API does not allow the EDS to

throw an exception from the call of a

postEvent

method.

public interface EventAdmin{

void postEvent(Event event);

...

}

As a result, the event sending bundle has to send the

event blindly without any chance to get information

on the success or failure of the delivery. We solved

this problem by extending the EAS API. In

particular, we defined a new method

postEventReliable, which waits (blocks) until

the event is successfully delivered. In the case of a

failure, it throws an exception. Thereby the event

sending bundle is informed about the failure and can

react appropriately.

public interface ExtendedEventAdmin{

void postEventReliable(Event e) \

throws MessagingException;

...

}

But herein lies another problem. Our previous

solution breaks the compatibility with legacy

bundles. We solved this problem as follows. The

right side of Figure 1 shows that bundles will use the

extended EAS API to guarantee the delivery. The

left side of Figure 1 shows that legacy bundles will

not be aware of the extended EAS API. Rather, they

INTEGRATING ASYNCHRONOUS COMMUNICATION INTO THE OSGI SERVICE PLATFORM

167

will continue to use the EAS API. The centre of

Figure 1 shows an event handler service. It is a

registered service that is listening for events to be

distributed to both legacy bundles and bundles that

are aware of the extended EAS API.

4 RELATED WORK

The work that most closely comes to ours is the ECF

Distributed EAS (Eclipse Foundation, 2009). The

Distributed EAS is implemented based on the

Eclipse Communication Framework (ECF). Thus,

this implementation can be used with a variety of

protocols like ActiveMQ and XMMP. The

implementation replaces the “standard” EAS with

the custom-built EAS, which is capable of sending

events between other remote EASs. The Distributed

EAS also uses the MoM (viz. ActiveMQ Broker) for

distribution. However, by contrast to our approach,

guaranteed delivery is not part of the Distributed

EAS.

5 CONCLUSIONS

Currently, OSGi does not support asynchronous

communication of remote services yet. This is a

severe hindrance for OSGi to be used widely,

especially in distributed environments. As an

attempt to fill this gap, we have proposed a novel

approach to integrating asynchronous

communication into OSGi. Our approach is

leveraging the OSGi EAS, while leaving the core

OSGi relatively untouched. The EAS provides

asynchronous communication. But this

communication is between local services only. We

have solved this problem by using the MoM for

distribution (i.e. remote services). Another problem

with leveraging the EAS was that the EAS does not

guarantee the delivery of events. We have solved

this problem by extending the EAS API.

ACKNOWLEDGEMENTS

Irina Astrova’s and Ahto Kalja’s work was

supported by the Estonian Centre of Excellence in

Computer Science (EXCS) funded mainly by the

European Regional Development Fund (ERDF).

REFERENCES

Eclipse Foundation, 2009. Distributed Event Admin

Service. http://wiki.eclipse.org/Distributed_Event

Admin_Service.

Krafzig, D., Banke, K., Slama, D., 2005. Enterprise SOA:

service-oriented architecture best practices. Pearson

Education, Inc.

OSGi Alliance, 2009. OSGi Service Platform Service.

Compendium – Release 4, version 4.2.

http://www.osgi.org/Release4/.

Rellermeyer, J., Alonso, G., Roscoe, T., 2007. R-OSGi:

Distributed applications through software

modularization. In Middleware’07, vol. 4834.

Springer.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

168
