UBIQUITOUS COMPUTING NEEDS UBIQUITOUS SOFTWARE

A General-purpose Computation Model

Pierre Drezet

inx limited, Shefﬁeld, U.K.

Keywords:

Systems integration, Component-based software, Event handling, Real-time systems, Run-time environments.

Abstract:

This article comments on the issues of integrating software components and runtime environments into em-

bedded devices. The technologies that are used today to deliver applications to consumer devices range from

CPU virtualisation to native API-based approaches. A new computing platform is identiﬁed in this article that

has potential to provide a more technically convergence environment for embedded software integration. The

approach simulatneously provides a light-weight hardware-independent application runtime environment that

can operate close to the speed of native software.

1 INTRODUCTION

The re-use and redeployment of application software

across virtualised application platforms such as An-

droid (Google, 2011) provides some signiﬁcant ad-

vantages to conventional ‘native’ software architec-

tures. For certain classes of OEM, where CPU in-

dependence is less problematic, native application

environments such as Apple’s iOS and Intels pro-

posed MeeGo (Haddad, 2010) platforms provide sim-

ilar end-results without the overheads of virtualised

systems.

With either approach systems integration projects

that connect the underlying native software compo-

nents and hardware resources present signiﬁcant chal-

lenges to device developers. Software development

and integration remains a highly human intensive

process even when there is no need for newly cre-

ated software components in the product (Ross et al.,

2008).

2 BACKGROUND

The conventional back-bone of intra-device embed-

ded software integration is provided by the tightly

coupled combination of the operating system kernel,

device drivers and standard user libraries. A popular

example is the Linux kernel, loadable kernel modules

and GNU C-lib user binaries. POSIX provides a good

level of stability across many levels of many operat-

ing systems, including Linux, howeverthere are many

interfaces between operating system components that

do not fall in scope of POSIX and are frequently left

undocumented, causing severe problems during inte-

gration.

At higher layers of the system stack, referred here

generally as ‘middleware’, there are a limited num-

ber of options that can be taken to improve system

integration. Beyond building components as conven-

tional libraries, the Koala tools (van Ommering et al.,

2000) have been used to generate a more elaborate

component-based framework, implementing system

models based the Darwin language and transform-

ing to compilable C-code. The Component Object

Model(COM) and .NET technologies from Microsoft

have also been used for embedded systems, provid-

ing an alternative object oriented model and run-time

environment, respectively (Libby and Kent, 2009).

Formal approaches to component software inte-

gration are more frequently addressed in a distributed

processing context. Beyond basic stateless Remote

Procedure Call (RPC) formats the Common Object

Request Broker Architecture (CORBA) is targeted

at applications developed using object oriented pro-

gramming languages and aims to maintain compo-

nents across distributed systems. CORBA can be dif-

ﬁcult to use on its own, but has been used to sup-

port higher layered systems including Java Remote

Method Invocation (RMI) and JINI (Waldo, 1999).

It can be argued, as a result of the trend towards

REpresentational State Transfer (REST) (Fielding,

2000) for enterprise and web-based systems, that em-

bedded distributed systems may also not need to make

243

Drezet P..

UBIQUITOUS COMPUTING NEEDS UBIQUITOUS SOFTWARE - A General-Purpose Computation Model.

DOI: 10.5220/0003404302430249

In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2011), pages

243-249

ISBN: 978-989-8425-48-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

speciﬁc remote procedure calls (or object request) to

operate as a distributed system. The alternative of

passing structured data between components using

simpler technologies such as Data-Distribution Ser-

vice (DDS) (Object Management Group, 2011) tar-

geted at embedded systems provides an alternative

though seemingly retrograde approach.

The next level of structure that has been applied

to separating the concerns of application, middleware

and driver layers (in an intra-device integration con-

text) are run-time environments and virtual machines.

This paradigm allows the applications and middle-

ware to be implemented in a non-embedded program-

ming language and tends to make use of different

classes of programmers to embedded software devel-

opers.

3 INTEGRATION COST

ANALYSIS

The above techniques have practical application in

different scenarios, many of which require that com-

ponents in the system are implemented within the

constraints of the integration methodology from out-

set. This is rarely the case for embedded systems

where hardware and subsystem interfaces are gener-

ated by 3rd-parties and designed for proprietary APIs.

Virtualisation technologies also incur an overhead in

general CPU load, inter-component processing la-

tency and/or integration effort of the run-time envi-

ronment itself. It is perhaps for these reasons that

the majority of embedded software for middleware

and many applications remain developed using con-

ventional native software development processes.

Procedural programming languages, particularly

C, allow for many styles of APIs to be deﬁned. The

ratio of documented entropy and spurious hidden en-

tropy in an interface is related to the friction that

components have when joined by an interface. ‘Fric-

tion’ is used here to represent the ease with which a

change can be made to a component using the inter-

face. Causes of friction in an interface include (1) API

Form: The language or format it is expressed in. (2)

API Information Set: The information it must convey.

(3) API Controller: The owner of the interface with

authority to change it.

The efﬁciency with which modiﬁcations or re-

placement of components can be made is governed

by the API friction and also the internal inertia of the

component. Component ‘inertia’ is also dependent on

multiple factors including complexity, ownership and

CPU dependence.

An example system of components in a typical

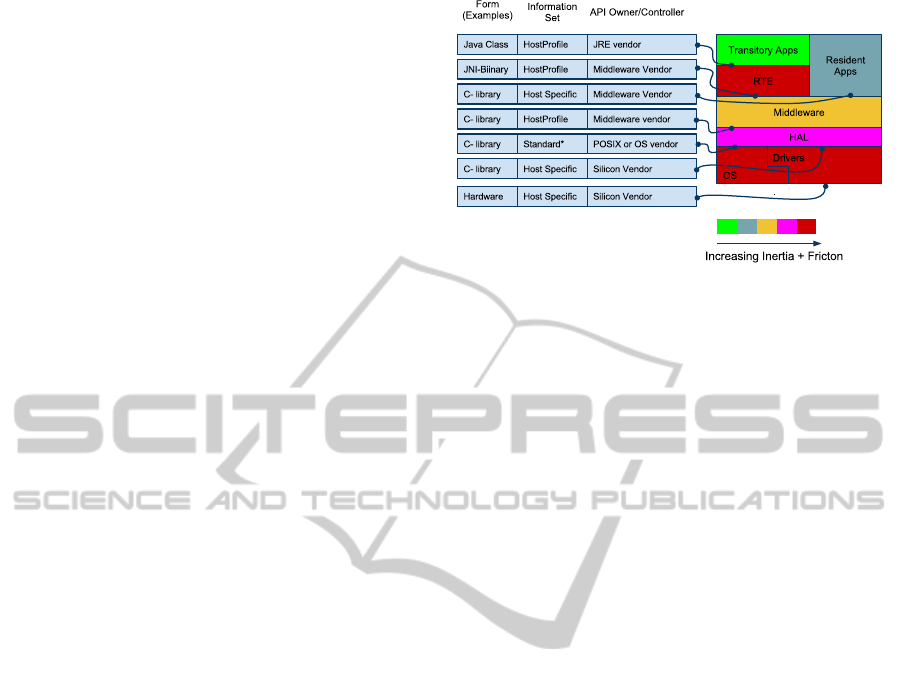

Figure 1: Component inertia and interface friction illustra-

tion.

embedded device using a Java RTE, is described in

ﬁgure 1. The diagram illustrates a landscape of

changeability of components on the basis of the fric-

tion heuristics involved with its interfaces combined

with the component’s internal inertia heuristic.

The environment illustrates the example with a

JVM-based RTE implementation. The RTE has large

inertia as a result of complexity, CPU dependence

and ownership. The following illustration (ﬁgure 2)

is intended to aid identifying the cost landscape for

changes in system components. The y-axis is ar-

ranged (approximately) with components in increas-

ing order of inertia and friction when implemented

entirely with native software.

The cost function can therefore be envisaged qual-

itatively as a surface of increasing cost when travel-

ling North-East in ﬁgure 2. The term ‘cost’ here is

intended to include the general sense including: de-

velopment resource cost, development time and the

opportunity costs of not electing to carry out a bene-

ﬁcial change. The areas outlined in green or orange

depict typical example areas of the landscape that can

be implemented using a non-native run-time environ-

ment such as Java or an HTML rendering engine.

In either case the size of the areas in the landscape

where an RTE could be substituted require careful

consideration with respect to the costs of integrating

and maintaining the RTE itself. The illustrated land-

scape indicates in this case that Java or browser-based

RTEs do not necessarily substitute parts of the system

associated with the highest costs when implemented

natively.

3.1 Towards an Ideal Integration

Structure

With the objective of providing replacements for na-

tive software that is more extensive in areas of higher

cost and also reduce the cost of maintaining the RTE

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

244

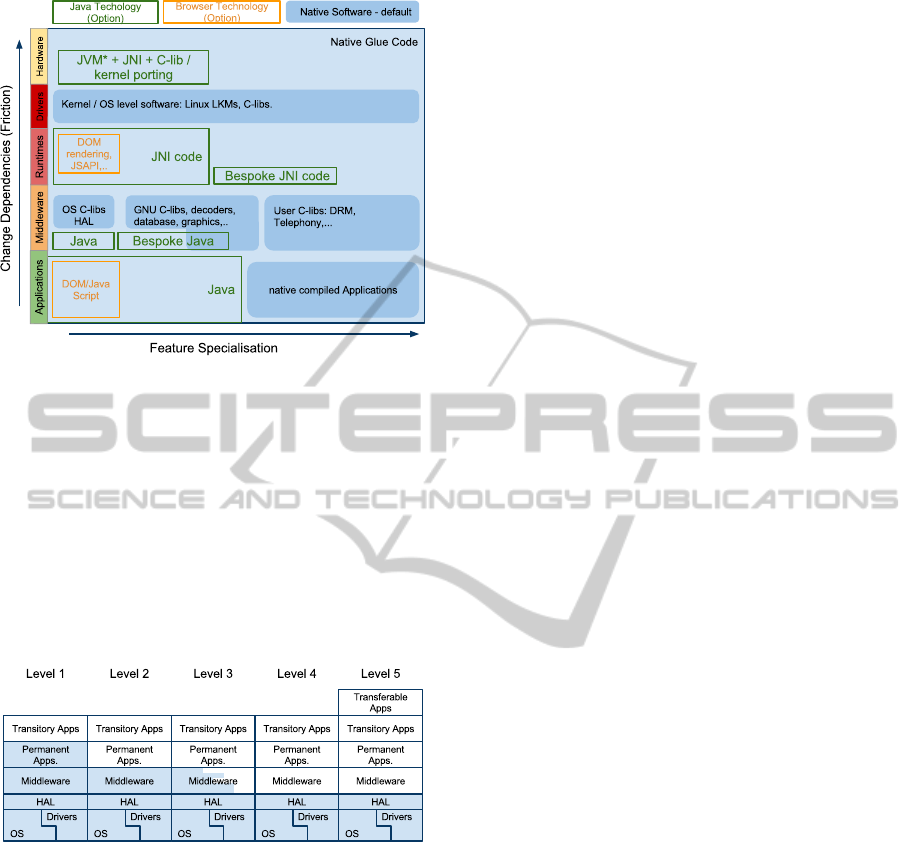

Figure 2: Illustration of Component Change Landscape.

code a new approach is presented. There is a strong

rationale for maintaining support for residual legacy

middleware components that must be accounted for.

These Residual components could progressively be

decoupled and reduced in scope by process of itera-

tive decomposition, but in practice such components

encapsulate a non-disposable amount of know-how

and bug-ﬁxes. Figure 3 illustrates a progressive mi-

gration process that could be adopted to resolve such

issues in practical time-scales. The following charac-

Figure 3: Native component (shaded) residual roadmap.

teristics of the APIs in the system have been identiﬁed

to avoid burdens of the software integration environ-

ment

• R1.1. Component interfaces can be decoupled

from each other via an intermediate canonical API

that links to all components in such a way that

components do not require others to exist in the

environment at build time or run-time.

• R1.2. The call overhead of one component caus-

ing the another component to begin processing is

not signiﬁcantly larger than if the function call

was carried out with native processing.

• R1.3. Data passing between components does

not require data transformation or other overheads

and includes the facility for data to be communi-

cated by typed reference.

• R1.4. The mapping of all processing events and

data that are receivable and assertable between

components is reconﬁgurable at load time of the

application language.

• R1.5. The RTE is not complex in terms of its

hardware dependencies (either direct or indirect)

to ensure its own mobility.

• R1.6. The API is sufﬁciently simple and complete

that changes to the interface are rarely needed (i.e.

it is canonical).

In order for applications to utilise the above operat-

ing environment, a language that enables the applica-

tion to be expressed without extraneous informationis

sought. The programming language should conform

to the following constraints:

• R2.1 Fully expressivein terms of performingstan-

dard functions and allowing formulation of algo-

rithms to achieve any other computable function.

• R2.2 Deﬁne responses to environmental events

and data with conditional and unconditional pro-

cessing sequences and asserting events and data

as a result.

• R2.3 Allow for concurrent processing of multiple

tasks and provide real-time precessing under op-

erational constraints.

• R2.4 Allow reference to all functional resources

and features available in the host device.

Ideal features of the environment would also include:

• R2.5 The programming environment is familiar to

a broad section of developers and is compatible

with well known design paradigms.

• R2.6 Able to synthesize applications from compo-

nents and decompose complexity into minimally

coupled modular units in the design environment.

A method to introduce a programming language into

a system with the above set of constraints is resolv-

able by taking a direct approach to addressing R1.4.

The device programming language, presented here,

is essentially conﬁguration data that maps compo-

nents together, using a standard native function li-

braries (R2.1). The native function libraries are con-

structed to include the low level logical patterns re-

quired to create arbitrary logic and data manage-

ment (R2.2). The event-handling ontology implied by

(R1.4) provides the concurrent programming environ-

ment called for in (R2.3). Similarly (R2.4) is met by

the deﬁnition of (R1.4). The real-time requirements

speciﬁed in the programming language require addi-

tional meta-data provided with the event mapping to

UBIQUITOUS COMPUTING NEEDS UBIQUITOUS SOFTWARE - A General-Purpose Computation Model

245

basis functions that describes the resource allocations

available to each function instance.

There are a number of possibilities for addressing

R2.5 and R2.6, the most obvious is in representing the

mapping of events and components in a ﬂow-based

model. Maintaining a simple relationship between the

device software and the system design environment

is compelling as this simpliﬁes software build, de-

bugging and deployment processes. Simplifying the

software build process and avoiding the possibility of

syntactical problems using a simply deﬁned language

that can be generated (robustly) in a design environ-

ment is a highly appealing feature.

4 IMPLEMENTATION METHODS

The device instruction ontology contains object ori-

ented elements to allow methods to share subsystem

states. Methods can then interconnect objects via a

data and event connection model referred to as the

System Object Description Language (SODL). The

topology of SODL can be represented most simply

using Yourdon type diagrams (Yourdon, 1989) with

real-time extensions (Ward and Mellor, 1985). Edges

in these diagrams represent event and data location

identiﬁers that form the mappings between objects.

The format of SODL is not complex in structure

and can be formatted as plain text, XML, or a struc-

tured binary form such as ASN.1. An object with a

single method deﬁned in plain text SODL has the fol-

lowing form:

OBJECT <Object type identifier 1>

<#data inputs> <input ID 1>

<#data outputs> <output ID 1>

<#event outputs> <event ID 1>

END

The component mappings are identiﬁed here simply

by enumeratedIDs that represent an event or data path

between functions. Each function belongs to an ob-

ject and each object is provided with initialisation data

speciﬁed by the application programmer. With this in-

formation the run-time environment, here named the

Event Handling System (EHS) has a relatively simple

job to do to execute the system:

• Provide dynamic binding data to native compo-

nent functions to allow them to access an array of

data locations speciﬁed in SODL.

• Provide a buffer for event IDs to be posted to and

from component functions

• Provide an algorithm to schedule further functions

to run within the required time and sequence con-

straints deﬁned by referring to processing group

information and also using the prior information

provided by the <atomic ﬂag> to identify if the

function is trusted to run as a cooperativelysched-

uled process to ensure optimal system efﬁciency.

The run-time environment can be targeted for differ-

ent architectures easily because of the simplicity and

independence to CPU types.

Figure 4 below represents how the run-time en-

vironment acts as a hub between native middleware

components, core component libraries, the device

drivers and operating system services. The bindings

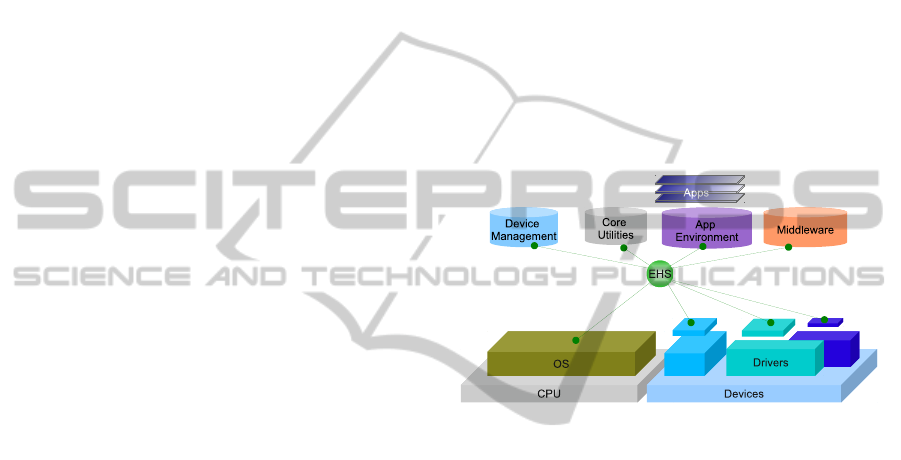

Figure 4: Representation of the run-time Architecture.

of the component functions with the event handling

system are computationally very simple, adding few,

if any, additional clock cycles to a function call com-

pared to a best case direct function call using the

stack. Because the units of processing are much more

complex than machine or Virtual Machine byte code

the overhead of the architecture is minimised in any

case. The virtualisation technique is essentially im-

plemented as an extreme case SuperCISC computer.

The choice of programming environment to gen-

erates SODL code in this article is based on data

ﬂow diagrams with real-time extensions as this re-

lates closely to the information contained in SODL.

Assigning unique IDs to event or data edges deﬁned

in the the diagram formulates the tuples for each ba-

sis function and the events that cause them to run. The

combination of control and data ﬂow in a single dia-

gram allows the design environment to easily struc-

ture software development by allowing for groups of

objects to be encapsulated into sub-systems that can

then be manipulated in the same way as the the basis

set of native components.

For event-driven applications, in particular, there

is great scope remaining in ﬁeld of graphical design

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

246

environments that could encompass a more complete

set of programming paradigms. Currently the en-

vironment includes object oriented design, graphical

debugging systems, complex data-typing and compo-

nent subsystem sharing between projects and devel-

opers. Formalising object inheritance of primitiveand

composed function blocks purely in the graphical do-

main is a further area of interest.

One particular advantage of maintaining a close

relationship between the programming environment

and the device instruction set as that this effectively

removes the ‘round-trip problem’ of code genera-

tion from graphical programming environments such

as UML. The current application programming tool

supports TCPIP communicate directly with the target

device during development phases, allowing transfer

programme data for fast round-trip development and

also supporting real-time graphical debugging of de-

vice behaviour.

5 IN-USE EVALUATION

The core EHS software, including a restricted stan-

dard component library, can operate on devices with

very low processing power, including for example 8-

bit devices with as little as 16KROM and 8K RAM.

Such device are not the initial target for the technol-

ogy, however this example is indicative of the mini-

mal system resources required for the RTE.EHS and

the full standard component toolkit have been built to

run on larger devices, typically utilising Linux, QNX,

Nucleus or Win32 operating systems. Target CPU ar-

chitectures tested include most variants of x86, MIPS,

SH4, PPC, and ARM.

The EHS device software, minus all component li-

brary source code, comprises ∼ 2000 lines of ANSI-C

(LOCs). Only 47 LOCs are speciﬁc to the target oper-

ating system and none are CPU speciﬁc. The standard

component library comprises ∼ 3700 LOCs and is en-

tirely hardware/OS independent, depending only on

ANSI-C. The total code size of the EHS and the com-

plete set of component library interfaces comprises ∼

6700 lines of independent code.

SODL ﬁle sizes scale approximately 100 bytes of

plain text (20bytes compressed) per component in-

stance. Application load times from ﬂash memory

were invariably less than 1 second for an applica-

tion containing several 1000s of function blocks on

a 200MHz Vortex86 processor.

5.1 Component Integration

Components written entirely in ANSI-C without li-

brary dependencies were integrated into the compo-

nent modules, by importing the source into a compo-

nent module build system and generating the XML

API description ﬁle. The key aspect of this process

was in deﬁning an easily usable functional interface

for the component.

LegacyAudio Visual components exemplify a dif-

ferent integration process, where typically the es-

tablished build complexity of the legacy component

suggests leveraging the pre-established build system.

Legacy components are typically buildable for differ-

ent targets as static or dynamic libraries and were inte-

grated with EHS by building wrappers that map their

pre-deﬁned APIs to the generic EHS API. Wrappers

typically include an API state machine to ensure com-

ponents are not depend on client trust.

Taking an Audio Visual player component as an

example, the ﬁrst step was to design a functional in-

terface from an application developer’s point of view,

that would ideally be common to different target’s

player APIs. A Hardware Abstraction Layer (HAL)

was then used to wrap target componentfunction calls

for the A/V subsystem, mapping these to the applica-

tion developer centric EHS A/V component API.

The ﬁrst A/V target system integrated was based

on SoC speciﬁc native code where decoders and

graphics were hardware accelerated and drivers for

this were included in the integration. A second exam-

ple of integrating a more portable software-based A/V

decoder for x86, ARM and PPC processors was sub-

sequently evaluated using the same EHS A/V com-

ponent API. libVLC (Video LAN library) was used

for this purpose and was ﬁrst built in its library form

using the autoconf build tree provided in the release.

Both the SoC and libVLC legacy software builds were

complex and hampered by sensitivity to dependency

versions and host build environment. Once libraries

were built for each target and linked to EHS, no fur-

ther effort was required to deal with these libraries

during subsequent component integration.

5.2 Application Development

It was identiﬁed at an early stage of using the devel-

opment environment that because the programming

environment is naturally concurrent the programmer

must use constructs to ensure synchronicity of data

and events along processing chains. The following

symbols exempliﬁed two basic types of event han-

dling components, implemented as components that

need to be made available to the programmer to con-

trol event ﬂow. The ease of programming was found

to be dependent on the details of deﬁning standard

basis components for event and data management. A

UBIQUITOUS COMPUTING NEEDS UBIQUITOUS SOFTWARE - A General-Purpose Computation Model

247

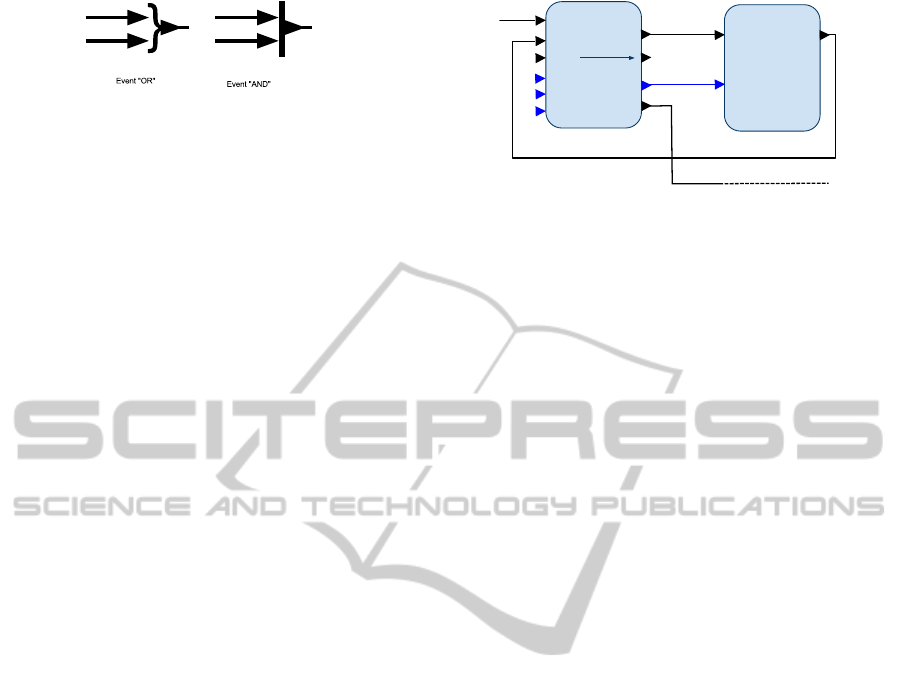

Figure 5: Event Handling Icons.

stable set of 20 types of core data and event handling

function blocks were devised that were sufﬁciently

complete and intuitive to use to build the logic for

all the applications tested. Some general rules were

observed when implementing any function block in-

terface that made function blocks easy to use in the

integration environment.

1. At least one output event should be asserted for

every input event to allow serialisation of process-

ing when required. If error conditions are possi-

ble, an error or speciﬁc condition event should be

generated even if the normal operation could not

be completed.

2. Iteration loop constructs such as ‘for’ should be

supported with familiar constructs instead of re-

using more primitive components such as coun-

ters.

3. Object parameters can be entered as static defaults

for each function block in the design environ-

ment and when appropriate these values should

be over-writable with dynamic values read from

input ports.

With these guidelines most event driven function

block-based applications required little in the way of

additional logic to deﬁne conditional control ﬂow and

sequencing between functions. This is a consequence

of function blocks conditionally asserting events de-

pending on processing outcomes without any further

condition testing. There are situations where explicit

procedural types of constructs are required, such as

processing loops and branching. It was found that

providing more familiar looking representations of

standard procedural constructs, rather than relying on

more primitive components such as counters aided

most developers. For example the ‘for’ loop func-

tion block (ﬁgure 6) gives a direct representation of

the procedural construct.

In addition to the core toolkit a number of device

proﬁles were deﬁned for peripheral components. Pro-

ﬁles allow different component modules such as Au-

dio/Visual, Networking, scripting and database to be

included or excluded from a target’s set of basis func-

tions.

For

One Iteration

Subsystem

start=1

Loop Complete

index

Iterator

Start

Reset

Complete

stop=100

step=10

Figure 6: Illustration of loop speciﬁc packaging of a counter

primitive.

6 CONCLUSIONS

The proposed device architecture was found to pro-

vide a great deal of agility in integrating new device

system software and in developing new applications.

With the exception of the complex A/V and some

graphics rendering technologies, the remaining native

components were integrated in time-scales of ranging

from a few hours to one or two days if the component

interface required signiﬁcant additional functionality

to be useful. No manual steps were required in port-

ing the core EHS code to new targets indicating a low

level of inertia and friction for the EHS based RTE.

Large scale embedded software integration

projects have been effectively harnessed using EHS

as an embedded integration platform and the design

environment has been found powerfull enough to

orchestrate 1000s of function blocks in a hierarchical

designs without scaling problems. The integration

of complex proprietary set-top-box software stacks

demonstrated the homogeneity achievable with the

other target’s implementations. The application de-

velopment environment was found to be effective in

creating and debugging new applications to the level

of ease where transitory applications for set-top-box

targets such as the classic space invaders game was

built within 3 days of effort. Static automated media

players have also been implemented and remotely

maintained using the A/V proﬁle, utilising a range of

different hardware and operating systems.

During development of these complex applica-

tions some weaknesses in the static object paradigm

where identiﬁed, which prompted the development of

function blocks that can produce dynamic instances

at run-time. A formal approach was then designed

that required a new native component module to be

introduced to aid the programmer in referencing and

iterating dynamically created object instances at run

time.

As a component developer the environment was

found to provide a useful framework for developing

new components in native code. The environment al-

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

248

lowed test applications to be developed very rapidly

for the component and integrated into systems with-

out further code integration effort. The component

integration and application environment removed or

signiﬁcantly reduced the many nuisance factors in-

volved in embedded software development such as

target download/test cycle times, build systems devel-

opment, hardware-debugging and automated system

test creation.

6.1 Future Work

Current work-in-progress is to address some of the

weaknesses identiﬁed in the development environ-

ment, particularly the implementation of dynamic ob-

ject handling. Also open source tools/IDE plugins for

graphically creating C-based EHS APIs are currently

in development. A more general open source release

of the tools and run-time is subsequently planned .

There are extensive opportunities to extend graph-

ical environments for use in systems integration and

application development. Particularly in regularising

complex data/event interfaces between components.

The topological origins of the application software

also lends itself to distributed processing, where the

design environment can separate multi-processor sub-

systems easily in the design and SODL domain. Some

initial proof of concept implementations have shown

that a publish and subscribe mechanism to export and

import missing data between deviceis a promising ap-

proach for implementing such systems.

The EHS run-time technology described is be-

lieved to provide a generalised computing platform

that can be used effectivelyorall but the smallest class

of CPUs. Furthermore EHS is not incompatible with

a wide range of hardware processor types including

ASICS, FPGAs and event driven hardware architec-

tures.

REFERENCES

Fielding, R. T. (2000). Architectural Styles and the Design

of Network-based Software Architectures. University

of California, Irvine, USA.

Google (2011). www.android.com.

Haddad, B. (2010). Introduction to the MeeGo Project. The

Linux Foundation.

Libby, J. C. and Kent, K. B. (2009). An embedded im-

plementation of the common language infrastructure.

Journal of System Architectures, 55:114–126.

Object Management Group (2011). Data distribution ser-

vice (DDS).

Ross, A. M., Rhodes, D. H., and Hastings, D. E. (2008).

Deﬁning changeability: Reconciling ﬂexibility, adapt-

ability, scalability, modiﬁability, and robustness for

maintaining system lifecycle value. Systems Engi-

neering, 11:246262.

van Ommering, R., van der Linden, F., Kramer, J., and

Magee, J. (2000). The koala component model

for consumer electronics software. IEEE Computer,

33(3):78–85.

Waldo, J. (1999). The jini architecture for network-centric

computing. Commun. ACM, 42(7):76–82.

Ward, P. T. and Mellor, S. J. (1985). Structured Develop-

ment for Real-time Systems (three volumes). Yourden

Press.

Yourdon, E. (1989). Modern Structured Analysis. Yourden

Press.

UBIQUITOUS COMPUTING NEEDS UBIQUITOUS SOFTWARE - A General-Purpose Computation Model

249
