CERTIFICATION WATERMARKING FOR DIGITAL

HANDHELD-CAPTURED PHOTOGRAPHY

Yves Stadler

1,2

CodaSystem France, 79 rue de S

evres, 92100 Boulogne-Billancourt, France

Yann Lanuel, Anass Nagih, Francine Herrmann

Laboratoire d’Informatique Th

eorique et Appliqu

ee, University of Metz, Ile du Saulcy, 57045 Metz Cedex 1, France

Keywords:

Image watermarking, Handheld device, Certiﬁcation, Information security, Geolocation.

Abstract:

In digital world, photography lost its legal value due to the massive usage and the ease of modiﬁcations. This

paper presents a watermarking technique which adds a proof of validity to a smartphone-captured photog-

raphy. By analysing the context of provability issues (attacks, impacts and objectives), the authors derives

requirements. The constraints of the domain leads to the speciﬁcation of a semi-fragile algorithm, which

embeds pieces of information like geolocation or timestamp to insure the provability. An evaluation of the

process shows the cryptographic robustness of the algorithm.

1 INTRODUCTION

The development of smartphones and the all-

surrounding communication networks have modiﬁed

the handheld’s usages. Besides, society-driven inter-

ests, e.g. sustainable development, lead to paperless

ofﬁce work. In that environment it is more convenient

for company to provide their employees with multi-

ple functions devices, which enables them to collect

and report ﬁeld information. Mass market users have

contributed to the migration, as an example, by us-

ing their devices as electronic wallets. To summarise,

handheld devices proﬁts their communication capa-

bilities to send and receive information. But with the

lack of information support, there is a problem to take

care of: the proof strength of the evidence. With ana-

logue photography, it is fair to consider the shot of

the clock tower timestamped and geolocalised. But

in the digital world, this obviousness is unclear. Be-

cause of the ease of digital manipulations, the proof

value of digital evidences becomes none. This ar-

ticle will present a digital-photography cetiﬁcation-

dedicated method for handheld-devices snapshots.

Three constraints have to be met:

• Process has to be cryptographically safe;

• Process has to be adapted to device capabilities;

• image must still be usable, with not too much

degradation.

It must be raised, that conﬁdentiality is not tar-

geted. The owner must retain viewing capacity, but

the copy have to be considered as original. This

makes distinction between the presented watermark-

ing and copy-control system or digital right manage-

ment.

This article will ﬁrstly present a state of the art of

watermarking techniques. This part will remind some

required deﬁnitions and properties, show an overview

of security in watermarking techniques and present a

context speciﬁc attack model. In a second part, we

will describe a way to produce certiﬁed documents

from digital picture taken from mobile equipment.

This includes describing the mark, stating speciﬁca-

tions and algorithm principles. Finally we will show

the result provided by such an algorithm, in terms of

security, invisibility, forgeries detection and time of

execution.

2 WATERMARKING STATE

OF THE ART

2.1 Deﬁnitions

As far as certiﬁcation is concerned, watermarking

527

Stadler Y., Lanuel Y., Nagih A. and Herrmann F..

CERTIFICATION WATERMARKING FOR DIGITAL HANDHELD-CAPTURED PHOTOGRAPHY.

DOI: 10.5220/0003411305270534

In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems (LOCSUE-2011), pages

527-534

ISBN: 978-989-8425-48-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

comes as an essential tool. But there are many kinds

of watermarking techniques. As an illustration, in

(Furon, 2002), the watermarking is highly bound to

the signal processing and is tailored to protect the

copy rights, thus the robustness is assumed. In this

article, the watermarking deﬁnition will be based on

the works of Cox et al. (Cox et al., 2008): ”water-

marking [is] the practice of imperceptibly altering a

Work to embed a message about that work” where the

work is ”a speciﬁc song, video or picture – or to a

speciﬁc copy of such”.

Mark detection or extraction process depends of

the targeted watermarking-characteristics. If original

work is required in such process, it is called an in-

formed watermarking, else it is a blind watermark-

ing (Kundur and Hatzinakos, 1999; Eggers and Girod,

2001).

Every watermarking modify the work (or host).

However, the host has different formats (equivalent

in term of information, but different presentation). As

far as image is concerned, two major insertion do-

main can be considered. The spatial domain – like a

bitmap – is a traditional visual representation, a.k.a.

raw format. It is a three dimensional array in which

the ﬁrst two dimensions are position information, and

the last is colour information. The most famous wa-

termarking using this domain is the Mintzer-Yeung al-

gorithm (Mintzer and Yeung, 1997) which has been

further analysed by Fridrich et al. in (Fridrich et al.,

2002). The second domain is called frequential do-

main. Many transform are used to convert a spatial

representation to a frequential one. Interest of such

techniques is to beneﬁt the frequencies periodicity for

compression purpose. As an example Lin and Chang

use this domain to embed a mark in (Lin and Chang,

2000). For other algorithm using wavelets, readers

can refer to (Kundur and Hatzinakos, 1999).

2.2 Properties

The principal property of a watermarking algorithm

is robustness (Atupelage and Harada, 2008; Cayre

et al., 2005; Furon, 2005; Lin et al., 2000; zgr Ekici

et al., 2004; Rey and Dugelay, 2000). A watermark

is called robust when it achieves a high degree of ro-

bustness, meaning that modiﬁcations do not erase the

mark (thought they can degrade it). An example can

be found in (Rey and Dugelay, 2000), where robust-

ness is use to distinguish malicious manipulations of

images. On the contrary a fragile watermark has the

lowest robustness, as the watermark disappear with

the slightest modiﬁcation. That process is used by

Wong (Wong, 1998) to verify authentication and in-

tegrity of a digital image. In between stands the semi-

PSNR = 10 · log



EQM



(1)

EQM =

m−1

∑

i=0

n−1

∑

j=0

||I

(i, j) − I

(i, j)||

(2)

Figure 1: I

original image, I

watermarked image.

fragile watermark, which is robust to a ﬁnite set of

modiﬁcations and fragile to all others. Exempli gra-

tia (Lin and Chang, 2000), authors proposed a water-

marking technique which is robust to JPEG compres-

sion.

Watermarking an image consist in embedding new

information into host, id est by modifying the host it-

self. Speaking of digital imagery, imperceptibility, as

original quality preservation, is required (Fei et al.,

2006; Kundur and Hatzinakos, 1999; Lin et al., 2000;

Fridrich, 1998). It can be stated that watermark im-

perceptibility has to meaning: human eye impercepti-

bility and computer imperceptibility. In both case, the

actor must be unable to distinct original image from

watermarked image. A way to measure the impercep-

tibility is PSNR (Peak Signal-to-Noise Ratio - see 1

and (Petitcolas. and Anderson, 1999)). In signal pro-

cessing community, it is admitted than 38dB is a good

PSNR. As an example, the watermarking algorithm

of Kundur and Hatzinakos (Kundur and Hatzinakos,

1999) provide a ratio of 43dB. Insertion rate is the

amount of information which can be stored in an im-

age watermark. It is also called capacity. In copy

control scenario, the capacity may be low. On the

contrary it must be high for indexation cases. Tech-

nics like matrix embedding proposed in (Fridrich and

Soukal, 2006) are used to increase the capacity of a

watermarking algorithm without increasing the image

degradation. For embedded application (such as mo-

bile equipment, video surveillance, etc), algorithms

have to be adequate with the mobiles capabilities, and

speciﬁcally for real-time applications. Complexity is

the indicator that will measure the watermarking pro-

cess ﬁt (Atupelage and Harada, 2008; Fei et al., 2006;

Fridrich, 1998). An analogy can be made with paper

copies, within the process the screen imperfections

can induce anomalies, but the legal value remains the

same. This notion can be transferred to watermarking

algorithms by the notion of localisation. The princi-

ple is to include integrity checking into the process

(Atupelage and Harada, 2008; Lin et al., 2000). De-

tection can reveal defective areas and genuine areas.

2.3 Watermarking Algorithm’s Security

As we can see by the non-exhaustive enumeration of

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

528

properties given in the previous subsection, most pro-

posed watermarking-algorithms offer different tun-

able parameters. Before giving speciﬁcations, the

context must be described.

2.3.1 CODASYSTEM’s Context

CODASYSTEM sells certiﬁcation software based on

a secured infrastructure for digital handheld-captured

media. With the photographies, CODASYSTEM’s ob-

jective is making digital proof. The deployed solution

is based on watermarking techniques which certiﬁes

the location, time and issuer information.

In this context, being able to visualise image with-

out constraint is a requirement.

The certiﬁcation process is divided in three sub-

activities:

• Capture phase: meta-data are gathered and in-

serted by watermarking in the image.

• Transmission phase: data are encrypted and sent

via a network to storage.

• Storage phage: data are conserved for long term

support and available to user.

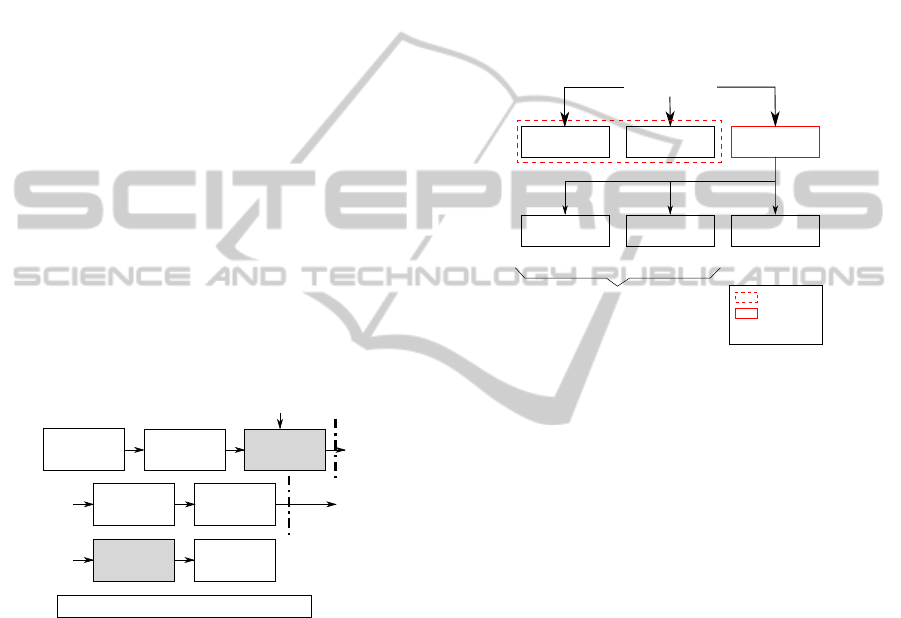

The ”certiﬁcation chain” of CODASYSTEM is de-

scribed by ﬁgure 2.

User

Identification

(Password)

Multimedia

Capture

Authentication

(By

watermarking)

Secured

Transmission

GPRS/EDGE

Geolocation, timestamp, identification, ...

I. II.

II. III.

I. Capture / II. Transmission / III. Stockage

Watermarking

Encryption

Secure

storage

Figure 2: CODASYSTEM’s certiﬁcation chain.

However, all these properties does not provide cer-

tiﬁcation by using only watermarking. Cryptographic

tools have to be used to protect meta-data. In fact,

as it has been said by Cox et al. ”Watermarking is

not cryptography” (Cox et al., 2006). This is the pro-

tocol which involves the watermarking and provides

the necessary cryptographic quality. To understand

these needs, possible attacks on certiﬁed images will

be presented.

2.3.2 Watermarking Attacks Classiﬁcation

The literature provides many classiﬁcations (see as

an example (Kutter et al., 2000)). Most of the pre-

sented attacks are grouped by strategies (geometric

attacks, noising, etc.). These classiﬁcations are in-

teresting so as to get a global overview. But, depend-

ing on context, information to embed, or to protect,

varies much. Knowing the impact and the potential

beneﬁts of the attack are important to orient the pro-

tection effort. This paper propose a contextual clas-

siﬁcation ordered by risk family. It has to be remind

that the current context is proof by image. A digital

photography is captured by a device and embed infor-

mation about author, geolocation, time and integrity.

All attacks presented here have a common point: in-

tegrity of image. An attack which leads to integrity

loss, fails.

Proof

Lost

False

Unauthorised

Reading

Attacks

Alibi Theft

Forgery

- Proof theft

Non relevant

Relevant

- Original proof replace

by another

- New proof creation

Alice's responsibility

Figure 3: Attacks classiﬁcation.

On ﬁgure 3, the ﬁrst level describes three fami-

lies of risk. Firstly, an attacker can choose to destroy

(erase) embedded information. In this case, he ob-

tains an non certiﬁed image (that is not exactly the

same as the original since the watermarking algorithm

is non reversible). This attack is not relevant because

even if the attacker owns a copy with no certiﬁcation,

the original owner keeps possessing the original and

certiﬁed photography. In the case of removing the

mark from the original document, the problem does

not concern the watermarking technique, but the se-

cure storage. This is a strong issue, but is not in the

scope of this document. Secondly, the unauthorized

access to the mark is not wished, but this aspect is not

a strong constraint. If the attacker succeed to read the

embedded information such as geolocation or times-

tamp, nevertheless the image remains certiﬁed. These

attacks do not belong to the scope of watermarking

certiﬁcation and many cryptography techniques can

handle this problem very efﬁciently. Lastly, the false

creation is very relevant and is the critical concern. If

such a false certiﬁed document would be forged, the

validity of the system is compromised. This family

can be divided in three sub-objectives: alibi, forgery

and theft.

To explain all cases of false and conﬂicts that can

occur, some deﬁnitions are required.

CERTIFICATION WATERMARKING FOR DIGITAL HANDHELD-CAPTURED PHOTOGRAPHY

529

• T S is the TimeStamp function. It has an order

relation for its values. For all images x and y, if

x has been taken before y, then T S(x) ≤ T S(Y ) is

true.

• Geo is the function of geolocation. It has an

equivalence relation. For all images x and y cap-

tured at the same exact place, Geo(x) = Geo(y).

• Auth is the authentication function. If the image x

belongs to user y then Auth(x,y) is true.

The theft is deﬁned by the production of a certi-

ﬁed document with the intention of appropriating the

image of the original author. In other words, a theft

consist in putting the signature of the attacker instead

of the signature of the original author. For example,

Alice makes a photography of an event and certiﬁes

it for owning a valuable proof. Oscar who was not at

that place, copies this photography and signs it with

it’s own signature. It is obvious that this new certiﬁed

photography does not retain Alice’s signature. Both

owns a certiﬁed document. But, to succeed, Oscar

must follow these steps:

• Copy the original.

• Erase Alice’s signature (formula 3)

• Put his own signature (formula 4)

• Make the timestamp is previous than the original

(formula 5)

That can be formalised by:

Auth(Image

Oscar

,”Alice”) = Faux (3)

Auth(Image

Oscar

,”Oscar”) = V rai (4)

T S(Image

Alice

) > T S(Image

Oscar

)(5)

Avoiding this kind of attack requires to protect

two aspects: author authentication and timestamp of

the capture. It is mostly the last point that requires

the most attention in the certiﬁcation process. Many

works have already been focused on this issues, and

have led to reliable protocols. In the certiﬁcation pro-

cess, we propose the use of a trusted third party which

guaranties and conserves the authenticated document.

Creating an alibi consists in the forging of a false

that belongs to the legitimate owner, but translated in

time (to prove one’s presence at a given place) or in

space (to prove that something happened at a given

time).

To build such a proof, Alice must at ﬁrst create a

mark at her name with a chosen original. Eventually,

she can certiﬁed it with other information (formula 6).

This condition is common to all type of alibi.

Auth(Image

Alice

,”Alice”) = True (6)

Secondly, Alice should modify the timestamp or the

geolocation (formula 7 or 8 ).

T S(Image

Alice

) 6= T S(Alibi) (7)

Geo(Image

Alice

) 6= Geo(Alibi) (8)

As it has been evoked previously, reliable technical

solutions are available to guaranty the authenticity

and the timestamping. However, the geolocation re-

mains unreliable nowadays. Jamming, spooﬁng and

meaconning are relatively easy to set up. This will be

described below.

Forgery consists in certifying a document with the

identity of the victim. To implement this attack, Oscar

must build a mark with the Alice’s identity, and with

a photo that she has not captured (formula 9).

Auth(Image

Oscar

,”Alice”) = True (9)

In this attack, the authentication system is the essen-

tial point to protect. The certiﬁcation protocol shall

not leak any information about the elements that has

permit to Alice to authenticate her images. Current

signature systems provide such a security.

To conclude, avoiding attacks presented above,

one shall meet some requirements : embedding in-

formation as close as possible of the capture process,

impossibility of forging a timestamp, impossibility

of changing geolocation data, impossibility of imper-

sonation. These security assessments lead to specify

the certiﬁcation algorithm, described in the following

section.

3 CERTIFICATION

WATERMARKING

As it has been described previously, the certiﬁcation

process is a sequence of operations which produces

an image that leaves no doubt about geolocation, au-

thor and time. The image is considered an original

and is stored in a trusted third party digital vault. In

other words, information are embedded in such a way

that making duplicates is easy and making fakes is

difﬁcult. This section presents the structure of the

mark, describes more in detail the data capture, then

the properties of the watermarking certiﬁcation will

be discussed. At last, technical aspects will be treated.

3.1 Mark for Certiﬁcation

The host is both the asset to certify and the means to

transport the evidence itself. Thus, this mark is com-

posed of the bytes corresponding to the identity of the

author, the authenticated timestamp and the geoloca-

tion. This set of data, so-called meta-data, represent a

payload of almost 500 bytes.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

530

However, the watermarking algorithm must en-

sure the host integrity. The goal is not to prevent copy,

or the author identiﬁcation, but to guaranty the con-

formity to original. Different works have covered the

granularity of the integrity control. The lowest level

consists in detecting any modiﬁcation. At a higher

level, it is possible to localise what has been modi-

ﬁed. For this type of watermarking algorithm, Guille-

mot (Guillemot, 2004) compares the mark with a spy

which will testify about the modiﬁcations that may

have been made. The pattern is a set of information

computed from the image, and are also inserted.

Meta-data are composed of critical information

for the proof. This information must of course be re-

liable to ensure the legal value. As it has been dis-

cussed, securing the timestamp information is rela-

tively easy. But, it is more complicated for geoloca-

tion. Technically, geolocation is computed from the

signal of, at least, three GPS satellites (four without

approximation). But these signals are weak and can

be distorted easily, naturally or voluntarily. This be-

comes of critical interest because such jamming or

meaconning devices can be obtain at a reasonable

cost. The ongoing FP7 project ATLAS ((Roberts

et al., 2010)) target the enhancement of geolocation

reliability during image capture. It is declined in sev-

eral scenarios:

• Indication of current Quality of service (QoS).

• Position enhancement and correction.

• Device integrity monitoring.

• Dedicated receiver.

The QoS indicator and the position enhancement

are based on referenced ground stations, that will be

compatible with Galileo system. Those services pro-

vide the user with the reception quality at its location,

indicating him if he is being attacked or not. The in-

tegrity monitoring is used to testify that the signal re-

ceived by the device has not been tampered with. It

uses constant monitoring of GPS signal and other cap-

tors (GSM, WiFi, etc.). Finally, the external receiver

can be used to gather more accurate signals than one

provided by the phone.

3.2 Algorithm Speciﬁcations

Some properties appear to be critical to certiﬁcation

watermarking in the CODASYSTEMcontext. At ﬁrst,

imperceptibility is essential to provide user with im-

ages not degraded by the mark. As the amount of

information to embed is important, the capacity must

also be important. A trade-off between those two op-

posite properties is necessary.

A non-author user shall produce a copy of any

proof he consult. This implies that a simple screen

shot of a certiﬁed image shall retain the certiﬁcation.

Knowing that such an operation can lead to compres-

sion defects, the localisation properties is required for

being able to distinguish a certiﬁed copy from a tam-

pered photography. This cannot be achieve by a tradi-

tional signature process because of its fragility to all

modiﬁcation. The certiﬁcation watermarking can be

seen as a signature process. This signature must not

resist to any modiﬁcations. However, since we want

to allow to copy and to re-compress, the watermark

should resists to this modiﬁcation. So the algorithm

has to be semi-fragile. As the re-compression may

raise small errors (rounding of ﬂoats), the algorithm

should make localisation possible, to distinguish ma-

licious and non malicious errors. In other word, all

the process must be integrated within the compression

phase. The context imposes us to use JPEG format.

So, the algorithm is based on this standard.

Then, the algorithm must provide security prop-

erties to resist the described attacks. So as to ensure

this, geolocation and timestamp information are im-

ported from reliable sources (Timestamping authority,

ATLAS). The author owns a certiﬁcate with its private

key to encrypt meta-data. The public key infrastruc-

ture for managing these certiﬁcates, is important to

the system, but not in the scope of this paper.

3.3 Algorithm Principle

We remind that JPEG compression process 8x8 pixels

blocks. After some stage of the compression process,

these blocks are converted to a 8x8 Discrete Cosine

Transform quantised coefﬁcients block (DCT quan-

tised block). The ﬁrst of these coefﬁcients is called

DC and is never used for embedding (it would de-

grade the image too much). The others are the AC

coefﬁcients whose Least Signiﬁcant Bits (LSBs) will

embed the mark. The watermarking is made in such a

way to minimise the impact on image quality.

The algorithm is divided in three stages.

Stage 1: Selection and Exclusion. This is a deci-

sion stage that will assign a block to integrity or mes-

sage data. There are three cases: a block contains

integrity information (pattern), contains meta-data or

it does not meet the constraints that guaranty the in-

visibility of the embed. The tuning of this parameter

is based on the following statement: when a block is

homogeneous, it is composed of massive number of

zero coefﬁcients because he has low spatial variation.

Those areas are not ﬁt for watermarking since it will

be too visible. In addition, watermarking this kind of

CERTIFICATION WATERMARKING FOR DIGITAL HANDHELD-CAPTURED PHOTOGRAPHY

531

block may leak information, leading to security ﬂaw.

This lead to the deﬁnition of the threshold notion in

function of the number of zero in the quantised DCT

block.

In this phase, the meta-data are divided in ﬁve bits

chunks. Each chunk will be included in one block.

All blocks not used for meta-data are used for the pat-

tern. The selection of which information will be em-

bedded in a block, is derived from the author’s key.

It is impossible to determine the type of embedding

without that key.

Stage 2: Pattern Computation. The pattern of a

block is a datum which reﬂects the visual content of

a block. It is comparable to a hash, traditional cryp-

tographic technique which provides integrity check.

To embed a chunk of ﬁve bits (meta-data or pattern),

the 31 ﬁrst ACs of the block are considered. With the

ﬁrst ﬁve Most Signiﬁcant Bits (MSBs) of each coef-

ﬁcients, a ﬁve bit parity number is computed. Com-

bined with the datum to embed and the user key, it

produces a cryptic information for embedding that

is (approximately) similar to hashing functions. The

cryptographic results are sufﬁcient and the computa-

tion is fast. Furthermore, adding the authentication

data makes it similar to HMAC digests. Each block

embeds its own ﬁve bits pattern.

Stage 3: Insertion. The principle consists in mod-

ifying some bits within the 31 LSBs previously se-

lected. The matrix embedding technique provides an

extremely simple and non destructive method to em-

bed ﬁve bits by modifying only one bit of those 31

LSBs.

4 EXPERIMENTAL RESULTS

4.1 Security Assessment

To evaluate the cryptographic robustness of the algo-

rithm, it is necessary to determined the information

known by the attacker. He knows the threshold value

for the selection. He also knows that only one bit

is modiﬁed to encode the ﬁve bits message. He has

access to a decoder which takes an image and a key

as parameters. This checker tells him true if all the

blocks of the image are integrated with the provided

key. In case of failure, he does not have the localisa-

tion of 3defective blocks.

In case of a theft, Oscar suppress Alice’s authenti-

cation and watermark his own authentication informa-

tion. To succeed he needs to embed an earlier times-

Table 1: PSNR measurements.

Nom Desk Babouin F16 Poivron

PSNR (en dB) 48.88 48.77 48.89 48.79

tamping information.

In case of an alibi, Alice herself needs to deter-

minate the repartition of pattern and meta-data blocks

within her images. Once again she has to tamper with

meta-data that come from trusted sources.

In both of those cases, each author embeds with

it’s own keys. Therefore the attacks are only of lit-

tle difﬁculty and that is why the meta-data security

is critical. The last case, forgery, is different. Os-

car wants to assign to Alice a proof. It is supposed

that Oscar has access to certiﬁed photography of Al-

ice. To identify the key, he needs to call the decoder

with a random key. The conditions of this attack are

analogue to a collision search for an hash function.

The key length must be sufﬁcient to ensure a reason-

able probability of collisions and deter from taking

brute-force guess. If l is the key length, the birthday

paradox (Wagner, 2002) indicates that 2

l/2

tries are

enough to have a p = 1/2 chance of having collision,

i.e. guessing the right key. Nowadays, it is admitted

than a l ≥ 256 is sufﬁcient.

4.1.1 Invisibility

References images (cited below) have been used to

estimate the quality performance in term of invisibil-

ity.

• Baboon

• F16

• Pepper

• mobile taken photography

Quality compression parameters are Q=92 for the

mobile device (ﬁxed by the device) and Q=90 for the

reference images. This rate of compression is a ﬁne

tuning to avoid compression artefacts. It will there-

fore be more easy to assess the watermarking defects.

The table 1 (formula 1) presents the results.

Average PSNR is 48.83dB which is very good for

watermarking algorithm.

4.2 Integrity Check

The tests have been performed with the following pro-

tocol.

• Watermark the image

• Modify the image by logo insertion

• Mark extraction

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

532

Figure 4: Modiﬁed image (a logo has been embedded).

Figure 5: Integrity default (the logo has been detected).

The results (Figure 5) show that defaults in in-

tegrity check are detected where the logo has been

included. It can be seen that some blocks appears to

be defective. They are re encoding errors due to the

rounding process in the JPEG compression.

4.3 False Key Checking

In this scenario, an image is decoded with a false au-

thor key (Figure 6 ). 96.95% of watermarked blocks

are considered corrupted. These observations prove

the efﬁciency of falsiﬁcations. This analysis, with lo-

cal information of tampered blocs, is unavailable to

the attacker, but for a forensics purpose (legal action

for example) localisation is obviously important. The

judge has the ﬁnal word on whether he accepts or not

the photography as a proof based on the number of

unimpaired blocks.

4.4 Execution Time

The table 2 presents the execution times of the al-

gorithm on an ASUS P535 phone (speciﬁcations are

available on the manufacturer website). The F5 al-

gorithm is described in (Westfeld, 2001) and has

been enhanced to ﬁt mobility needs. The results

This observation is based on French laws.

Figure 6: False key decoding.

Table 2: Execution times.

Mobile: ASUS

F5 Certiﬁcation watermarking

Total incl. JPEG incl. Tatouage

3.864 0.800 0.300 0.500

has been obtained on 640x480 photography without

sub-sampling. The algorithm that has been devel-

oped, shows improvement of ﬁve times compare to

F5. Considering the time used for JPEG compres-

sion, the watermarking process time is compatible

with handheld devices.

5 CONCLUSIONS

The evolution of mobile devices, in terms of technolo-

gies and software, has generated a change of usages

in the status of broadcast information. This article

has presented an algorithm which provides security

to digital capture, in order to use them as proofs. The

experiments had proven the good usability and ﬁt of

the process. A risk assessment has also been pre-

sented to justify the different features that has been

selected in the speciﬁcation process. This algorithm

is semi-fragile and provides localisation of tampered

areas. The security of the technique is based on the

algorithm capacity of preserving integrity and the re-

liability of meta-data gathering.

Some future works can be foreseen. The ﬁrst

point is related to GNSS. These problems, stated in

this article, are the major subject of the ongoing FP7

project ATLAS. A second perspective is the portage

of such an algorithm to video. In fact, many standards

are based on the same elements such as H.264 and

MPEG, which use the Discrete Cosine Transform al-

most the same way as JPEG does. Nevertheless there

would be new problematics, that is to say intra/inter

predictions and ﬂow control as an example. To ﬁnish

with, the algorithm itself may beneﬁts some improve-

CERTIFICATION WATERMARKING FOR DIGITAL HANDHELD-CAPTURED PHOTOGRAPHY

533

ments. A good feature to be added would be the abil-

ity to use a wider range of recompression parameters

within JPEG process without mark loss.

REFERENCES

Atupelage, C. and Harada, K. (2008). PKI based semi-

fragile watermark for visual content authentication.

World Congress on Engineering and Computer Sci-

ence.

Cayre, F., Fontaine, C., and Furon, T. (2005). Watermarking

security part one: Theory and practice. Proc. SPIE,

5681:746–757.

Cox, I. J., Dorr, G., and Furon, T. (2006). Watermarking is

not cryptography. Lecture Notes in Computer Science,

4283:1–15.

Cox, I. J., Miller, M. L., Bloom, J. A., Fridrich, J.,

and Kalker, T. (2008). Digital watermarking and

steganography. Morgan Kaufmann.

Eggers, J. J. and Girod, B. (2001). Blind watermarking ap-

plied to image authentication. In IEEE International

Conference on Acoustics Speech and Signal Process-

ing, volume 3. Citeseer.

Fei, C., Kundur, D., and Kwong, R. H. (2006). Analysis

and design of secure watermark-based authentication

systems. IEEE Transactions on Information Forensics

and Security, 1:43–55.

Fridrich, J. J. (1998). Image watermarking for tamper de-

tection. In ICIP (2), pages 404–408.

Fridrich, J. J., Goljab, M., and Memon, N. (2002). Crypt-

analysis of the yeung-mintzer fragile watermarking

technique. Journal of Electronic Imaging, 11:262.

Fridrich, J. J. and Soukal, D. (2006). Matrix embedding

for large payloads. IEEE Transactions on Information

Forensics and Security, 1(3):390–395.

Furon, T. (2002). Use of watermarking techniques for copy

protection. PhD thesis, Ecole Nationale Suprieure des

Tlcommunications.

Furon, T. (2005). A survey of watermarking security.

Springer, 3710/2005:201–215.

Guillemot, L. (2004). Une approche vectorielle pour

exploiter le contenu de l’image en compression et

tatouage. PhD thesis, Universit Henri Poincar, Nancy

Kundur, D. and Hatzinakos, D. (1999). Digital watermark-

ing for telltale tamper prooﬁng and authentication.

Proceedings of IEEE, 87(7):1167–1180.

Kutter, M., Voloshynovskiy, S., and Herrigel, A. (2000).

Watermark copy attack. In Proceedings of SPIE, vol-

ume 3971, page 371.

Lin, C.-Y. and Chang, S.-F. (2000). Semi-fragile water-

marking for authenticating jpeg visual content. SPIE

int. soc. opt. eng.

Lin, E. T., Podilchuk, C. I., and Delp, E. J. (2000). De-

tection of image alterations using semi fragile water-

marks. In PROC SPIE INT SOC OPT ENG, volume

3971, pages 152–163. Citeseer.

Mintzer, F. C. and Yeung, M. M.-Y. (1997). An invisible

watermarking technique for image veriﬁcation. Inter-

national Conference on Image Processing, 2:680.

Petitcolas., F. A. P. and Anderson, R. J. (1999). Evalua-

tion of copyright marking systems. In Proceedings

of IEEE Multimedia Systems, volume 99, pages 574–

579. Citeseer.

Rey, C. and Dugelay, J.-L. (2000). Blind detection of ma-

licious alterations on still images using robust water-

marks. In In IEE Seminar: Secure Images and Image

Authentication, pages 7–1.

Roberts, W., Stadler, Y., Herrmann, F., Lanuel, Y., and

Larger, S. (2010). Delivering authenticated location

within commercial lbs. The European Navigation

Conference on GNSS.

Wagner, D. (2002). A generalized birthday problem. Ad-

vances in cryptologyCRYPTO 2002, pages 288–304.

Westfeld, A. (2001). F5-a steganographic algorithm: High

capacity despite better steganalysis. Lecture Notes in

Computer Science, Volume 2137/2001:289–302.

Wong, P. W. (1998). A public key watermark for image

veriﬁcation and authentication. In Proceedings of the

IEEE International Conference on Image Processing,

volume 1, pages 455–459. Citeseer.

zgr Ekici, Sankur, B., Coskun, B., Naci, U., and Akcay, M.

(2004). Comparative evaluation of semifragile water-

marking algorithms. In Journal of Electronic Imaging,

volume 13, pages 206–216.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

534
