A TYPE SAFE DESIGN TO ALLOW THE SEPARATION OF

DIFFERENT RESPONSIBILITIES INTO PARALLEL

HIERARCHIES

Francisco Ortin and Miguel García

Computer Science Department, University of Oviedo, 33007, Oviedo, Spain

Keywords: Design patterns, Refactoring, Software design, Parametric polymorphism, Generics.

Abstract: The Tease Apart Inheritance refactoring is used to avoid tangled inheritance hierarchies that lead to code

duplication. This big refactoring creates two parallel hierarchies and uses delegation to invoke one from the

other. One of the drawbacks of this approach is that the root class of the new refactored hierarchy should be

general enough to provide all its services. This weakness commonly leads to meaningless interfaces that

violate the Liskov substitution principle. This paper describes a behavioral design pattern that allows modu-

larization of different responsibilities in separate hierarchies that collaborate to achieve a common goal. It

allows using the specific interface of each class in the parallel hierarchy, without imposing a meaningless

interface to its root class. The proposed design is type safe, meaning that the compile-time type checking

ensures that no type error will be produced at runtime, avoiding the use of dynamic type checking and re-

flection.

1 INTRODUCTION

The Tease Apart Inheritance is a "big" refactoring

that separates a tangled inheritance hierarchy that

has different responsibilities in distinct (commonly)

parallel hierarchies that use delegation to invoke

from one to the other (Fowler et al., 1999). Each

hierarchy has its own responsibility, and all together

collaborate to solve a problem. The delegation used

to make different hierarchies collaborate is imple-

mented with an association between the root classes

of each hierarchy. This commonly involves too

general interfaces that are not detailed enough to be

used by the parallel hierarchy. This limitation is

more evident with the classes below in the hierarchy,

where the required interface is even more specific.

As an example, consider building a retargetable

compiler (Fraser and Hanson, 1995) for a high-level

object-oriented programming language. Once the

Abstract Syntax Tree (AST) has been built by the

parser and semantic (contextual) analysis has been

performed over the AST (Appel, 2002), it will be

necessary to generate code for different platforms.

We want the compiler of our high-level program-

ming language not only to generate low-level code,

but also to translate it to other high-level program-

ming languages.

Similar to semantic analysis, code generation

could be implemented using the Visitor design pat-

tern (Gamma et al., 1994), traversing the AST –built

using the Composite design pattern (Gamma et al.,

1994)– to generate the target code (Watt and Brown,

2000). As shown in Figure 1, source code for differ-

ent programming languages can be generated with

different Visitor classes. Common strategies of high-

level code generation can be factored out into a

common

VisitorHighLevelCG superclass using

the Template Method design pattern (Gamma et al.,

1994). Since many high-level programming lan-

guages share similar features, the AST traversal for

this kind of languages could be expressed with

methods in the

Visitor-HighLevelCG class.

These methods can call all the abstract methods

defined in their hierarchy level to implement the

template algorithms that generate high-level source

code. The same generalization can be done for low-

level programming languages (and even for all the

target languages, using the

VisitorCG class). For

instance, the Java Virtual Machine (JVM) assembly

code (Lindholm and Yellin, 1999) is quite similar to

the Microsoft Intermediate Language (MSIL)

Ortin F. and García M..

A TYPE SAFE DESIGN TO ALLOW THE SEPARATION OF DIFFERENT RESPONSIBILITIES INTO PARALLEL HIERARCHIES.

DOI: 10.5220/0003418000150025

In Proceedings of the 6th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2011), pages 15-25

ISBN: 978-989-8425-57-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

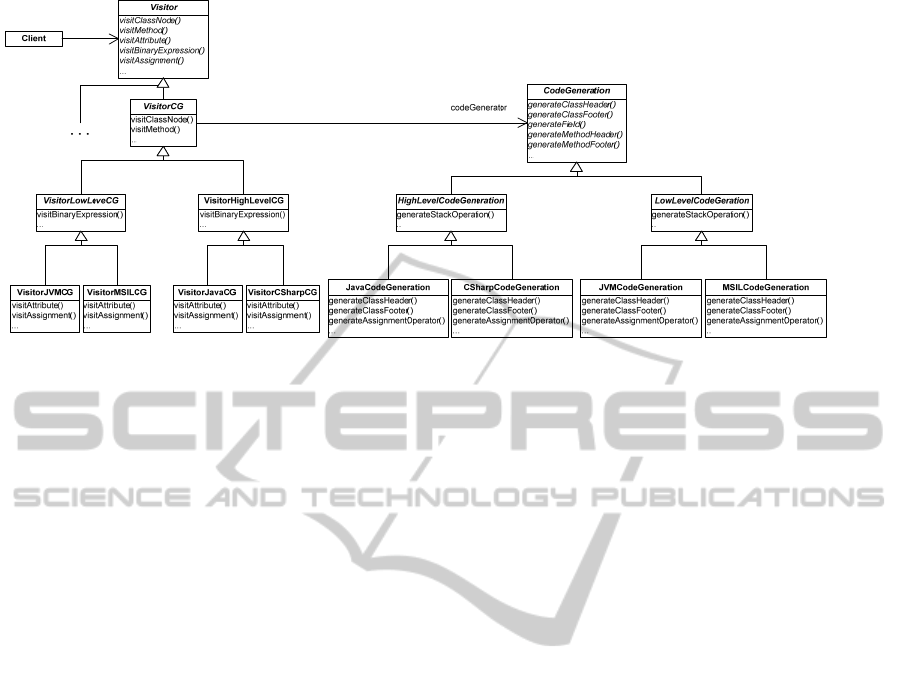

Figure 1: Using the Visitor and Composite design patterns to generate code for multiple languages.

(ECMA, 2006) because both are based on abstract

stack machines. Common code generation templates

for both languages could be placed in the

Visitor-

LowLevelCG class.

A benefit of the inheritance hierarchy in the left

part of Figure 1 is that common strategies to trans-

late the source code to every target language could

be placed in the

VisitorCG class. For instance,

generating the code of a class to Java, C#, JVM and

MSIL could be defined as generating the code of its

methods and fields (

visitClassNode). This bene-

fit is obtained with each level of the hierarchy (e.g.,

high-level or low-level target language). However,

since every target language has a different instruc-

tion set, this polymorphic behavior needs to be spe-

cialized with the instruction set of each particular

target language. In order to make the code maintain-

able, a parallel hierarchy of

CodeGeneration

classes could be defined to generate the specific

code of each target language. This is, precisely, the

Tease Apart Inheritance “big refactoring” (Fowler et

al., 1999). The Visitor classes will use the classes of

the parallel

CodeGeneration hierarchy to generate

different target languages (Figure 3).

Each Visitor class relies on a corresponding

CodeGeneration class to achieve its objective.

Each Visitor class traverses the AST tree, calling the

parallel

CodeGeneration class to generate the

code of a particular target language. Dynamic bind-

ing in both hierarchies is used to override all the

abstract operations used in the general template

algorithms, defining the particular implementation

of each specific code generation operation for every

target language. For instance, the

generateOpen-

Class method of the code generation hierarchy is

overridden in Java, JVM, C# and MSIL code gen-

erators to describe how a class must be declared in

each programming language. This generalization

makes it possible to implement the

visitClass-

Node

method with the simple Java code in Figure 2.

It is worth noting that this is the template of a gen-

eral algorithm. If a new target language needs to be

generated, and it does not follow this template, dy-

namic binding can be used to override the

visit-

ClassNode

method for a particular Visitor subclass.

public abstract class VisitorCG extends Visitor {

@Override

public void visitClassNode(ClassNode node) {

this.codeGenerator.generateClassHeader(node);

for(FieldNode field : node.getFields())

this.codeGenerator.generateField(field);

for(MethodNode method : node.getMethods()) {

this.codeGenerator generateMethodHeader(

method );

method.accept(this);

this.codeGenerator generateMethodFooter(

method );

}

this.codeGenerator.generateClassFooter(node);

}

//…

}

Figure 2: Implementation of the visitClassNode

method in the VisitorCG class.

The benefits of the generalization offered by

polymorphism are counteracted by the necessity of

recovering the specific interface of a particular

CodeGeneration class. As an example, we can

think about how to generate the code for an assign-

ment expression. The Visitor design pattern traverses

the AST until the

visitAssignment is reached.

The templates for generating assignment expressions

to Java and the JVM are different. The former uses

infix syntax, whereas the latter generates the code of

the right-hand side of the assignment first, followed

by a store statement indicating the index of the local

variable (Figure 5). This difference requires the

visitClassNode()

visitMethod()

...

Visit orCG

visitAttribute()

visitAssignment()

...

VisitorJVMCG

visitBinaryExpression()

...

VisitorHighLevelCG

accept()

ASTNode

accept()

operator

BinaryExpression

Expression

visitBinaryExpression()

...

VisitorLowLeveCG

accept()

ClassNode

Client

visitClassNode()

visitMethod()

visitAttribute()

visitBinaryExpression()

visitAssignment()

...

Visitor

visitAttribute()

visitAssignment()

...

Visit orMSILCG

visitAttribute()

visitAssignment()

...

VisitorJavaCG

visitAttribute()

visitAssignment()

...

VisitorCSharpCG

...

accept()

MethodNode

accept()

AttributeNode

accept()

Assignment

accept()

IdNode

...

Statement

...

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

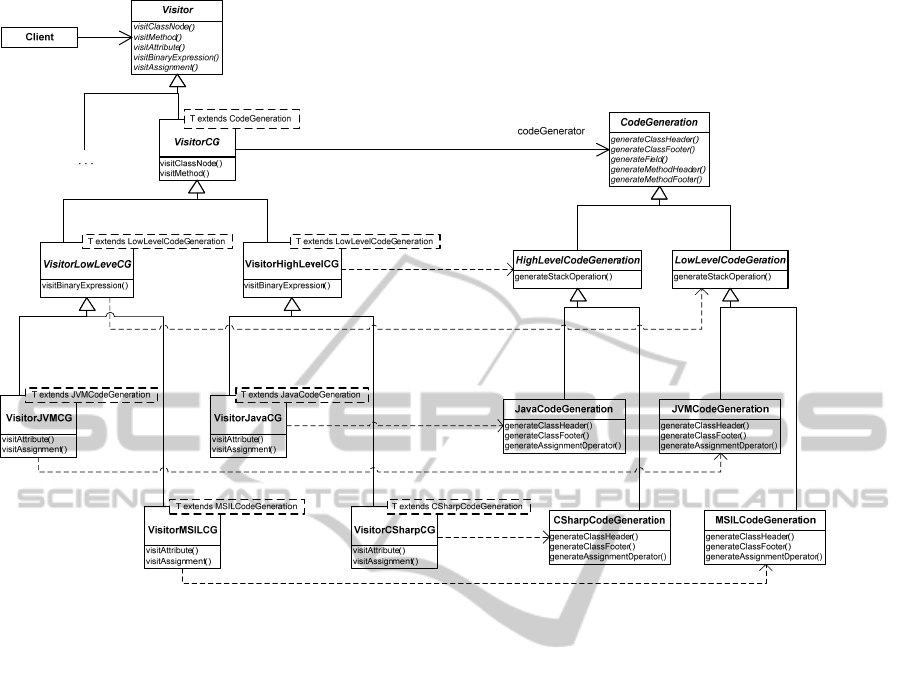

Figure 3: Tease Apart Inheritance refactoring.

visitAssignment in the VisitorJVMCG class to

invoke the specific generateStore method in the

JVMCodeGeneration class, whereas the same

method in

VisitorJavaCG should call to the gen-

erateAssignmentOperator method in

JavaCodeGeneration. Therefore, it is required to

recover the specific interface of the corresponding

code generation class in the parallel hierarchy. No-

tice than adding these specific methods to the whole

code generation hierarchy might produce a design

difficult to understand, because some methods are

meaningless for specific classes, violating the

Liskov substitution principle (Liskov, 1987).

The main contribution of this paper is the de-

scription of a design pattern that provides a way to

make two parallel hierarchies collaborate to solve a

problem, recovering the specific interfaces of classes

in the corresponding hierarchy. The usage of both

generalized and specific interfaces in a class hierar-

chy is obtained without violating the type safety

offered by many statically typed programming lan-

guages. This approach can be used to solve the ex-

pression problem (Wadler, 1998) and together with

other design patterns such as Composite, Template

or Visitor (Gamma et al., 1994).

2 RELATED WORK

The necessity of recovering the specific interfaces of

two parallel hierarchies was detected in the expres-

sion problem, first named by Philip Wadler in 1998

(Wadler, 1998). The issue was to obtain a modular

extensibility of data structures. This problem was

then revisited by Mads Torgersen that used the Java

F-bound polymorphism to recover the type of inher-

ited associations (Torgersen, 2004). The solution

was applied to the Composite and Visitor design

patterns (Gamma et al., 1994) instead of going into

this topic and identify it as a design pattern.

In (Nielsen et al., 2005), the recovery of inher-

ited associations is tackled using the Scala pro-

gramming language. They emphasize the signifi-

cance of solving this problem in a type safe way

(without runtime type errors), becoming really inter-

esting when it is exposed to a type system that en-

sures the safe execution of the code. For this pur-

pose, a solution using parameterized classes (gener-

ics) is provided. They also identify the possibility of

using Scala's virtual types: a mechanism similar to

parameterized classes but, instead of giving the

types as parameters, a class contains a type variable

(Nielsen et al., 2005).

Erik Ernst introduced the notion of higherorder

hierarchies to represent hierarchies of hierarchies

(Ernst, 2003). The idea is to define a hierarchy that

could be later extended and reused in a type safe

way. Although the idea seems to be suitable to

model parallel hierarchies, higher-order hierarchies

do not allow the specialization of inherited associa-

tions in parallel hierarchies.

The structure of this design pattern has been pre-

viously recognized as a Big Refactoring by Fowler

and Beck (Fowler et al., 1999). It is applied to solve

the problem of tangled inheritance (Fowler et al.,

1999). However, they do not describe how both

hierarchies can collaborate to obtain a common

objective, using the specific interfaces in each hier-

archy level; only the generalized polymorphic be-

havior is described.

A TYPE SAFE DESIGN TO ALLOW THE SEPARATION OF DIFFERENT RESPONSIBILITIES INTO PARALLEL

HIERARCHIES

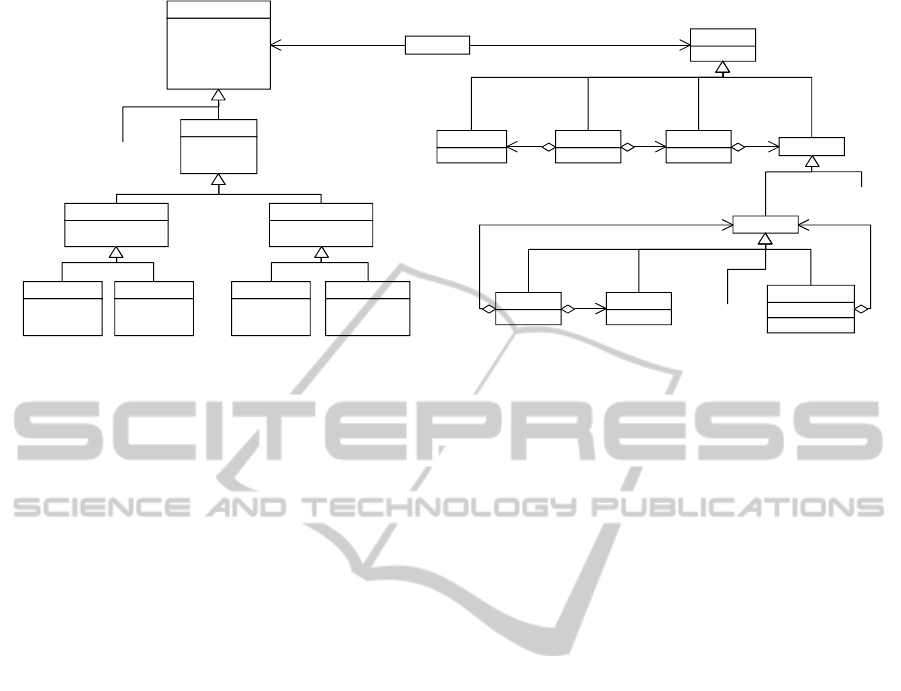

Figure 4: Parametric polymorphism to connect the parallel hierarchies.

Parallel Hierarchies has some relation with several

design patterns in the classic catalog (Gamma et al.,

1994). Parallel Hierarchies classes commonly ap-

pear from refactoring behavioral design patterns that

use a hierarchy for their purpose, like Template,

Visitor or Interpreter. In the Memento pattern, origi-

nators and mementoes often form parallel hierar-

chies. If recursive polymorphic methods are added

to the Composite design pattern, their implementa-

tion can rely on a parallel hierarchy. Finally, the

Abstract Factory design pattern creates families of

related objects, to use them later separately. The

Parallel Hierarchies design pattern could be applied

when the specific interfaces of these objects need to

be used together for a particular purpose.

3 THE PARALLEL HIERACHIES

DESIGN PATTERN

The proposed design pattern, called Parallel

Hierarchies, allows the recovery of the specific

interface used to connect the different hierarchies.

Although this can be done with different

programming language techniques (see Section 3.4),

the use of generics (parametric polymorphism) is

appropriate when the implementation language is

statically typed. Generics offers the reliability of

type safety, plus the runtime performance

improvement obtained by avoiding the use of

runtime reflection (Ortin et al., 2009). C++

implements (unbounded) parametric polymorphism

(generics), whereas C# and Java offers F-bounded

polymorphism (Canning et al., 1989) (also known as

constrained genericity). Both kinds of parametric

polymorphism can be used to implement the

Parallel Hierarchies design pattern. Figure 4 shows

how to use it in our motivating example.

Both hierarchies are connected with one association

between the

VisitorCG class and CodeGenera-

tion

–its multiplicity varies depending on the

problem. Each visitor object has a code generator

attribute to generate code in a particular pro-

gramming language. However, the type of this

attribute would be the corresponding one in the

parallel hierarchy if generics is used, achieving the

recovery of the whole particular interface of the

corresponding code generation class. If the language

offers F-bounded polymorphism (e.g., Java or C#),

the

VisitorCG class will be declared as generic,

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

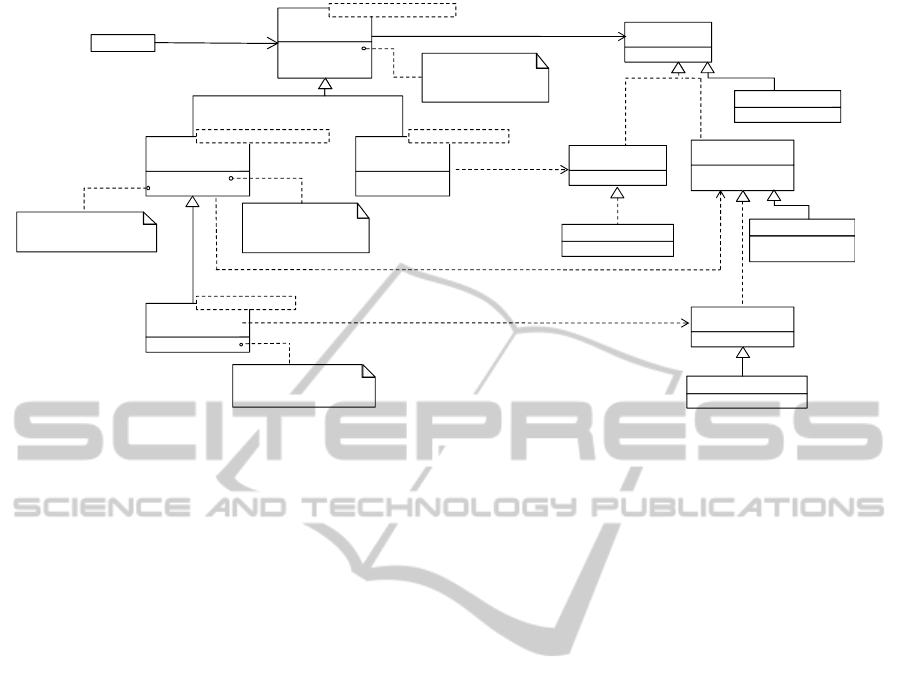

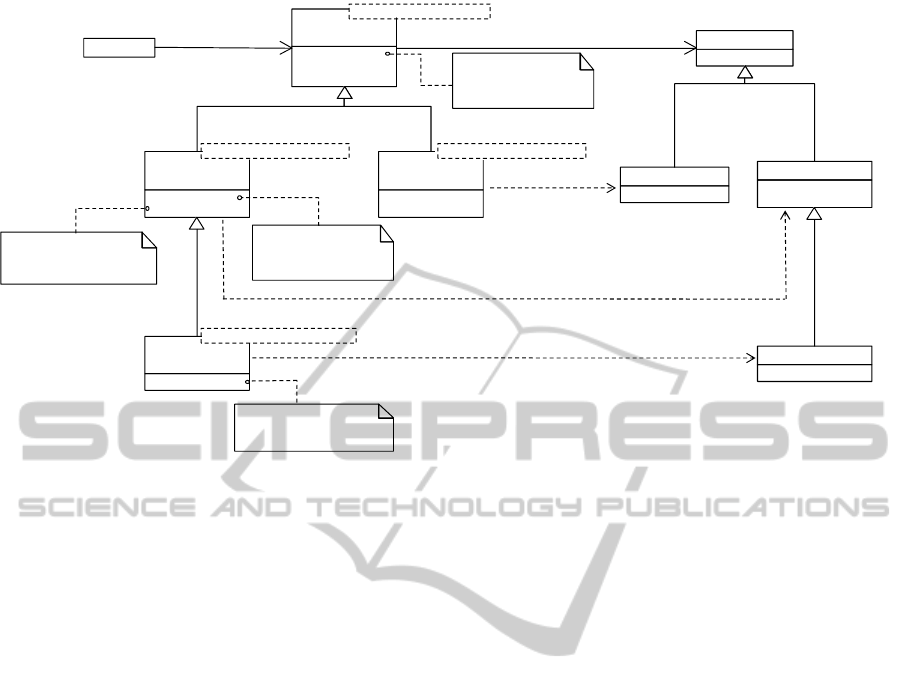

Figure 6: Structure of the Parallel Hierarchies design pattern.

parameterized with a T type –being T a subtype of

CodeGeneration. The attribute’s type will then be

T, and hence the

CodeGeneration interface could

be used in

VisitorCG. This constraint (bound) of

the T type is specialized in all the subclasses of

VisitorCG. For instance, in the VisitorHigh-

LevelCG class, T must be a subtype of HighLevel-

CodeGeneration

, and a subclass of Visitor-

JavaCG in the case of JavaCodeGeneration. This

modification on the constraints of T is possible when

constraints are covariant with respect to the types

they are applied to (Odersky and Wadler, 1997) –as

happens with Java and C#. Consequently, the

visitAssignment method in the VisitorJVMCG

class will be able to invoke the generateStore

method of the particular interface of the

JVMCodeGeneration class (its interface has been

recovered) as shown in Figure 5.

public class VisitorJVMCG

extends VisitorLowLevelCG<T> {

@Override

public void visitAssignment(

AssignmentNode node) {

node.getSecondOperand().accept(this);

this.codeGenerator.generateStore(

node.getFirstOperand().getIndex(),

node.getFirstOperand().getType() );

}

//…

}

Figure 5: Implementation of the visitAssignment-

Node of the VisitorJVMCG class.

3.1 Structure

The static structure of the proposed design pattern is

shown in Figure 6, where the participants can be

identified:

▪ Template hierarchy. Classes in this hierarchy de-

scribe templates of algorithms, defining their struc-

ture in the classes above in the hierarchy and the

specific primitive operations in subclasses. This

hierarchy is intended to have only one clear respon-

sibility, delegating other possible responsibilities in

parallel Interface hierarchies. The elements of the

Template hierarchy are:

- AbstractTemplate (

VisitorCG, VisitorHigh-

LevelCG

and VisitorLowLevelCG)

▪ Defines the common structure of general algo-

rithms. Each general algorithm is implemented in

abstract

TemplateMethod methods.

▪ Declares the interface of abstract primitive op-

erations that are used in general algorithms

(

PrimitiveOperation1 and PrimitiveOp-

eration2

▪ The implementations of general algorithms

make use of the specific interface of the parallel

class (

GeneralInterface).

▪ Each general algorithm is implemented using

both primitive operations and the methods of the

parallel Interface classes.

▪ (optional) Intermediate AbstractTemplate

classes (

AbstractTemplateB) may appear to

Temp lateMethod()

PrimitiveOperation1()

PrimitiveOperation2()

AbstractTemplate

T extend s GeneralInterface

PrimitiveOperation2()

ConcreteTemplateB

T extends Co ncreteInterfaceB

PrimitiveOperation1()

PrimitiveOperation2()

ConcreteTemplateA

T extend s ConcreteInterfaceA

GeneralOperation()

GeneralInterface

Co ncreteOperationB2()

ConcreteInterfaceB

GeneralOperationB()

Co ncreteOperationB1()

GeneralInterfaceB

Temp lateMethod()

PrimitiveOperation1()

AbstractTemplateB

T extends GeneralInterfaceB

Co ncreteOperationA()

ConcreteInterfaceA

interface

Client

…

interface.ConcreteOperationB2()

…

PrimitiveOperation1()

interface.GeneralOperationB()

PrimitiveOperation2()

…

Interface.GeneralOperat ionB()

Interface.ConcreteOperationB1()

…

PrimitiveOperation1()

interface.GeneralOperation()

PrimitiveOperation2()

…

A TYPE SAFE DESIGN TO ALLOW THE SEPARATION OF DIFFERENT RESPONSIBILITIES INTO PARALLEL

HIERARCHIES

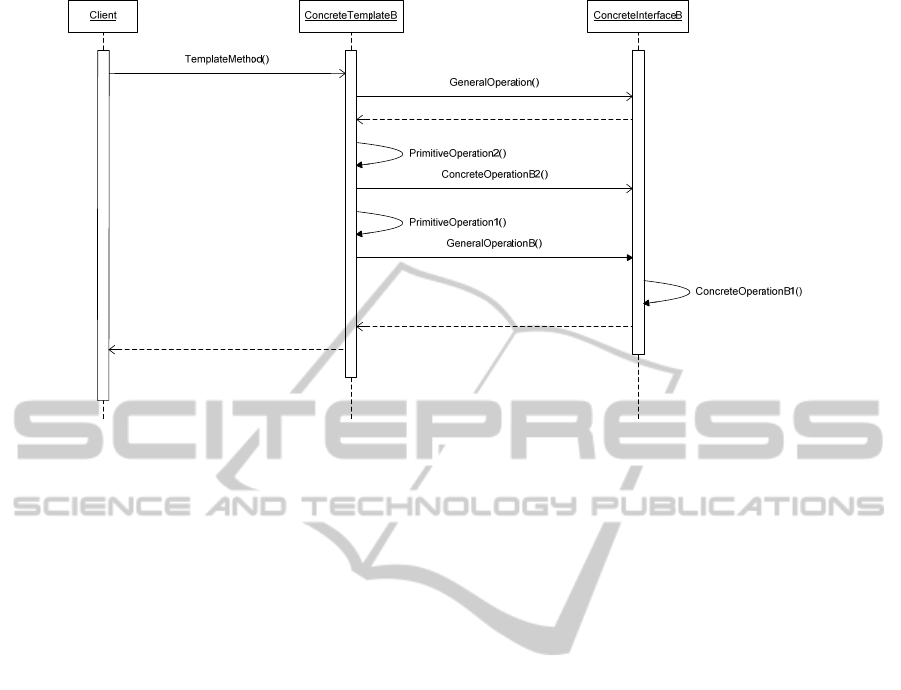

Figure 7: Example collaboration sequence diagram.

generalize the structure and behavior of Con-

creteTemplate classes.

- ConcreteTemplate (

VisitorJavaCG, Visi-

torJVMCG

, VisitorCSharpCG and VisitorM-

SILCG)

▪ Implements the primitive operations to carry

out subclass-specific operations of each general

algorithm (

PrimitiveOperation1 and

PrimitiveOperation2).

▪ The implementation of its specific primitive

operations may use the concrete interface of its

parallel Interface classes.

▪ (optional) General algorithms (

Template-

Method

) may be overridden in specific Con-

creteTemplate

classes if the default imple-

mentation is not appropriate for a particular case.

▪ Interface hierarchy. This parallel hierarchy modu-

larizes a responsibility that the Template hierarchy

may require to achieve its aim. It can also be seen as

a set of helper classes used by the Template hierar-

chy to accomplish its objective. In this design pat-

tern, multiple parallel Interface hierarchies may be

used by the same Template abstraction.

- GeneralInterface (

CodeGeneration, High-

LevelCodeGeneration and LowLevelCode-

Generation).

▪ Defines operations common to all the classes in

the Interface hierarchy (

GeneralOperation).

▪ (optional) Implements default behavior of these

general operations, which may be overridden in

its subclasses.

▪ (optional) If intermediate AbstractTemplate

classes are defined in the parallel Template hier-

archy, another intermediate Interface class will

define operations common to that Template hier-

archy level (

ConcreteOperationB1).

- ConcreteInterface (

JavaCodeGeneration,

CSharpCodeGeneration, JVMCodeGenera-

tion and MSILCodeGeneration)

▪ Implements concrete operations applicable only

to its specific level in the hierarchy (

Con-

creteOperationA and ConcreteOpera-

tionB2

▪ Overrides general default operation implemen-

tations for a particular

ConcreteInterface

class.

▪ Client

- Invokes the

TemplateMethod methods of the

AbstractTemplate class.

3.2 Collaborations

The sequence diagram in Figure 7 illustrates the

collaborations between a client, a concrete template

object, and its corresponding interface instance.

▪ A client that uses the Parallel Hierarchies design

pattern must create a

ConcreteTemplate object

and call one of the

TemplateMethod methods this

class implements.

▪ The

TemplateMethod invokes the GeneralOp-

eration

on its corresponding Interface class.

▪ To respond to the

TemplateMethod message, the

Template object also makes use of its polymorphic

primitive operations.

▪ Thanks to dynamic binding, the

PrimitiveOp-

eration

request is associated to the Con

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

Figure 8: Decoupling the Interface abstraction from its implementation.

creteTemplate

object created by the client. At this

moment, the particular Template object recovers the

whole interface of its parallel class and invokes a

specific method of its corresponding Interface type

(e.g.,

ConcreteOperationB2).

▪ GeneralOperation could be overridden in an inter-

mediate level of the Interface hierarchy, and its exe-

cution may call to concrete operations of this inter-

mediate level (e.g., the GeneralOperationB method

could make use of the ConcreteOperationB1

method).

3.3 Consequences

The use of the Parallel Hierarchies design pattern

has the following benefits and limitations:

1. Parallel Hierarchies gathers related opera-

tions and separates unrelated ones. Related be-

havior is not spread over the classes defining the

template hierarchy. Classes above in the hierar-

chy define the global structure of the algorithms,

whereas particular and primitive cases are im-

plemented as operations in the leaf classes. At

the same time, the Template classes only define

the skeleton algorithms in a problem; other re-

sponsibilities will be factored out into parallel In-

terface hierarchies. In our motivating example,

the Template classes aim at traversing ASTs of

source programs (describing both the global al-

gorithms valid to every target language and the

particular cases). All the issues concerned with

writing code for a particular language are im-

plemented in the code generation hierarchy.

2. Parallel Hierarchies makes adding new Interface

hierarchies easy. The implementation of the

methods in the Template hierarchy could make

use of more than one hierarchy of Interface

classes. At the same time, it is also possible to

use another different Interface hierarchy without

changing the implementation of Template

classes. For instance, the code generation hierar-

chy could be replaced by another one that creates

an intermediate-representation of programs in

memory, to execute it later by means of the In-

terpreter design pattern (Gamma et al., 1994).

For this purpose, the Interface hierarchy should

first be defined with interfaces, following the

Bridge design pattern (Figure 8). In that case,

each class of the Interface hierarchy should im-

plement its corresponding interface.

3. Type safety and runtime performance. Although

there are different possible implementations of

the Parallel Hierarchies design pattern (see Sec-

tion 3.4), the one that uses parametric polymor-

phism (generics) detects type errors (those re-

garding to the usage of the

interface attribute)

at compile time. However, if reflection is used

instead, type errors will be detected at runtime.

Moreover, runtime performance is commonly in-

creased because no dynamic type checking needs

to be done (Ortin et al., 2009).

4. Supporting new kinds of templates is difficult.

The addition of a new class to the Template hier-

archy in order to include new particular behavior

is not a trivial task. That is because each element

in the Template hierarchy should have a corre-

sponding element on the parallel Interface one.

TemplateMethod()

PrimitiveOperation1()

PrimitiveOperation2()

AbstractTemplate

T exten ds GeneralInterface

PrimitiveOperation2()

ConcreteTemplateB

T extend s In terfaceB

PrimitiveOperation1()

PrimitiveOperation2()

ConcreteTemplateA

T extend s In terfaceA

TemplateMethod()

PrimitiveOperation1()

AbstractTemplateB

interface

Client

…

interface.ConcreteOperationB2()

…

PrimitiveOperation1()

interface.GeneralOperationB()

PrimitiveOperation2()

…

Interface.GeneralOperationB()

Interface.ConcreteOperationB1()

…

PrimitiveOperation1()

interface.GeneralOperation()

PrimitiveOperation2()

…

Gen eralOperation()

GeneralInterfaceImpl

Con creteOperationB2()

ConcreteInterfaceBImpl

GeneralOperationB()

Con creteOperationB1()

GeneralInterfaceBImpl

GeneralOperation()

«interface»

GeneralInteface

ConcreteOperationA()

ConcreteInterfaceAImpl

ConcreteOperationA()

«in terface»

IntefaceA

GeneralOperationB()

ConcreteOperationB1()

«interface»

GeneralIntefaceB

ConcreteOperationB2()

«interface»

IntefaceB

T extend s GeneralInterfaceB

A TYPE SAFE DESIGN TO ALLOW THE SEPARATION OF DIFFERENT RESPONSIBILITIES INTO PARALLEL

HIERARCHIES

Therefore, a new Interface class has to be cre-

ated, overriding all the appropriate methods to

help the new Template class achieve its purpose.

In our example, if we want to translate the source

language to a new target language, two new

Visitor and CodeGeneration classes should

be added. At the same time, specific operations

of the

Visitor class and concrete operations of

CodeGeneration should also be implemented.

5. Coupling between Template and Interface hier-

archies. Although one benefit of this design pat-

tern is that the Template classes can use the

whole interface of the corresponding Interface

ones, the use of this particular interface produces

a coupling between the Template classes and the

implementation of the Interface ones. This limi-

tation can be lessened by applying the Bridge de-

sign pattern as stated in the second consequence

of the Parallel Hierarchies design pattern, using

the structure shown in Figure 8.

3.4 Implementation

Some implementation issues of the Parallel Hierar-

chies pattern are worth noting:

1. Use of access control. The primitive operations

defined in the Template hierarchy should be de-

clared as protected. This ensures that they are

only called by the general template methods. At

the same time, the Template classes would re-

duce their interface, making it easier to use for

the programmer. If no default implementation

can be provided for primitive operations, they

should be declared as abstract.

When the parallel Interface hierarchy has been

factored out from the Template one, and we do

not want to it be used by another component, it

could be useful to make it private except for the

Template classes. This feature is not directly

supported by most programming languages. In

Java 6, for example, both hierarchies must be

placed in the same package, and the Interface

classes should not be declared as public. With

the superpackages feature to be included in Java

7 (JSR 294, 2007), the two hierarchies could be

implemented in different packages. In C++,

friend classes can be used for this purpose; C#

provides assembly-level information hiding.

2. Naming conventions. Since this design pattern

uses two (or more) parallel hierarchies, many dif-

ferent classes will be required and they will be

connected with other corresponding classes in

the same hierarchy level. Therefore, following a

naming convention makes the code easier to read

and more understandable. In our example (see

Section 4), being L a particular target language,

we define a

LCodeGeneration class for each

corresponding

VisitorLCG class in the Inter-

face hierarchy.

3. Favor the use of generics. Parametric polymor-

phism is a statically typed programming lan-

guage feature that promotes type safety and al-

lows for efficient implementation. Dynamic casts

can also be used to check whether the type of the

associated Interface object has the appropriate

type or not. Source code in Figure 9 is an equiva-

lent implementation of the code shown in Figure

5 that uses dynamic type coercion.

public class VisitorJVMCG

extends VisitorLowLevelCG {

private JVMCodeGeneration getCodeGenerator() {

if (!(this.codeGenerator

instanceof JVMCodeGeneration))

throw new IllegalStateException(

"The attribute codeGenerator does not have

the appropriate type." );

return (JVMCodeGeneration)this.codeGenerator;

}

@Override

public void visitAssignment(AssignmentNode node){

node.getSecondOperand().accept(this);

this.getCodeGenerator().generateStore(

node.getFirstOperand().getIndex(),

node.getFirstOperand().getType() );

}

//…

}

Figure 9: Sample implementation using dynamic type

coercion.

The problem of this approach is twofold. The

first one is that both the

instanceof operation

and the type cast are evaluated at runtime. There-

fore, if some error occurs, it will occur at run-

time, reducing the robustness of this approach.

The second drawback is the runtime performance

penalty that is caused by runtime type inspection

(Ortin et al., 2009).

4. Minimize the General Interface of the Interface

hierarchy. Since a class should only define op-

erations that are meaningful to its subclasses

(Liskov, 1987), only those messages that are

meaningful for every class of the Interface hier-

archy should be placed in the

GeneralInter-

face class. Recall that the Parallel Hierarchies

design pattern recovers the specific interface of

each Interface class. This feature allows reducing

the interface of these classes to the exact set of

messages that are meaningful to them.

5. Use the Bridge pattern to decouple hierarchies.

As mentioned in Section 3.3, the Template hier-

archy is coupled with the implementation of the

Interface one. It could be necessary to add new

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

implementations of Interface classes, or to sup-

port different implementations for each Template

object at the same time –e.g., following the State

design pattern (Gamma et al., 1994). If either of

these scenarios occurs, the Bridge design pattern

(Gamma et al., 1994) should be used in the Inter-

face hierarchy, resulting in the pattern structure

shown in Figure 8.

3.5 Applicability

Use the parallel hierarchies design in either of the

following cases:

• The Template Method design pattern is

suitable, but it is difficult to generalize a

common interface for all the classes in the

hierarchy. Although there are methods

common to every class, others are only ap-

plicable to particular ones.

• More than one responsibility can be identi-

fied in a hierarchy and these new responsi-

bilities can be factored out and integrated in

another parallel hierarchy. In fact, this is

the Tease Apart Inheritance “big” refactor-

ing identified by Fowler and Beck (Fowler

et al., 1999).

• A problem can be solved with a combina-

tion of general algorithms plus specific op-

erations of different particular types.

4 SAMPLE CODE

We will follow the motivating example of imple-

menting a retargetable compiler for a high-level

object-oriented programming language. A fragment

of the AST is shown in Figure 1. The traversal of

this AST is done with the Visitor design pattern

(Gamma et al., 1994). The specific visitors for code

generation play the Template role of the Parallel

Hierarchies design pattern. Since we are interested

in generating code for different programming lan-

guages, the Java

VisitorCG class shown in Figure

10 represents the

AbstractTemplate class of the

Parallel Hierarchies structure.

Figure 10 only shows one

visit method of the

Visitor design pattern. The implementation of this

method defines the general

classNode code-

generation template for every programming lan-

guage

. If this template is not appropriate for a specific

target language, its corresponding Visitor subclass

will override it.

public abstract class VisitorCG

<T extends CodeGeneration> extends Visitor {

protected T codeGenerator;

public VisitorCG(T codeGenerator) {

this.codeGenerator=codeGenerator;

}

@Override

public void visitClassNode(ClassNode node ) {

this.codeGenerator.generateClassHeader(node);

for(FieldNode field:node.getFields())

this.codeGenerator.generateField(field);

for(MethodNode method:node.getMethods()){

this.codeGenerator.generateMethodHeader(

method );

method.accept(this);

this.codeGenerator.generateMethodFooter(

method );

}

this.codeGenerator.generateClassFooter(node);

}

//…

}

Figure 10: VisitorCG sample code.

The visit method makes use of two different

kinds of operations: methods of the Interface (

Code-

Generation

) hierarchy, and messages of its own

hierarchy (

accept messages). The accept method

is a double-dispatch implementation that actually

represents indirect calls to visit methods. All these

visit methods play the role of TemplateMethod

in the Parallel Hierarchies design pattern. Figure 10

shows the template that generates the code of a

classNode relying on the templates that generate

its methods and fields.

The other operations that the

visit methods use

are the messages offered by its corresponding paral-

lel class. The

codeGenerator field reference pro-

vides these services. For the

VisitorCG class, only

the methods in the

CodeGeneration class can be

used. This means that the general template for all the

target languages can only use the operations of code

generation defined for every target language. Source

code in Figure 11 shows the

CodeGeneration

class. Its abstract methods identify the operations

applicable to every target programming language,

but they are not concrete enough to provide a default

implementation.

public abstract class CodeGeneration {

protected FileWriter file;

public CodeGeneration(String filename) {

file = new FileWriter(filename);

}

public abstract void generateClassHeader(

ClassNode klass );

public abstract void generateClassFooter(

ClassNode klass );

public abstract void generateField(

FieldNode field );

public abstract void generateMethodHeader(

MethodNode method );

public abstract void generateMethodFooter(

MethodNode method );

//…

}

Figure 11: CodeGeneration sample code.

A TYPE SAFE DESIGN TO ALLOW THE SEPARATION OF DIFFERENT RESPONSIBILITIES INTO PARALLEL

HIERARCHIES

Since both the JVM and the MSIL are abstract

stack machines languages, we can factor out com-

mon code generation operations for both languages

in a new

LowLevelCodeGeneration class (Figure

12).

public abstract class LowLevelCodeGeneration

extends CodeGeneration {

public LowLevelCodeGeneration(String filename) {

super(filename);

}

public abstract void generateStackOperation(

String operator,TypeNode type );

//…

}

Figure 12: LowLevelCodeGeneration sample code.

The specific generateStackOperation metod

offered by

LowLeveCodeGeneration can be used

by the

VisitorLowLevelCG class. Therefore, it is

possible to write the

visitBinaryExpresion

shown in Figure 13: for every stack-based abstract

machine, most binary expressions can be generated

writing the code for the first and second operands,

followed by the operation (postfix notation). It is

worth noting that, thanks to Java generics, it is type

safe to pass the specific

generateStackOpera-

tion message to the inherited codeGeneration

field, although it has been declared to be of type “

extends CodeGeneration” in the VisitorCG

class. This shows how the Parallel Hierarchies

design pattern recovers the original interface of the

actual object used in the Template hierarchy.

public abstract class VisitorLowLevelCG

extends VisitorCG<T> {

public VisitorLowLevelCG(T codeGeneration) {

super(codeGeneration);

}

public void visitBinaryExpression(

BinaryExpressionNode node ) {

// * Postfix notation

node.getFirstOperand().accept(this);

node.getSecondOperand().accept(this);

this.codeGenerator.generateStackOperation(

node.getOperator(),node.getType() );

}

Figure 13: VisitorLowLevelCG sample code.

The responsibility of the JVMCodeGeneration

class is to generate JVM code following the Jasmin

assembly syntax (Meyer, 1996). This class not only

overrides methods of the general

CodeGeneration

class (

generateClassHeader and generate-

ClassFooter

) and the LowLevelCodeGenera-

tion

class (generateStackOperation), but it

also defines its particular interface (

generateS-

tore

) that produces the store JVM instruction). Part

of its implementation is shown in Figure 14.

public class JVMCodeGeneration

extends LowLevelCodeGeneration {

// * Methods of the CodeGeneration class

@Override

public void generateClassHeader(

ClassNode klass ) {

this.file.write(".class " +

" "+ klass.getHidingLevel()+

" "+ klass.getName() + "\n");

}

@Override

public void generateClassFooter(

ClassNode klass ) {

this.file.write("; end of the " +

klass.getName() +

" class\n");

}

// * Methods of the LowLeveCodeGeneration class

@Override

public void generateStackOperation(

String operator, TypeNode type ) {

if (!operatorsToJVM.containsKey(operator))

throw new IllegalArgumentException("Operator '"

+ operator + "' not defined in the JVM.");

StringBuilder sb = new StringBuilder();

sb.append(type.getJVMTranslation());

sb.append(operatorsToJVM.get(operator));

this.file.write(sb.toString()+"\n");

}

// * Specific methods of the JVMCodeGeneration

class

public void generateStore(

int index, TypeNode type ) {

this.file.write(type.getJVMTranslation()

+"store "+index+

"\n");

}

// …

}

Figure 14: JVMCodeGeneration sample code.

Finally, it is possible to write the Visi-

torJVMCG class that traverses only the specific

nodes for which the default traversal is not appropri-

ate (

visitAssignment in Figure 15). The assem-

bly syntax of assignments in the JVM is defined as

the code that pushes the right-hand expression of the

assignment, followed by a

store instruction whose

operand is the index of the variable on left-hand side

of the assignment. In the implementation of these

specific

visit methods, any method of the particu-

lar interface of the parallel

JVMCodeGeneration

class can be used (

generateStore is an example

of this kind of methods).

public class VisitorJVMCG

extends VisitorLowLevelCG<T> {

public VisitorJVMCG(T codeGeneration) {

super(codeGeneration);

}

@Override

public void visitAssignment(

AssignmentNode node ) {

node.getSecondOperand().accept(this);

this.codeGenerator.generateStore(

node.getFirstOperand().getIndex(),

node.getFirstOperand().getType() );

}

// …

}

Figure: 15. VisitorJVMCG sample code.

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

5 CONCLUSIONS

The association of two (or more) parallel hierarchies

to solve a specific problem using delegation is a

common design scenario. The problem is that the

association in the root classes in the hierarchy pro-

vides too general interfaces useless for the classes

below in the hierarchy. The Parallel Hierarchies

design pattern described in this paper provides a

type safe solution that could be used whenever the

programming language provides either F-bound

polymorphism or (unbounded) parametric polymor-

phism such as Java, C# or C++. The design pattern

has been described using the classical sections of

structure, collaborations, consequences, Implemen-

tation, applicability and sample code (Gamma et al.,

1994).

We have successfully used the Parallel Hierar-

chies design pattern in the C# implementation of the

StaDyn programming language (Ortin et al., 2010;

Ortin and Garcia, 2011), to compile the StaDyn

high-level programming language to MSIL for the

CLR, ЯRotor (Redondo, 2008; Ortin et al., 2009)

and the DLR (Hugunin, 2007) platforms, as well as

produce high-level C# 4.0 source code.

ACKNOWLEDGEMENTS

This work has been funded by the Department of

Science and Technology (Spain) under the National

Program for Research, Development and Innovation:

Project TIN2008-00276, entitled Improving Per-

formance and Robustness of Dynamic Languages to

develop Efficient, Scalable and Reliable Software.

REFERENCES

Appel A.W., 2002. Modern Compiler Implementation in

Java, 2nd Edition, Cambridge University Press.

Canning P., Cook W., Hill W., Walter O., and Mitchell J.

C., 1989. F-bounded polymorphism for object-

oriented programming, in Proceedings of the fourth

International Conference on Functional Programming

Languages and Computer Architecture, London, Unit-

ed Kingdom, pp. 273-280.

ECMA 335, 2006. European Computer Manufacturers

Association (ECMA), Common Language Infrastruc-

ture (CLI), Partition IV: CIL Instruction Set, 4th Edi-

tion.

Ernst E., July 2003. Higher-Order Hierarchies. European

Conference on Object-Oriented Programming

(ECOOP), pp. 303-329, Darmstadt, Germany.

Fraser C. W., and Hanson D.R., 1995. A Retargetable C

Compiler: Design and Implemen-tation, Addison-

Wesley Professional.

Fowler M., Beck K., Brant J., Opdyke W., and Roberts D.,

1999. Refactoring: Improving the Design of Existing

Code, Addison-Wesley Professional.

Gamma E., Helm R., Johnson R., and Vlissides J., 1994.

Design Patterns: Elements of Reusable Object-

Oriented Software, Addison Wesley.

Hugunin J., 2007. Bringing dynamic languages to .NET

with the DLR, in Proceedings of the Symposium on

Dynamic Languages, Montreal, Quebec, Canada, pp.

101-101.

JSR 294 Sun Microsystems, 2007. JSR 294: Improved

Modularity Support in the Java Programming Lan-

guage, http://jcp.org/en/jsr/detail?id=294

Lindholm T., and Yellin F., 1999. Java Virtual Machine

Specification, 2nd Edition, Prentice Hall.

Liskov B., 1987. Data Abstraction and Hierarchy, in

Conference on Object Oriented Programming Systems

Languages and Applications (OOPSLA), Orlando,

Florida, United States, pp. 17-34.

Meyer J., Jasmin Instructions, 1996.

http://jasmin.sourceforge.net/instructions.html

Nielsen E.T., Larsen K.A., Markert S., Kjaer K.E., May 31

2005. The Expression Problem in Scala. Technical

Report, Aarhus University.

Odersky M., and Wadler P., 1997. Pizza into Java: Trans-

lating theory into practice, in Proceedings of the 24th

ACM Symposium on Principles of Programming Lan-

guages (POPL), Paris, France, pp. 146-159.

Ortin F., and Garcıa M., 2011. Union and intersection

types to support both dynamic and statict yping. In-

formation Processing Letters, 111(6):278–286.

Ortin F., Redondo J.M., and Perez-Schofield J.B.G, 2009.

Efficient virtual machine support of runtime structural

reflection”, Science of Computer Programming, Vol.

74(10), pp. 836-860.

Ortin F., Zapico D., and Cueva J, 2007. Design patterns

for teaching type checking in a compiler construction

course. Education, IEEE Transactionson, 50(3):273–

283.

Ortin F., Zapico D., Perez-Schofield J.B.G., Garcia M.,

August 2010. Including both Static and Dynamic Typ-

ing in the same Programming Language. IET Soft-

ware, Volume 4, Issue 4, pp. 268-282.

Redondo J., Ortin F. and Cueva J, 2008. Optimizing Ref-

lective Primitives of Dynamic Languages. Internation-

al Journal of Software Engineering and Knowledge

Engineering, 18(6):759–783.

Torgersen M., 2004. The Expression Problem Revisited.

European Conference on Object-Oriented Program-

ming (ECOOP), pp. 123-143.

Wadler P., 1998. The expression problem, Posted on the

Java Genericity mailing list.

Watt D., and Brown D., 2000. Programming Language

Processors in Java: Compilers and Interpreters, Pren-

tice Hall.

A TYPE SAFE DESIGN TO ALLOW THE SEPARATION OF DIFFERENT RESPONSIBILITIES INTO PARALLEL

HIERARCHIES
