NON-EXHAUSTIVE JOIN ORDERING SEARCH ALGORITHMS

FOR LJQO

∗

Tarcizio Alexandre Bini, Adriano Lange, Marcos Sfair Sunye,

Fabiano Silva and Eduardo Cunha de Almeida

Informatics Department, Federal University of Paran´a, Centro Polit´ecnico, Jardim das Am´ericas, Curitiba PR, Brazil

Keywords:

Query optimization, Join ordering, Randomized algorithms, Genetic algorithms.

Abstract:

In relational database systems the optimization of select-project-join queries is a combinatorial problem. The

use of exhaustive search methods is prohibitive because of the exponential increase of the search space. Ran-

domized searches are used to ﬁnd near optimal plans in polynomial time. In this paper, we investigate the

large join query optimization (LJQO) problem by extending randomized algorithms and implementing a 2PO

algorithm as a query optimizer in a popular open-source DBMS. We compare our solution with an implemen-

tation of a genetic algorithm. Through a multidimensional test schema, we discuss pros and cons about the

behavior of these algorithms. Our results show that 2PO algorithm is fast to run and the costs of generated

plans are better in most cases when compared to those of the genetic algorithms.

1 INTRODUCTION

Over the last 40 years, database management systems

(DBMS) have experienced an enormous workload

shift from transaction processing at kilobyte-scale to

real-time data analysis at petabyte-scale. In the con-

text of data warehouse, columns data storage such

as in C-Store DBMS (Stonebraker et al., 2005), and

map-reduce implementations like Hadoop/Hive(Thu-

soo et al., 2009), are becoming increasingly common

both in commercial and academic area.

Storing data in columns in traditional DBMS is

an onerous task, which can not bring major bene-

ﬁts (Abadi et al., 2008). In this storage architecture,

each attribute is stored in a separated relation (Bruno,

2009). Thus, even a simple query that involves a few

attributes demand several relational joins to compose

its result. Costs expended in performing a large num-

ber of joins cause a performance degradation of the

DBMS. In this context, the classic problem of join-

ordering optimization is highly relevant.

Computationally ﬁnding the optimal join order

that compose the execution plan is NP-hard (Ibaraki

and Kameda, 1984). Dynamic programming tech-

niques (Selinger et al., 1979), stay restricted to a small

number of relations, approximately ten. Above this

∗

Work partially funded by the Datluge CNPq-INRIA

project.

limit, it is considered a large join query optimization

(LJQO) problem. Thereby, an optimization technique

must consider a trade off between the generation of

an optimal plan and the query execution.

Randomized algorithms can, in average, get good

execution plans in polynomial time (Swami and

Gupta, 1988; Ioannidis and Kang, 1991; Bennett

et al., 1991; Louis and Zhang, 1998; Dong and Liang,

2007). However, an undesirable characteristic is the

considerable costs variation (e.g., instability) of gen-

erated plans for the same query (Bini et al., 2009).

Such instability is unacceptable in production appli-

cations, especially when the response time of a re-

quest is controlled. Furthermore, the insertion of a

degree of uncertainty in the estimated time for a re-

quested service or result can compromise the esti-

mated time of a whole chain of processes depending

on it. Thus, when we apply randomized algorithms to

query optimization, the stability of generated plans is

a decisive factor that must be considered.

In this paper, we address the LJQO problem

through our implementation of the 2PO (Two-Phase

Optimization) randomized algorithm. To evaluate the

quality of generated plans and the execution time

of the optimizers, we used a popular open-source

DBMS (Postgresql, 2010). We created a wide select-

projet-join queries range considering the joins graph

complexity, number of joins and cardinality of the

involved relations. In this context, we compare our

151

Alexandre Bini T., Lange A., Sfair Sunye M., Silva F. and Cunha de Almeida E..

NON-EXHAUSTIVE JOIN ORDERING SEARCH ALGORITHMS FOR LJQO.

DOI: 10.5220/0003426501510156

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 151-156

ISBN: 978-989-8425-53-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

solution with an implementation of the genetic algo-

rithms. The results demonstrate the feasibility of ap-

plying our optimizer in commercial DBMS. Consid-

ering the execution time of the optimizers, 2PO out-

performed genetic algorithm in all scenarios. 2PO op-

timizer also showed better quality of generated plans

(low computational cost) in the most of analyzed

queries.

This paper is organized as follows. Section 2 de-

scribes how the possible plans of a query can be or-

ganized considering important concepts of query op-

timization. Moreover, we present some randomized

algorithms implemented and analyzed in this study.

Section 3 describes the test methodology applied for

evaluating the query optimizers. Section 4 presents

the results obtained in our experiments. Finally, Sec-

tion 5 concludes and presents future work.

2 BACKGROUND AND RELATED

WORK

Query optimizer is the DBMS component that trans-

forms a query written in a declarative language, like

SQL, into a procedural query execution plan (QEP).

There may be several QEPs corresponding to a same

speciﬁed query. They are identical in result, but dis-

tinct in computational cost, like CPU time sharing,

primary memory usage and disc access (Ibaraki and

Kameda, 1984; Swami and Gupta, 1988). The set of

all QEP that exhibit the same result is called solution

space or search space. It is deﬁned as the set of all

possible binary join trees (BJT). The query optimizer

task is to determine the QEP with lowest cost based

on a cost function or model.

A common way to express graphically which re-

lations mentioned in the query have join predicates

is using an undirected graph called join graph. This

structure can determine the complexity of ﬁnding the

optimal join order. Nodes represent relations in a

query. Edges represent join predicates between their

respective relations. Regarding the possible forms of

a join graph, ﬁve types are found in the literature:

chain, star, cycle, grid and clique (Steinbrunn et al.,

1997; Vance and Maier, 1996; Shapiro et al., 2001;

Neumann, 2009).

Next, we describe the randomized and genetic

algorithms, that can be an alternative to exhaustive

searches when applied to LJQO problem.

2.1 Randomized Algorithms

The input of a randomized algorithm is another type

of graph that represents the complete search space of

a problem. Each node is a solution or state which is

associated a cost deﬁned by a speciﬁc cost function.

Each edge is a possible move deﬁned by transforma-

tion rules which allow that a state can be transformed

into another.

Several apporaches were presented (Steinbrunn

et al., 1997; Swami and Gupta, 1988; Ioannidis and

Kang, 1990) to address the LJQO problem. Thus,

in the Iterative Improvement (II) algorithm, QEPs

can be represented as nodes in an undirected graph.

Such nodes are inter-connected by edges which rep-

resent the transformations between these plans. The

objective is to perform several movements between

the graph nodes searching better solutions (execu-

tion plans) relative to its cost. II consists of several

local optimizations, started randomly from different

points of the search space, which are called initial

states (Ioannidis and Kang, 1991). From each ini-

tial state, the algorithm traverses randomly the search

space, always accepting moves if their costs are lower

than the actual. This local optimization process is re-

peated until no further improvement can be found or

a stopping condition is satisﬁed.

Another randomized algorithm applied to the

query optimization problem is the Simulated Anneal-

ing (SA) (Ioannidis and Wong, 1987; Swami and

Gupta, 1988). This solution was derived by analogy

from the process of annealing of solids. Inspired by

this physical process some terminologies, e.g., tem-

perature, freezing condition, are used to orient the

optimization process. Unlike the II, which uses sev-

eral random initial states, the SA starts from a single

state. During the optimization process, SA performs

“random walks” always accepts neighbors states with

lower costs. However, unlike the II, states with higher

costs can also be accepted to a certain probability.

Ioannidis and Kang (Ioannidis and Kang, 1990)

presented the 2PO (Two-Phase Optimization) algo-

rithm to address the LJQO problem by combining the

II and SA algorithms. In the ﬁrst phase, the II is exe-

cuted for a small period of time performing some lo-

cal optimizations. This cover most of the search space

and quickly reaches a state with low cost (called lo-

cal minimum). The best local minimum found by II

algorithm is used as a starting point for the SA, in the

second phase. Then, the solution space is searched

again for a state of even lower cost. Plans with lower

costs than local minimum introduced by the II can be

reached quickly through the SA.

2.2 Genetic Algorithms

Genetic Algorithms are search methods based on ge-

netic and natural selection process. An important cha-

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

152

racteristic of this class of algorithm is that they do

not work with a single solution, but with a set of so-

lutions that is called population. These solutions are

represented by chromosomes. Each chromosome is

composed by genes that represent each part of the so-

lution.

In joins optimization, the chromosomes corre-

spond to the executions plans. Costs associated with

it, corresponds to your adaptation degree to the en-

vironment. As in the search space of II and SA, the

environment, corresponds to the set of possible solu-

tions.

A genetic algorithm starts generating the ﬁrst pop-

ulation of individuals randomly, with a ﬁxed num-

ber of chromosomes. Chromosomes are selected

(selection) from the population to become parents,

based on ﬁtness (Owais et al., 2005)

. The re-

production process occurs between pairs of selected

chromosomes,through of the recombination between

themselves (crossover) which produces the offspring.

Some fraction of the population can be randomly cho-

sen to have mutated a gene or a small set of them (mu-

tation). The new population becomes the new gen-

eration and the process repeats itself (Bennett et al.,

1991). Iterations are performed until improvements

in the quality of the population are observed, or the

demanded number of generations is reached or when

the demanded solution is found.

In order to develop and analyze our implemen-

tation of 2PO optimizer, we used a popular open-

source DBMS (Postgresql, 2010). This DBMS makes

use of a genetic algorithm approach to enumerate

possible BJTs. This algorithm called GEQO (Ge-

netic Query Optimization) was presented by Martin

S. Utesch (Postgresql, 2010) in 1997, as an alterna-

tive to the LJQO problem. More details about GEQO

can be obtained in (Bini et al., 2009).

3 TEST METHODOLOGY

In this section, we detail our methodology to evaluate

our implementation of the 2PO optimizer. First, we

describe how the database was generated. After, how

we developed the queries set for our experiments.

3.1 Database

The database schema and the query set are based on

the systematic and multidimensional model proposed

Fitness - metrics to measure scheduler performance for

each chromosome and that calculates the values for each

one.

by Vance and Maier (Vance and Maier, 1996) et al.

and Shapiro (Shapiro et al., 2001)]. One of its ad-

vantages is the independence of several construction

parameters like number of relations and their cardi-

nalities.

However, some parameters originally used by

these authors were extended or reconﬁgured, in or-

der to observe the behavior of the algorithms ap-

plied to LJQO problem. These reconﬁgurations

were based on methodologies proposed by Swami

and Gupta (Swami and Gupta, 1988), Ioannidis and

Kang (Ioannidis and Kang, 1990) and Steinbrunn et

al. (Steinbrunn et al., 1997).

The database is populed synthetically in accor-

dance with the requirements of our experiments. Re-

lations are created with their cardinalities ranging

from 2

to 2

as log

) = 14 and mean =

(Vance and Maier, 1996).

All relations follow the same basic building lay-

out, composed by three numerical attributes: an at-

tribute primary key (pk) and others two attributes for-

eign key (fk1, fk2).

The tuples are inserted in the relations with values

based on their cardinality. For the pk attribute, values

are assigned sequentially from 1 to the relation cardi-

nality. For the others attributes, fk1 and fk2, the values

are inserted at random, also following values from 1

to the relation cardinality, using an uniform distribu-

tion. Updates are never performed during the queries

submission.

3.2 Generated Queries

Two steps are required to generate the query set: the

selection relation sets and the combination of these

relations in form of SQL queries. These steps are used

for organization reasons and code reuse.

Selection. In the ﬁrst step, 12 relation sets are se-

lected deterministically according to the combina-

tion of two parameters: Relations Number and LO-

GRATIO (Vance and Maier, 1996; Shapiro et al.,

2001). The Relations Number N, involved in the gen-

erated queries is respectively 10, 20, 50, and 100.

LOGRATIO µ, is given by the logarithmic differ-

ence between the relation with greatest cardinality R

and the relation with smallest cardinality R

, namely,

log

(|R

|/|R

|), represented by the values 6, 12 and

14. In each generated relation set, all selected rela-

tions are different, although their cardinality way be

the same. For all relation sets, the geometric average

of cardinalities was ﬁxed at 2

Combination. For each of the 12 selected sets, 40

queries are randomly generated, in order, 10 of them

NON-EXHAUSTIVE JOIN ORDERING SEARCH ALGORITHMS FOR LJQO

153

-1

chain cycle grid clique

Time (s)

Graph Type

2PO

(a) 10 relations.

-1

chain cycle grid clique

Time (s)

Graph Type

2PO

(b) 20 relations.

chain cycle grid clique

Time (s)

Graph Type

2PO

chain cycle grid clique

Time (s)

Graph Type

2PO

(d) 100 relations.

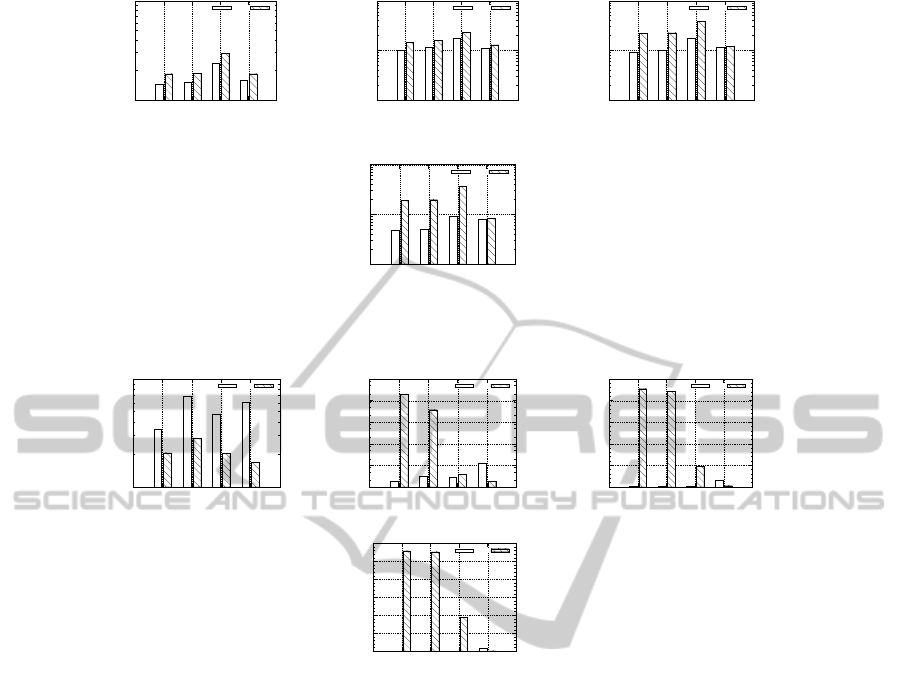

Figure 1: Optimization average time presented by 2PO and GA considering relations number and join graphs.

chain cycle grid clique

Scaled Cost

Graph Type

2PO

(a) 10 relations.

chain cycle grid clique

Scaled Cost

Graph Type

2PO

(b) 20 relations.

chain cycle grid clique

Scaled Cost

Graph Type

2PO

chain cycle grid clique

Scaled Cost

Graph Type

2PO

(d) 100 relations.

Figure 2: Average and scaled cost variation presented by 2PO and GA considering the relations number.

for each join graph type chosen (chain, cycle, grid and

clique) (Steinbrunn et al., 1997). Thus, the total num-

ber of generated queries is 480. Queries are generated

as follows: from a relation set (R

to R

), selected in

the ﬁrst step, each derived query follows a random

arrangement of these relations (T

to T

). From this

arrangement, relations are “accommodated” in their

SQL structures corresponding to each join graph.

4 EXPERIMENTS

This Section presents the comparison between our im-

plementation of the 2PO optimizersand an implemen-

tation of the genetic algorithm. Results are presented

using the scaled cost of plans, which is the ratio be-

tween its cost and the cost of the best plan found

for the same query, independent from the optimizer.

Since our test methodology is derived from a compar-

ison among optimizers, the total execution time of the

obtained plans was not computed. The plans obtained

with the genetic algorithm, in some cases, presented

extremely high costs. Thus, their executions were im-

possible, due to computational resources and time.

4.1 General Setup

Our experiments were conducted in a com-

puter equipped with an Intel Xeon Quad-Core -

2GHz/64bits processor, with 12MB of L2 cache

and 2GB/667MHz of RAM memory. As secondary

memory, we used two SATA disks with 250 GB

each, operating in RAID 0. The operating system

employed was GNU/Linux kernel 2.6.24 X86-64.

The DBMS applied in experiments was the Post-

greSQL 8.3. We used the plugin technique to compile

code parts separately and then incorporate them into

the DBMS as a library. Thus, we create the LJQO plu-

gin, which includes our implementationof the 2PO al-

gorithm. This plugin was equipped with a component

to count the algorithms execution time. No changes

in other DBMS components were required.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

154

There are several conﬁgurations and controlparam-

eters that must be considered in the 2PO implementa-

tion. These parameters are further detailed in (Ioanni-

dis and Kang, 1990).

We recall that PostgreSQL implements a genetic

algorithm called GEQO. The GEQO module, in its

default conﬁguration, is designed to generate a nearly

constant amount of plans for queries over seven re-

lations. The 2PO in turn, tends to increase the opti-

mization effort, as the number of relations increases.

To eliminate this disadvantage, GEQO module was

reimplemented to generate an equal plans amount to

the 2PO optimizer. This conﬁguration was performed

individually for each query, considering the number

of plans generated by 2PO in each case. In performed

experiments, our implementation of GEQO module is

called GA (Genetic Algorithm).

4.2 Performance Evaluation

The performance evaluation aims at verify the aver-

age time spent to optimize the queries. For this ex-

periment, we consider 300 optimizations. This total

is composed by 10 optimizations, for each one of 30

queries used, regardless of their LOGRATIO values.

Figure 1 presents the average time for optimiza-

tion grouped by the relations number of each query.

In queries with 10 relations (Figure 1(a)), the differ-

ence between the optimizers 2PO and GA was not sig-

niﬁcant. Although the number of generated plans by

GA was approximately the same in relation to 2PO,

its total time of optimization was relatively higher for

queries chain, grid and cycle. In queries with 100 re-

lations (Figure 1(d)), and join graph like chain, cycle

and grid, the GA was almost 2 times worse than 2PO.

On the other hand, in clique queries, its optimization

time was very close from that presented by 2PO.

4.3 Costs of Generated Plans

Our ﬁnal analysis considers the costs of generated

plans by GA and 2PO optimizers. Figure 2 presents

the average and scaled cost variation obtained by the

optimizers considering the relations amount and the

join graph of each query. In all graphs presented in

this ﬁgure, scaled costs are arranged in logarithmic

scale of base 10.

It is observed that both algorithms alternate in the

generation of the best average of scaled cost. In chain,

cycle and grid queries with relations greater or equal

to 20, 2PO showed plans with superior quality (lower

costs) in relation to presented by GA, as we can see

in Figure 2 (b), (c) and (d). In this case, it is also ob-

served that GA showed an accentuated degradation in

the quality of the plans according increased the num-

ber of relations. In two particular cases, chain and

cycle queries with 100 relations, respectively in Fig-

ure 2 (d), the quality of obtained plans by 2PO and

GA was signiﬁcantly large.

In Figure 2(b) to Figure 2(d), we can verify that

the plans degradation obtained by the GA is strongly

correlated with the number of edges of each join

graph. It is noticed, the fewer is the number of edges,

the worse is the quality obtained plans by the GA.

Concerning the chain (N − 1 edges) and cycle (N

edges) queries, we can observe a slight improvement

in the quality. In grid queries (2N − 3 edges), the im-

provement is more evident. Finally, clique queries

(N(N − 1)/2 edges) with the maximum edges quan-

tity, and obviously the join graph of greater connec-

tivity, presented the best scaled cost, being better than

those presented by 2PO.

Plans quality presented by 2PO was superior in al-

most all cases. However, two exceptions were identi-

ﬁed. The ﬁrst case refers to queries with 10 relations,

independent of join graphs. The second, was for all

clique queries, regardless the relations number.

5 CONCLUSIONS

Join optimization is part of query processing that rep-

resents a signiﬁcant impact on relational DBMS ef-

ﬁciency. This paper presents this problem, with em-

phasis in LJQO.

We presented an implementation of a 2PO algo-

rithm and compared with an implementation of ge-

netic algorithm. Our solution proves to be more ro-

bust for most of the cases, mainly in queries with a

large number of relationsand low connectivityof their

joins graphs. In this context, 2PO presented better

plans compared to GA, and still, had a feasible opti-

mization average time.

Our results were relevant in the actual context,

since there is a growing demand for DBMS able to an-

swer complex queries. Actually, such queries are re-

ally common in tools to generate management reports

(OLAP - Online Analytical Processing) or deductive

tools for Data Mining. Another potential source of

complex queries are columns oriented DBMS (Stone-

braker et al., 2005). In such applications, each at-

tribute stored in a traditional DBMS is converted into

an individual relation. Thus, queries read only the

attributes that are required. Thereby, it is evident,

the large number of joins required to compose the

query results that involving several attributes in the

SELECT clause.

There are still issues that need to be evaluated in

NON-EXHAUSTIVE JOIN ORDERING SEARCH ALGORITHMS FOR LJQO

155

detail, how the use of aggregates, sort method (OR-

DER BY), and recursive queries. Even so, it is ex-

pected that these results can serve as a basis for the

algorithms improvement and for developing new op-

timizations approaches.

Finally, 2PO algorithm is available as a plugin

called LJQO. This plugin can be obtained via Inter-

net

by interested in making improvements or analy-

sis in our solution.

REFERENCES

Abadi, D. J., Madden, S. R., and Hachem, N. (2008).

Column-stores vs. row-stores: how different are they

really? In Proceedings of the 2008 ACM SIGMOD in-

ternational conference on Management of data, SIG-

MOD ’08, pages 967–980, New York, NY, USA.

ACM.

Bennett, K., Ferris, M. C., and Ioannidis, Y. E. (1991). A

genetic algorithm for database query optimization. In

In Proceedings of the fourth International Conference

on Genetic Algorithms, pages 400–407. Morgan Kauf-

mann Publishers.

Bini, T. A., Lange, A., Sunye, M. S., and Silva, F. (2009).

Stableness in large join query optimization. In ISCIS,

pages 639–644.

Bruno, N. (2009). Teaching an old elephant new tricks. In

CIDR, pages 1–6.

Dong, H. and Liang, Y. (2007). Genetic algorithms for large

join query optimization. In GECCO ’07: Proceed-

ings of the 9th annual conference on Genetic and evo-

lutionary computation, pages 1211–1218, New York,

NY, USA. ACM.

Ibaraki, T. and Kameda, T. (1984). On the optimal nesting

order for computing n-relational joins. ACM Transac-

tions on Database Systems, 9(3):482–502.

Ioannidis, Y. E. and Kang, Y. (1990). Randomized algo-

rithms for optimizing large join queries. SIGMOD

Rec., 19(2):312–321.

Ioannidis, Y. E. and Kang, Y. C. (1991). Left-deep vs.

bushy trees: an analysis of strategy spaces and its

implications for query optimization. SIGMOD Rec.,

20(2):168–177.

Ioannidis, Y. E. and Wong, E. (1987). Query optimiza-

tion by simulated annealing. In SIGMOD Conference,

pages 9–22.

Louis, S. J. and Zhang, Y. (1998). An empirical comparison

of randomized algorithms for large join query opti-

mization. In FLAIRS Conference, pages 95–100.

Neumann, T. (2009). Query simpliﬁcation: graceful degra-

dation for join-order optimization. In SIGMOD Con-

ference, pages 403–414.

Owais, S. S. J., Kr¨omer, P., and Sn´asel, V. (2005). Query op-

timization by genetic algorithms. In DATESO, pages

125–137.

http://git.c3sl.ufpr.br/gitweb?p=lbd/ljqo.git;a=summary

Postgresql (2010). Postgresql object-relational

database management system. Available at URL:

http://www.postgresql.org.

Selinger, P. G., Astrahan, M. M., Chamberlin, D. D., Lo-

rie, R. A., and Price, T. G. (1979). Access path se-

lection in a relational database management system.

In Proceedings of the 1979 ACM SIGMOD interna-

tional conference on Management of data, SIGMOD

’79, pages 23–34, New York, NY, USA. ACM.

Shapiro, L. D., Maier, D., Benninghoff, P., Billings, K., Fan,

Y., Hatwal, K., Wang, Q., Zhang, Y., min Wu, H., and

Vance, B. (2001). Exploiting upper and lower bounds

in top-down query optimization. In IDEAS, pages 20–

33.

Steinbrunn, M., Moerkotte, G., and Kemper, A. (1997).

Heuristic and randomized optimization for the join or-

dering problem. The VLDB Journal, 6(3):191–208.

Stonebraker, M., Abadi, D. J., Batkin, A., Chen, X., Cher-

niack, M., Ferreira, M., Lau, E., Lin, A., Madden,

S., O’Neil, E., O’Neil, P., Rasin, A., Tran, N., and

Zdonik, S. (2005). C-store: a column-oriented dbms.

In Proceedings of the 31st international conference

on Very large data bases, VLDB ’05, pages 553–564.

VLDB Endowment.

Swami, A. and Gupta, A. (1988). Optimization of large join

queries. In SIGMOD ’88: Proceedings of the 1988

ACM SIGMOD international conference on Manage-

ment of data, pages 8–17, New York, NY, USA. ACM.

Thusoo, A., Sarma, J. S., Jain, N., Shao, Z., Chakka, P.,

Anthony, S., Liu, H., Wyckoff, P., and Murthy, R.

(2009). Hive: a warehousing solution over a map-

reduce framework. Proc. VLDB Endow., 2:1626–

1629.

Vance, B. and Maier, D. (1996). Rapid bushy join-order op-

timization with cartesian products. In SIGMOD Con-

ference, pages 35–46.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

156
