ADVANCES IN STRUCTURE EDITORS

Do They Really Pay Off?

Andreas Gomolka and Bernhard G. Humm

Hochschule Darmstadt, University of Applied Sciences, Haardtring 100, 64295 Darmstadt, Germany

Keywords: Programming, Structure editor, Evaluation, Lisp, Eclipse.

Abstract: Structure editors emphasise a high-fidelity representation of the underlying tree structure of a program,

often using a clearly identifiable 1-to-1 mapping between syntax tree elements and on-screen artefacts. This

paper presents layout and behaviour principles for structure editors and a new structure editor for Lisp. The

evaluation of the editor’s usability reveals an interesting mismatch. Whereas by far most participants of a

questionnaire intuitively favour the structure editor to the textual editor, objective improvements are

measurable, yet not significant.

1 INTRODUCTION

Structure editors have fascinated designers of

development environments for decades (Hansen,

1971, Borras et al., 1988, Ballance et al., 1992, Ko

and Myers, 2006). The idea is simple and

convincing. The elements of the syntax tree of a

program are mapped to on-screen artefacts and can

be edited directly.

The basis for this is the awareness that programs

are more than just text (cf. Teitelbaum and Reps,

1981). A programmer designing a piece of code

thinks in structures: classes, methods, blocks, loops,

conditions, etc. Using a textual program editor he or

she has to codify those syntactically using

parentheses such as ‘{...}’, ‘(...)’, ‘[...]’ or using

keywords such as ‘begin ... end’. The compiler then

parses the syntactic elements and re-creates the

structures in the form of an abstract or concrete

syntax tree – the same structures which the

programmer originally had in mind. This just seems

inefficient and not intuitive.

Structure editors fill this gap: What the

programmer thinks is what he or she sees in the

editor. Surprisingly enough, structure editors,

although around for decades, have never become

mainstream.

In this paper, we present layout and behaviour

principles for structure editors and a new structure

editor for Lisp. We then present an evaluation of the

editor’s usability based on a questionnaire – with

interesting results.

The remainder of the paper is structured as

follows: Section 2 describes layout and behaviour

principles for structure editors. In Section 3, we

present a new structure editor for Lisp via samples

and screenshots and give some insights into its

implementation. Section 4 describes how we

evaluated the usability of the editor and in Section 5

we position our work in relation to other approaches.

Section 6 concludes the paper with a critical

discussion.

2 LAYOUT AND BEHAVIOUR

PRINCIPLES

A structure editor should improve the readability and

comprehensibility of the code whilst not

compromising useful features of textual editors. To

this end, we postulate the following layout and

behaviour principles for structure editors:

1. Focus on the Net Code. The code layout should

support the programmer in focussing on the net

program code, i.e., keywords, identifiers, and

literals. The structure of the code should be

visualized in a clear but discrete manner.

A look into the related literature reveals that there is

no overall agreement, which kind of representation

fits this intention. Sergey Dimitriev, for example,

states that programmers always translate program

text to tree structures in their mind (Dimitriev, 2004)

and argues that editors should emphasise this view.

Gomolka A. and G. Humm B..

ADVANCES IN STRUCTURE EDITORS - Do They Really Pay Off?.

DOI: 10.5220/0003428600600069

In Proceedings of the 6th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2011), pages 60-69

ISBN: 978-989-8425-57-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

In contrast to that, Jonathan Edwards claims that tree

structures are not satisfying to display conditionals

and therefore proposes to visualize programs using

tables (Edwards, 2007).

We think that the representation should

emphasise the structure of the program, but also

enable the programmer to recognise the original

code. Therefore we propose similar to the approach

of Ko and Myers (2006), to replace syntactic

elements for structuring the code (e.g., parentheses

for block structures, separators like semicolons

between statements, and delimiters like double

quotes for string literals) by graphical elements.

2. Do not Restrain the Programmer. The editor

should help, but not unnecessarily restrain the

programmer. For an editor, it is only possible to

visualize the structure of the program correctly, if it

does not contain any syntactical errors. Some former

approaches handled this problem by preventing the

creation of syntactical errors at all (Hansen, 1971;

Borras et al., 1988). This had the effect that actually

simple operations which change the structure of the

program became quite complex (e.g., removing a

parenthesis and insert it somewhere else). It is

essential for the usability of a structure editor how it

handles this problem.

3. Keep the Layout Compact. Apart from editing, a

programmer uses an editor also for reading and

understanding a piece of code. The structured

representation should support the programmer in

quickly getting an overview of the whole program.

Therefore the structured representation should be as

compact as the plain text representation.

4. Keep Common Look and Feel. The behaviour of

the structure editor should be as similar as possible

to the look and feel of widely used editors.

Examples are shortcuts, colouring, and behaviour

during typing. This facilitates getting accustomed

with it for experienced programmers.

5. Do not Introduce New Dependencies. A structure

editor is just one of many more tools to work with a

program. The textual form of a program makes it

very easy to change between different editors. This

independence should not be dismissed without a

very good reason. Thus, a structure editor should not

necessitate changes to the programming language or

the way programs are stored.

6. Make the Layout Configurable. Where possible,

the programmer should be able to configure the

presentation of the code. For example, colours that

are used in the layout should be configurable.

7. Leave the Choice to the Programmer. Some

programming tasks might be easier to achieve with a

simple structure editor, some with an advanced

structure editor and yet others with a textual editor.

Therefore, the programmer should be able to freely

and easily swap between different editors

respectively editor modes.

3 A STRUCTURE EDITOR FOR

LISP

This section presents a new structure editor for the

programming language Lisp that was developed as a

research prototype. It follows the principles we

propose above.

3.1 Why Lisp?

The main reason why we decided to build the

research prototype for Lisp – or to be more precise

Common Lisp – is Lisp’s uniform syntax. Lisp data

is expressed as a so called S-expression (McCarthy,

1960). The term S-expression means symbolic

expression and includes symbols and nested lists. As

there is no syntactical difference between data and

code, a Lisp program also consists of S-expressions.

This simplicity and uniformity and the ability to

treat Lisp code as data make it particularly easy to

develop a structure editor for Lisp.

Also, in a different research context, we use Lisp

as a base language for developing domain-specific

languages (DSLs) in the context of language-

oriented programming (cf. Humm and Engelschall,

2010). A structure editor may be particularly useful

for developing programs using DSLs that are based

on Lisp.

3.2 Code Presentation

Our structure editor is based on the Eclipse plug-

in CUSP (Jasko and Ritchey, 2010). CUSP already

provides an environment for developing Lisp

programs using Eclipse including a Navigator View

for browsing Lisp projects, a REPL (Read-Eval-

Print-Loop) and an Outline of the currently

displayed Lisp file. The new structure editor has

been integrated into this environment as an

additional Editor Window (see

Figure 1).

The Editor Window consists of two separate

representations of the code. Besides the structured

representation, we also provide a textual one. The

user is able to switch between these two using the

tabs at the lower left corner of the editor window.

ADVANCES IN STRUCTURE EDITORS - Do They Really Pay Off?

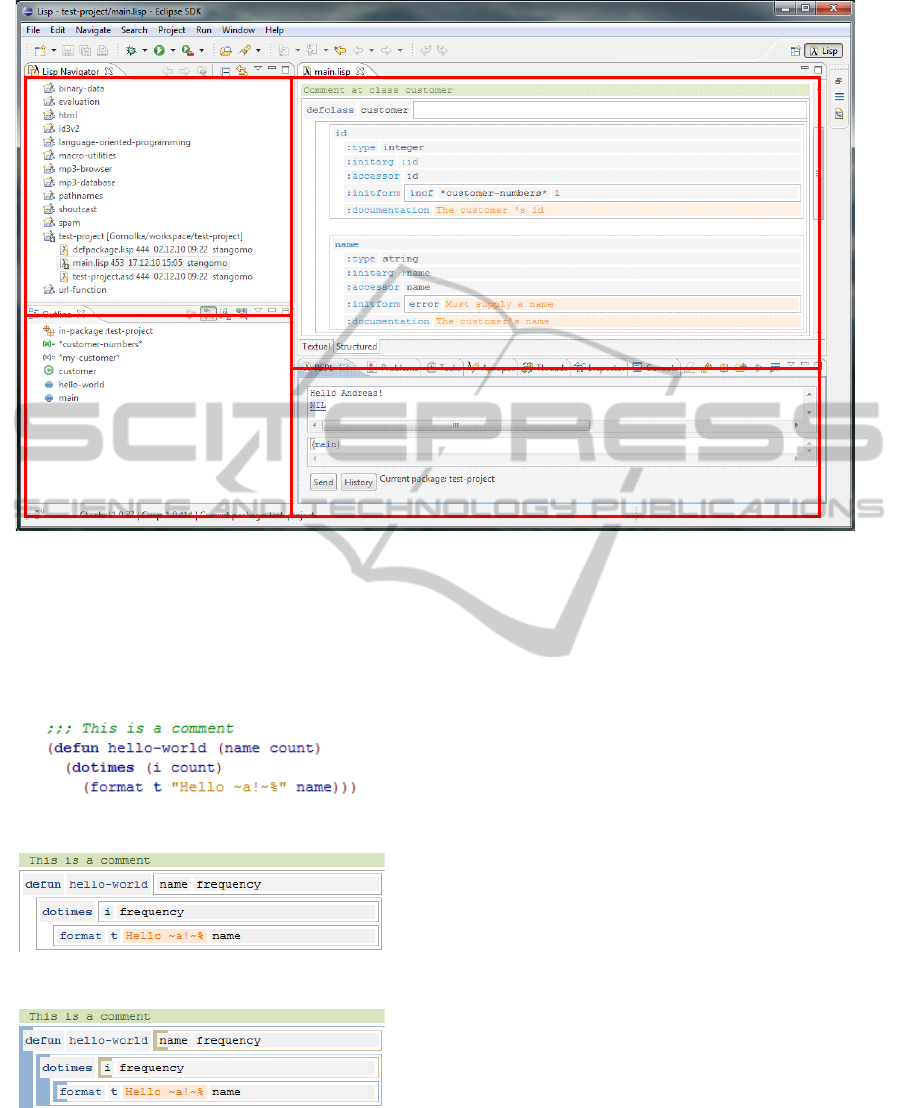

Figure 1: Overview of the GUI of our structure editor.

The following Figures 2-4 demonstrate the

different possibilities of viewing the code that are

provided. All three figures show the same snippet of

Lisp code defining a new function called “hello-

world” which just prints a string n-times.

Figure 2: Textual representation.

Figure 3: Default structured representation.

Figure 4: Coloured structured representation.

Figure 2 shows the snippet using the textual

representation. The structure of the code is

visualized by the indention of the lines and the

individual symbol types (e.g., keywords, string

literals, comment, etc.) are indicated by different

colours.

Figure 3 shows the same snippet displayed in the

structure editor. All parentheses are replaced by grey

boxes which visualize the block structure. Also, the

double quotes delimiting the string literals are

hidden and expressed by the light orange

background. Similar to that, the leading semicolons

introducing the comment are hidden and the

comment is indicated by the light green background.

All this removes syntactic delimiters from the code

and accentuates the net code, which satisfies

Principle 1 stated in Section 2.

A slightly different representation of the same

code snippet is shown in Figure 4. There, in

addition, coloured bars are displayed at the left side

of each box and the boxes themselves are also

coloured. The colours indicate whether a block

contains a call to a function or macro (e.g., “defun”)

or just an ordinary list (e.g., the parameter list of the

function “hello-world”).

According to Principle 7, the programmer may

decide which representation to use and enable or

disable the additional information expressed by

those colours via the “Preferences” of the plug-in.

Furthermore, all colours to be used (background and

foreground) can be configured (Principle 6).



EditorWindow



REPL

Outline



Navigator



ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

3.3 Editing

The code can be directly edited in the nested block

structure. There are no additional commands or

shortcuts necessary compared to editing the code in

the textual representation. As shown in Figure 5,

typing an opening parenthesis will open a new box.

Typing a closing parenthesis will close the current

box and move the caret outside. In each step the

layout rearranges itself according to the changes.

This satisfies our claim to enable the programmer

doing the same typing as using a textual editor

(Principle 4).

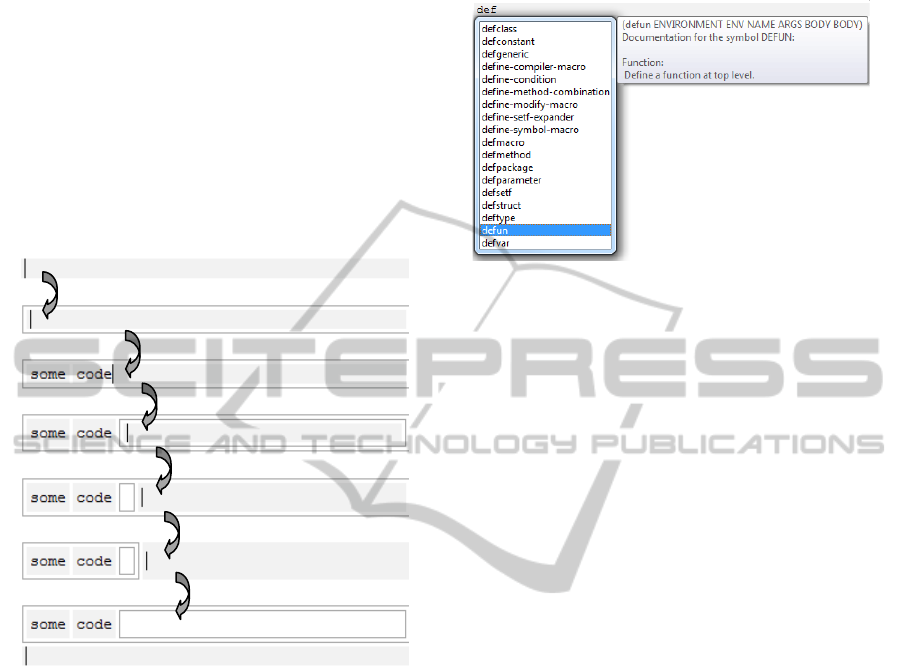

Figure 5: Behaviour during typing.

The caret can be moved around using the mouse

or the keyboard. The arrow keys will move it one

character to the left or right or one line up or down

and using <Tab> respectively <Shift><Tab> it is

moved one field in forward or backward direction.

<Pos1> will place the caret at the beginning of the

first field of the current line and <End> at the end of

the last field.

The programmer may decide about line breaks or

blank lines. They will be inserted by typing

<Return>. Each new line is inserted to the current

block. Line indention is calculated automatically

depending on the context of the current block,

because this is part of the block structure.

The structure editor provides code completion,

which also shows additional information about the

selected symbol as shown in Figure 6. As common

in Eclipse, this is invoked using <Ctrl><Space>.

Common actions like undo/redo or cut, copy and

paste may be called via the “Edit” menu or by using

the usual shortcuts, for example <Ctrl><C> for

“copy” (Principle 4).

Figure 6: Code completion.

3.4 Implementation

The implementation of the new Editor Window

containing the structure editor is based on the

Graphical Editing Framework (GEF) provided by

Eclipse (The Eclipse Foundation, 2011).

GEF applies the Model-View-Controller (MVC)

design pattern that explicitly separates the data

structures themselves and the way they are displayed

in the user interface. GEF is designed in a generic

way so that any kind of model can be used. In our

case, the model is the syntax tree that was parsed

from the Lisp code. We extended the parser that

came with CUSP to enrich the individual tree

elements (e.g., to distinguish between different kinds

of symbols like function names and keyword

symbols).

Each model element is mapped to a figure which

visualizes the different type of expression or symbol.

Each change which is done using the structured

representation in the user interface is reflected to the

model. In some cases, an operation causes more than

one change. For example, typing an opening

parenthesis changes the whole structure because the

following elements have to be moved into a newly

created box. These modifications are performed in

the model and afterwards the affected elements of

the view are adjusted accordingly.

Figure 7 displays the whole process of editing a

piece of code using the structure editor. First the text

is read from the source file and directly parsed to get

the corresponding syntax tree. This is mapped to the

figures that represent the individual elements of the

tree. As mentioned before, each change which is

done by the programmer is reflected back to the

model. The corresponding Lisp code is not touched

until the user saves the current document or changes

to the textual representation. This means, using the

inserted "some code"

inserted "("

inserted ")"

inserted "<Return>"

ADVANCES IN STRUCTURE EDITORS - Do They Really Pay Off?

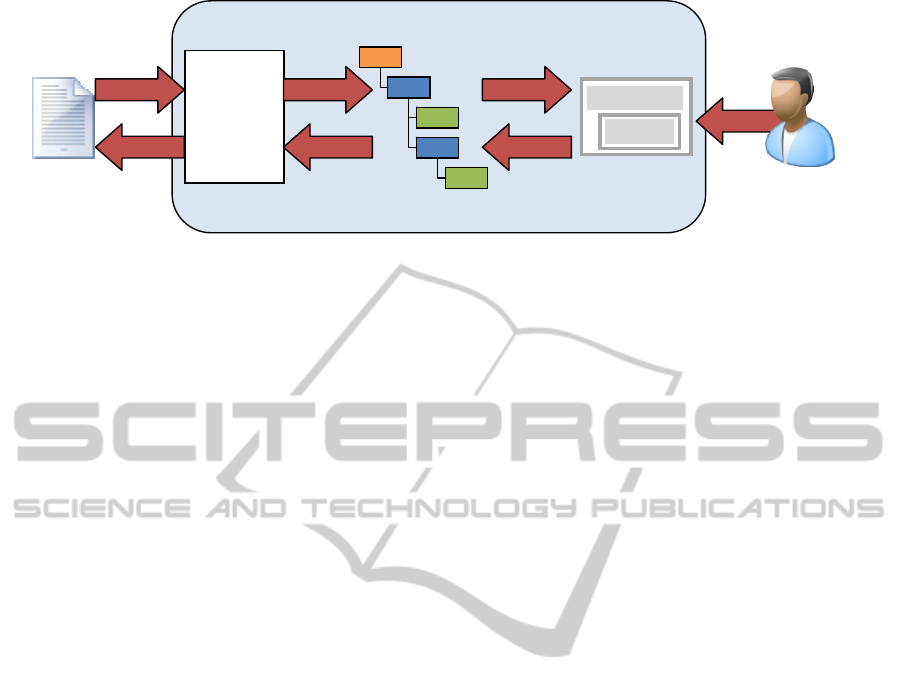

Figure 7: Changing the model using the structure editor.

structure editor, the programmer directly works on

the syntax tree of the program.

The editor takes care of performing editing

operations only if they result in a valid syntax tree.

For example, it is not possible to paste code that

contains unbalanced parentheses. If this is necessary

the programmer may circumvent this restriction

(Principle 2) by switching to the textual

representation to fix the appearing parsing errors.

The code that was edited using the structure editor

will not contain any structural parsing errors at all.

The following numbers give an impression of the

extent of the implementation of the editor. The first

one describes the newly created part of the plug-in

(including some code that was taken from GEF

samples) and the second one also incorporates the

code of the already existing CUSP-plug-in.

Lines of code (structure editor): 8290

Lines of code (entire plu

-in): 25571

4 EVALUATION

In order to evaluate the usability of our structure

editor in comparison to a common textual editor we

conducted a survey.

4.1 Survey Preparation

Following Dumas and Redish, we presume that

“usability means that the people who use the product

can do so quickly and easily to accomplish their own

task” (Dumas and Redish, 1999, p. 4). We defined

that the task we analyze by this evaluation is to

understand the meaning and the structure of a piece

of Lisp code – in other words: how the structure

editor supports the readability and comprehensibility

of the code. Considering that the users just need to

read a piece of code, we decided to conduct a survey

in terms of examining screenshots of the editor.

In literature, there are many metrics for

analyzing the usability of software such as

effectiveness, efficiency, measures of learning, and

subjective usability (cf. Bevan, 1995, Schalles et al.,

2010). We focused on measuring the efficiency and

a subjective rating of the usability.

To this end, three questionnaires were composed.

Two of them show screenshots showing a piece of

Lisp code and ten multiple-choice questions related

to the meaning of the displayed code. We produced

two versions of each questionnaire: one containing a

screenshot of the code in textual representation and

one containing a screenshot of the structure editor.

This made the results comparable. In the third

questionnaire, the participants were asked to rate

how they experienced code reading in the two

different representations and to give statements

about things they liked or disliked in the screenshots

of the structure editor.

4.2 Conducting the Survey

We conducted the survey with two different groups

of participants. The first group was a group of

second semester bachelors’ students (37 people).

They did not know Lisp before. The second group

was a team of masters’ students (13 people) who

were engaged in a development project using Lisp

and PROLOG.

Both groups were randomly (according to their

last names) divided into two groups and each group

got one version of the first questionnaire. After

exactly five minutes the students were told to stop

working and to mark how far they got in answering

the questions. For the second questionnaire, the

groups were swapped: the group that worked on a

questionnaire containing screenshots of the textual

editor first then got the ones containing screenshots

of the structure editor and vice versa. Again, the

students had five minutes time to answer the

questions. Finally, the students answered the third

questionnaire.

StructureEditor

Programmer

SourceFile

(foo

(bar))

Programtext

Write

Model

foo

bar

foo

bar

View

Generate Change

Edit

Read Parse Display

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

4.3 Results

As explained in section 4.1, the first two

questionnaires contained questions for comparing

the efficiency in reading and understanding code in

the two different representations.

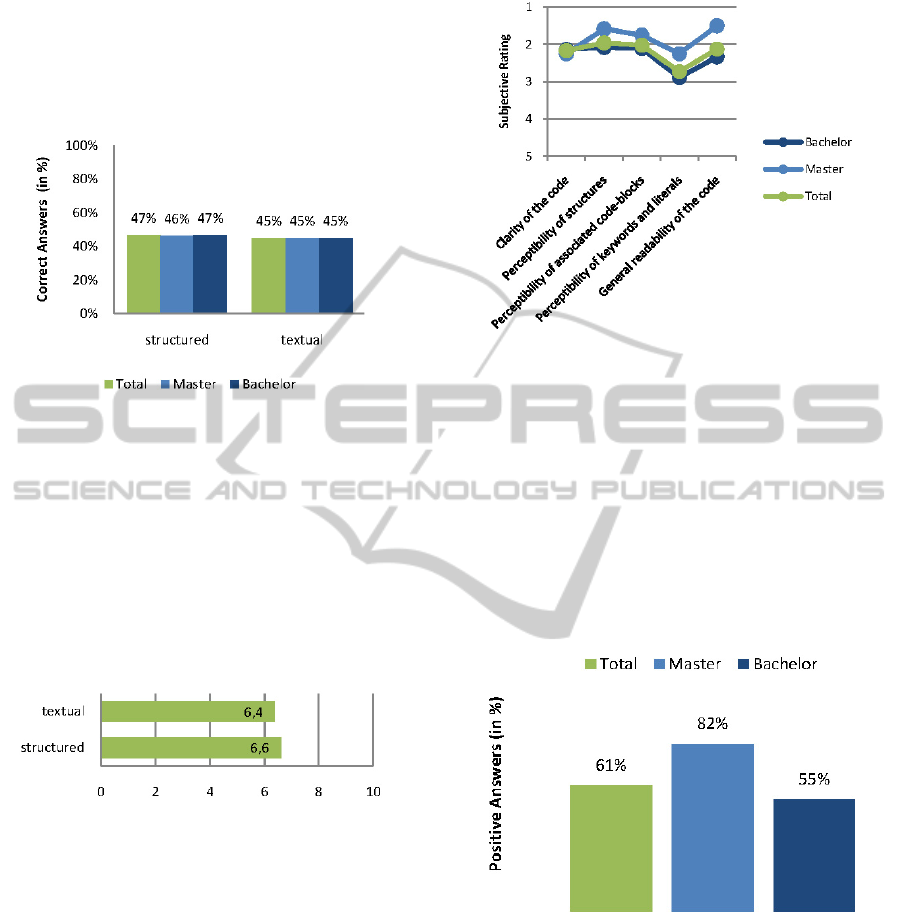

Figure 8: Efficiency results.

Figure 8 shows the cumulated results of this part

of the survey in terms of the percentage of correct

answers. As one can see, the results using the

structure editor are slightly better (2%) but there is

no significant difference.

We also examined how many questions the

students managed to answer in the rather short

period of five minutes. Figure 9 shows the results.

The students working with the structure editor did a

bit better, but again, the difference is not significant.

Figure 9: Number of finished questions.

In the third questionnaire, the participants were

asked to rate the structure editor compared to the

textual editor regarding:

 Clarity of code

 Perceptibility of structures

 Perceptibility of associated code blocks

 Perceptibility of keywords and literals

 General readability of the code

The rating was possible within a range from

“significantly better” (1) to “significantly worse”

(5). A value of 3 means “no difference”.

Figure 10 shows the result. All ratings are in the

positive half of the spectrum. Most ratings are close

to 2 which means “slightly better”. The master

students who were already experienced in working

in Lisp gave better rates than the bachelor students.

Figure 10: Subjective ratings of the structure editor.

Most of the statements the participants gave

about what they liked regarding the structure editor

pointed in a similar direction. Several people wrote

something like “code is clearly arranged” or “the

structure is clearly visible”. However, a few people

contrarily stated that they were confused by the

structured representation of the code.

In general, the diagram indicates the subjective

feeling of the participants that the structure editor

helps them reading and understanding the code

better.

Figure 11: Question "If there were a structure editor for

your favourite programming language - would you use

it?".

As a last question, we asked the participants

whether they would use such a structure editor if

there was one for their favourite programming

language. Figure 11 shows that the majority (61% in

total, 82% of the master students) would at least give

it a try. Students that voted negatively argued that

they got used to their current editor and do not want

to spend time in learning how to use a different one.

The evaluation does not reveal significant

benefits of the structure editor as one may have

ADVANCES IN STRUCTURE EDITORS - Do They Really Pay Off?

expected. Nevertheless, it shows an interesting

mismatch between the subjective ratings of the

participants in the third questionnaire and the actual

results from the first two questionnaires. This will be

discussed in Section 6.

5 RELATED WORK

We are not the first ones thinking about visualising

the structure of a program in the editor and directly

working on the syntax tree that was created from the

code. In this section we present other approaches

that were developed to achieve these goals.

5.1 Early Structure Editors

The idea of an editor which visualizes the structure

of the underlying code is not new. In 1971, Wilfred

J. Hansen presented a system called “Emily”

(Hansen, 1971) which was, in fact, a structure editor

for PL/I. The basic idea was to create a program by

recursive replacement of placeholders according to

their role in the Backus-Naur Form (BNF) notation

of the programming language. The structure of the

program and even of every command was fixed by

structures of placeholders. Emily physically stored

the whole program in a hierarchical structure that

supported descending into sub-structures along the

hierarchy. From the programmer’s point of view, it

was technically not possible to create programs that

contained syntactical errors.

Other systems that follow a similar approach are

“MENTOR” (Donzeau-Gouge et al, 1980) and the

“Cornell Program Synthesizer” (Teitelbaum and

Reps, 1981). Particularly in the Lisp community,

programmers were fascinated by the idea of working

directly on the structure of the code instead of a

textual representation. An example of a structure

editor for Lisp is Interlisp-D (Burton et al., 1980).

However, these early structure editors that are

mostly summarized as syntax-directed editors could

not satisfy the expectations and did not become

widely accepted. Looking at these ancient examples

which ran on terminals, restricted the programmers

in several ways (violating Principle 2) and were

quite tedious to use compared to a textual editor, this

seems comprehensible. But what about newer

systems based on the same idea?

5.2 Program Tree Editor

A newer example of a structure editor of a different

flavour is the “Program Tree Editor” (Yurov, 2006).

This system visualises a piece of code written in a

common programming language as a tree, similar to

a file browser. It supports C, C++, C#, Java, Java

Script, J#, XML, XHTML. Each tree node

represents a structure from the underlying code and

can be contracted and expanded. The tree structure is

created upon opening a file containing source code

and is translated back to the textual representation

when a file is saved.

The user navigates through the tree using the

keyboard and is able to edit the individual nodes

directly in the tree. Nodes can be added or removed

without the need of a mouse. Features like auto

completion are provided.

This type of editor literally implements working

on the underlying tree structure of the code.

However, we question that this kind of visualization

is particularly useful. We believe that programmers

do not think in such file browser-like tree structures

when they program. They more likely think in block

structures. This is why we designed the GUI of our

structure editor in a different way, consisting of

nested boxes that emphasise the structure in a more

discrete, but nevertheless clear way.

5.3 Subtext

A totally different approach of representing the

structure of a program is presented as a system

called Subtext (Edwards, 2007). Subtext is not based

on an existing programming language. Instead, it

introduces its own programming language that is not

based on a textual representation of code any longer

but stores its code in a database.

Using Subtext, the programmer composes

programs from combining so called schematic tables

which the author of the system describes as “a cross

between decision tables and data flow graphs” and

which are intended to replace all kinds of

conditional constructs. The basic idea behind such

schematic tables is to visualize the structure of the

program in two-dimensional way. The horizontal

axis contains the different cases of a conditional

statement (“deciding”) and the vertical axis

determines what happens if the individual cases

become active (“doing”).

Subtext seems to be quite an interesting approach

for visualizing decision structures such as nested

case statements. The greatest drawback appears to

be its lack of compatibility. Subtext cannot be used

to visualize the structure of already existing

programs written in a common programming

language (Principle 5).

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

5.4 A Structured Editor for C#

The most similar approach to our structure editor we

are aware of is a Structured Editor for C# (Osenkov,

2007). We regard it as the most capable editor of the

ones we compared. This editor also represents the

structure of the code in a discreet way by coloured

bars at the beginning of each line. The actual bounds

of a code block are shown as soon as one clicks on it

using the mouse. All syntactic delimiters like curly

brackets and semicolons are hidden, because they

are not needed any longer.

One difference is, that the programmer is forced

to change his way of typing. The delimiters are not

only hidden, they are also not typed at all. For

example, for entering the body of a C# class, the

programmer just presses the <Return> key instead of

typing a curly bracket. Our philosophy is that the

programmer may type exactly the same code with

the textual and the structural editor in order to

minimize the learning curve and to easily switch

between editors (Principle 4).

Another quite similar but even more generic

system is the “Barista” framework presented by Ko

and Myers (2006).

5.5 Structure Editors and

Language-oriented Programming

All structure editors that were mentioned so far try

to be an alternative or extension to the textual editors

that are normally used to read and edit programs. In

different ways they visualize the structure of a

program. In the context of language-oriented

programming (LOP) there is one more step of

abstraction where structure editors can be quite

useful.

The main idea of LOP is to enable domain

experts to contribute more directly to the

programmatic solution of a problem by creating the

solution using a DSL that uses the domain-specific

notation and is well suited for the appropriate

problem domain. This DSL may be an extension to

an existing programming language (internal DSL) or

a completely new language that not even has to

consist of text at all (external DSL). In the latter case

the program is created using a special kind of

structure editor (mostly called projecting editor) that

afterwards does a mapping from the program written

using the DSL to a runnable program. In that case

the structure editor is more than just an alternative

view on the program – it is actually part of the

language itself.

A system that provides a complete development

environment for external DSLs is the “Meta-

Programming-System” (Dimitirev, 2004) developed

by JetBrains, which includes an “editor language” to

create structure editors for each newly developed

DSL. Similar to this is the system called “Intentional

Software” that was proposed by Charles Simonyi

(2006).

6 CONCLUSIONS

In this paper we described layout and behaviour

principles for structure editors and presented a new

structure editor for Lisp. We also presented an

evaluation of our editor. Do structure editors really

pay off?

6.1 An Interesting Mismatch

Structure editors have been around for decades.

However, they have not succeeded in replacing

classical textual program editors.

We think that this is an interesting mismatch: on

the one hand, the concept of displaying the

underlying structure of a program and directly

working on the syntax tree is intuitively attractive.

On the other hand, this kind of editor has gained low

acceptance in practice so far.

The results of our survey revealed this mismatch,

too. The majority of the participants had the intuitive

feeling that the structure editor was superior to the

textual editor. However, the quantitative results

showed no significant improvement.

Why is this the case?

Certainly, structure editors are no silver bullet for

software engineering (Brooks, 1987). Understanding

the concepts of a programming language or

paradigm is far more difficult than coping with a

particular syntax. For example, a programming

novice who has understood the concept of classes,

inheritance, and polymorphism will not have a major

problem in getting acquainted with different

syntaxes, be it curly or other parentheses or, instead,

boxes in a structure editor. Insofar, one should not

expect an extraordinary measurable improvement in

usability.

Also, many programmers are reluctant to change

their way of programming. Our survey confirmed

this opinion. Some participants conceded that the

structure editor might be useful, but they got

accustomed to their favourite IDE and do not want

to change tools without really having to.

ADVANCES IN STRUCTURE EDITORS - Do They Really Pay Off?

This is why we integrated the structure editor

into a popular IDE like Eclipse and also provided the

textual editor as part of the plug-in. As a result, the

programmers may just use the structured

representation where this seems helpful – and

perhaps find out that this applies in more cases than

expected.

6.2 Structure Editors are Still Useful

However, we still feel that structure editors can be

useful and that programmers will slowly adapt to

them as soon as there are powerful structure editors

widely available and plugged into mainstream IDEs.

We particularly expect benefits in the context of

language-oriented programming, i.e., programming

with Domain-Specific Languages. Using external

DSLs a structure editor is needed to do the mapping

between the “domain code” (Simonyi, 2006) and the

runnable code. As expressed before, it actually

becomes part of the language itself. Even using

internal DSLs that are based on some extendable

programming language like Lisp, structure editors

can be quite useful. The DSLs most likely will be

different from widely known languages so most

users with will be novices in using them, at first. We

feel that a structure editor will help people getting

started with a new language. Similar experience was

made by Conway et al. (2000) and Myers et al.

(2004) who developed and evaluated structure

editors that were designed for programming novices

and even for children.

An experienced programmer perhaps will feel

more comfortable using a textual editor. However,

trying to understand a piece of code that was written

by someone else or some time ago can sometimes be

a difficult task. We think that in this case it would be

advantageous to be able to switch to a structured

representation of the code to get an overview and to

understand the structure of the code.

6.3 Future Work

As future work, we plan to extend our evaluation of

the structure editor towards its use in programming

DSLs. In addition to readability and

understandability of code we will examine the

effects of the editor on the learning curve for DSLs

as well as the effectiveness and efficiency of

programming.

A program editor is a tool and no silver bullet. In

the end, it is a matter of taste which kind of editor a

programmer feels most appropriate for achieving a

task – and this is a case for structure editors.

REFERENCES

Ballance, R. A., Graham, S. L., and van de Vanter, M. L.,

1992. The Pan language-based editing system. In ACM

Transactions on Software Engineering Methodology

(TOSEM), Vol. 1, pp. 95-127.

Bevan, N., 1995. Measuring usability as quality of use. In

Software Quality Journal, Vol. 4, pp. 115–30.

Borras, P., Clement, D., Despeyroux, T., Incerpi, J., Kahn,

G., Lang, B., and Pascual, V., 1988. Centaur: the

system. In SDE 3: Proceedings of the third ACM

SIGSOFT/SIGPLAN software engineering symposium

on Practical software development environments. New

York, NY, USA, ACM, pp. 14-24.

Brooks, F. P., 1987. No Silver Bullet: Essence and

Accidents of Software Engineering. In IEEE

Computer, Vol. 20, pp. 10-19.

Burton, R. R., Masinter, L. M., Bobrow, D. G.,

Haugeland, W. S., Kaplan, R. M., and Sheil, B. A.,

1980. Overview and status of DoradoLisp. In LFP '80

Proceedings of the 1980 ACM conference on LISP and

functional programming, pp. 243-247.

Conway, M., Audia, S., Burnette, T., Cosgrove, D., and

Chistiansen, K., 2000. Alice: lessons learned from

building a 3D system for novices. In CHI ‘00:

Proceedings of the SIGCHI conference on Human

factors in computing systems. New York, NY, USA,

ACM, pp. 486–93.

Dimitriev, S., 2004. Language Oriented Programming:

The Next Programming Paradigm. In onBoard, Vol. 1

Donzeau-Gouge, V., Huet, G., Kahn, G., Lang, B., 1980.

Programming Environments based on Structured

Editors: The MENTOR Experience

Dumas, J. S. and Redish, J. C., 1999. A practical guide to

usability testing. Exeter, Intellect.

Edwards, J., 2007. No Ifs, Ands, or Buts. Uncovering the

Simplicity of Conditionals. In Proceedings of the 22nd

annual ACM SIGPLAN conference on Object-oriented

programming systems and applications (OOPSLA '07)

Hansen, W. J., 1971. User engineering principles for

interactive systems. In AFIPS 1971 Fall joint

computer conference. Montvale, New Jersey, AFIPS

Press, pp. 523–32.

Humm, B. G. and Engelschall, R. S., 2010. Language-

oriented Programming via DSL Stacking. In

Proceedings of the 5th International Conference on

Software and Data Technologies (ICSOFT 2010), pp.

279–287.

Jasko, T. and Ritchey, T., 2010. CUSP - A Lisp plugin for

Eclipse. http://www.bitfauna.com/projects/cusp/.

Ko, A. J. and Myers, B. A., 2006. Barista: An

implementation framework for enabling new tools,

interaction techniques and views in code editors. In

CHI ‘06: Proceedings of the SIGCHI conference on

Human Factors in computing systems. New York, NY,

USA, ACM, pp. 387-396.

McCarthy, J., 1960. Recursive functions of symbolic

expressions and their computation by machine, Part I.

Communications of the ACM, Vol. 3, pp. 184-195.

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

Myers, B. A., Pane, J. F., and Ko, A., 2004. Natural

programming languages and environments.

Communications of the ACM, Vol. 47, pp. 47-52.

Osenkov, K., 2007. Designing, implementing and

integrating a structured C# code editor. Diploma-

Thesis, Brandenburg University of Technology.

Schalles, C., Rebstock, M. and Creagh, J., 2010. Ein

generischer Ansatz zur Messung der

Benutzerfreundlichkeit von Modellierungssprachen. In

Modellierung 2010. 24. - 26. März 2010, Klagenfurt,

Österreich, Vol. 161. Bonn, GI, pp. 15-30 (161).

Simonyi, C., 2006. Intentional Software. In Proceedings of

the 21st annual ACM SIGPLAN conference on Object-

oriented programming systems, languages, and

applications (OOPSLA '06).

Teitelbaum T., Reps T., 1981. The Cornell Program

Synthesizer: A Syntax-Directed Programming

Environment. In Communications of the ACM, Vol.

24, pp 563-573.

The Eclipse Foundation, 2011. GEF (Graphical Editing

Framework). http://www.eclipse.org/gef/.

Yurov, A. 2006. Program Tree Editor. http://www.

programtree.com/.

ADVANCES IN STRUCTURE EDITORS - Do They Really Pay Off?
