REQUIREMENTS FOR AUTOMATED ENTERPRISE

ARCHITECTURE MODEL MAINTENANCE

A Requirements Analysis based on a Literature Review and an Exploratory Survey

Matthias Farwick, Berthold Agreiter, Ruth Breu

Institute of Computer Science, University of Innsbruck, Technikerstr. 21A, 6020 Innsbruck, Austria

Steffen Ryll, Karsten Voges, Inge Hanschke

iteratec GmbH, Inselkammerstr. 4, 82008 Unterhaching, Germany

Keywords:

EAM, Enterprise architecture management, Model maintenance, Enterprise information integration, Model

evolution.

Abstract:

Enterprise Architecture Management (EAM) is the practice of modeling the business and IT artifacts in an

enterprise and relating them with each other. By documenting these interdependencies between business and

the supporting IT, strategic decisions can be made towards a planned and consolidated enterprise architecture

that matches the business needs. However, enterprise architecture models can grow very large, thus making the

manual creation and maintenance of these models a difﬁcult and time consuming task. From this, we derived

the three research questions of this paper: (i) Which related work exists on the maintenance of EA models, and

does it refer to automation techniques? (ii) Is EA maintenance automation demanded by practitioners? If yes,

(iii) What are the requirements for such an automation method and tool? In this paper we tackle these questions

by conducting a literature analysis on EA literature from research and practice. In addition, we present the

results of a survey among EA practitioners we conducted to ﬁnd out current maintenance practices. We then

describe a collection of requirements for an automated EA maintenance method and tool, that we derived

from the results of the survey, the ﬁndings in the literature review and our own experience as EA consultants.

Finally, we present several success evaluation criteria for an automated EA maintenance solution.

1 INTRODUCTION

Enterprise Architecture Management (EAM) is a

practice used in mid-sized to large organizations that

documents the relationships between business, its

supporting software and the underlying IT infrastruc-

ture. This effort is commonly made for the goals

of better aligning business and IT, enabling strategic

planning, to assess risks, and to check compliance

with legal regulations. EAM is also introduced in

many companies to enable better communication be-

tween the different stakeholders. Several enterprise

architecture (EA) frameworks have been proposed

and are in use today, such as The Open Group Ar-

chitecture Framework (TOGAF) (The Open Group,

2009), or the Zachman Framework (Zachman, 1987).

These frameworks commonly describe a metamodel

used to describe the EA data, organizational best prac-

tices and governance mechanisms.

In the practice of enterprise architecture, the cor-

responding EA models can grow very large and can

expose complex relationships between EA model el-

ements. Also, the large and complex models contin-

uously need to be aligned with the real–world enter-

prise which they are supposed to represent. For exam-

ple mergers & acquisitions, new business strategies,

changing market requirements, or the exploration of

new markets can immensely change the business and

IT architecture of an enterprise. This combination of

complex and evolving models means that a large ef-

fort needs to be put into keeping EA models in–sync

with what they represent in the real world.

Many recent publications from research (Fischer

et al., 2007; Hafner and Winter, 2008) and practice

(Hanschke, 2009; The Open Group, 2009; US De-

partment of Defense, 2010), have focused on the EA

management processes that need to be implemented

in order to keep EA models up-to-date and increase

325

Farwick M., Agreiter B., Breu R., Ryll S., Voges K. and Hanschke I..

REQUIREMENTS FOR AUTOMATED ENTERPRISE ARCHITECTURE MODEL MAINTENANCE - A Requirements Analysis based on a Literature

Review and an Exploratory Survey.

DOI: 10.5220/0003429203250337

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 325-337

ISBN: 978-989-8425-56-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

the return on investment (ROI) for EA efforts. In fact,

there exists evidence that organizational and people-

oriented strategies are the key success factors for EA

initiatives (Ambler, 2010). This explains why most

EA literature has so far only addressed the optimiza-

tion of organizational EA strategies.

However, the evolutionary characteristic of EA

models, that forces EA practitioners to continuously

update the models manually, has yet only been ad-

dressed via these management strategies, hence the

problem of cumbersome manual EA model mainte-

nance persists. No publications could be identiﬁed

that actually looks at automated tool-aided strategies

to keep EA models up-to-date. Therefore, we con-

ducted a survey to ﬁnd out whether automation mech-

anisms are actually demanded in practice, and if yes,

which kinds of features are desired for such a sys-

tem. In this paper we collect the ﬁndings of the sur-

vey, related work and our own experience in the ﬁeld,

to compile a set of requirements for a tool that aids

automated EA maintenance. These requirements can

then later on be used to create technical solutions to

reduce the manual effort of EA maintenance.

The paper is organized as follows: the follow-

ing section outlines the motivation for conducting this

work and describes the contribution. In Section 3 rel-

evant related work on EA and automated information

retrieval is presented. After that, Section 4 describes

the survey setup and survey responses about how en-

terprise architecture management is currently done in

practice, and in particular where the practitioners see

room for improvement. The discussion of survey re-

sponses continues in Section 5 where a set of require-

ments for automated EA model maintenance is de-

veloped by referring to the responses and previously

introduced related work. To be able to determine

whether a future tool for automated model mainte-

nance fulﬁlls the expectations of the respective stake-

holders, Section 6 sketches success evaluation crite-

ria. Finally, Section 7 concludes and gives an outlook

on future work.

2 MOTIVATION &

CONTRIBUTION

According to (Winter et al., 2010) and (Buckl et al.,

2009b) the majority of EA practitioners rely on the

manual input of changes to an EA model, without any

automation of EA model updates. While it is realis-

tic to assume that manual data input will be the main

source of changes to EA repositories in the foresee-

able future, we still identiﬁed signiﬁcant room for im-

provements in this area, from our experience in the

ﬁeld, and discussions with experts.

We argue that the next step to increasing produc-

tivity, efﬁciency and ﬁnally ROI of EA initiatives can

be reached by automating the maintenance processes

for EA models. By automated maintenance we refer

to the automated update, or addition, of model ele-

ments in a EAM tool, with minimal human interven-

tion.

To ﬁnd out whether this kind of automated main-

tenance is demanded, and which type of information

sources are appropriate, we conducted an online sur-

vey among practitioners.

The contribution of this paper is twofold. First, we

give an overview of literature that supports the above

claim that EA maintenance needs to be improved. We

further conﬁrm it by the results of the survey. Second,

we derive high-level requirements for a tool support-

ing automated EA maintenance by using the results of

the survey, related literature and our own experience

as EA consultants with the company iteratec GmbH.

In addition we describe high-level evaluation criteria

that can be used to evaluate a system that implements

the deﬁned requirements.

3 BACKGROUND & RELATED

WORK

In ANSI/IEEE 1471 (IEEE Computer Society, 2000)

the term “architecture” is deﬁned as “The fundamen-

tal organization of a system, embodied in its compo-

nents, their relationships to each other and the en-

vironment, and the principles governing its design

and evolution”. Thus, enterprise architecture man-

agement is the practice of relating and documenting

the business and IT components of an organization.

The publication by Winter and Fischer (Winter and

Fischer, 2007) gives an overview of the common ar-

tifacts and layers of the models that are often created

in the course of EA initiatives. An important charac-

teristic of EA is that not only models of the current

architecture are created, but also of future to-be ar-

chitectures. These to-be architectures are the goal to

which the sum of all transformations of the enterprise

architecture should ultimately lead. The reasons why

EAM initiatives are started in companies are mani-

fold. One of the most typical reasons is its capability

of fostering business/IT alignment. However, there

exist many other reasons why EAM is applied, such as

architecture documentation, standardization, and en-

suring regulatory compliance (Winter et al., 2010).

In the following we introduce enterprise architec-

ture frameworks and discuss how they relate to EA

model maintenance. After that, we look at research

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

326

publications that focus on EA maintenance manage-

ment processes to ﬁnd out whether they are capable to

support automated EA maintenance. We then discuss

related work in the ﬁeld of automated systems opera-

tions maintenance and EA model change propagation.

Finally, we discuss which automated EA maintenance

features are exposed by current EA tools.

Enterprise Architecture Frameworks. Since one

of the ﬁrst comprehensive EA frameworks, the Zach-

mann framework (Zachman, 1987), was published in

1987, many different EA frameworks for differing do-

mains have been proposed, reﬁned and put into prac-

tice. Among these are the frameworks with a gov-

ernmental background such as Department of De-

fence Architecture Framework (US Department of

Defense, 2010) and the Federal Enterprise Architec-

ture Framework (Chief Information Ofﬁcers Council,

2007), as well as frameworks such as TOGAF (The

Open Group, 2009) which are developed indepen-

dently from governmental bodies. In addition, there

exist different EA modeling notations such as Archi-

Mate (Lankhorst, 2005) and UML proﬁles. In gen-

eral, such EA frameworks prescribe the type of arti-

facts to collect in an EA model, different views on

these models, and organisational aspects of EA initia-

tives. However, these frameworks fall short of con-

crete advice for how to collect EA data and maintain

its quality attributes actuality, consistency and accu-

racy (Buckl et al., 2010). For example, the Architec-

ture Development Method (ADM) embedded in TO-

GAF simply states that some kind of “monitoring”

should be applied to keep the models up-to-date, but

does not state what this implies in practice.

EA Management Processes. Since we want to

identify related work in automated EA maintenance,

we now look at EA management publications that in-

vestigate the maintenance of EA models. There ex-

ist many publications in the area of EA management

methods and organizational strategies. However, lit-

tle work was found that actually discussed the auto-

mated maintenance of EA repositories. Or as Buckl et

al. put it in their recent literature analysis: “Identify-

ing, gathering, and maintaining knowledge about the

EA is a challenge, which is only recently addressed by

isolated approaches . . . the analyzed EA management

methods do not detail on how to acquire and incor-

porate knowledge from other sources” (Buckl et al.,

2010).

Several publications recognize that EA model

maintenance is challenging due to its evolutionary

character such as (Hafner and Winter, 2008) and

(Buckl et al., 2010), but do not further investigate on

how to improve the current methods via automation.

Buckl et al. conducted a survey to elicit the cur-

rent state of EA practice in organizations. They re-

port a high interest of their survey participants for

automated EA information gathering (Buckl et al.,

2009b). In particular the respondents showed inter-

est in the automated integration of information from

Conﬁguration Management Databases (CMDBs) into

their EA repositories. Again, no follow up publica-

tions could be found on these ﬁndings.

In another publication by Buckl et al. the authors

acknowledge the evolutionary characteristic of EA

and describe a meta-model that incorporates tempo-

ral information into the models (Buckl et al., 2009a).

According to them this enables that time-based re-

evaluation events can be ﬁred, and enables to check

whether projects are on time.

Only very few publications were identiﬁed that

propose a concrete maintenance process for EA,

which could possibly be automated. Among these

is the paper by Fischer et al. (Fischer et al., 2007)

who propose an EA maintenance process in which

all information providers to EA (e.g. departments)

are responsible for maintaining their EA data them-

selves and for providing it to a federated EA repos-

itory. They argue that by this federated approach,

the data quality is kept high since each stakeholder

can work with the kind of management tool he is fa-

miliar with. However, the authors state that the pro-

cess has not been implemented on an automated level

and no concrete requirements have been identiﬁed for

an implementation. Another publication which pro-

poses an automated maintenance process is the work

by Moser et al. (Moser et al., 2009). Their paper

discusses several EA process patterns which, accord-

ing to them, are recurring best practices they apply

in organizations they consult. One of these patterns

is called “Automatic Data Acquisition/Maintenance”.

They also state that an “adequate EAM tool needs to

be in place”, but do not state exact requirements for

such a tool. This further conﬁrms the research direc-

tion of our work. Hafner & Winter propose an en-

terprise application architecture management process

(Hafner and Winter, 2008). However, they do not dis-

cuss the possible automation of this process. In (Far-

wick et al., 2010) we describe a method and process

to integrate infrastructure cloud instances into an en-

terprise architecture tool. There we focused on the

speciﬁc requirements for integrating cloud interfaces,

whereas in the current publication we concentrate on

a generic solution to automated EA maintenance.

Automated Conﬁguration Management. A num-

ber of recent publications have looked at the problem

REQUIREMENTS FOR AUTOMATED ENTERPRISE ARCHITECTURE MODEL MAINTENANCE - A Requirements

Analysis based on a Literature Review and an Exploratory Survey

327

of automating updates of conﬁguration data in Con-

ﬁguration Management Databases (CMDB) (OGC,

2007). Although, the granularity of the data kept

in such repositories is more ﬁne-grained than typi-

cal EA information items, these approaches are rel-

evant from a technical point of view. Konstantinou

and Yemini describe a distributed conﬁguration man-

agement data layer that is based on a peer-to-peer ar-

chitecture (Konstantinou and Yemini, 2009). A dif-

ferent approach is followed by Tanner et al. who pro-

pose a semantic integration strategy to collect man-

agement data (Tanner and Feridun, 2009). An inter-

esting development is also the standardization effort

by the Distributed Management Task Force (DMTF),

called Conﬁguration Management Database Federa-

tion (CMDBf) (DMTF, 2010). This speciﬁcation pro-

poses standard interfaces and a reference architecture

for the exchange of systems operation management

data. However, it is yet unclear whether the speciﬁ-

cation will ﬁnd wide-spread adoption among EA tool

and enterprise information system vendors.

EA Change Propagation. Recently the problem of

change propagation in EA models was discussed in

several papers. De Boer et al. conceptually de-

scribe a method for calculating change impact within

the ArchiMate EA modeling language (De Boer, F.S.

et al., 2005). A more sophisticated approach is pre-

sented by Dam et al. (Dam et al., 2010) who pro-

pose a logic-based approach to automatically infer

secondary changes, after an initial change to a model,

that need to be performed in order to maintain con-

sistency of an EA model. In another publication on

change in EA models Kumar et al. (Kumar et al.,

2008) create an enterprise interaction ontology to cal-

culate impacts of changes in EA models. Although,

both are promising approaches to change propagation

and change impact analysis, the papers do not discuss

how the initial changes can be detected in an auto-

mated way.

Current EA Tool Landscape. The landscape of

Enterprise Architecture Management tool support has

grown and matured in the last decade. It ranges from

large scale commercial tools like Troux

, to open-

source EA applications like the Essential Project

Seven years ago ter Doest and Lankhorst stated in (ter

Doest and Lankhorst, 2004):

“We expect that in 7 years from now, enterprise ar-

chitecture will be a real-time tool for management

http://www.troux.com last retrieved 1/22/11

http://www.enterprise-architecture.org last retrieved

1/22/11

and redesign of the enterprise for better performance,

ﬂexibility and agility. (. . . ) There will no longer (be) a

boundary between the descriptive nature of architec-

ture models and the operational side comprising a.o.

business process management and IT management.”.

However, today this vision has not yet materialized.

Current EA tools are restricted to import and export

of speciﬁc exchange formats such as XMI or Excel.

Also, vendors tend to create speciﬁc integrations with

external tools from either the own tool suite, or se-

lected partner companies. The current Gartner Magic

Quadrant for Enterprise Architecture Tools gives an

overview of the capabilities of current commercial EA

tools (Wilson, 2010).

4 SURVEY SETUP & GENERAL

FINDINGS

The discussion of related work in the previous sec-

tion shows that there is little literature that is specif-

ically targets automated EA maintenance. A reason

for this could potentially be that such features are not

required in practice. Thus, one of the reasons why

we conducted the survey, was to ﬁnd out whether

EA automation is demanded in practice and whether

practitioners are satisﬁed with their current EA main-

tenance processes and tool support. Secondly, we

wanted to ﬁnd out how EA maintenance is actually

conducted in companies, and which tool support is

demanded to aid EA maintenance. The ﬁndings of

this second part are described in Section 5.

Our survey was conducted as an online poll with

34 questions and was created in collaboration with the

EAM tool vendor iteratec. Survey participants were

personally invited via e-mails, and calls for participa-

tion were posted in EA-focused online communities.

The survey consisted of several general questions

regarding the industry sector and the country of oper-

ation, as well as questions regarding the respondents’

conﬁdence with EA topics. In addition, it asked

for the years of experience of the respondents and

whether the company of the respondent currently ap-

plies an EA initiative. This allowed to raise the quality

of the results by eliminating respondents which had

little EA experience or did not currently work in the

ﬁeld. With the remainder of the questions we tried to

elicit current EA practices and the requirements that

the practitioners envision for automated EA mainte-

nance.

The survey was open for 25 days and 43 com-

pleted responses were gathered. From these responses

11 participants reported that their company is cur-

rently not involved in an EA project and additional 3

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

328

respondents reported that they only have little conﬁ-

dence in EA topics. These responses were discarded,

leading to a sample size of 29 responses (n=29). The

language of the survey was English to avoid that only

persons from a speciﬁc geographic area could partici-

pate. However, it is not possible to state how well the

respondents represent the set of all EA practitioners.

4.1 General Findings

Demographics. The majority of the survey partic-

ipants resides in Europe, with Germany having the

highest participation rate of 38%. Another 17% of

the participants reside in the USA, 14% in the United

Kingdom, and the remainder was distributed over sev-

eral European and Asian countries.

The industry sector of survey the participants was

fairly distributed with the Finance/Insurance/Banking

sector being represented the most by 28% of the par-

ticipants (see Figure 1).

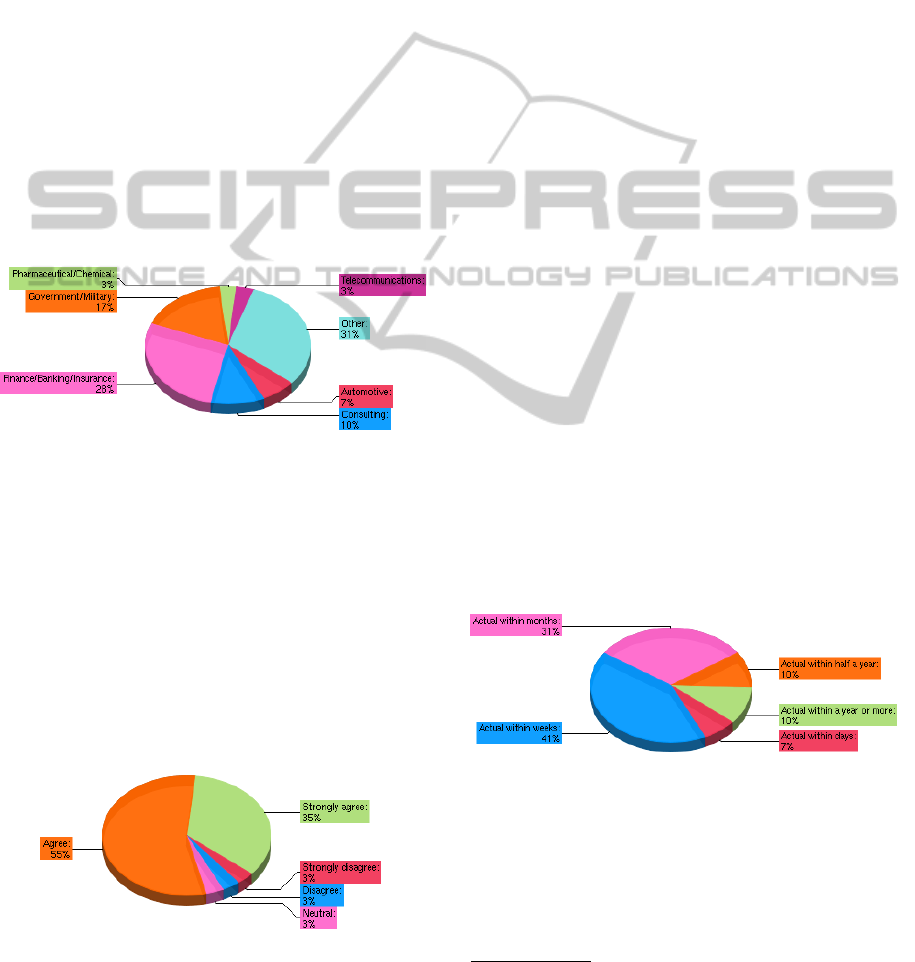

Figure 1: The industry sectors of the survey participants.

Current EA Processes. 90% of the survey partici-

pants agreed or strongly agreed to the statement “The

manual collection and maintenance of EA data in a

sufﬁcient quality, is one of the major challenges of

EA practice.” (Figure 2). Also, 55.2% state that

the amount of manual EA data collection is “barely

acceptable” (41.4%) or even “inaccaptable” (13.8%).

This clearly highlights that there is a demand in prac-

tice to optimize the data collection methods and pro-

cesses for EA projects and shows that the current sit-

uation is not satisfactory to many.

Figure 2: Results for the question: “Do you agree with

the following sentence: The manual collection and mainte-

nance of EA data in a sufﬁcient quality, is one of the major

challenges of EA practice.”?

To gather more insights on the goals of the partic-

ipating EA practitioners, we asked them to sort a list

of goals according to their priorities. These are the

results

1. Business to IT Alignment (Score 133).

2. Strategic Planning (Roadmapping) (Score 120).

3. Architecture Documentation (Score 88).

4. Identiﬁcation of Possible Savings (Score 88).

5. Decision Support (Score 83).

6. Regulatory Compliance (Score 66).

Furthermore, out of all respondents, 45% reported

that their EA repository is maintained by the EA re-

sponsibles in a continuous manner. 35% declared that

their repositories are updated in recurring efforts, and

21% indicated that they use a different scheme. Of

those who update in recurring efforts, 50% reported

that their repository is updated every two months or

in even longer intervals. The other 50% stated that

the repository is updated on demand. These ﬁndings

indicate that almost one ﬁfth (17.5%) of the partici-

pants rely their decisions on data which is potentially

as old as two months. We also asked the question

of what level of actuality is desired for the EA goals

in the organization (see Figure 3). 48% of the respon-

dents stated that the actuality within days or up to four

weeks is appropriate for their purpose. However, out

of these 48%, 42.8% were from the group that indi-

cated update cycles that are longer than two months

(roughly 20% of all participants). This possibly indi-

cates that there is a disparity between the desired and

the effective actuality of data in some organizations.

Further investigation is, however, needed to conﬁrm

this ﬁnding.

Figure 3: Desired actuality of EA data for the goals of the

respondents.

One of our primary interests was to ﬁnd out

whether automation techniques are actually applied in

the current EA practice of the respondents. 20.7% ac-

tually indicated that they are using automated mecha-

nisms to update their EA repository. However, no re-

Score is a weighted calculation. Items ranked ﬁrst are

valued higher than the following ranks, the score is the sum

of all weighted rank counts.

REQUIREMENTS FOR AUTOMATED ENTERPRISE ARCHITECTURE MODEL MAINTENANCE - A Requirements

Analysis based on a Literature Review and an Exploratory Survey

329

spondent further described this automation in the op-

tional clariﬁcation text ﬁeld.

Current EA Model Element Coverage and Desired

Coverage. In a different set of questions, we wanted

to elicit which type of collected data in an EA repos-

itory exhibits a mismatch between the percentage of

actually collected EA elements and the desired per-

centage to be collected. Furthermore, we wanted to

obtain a quantiﬁcation of how big the gap among

them is. Here, we asked, for example, what percent-

age of infrastructure elements is currently covered in

the EA repository, and what percentage would be con-

sidered as optimal for the EA goals of the enterprise.

Figure 4 shows the average over the responses for the

element types infrastructure element, project, and in-

formation system.

Current

Infrastructure

Coverage

Desired

Infrastructure

Coverage

Current Project

Coverage

Desired Project

Coverage

Current

Information

System Coverage

Desired

Information

System Coverage

Avg.

43,9 69,1 49,5 73,8 62,7 82,4

Average %

Current vs. Desired Element Coverage Average Response

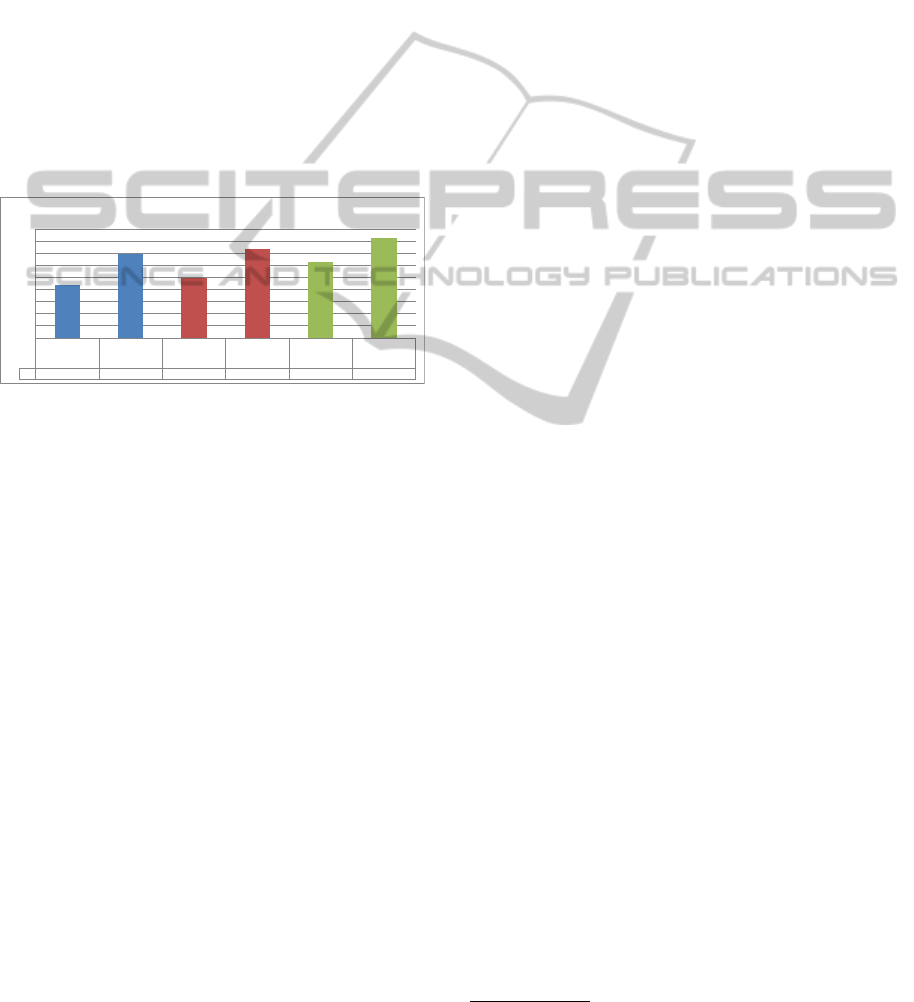

Figure 4: Current vs. desired EA element coverage.

An obvious pattern that can be seen in the chart is

that the respondents are not satisﬁed with the cover-

age of the respective EA information items, i.e. the

desired coverage is always higher than the actual cov-

erage. The demand for a high coverage of information

systems is the highest with 82.4%. Desired coverage

for infrastructure is the lowest on average, however

the discrepancy between the current and desired state

is the largest. The reason for this could be that it is

more difﬁcult to acquire a complete picture of the IT

infrastructure, than a complete picture of existing in-

formation systems in an organization. Again, automa-

tion methods might be able to aid this situation.

Desired Features & Information Sources. With

another set of questions we wanted to evaluate the

subjective usefulness that the respondents see in spe-

ciﬁc automation solutions. Figure 5 gives an overview

of the results. The participants were asked to rank the

usefulness of a speciﬁc feature on a Likert scale from

1 to 5, where 1 corresponded to “Not useful” and 5

corresponded to “Very useful”. Similar to the chart of

Figure 4, the detection of information system-related

data is regarded to have the highest usefulness by the

participants. The automated detection of project in-

formation has the lowest outcome in this evaluation.

A reason for this might be that information about

projects is relatively easier to gather than infrastruc-

ture and information system data items. Thus, an au-

tomation of this collection might be of lower value

since it saves less time.

In addition we wanted to ﬁnd out which types

of data sources the participants deemed important.

Therefore, we presented them a list of possible in-

formation sources to rank them. The results are de-

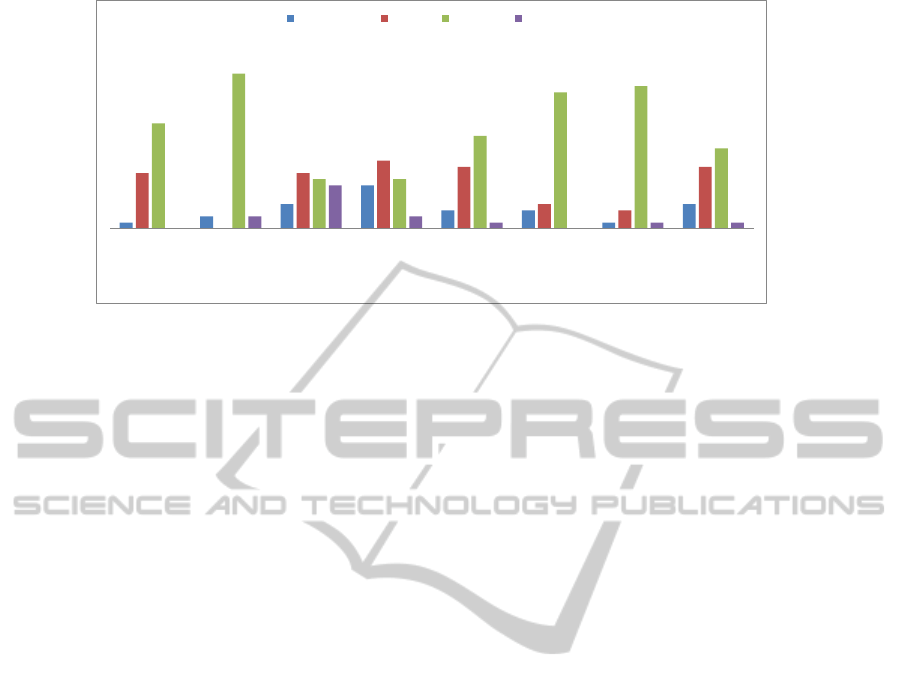

picted in Figure 6. It can be seen that the integration

of CMDBs has the highest interest among the partici-

pants. In addition the integration of business process

engines and existing databases rank almost equally

high. It is also interesting that almost one quarter

of the participants selected the “Don’t know” option

regarding the integration of Cloud APIs. A reason

for this might be that the concept of cloud computing

for infrastructure provision has not fully arrived in the

mainstream yet and not used in all organizations. We

have presented a process for integrating infrastructure

cloud instances into enterprise architecture manage-

ment in (Farwick et al., 2010). In addition, it can be

stated that no integration source seems to be unimpor-

tant in general.

The participants had the opportunity to add their

own suggestions on possible information sources.

Among these were Enterprise Service Bus Conﬁg-

urations (interfaces), monitoring tools like Nagios

organizational information from governance and or-

ganization management tools, ﬁnancial planning sys-

tems, mainframe applications, and Microsoft Visio.

Data Quality Attributes. In order to assess the re-

quirements for data quality of an automated EA main-

tenance mechanism, we asked the survey participants

to rank different data quality attributes. The results

are the following:

1. Correct Granularity - data is represented at the de-

sired level of abstraction (Score 75).

2. Consistency - data contains no errors and contra-

dictions (Score 73).

3. Actuality - data is up-to-date (Score 60).

4. Completeness - data covers all desired elements

(Score 52).

The results show that the correct granularity and con-

sistency of the data in an EA repository are valued

highest by the participants. One can see that correct

and consistent data is much more important than very

current information. The participants were also able

http://www.nagios.org last retrieved 1/24/11

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

330

1 1,5 2 2,5 3 3,5 4 4,5 5

Detection of changes to existing projects in EA repo.

Detection of new projects

Detection of changes to existing infrastructure in EA repo.

Detection of new infrastructure elements

Ability to define and calculate KPIs from runtime information

Detection of changes to existing information systems in EA repo.

Detection of new information systems

Detection of interfaces between information systems

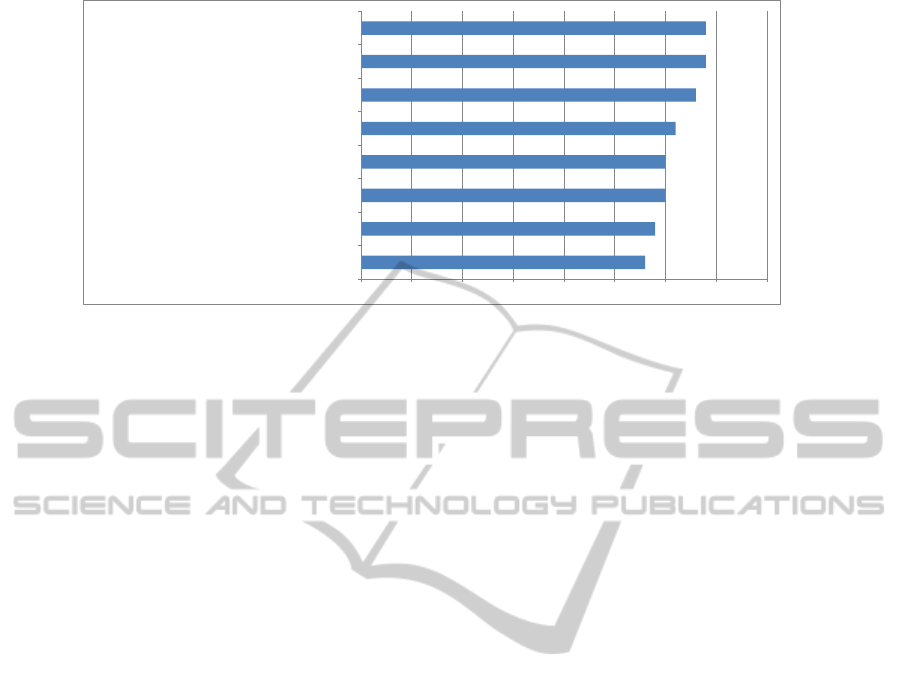

Figure 5: Average subjective usefulness of selected features, where 1 corresponds to “Not useful” and 5 corresponds to “Very

useful”.

to suggest own data quality attributes that they con-

sider important. This resulted in the suggested data

quality attributes of being able to ﬁnd out the data

owner, and the ability to determine the source for a

datum.

In this section we have discussed the results of our

survey on automated EA maintenance. As a ﬁnal re-

mark it can be stated that the general response to the

idea was positive and that the majority of the respon-

dents are in demand for automation. However, several

participants expressed doubts whether the investment

in automated EA maintenance will result in sufﬁcient

value. We fully agree that it is important to calcu-

late the value of such a solution, therefore we present

success evaluation criteria in Section 6, after we de-

scribed our collection of requirements for automated

EA maintenance in the next section.

5 REQUIREMENTS FOR

AUTOMATED EA MODEL

MAINTENANCE

The general ﬁndings of the survey already indicate

that automated model maintenance could reduce EA

modeling efforts, and that it would contribute to bet-

ter meet desired EA element coverages. This, and the

related work discussed in Section 3, underlines our

assumption that automated EA maintenance is a rel-

evant need in practice and that current tool support

does not fulﬁll this need in a satisfactory manner.

As a ﬁrst step in the direction of an EA tool that

aids EA practitioners to collect relevant EA data from

the enterprise environment, we present a set of re-

quirements for such a tool in this section. Our basic

vision is a system which automatically collects data

from various sources into a central repository. These

sources could be runtime systems, such as application

servers and information systems like project portfo-

lio management tools, or low–level sensors that mon-

itor infrastructure elements. In addition, the system

should help in keeping the data quality high and pro-

vide a computer aided process to guide manual and

automated data collection.

The requirements presented in this section were

derived from the following information sources:

• Related work (see Section 3).

• Our own experience as EA consultants.

• Input from users of EA tool iteraplan.

• Results of our survey.

Table 1 summarizes these requirements which we

have split into six categories. The table also lists the

sources of the speciﬁc requirements. In the following

we discuss the requirements of each section in detail.

5.1 Architectural Requirements (AR)

The architectural requirement stems from the hetero-

geneous environment that most enterprises are cur-

rently faced with. It is supposed to help integrating

the system into enterprises that have physically dis-

tributed departments which can hinder the informa-

tion ﬂow.

AR 1 - The Collection of EA Data must be Federated

from the Repositories of the Data Owners. This re-

quirement is inspired by (Fischer et al., 2007). They

argue that if data is collected at the side of the data

owners, these owners can use the data collection and

modeling tools they are familiar with. The automa-

tion mechanism must then collect and integrate the

data into the central EA repository. Another publica-

tion supporting this requirement is (Breu, 2010).

REQUIREMENTS FOR AUTOMATED ENTERPRISE ARCHITECTURE MODEL MAINTENANCE - A Requirements

Analysis based on a Literature Review and an Exploratory Survey

331

Table 1: Requirements for automated EA models maintenance.

ID Description Source

Architectural Requirements (AR)

AR 1 The collection of EA data must be federated from the repositories of the data owners

(departments etc.)

Survey & (Fischer

et al., 2007; Farwick

et al., 2010) & own

experience

Organizational Requirements (OR)

OR 1 An organizational process must be in place that regulates the maintenance of EA

models

(Fischer et al., 2007;

Moser et al., 2009;

Hanschke, 2009) &

own experience

OR 1.1 The organizational maintenance process must be supported by a technical process Implied by OR 1

OR 1.2 The system must be able to adapt the maintenance process to the existing processes

in a company

Implied by OR 1.1

OR 2 Each data source must have an owner/responsible (Fischer et al., 2007;

Hanschke, 2009)

OR 2.1 The technical maintenance process must allow for delegation of rights to ensure that

the QA process is always executable

Implied by OR 2

Integration/Data Source Requirements (IR)

IR 1 The system must be able to detect changes in the real world enterprise architecture Survey & (Moser et al.,

2009; ter Doest and

Lankhorst, 2004) &

own experience

IR 1.1 The system must provide a mechanism to deﬁne the mapping from incoming data

to the internal data structure

(Moser et al., 2009)

implied by IR 1

IR 1.2 The system must be able to detect changes to the infrastructure Survey & own experi-

ence

IR 1.3 The system must be able to detect interfaces between information systems Survey & own experi-

ence

IR 1.4 The system must be able to detect changes to information systems Survey & own experi-

ence

IR 1.5 The system must be able to integrate information about projects Survey & own experi-

ence & (Buckl et al.,

2008)

IR 2 The system must have a machine understandable internal data structure (Tanner and Feridun,

2009)

IR 2.1 The system must be able to be conﬁgured to transform incoming data, to the internal

machine understandable data format

Implied by IR 2

Data Quality Requirements (DQR)

DQR 1 The system must provide mechanisms that help the QA team to ensure data consis-

tency

Survey & (Hafner and

Winter, 2008)

DQR 2 The system must provide mechanisms to ensure data actuality that is sufﬁcient for

the EA goals

Survey & own expe-

rience & (Hanschke,

2009)

DQR

2.1

Each element in the systems data structure must have a creation time stamp and an

expiration date (volatility)

Implied by DQR 2

DQR 3 The system must provide mechanisms to adjust the granularity of data Survey & Implied by IR

1.1

DQR 4 The system must provide mechanisms that allow for the automated propagation of

changes

(Dam et al., 2010)

DQR 5 The system must be able to identify and resolve data identity conﬂicts from different

sources via identity reconciliation

Implied by AR 1 &

(Fischer et al., 2007)

Functional System Requirements (FR)

FR 1 The system must allow for the deﬁnition of KPIs calculations Survey & (Hafner and

Winter, 2008)

FR 2 The system must be able to calculate the deﬁned KPIs from runtime information Survey & (Hafner and

Winter, 2008)

Non-functional Requirements (NFR)

NFR 1 The system must scale for large data input Own experience &

(Hafner and Winter,

2008)

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

332

3 3

8 8

1 1

Project Portfolio

Management

Tools

CMDB

(Configuration

Management

Database)

CLOUD APIs Sensors in

Physical Servers

(Datacenter)

Sensors in

Application

Servers

Existing

Databases

Sensors in

Business

Process Engines

Spreadsheets

Not important Neutral Important Don't know

Figure 6: Answers to the question “Which information sources to automatically feed data into an EA repository do you

consider important?”.

5.2 Organizational Requirements

The following requirements stem from acknowledg-

ing that a full automation without human interven-

tion is unrealistic. In addition, a key aspect of the

EA practice is modeling, which is a creative task that

cannot be done by machines. Therefore, the follow-

ing requirements put EA maintenance in its organiza-

tional context, by identifying stakeholders and owners

as well as deﬁning organizational processes.

OR 1 - An Organizational Process must be in Place

that Regulates the Maintenance of EA Models.

This basic requirement that has been stated in (Fis-

cher et al., 2007; Moser et al., 2009) requires an or-

ganizational process in which the responsibilities of

the federated data providers and the data owners are

deﬁned.

OR 1.1 - The Organizational Maintenance Process

must be Supported by a Technical Process. This re-

quirement is implied by OR 1 since the organizational

process needs to be guided by a technical process that

helps the process participants to fulﬁll required tasks

and perform maintenance activities in the desired in-

tervals. With technical process we mean that the orga-

nizational process is actually executed as a workﬂow

in a business process engine, that presents all stake-

holders the tasks they need to execute in a task list.

OR 1.2 - The System must be Able to Adapt the

Maintenance Process to the Existing Processes in a

Company. The technical process of OR 1.1 must be

adaptable in such a way that it can be integrated into

the existing organizational processes of an enterprise.

OR 2 - Each Data Source must have an

Owner/Responsible. This requirement demands the

assignment of ownership to a data source. This en-

ables the recognition of the source of each data item

in the repository which is an important aspect of the

quality assurance process of the EA data (see data

quality requirements Section 5.4). For example, it is

needed if new data is pushed from a federated data

source to the central EA repository for data integra-

tion and data conﬂicts occur that cannot be resolved

automatically. In this case the data owner could be

notiﬁed by the automated QA process to resolve the

conﬂict.

OR 2.1 - The Technical Maintenance Process must

Allow for Delegation of Rights to Ensure that the

QA Process is Always Executable. This require-

ment is implied by the requirement OR 2. In case

a speciﬁc data owner cannot fulﬁll the task of resolv-

ing a data conﬂict issue, she needs to be able to dele-

gate the right of modifying the data to another person.

Thus, the QA process can proceed.

5.3 Integration/Data Source

Requirements

The following requirements relate to the types of data

sources and the type of data format that is needed.

IR 1 - The System must be Able to Detect Changes in

the Real World Enterprise Architecture. As a basic

requirement, the desired system must be able to detect

changes in the real enterprise and relate those to the

the elements in the EA repository. This is one of the

essential features expressed in Doest & Lankhorst’s

vision of future EA tools support in (ter Doest and

Lankhorst, 2004). The information sources could po-

REQUIREMENTS FOR AUTOMATED ENTERPRISE ARCHITECTURE MODEL MAINTENANCE - A Requirements

Analysis based on a Literature Review and an Exploratory Survey

333

tentially be anything from low–level infrastructure in-

formation, over information from release and license

management tools, up to high–level governance tools.

The importance here is that the data can potentially be

abstracted and combined into a granularity that is ap-

propriate for EAM.

IR 1.1 - The System must Provide a Mechanism to

Deﬁne the Mapping from Incoming Data to the In-

ternal Data Structure. This requirement is implied

by requirement IR 1 since it is unrealistic to assume

that all federated data sources expose the same data

schema as the central EA repository (Moser et al.,

2009).

IR 1.2 - The System must be Able to Detect Changes

to the Infrastructure. As it can be seen in the result

of the survey presented in the previous section, the

discrepancy between the amount of infrastructure el-

ements in the repositories, and the amount that should

optimally be covered is the highest among the survey

participants. Therefore, it is important that automated

detection of infrastructure changes are included in a

solution.

IR 1.3 - The System must be Able to Detect Inter-

faces between Information Systems. As it can be

seen in the results from our survey presented in Sec-

tion 4, the automated detection of interfaces between

information systems had the highest value for the sur-

vey participants. Therefore, an automation method

needs to be provided that can infer the interfaces be-

tween information systems on a high level of abstrac-

tion.

IR 1.4 - The System must be Able to Detect Changes

to Information Systems. Similar to requirement IR

1.3 this requirement seemed to have much value to

the survey participants. More speciﬁc requirements

for this are also deﬁned in (Hafner and Winter, 2008)

IR 1.5 - The System must be Able to Integrate Infor-

mation about Projects. It is basic practice in EA to

relate projects in an organization to architecture ele-

ments that are affected by the project. This require-

ment is also identiﬁed in (Buckl et al., 2008).

IR 2 - The System must have a Machine-

understandable Internal Data Structure. In order

to solve semantic heterogeneity between information

sources and to facilitate data quality assurance, the

system should have an internal data structure that is

machine–understandable. This kind of semantic inte-

gration is described in (Tanner and Feridun, 2009).

5.4 Data Quality Requirements

Data quality is a major concern in the practice of

EA since the decisions made on the basis of EA data

can only be as good as the data they are based on.

Therefore, this section describes several data quality–

related requirements. Although, the quality require-

ments can also be seen as non-functional require-

ments (see Section 5.6), they are listed in their own

category because of their important role in EAM.

DQR 1 - The System must Provide Mechanisms that

Help the Quality Assurance Responsibles to Ensure

Data Consistency. In a system which integrates data

from various sources, data consistency is a major con-

cern. Therefore, it needs to be speciﬁcally addressed

as a requirement. This requirement relates to require-

ment OR 1.1 in the sense that the QA process should

be embedded into the general automated EA data col-

lection process.

DQR 2 - The System must Provide Mechanisms to

Ensure Data Actuality that is Sufﬁcient for the EA

Goals. In order to keep the quality of the EA data

high, the maintenance process must provide a mech-

anism that checks the actuality of data items. In case

the actuality of some items is not good enough, an

update process should be initiated.

DQR 2.1 - Each Element in the System’s Data Struc-

ture must have a Creation Time Stamp and an Expi-

ration Date (Volatility). As a result of requirement

DQR 2 each data item needs to have meta–data at-

tached to it that indicates the creation time stamp and

a form of expiration date. Different types of data may

have a different volatility, e.g. the past has shown that

mainframe servers have a longer life span than a spe-

ciﬁc version of an information system. Thus, each

information source and information type must have a

speciﬁc expiration time span.

DQR 3 - The System must Provide Mechanisms to

Adjust the Granularity of the Data in the Reposi-

tory. The correct granularity of data is crucial to re-

alize the beneﬁt of EA. If the data is too ﬁne-grained,

it is hard to draw strategic conclusions from it, if it is

too coarse-grained, the information contained in it is

too unspeciﬁc. In a solution that includes automated

data retrieval it is likely that the collected data is ﬁner

grained than what is needed by the EA practitioner.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

334

Thus, the system must provide a ﬁlter mechanism that

can adjust the information that is actually displayed in

the views.

DQR 4 - The System must Provide Mechanisms that

Allow for the Automated Propagation of Changes.

As identiﬁed by several research publications, such as

(Dam et al., 2010) and (Kumar et al., 2008), it is often

the case that changes to the EA repository data im-

ply additional changes, to keep the data model consis-

tent. Hence, the system should provide mechanisms

to identify demand for those secondary changes.

DQR 5 - The System must be Able to Identify

and Resolve Data Identity Conﬂicts from Different

Sources Via Identity Reconciliation. A reason for

inconsistencies can be if several objects are present

in an EA repository that describe the same physical

object independently from each other. This problem

can occur when several data sources are integrated

which do not share object identiﬁers. Thus, the sys-

tem must provide means to identify and resolve these

object identities.

5.5 Functional System Requirements

FR 1 - The System must Allow for the Deﬁnition of

KPI Calculations. This requirement demands a lan-

guage with which the calculation algorithm for Key

Performance Indicators (KPI) can be deﬁned.

FR 2 - The System must be Able to Calculate the De-

ﬁned KPIs from Runtime Information. The ability

to gather runtime information also brings the positive

effect that the actuality and ﬁne granularity of the col-

lected data allows for up-to-date calculation of KPIs.

So this requirement demands that the KPIs deﬁned in

FR 1 can be calculated from runtime information.

5.6 Non-functional Requirements

NFR 1 - The System must Scale for Large Amounts

of Data Input and Large Repositories. Real

enterprises can have thousands of elements in their

EA repository. In order to ensure responsiveness of

queries and the EA tool in general, care must be taken

during the development phase to ensure scalability.

This requirement is also stated in (Hafner and Winter,

2008).

In this section we have presented a list of re-

quirements for a method, process and tool that

supports automated EA maintenance. In the next

section we look at success evaluation criteria that can

be applied to calculate the effectiveness of such a

solution after it has been implemented and applied.

6 SUCCESS EVALUATION

CRITERIA

In order to evaluate the usefulness of an automation

solution after it has been implemented, it is impor-

tant to clarify success evaluation criteria. Establishing

such criteria early on, also helps during the implemen-

tation of a project to not lose the focus of what is ac-

tually demanded by all stakeholders. Please note that

these success criteria do not directly relate to the re-

quirements from the previous section, but rather refer

to the success of an automated EA maintenance effort

in general. Overall, it can be said that it is likely that

EA efforts which have a stronger focus on the IT side,

than on the business side, might see a larger beneﬁt

from such a solution, because collecting high quality

data of the infrastructure is more difﬁcult than col-

lecting information about the business layers. In the

categorization of EA situations in enterprises accord-

ing to (Saat et al., 2011), these companies fall under

the Technical Quality Biased and Aligned Innovation

Biased categories.

In the following we introduce evaluation crite-

ria for an automated EA maintenance mechanism,

and group these by stakeholders that are potentially

affected by such an implementation. We identi-

ﬁed three types of stakeholders that are directly or

indirectly involved with an automated EA mainte-

nance method. These are enterprise architects, data

providers/owners, and the upper level management,

such as the CIO.

Success Criteria for Enterprise Architects. The

enterprise architects are the stakeholder group which

can beneﬁt the most from the automated EA main-

tenance. If implemented the right way, the system

should allow the EA architects to focus on the core

EA tasks, i.e. analyzing the current architecture, plan-

ning the to-be architecture and ensuring that the right

decisions are made towards this planned architecture.

Thus, the key success criteria, from the point of view

of enterprise architects, is how much time the system

can save them, that would have been used to manually

collect and update the EA repository with the former

system. Another important aspect is whether more

information than before can actually be gathered, i.e.

can the system provide a more complete picture of the

architecture than the former system. To measure this

REQUIREMENTS FOR AUTOMATED ENTERPRISE ARCHITECTURE MODEL MAINTENANCE - A Requirements

Analysis based on a Literature Review and an Exploratory Survey

335

criterion the enterprise architecture model prior to the

introduction of the system needs to be compared to

the model of the new system. With this comparison it

would be possible to see, if, for example, the coverage

of information systems or infrastructure elements has

increased. In addition, all data quality attributes (see

Section 5.4) need to be evaluated in order measure the

effectiveness of the approach.

Success Criteria for Data Providers. A critical

part for the success of such a system is whether the

data owners and data providers are willing or capable

of providing the needed data in a satisfactory quality.

That is, the data owners need to actively take part in

the provision of data and the quality assurance pro-

cess that is initiated after data has been inserted into

the central EA repository. Hence, one success crite-

rion is which and how many data sources (e.g. de-

partments) provide interfaces to automatically collect

the data. It is therefore essential for the success that

providing the data by the data owners is facilitated as

much as possible to get their support. It needs to be

measured to what degree the automation process can

actually be integrated into the normal work processes

of the data owners.

Another critical aspect of the data integration is

that integration work has to be conducted to include

various data sources. This can be a laborious task by

itself, and the integration implementation also needs

to be maintained. Or, as one of our survey participants

stated: “(A) challenge will be to enable ’just enough’

automated maintenance and avoid overengineering”.

Thus, a balance needs to be found between the cre-

ation of integration mechanisms and manual collec-

tion of data, in order not to waste resources on inte-

gration. This amount of integration effort needs to be

measured and evaluated against the beneﬁts.

Success Criteria for Management. Another group

of beneﬁciaries are members of the upper–level

management such as the CIO. From the perspective

of this stakeholder group the automated EA mainte-

nance effort is a success if the provided data quality

is raised. By this, this group can make strategic

decisions based on more accurate data. In order to

measure the success from the management point of

view the data quality attributes need to be measured

similar to the evaluation for the enterprise architects.

To summarize, the success evaluation criteria

from the above paragraphs, it can be said that the

overall goal is achieved, if the manual collection of

EA data is signiﬁcantly reduced and the data quality

is raised, while the additional work for the data

providers and systems operation teams can be kept at

a minimum.

7 CONCLUSIONS & FUTURE

WORK

Enterprise architecture management is the practice of

modeling the business and IT components of an enter-

prise and relating them to each other. Thereby, the de-

pendencies between the business and the underlying

IT support can be analyzed, and strategic decisions

can be made towards a consolidated architecture that

matches the business needs. Enterprise architecture

models can become very large, and thus the creation

and maintenance of the EA models is often time con-

suming and costly. Therefore, the questions arise if

there exists literature that discusses (automated) EA

maintenance, to what degree companies actually use

automation techniques and what requirements for an

automated EA mechanism there are.

In this paper, we ﬁrst looked at related work in the

ﬁeld of EA in general and EA maintenance processes.

We discovered that there does not exist related work

that directly addresses the problem of automated EA

maintenance. Then, we presented the results of a sur-

vey we conducted among EA practitioners to identify

how EA maintenance is actually executed in compa-

nies today, and what requirements they have in terms

of automated EA maintenance. As the result of the

survey, the analysis of related work, and own experi-

ences, we then presented a list of requirements for a

tool and a method to facilitate automated EA mainte-

nance. Finally, we discussed possible success evalua-

tion criteria for such a solution.

We see the requirements analysis in this paper as

the starting point for further development of a method

and technical solution for automated EA mainte-

nance. The next step will be to propose an overall

technical architecture and to focus on technical issues

such as object identity reconciliation, semantic inte-

gration and a technical process to support the integra-

tion process. In addition, we will extend existing EA

maintenance processes such as the processes deﬁned

in (Fischer et al., 2007), (Hafner and Winter, 2008)

and (Moser et al., 2009) with our ideas on automated

EA. Our long-term goal is to integrate the solution

into the open-source EA tool iteraplan.

REFERENCES

Ambler, S. W. (2010). Enterprise architecture survey re-

sults. http://www.ambysoft.com/surveys/stateOfITUn

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

336

ion201001.html last retrieved 12/29/2010.

Breu, R. (2010). Ten principles for living models - a man-

ifesto of change-driven software engineering. In 4th

International Conference on Complex, Intelligent and

Software Intensive Systems (CISIS-2010).

Buckl, S., Dierl, T., Matthes, F., Ramacher, R., and

Schweda, C. (2008). Current and future tool sup-

port for ea management. In Proceedings of Workshop

MDD, SOA und IT-Management (MSI 2008), Olden-

burg, Gito.

Buckl, S., Ernst, A., Matthes, F., and Schweda, C. (2009a).

An information model for managed application land-

scape evolution. Journal of Enterprise Architecture,

5(1):12–26.

Buckl, S., Ernst, A. M., Lankes, J., Matthes, F., and

Schweda, C. M. (2009b). State of the art in enterprise

architecture management. Technical report, Chair for

Informatics 19, Technical University Munich, Ger-

many.

Buckl, S., Matthes, F., and Schweda, C. M. (2010).

Future Research Topics in Enterprise Architecture

Management–A Knowledge Management Perspective,

pages 1–11. Springer.

Chief Information Ofﬁcers Council (2007). FEA Consoli-

dated Reference Model Document Version 2.3.

Dam, H. K., Le, L.-S., and Ghose, A. (2010). Support-

ing change propagation in the evolution of enterprise

architectures. In 2010 14th IEEE International En-

terprise Distributed Object Computing Conference,

pages 24–33. IEEE.

De Boer, F.S., Bonsangue, M., Groenewegen, L., Stam, A.,

Stevens, S., and Van Der Torre, L. (2005). Change

impact analysis of enterprise architectures. In Infor-

mation Reuse and Integration, Conf, 2005. IRI-2005

IEEE International Conference on., pages 177–181.

IEEE.

DMTF (2010). Conﬁguration management database (cmdb)

federation speciﬁcation - dsp0252 1.0.1.

Farwick, M., Agreiter, B., Breu, R., Ha andring, M., Voges,

K., and Hanschke, I. (2010). Towards living landscape

models: Automated integration of infrastructure cloud

in enterprise architecture management. In Cloud Com-

puting (CLOUD), 2010 IEEE 3rd International Con-

ference on, pages 35–42.

Fischer, R., Aier, S., and Winter, R. (2007). A federated ap-

proach to enterprise architecture model maintenance.

Enterprise Modelling and Information Systems Archi-

tectures, 2(2):14–22.

Hafner, M. and Winter, R. (2008). Processes for enterprise

application architecture management. In Hawaii In-

ternational Conference on System Sciences, Proceed-

ings of the 41st Annual. IEEE.

Hanschke, I. (2009). Strategic IT Management: A Toolkit

for Enterprise Architecture Management. Springer.

IEEE Computer Society (2000). Ieee recommended prac-

tice for architectural description of software intensive

systems (ieee std 1471-2000).

Konstantinou, A. and Yemini, Y. (2009). A2A: An archi-

tecture for autonomic management coordination. In-

tegrated Management of Systems, Services, Processes

and People in IT, pages 85–98.

Kumar, A., Raghavan, P., Ramanathan, J., and Ramnath, R.

(2008). Enterprise interaction ontology for change im-

pact analysis of complex systems. In 2008 IEEE Asia-

Paciﬁc Services Computing Conference, pages 303–

309. Ieee.

Lankhorst, M. (2005). Enterprise Architecture at Work:

Modelling, Communication and Analysis. Springer,

Berlin.

Moser, C., Junginger, S., Br

uckmann, M., , and Sch

one,

K. (2009). Some process patterns for enterprise ar-

chitecture management. In Proceedings, Workshop

on Patterns in Enterprise Architecture Management

(PEAM2009), Bonn, pages 19–30.

OGC (2007). ITIL Lifecycle Publication Suite Books, 2nd

impression. TSO.

Saat, J., Winter, R., Franke, U., Lagerstroem, R., and Ek-

stedt, M. (2011). Analysis of it/business alignment

situations as a precondition for the design and engi-

neering of situated it/business alignment solutions. In

Proc. Hawaii International Conference on System Sci-

ences (HICSS-44).(January 2011).

Tanner, A. and Feridun, M. (2009). Fusio: Semantic in-

tegration of systems management and enterprise in-

formation. Technical report, IBM Research GmbH

Zurich Research Laboratory.

ter Doest, H. and Lankhorst, M. (2004). Tool support

for enterprise architecture-a vision. Technical report,

Telematica Instituut, Enschede.

The Open Group (2009). The Open Group Architecture

Framework (TOGAF) version 9.

US Department of Defense (2010). The DoDAF Architec-

ture Framework Version 2.02.

Wilson, C. (2010). Gartner - magic quadrant for enterprise

architecture tools.

Winter, K., Buckl, S., Matthes, F., and Schweda, C. (2010).

Investigating the state-of-the-art in enterprise archi-

tecture management methods in literature and prac-

tice. In MCIS 2010 Proceedings.

Winter, R. and Fischer, R. (2007). Essential layers, artifacts,

and dependencies of enterprise architecture. Journal

of Enterprise Architecture, pages 1–12.

Zachman, J. A. (1987). A framework for information sys-

tems architecture. IBM Systems Journal, 26(3):276–

292.

REQUIREMENTS FOR AUTOMATED ENTERPRISE ARCHITECTURE MODEL MAINTENANCE - A Requirements

Analysis based on a Literature Review and an Exploratory Survey

337
