INTERACTIVE COMPONENT VISUALIZATION

Visual Representation of Component-based Applications

using the ENT Meta-model

Jaroslav

Snajberk and P

remek Brada

Department of Computer Science and Engineering, Faculty of Applied Sciences, University of West Bohemia

Pilsen, Czech Republic

Keywords:

Component, Visualization, UML, Meta-model, Views, Content-aware.

Abstract:

UML is considered to be a universal solution for diagramming any application, but UML also has its short-

comings. It needs several diagrams to describe one problem, it cannot create different views on one diagram

and it is not interactive. This leads to hours spent drawing the same thing from different views, any change

has to be applied several times and the author of a UML diagram has to balance between good readability

and providing a sufﬁcient amount of information. In particular, the UML component diagram has insufﬁcient

expressive power to capture all the facts of even today’s component models and architectures. In this paper, we

propose a visualization aimed at modular and composed architecture that is content-aware, so it can present

the model of component-based architecture in different ways, depending on user needs. By default, it presents

minimum information to reduce cognitive load and keep the diagrams comprehensible, while making the ad-

ditional information available when the user needs it. This paper thus suggests a possible substitute for UML

in the domain of component-based applications.

1 INTRODUCTION

Many component-based applications are developed

on rather different component frameworks. Compo-

nent models like EJB (Sun Microsystems, Inc., 2001),

CORBA (Object Management Group, 2006a), OSGi

(OSGi Alliance, 2009) and more can be found in com-

mercial applications and even more component mod-

els – for example, SOFA (Bures et al., 2006), Fractal

(Merle and Stefani, 2008) and CoSi (Brada, 2008) –

are the subject of research.

The diversity of component models and even un-

derstandings of what actually is a component lead to a

very broad deﬁnition of component itself (Szyperski,

2002):

“A software component is a unit of compo-

sition with contractually speciﬁed interfaces

and explicit context dependencies only. A

software component can be deployed indepen-

dently and is subject to composition by third

parties.”

In such an environment, where component mod-

els have so little in common and can have so many

different characteristic features, component architects

and assemblers stand before these choices of how to

visualize the structure of their component-based ap-

plications:

1. Create a component model-speciﬁc visualization;

2. Use a general “boxes-and-arrows” visualization.

A component model’s speciﬁc visualization has to

introduce its own graphic notation to be able to vi-

sualize the speciﬁcs of the component model (only

a few component models already have one like, e.g.,

SaveCCM (Hansson et al., 2004)). This results in the

need to learn this notation by every developer in order

to use it and this approach complicates the exchange

of diagrams between different domain experts.

A general “boxes-and-arrows” visualization is, on

the other hand, useful for exchange of diagrams be-

tween domain experts, but it provides only a few spe-

ciﬁc details about components and thus it can only

provide a shallow understanding of the component-

based application. UML 2.0 (Object Management

Group, 2009) is a common example of this general

visualization.

218

Šnajberk J. and Brada P..

INTERACTIVE COMPONENT VISUALIZATION - Visual Representation of Component-based Applications using the ENT Meta-model.

DOI: 10.5220/0003436902180225

In Proceedings of the 6th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2011), pages 218-225

ISBN: 978-989-8425-57-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

1.1 Problem Deﬁnition

For better usability, UML 2.0 supports extensions in

the form of proﬁles which can offer a customiza-

tion of the general “boxes-and-arrows” able to capture

enough details about the structure of the application

on a general level. This customization is adequate for

most of the needs present in component models and

has been veriﬁed on several component models.

The problem is that UML doesn’t fulﬁll some of

the needs of component-based development, which

would speed up and improve the orientation and uder-

standing of the structure of the component-based ap-

plication. These needs can be summarized as follows:

• In component-based development, there are roles

with very different interests and needs (developer,

assembler, etc.). UML uses a diagram for every

role in order to provide the exact amount of detail

for each of them.

• Stereotypes, which are the power of the UML ex-

tension mechanism, behave more like tags – they

only say that the attribute or method belongs to

some group. But component-based development,

because of its diversity, needs a mechanism to

model new types of elements apart from attributes

and methods. Ideally, the model should provide

some meta-information to improve orientation in

the elements of the component.

• UML was designed to be static, to show all infor-

mation at once and provide the same output both

on screen and paper. However, when component

assembler works with hundreds of components,

he needs to keep orientated in a complex “boxes-

and-arrows” diagram, accessing levels of detail on

demand interactively.

• Similar to the previous point, but closer to im-

plementation, when component architect looks on

the components, he may be interested in the exis-

tence of all the elements, but he doesn’t want to

be bothered with the details about these elements.

1.2 Proposed Solution and Paper

Structure

In order to address these needs, we propose an ap-

proach alternative to UML that will be built on a new

meta-model of component-based applications. We

chose to use new meta-model, instead of modifying

the UML meta-model, because it enables us to create

a clean solution just for the purpose of visualizing the

structure of a component-based application interac-

tively. The reasons for and details of the meta-model

are discussed in (Snajberk and Brada, 2011).

This new meta-model will help us to address the

ﬁrst two problems discussed in the previous section,

because it allows one to model any kind of component

interface element and introduces user-deﬁned groups

of elements, so-called Traits. More about the clas-

siﬁcation and the ENT meta-model can be found in

Section 3.

The key to understanding complex systems is sim-

plicity and cleanness, because then the user can eas-

ily see a whole picture. This simplicity has to be bal-

anced with sufﬁcient information provided by a single

component. We achieve this balance by visualizing

all elements but hiding all supplementary information

until the user requests it by interaction with the di-

agram. We call this an interactive visualization and

describe its details in Section 4, with a discussion of

its usage in Subsection 4.7.

The paper is concluded with an overview of fu-

ture research and a summary of the contributions pre-

sented.

2 RELATED WORK

Jean-Marie Favre describes the needs of visualization

of component-based systems in (Favre and Cervantes,

2002); in his previous work (Favre et al., 2001), he

covered the topic of reverse engineering of huge soft-

ware systems. In these articles, he also mentions two

visualization tools: Generic Software Exploration En-

vironment (GSEE) and Object Modeler Visualization

Tool (OMVT). However, these tools are out of date

and there is no sequel to this research.

The research group around Alex Telea at the Uni-

versity of Eindhoven is working on advanced visu-

alization styles that help to understand and analyze

software. As examples of their work, we can mention

(Telea and Voinea, 2004) which provides a new way

to differently look on extensive component-based sys-

tems and (Byelas and Telea, 2006), which describes

the extension of UML by using metrics and highlight-

ing areas of interest. While the ﬁrst work is highly

abstract and far from well-arranged diagrams, the sec-

ond work is very interesting for future development of

our visualization.

Concerning UML and proﬁles for component-

based development, (Petricic et al., 2009) describe

how to create a UML proﬁle for the SaveCCM com-

ponent model and (Object Management Group, 2007)

is the ofﬁcial UML proﬁle for the CORBA compo-

nent model. Extending UML through proﬁles is not

the only way it can be extended. There is also the

possibility to extend the core meta-model of UML

as described in (Perez-Martinez, 2003). The author

INTERACTIVE COMPONENT VISUALIZATION - Visual Representation of Component-based Applications using the

ENT Meta-model

219

used this “heavyweight” approach to provide a better

description of the C3 architectural style described in

(Shaw and Garlan, 1996). Our work could similarly

modify the UML meta-model to back the visual nota-

tion, but we rather chose a new and clean meta-model

without legacy problems.

In (Dumoulin and Gerard, 2010), the authors

present a very innovative extension of UML by

adding multiple layers. This is a big step for UML

diagrams because by using layers or, more precise,

change-sets, the information presented in a diagram

can be modiﬁed. This solution removes the problem

with multiple diagrams of the same application cre-

ated for different roles, but it doesn’t address the in-

teractivity issues.

3 ENT META-MODEL

The ENT meta-model is a MOF (Meta Object Facility

(Object Management Group, 2006b)) model, deﬁning

the structures of component models and component-

based applications; see (Brada, 2004) and (Snajberk

and Brada, 2011) for details about the model. It is

supposed to be able to describe any component-based

application in any component model.

Its main characteristic is the use of the faceted

classiﬁcation approach (Prieto-Diaz and Freeman,

1987) to represent components in a way which is ﬂex-

ible enough for users with different interests. A key

structure used in the meta-model is the ENT classiﬁer,

which is a tuple of identiﬁers which characterise any

component interface element from several orthogonal

aspects related to user perception.

3.1 Overview of the Meta-model

The ENT meta-model is structured into two levels:

on the component model level the main characteristic

features of a given component model are deﬁned; on

the application level the concrete components, their

interface elements and their bindings in an application

are captured.

The structural hierarchy of the meta-model starts

with a component model as a set of component types.

A component type is deﬁned by a complete minimal

set of deﬁnitions of traits which describe the possible

kinds of interface elements which the component type

can support. The traits declare the language meta-type

and ENT classiﬁer of these elements, capturing their

commonalities like the users do. To allow usage of

details on the lower level, we have to formally deﬁne

them as deﬁnitions of tags.

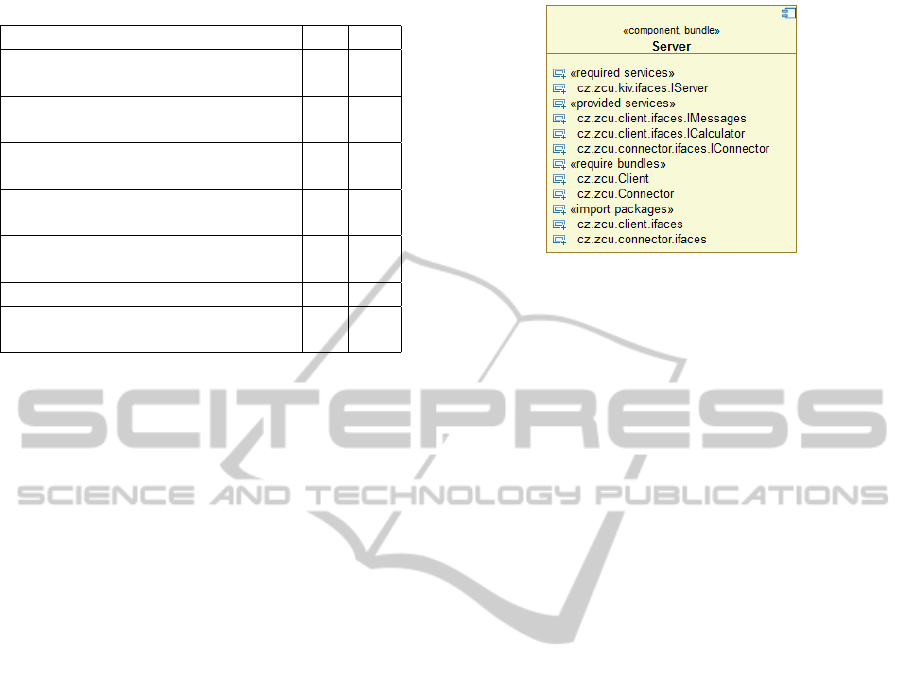

As an example, there is only one component type

in OSGi called a “bundle”, with traits listed in Ta-

ble 1. The ENT meta-model enforces this structuring

of component interface (as opposed to a ﬂat collec-

tion of items, cf. Figure 3) because it is quite natu-

ral for developers to think of, e.g., all components’

provided services as a group, regardless of their con-

crete interface types and location in the speciﬁcation

source. In Enterprise JavaBeans, on the other hand,

several different component types can be identiﬁed

– SessionBeans (with traits listed in Table 1), Mes-

sageDrivenBeans or Entities. The component types,

as well as the trait’s characteristic meta-type and clas-

siﬁer, are therefore based on a human analysis of the

concrete component model and its component speci-

ﬁcation language(s).

Table 1: Traits of Bundle and SessionBean.

Bundle (OSGi) SessionBean (EJB)

Exported packages Business interfaces

Imported packages Business references

Provided services Event publishers

Required services Resources

Required bundles Web services

Used packages Web service references

... ...

At the level of a concrete application, a component

implementation then conforms to one of the compo-

nent types deﬁned by its component model. Each

component has a set of concrete interface elements

manifest on the visible surface of its black box. These

elements populate some or all of its actual traits,

which again conform to the corresponding trait def-

initions. Details about components and interface ele-

ments are created in the form of tags that conform to

their tag deﬁnitions.

The component also holds the connections of its

elements to the counterpart elements in client and/or

supplier components, and – in the case of hierarchical

component models – may list the sub-components it

is composed from.

The list of interface elements present in the com-

ponent will look, written in the simple XML notation,

as below:

<element name="cz.zcu.client"

type="package">

</element>

<element name="cz.zcu.connector"

type="package">

</element>

</trait>

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

220

<element name="cz.zcu.client.ifaces.

IMessages" type="service">

</element>

<element name="cz.zcu.client.ifaces.

ICalculator" type="service">

</element>

...

</trait>

...

</component>

In many component models, several run-time in-

stances of a concrete component can be created, each

with a unique identity. The ENT meta-model does not

deal with component instances because its domain is

the level of component models and component appli-

cation design, rather than the run-time instantiation

level.

3.2 Classiﬁcation System

A key structure used in trait deﬁnition is the ENT

classiﬁer, which is a tuple of identiﬁers which char-

acterize any component interface element from sev-

eral orthogonal aspects related to user perception. The

ENT classiﬁcation system has eight facets called “di-

mensions” and for every trait one value is chosen from

every dimension. However, there is one exception,

because in Lifecycle dimension, multiple values can

be chosen marking in which life cycle phases the ele-

ment is important.

• Nature = {syntax, semantics, nonfunctional}

• Kind = {operational, data}

• Role = {provided, required, neutral, ties}

• Granularity = {item, structure, compound}

• Construct = {constant, instance, type}

• Presence = {mandatory, permanent, optional}

• Arity = {single, multiple}

• Lifecycle = {development, assembly, deploy-

ment, setup, runtime}

These classiﬁers are the key structure for category

sets which say how to group and ﬁlter traits. By ﬁlter-

ing traits one can produce for every situation, a subset

of traits emphasizing the signiﬁcant ones. Category

sets are deﬁned by selector operators in the trait clas-

siﬁcation and can be created by any user if another

point of view is needed.

The key category set for component applications

is the E-N-T (Brada, 2004), which has three groups

(see Figure 1). The ﬁrst group contains traits with

E-N-T (Exports-Needs-Ties)

= λC.(C.role =

{

provided

}

)

= λC.(C.role =

{

required

}

)

= λC.(C.role =

{

provided, required

}

)

Figure 1: ENT category set.

dimension {role = provided}; this means those ele-

ments which the component exports. Required ele-

ments are similarly grouped as needs and elements

that can be both provided and required are called ties.

4 INTERACTIVE

VISUALIZATION

In this section we will introduce a visualization tech-

nique that is based on the ENT meta-model described

earlier. This visualization should provide an alterna-

tive to the UML component diagrams – describing the

structure of any component-based application. It is

aimed to help understand the application faster and

more easily and to help in any situation where it is

important to keep the scope of the application under

control, while having access to the details. The sec-

ond goal is to remove the necessity of creating mul-

tiple diagrams for the same structure, just to differ in

the number of details.

We decided to address these problems because we

ﬁnd it alarming that UML component diagrams of

component-based applications are over-complicated,

by either complexity or number of diagrams. When

any institution is supposed to take over a component

project, it takes dozens of man-hours to understand

the application. When anyone is added to the team

working on a component project, it each time takes

the same high amount of time. This is mainly due to

the time needed to understand the diagrams, because

UML diagrams are not scalable. Since several dia-

grams are commonly created, the time for their cre-

ation and maintenance needs to be counted as well.

These problems are related to problems formal-

ized in Section 1.1 because a well thought-out group-

ing of elements improves the orientation in the com-

ponent application. Information hiding and working

with level of details are also mechanisms that speed

up understanding.

4.1 Underlying Principles

We built our interactive visualization on several prin-

ciples that help us to achieve these goals. They are

adapted from (Holt, 2002) (Meyer et al., 2010), where

INTERACTIVE COMPONENT VISUALIZATION - Visual Representation of Component-based Applications using the

ENT Meta-model

221

even more ideas on how to increase cognitive capabil-

ities for information visualization can be found.

First of all, we didn’t want to create a new visual

notation when it is not needed, so we reused sev-

eral principles of how the components should look

and how they should be connected from UML, and

added several improvements or novel features that

UML does not offer. Another thing that is different

from UML is information hiding that is bound to how

the components are presented. The key idea is to show

only what is important at the current level of abstrac-

tion. These principles are behind the notation core

described in Section 4.2.

To eliminate the need for multiple diagrams, we

keep all information stored in one model and we

present only information that is required by the user

depending on his role. To enable these requirement-

based views, we created Category sets that enable

rule-based ﬁltering based on the trait characteristics.

Use of category sets is described in Section 4.3.

In diagrams of complex applications, the com-

plexity of connection lines can completely overwhelm

users’ cognitive capacity. We propose their reduction

to only one connection between two components and

we discuss it in Section 4.4, where we also describe

how the details about these connections can be ac-

cessed. Similarly, we propose how to optimize orien-

tation in complex hierarchical applications, by sim-

ply collapsing them to hide details and expanding on

demand, thus also working on different levels of de-

tails. These principles are discussed in Section 4.5.

The last principle that addresses the needs of com-

ponent assemblers is “Structure mode”. It is designed

to help working with the whole structure while not

losing all the advantages of our proposed visualiza-

tion technique. This is brieﬂy described in Section

4.6.

4.2 Visual Notation of Components

The visual representation of a single component is de-

scribed here. The header of a component has two

lines: the type of component is enclosed by guillemets

on the ﬁrst line and the name of the component is

present on the second line. The header and connec-

tions between components are the only things that do

not change; the body of the component can be altered

as the user needs. The component is highlighted when

the user clicks on it and all tags related to the compo-

nent itself are shown in an info box, which appears

next to the component.

The body of the component is quite different from

UML (see Figure 2). It presents elements in a tree

structure. The highest level are categories that group

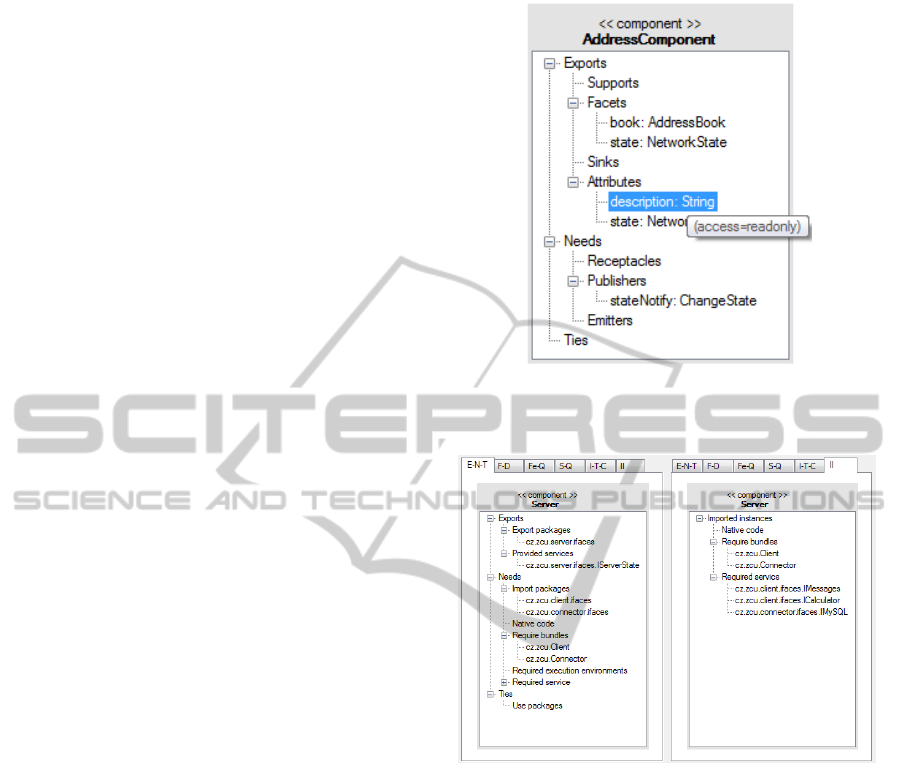

Figure 2: Sample CORBA component in ENT visualiza-

tion.

Figure 3: Filtering ENT visualization by category sets.

traits which match speciﬁed rules (see Section 4.3);

the elements are then leaves of this structure.

A single element is displayed in the classical way

as nameOfElement: type. If it doesn’t have any type

deﬁned (and also when the type isn’t important or

is always the same), it is displayed only as name-

OfElement. Types of elements are used, e.g., with

CORBA components (e.g. Figure 2), unlike for OSGi,

where elements are the names of interfaces, classes

and packages (e.g. Figure 4).

If the user is interested in a concrete element, he

can hover over it and all tags will be displayed in info

box. This info box is apparent in Figure 2, where ele-

ment description is readonly.

In Figures 2 and 3, it can be seen that different

components from different component models are dis-

played similarly, so it is easy to read components

from any component model.

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

222

4.3 Diagram Filtering by Category Sets

Different users and roles need, in different situations,

to emphasize and/or hide some traits and elements.

For example, component architects are interested in

other information than component developers. By

displaying all information contained in the model, on

the other hand, there could be a danger of confusion

when representing big and complex applications.

These problems are solved by using category sets

described in Section 3.2. These category sets can ﬁlter

and group traits and then be used to provide the tree

structure described in the previous section.

For example, there are two different views of the

same OSGi bundle in Figure 3. The ENT category set

shows all traits of the bundle component type, while

the second set (II) is very selective and shows only

imported instances. The possibilities of grouping and

ﬁltering are very rich, as they can use more than one

condition.

Additional category sets can be deﬁned by a user

and used in the visualization. The visualization of

an application can thus be parametrized (modiﬁed) to

suit individual unforeseen needs or to speciﬁc roles.

For example, an OSGi system architect would beneﬁt

most from the view consisting of two categories for

provided and required instances (Construct=Instance)

to concentrate on service-based communication.

4.4 Inter-component Bindings

Bindings between two components are represented by

a “lollipop” notation. This style was chosen as it is a

standard way introduced by UML. In real world com-

ponent applications, it is usual that there are multiple

bindings between two components. With dozens of

components this would result in a cluttered diagram.

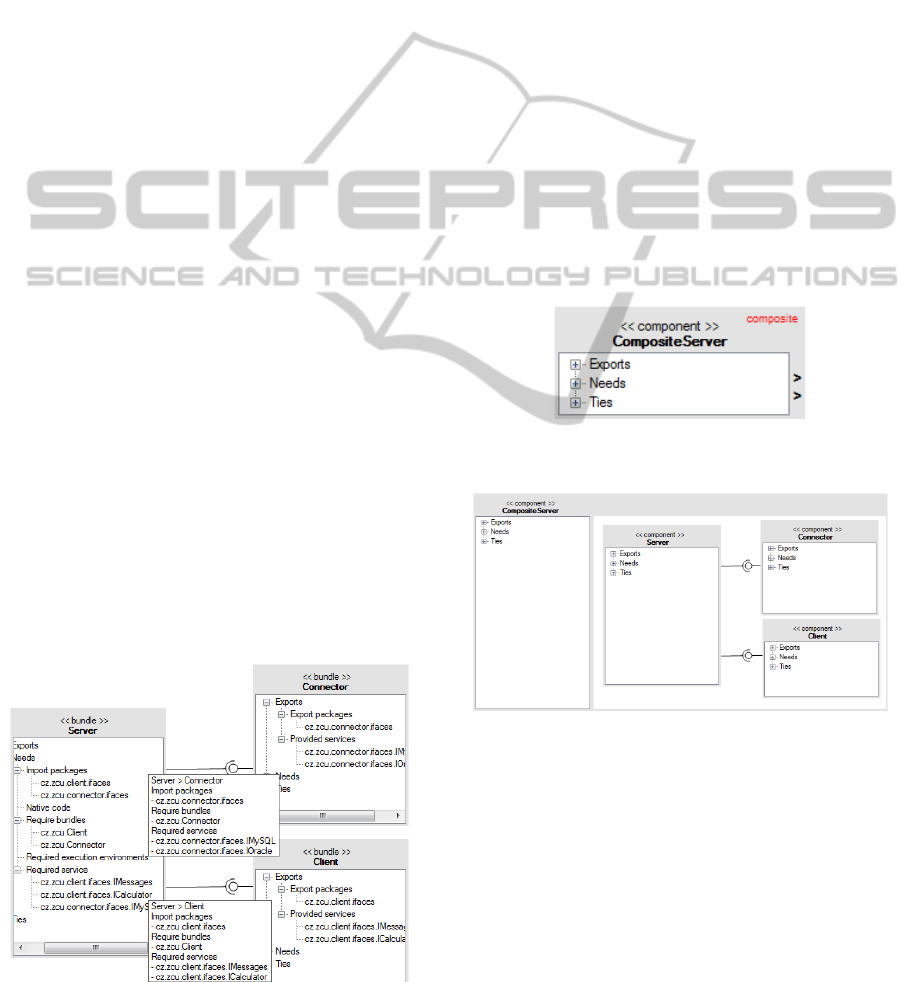

Figure 4: Simple OSGi application in ENT.

To reduce the complexity of such diagrams, we hide

all relations between two components under one line.

The user can still study how the components are re-

lated together, but the number of connection lines is

signiﬁcantly reduced.

If the user wants to know which elements are cre-

ating a connection, he can click on the given line and

an information box will appear near the line. In Fig-

ure 4, one can see the Server bundle that requires

several elements from Connector and Client bundles.

In this ﬁgure, the user already required information

about connections and because of that the info boxes

on both connection lines are active.

4.5 Composite Components

The structure of component-based applications be-

comes complicated when higher-level components

use other composite (sub)components. The level of

recursion can be rather high, thus making the dia-

gram, where all these composite components show

their internal structure, hard to read and understand.

Figure 5: Sample composite component.

Figure 6: Extended composite component.

Our notation therefore displays composite compo-

nents similarly to atomic components, without reveal-

ing their internal structure, but informing that inner

architecture is present by the key word composite in

the upper right corner of the component.

The user can study a diagram and when he wishes

to display how the internal architecture of a composite

component looks, he just expands its box using the

expansion arrows along the edge of the component

box to unveil the detailed view (see Figures 5 and 6).

INTERACTIVE COMPONENT VISUALIZATION - Visual Representation of Component-based Applications using the

ENT Meta-model

223

Table 2: Comparison of visualizations.

Situation ENT UML

User needs to create a high-level X

mental model from the diagram(s)

Application has to be described X

on several levels of details

User needs to work on several X

levels of details seamlessly

Dynamic aspects of the application X

need to be modeled

Application with many X

components and connections

Diagram is presented on paper X

User needs to present a diagram in a X

generally known format

This feature also keeps the diagram of the hierarchical

application simple and doesn’t require the creation of

any other separate diagrams to study the structure of

composite components.

4.6 Structure Mode

Component assemblers need most of the time to see

only the overall structure of the whole application, but

they might need to study the details of the component

to check the compatibility and substitutability.

Therefore, the structure mode presents all compo-

nents with the body part of the box hidden, so all that

remains from the component representation are the

names of the components and their types in guillemets

plus the connection lines. This results in a clean and

simple “boxes-and-arrows” diagram. The component

sets are still active, so clicking on the component will

reveal the body with a selected component set dis-

played in full detail as usual.

4.7 Comparison with UML

Let us conclude this section with a brief discussion

of the situations where it is better to use UML com-

ponent diagrams and when it is better to use our in-

teractive visualization, because each of them is best

for different kinds of things. The situations in which

the two visualization alternatives were compared are

presented in Table 2.

This comparison assumes that we use UML with

a proﬁle and visual design styled to look similar to

our representation, so these two approaches are com-

parable. We found similar representation in (Eriks-

son et al., 2004), where elements are grouped by their

stereotype. The OSGi sample Server bundle in Figure

3 can be represented in UML as shown in Figure 7.

Figure 7: UML extended to look similar to ENT.

5 FUTURE WORK

In our research about interactive visualization, we

have everything prepared for the implementation

phase. We are currently working on a tool that im-

plements the described visualization approach. This

tool is written as Eclipse RCP (Rich Client Platform).

Analyzers of component implementations for OSGi,

EJB and SOFA component models are also part of

the construction. These loaders are written as plug-

ins and thus support for more component models can

be easily added to the ﬁnished tool. The completed

implementation of this tool will, furthermore, provide

extension points where new visualization styles could

be added.

The proposed interactive visualization has to be

tested on realistic case studies and real component

applications, involving users (programmers and ar-

chitects) to improve quality and usability and also to

provide empirical evaluation. Different kinds of high-

lighting and coloring based on classiﬁcation, cluster-

ing of components and other enhancements will be

the subject of further research to improve the usabil-

ity in component-based development.

6 CONCLUSIONS

This paper presented a new approach in visualization

of existing component-based applications. This ap-

proach is based on the ENT meta-model, which en-

hances data on component interface elements with

semantic information. The model data based on the

ENT meta-model is content aware and thus can be in-

terpreted in various ways based on user needs. This

meta-model also offers the back end for different vi-

sualization styles.

The proposed visualization uses a notation based

on UML, but offers interactivity with the user and pro-

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

224

vides different views of the same model. One of its

contributions is generality, meaning it can visualize

any application from any component model. The ar-

guments for using this new visualization compared to

UML are: saving of time due to easier understanding,

working with several levels of details, cognitive prin-

ciples adapted to improve work with complex appli-

cations, easy scalability and future extendibility. We

expect this visualization will be further improved as

the research progresses.

ACKNOWLEDGEMENTS

The work was supported by the UWB grant SGS-

2010-028 Advanced Computer and Information Sys-

tems.

REFERENCES

Brada, P. (2004). The ENT Meta-Model of Component In-

terface, version 2. Technical report DCSE/TR-2004-

14, Department of Computer Science and Engineer-

ing, University of West Bohemia.

Brada, P. (2008). The CoSi Component Model: Reviving

the Black-box Nature of Components. In Proceedings

of the 11th International Symposium on Component-

Based Software Engineering, CBSE ’08, pages 318–

333, Berlin, Heidelberg. Springer-Verlag.

Bures, T., Hnetynka, P., and Plasil, F. (2006). SOFA 2.0:

Balancing Advanced Features in a Hierarchical Com-

ponent Model. In SERA, pages 40–48. IEEE Com-

puter Society.

Byelas, H. and Telea, A. (2006). Visualization of Areas of

Interest in Software Architecture Diagrams. In Pro-

ceedings of the 2006 ACM symposium on Software vi-

sualization, SoftVis ’06, pages 105–114, New York,

NY, USA. ACM.

Dumoulin, C. and Gerard, S. (2010). Have Multiple Views

with one Single Diagram! A Layer Based Approach

of UML Diagrams. research report inria-00527850,

Institut National de Recherche en Informatique et en

Automatique, Universite des Sciences et Technologies

de Lille.

Eriksson, H.-E., Penker, M., Lyons, B., and Fado, D.

(2004). UML 2 Toolkit. Wiley Publishing, Inc.

Favre, J.-M. and Cervantes, H. (2002). Visualization of

component-based software. In Proceedings. First In-

ternational Workshop on Visualizing Software for Un-

derstanding and Analysis, 2002., pages 51 – 60.

Favre, J.-M., Duclos, F., Estublier, J., Sanlaville, R.,

and Auffret, J.-J. (2001). Reverse engineering a

large component-based software product. In Software

Maintenance and Reengineering, 2001. Fifth Euro-

pean Conference on, pages 95 –104.

Hansson, H., Akerholm, M., Crnkovic, I., and Tarngren, M.

(2004). SaveCCM - A Component Model for Safety-

Critical Real-Time Systems. In EUROMICRO, pages

627–635. IEEE Computer Society.

Holt, R. (2002). Software Architecture as a Shared Mental

Model.

Merle, P. and Stefani, J.-B. (2008). A formal speciﬁcation

of the Fractal component model in Alloy. Research

Report RR-6721, INRIA.

Meyer, J., Thomas, J., Diehl, S., Fisher, B., and Keim, D. A.

(2010). From Visualization to Visually Enabled Rea-

soning. In Hagen, H., editor, Scientiﬁc Visualization:

Advanced Concepts, volume 1 of Dagstuhl Follow-

Ups, pages 227–245. Schloss Dagstuhl–Leibniz-

Zentrum fuer Informatik, Dagstuhl, Germany.

Object Management Group (2006a). CORBA Components.

Object Management Group (2006b). Meta Object Facility

(MOF) Core Speciﬁcation.

Object Management Group (2007). UML Proﬁle for

CORBA and CORBA Components Speciﬁcation.

Object Management Group (2009). UML Superstructure

Speciﬁcation.

OSGi Alliance (2009). OSGi Servise Platform Core Speci-

ﬁcation.

Perez-Martinez, J. E. (2003). Heavyweight extensions to

the UML metamodel to describe the C3 architectural

style. ACM SIGSOFT Software Engineering Notes,

28(3):5.

Petricic, A., Lednicki, L., and Crnkovic, I. (2009). Using

UML for Domain-Speciﬁc Component Models. In

Proceedings of the 14th International Workshop on

Component-Oriented Programming.

Prieto-Diaz, R. and Freeman, P. (1987). Classifying soft-

ware for reusability. IEEE Software, 4(1):6–16.

Shaw, M. and Garlan, D. (1996). Software architecture.

Perspectives on an emerging discipline. Prentice Hall

Publishing.

Snajberk, J. and Brada, P. (2011). ENT: A Generic Meta-

Model for the Description of Component-Based Ap-

plications. In 8th International Workshop on Formal

Engineering approaches to Software Components and

Architectures.

Sun Microsystems, Inc. (2001). Enterprise JavaBeans(TM)

Speciﬁcation.

Szyperski, C. (2002). Component Software: Beyond

Object-Oriented Programming. Addison-Wesley /

ACM Press, 3rd edition.

Telea, A. and Voinea, L. (2004). A Framework for Interac-

tive Visualization of Component-Based Software. In

EUROMICRO, pages 567–574. IEEE Computer Soci-

ety.

INTERACTIVE COMPONENT VISUALIZATION - Visual Representation of Component-based Applications using the

ENT Meta-model

225
