THE IETF SHOULD CREATE AN INTERCLOUD RFC

The Interfaces in the IETF Cloud Reference Framework should be Standardized

Jan Sipke van der Veen

TNO, Groningen, The Netherlands

Robert J. Meijer

University of Amsterdam, Amsterdam, The Netherlands

Keywords:

Cloud computing, Standardization.

Abstract:

This paper discusses the current state of cloud computing and shows that it is comparable to the state of

networks before the internet. Clouds need to be connected more to make it easier for users to switch between

providers and at the same time make it easier for providers to supply ”inﬁnite resources”. At the moment the

big cloud providers do not feel the need to standardize this intercloud and there is no authorative body that

sets the standard. This paper argues that it is necessary for the IETF to take its current effort to create a cloud

reference framework one step further and standardize the interfaces between the functions and layers as well.

1 INTRODUCTION

The concept of computing as a utility has been around

since the 1960’s (Parkhill, 1966), but it took until the

mid 2000’s for cloud computing to turn that concept

into a reality. The past years have shown a rapid up-

take in its usage and a lot of providers have joined the

market (Armbrust et al., 2010). Although their ser-

vices are similar in concept, the differences between

them make it difﬁcult for users to switch from one

provider to another. We argue that standardization of

a reference framework alone is not enough to realize

the intercloud. The interfaces between cloud func-

tions and layers should be standardized as well.

This paper will discuss the currently disconnected

clouds in section 2, describe the potential of the inter-

cloud in section 3 and make the case for the need of

standardization of the intercloud by the IETF in sec-

tion 4. Finally it presents two cases where standard-

ization of the intercloud would be very beneﬁcial in

section 5.

2 DISCONNECTED CLOUDS

Cloud computing is still a relatively young phe-

nomenon. Amazon played a key role in the develop-

ment of cloud computing when it launched Amazon

Web Services (AWS) and speciﬁcally Elastic Com-

pute Cloud (EC2). Several providers followed in the

next years to offer network based IT services in a pay

per use fashion. These services can be grouped into

one of three service models (Mell and Grance, 2009):

Infrastructure as a Service (IaaS), Platform as a Ser-

vice (PaaS) and Software as a Service (SaaS).

Because of technical differences between these of-

ferings it is hard to switch from one provider to an-

other. This is true even for similar services within

the same service model. For example, transferring an

e-mail archive from one provider to the next is impos-

sible if not all providers allow a protocol like IMAP

to extract all current messages from the system.

Cloud computing is often attributed ”inﬁnite re-

sources”, at least in the eyes of the consumer. How-

ever, this apparent inﬁnity of resources comes at a

price to the provider. He must ensure that enough

resources are available when demand increases unex-

pectedly. A relatively high percentage of resources is

therefore unused most of the time in small clouds. In

bigger clouds this percentage can be lower, but is still

limited by the size of a single cloud.

The state of cloud computing looks a lot like

the state of networks before the internet. Networks

used to be disconnected and connectivity between

networks could only be achieved with networks of the

same type. Internet changed all this by deﬁning layers

192

Sipke van der Veen J. and J. Meijer R..

THE IETF SHOULD CREATE AN INTERCLOUD RFC - The Interfaces in the IETF Cloud Reference Framework should be Standardized.

DOI: 10.5220/0003437101920195

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 192-195

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

on top of the disconnected networks, see left side of

ﬁgure 1. Even though the separate networks still use

different technologies, e.g. ethernet and roken ring,

the layers on top ensure that communication between

them is possible.

Network 1

Internet Layer

Network n

Transport Layer

Application Layer

Cloud 1

Intercloud Layer

Cloud n

Resource Layer

Application Layer

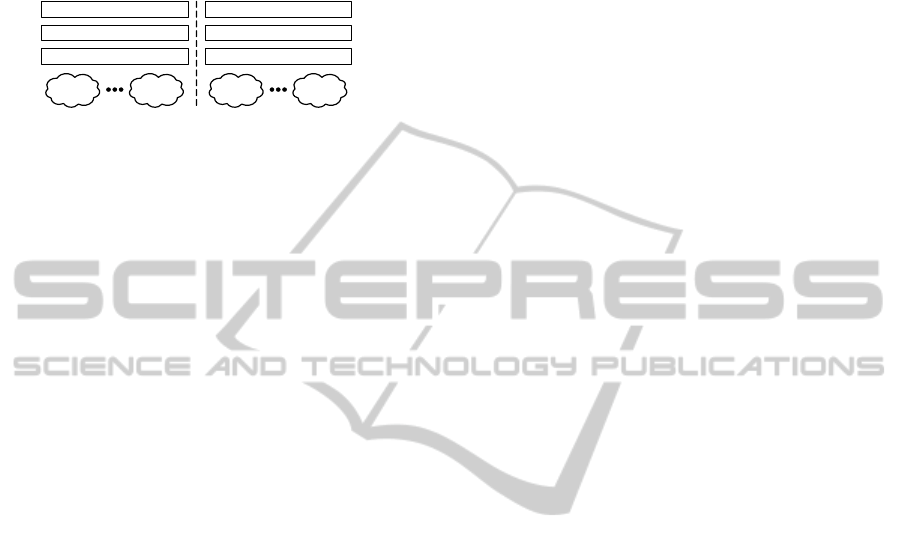

Figure 1: Current internet RFC (left) and possible inter-

cloud RFC (right).

3 CONNECTED CLOUDS

The tranformation of all these separate clouds into a

connected intercloud would bring great beneﬁts to its

users as well as its providers.

The most important beneﬁt for users would be the

ease of switching between providers. Taking the ex-

ample of the internet again, it is currently easy to

switch from one network vendor to the next. It does

not even matter if the network is provided via a ﬁxed

line, a mobile connection or via satellite, each and ev-

ery machine using IP can communicate with all other

machines using IP.

The intercloud would beneﬁt providers as well.

It allows them to share their resources in such a

way that the percentage of unused resources, wait-

ing for unexpected demand, can be much lower per

provider. Currently, a provider attracting mostly UK

customers probably needs more resources during UK

ofﬁce hours. To meet this demand, a lot of resources

are unused during the night. In the intercloud sce-

nario, a provider with mainly US or Australian cus-

tomers could use these resources during their ofﬁce

hours.

At the moment the big cloud computing providers

do not feel the need for standardization. They mainly

see the drawbacks of a standard which allows cus-

tomers an easier move to their competitors. The

smaller providers and especially the users would like

to see such a standard, but the current efforts in this

direction are not good enough. The (proposed) stan-

dards are either limited in scope or the authors are not

seen as authorative. In our opinion the IETF would

make the ideal candidate to describe such an impor-

tant cloud standard. The right side of ﬁgure 1 shows

how such an intercloud RFC may look quite similar

to the existing internet RFC.

4 STANDARDIZATION

Standardization of cloud computing would need to

address several aspects of cloud technology, but also

some business cooperation between its providers.

4.1 Interoperability

One of the ﬁrst areas of standardization should be

the interoperability between different clouds. We will

distinguish between the three service models again,

because they differ very much in the level and type of

standardization that can take place.

4.1.1 Software as a Service

Standardization in this service model should address

the input and output format(s) of the user data, e.g.

how the messages in an e-mail service should look

like. It should also deﬁne the protocol(s) for trans-

mission of this data, e.g. which steps are necessary to

transfer the messages out of the e-mail service. In the

general case this is hard to achieve, because there are

so many different (possible) services. But for speciﬁc

types of services it is quite possible to deﬁne certain

requirements on these formats and protocols. Several

standards are therefore needed in this service model,

one for each service type.

4.1.2 Platform as a Service

Standardization in this service model should address

the programming APIs. Ideally, this standard would

be language independent or at least easy to use in

different languages. Of course there will always be

a need for providers to distinguish themselves from

their competitors. This can be achieved by providing

a common set of calls that are mandatory and a set

of optional or extendable calls that should be clearly

marked as such. This leaves the user free to choose

between interoperability and extra functionality that

is speciﬁc to a certain provider. In this case providers

can still make their own decisions about the program-

maging languages they offer. But if they do offer a

speciﬁc one, the user can be sure that his applica-

tion, using only mandatory calls or supported optional

calls, will work with this provider.

4.1.3 Infrastructure as a Service

Standardization in this service model should address

the virtual machine representation. One part of this is

the representation of the state of the virtual machine,

e.g. the harddisk and the memory contents of a paused

virtual machine. Another part is the representation of

THE IETF SHOULD CREATE AN INTERCLOUD RFC - The Interfaces in the IETF Cloud Reference Framework should

be Standardized

193

metadata about the virtual machine, e.g. the amount

of memory and the number and type of processors it

contains. Standardization should also address the in-

teraction with the virtual machines from a client com-

puter. This interaction, also with the cloud as a whole,

is especially important for management tools. To be

able to make informed decisions on the number of ac-

quired virtual machines and their providers, it is also

necessary to standardize the cost reporting of the dif-

ferent virtual machines at offer.

4.2 Federation

A second area of standardization should be the feder-

ation between different clouds.

4.2.1 Identity and Security

To create the illusion of a single cloud to its users,

there is the need for a shared sense of ”who is who”.

This can be achieved by standardizing on a federated

identity management method. Currently authentica-

tion is mostly achieved with preshared passwords, but

can also be more secure with public and private keys.

It is vital for the intercloud to have a common set of

authentication methods, perhaps with restrictions on

the capabilities if a less secure form of authentication

is used.

Creating a secure connection between servers in

the cloud and servers located elsewhere is a big issue.

This issue needs to be resolved for the intercloud to

work properly, because it depends on a much more

ﬂuid landscape of servers that need to communicate

in a secure fashion.

4.2.2 Accounting and Billing

In the intercloud scenario it would make sense for

a user to subscribe to a single cloud and be able to

use resources of other clouds without being aware of

the technical and business differences between these

clouds. Much in line with a need for a federated iden-

tity management method therefore is the need for fed-

erated accounting and billing methods. This would

allow the cloud providers a way to keep track of the

billable activities of the user, even if these activities

take place in other clouds.

4.3 IETF

The IETF is currently working on or has worked on

several draft standards involving cloud computing:

• A6: The Automated Audit, Assertion, Assess-

ment and Assurance API (Hoff et al., 2010)

• LISP: Locator / Identiﬁer Separation Protocol

(Farinacci et al., 2009)

These two draft standards focus on speciﬁc parts

of cloud computing. The ﬁrst draft standard provides

an open, extensible and secure interface that allows

cloud computing providers to expose audit, assertion,

assessment and assurance information for IaaS, PaaS

and SaaS services. A client would then be able to in-

terrogate the service and verify compliance with local

policy before making use of it, e.g. by checking the

geographical location of the servers. The second draft

standard describes a simple, incremental, network-

based protocol to implement separation of internet ad-

dresses into endpoint identiﬁers and routing locators.

This would alleviate some of the scaling issues cur-

rently visible in network routing.

The IETF is also currently working on reference

frameworks that can be used to guide the standardiza-

tion of cloud computing:

• CSF: Cloud Security Framework (Karavettil et al.,

2010)

• CRF: Cloud Reference Framework (Khasnabish

et al., 2010)

The ﬁrst one deals with the security aspects

of cloud computing and establishes security stan-

dards, policies, procedures and guidelines for cloud

providers. This framework would enable cloud

providers and cloud users to practice safe security

techniques for their applications and intracloud and

intercloud information exchange. The second frame-

work addresses cloud computing in a more general

way. This Cloud Reference Framework involves ba-

sic functions or layers to support the general require-

ments of cloud applications and services. It divides

itself into four horizontal layers and one stacked ver-

tical layer to support conﬁguration management, reg-

istry, logging and auditing, security management and

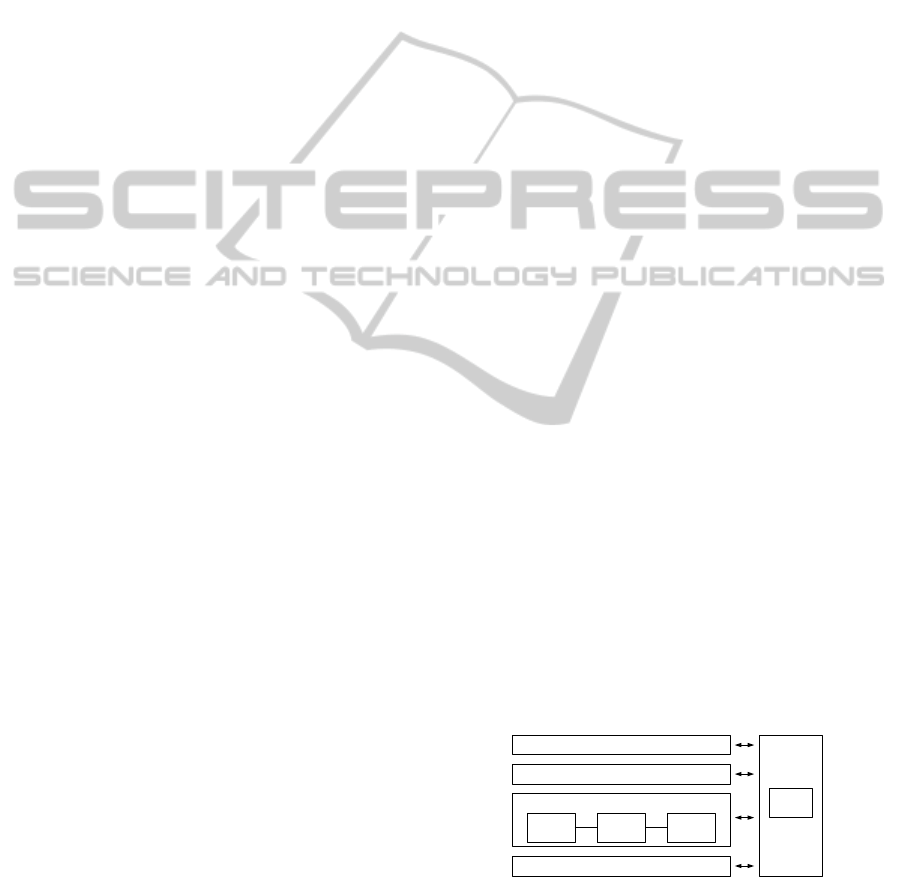

service level agreement (SLA) management, see ﬁg-

ure 2.

Application / Service Layer

Resource Control Layer

Resource Abstraction & Virtualization Layer

Execution

Node

Execution

Node

Execution

Node

Physical Resource Layer

Cloud

Management

Manager

Node

Figure 2: Cloud Reference Framework (draft).

The Cloud Reference Framework seems very

promising as it provides a common understanding of

the different cloud computing functions and layers. In

our opinion it should form the basis for another stan-

CLOSER 2011 - International Conference on Cloud Computing and Services Science

194

dard that describes the interfaces between the func-

tions and layers described in the framework.

5 CASES

This section discusses two cases where standardiza-

tion of the intercloud would be very beneﬁcial.

5.1 Early Warning Systems

Early Warning Systems (EWS) provide a technolog-

ical alternative to human survaillance on critical in-

frastructures like dikes and bridges. These systems

take sensor data from the monitored infrastructure,

analyse the data and report to other information sys-

tems or people about the state of the infrastructure,

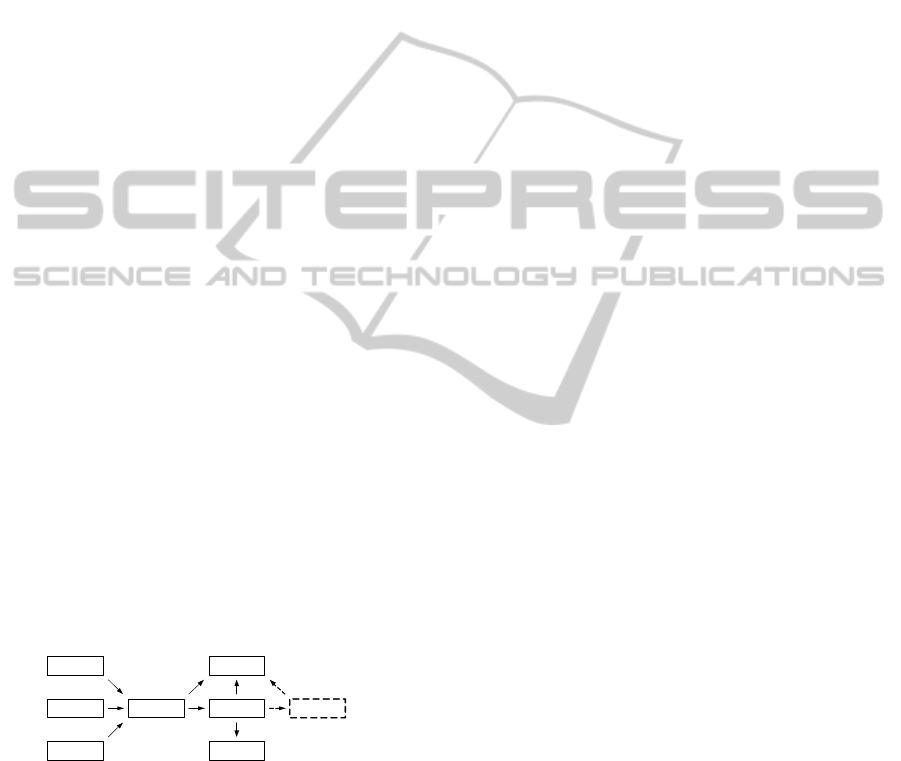

see ﬁgure 3.

During normal operation of an EWS, i.e. there is

nothing wrong with the infrastructure, not much com-

puting capacity is needed to run the analysis. How-

ever, if things are about to go wrong, e.g. the EWS

thinks a dike section will break soon, a lot more com-

puting capacity is needed. This capacity is needed

for instance to simulate the water ﬂowing through the

dike section and into the urban area behind it.

An EWS is therefore a very good candidate for

cloud computing. It would be very inefﬁcient to have

this much computing capacity standing by just in case

something goes wrong with the monitored infrastruc-

ture. However, there is a risk in using a single cloud

provider for such an important IT system as an EWS,

which may warrant the extra cost involved in set-

ting up dedicated computing capacity. The intercloud

would solve this dilemma, because it allows for very

fast switching of providers if something goes wrong

with one of them.

DŽŶŝƚŽƌ ŶĂůǇƐĞ

sŝƐƵĂůŝƐĞ

ůĞƌƚ

^ŝŵƵůĂƚĞsŽůĐĂŶŽ

ŝŬĞ

ƌŝĚŐĞ

Figure 3: Early Warning System (EWS).

5.2 Dynamic CDNs

Content Delivery Networks (CDN) are widely used to

distribute content to users. In a CDN, content is dis-

tributed to several nodes owned by the CDN operator.

If a user requests this content, he is redirected to a

node that is able to provide the content in a fast and

efﬁcient way, e.g. the one that is close to him and not

at maximum capacity yet.

A CDN could be distributed even more if the

nodes do not have to be owned by the CDN opera-

tor itself. If the CDN node is actually a virtual ma-

chine that can be easily transferred from one cloud

to another, the node could be placed even closer to

the potential users. For this scenario to work well, it

is necessary to have many potential locations for the

nodes. The intercloud would be able to provide this.

6 CONCLUSIONS

This paper discussed the current state of cloud com-

puting and showed that it is comparable to the state

of networks before the internet. Clouds need to be

connected more to make it easier for users to switch

between providers and at the same time make it eas-

ier for providers to supply ”inﬁnite resources”. Two

cases were presented that would beneﬁt from the in-

tercloud: early warning systems and dynamic content

delivery networks.

At the moment the big cloud providers do not feel

the need to standardize this intercloud and there is no

authorative body that sets the standard. It is necessary

for the IETF to take its current effort to create a cloud

reference framework one step further and standard-

ize the interfaces between the functions and layers as

well.

REFERENCES

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., and Zaharia, M. (2010). A view of cloud

computing. Communications of the ACM.

Farinacci, D., Fuller, V., Meyer, D., and Lewis, D.

(2009). Locator/id separation protocol (lisp).

http://tools.ietf.org/html/draft-farinacci-lisp-12.

Hoff, C., Johnston, S., Reese, G., and Sapiro, B. (2010).

Automated audit, assertion, assessment, and as-

surance api (a6). http://tools.ietf.org/id/draft-hoff-

cloudaudit-00.html.

Karavettil, S., Khasnabish, B., So, N., Golovinsky,

G., and Yu, M. (2010). Cloud security framework.

http://trac.tools.ietf.org/area/app/trac/attachment/wiki/

Clouds/Karavettil-et-al-CSF-Proposal-10Dec2010.

pdf.

Khasnabish, B., Chu, J., Ma, S., Meng, Y., So, N.,

and Unbehagen, P. (2010). Cloud reference frame-

work. http://www.ietf.org/id/draft-khasnabish-cloud-

reference-framework-00.txt.

Mell, P. and Grance, T. (2009). The nist deﬁnition of cloud

computing. http://csrc.nist.gov/groups/SNS/cloud-

computing/cloud-def-v15.doc.

Parkhill, D. (1966). The Challenge of the Computer Utility.

Addison-Wesley Publishing Company.

THE IETF SHOULD CREATE AN INTERCLOUD RFC - The Interfaces in the IETF Cloud Reference Framework should

be Standardized

195
