TELMA

An Evolutive Distributed Application for In-Orbit Satellites Support

Patrick Pleczon, Eva Bonnin and Laurent Desplas

Astrium, 31 rue des Cosmonautes, Toulouse, France

Keywords: Satellites In-Orbit Support, Distributed software, Scalable application, Evolutive application.

Abstract: Satellites In-Orbit Support is a complex activity requiring the daily thorough analysis of thousands of

parameters. Performing this activity for the growing fleet of satellites delivered by Astrium, the space

EADS subsidiary and leading European Satellite company, featured the development of a new generation

processing environment: TELMA (standing for TELeMetry Access).

This paper describes TELMA and provides a detailed view of the technical choices that structured this

system. First, it describes the notion of satellite telemetry and the needs of the In-Orbit Support (IOS) team.

Then TELMA software architecture is detailed as well as system deployment aspects. This paper also

provides lessons learnt about the development and deployment of the software. Finally, a status of the

current version of TELMA is presented and perspectives are drawn.

1 INTRODUCTION

Satellites In-Orbit Support is a complex activity

requiring the day-to-day thorough analysis of

thousands of parameters. Performing this activity for

the growing fleet of satellites delivered by Astrium,

the space EADS subsidiary and leading European

Satellite company, dictated the development of a

new generation processing environment: TELMA

(standing for TELemetry Access). This paper

describes TELMA and provides a detailed view of

the technical choices that structured this system.

2 SATELLITE TELEMETRY

Satellite telemetry allows monitoring satellite

components. Geostationary satellites continuously

send a telemetry flow that is received on ground

stations. Telemetry is generally emitted as a binary

stream encapsulated within a dedicated protocol. A

single telemetry consists in an on-board measure of

a satellite parameter (e.g. component pressure,

voltage, on board software memory dump, etc.). It

can be coded on any number of bits between 1 and

48 depending on the data type. Such a value

received on ground is called a raw value. The

activity of processing this telemetry flow to restore

time stamped engineer (i.e. physical) values is called

“telemetry decommutation”. It contains at least the

following steps:

 Extracting the raw value from the binary flow.

 Calculating the data time stamp.

 Applying an optional calibration function to

restore the physical value.

 Applying an optional scale factor.

 Computing a parameter-dedicated algorithm that

establishes the parameter validity according to

the values of other decommuted parameters.

3 IN-ORBIT SUPPORT NEEDS

In-Orbit Support team is in charge of the analysis of

the satellite state during its whole lifetime (around

15 years) in order to keep improving satellite quality

and support customers in managing satellite

configuration. Specialists of satellite sub-systems

(e.g. propulsion, power generation, etc.) have to

monitor their sub-systems daily by examining the

behaviour of a set of satellite parameters. In some

cases, they have to investigate the long term

behaviour of a sub-system by analysing the past

satellite telemetry, even from the beginning of the

satellite life.

The specialists’ first need is therefore to display

various graphical representations of parameters:

199

Pleczon P., Bonnin E. and Desplas L..

TELMA - An Evolutive Distributed Application for In-Orbit Satellites Support.

DOI: 10.5220/0003445101990202

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 199-202

ISBN: 978-989-8425-76-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

 Plots tracing hourly or daily statistics about one

or several analogue parameters.

 Daily plots that can be used to focus on any

value of one or several related parameters.

 Statuses plots (related to telemetries with

discrete values such as On/Off, etc.) that shows

changes of parameters values.

 Comparisons of parameters evolution of

different satellites.

They also need to check daily the results of

conditions that can be expressed by a mathematical

expression using parameters values. In some cases,

they have to elaborate more complex processing that

cannot be managed with simple monitoring function

in order to produce data or specific plots.

Users have also to generate reports in different

formats (Microsoft doc, PDF, etc.). It is aimed to

give a clear status of satellites state, in terms of

performance, lifetime, irregular events, anomaly

predictions, etc. These documents contain data from

many sources (raw telemetry, statistics, processing

output, comments, etc.). Reports can cover various

periods of time and can address one sub-system or

all sub-systems of a satellite.

In addition to these basic functional needs, these

following requirements are also necessary:

 Configurability: possibility for users to define

several views including a set of related plots.

 Performance: the users need to be able to get

their data at the beginning of their working day.

This requires TELMA being able to process

satellite telemetry of the day before, for the

whole fleet, in less than 8 hours.

 Reliability: although this is not a critical real

time system, TELMA shall minimize the effects

of hardware or software problems.

 Reprocessing: TELMA shall allow the

reprocessing of past data on long periods.

 Hardware: the customer requirements are to be

able to use regular desktop PCs with standard

company configurations as processing units, and

to be able to access to TELMA from their office.

 Scalability: the initial configuration shall support

32 satellites and shall be scalable to add new

satellites regularly, up to 60 satellites. TELMA

shall also be scalable to add new satellite

parameters and new monitoring and processing.

4 TELMA MAIN FUNCTIONS

TELMA answer to fulfil users’ needs rely on the

daily production of user-defined set of plots starting

from telemetry decommutation. Users can define

groups of related plots they can consult at a glance.

Selecting a given plot displays an interactive plot

that can provide detailed values. Figure 1 shows a

sample of statistics and interactive plots.

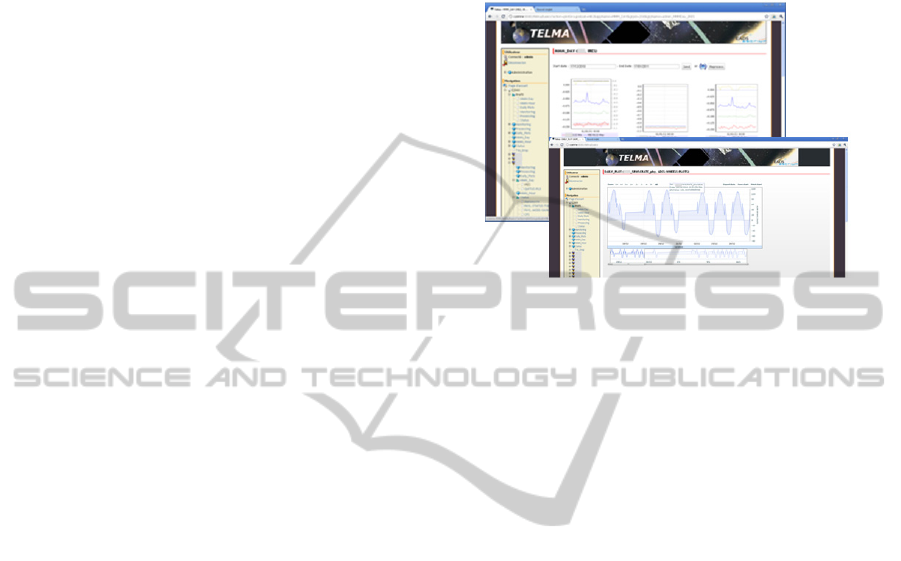

Figure 1: Statistics and interactive plots.

Monitoring applications are computation

procedures executing rather simple expressions

using a set of telemetries or data produced by a

processing application. They are executed at regular

intervals by TELMA in order to assess a conditional

expression and to execute the associated actions if

the conditional expression is true (such as sending

an alarm to a group of users). Monitoring

applications are TELMA answer to users’ needs for

“simple” situation assessment.

For more complex analysis, processing

applications are used. They are more complex

procedures using a set of telemetries and/or results

of other processing to produce data or graphics.

Monitoring and processing applications can be

defined and integrated into TELMA by the users

themselves. They can be allocated to one or several

satellites.

5 TELMA ARCHITECTURE

5.1 Functional Overview

TELMA is composed of the following components:

 A scheduler facility used to distribute the work

to be performed to a set of Processing Units (PU)

at the right time.

 Processing Units are the “workers” entities.

 A web server provides the graphical user

interface to TELMA users.

 A database stores TELMA configuration data,

statistics and processing results.

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

200



PUPU

SchedulerScheduler

Web server (Apache, Tomcat)

Master scheduler

Product database

PUPU

SchedulerScheduler

PUPU

Raw TM

Operators’

workstations

Gb Ethernet

Distributes schedulesDistributes schedules

TM decommutation

Monitoring

Processing

TM decommutation

Monitoring

Processing

Consult web pageConsult web page

Scalability

Perform work

Executes schedules

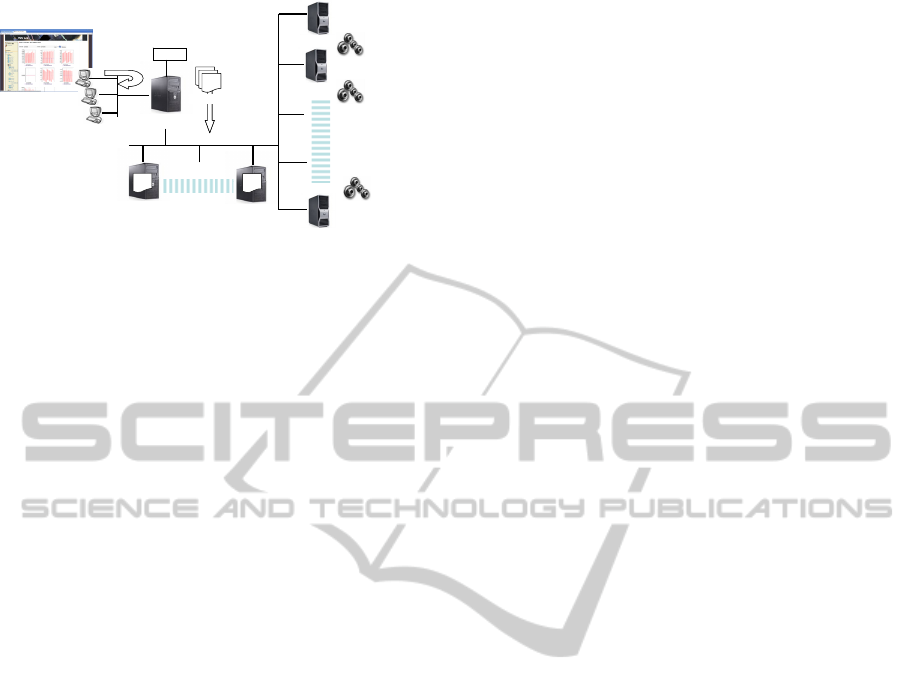

Figure 2: TELMA overview.

TELMA requires a raw telemetry repository

where satellite telemetries generated by the Satellite

Control Centre are stored. Physical telemetry is

stored in a physical telemetry cache.

5.2 Major Technical Choices

5.2.1 Languages and Technologies

The non-web parts of the system are developed in

Java. The user interface relies on Java Servlets

deployed on a Tomcat server, JSP and JavaScript.

Flex is used for implementing the interactive plots.

We tried to limit as much as possible the use of

third party software to reduce long term maintenance

issues.

5.2.2 Decommutation

During satellite design and until its end of life, a

system database is maintained by satellite

specialists. Among many data, this database contains

the extensive definition of satellite telemetry

(organisation of parameters in the downlink frames,

calibration curves, etc.). There is at least one

different database per satellite and generally many

versions are produced during the satellite lifetime.

TELMA integrates a satellite database to Java

code compiler that generates the decommutation

code for each satellite. The code is optimized to

avoid table lookup. For instance, algorithms

evaluating parameters validity are generated

functions using direct Java references on Java

objects that implement other parameters.

Individual JARs are generated for each [satellite,

database version] pair. JARs are dynamically loaded

from a central repository by the PUs when an

activity requests a specific satellite decommutation.

Decommutation requests are sent to the

scheduler that can possibly split them according to

various criteria. Split requests are sent to several

PUs and results are merged by the scheduler on PUs

answers.

5.2.3 Management of User-defined

Applications

Monitoring and processing applications are defined

within TELMA user interface using a sub-set of Java

and a set of predefined user-oriented functions (such

as telemetry access functions, dedicated database

access functions). They are compiled and packaged

into individual JARs. As for decommutation JARs,

the monitoring and processing JARs are dynamically

loaded by PUs when they are required.

5.2.4 Processing Units

PUs are simple Java server applications offering an

activity control interface (start/end activity,

status/load request). A new thread is created for each

activity and JARs implementing decommutations,

monitoring or processing applications are loaded

when needed.

PUs are deployed as a launch script that invokes

a JNLP (Java Network Launching Protocol) file.

Thanks to JNLP the last version of the code is

loaded and run on the PU host each time the PU is

restarted.

5.2.5 Scheduler Facility

An initial trade-off has been made between using an

existing component or product or designing a

dedicated scheduler. We finally chose this later

solution to be independent of third party software

and to optimize the solution to our specific needs.

The master scheduler is quite simple and its role

is only to split the initial schedule (addressing the

full fleet) in sub-schedules using configurable

criteria, and to distribute the schedules to the

schedulers.

Schedulers are able to split incoming requests

and request activities to PUs. Currently the

scheduler is only time-based. A future evolution

could be to add task dependencies.

The main difficulty is to handle the various

possible anomalies to ensure that the requested work

is actually performed within an acceptable time.

This is enforced by several mechanisms such as the

use of start and end time-outs for managing PUs

errors and a scheduler persistent history to be able to

resume the scheduler state in case of scheduler

crash.

TELMA - An Evolutive Distributed Application for In-Orbit Satellites Support

201

5.2.6 Inter-processes Communication

Inter-processes communication relies on RMI (Java

Remote Method Invocation). RMI interfaces remain

quite simple and are basically commands and control

functions and notifications.

The most complex interface is the one dedicated

to the telemetry decommutation. A distributed

callback pattern is used to avoid blocking on the

decommutation request. Data are returned to the

caller at the end of the decommutation as a

structured collection of proxies on the actual

telemetry data that are stored in the physical

telemetry cache by the PU.

Statistics and processing data are directly stored

in the database as there is no need to put a middle

tier for this that would just have added additional

delay to store data.

The PUs regularly send load information to the

schedulers so that they can select the best PU for

starting a new activity. As we have already

mentioned, time-out are used to detect PU

malfunctioning and to possibly restart the

applications started on such a PU on another one.

5.3 System Deployment

TELMA deployment is very versatile. Everything

can fit on one single server if a small system is

required for one satellite, or tens of PCs and several

servers can be used for an operator that has to

manage a large fleet of satellites. Scalability is

possible at different level. First of all for processing

units that form the active part of TELMA. Secondly,

Schedulers can be added to support very large

schedules. In addition to this, several Tomcat servers

can be used with load balancing.

The current platform is based on 4 servers connected

to a SAN, 15 PC and manages data produced by 32

satellites.

6 LESSONS LEARNT

One of the main issues in web-based graphical user

interfaces development for an application that has to

be maintained during years is the proliferation of

tools, technologies, libraries and languages,

questionable maturity and severe long-term

maintenance issues. Developing everything with

basic components can be expensive, especially

building advanced interactive components. Using a

third party library or toolkit can be a good solution

but the durability of the solution shall be questioned.

Some technologies or toolkits analysed at the very

beginning of the project have already disappeared!

In addition, we encountered several robustness

issues due to third party software. Especially we ran

into some crashes of the Java Virtual Machine with

weird “out of swap space” errors although we had a

lot of free memory. Most of the issues were solved

by upgrading the faulty software with more recent

versions.

7 CURRENT STATUS AND

PERSPECTIVES

The current version of TELMA is used every day on

Astrium fleet. Performance is correct as well as

robustness.

Several improvements are already planned from

details adjustments to major evolutions. Among

these major evolutions, we can quote:

 The implementation of a graphical user interface

for monitoring and processing definition based

on a graphical representation of algorithms.

 Near real time monitoring in order to perform

monitoring and processing activities on the last x

minutes of telemetry.

 The split of other types of requests that would

speed-up reprocessing on long periods.

ACKNOWLEDGEMENTS

The authors would like to thank Astrium IOS team

for its fruitful collaboration in the definition of

TELMA and its involvement for improving this

product.

REFERENCES

Adobe Flex, accessed 2010, adobe.com/products/flex/.

Apache Software Foundation, accessed 2010, The

Apache Tomcat 5.5 Servlet/JSP Container,

tomcat.apache.org/tomcat-5.5-doc/index.html.

Berstis, V., 2002. Fundamentals of Grid Computing,

IBM Red Books.

Dojo Toolkit Community, accessed 2010, Dojo Toolkit

Reference Guide, dojotoolkit.org/reference-guide/.

Eadline, D., The State of Oracle/Sun Grid Engine, Sept.

2010, Linux Magazine.

Schmidt, D.C., Stal, M., Rohnert, H., Buschmann, F.,

Pattern-Oriented Software Architecture: Patterns for

Concurrent and Networked Objects, 2000, Wiley &

Sons.

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

202
